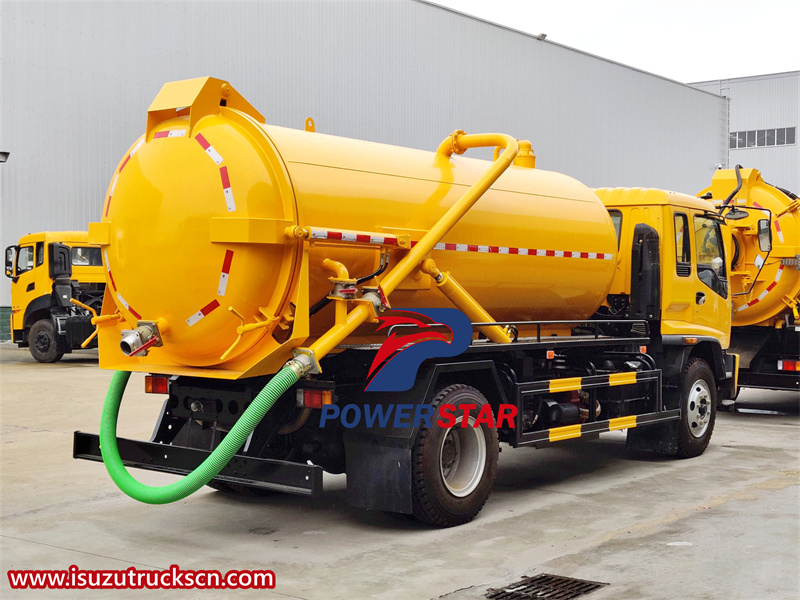

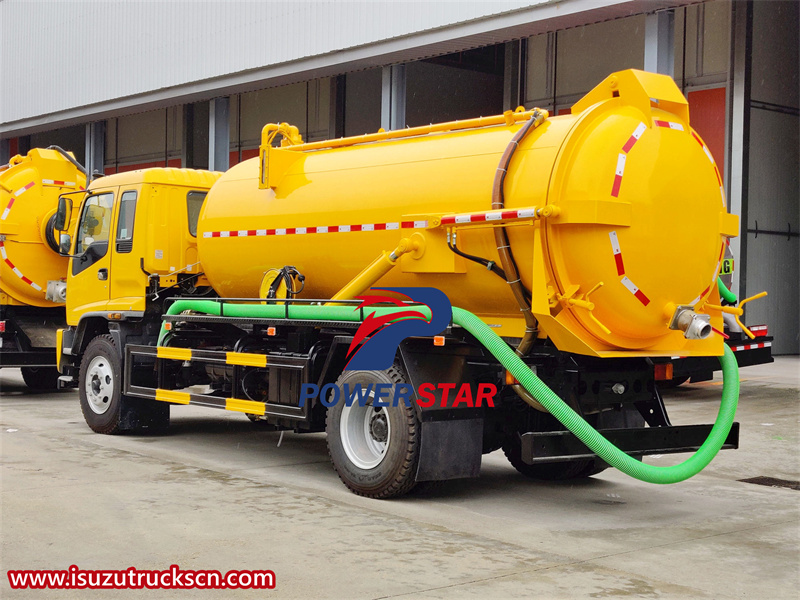

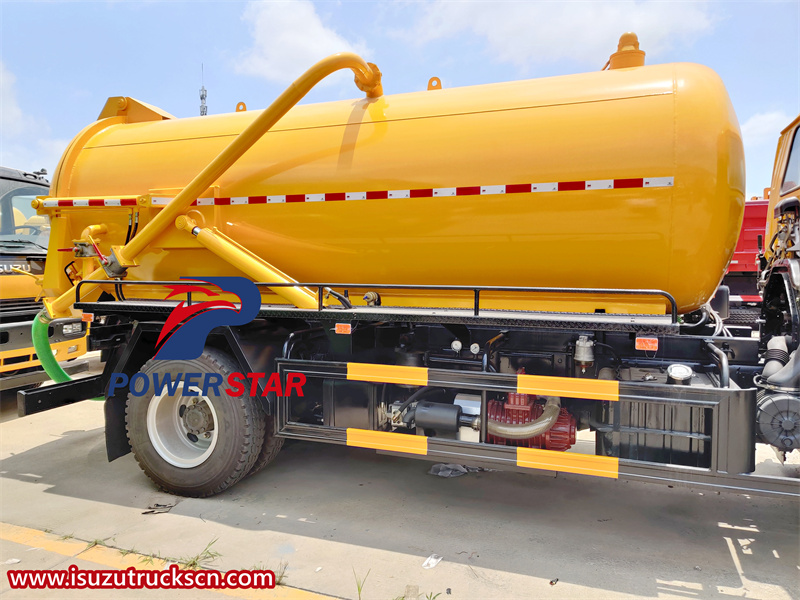

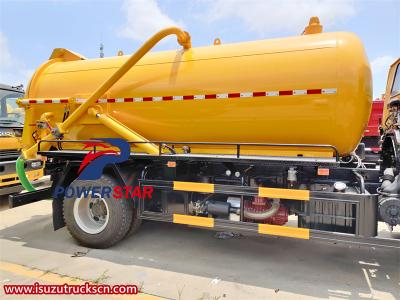

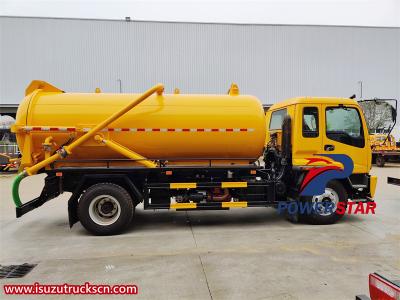

Isuzu Chassis Truck Sewage Tanker adopts Isuzu FTR chassis, flat-head all-metal enclosed cab, Isuzu 205HP 151kw engine, National VI emission standard, 4500 wheelbase, 10.00-20 steel tires, with power steering, ABS. The tank body adopts national standard 6mm Made of high-quality carbon steel plate, tank volume: 10 m3. Equipped with a high-power vacuum sewage suction pump, with a direct suction distance of >6 meters.
Work capacity:
10cbmTruck model:
PT5160SQWEngine power:
205HPEngine type:
4HK1-TC50Axle drive:
4X2, left hand driveGear box:
MLD, 6forwards & 1 reverseRemarks:
Capacity customized. Moro pump, Jurop pump, BP pump optional.
Isuzu Chassis Truck Sewage Tanker also called Isuzu vacuum sewage suction truck, sewage vacuum pump truck,Isuzu mini vacuum tank truck, Isuzu sewage disposal trucks, Isuzu sewer tanker truck, Isuzu septic suction truck, Isuzu vacuum cleaner truck ,Isuzu vacuum suction truck,Isuzu sewage vacuum truck ,Isuzu waste vacuum truck ,Isuzu sewer truck ,Isuzu cesspit emptier,etc.
The Isuzu chassis truck Sewage Tanker is a sewage disposal vehicle with strong power and stability. It is suitable for various scenarios such as sewage collection, disaster rescue, and industrial sewage discharge. It has high efficiency and energy saving performance and is in line with the development trend of environmental protection.
The sewage tank is designed to hold the liquid waste and is equipped with a powerful vacuum system that can suction the waste from septic tanks, drainage systems, and other sources. The truck is also equipped with a water tank and a high-pressure water pump that can be used to clean the tanks and the surrounding areas.
The ISUZU chassis truck sewage ytanker is commonly used by municipal authorities, waste management companies, and other organizations that deal with liquid waste management. It is an efficient and cost-effective solution for handling sewage, allowing for safe and hygienic removal of waste materials.
|
Specification Data |
|||
|
Drive Model |
ISUZU 4X2 FTR 10CBM Chassis Truck Sewage Tanker |
||
|
Vehicle Main Dimensions |
Dimensions(L x W x H)(mm) |
8900*2470*3550 |
|
|
Wheel base (mm) |
4500 |
||
|
Overhang (front/rear) (mm) |
1500/1890 |
||
|
Wheel track (front/rear) (mm) |
2020/1830 |
||
|
Approach/Departure angle(°) |
16/23 |
||
|
Weight in KGS |
GVW. |
16000kg |
|
|
Curb Weight |
6850kg |
||
|
Max. driving speed(km/h) |
90 |
||
|
Engine |
Model |
4HK1-TC50 |
|
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||
|
Horse Power(HP) |
205HP |
||
|
Displacement |
5193ml |
||
|
Max. Output Power |
151kw |
||
|
Emission standard |
Euro 5/6 |
||
|
Gearbox |
MLD, 6forwards & 1 reverse |
||
|
Clutch |
Reinforced diaphragm clutch |
||
|
Steering Gear |
ZF8098 Power steering, hydraulic steering with power assistance |
||
|
Tire |
10.00R20 tire , 6 + 1 spare tire |
||
|
Brakes |
dual circuit compressed air brake |
||
|

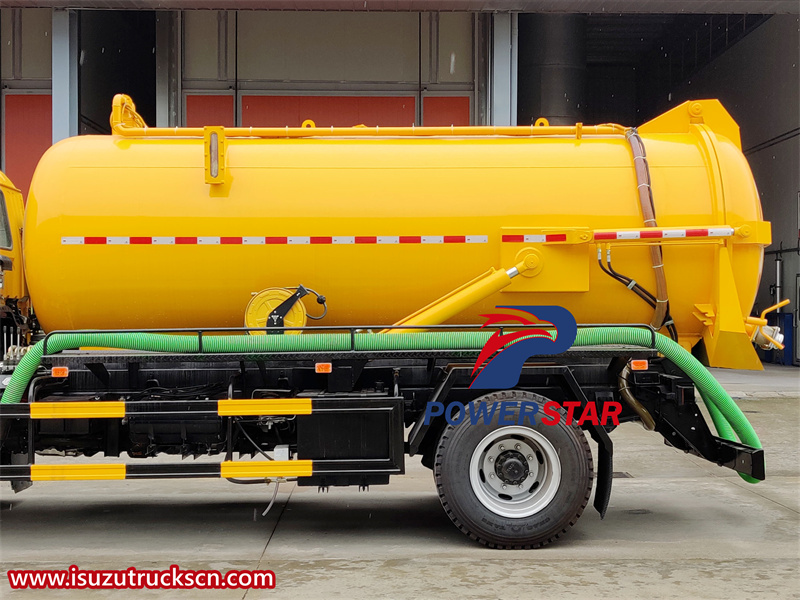

Tank |
|||
|
Material |
Q235A Carbon steel |
||
|
Medium Density |
800kg/m³ |
||
|
Loading Capacity (m³) |
10CBM |
||
|
Thickness(mm) |
6 |
||
|
Standard |

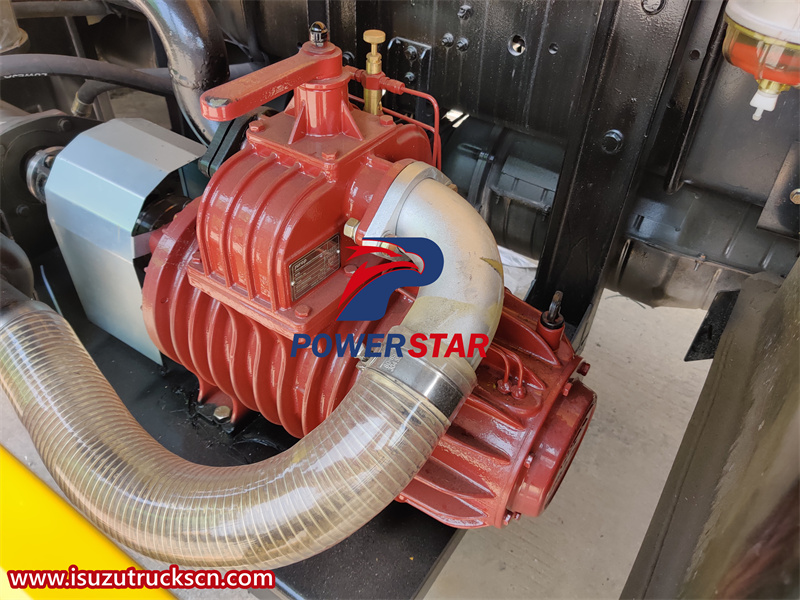

Equipped with Italy Jurop vacuum pump PN106D Suction speed:360cbm/h & 120L/S |
||
Isuzu chassis truck sewage tanker play a very important role in urban cleaning and sanitation. The vehicles integrate flushing, dredging, sewage suction, and reverse discharge functions. They are used for various liquids, semi-liquids, and sludge and feces under various ditches. It is used for the suction, transportation, and discharge of media such as wastewater and wastewater, and can also be used for emergency treatment of sudden environmental pollution accidents. The vehicle has a reasonable design structure, excellent performance, and flexible and easy operation.

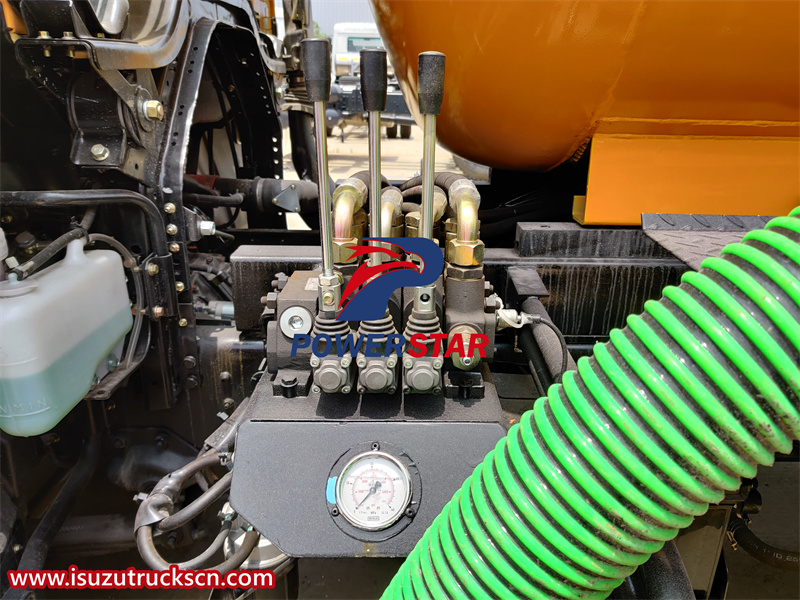

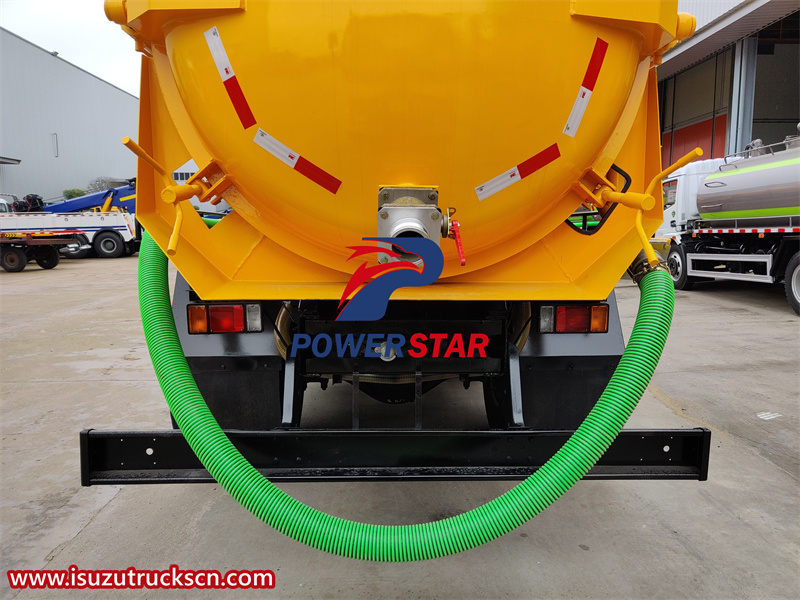

The vehicle is equipped with power take-off, transmission shaft, water and gas separator, oil and gas separation, multi-way reversing valve, boom, pipe network system, gravity valve, vacuum pressure gauge, dirt inspection window (pipe), hand washing device and tool box. Sewage suction trucks have four more hydraulic devices than fecal suction trucks. The tank can be lifted and the back cover can be opened. Easy to clean.
Technical drawing of Isuzu chassis truck sewage tanker
Isuzu chassis truck sewage tanker performance characteristics：
Cab: Flat-head all-metal enclosed cab, single-row cab, panoramic curved windshield. Optional new front mask, front bumper, front combination lamps, door windows, and lower cowl mask.
High tank strength: The front and rear heads of the tank are pressed by a hydraulic expansion machine, and the black edge is flanged by a machine. It is not easy to deform, has high precision and strength, and has a longer life.
Advanced technology: The tank panel welds are made using automatic beveling machines and tailor welding machines. After non-destructive radiog raphic testing, they are formed in one go. The welds are smooth, beautiful and of high quality.

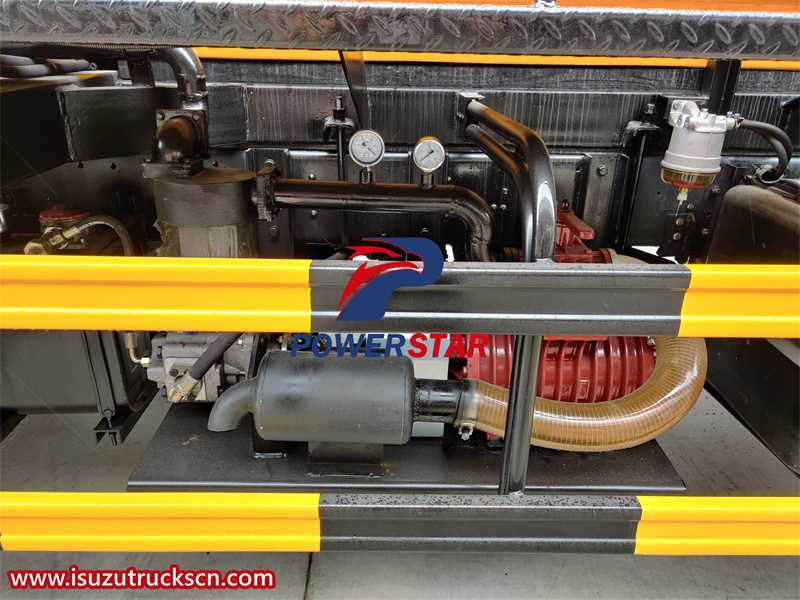

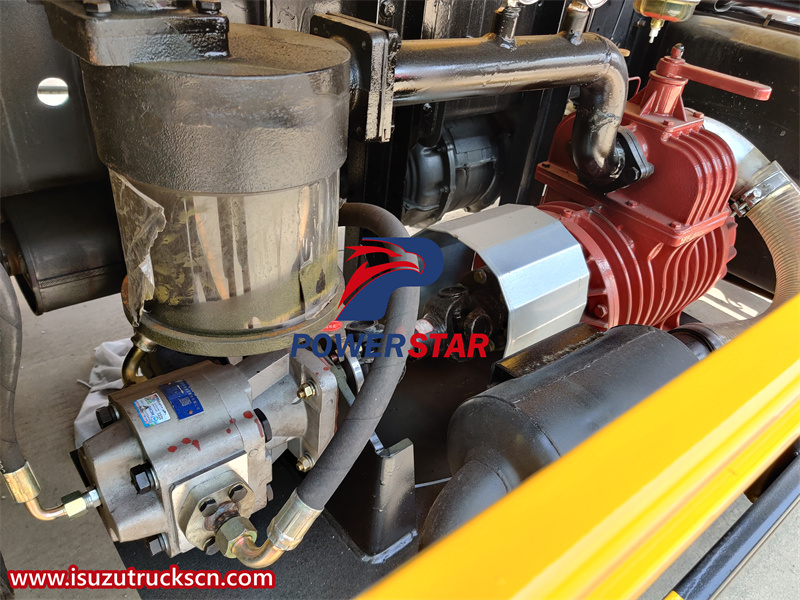

Strong sewage suction function: equipped with Hangzhou Weilong vacuum pump, with large suction power, long suction range and short suction time.

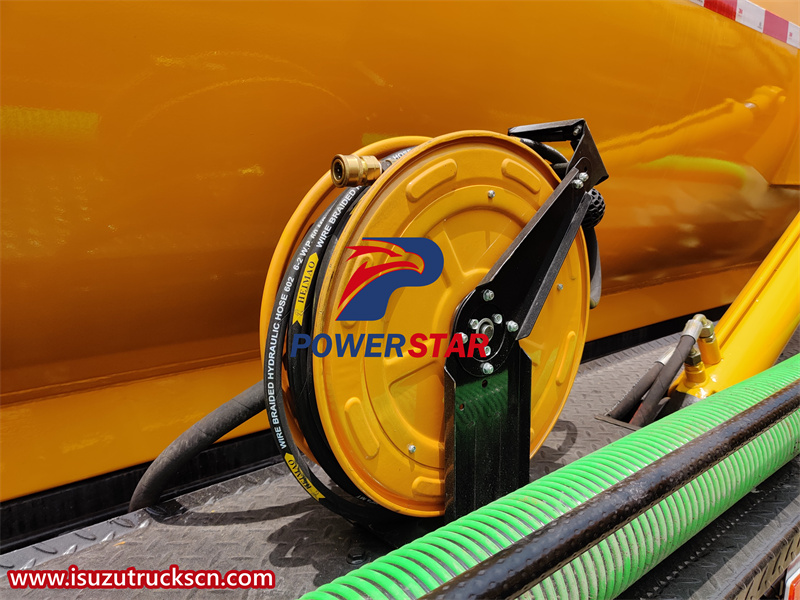

Intelligent options: Optional imported vacuum pumps, fecal suction truck booms, auxiliary engines and water circulation pumps, cleaning reels, etc.

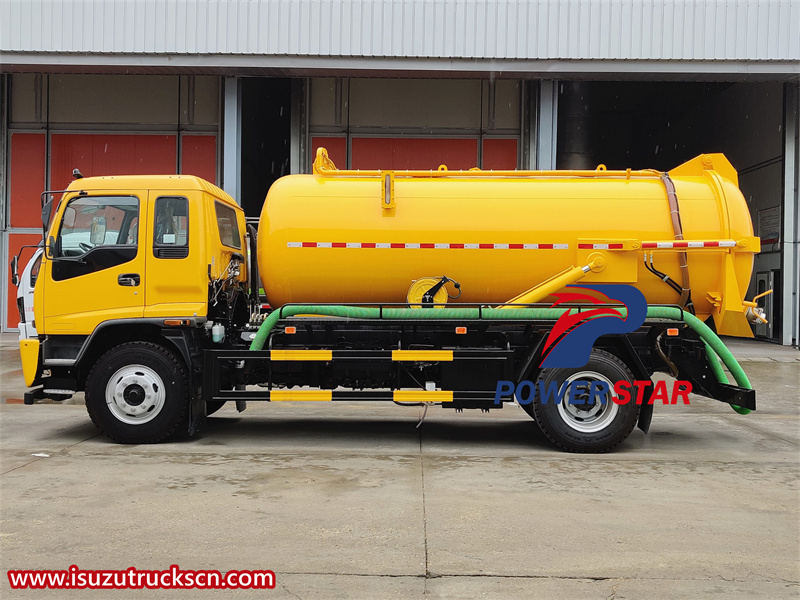

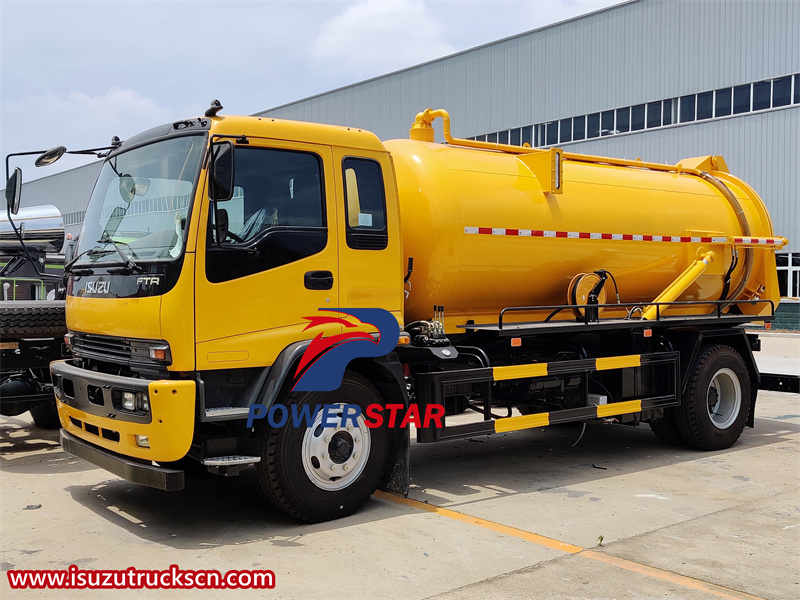

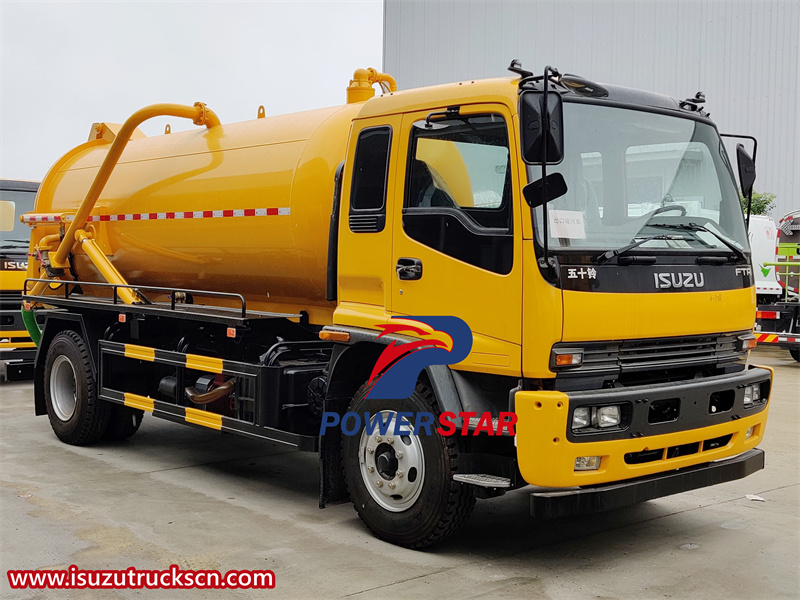

Isuzu FTR 10cbm vacuum tanker truck
