Isuzu ELF NQR NKR double cabin light truck chassis
Isuzu ELF 100P double-row cab chassis is an efficient, stable and heavy-load capable chassis system. Whether it is used for cargo transportation or engineering operations, it can demonstrate its excellent performance and reliability. It is an important support force in the transportation industry, helping users to easily cope with various challenges and achieve efficient transportation.
Work capacity:
2～5 tonsTruck model:
PT5080GWYEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4x2Gear box:
MSB-5MTRemarks:
Available for municipal sanitation, engineering vehicles, fire trucks.
The Isuzu ELF NQR NKR double cabin light truck chassis also called Isuzu ELF double cabin truck chassis,Isuzu 100P double cabin cargo truck chassis,Isuzu 100P double row cab chassis, refers to a series of light truck chassis models. These chassis are commonly used as the base platform for various types of light truck configurations, including double cabin versions.
Isuzu ELF NQR NKR double cabin light truck chassis is a commercial vehicle chassis launched by Isuzu Motors, with powerful power and stable handling. It is suitable for various commercial vehicles, such as trucks, transporters, etc., with comfortable seats, high-quality suspension systems and a variety of safety facilities. It performs well in various environments such as cities, rural areas, high temperatures and heavy transportation, and is a reliable and durable commercial vehicle chassis.
The ELF series is known for its reliability, durability, and fuel efficiency, making it a popular choice for commercial and industrial applications. The NQR and NKR models are part of the ELF series and are typically used for medium-duty applications.
The double cabin configuration refers to a truck with an extended cabin area that allows for additional seating capacity, making it suitable for carrying more passengers or crew members. This type of configuration is often used for utility and service vehicles that require both cargo space and passenger seating.
|
Isuzu 100P double cabin truck chassis |
||
|
Chassis Dimensions and Parameters |
Chassis Brand |
Isuzu |
|
Overall Dimension(L x W x H) |
5995×1880×2180mm |
|
|
Wheelbase: |
3360mm |
|
|
Front/ Rear Wheel Distance: |
1685/1525mm |
|
|
Front/Rear Suspension |
1110/1525mm |
|
|
Weights and Capacities |
Curb Weight: |
2300kg |
|
Payload: |
5050kg |
|
|
GVW: |
7020kg |
|
|
Axle Loads: |
2580/4720kg |
|
|
Engine |
Engine Model: |
4KH1CN6LB |
|
Max output: |
88Kw |
|
|
Displacement: |
2999ml |
|
|
Horsepower: |
120HP |
|
|
Exhaust Gas Treatment Technology： |
DPF+SCR |
|
|
Transmission |
Transmission: |
MSB-5MT |
|
Forward Gear: |
5 Speed Gear |
|
|
Backward Gear: |
1 Speed Gear |
|
|
Brake |
Hydraulic Brake |
|
|
Front Drum Back Drum |
||
|
Generator |
12V-60A |
|
|
Cab |
Number of Seats: |
2+3 |
|
Chassis |
Drive Type: |
4x2 |
|
Tires: |
7(Including Spare Tire) |
|
|
Tire Model: |
7.00R16 8PR |
|
|
Fuel Tank
|
Number: |
1 |
|
Capacity: |
75L |
|
|
Configurations: |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS |
|
|
4 |
Tubeless Tire |
|
|
5 |
Retro-reflective Marking |
|
|
6 |
Free Maintenance Battery |
|
|
7 |
Cab Tilting Mechanism |
|
Isuzu 100P double-row cab chassis is a commercial vehicle chassis with excellent performance and reliability, which is widely used in logistics distribution, urban transportation and other fields. Next I will describe the Isuzu ELF 100P double cabin truck chassis in detail from the aspects of chassis structure, power performance, safety configuration and comfort.
Technical drawing of Isuzu ELF NQR NKR double cabin truck chassis
● Chassis structure
Isuzu 100P double cabin light-duty truck chassis is made of high-strength steel, with excellent torsion and impact resistance, ensuring the load-bearing capacity and stability of the whole vehicle. The chassis design is reasonable, the layout is compact, and it is easy to maintain and maintain. Both the front and rear axles use high-strength leaf springs to improve the vehicle's load-bearing capacity and passability. At the same time, the chassis has a moderate ground clearance, which can effectively cope with the challenges of complex road conditions.
● Power performance
Isuzu ELF NKR 100P double-row cab light truck chassis is equipped with Isuzu series engines, which have the characteristics of low fuel consumption, low noise and high reliability. The high-performance engine is powerful, the gearbox matched with the chassis shifts smoothly, accelerates rapidly, and the precise transmission system ensures that it can maintain sufficient power output and smooth acceleration performance under various road conditions, providing drivers with a good driving experience.

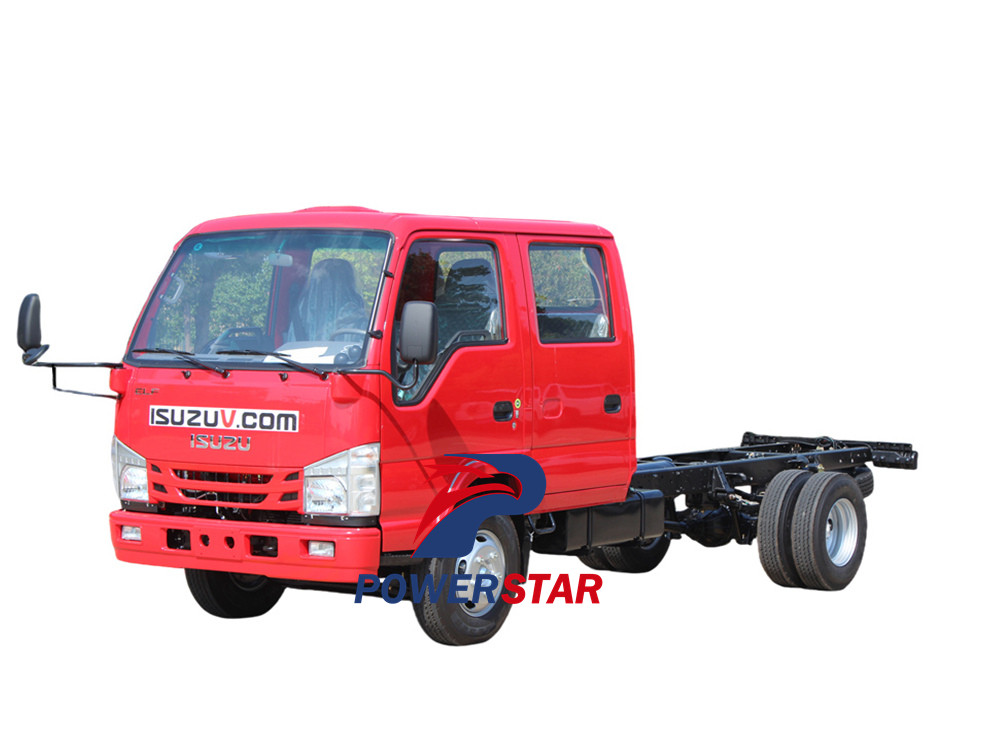

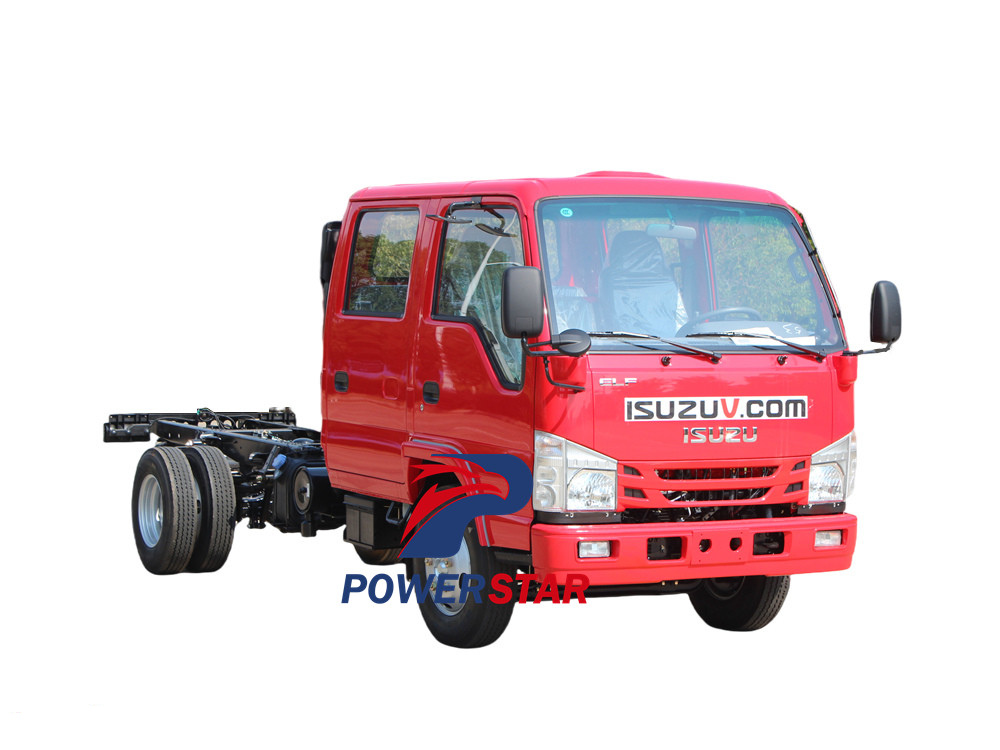

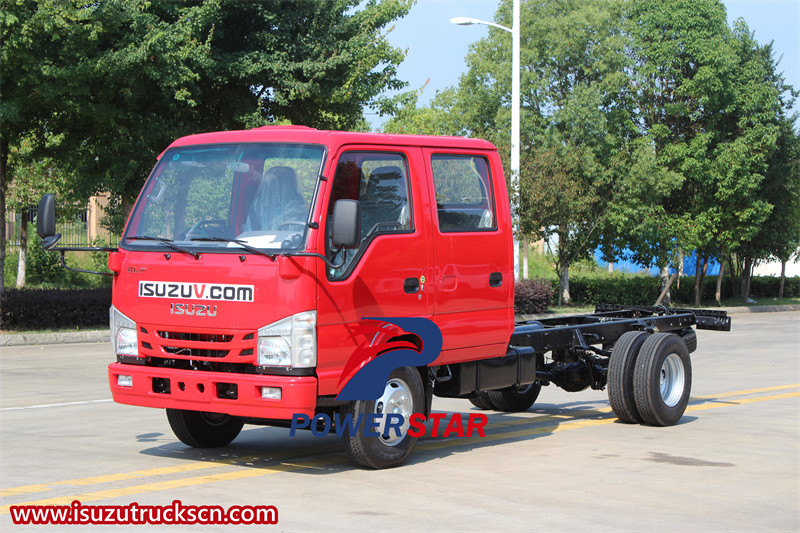

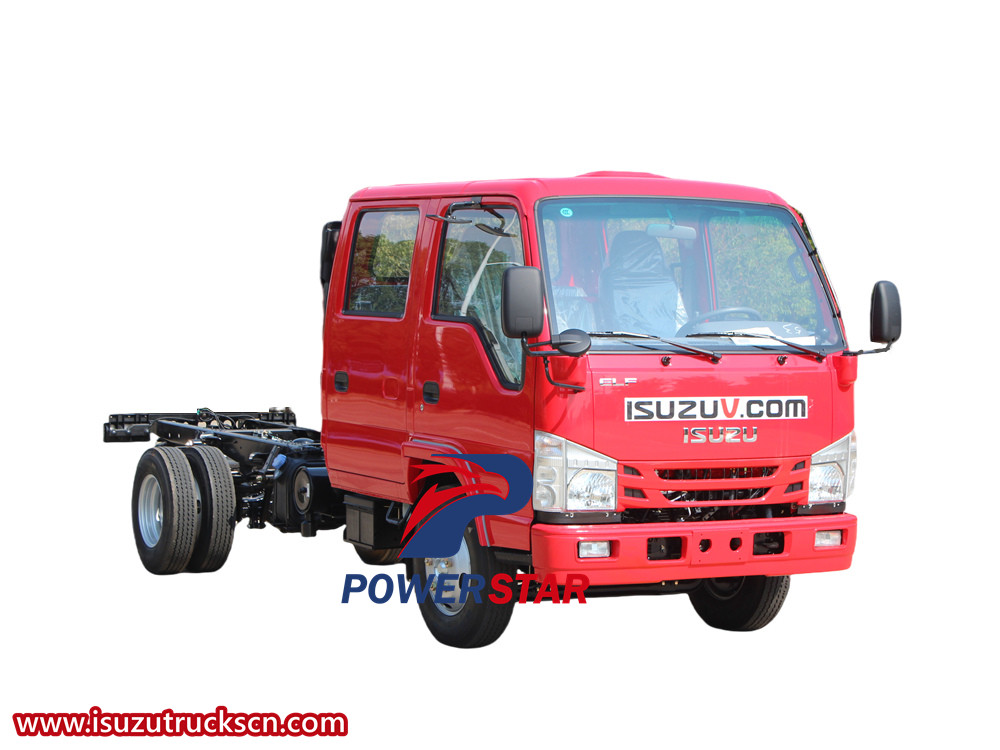

Isuzu 100P double cabin truck chassis
Isuzu 100P double-row cab chassis
● Safety configuration
In terms of safety configuration, the Isuzu 100P double-row cab chassis also performs well. The vehicle is equipped with active safety configurations such as ABS anti-lock braking system and EBD electronic brake force distribution system, which effectively improves braking performance and driving stability. In addition, the vehicle also adopts passive safety configurations such as high-strength body structure and front and rear anti-collision beams, providing all-round safety protection for drivers and passengers.
● Comfort

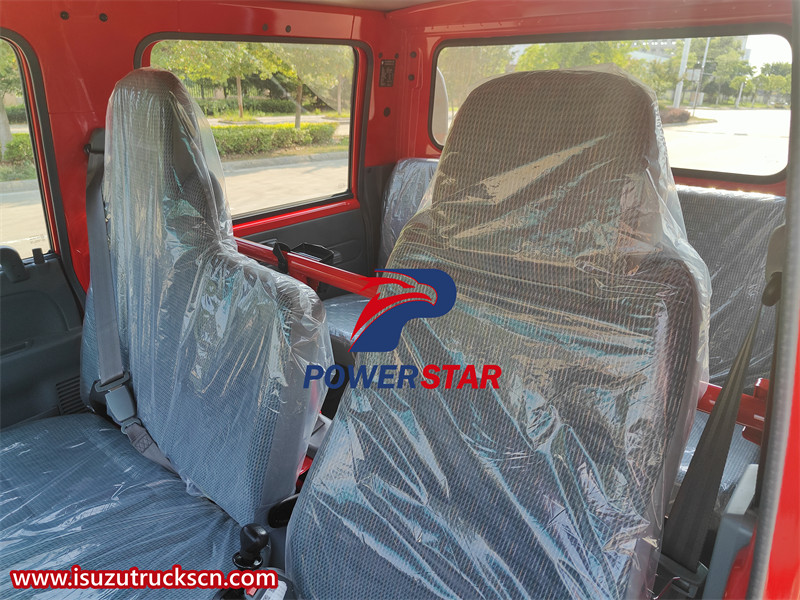

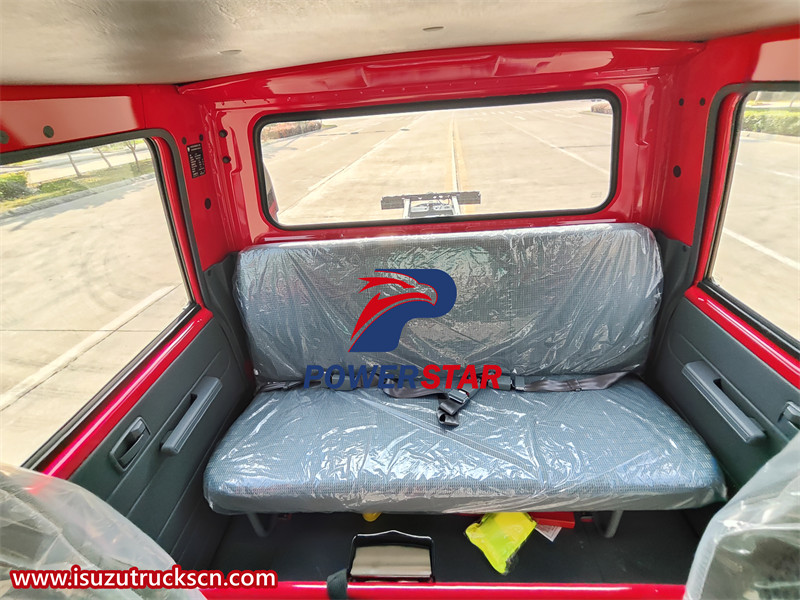

In terms of comfort, the Isuzu 100P double-row cab chassis also pays attention to detail design. The interior space of the cab is spacious and the seats are comfortable, providing drivers with a good working environment. At the same time, the vehicle is also equipped with entertainment facilities such as air conditioning and audio, providing drivers and passengers with a more comfortable driving experience. The chassis has been carefully adjusted and has a good suspension system and shock absorption performance to effectively absorb the vibration caused by uneven road surfaces and ensure driving comfort.

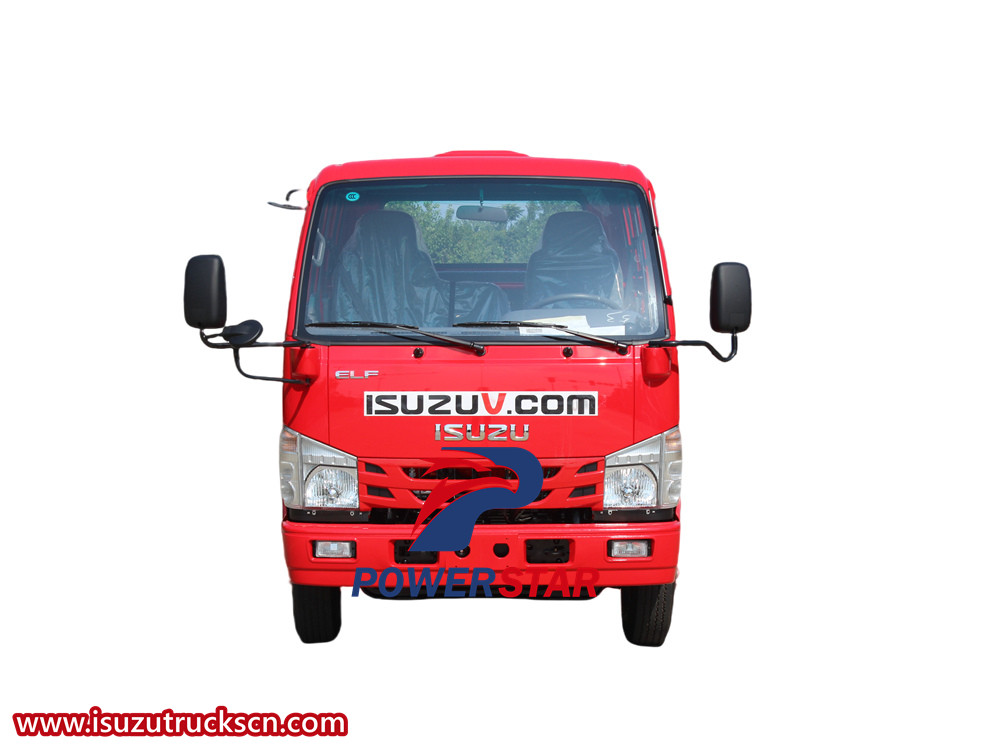

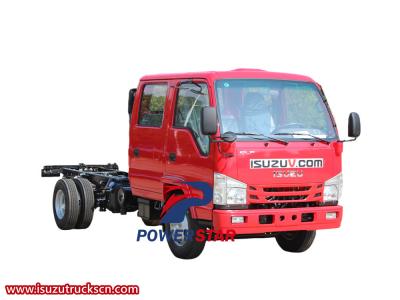

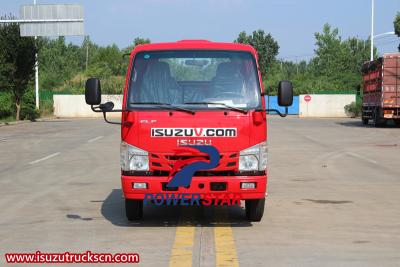

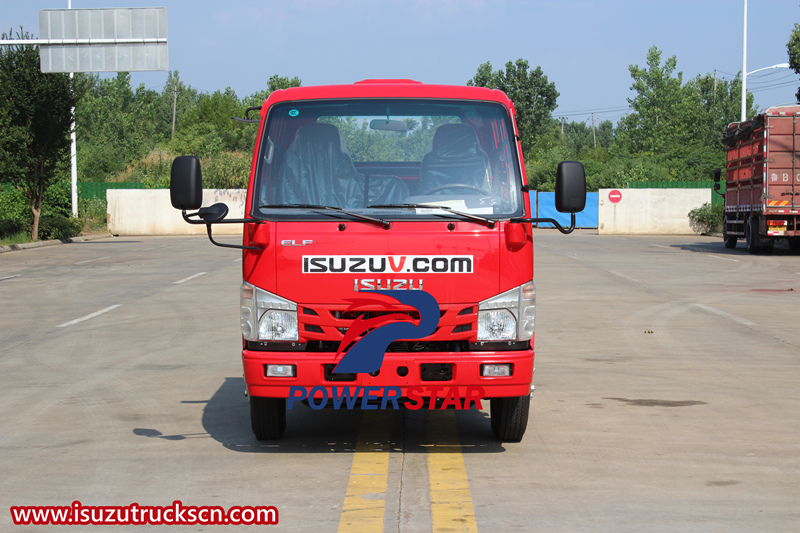

Isuzu ELF 100P double cabin truck chassis front view

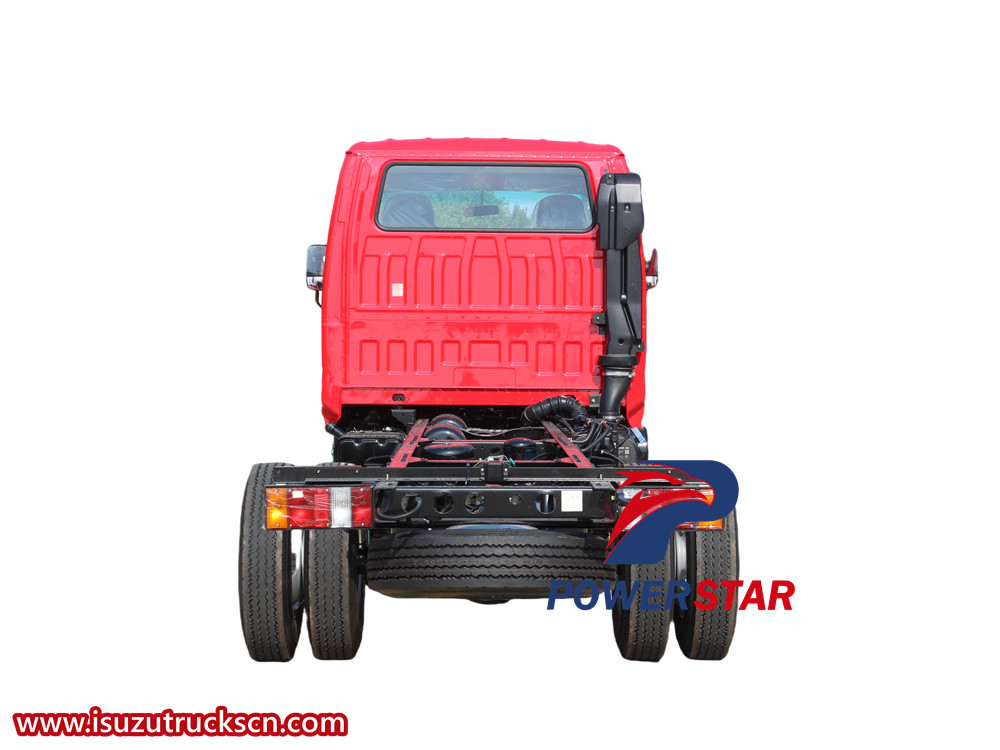

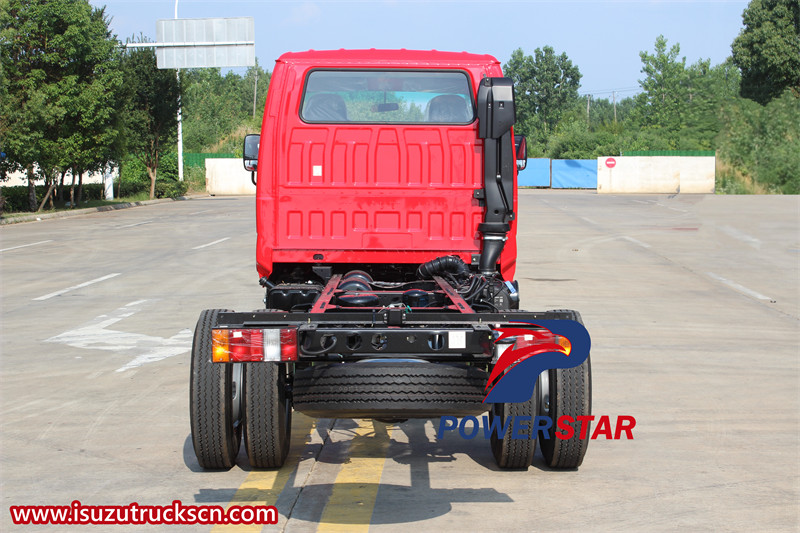

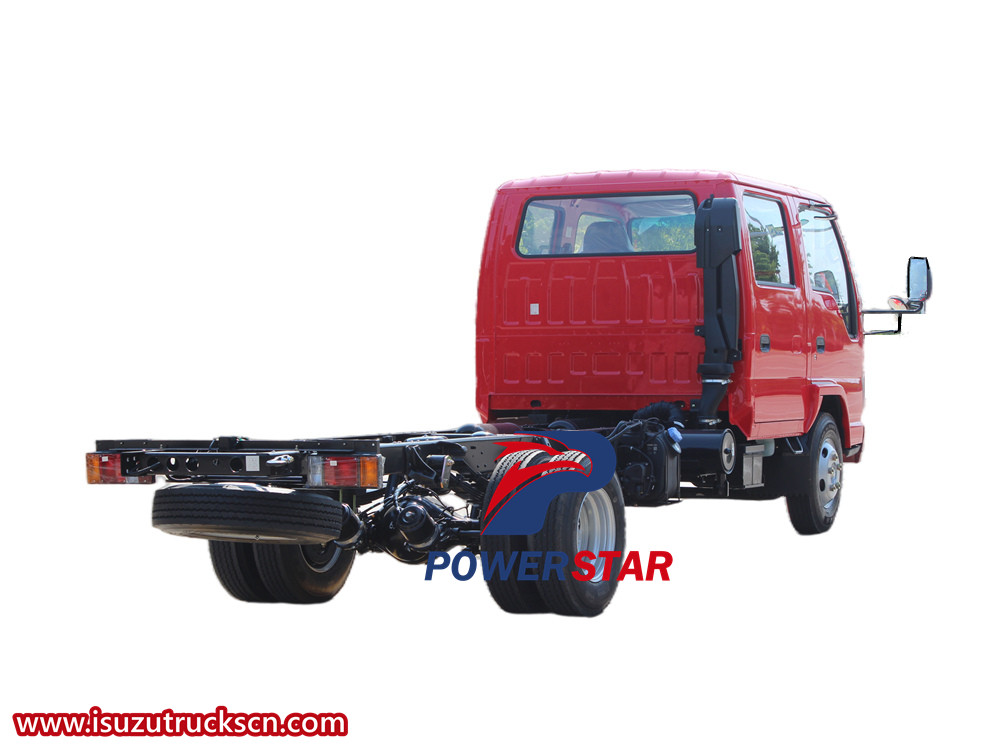

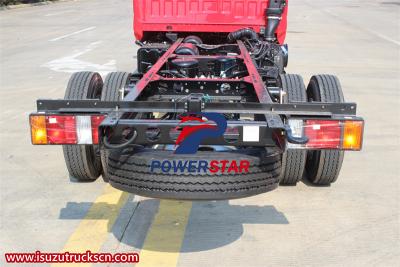

Isuzu 100P double cabin truck chassis rear view

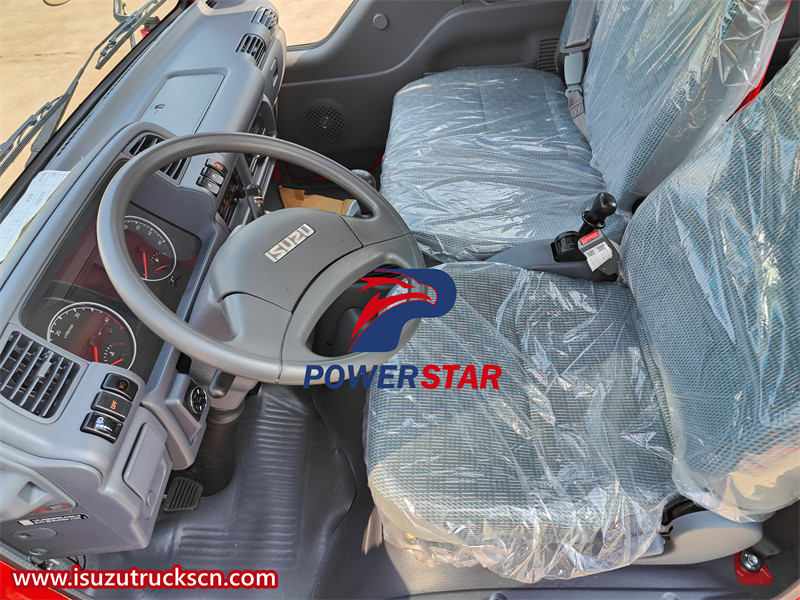

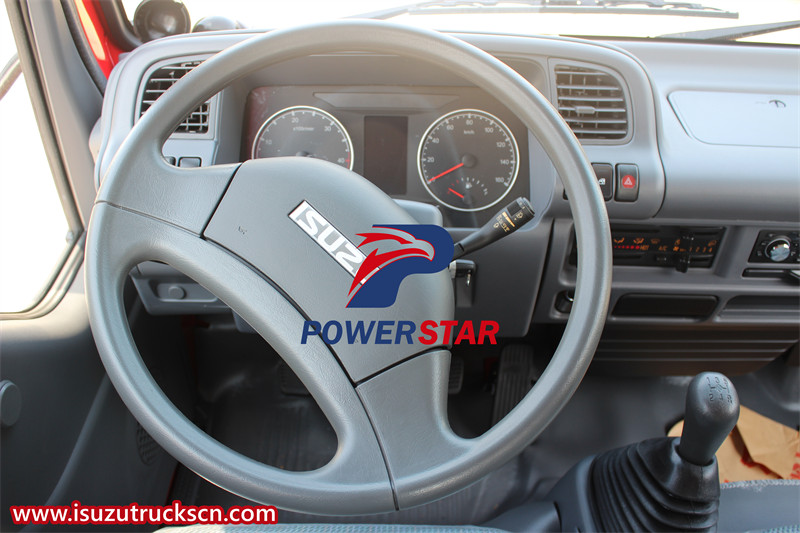

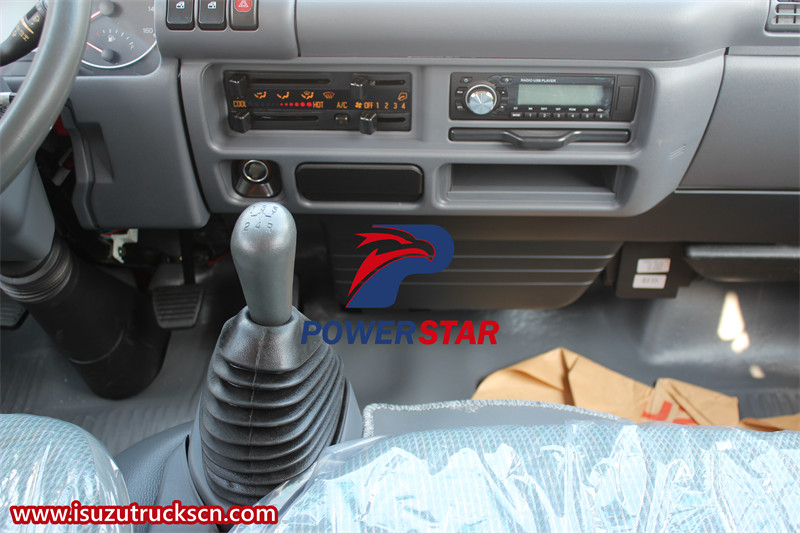

Isuzu 100P double cabin truck chassis steering wheel

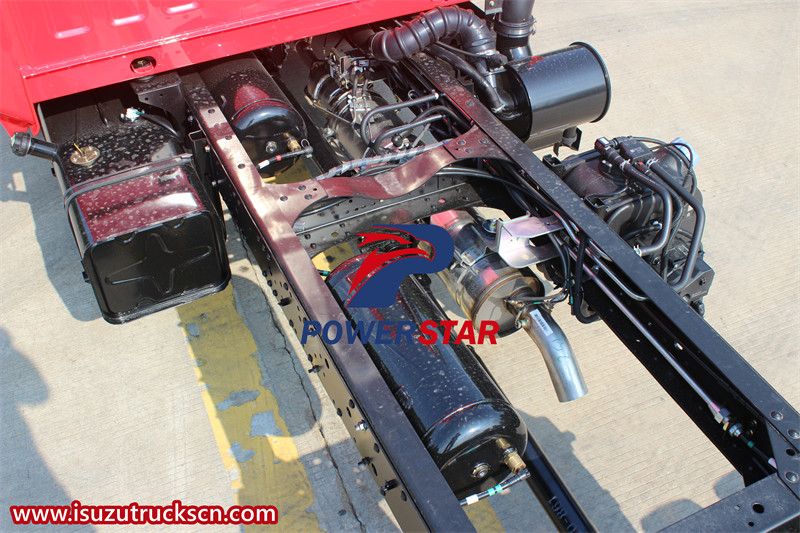

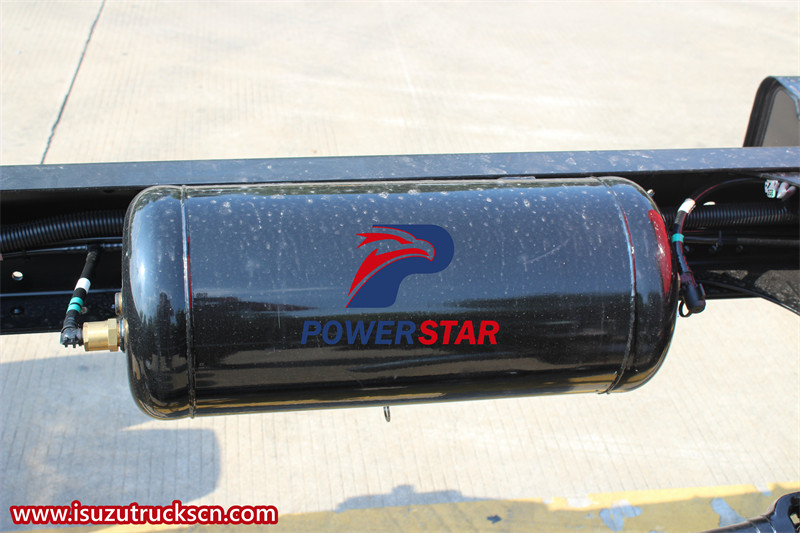

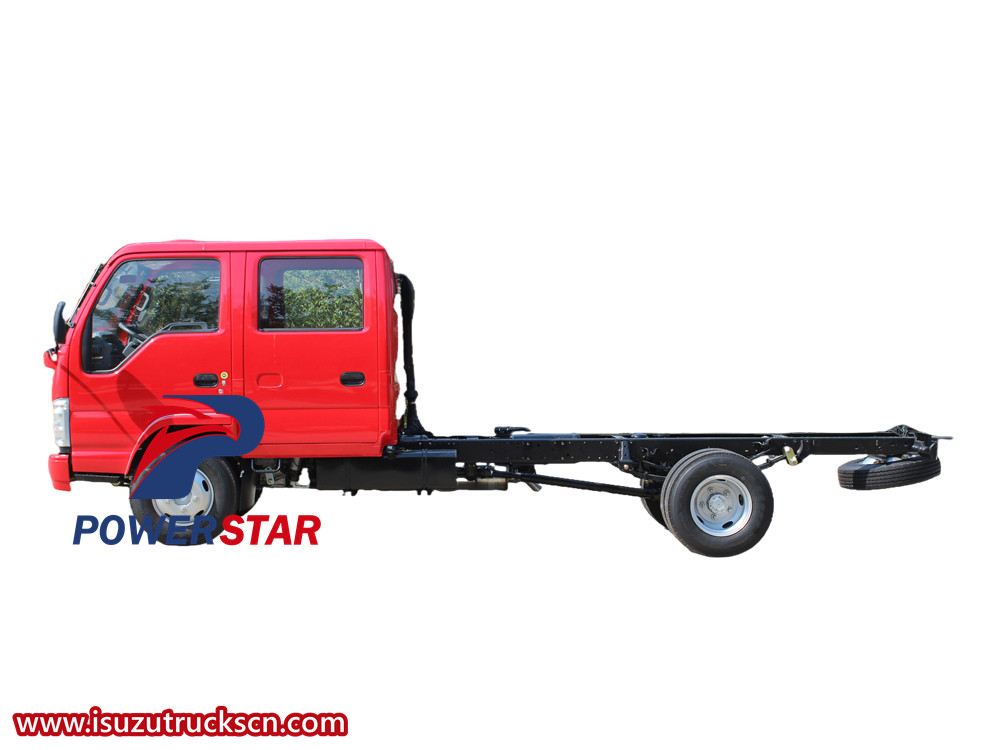

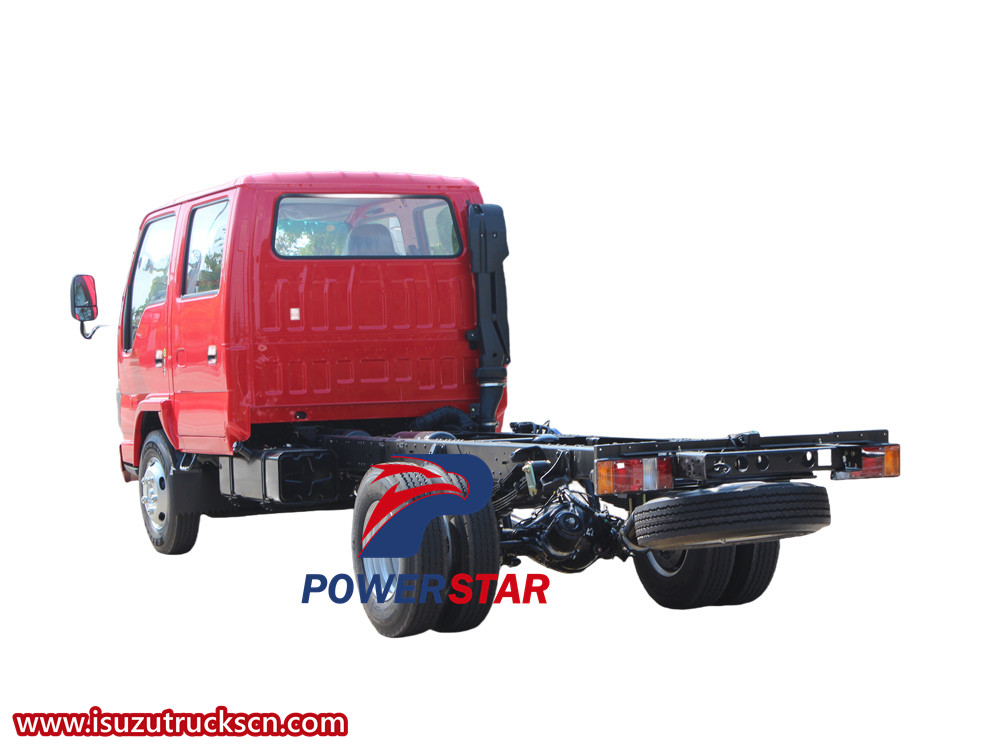

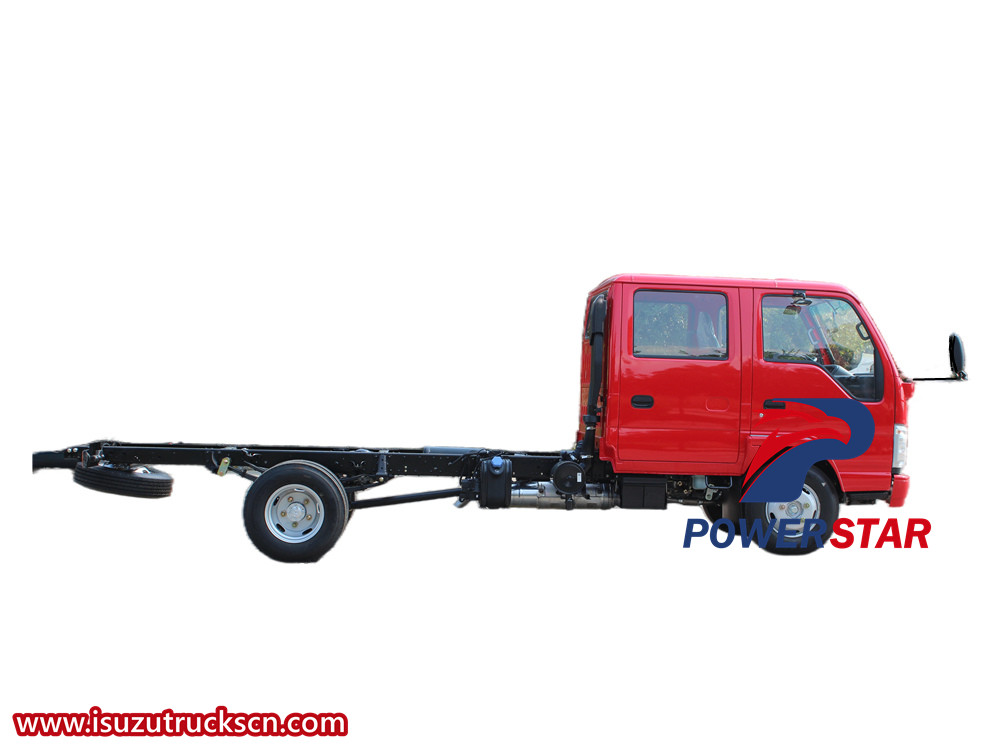

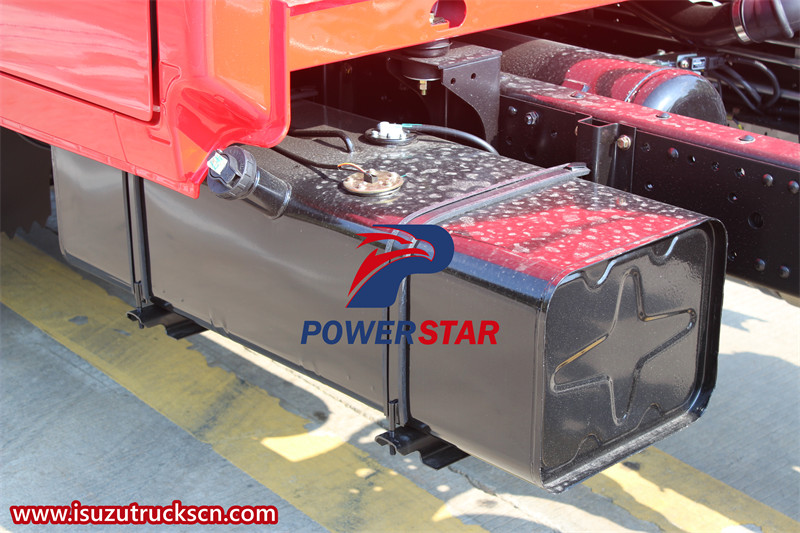

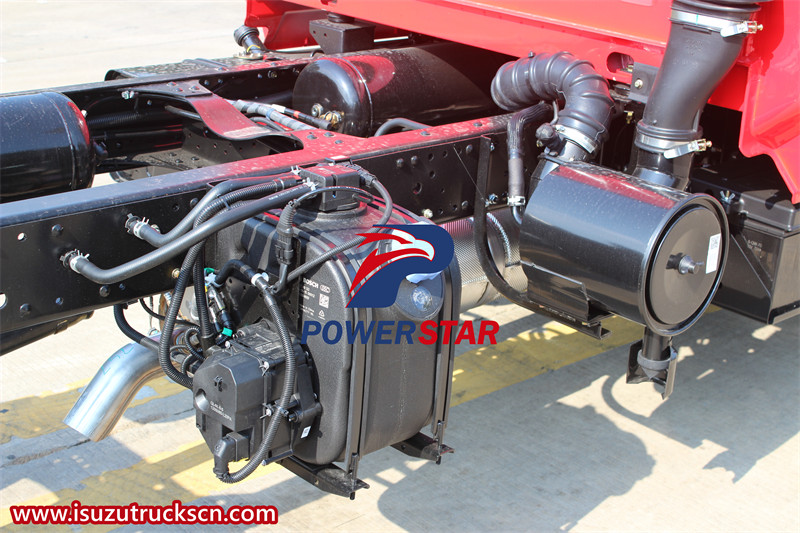

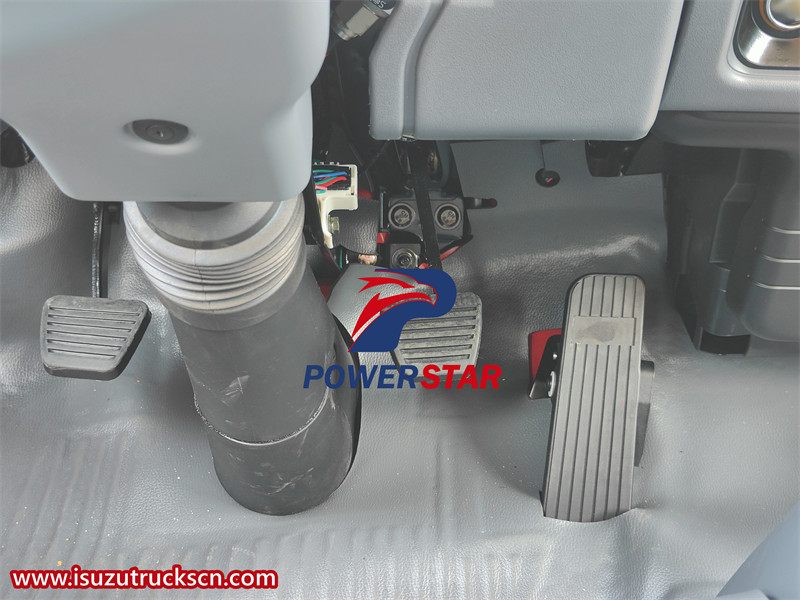

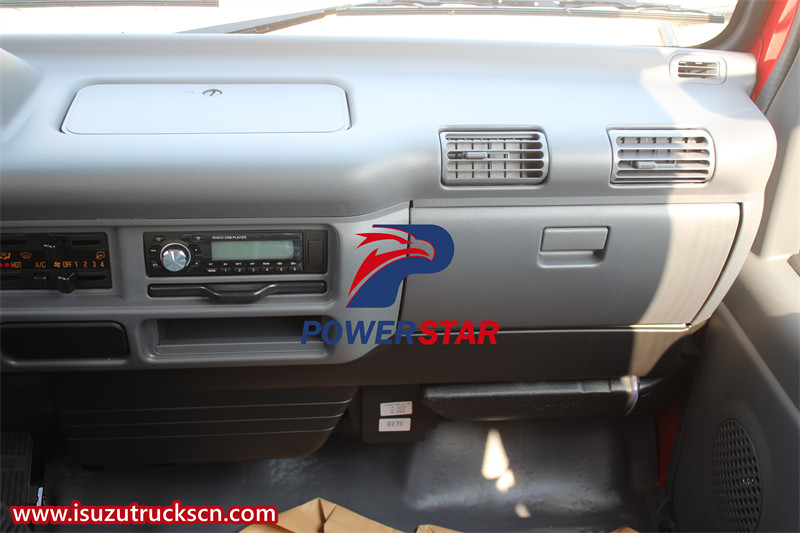

Isuzu 100P double cabin truck chassis details

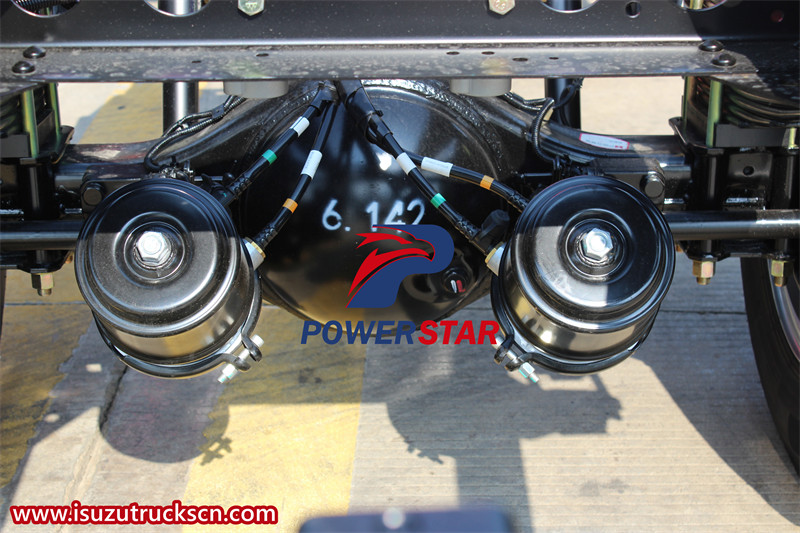

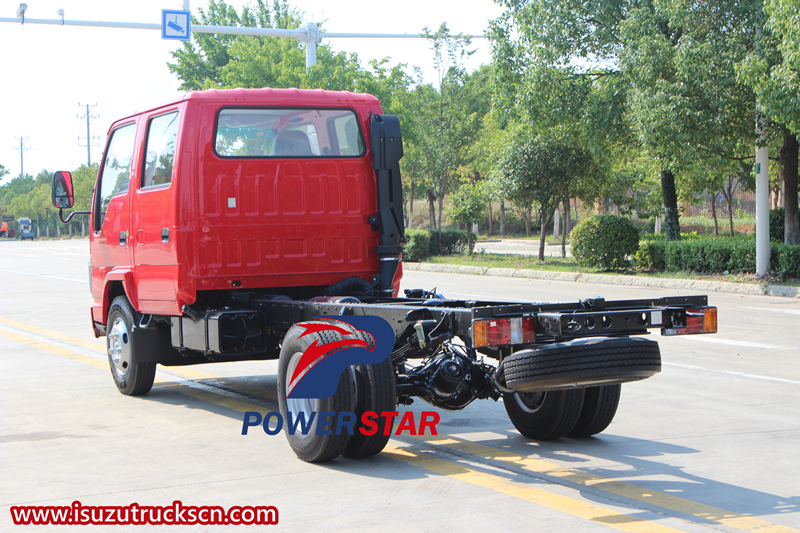

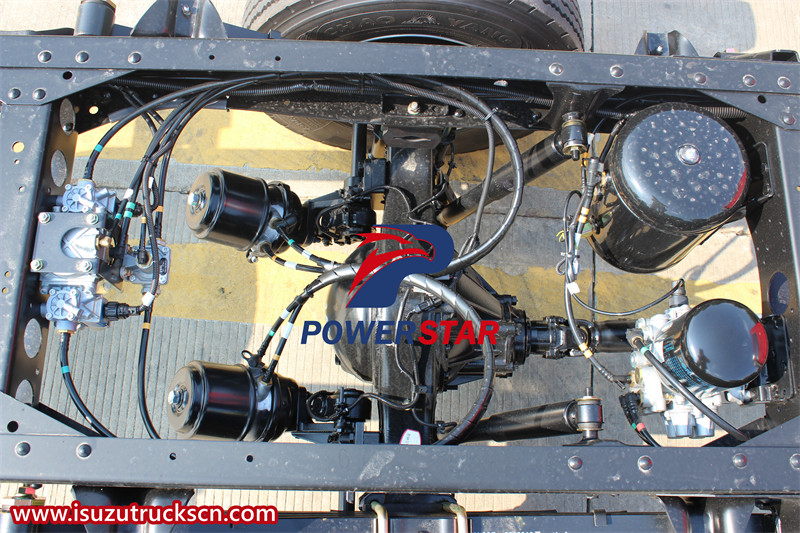

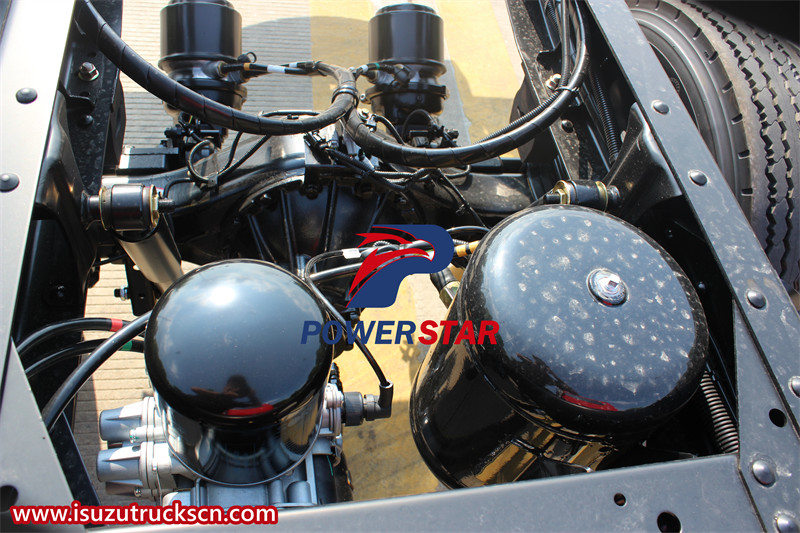

Isuzu ELF double cabin truck chassis rear axle
