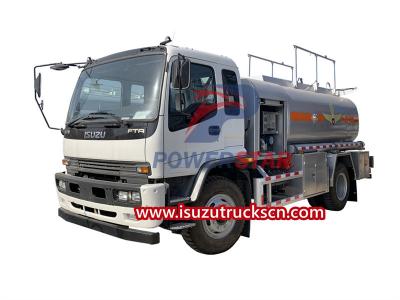

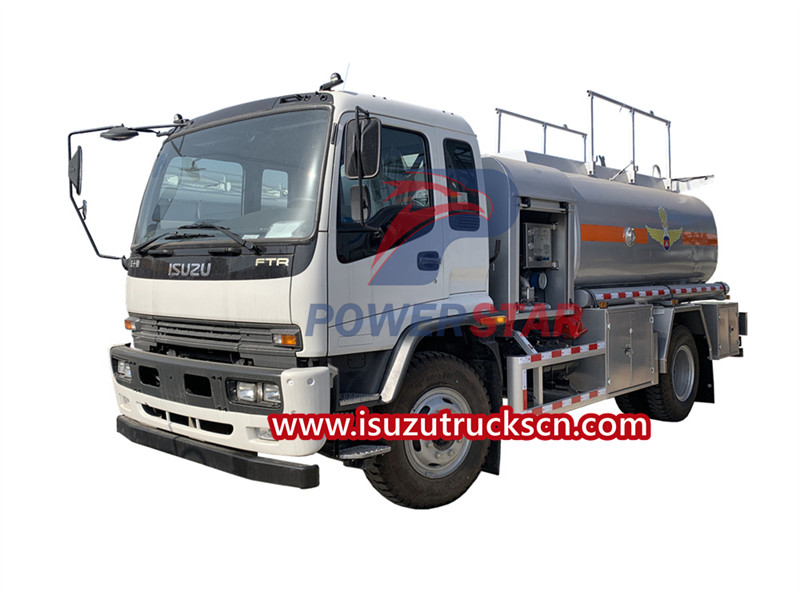

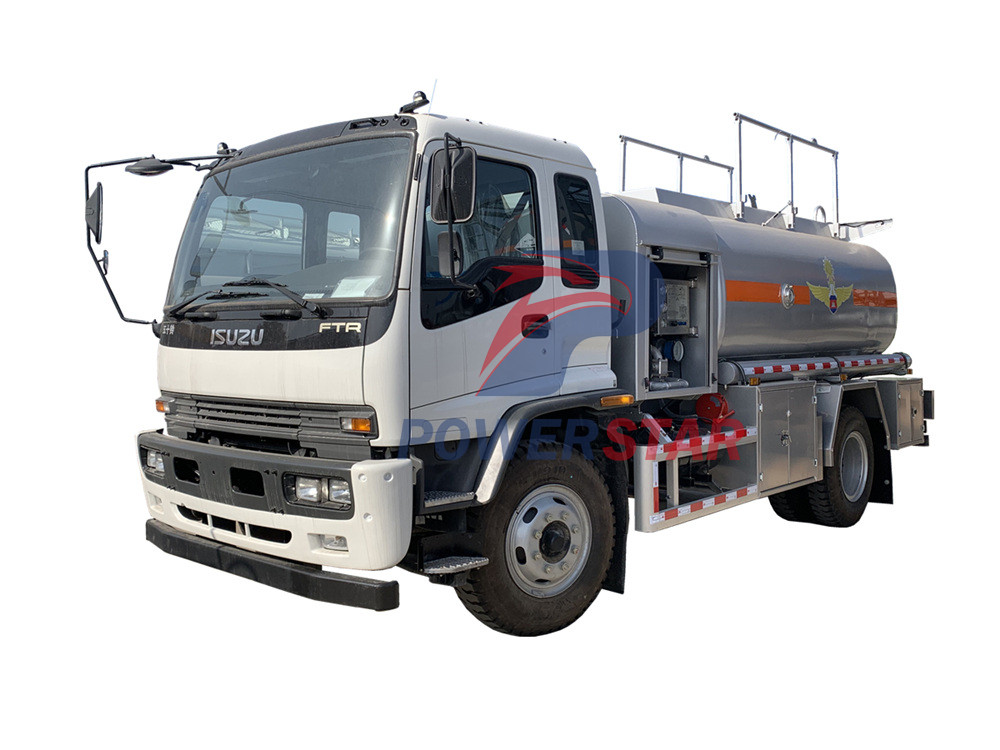

The ISUZU aircraft refueling truck is a special vehicle designed to provide fuel services for helicopters. The vehicle is built on the Isuzu chassis and is equipped with large-capacity fuel tanks and advanced refueling equipment, which can quickly and accurately refuel the helicopter. The ISUZU helicopter fuel bowser is designed with convenience and safety in mind and is an indispensable and important equipment for aviation support.
Work capacity:
10000 litersTruck model:
PT5010GJYEngine power:
205 HPEngine type:
4HK1-TC50Axle drive:
4×2Gear box:
MLD 6-speed manualRemarks:
Aluminum alloy tanker, stainless steel centrifugal pump
ISUZU helicopter refueling truck is a special vehicle designed to refuel helicopters. It usually consists of an oil tank, a refueling device and a control system. The oil tank is used to store fuel, the refueling device is used to inject fuel into the helicopter's fuel tank, and the control system is used to control the refueling process.
The ISUZU FTR aircraft fuel bowser is composed of chassis system, oil tank system, refueling control system, electrical and hydraulic control system, interlocking protection system, etc. It has the functions of pumping oil, regulating pressure, purifying and measuring, and is independent, fast and safe. Special vehicles for refueling helicopters.

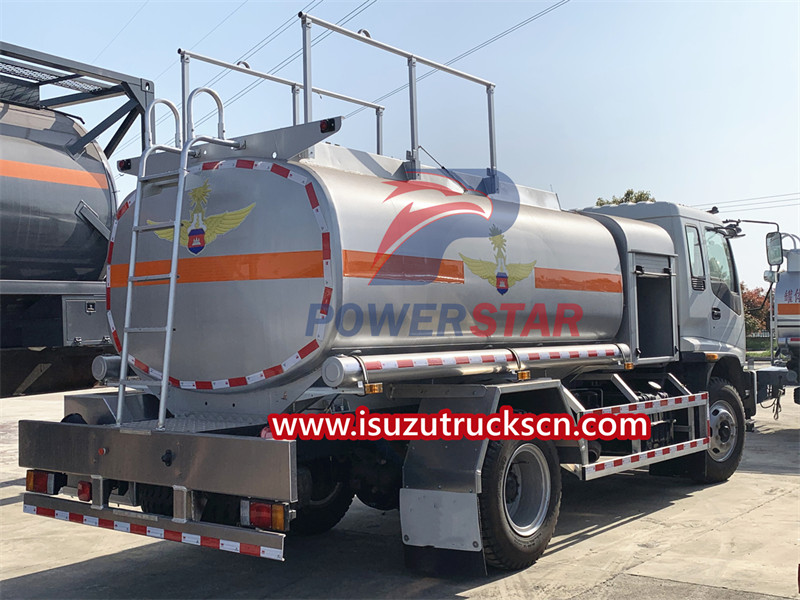

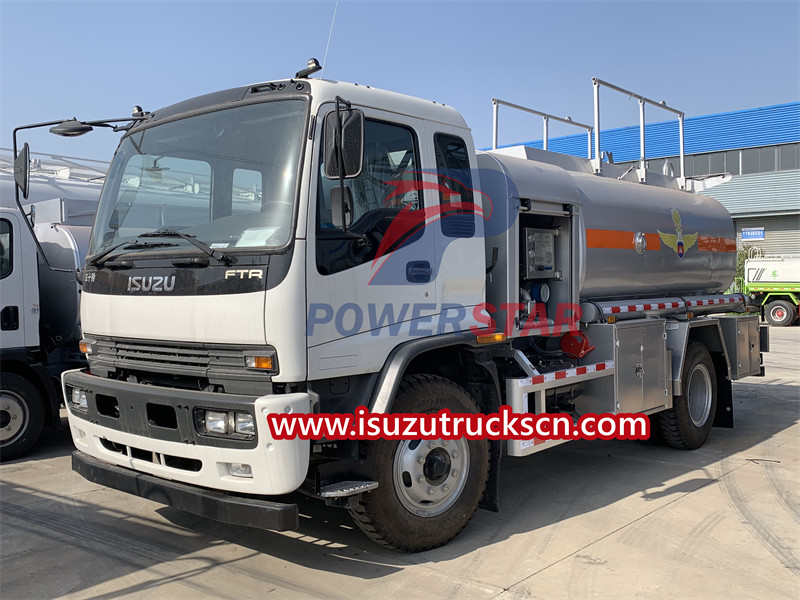

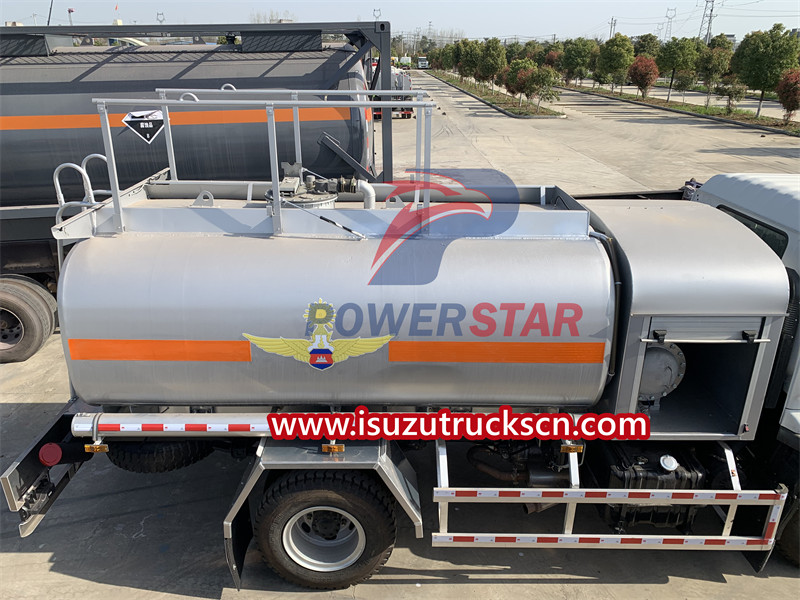

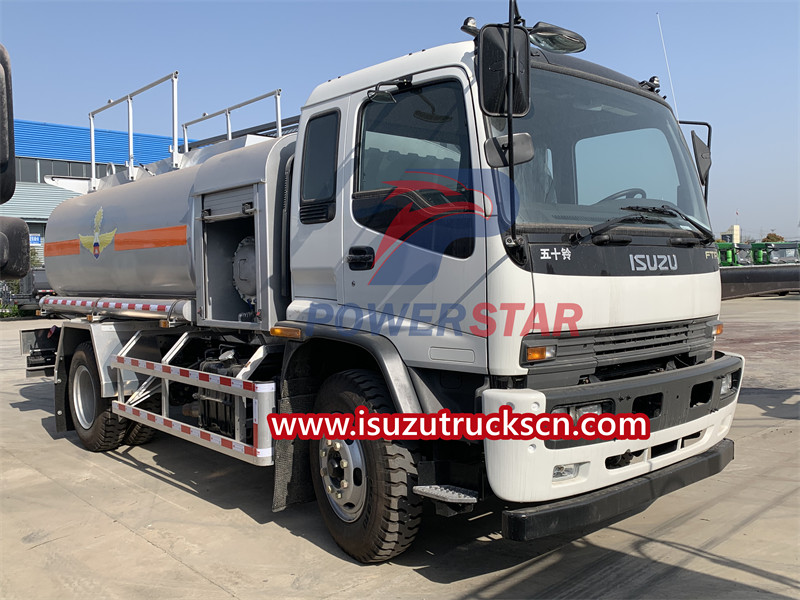

The aircraft refueling truck produced by POWERSTAR is modified based on the Isuzu FTR chassis. The tank body is made of aluminum alloy or stainless steel. It is equipped with a pumping system, a refueling system and an independent refueling machine compartment. It has a reasonable structure and is easy to use. The fuel in this tank can be filtered and measured, and then injected into aircraft fuel tanks or other oil-receiving equipment through the gravity refueling reel hose. The rear of the ISUZU jet fuel bowser is equipped with a special connector for aviation fuel and is equipped with a ladder to facilitate personnel getting on and off the tank body.
Product Specifications
|
Vehicle Specifications |
||
|
Vehicle Name |
ISUZU FTR Aircraft Fuel Bowser |
|
|
Vehicle Brand |
POWERSTAR |
|
|
Chassis Specifications |
||
|
Cabin |
ISUZU FTR single row cabin, with A/C, ABS |
|
|
Drive type |
4*2, left hand drive |
|
|
wheelbase |
5000 mm |
|
|
F/R wheel track |
1800/1810 mm |
|
|
F/R Axles Loading |
6300/13000 kg |
|
|
Approach/Departure angle |
31/20 ° |
|
|
Fuel type of engine |
Diesel |
|
|
Engine |
Brand |
ISUZU |
|
Model |
4HK1-TC50 |
|
|
Maximum horse power |
205hp |
|
|
Type |
In line, turbocharged |
|
|
Number of cylinders |
4 |
|
|
Displacement |
5193 ml |
|
|
Max. torque |
650 N.m |
|
|
Emission standard |
Euro 5 |
|
|
Gear box |
Type |
Manual, 6 forward &1 rear |
|
Tyres
|
Size |
10.00R16 |
|
Quantity |
6+1 spare tire |
|
|
Upper body specifications |
|
|
|
Fuel Tank |
Capacity |
10000 liters |
|
Tank Material |
Aluminum alloy |
|
|
Special function |
Flowmeter |
Standard |
|
Filter separator |
Standard |
|
|
Hose reel |
Automatic reset reel |
|
|
Liquid level meter |

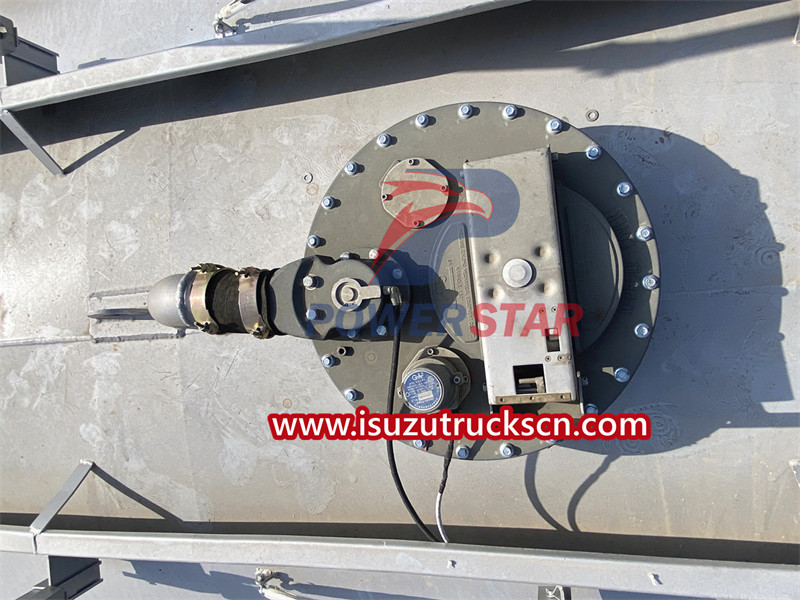

The stainless steel floating ball in the tank and the 10 inch aluminum alloy dial on the left side of the tank can clearly observe the current liquid volume in the tank |
|
|

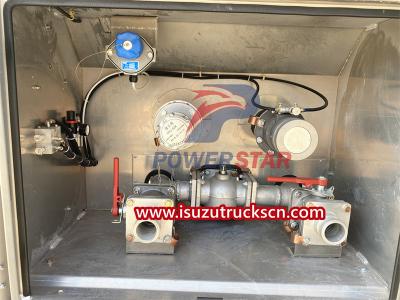

Fuel Pump |
Stainless steel self-priming centrifugal pump |
|
|

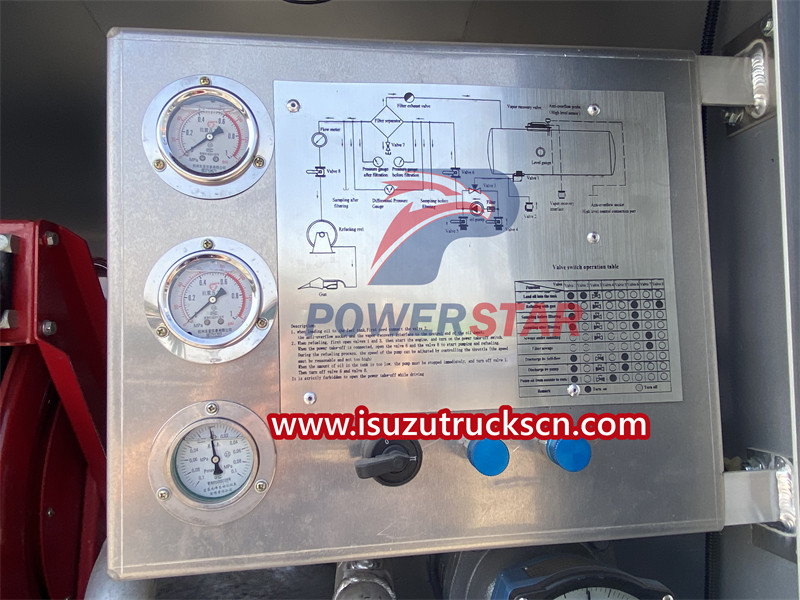

Operating system |

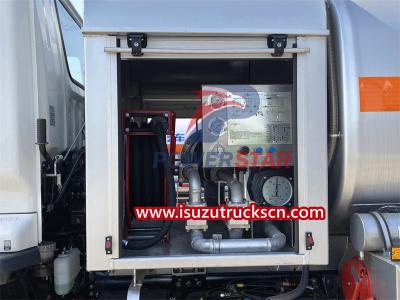

centralized control of independent control room. |
|
|
Indicating instrument |
Pump inlet vacuum gauge, pump outlet pressure gauge, oil pump tachometer, filter differential pressure gauge, etc. |
|
|
Operation valves |
Main power switch, lighting switch, emergency stop switch, oil pump speed regulating knob, refueling valve, circulating filter valve, emergency cut-off valve |
|
Features of ISUZU aircraft bowser truck:

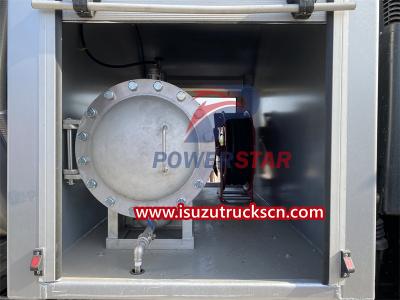

1. The tank and pipes of ISUZU aircraft refueling truck are all made of aluminum alloy. The fuel tank is equipped with a high-performance filter separator, which can filter impurities and water to ensure the cleanliness of the oil.
2. To ensure safety during the refueling process, it is equipped with engine emergency stop device, static elimination device, explosion-proof device, lighting device, fire extinguisher, etc.
3. Equipped with complete safety interlocking devices to prevent misoperation and ensure aircraft and oil depot facilities.
4. Isuzu aviation fuel bowser is equipped with high-precision, large-flow meters, which provide real-time monitoring during the refueling process and fast refueling speed.
5. Suitable for many types of helicopters and can be customized according to customer needs.
Product application scenarios
ISUZU helicopter refueling trucks are widely used in the following scenarios:
• Airport aviation fuel support: At the airport, ISUZU aircraft fuel bowsers are used to refuel helicopters parked at the airport to ensure the normal takeoff and operation of the helicopters.
• Rescue operations: When natural disasters, fires and other emergencies occur, ISUZU aircraft bowser trucks can quickly arrive at the scene to provide fuel support for helicopters participating in rescue operations and ensure efficient rescue operations.
• Remote area support: In some remote areas, helicopter bowser trucks can provide fuel replenishment for helicopters performing missions, ensuring that helicopters can successfully complete their missions in areas lacking infrastructure.
• Aviation exhibitions and activities: In some aviation exhibitions and activities, aviation fuel trucks can provide fuel refueling services for participating helicopters to ensure the smooth progress of exhibitions and activities.
