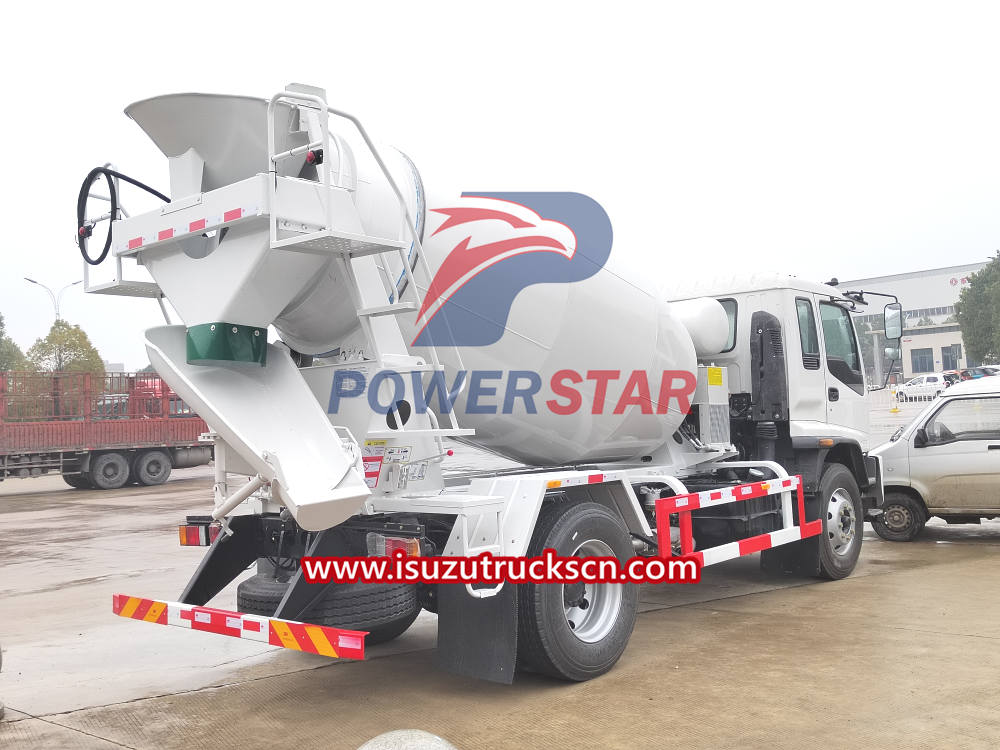

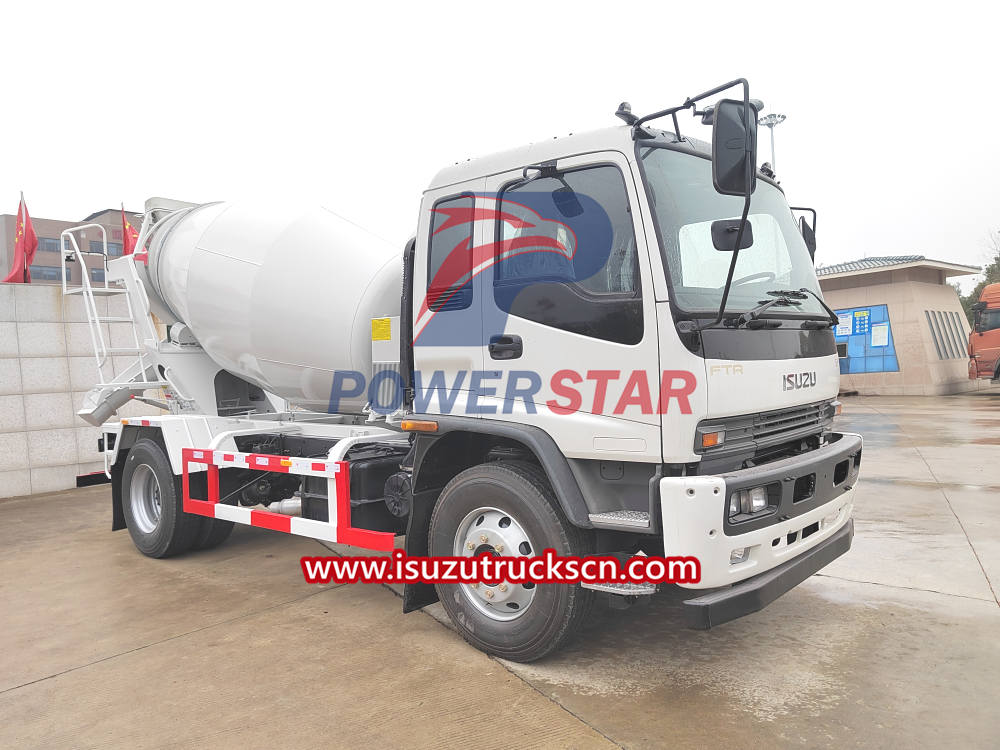

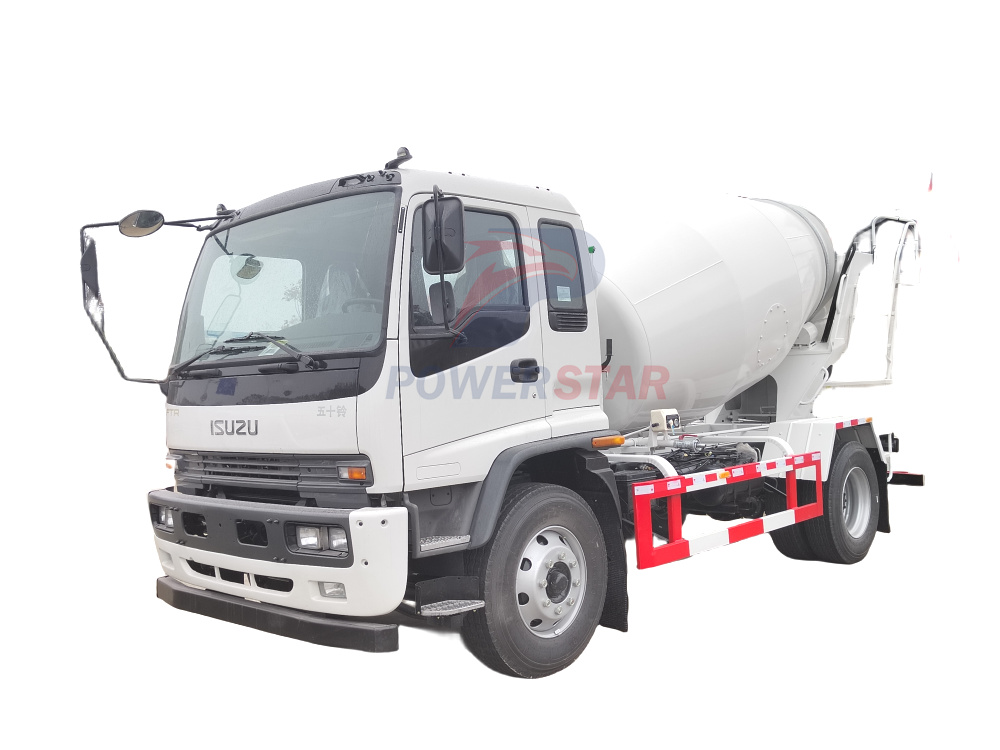

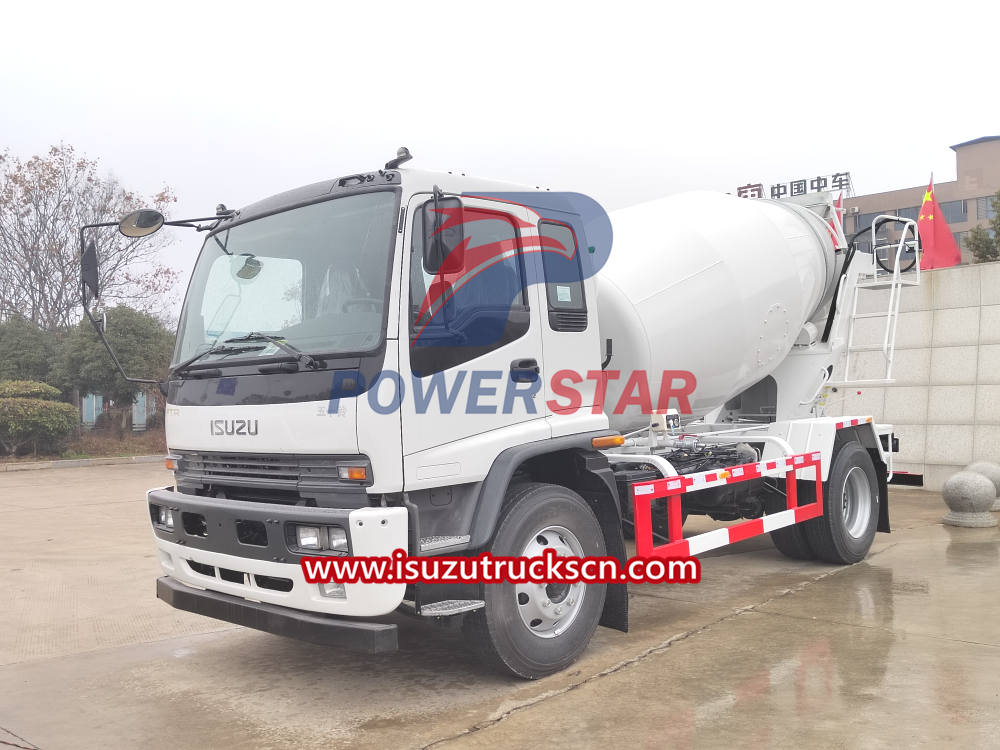

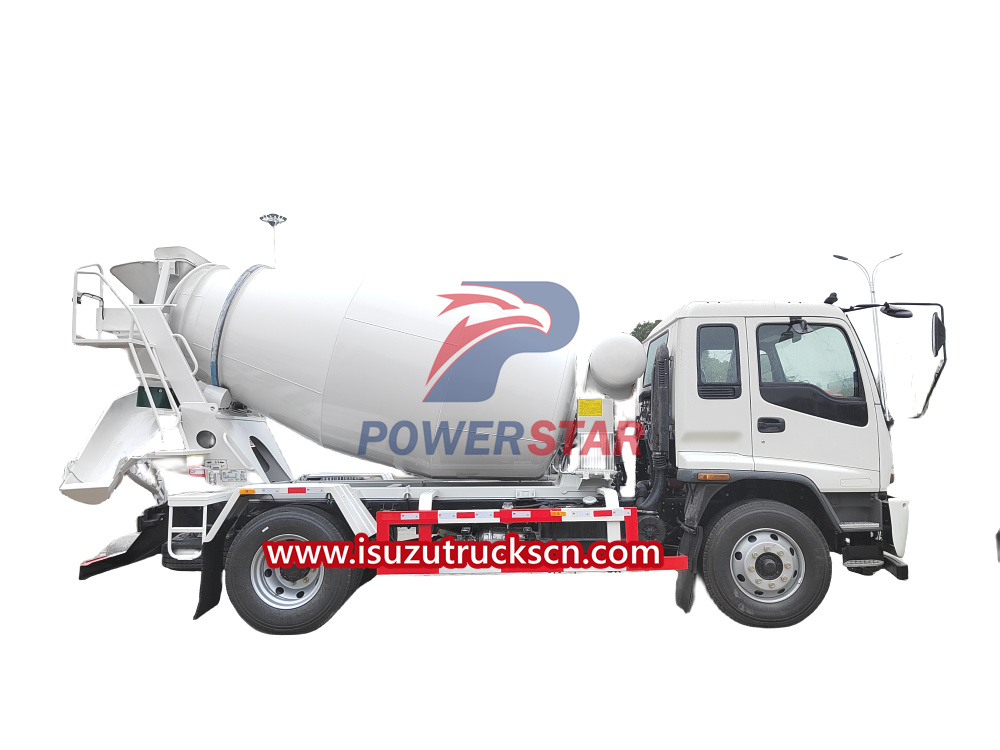

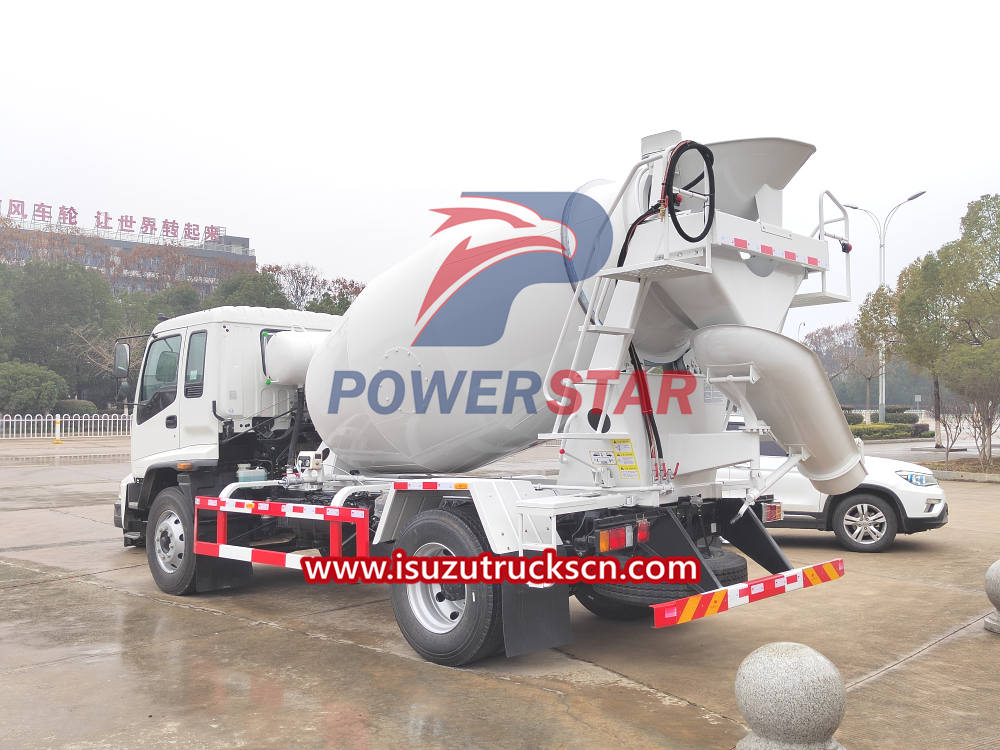

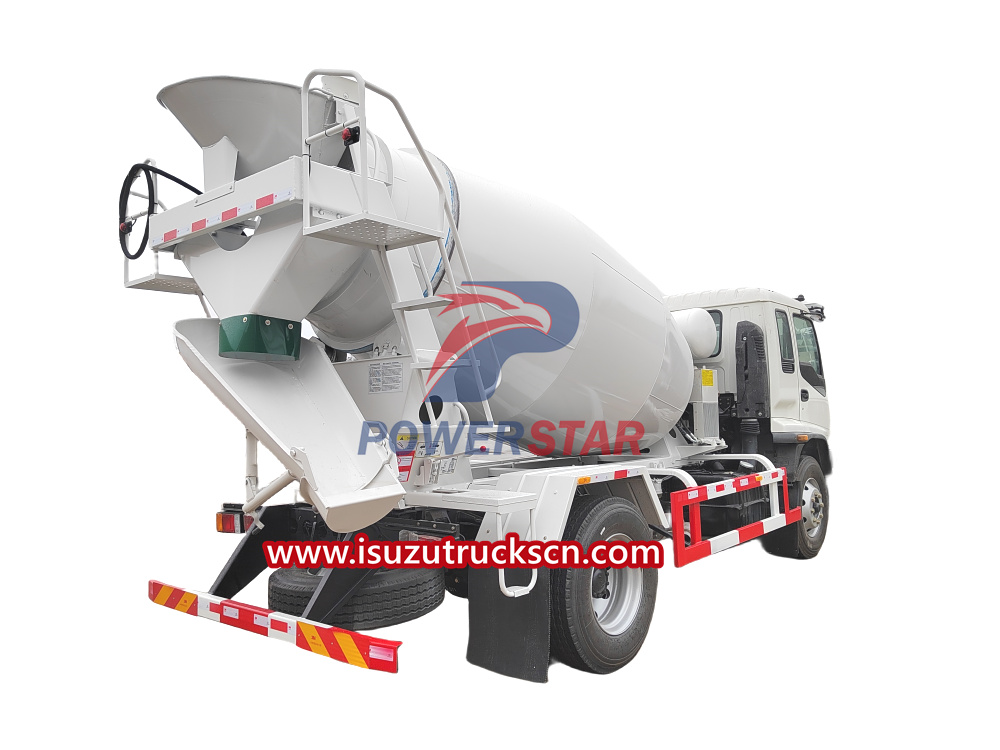

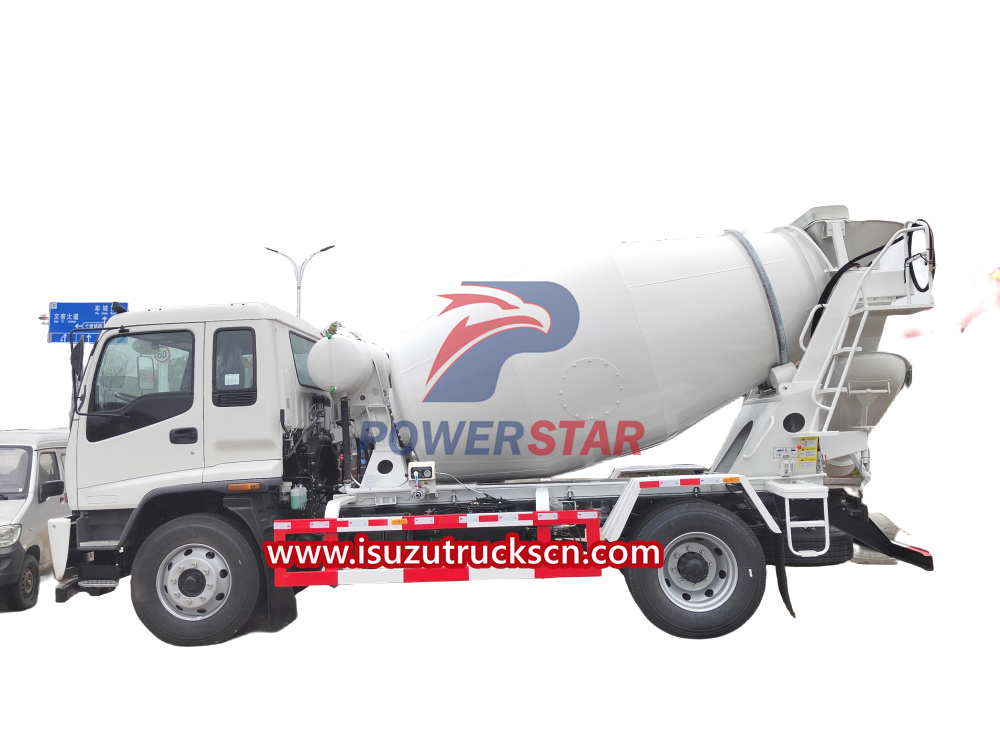

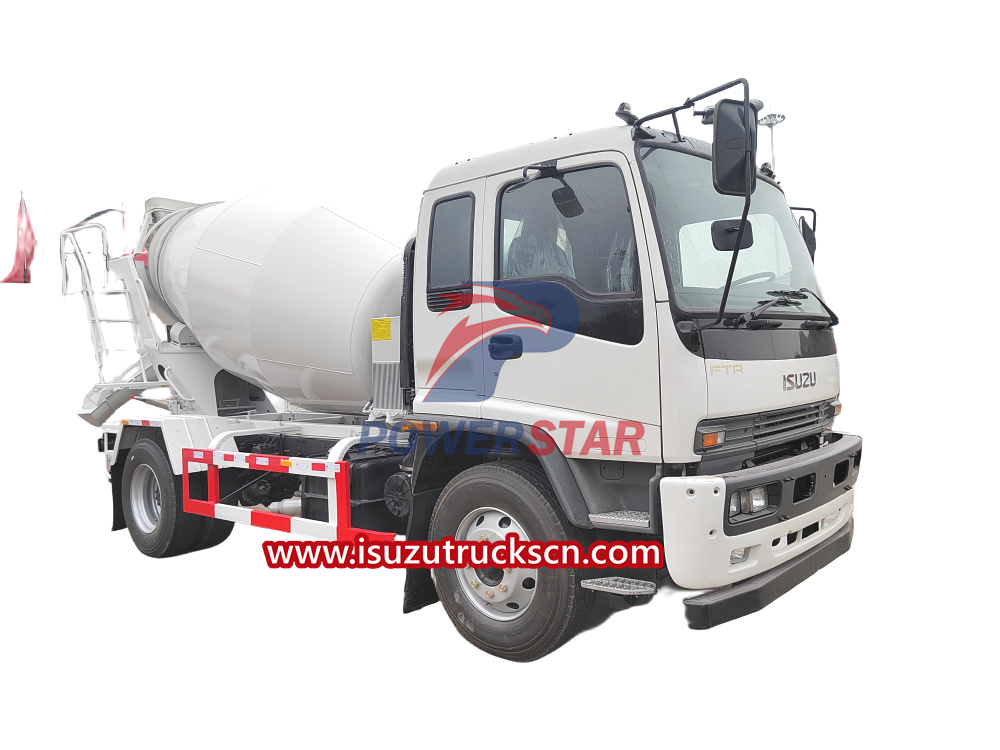

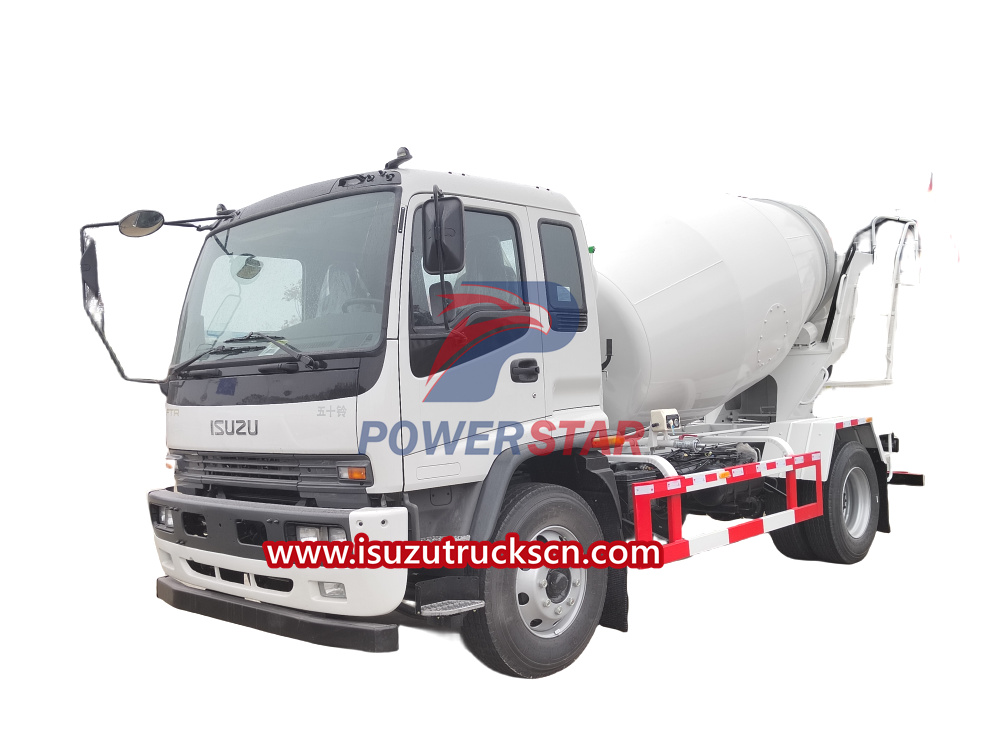

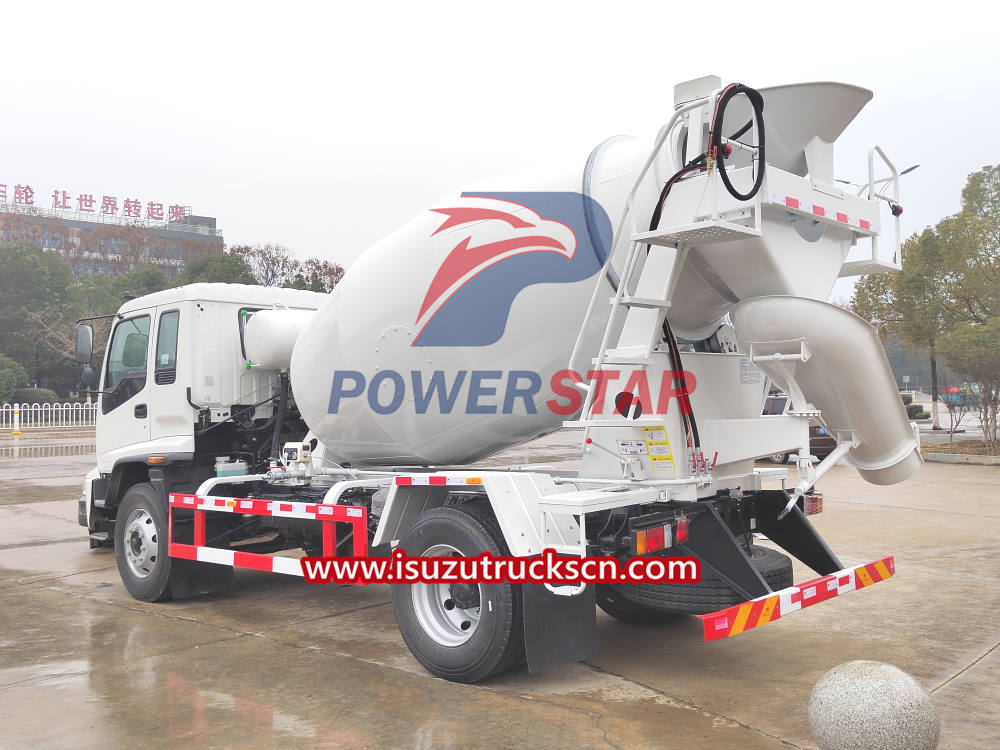

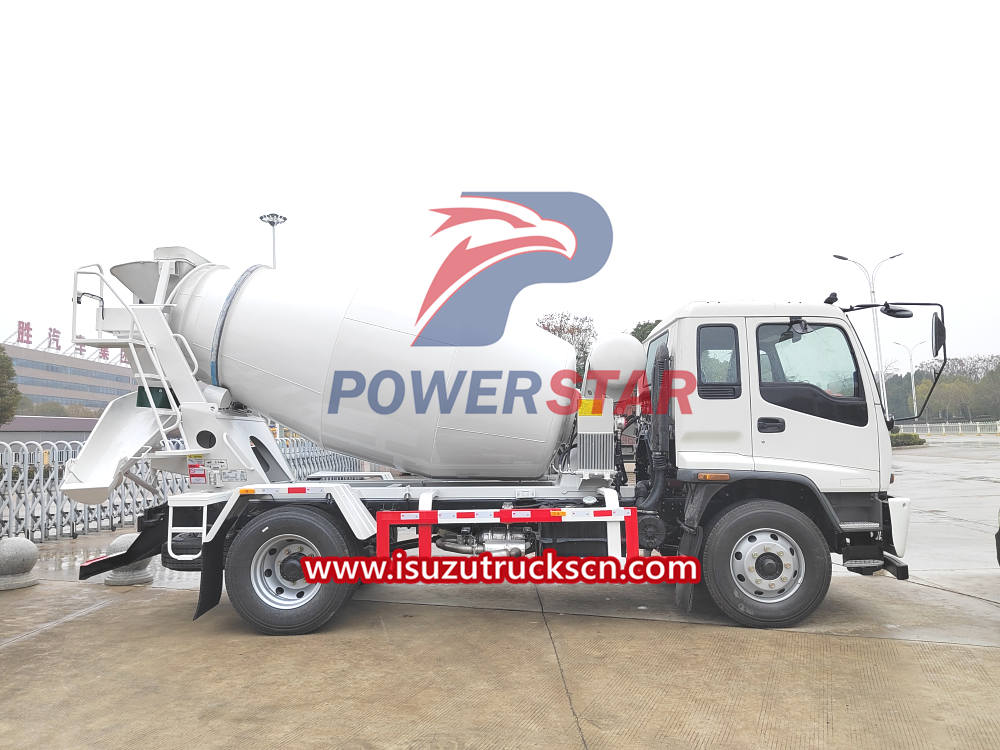

5cbm 6cbm Philippines ISUZU FTR 4x2 6wheels transiste mixer truck (Dry) with 6 cubic meter mixing capacity is equipped with ultra-high strength integrated auxiliary frame, ensuring its stability and high strength. The 6 cubic meter mixer truck can adapt to varied harsh conditions and improves its service life.With mixer truck matching technology, fuel consumption decreases by 10%.
Work capacity:
6 CBMTruck model:
PT5180JBCEngine power:
205 HPEngine type:
4HK1-TC60Axle drive:
4x2Gear box:
ISUZU MLD6SRemarks:

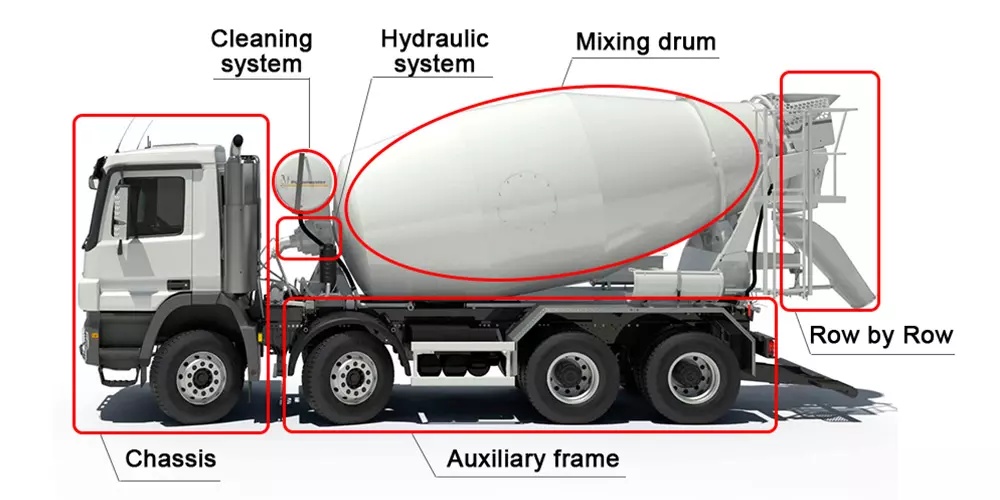

Imported hydraulic systemThe Philippines ISUZU FTR Transit Mixer Truck is a versatile and reliable vehicle designed for efficient and seamless concrete mixing and transportation. It combines the power and durability of the ISUZU FTR truck chassis with a specialized upper body transit mixer, making it the preferred choice in the construction industry.
Introduction
1. ISUZU Brand Concrete mixer truck opting left hand drive or right hand driven.
2. Optional for chassis: 4x2, 4x4,6x4, 6x6, 8x4, 8x8 models.
3. 3m3, 5m3, 6m3, 8m3, 9m3, 10m3, 12 m3 14m3 etc, many capacity are available to choose.
4. Provide different brand chassis: ISUZU, HINO, HOWO, HUUNDAI, DONGFENG.
Feature
1. The tank body uses double helical blades that makes its density moderate, with symmetrical mixing
board on the front taper place; double blades and guiding blades of discharge are installed on the outlet
of tank, which makes the discharge more evenly, faster in speed, and convenient for the pumping transportation
of other devices (such as automobile pump).
2. Low angle for mixing drum can extend the service life of hydraulic pump, motor and reducer. The sub frame
uses high intensity square tube with damping in the central area that can play role when vehicle is at full load
and under the bad conditions of road, which can lower the center of gravity of truck and make it move more
smoothly.
3. The upload production of this mixer adopts multiple advanced technology, which can produce various types
of mixer in volume such as 3m3, 5m3,6m3,8m3, 9m3,10m3, 12 m3,18 m3 etc.
2. Features:
- High-Quality Mixing Drum: The Isuzu transit mixer truck is equipped with a sturdy and efficient mixing drum that can rotate in multiple directions. This ensures thorough and consistent mixing of the concrete, resulting in high-quality and uniform concrete output.

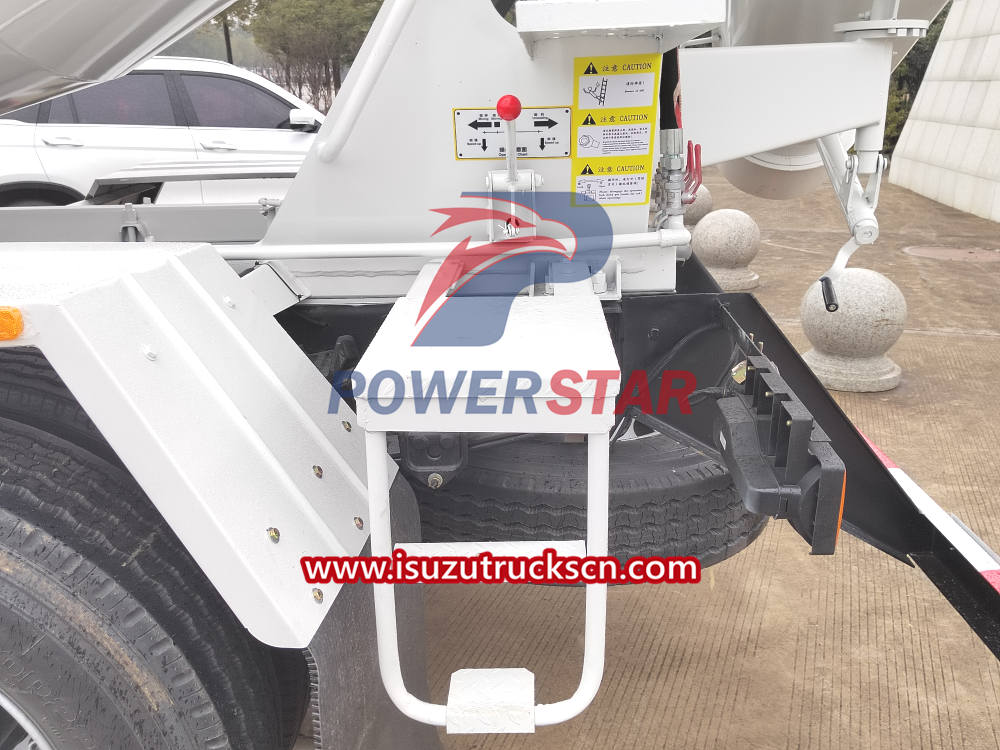

- Advanced Control System: The Mixer truck Isuzu features an advanced control system that allows operators to precisely control the mixing process. The intuitive controls make it easy to adjust the rotational speed and direction of the drum, ensuring accurate and customized mixing.
- Robust Chassis: The ISUZU FTR truck chassis provides exceptional strength and durability, enabling the transit mixer truck to handle challenging terrains and heavy loads. The chassis is built to withstand rugged construction sites and ensures reliable performance even in the most demanding conditions.
- Efficient Discharge System: The transit mixer truck is equipped with a hydraulically operated discharge system, allowing for efficient and precise material discharge. The controlled pouring of concrete enhances productivity and minimizes wastage.
 |
 |
 |
 |
3. Advantages:
- Reliable Performance: The ISUZU FTR Transit Mixer Truck is known for its dependable performance and robust design. It can withstand heavy-duty applications, ensuring uninterrupted operation and optimizing construction site productivity.
- Versatile Application: The truck is suitable for a wide range of construction projects, including building construction, road construction, and infrastructure development. Its flexibility allows it to efficiently transport and deliver concrete to various job sites.
- High-Quality Concrete Output: With its efficient mixing drum and advanced control system, the transit mixer truck ensures the production of high-quality and uniform concrete. This contributes to the stability and strength of the structures being constructed.
- Extensive After-sales Service: The ISUZU FTR Transit Mixer Truck comes with comprehensive after-sales service, including maintenance, repairs, and technical support. This ensures that customers receive prompt assistance and ensures the longevity and optimal performance of the vehicles.
4. Application:
The ISUZU FTR Transit Mixer Truck is extensively used in the construction industry for concrete mixing and transportation. It is employed in various construction projects, including buildings, roads, bridges, dams, and other infrastructure development.
| Parameters of Cement Mixer Truck ISUZU FTR | |||
| Vehicle Name | ISUZU FTR mixer | Vehicle Code | PT5180GXF |
| Engine Type | 205HP-State5 | Displacement | 5200 ml |

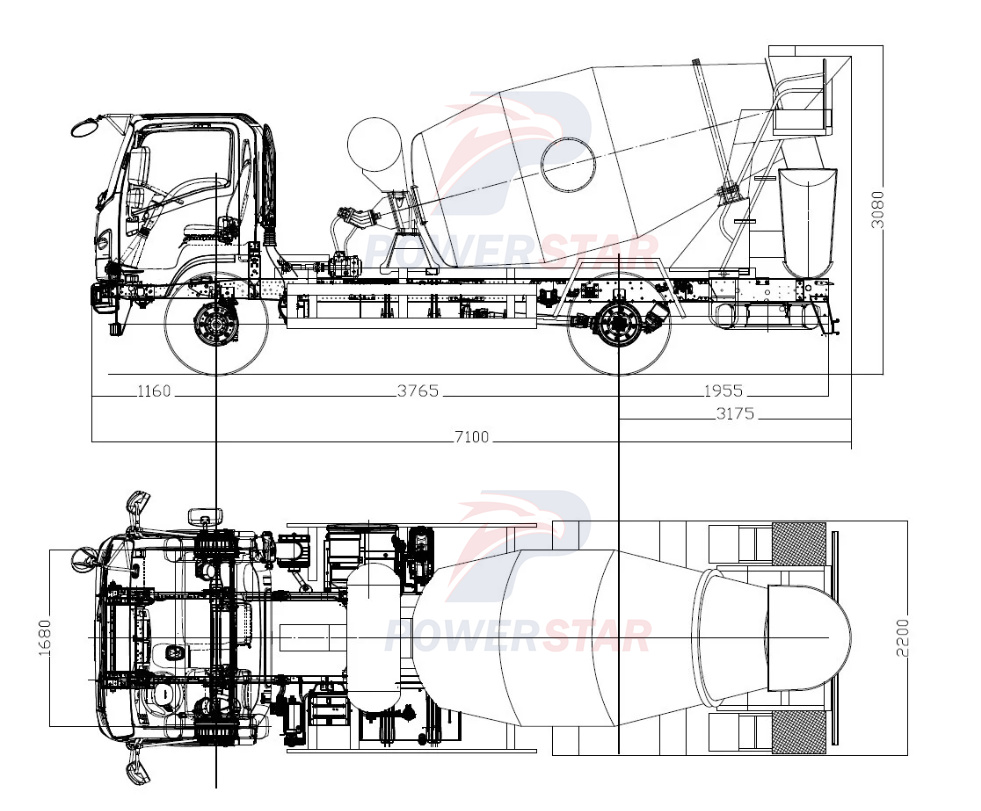

| Dimension | 7250*2500*3980 mm | Discharge Standard | State 5 / EURO2-4 |
| Total Mass | 18000 kg | Spring Films | 14/16/14 |
| Curb Wight | 8980 kg | Max Gross Mass | 18000 kg |
| Axle Load | 7000/7000/20000 kg | Wheel Base | 4500 mm |
| Axle Number | 2 Axle (4X2) | Maximum Speed | 90 km/h |
| Gearbox | MLD 6S | Front and Rear Axle | F-9t / R-16t*2 |
| Tire Number | 6+1 | Tyre Size | 10.00R20 |
| Front Track | 1986/1940 mm | Rear Track | 1860/1860 mm |
| Parameters of Mixing Drum | |||
| Material of Mixing Drum | Alloy steel | Material of Drum surface | Mn-steel-16 , Alloy steel-6mm |
| Material of Mixing Blade | Baosteel-520 , Alloy steel-5mm | Material of Mixing Head | Alloy steel-8mm |
| Reduction Box | Germany-ZF / Bonfiglioli / PMP | Hydraulic System | Rexroth / Eaton / US Sauer / PMP |

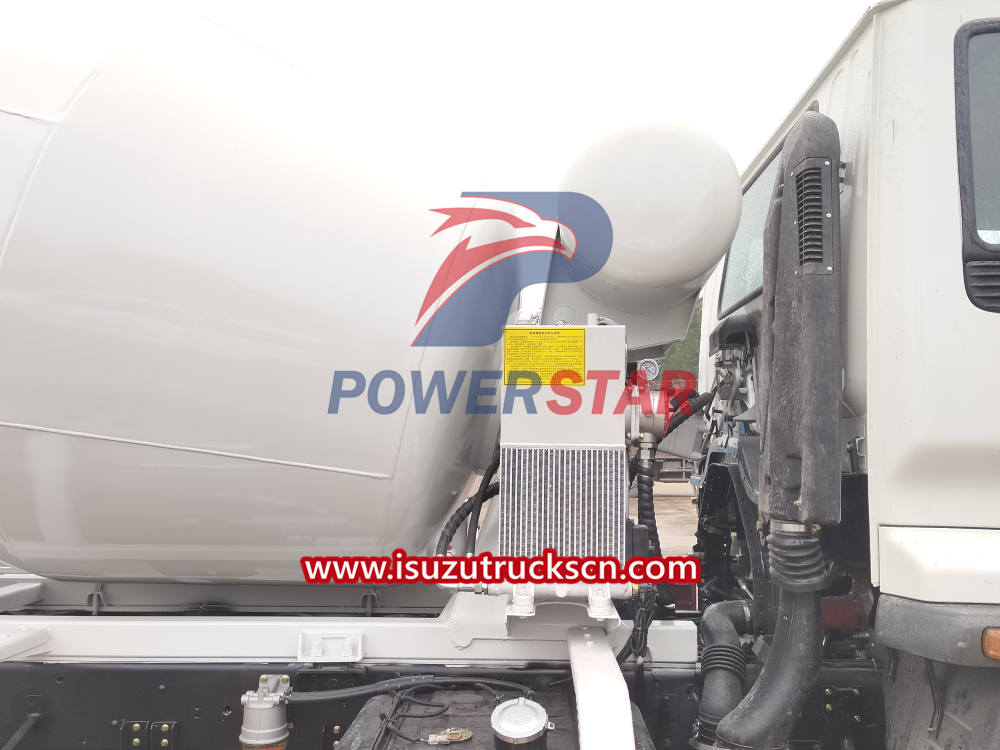

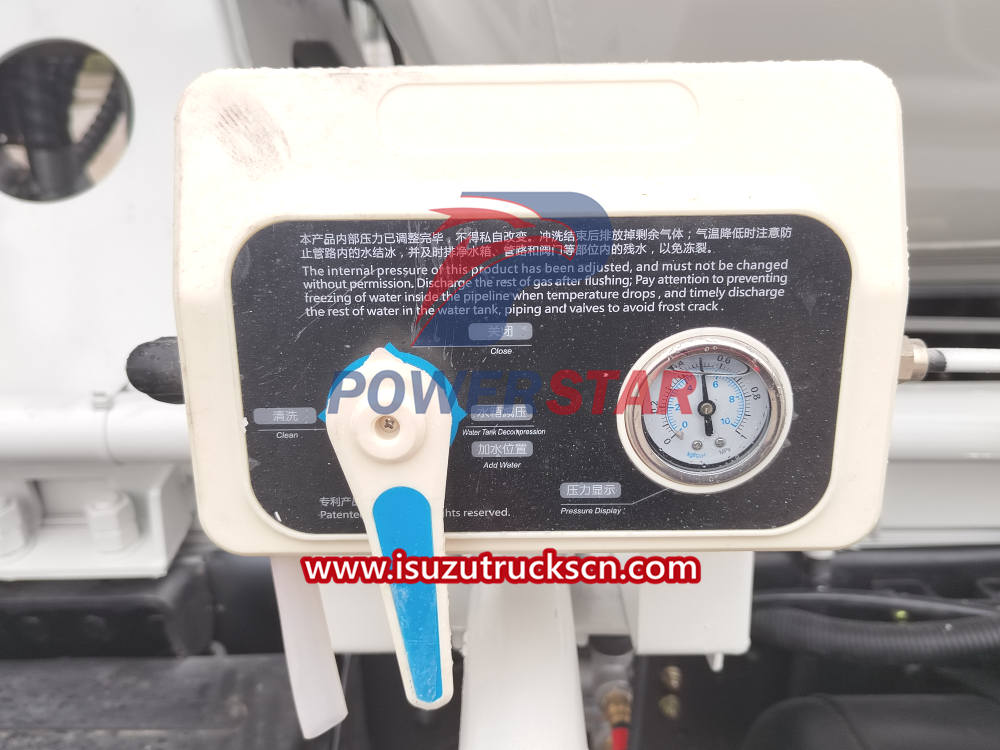

| Water System | 300L(Pneumatic water supply) | Cooling System | OBCC |
| Feeding Speed | ≥3 m³/min | Discharge Speed | ≥2 m³/min |
| Discharge Residual Rate | ≤0.5% | Operating Mode | Both sides and the cab |
| Scope of Discharge | Adjustable | Safety Device | Add the leakage receiving device |
5. After-sales Service:
Customers can rely on the extensive after-sales service provided for the ISUZU FTR Transit Mixer Truck. This includes regular maintenance, repairs, and technical support from a team of skilled technicians. The service aims to maximize uptime, prevent downtime, and ensure the reliable performance of the mixer trucks.
6. FAQ:
- Can the transit mixer truck be customized with additional features?
Yes, the ISUZU FTR Transit Mixer Truck can be customized according to specific requirements. Additional features such as water tanks, admixture systems, or GPS tracking can be incorporated for enhanced functionality and convenience.
- What is the capacity of the mixing drum?
The capacity of the mixing drum typically ranges from X cubic meters to Y cubic meters, depending on the specific model of the transit mixer truck.
- Is the mixing drum easy to clean?
Yes, the mixing drum is designed for easy cleaning. It can be rotated to facilitate thorough cleaning, ensuring the removal of residual concrete and preventing build-up that may affect the quality of future mixes.
- Can the transit mixer truck be operated by a single person?
Yes, the transit mixer truck can be operated by a single person. The advanced control system and user-friendly features allow for convenient operation, saving both time and labor.
7. Upper Body Customization:
Customers have the option to customize the upper body of the transit mixer truck according to their specific requirements. Customization options may include additional storage compartments, safety features, or specialized equipment to improve operational efficiency.
8. Truck Chassis Choice:
The ISUZU FTR Transit Mixer Truck offers a variety of truck chassis choices to meet different customer needs. Customers can select the appropriate chassis base, engine power, and payload capacity to match their specific requirements in terms of construction site conditions and concrete volume demands.
