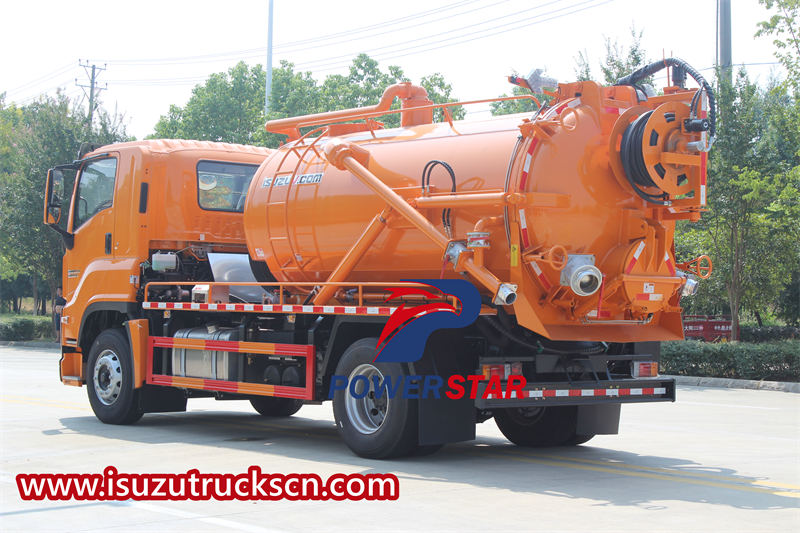

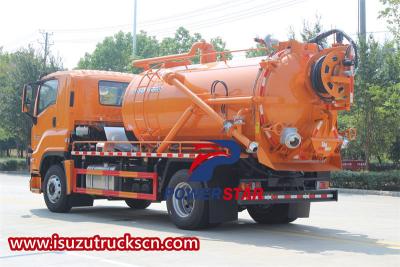

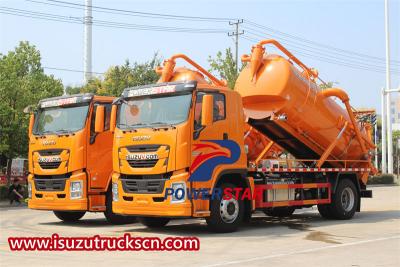

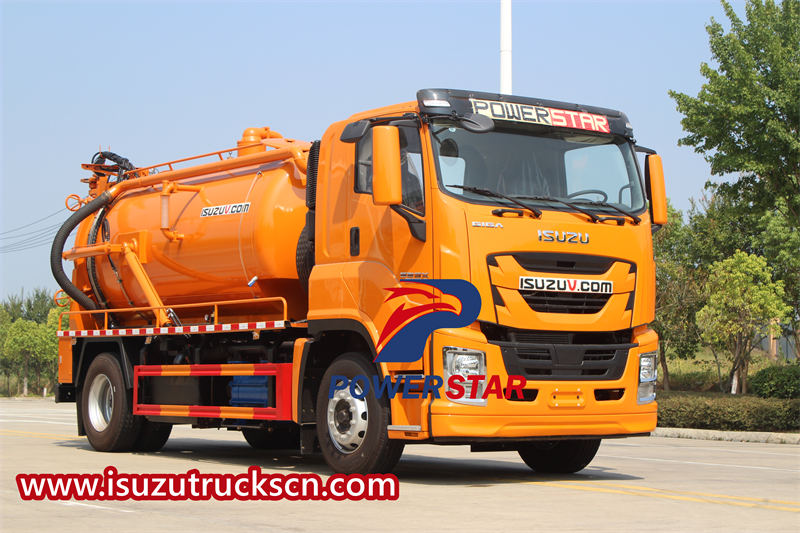

The ISUZU FVR combination sewer jetter truck is equipped with a 6HK1-TCG61 engine boasting 240 hp and an 8-speed manual transmission, ensuring efficient power transmission. The vehicle's overall dimensions are 8200×2500×3400 mm, with a wheelbase of 4500 mm, guaranteeing stable driving. It features a 6000-liter vacuum tank and a 2500-liter water tank, both constructed with Q235 carbon steel with a thickness of 6 mm. Additionally, it is equipped with a water circulation vacuum pump and a high-pressure plunger pump, achieving a suction time of ≤5 minutes and an effective suction depth of ≥8 meters. The vehicle can also be customized according to customer requirements, meeting individualized needs, making it an ideal choice for urban cleaning operations.
Work capacity:
8500 litersTruck model:
PT5180GQWQ6Engine power:
240 HPEngine type:
DieselAxle drive:
4×2Gear box:
FAST 8-speedRemarks:
Customized tank capacity and painting colorProduct Description

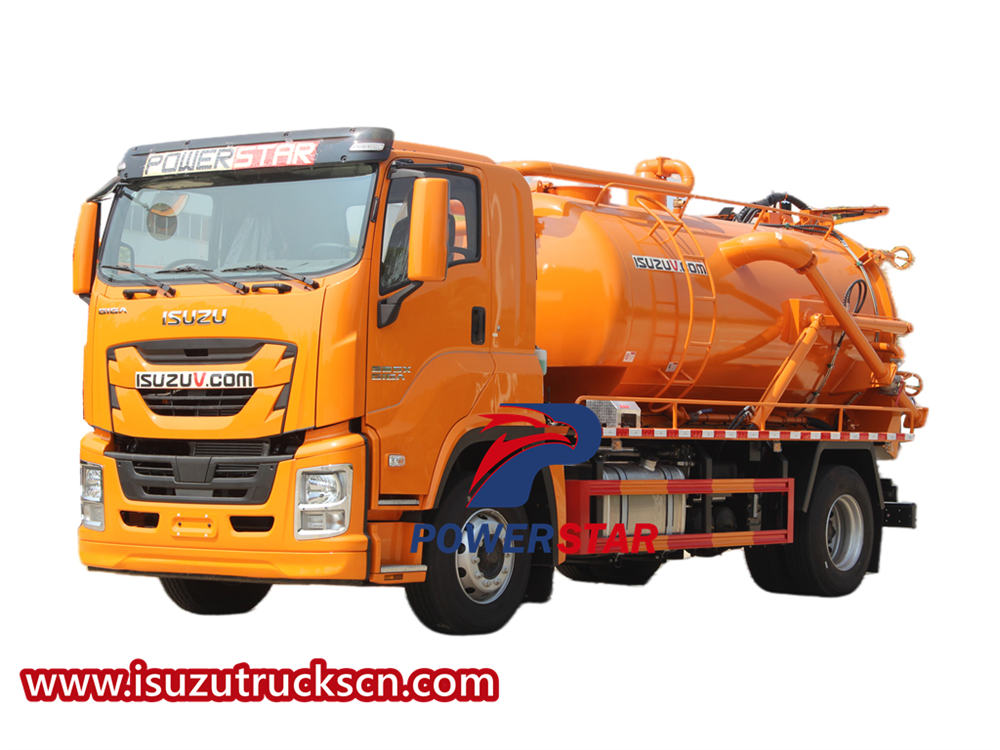

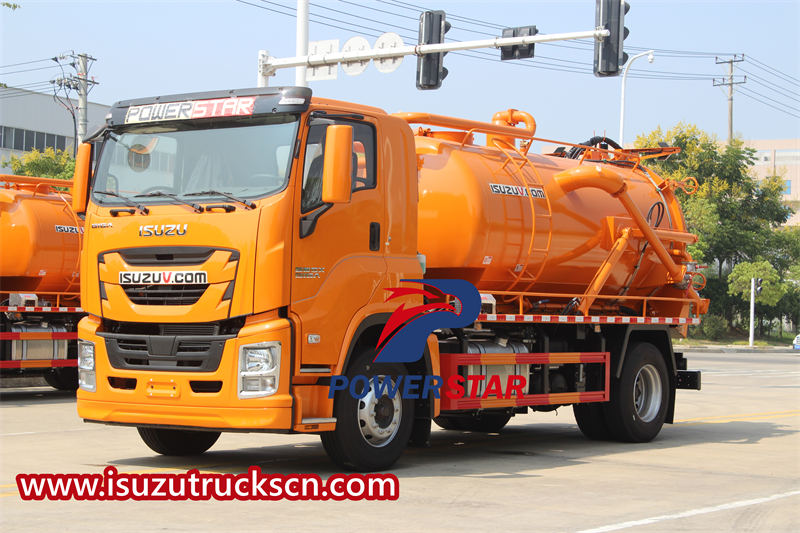

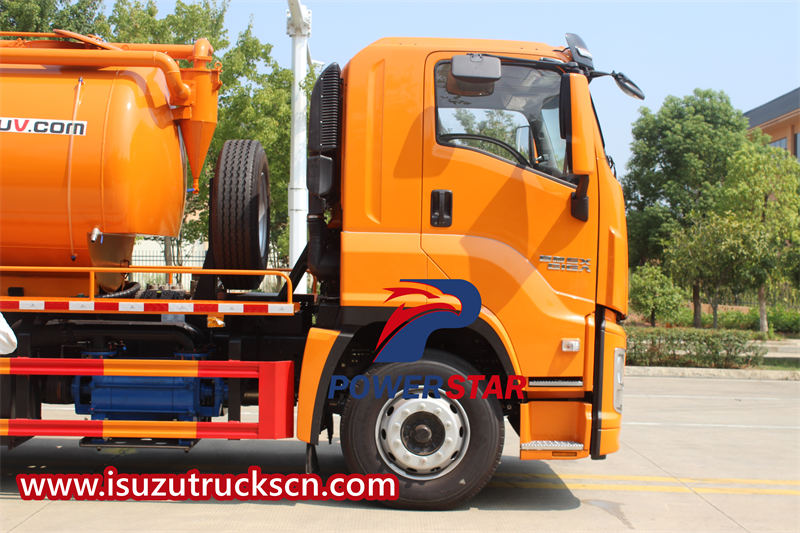

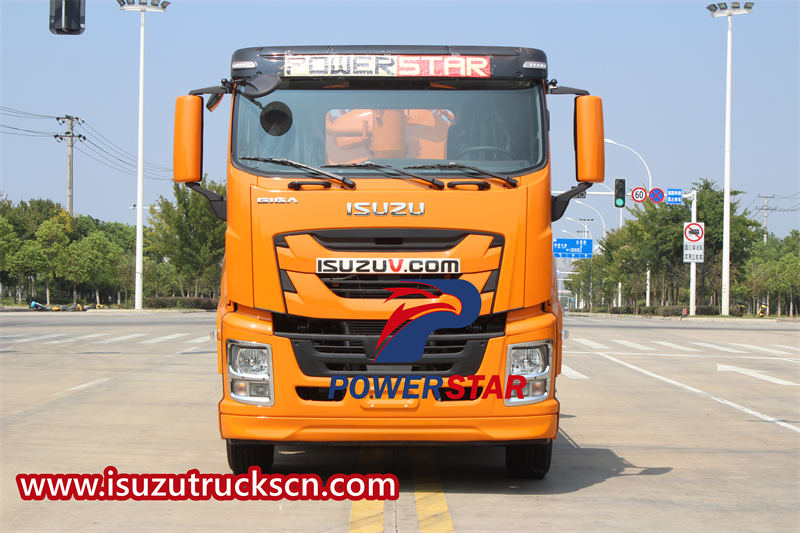

In the fast-paced modern urban lifestyle, maintaining the cleanliness and hygiene of the city environment is of utmost importance. To meet this demand, we have designed the ISUZU FVR combination sewer truck, a professional cleaning equipment that integrates efficiency, reliability, and versatility. The vehicle adopts the ISUZU GIGA 5X new-model cabin with a single-row design, equipped with 2 seats and 1 sleeper, providing a spacious and comfortable driving environment for the driver. The cabin is also equipped with an air conditioning system to ensure that the driver can maintain optimal working conditions in various climatic conditions, thereby improving operational efficiency.
The total mass of the ISUZU FVR Combination Jetter Vacuum Truck is 18,000 kg, with an effective payload of up to 10,000 kg. The front axle has a loading capacity of 6,300 kilograms, and the rear axle has a loading capacity of 13,000 kilograms, ensuring the vehicle's stability and safety during heavy-duty operations. The vehicle's maximum driving speed can reach 95 km per hour, meeting the need for rapid transfer between operation sites.
In terms of power, the ISUZU FVR Combined Sewer Cleaner is equipped with the ISUZU-branded 6HK1-TCG61 engine. This engine boasts a power of 240 hp, an output power of 175 kw, and a rated speed of 2,400 rpm. It complies with the Euro 6 emission standard and has a displacement of 7,790 ml, ensuring strong power output while reducing environmental pollution, aligning with modern cities' requirements for environmental protection.

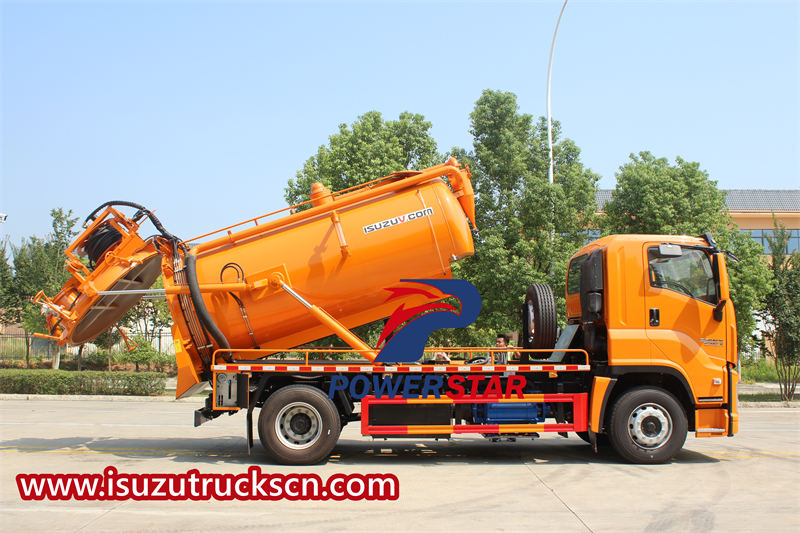

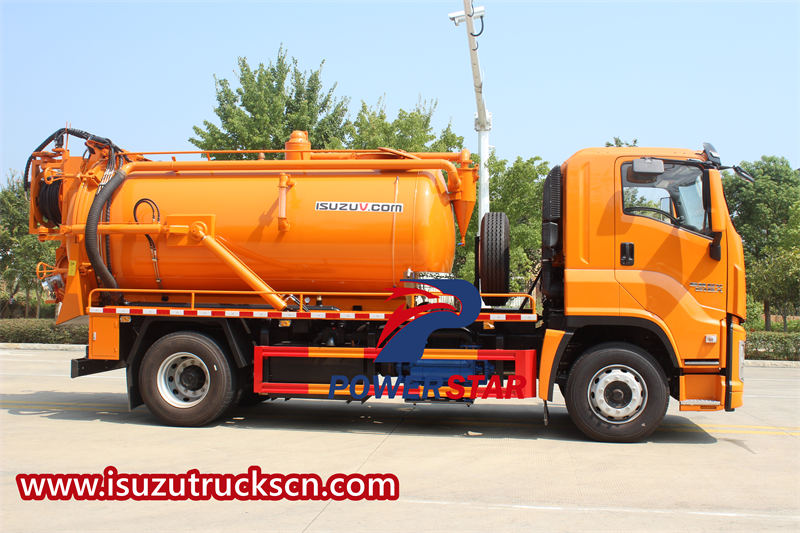

The ISUZU combination sewer jetting truck is equipped with a 6,000-liter vacuum tank and a 2,500-liter water tank. Both tanks are made of Q235 carbon steel material with a thickness of 6 mm, ensuring the durability and safety of the tanks. The tank lifting angle is ≥45°, facilitating dumping and cleaning. Additionally, the vehicle is equipped with efficient pump systems such as a water circulation vacuum pump and a high-pressure plunger pump, as well as auxiliary equipment such as oil-gas separators, water-gas separators, ensuring smooth and safe operations.

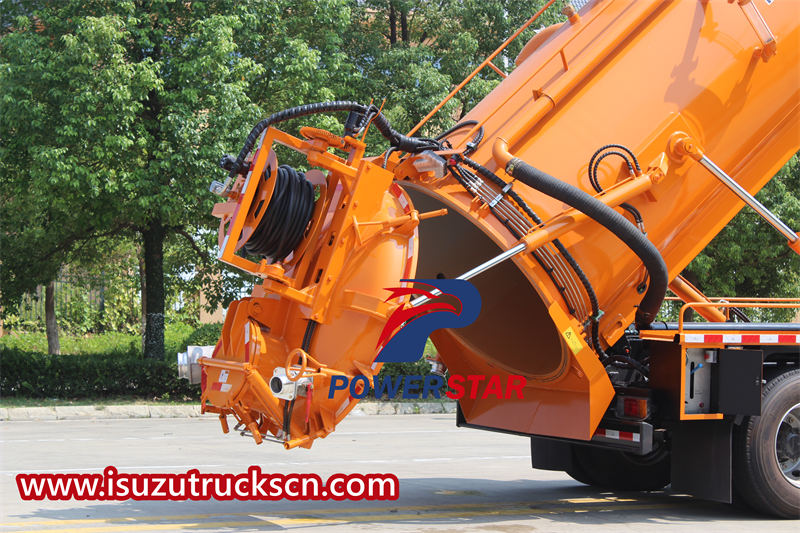

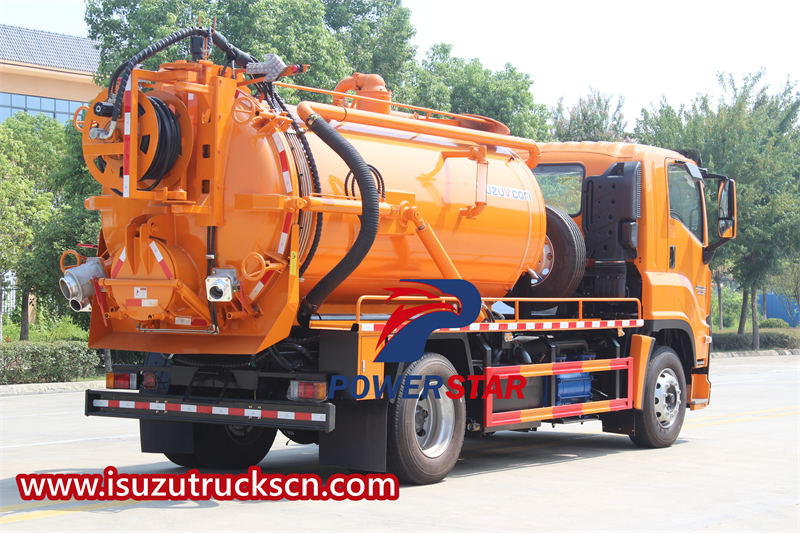

The ISUZU FVR combination vacuum truck exhibits excellent operational performance. It is equipped with an 8-meter-long sewage suction pipe and a hydraulic reel with a 60-meter high-pressure hose and 10 nozzles, meeting the cleaning needs of different scenarios. Key performance indicators include a suction time of ≤5 minutes and an effective suction depth of ≥8 meters, fully demonstrating the vehicle's advantages in operational efficiency and capability.
Product Specifications
|
Cabin |
ISUZU GIGA 5X new model cabin, single row, with 2 seats and one sleeper, with A/C |
|
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H) mm |
8200×2500×3400 |
|
Wheelbase (mm) |
4500 |
|
|
Wheel track (front/rear) (mm) |
1960/1855 |
|
|
Approach/Departure angle (°) |
20/12 |
|
|
Weight in KGS |
Gross Vehicle Weight |
18000 |
|
Payload |
10000 |
|
|
Front axle loading capacity |
6300 |
|
|
Rear axle loading capacity |
13000 |
|
|
Max. driving speed(km/h) |
95 |
|
|
Engine |
Brand |
ISUZU |
|
Model |
6HK1-TCG61 |
|
|
Horse power (HP) |
240HP |
|
|
Emission standard |
Euro 6 |
|
|
Output (KW) |
175 KW |
|
|
Rated speed |
2400 rpm |
|
|
Emission standard |
7790 ml |
|
|
Gearbox |
FAST, manual, 8 forwards & 1 reverse |
|
|
Steering |
Left hand drive |
|
|
Tire |
295/80R22.5, 6 tires with one spare |
|
|
Upper-body specifications |
||
|
Vacuum tank volume |
6000 liters |
|
|
Water tank volume |
2500 liters |
|
|
Tank material |
Carbon steel Q235, thickness 6mm |
|
|
Tank lifting angle |
≥45° |
|
|

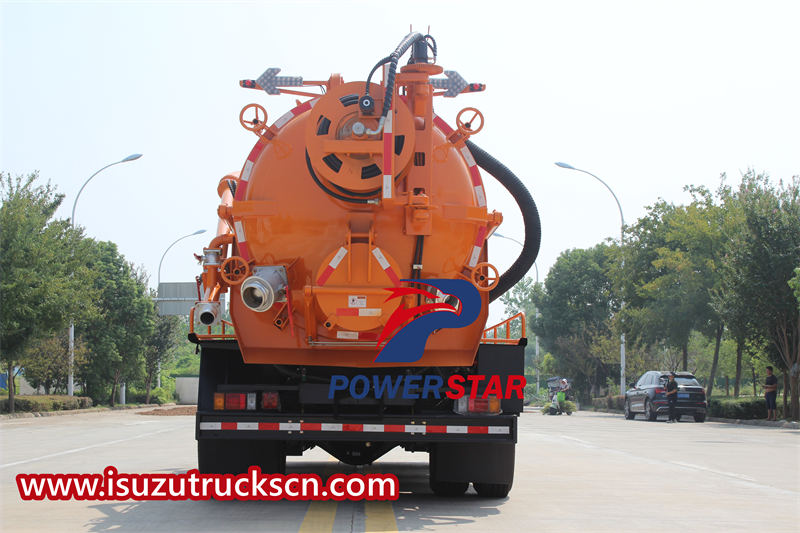

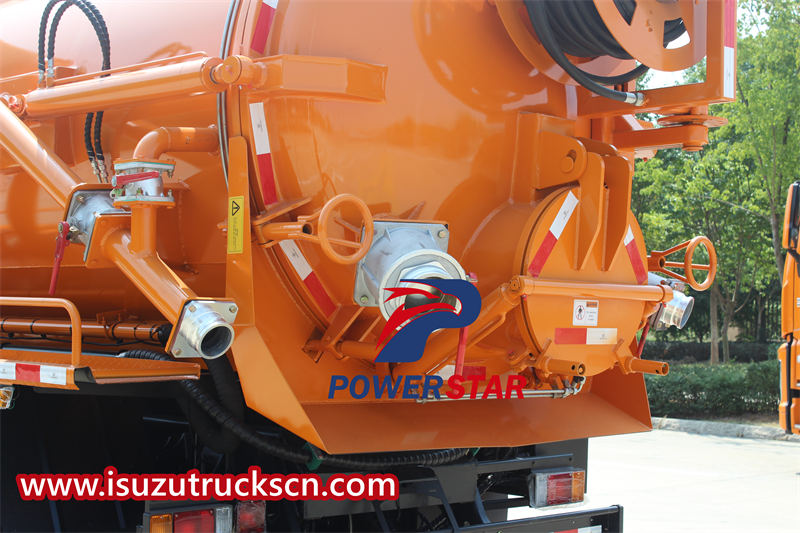

Rear cover |
Open and closed by hydraulic cylinders |
|
|

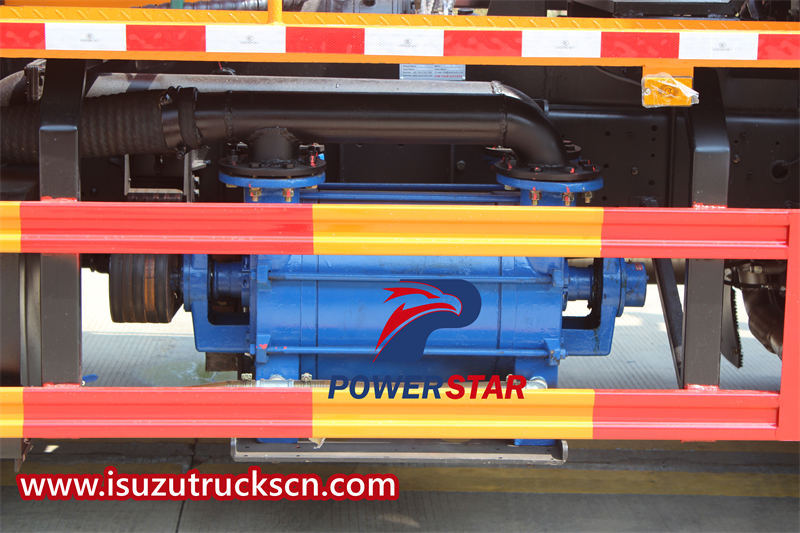

Vacuum Pump |
Type |
Water circulation pump |
|
Model |
2BE-204 |
|
|
Ultimate vacuum |
3300 pa |
|
|
Rotation speed |
980 rpm |
|
|
Maximum pumping speed |
21 m3/min |
|
|
Water Pump |
Model |
PF36 |
|
Type |
High pressure plunger pump |
|
|
Brand |
PINFL |
|
|
Flow rate |
122 L/min |
|
|
Pressure |
16 Mpa |
|
|
Speed |
1000 rpm |
|
|
Power |
37 kw |
|
|
Sewage suction pipe |
8M |
|
|

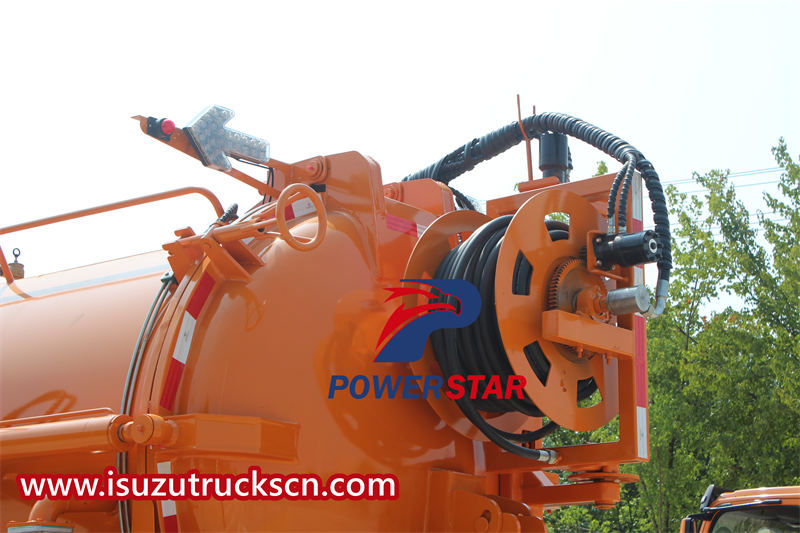

Hose reel |
Hydraulic reel, with 60m high pressure hose and 10 nozzles |
|
|
Main Performance |
Suction time ≤ 5min, |
|
|
Other equipment |
Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve |
|
|
Painting |
Customized painting color as required. |
|
