ISUZU FVR dump truck with ISUZU 6HK1-TCL engine
Order(MOQ):
1
New ISUZU FVR 6HK1-TCL Heavy tipper dump truck for philippines
ISUZU FVR6HK1-TCL Tipper truck (also called ISUZU front dump truck, Isuzu dumper vehicle) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.
|
100% custom-made
|
|
|
3 cbm to 22 cbm available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
ISUZU FVR Dump Truck |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PST5180ZX |
||
|
Production Time |
25 days |
||
|
Chassis parameters |
Overall dimensions |
mm |
8200*2300*3100 |
|
Gross weight |
kg |
18,000 |
|
|
Kerb weight |
7,500 |
||
|
Wheelbase |
mm |
5550 |
|
|
Driving type |
4*2 |
||
|
Chassis model |
ISUZU FVR medium duty |
||
|
Tire size |
295/80R2.5 |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
3 |
||
|
Engine |
Engine model |
6HK1-TCL |
|
|
Type of fuel |
Diesel |
||
|
Power |
240HP |
||
|
Max speed |
Km/h |
95 |
|
|
Emission standard |
EURO 5,6 |
||
|
Compactor performance |
Dump body size |
5000x2200x1200 |
|
|
Loading capacity |
10 Tons |
||
|
Body materila |
High performance carbon steel |
||
|
Plate thickness |
Front/Side are 3mm |
||
|
Rear/Floor are 4mm |
|||
|
Control system |
Hydraulic |
||
|
Hydraulic Lifting |
Middle lifting device |
||
|
Discharging system |
Tipping 45 degree |
||
|
Lifting time |
20 sec |
||
|
Lowering time |
15 sec |
||
|
Tailgate |
Auto release |
||
|
Drop side |
Detachable |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
||
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.

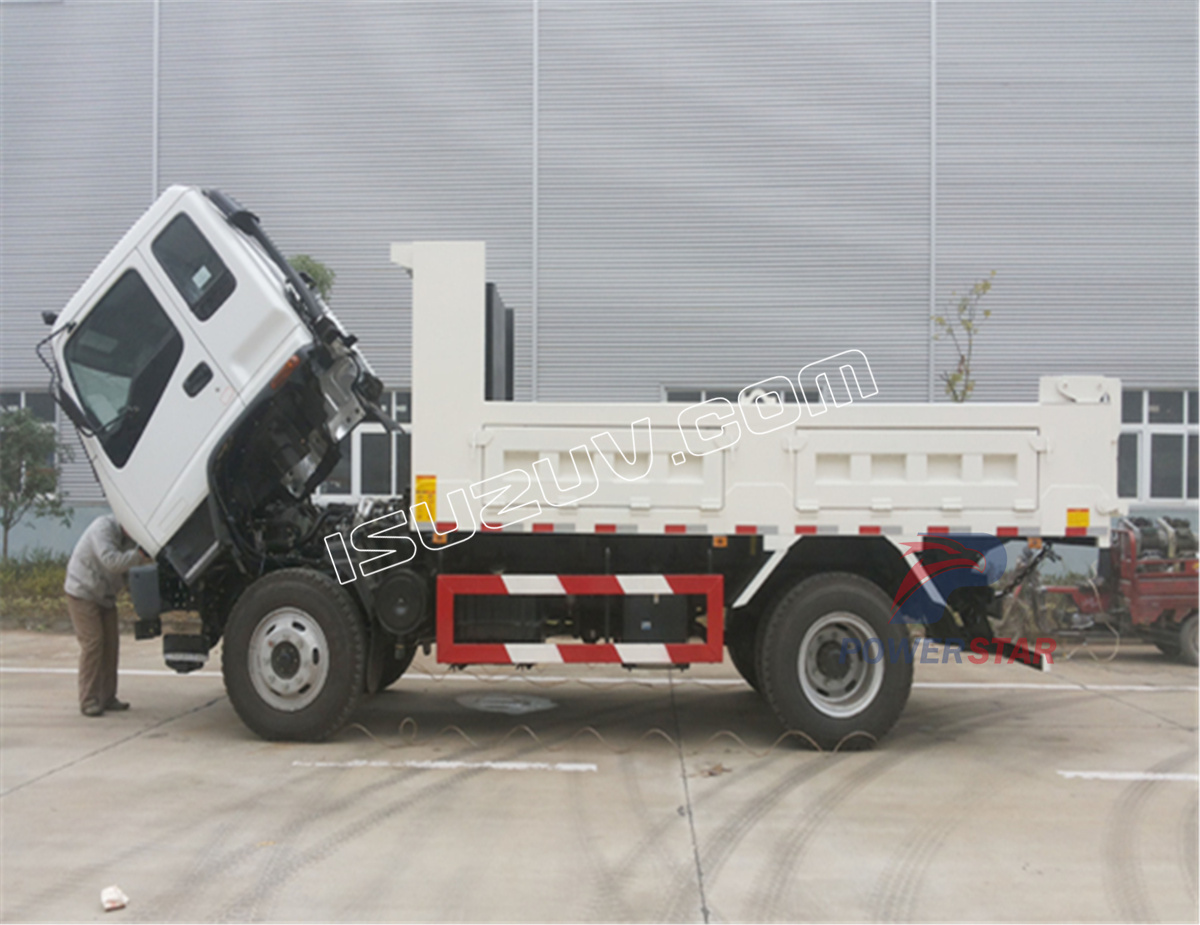

New ISUZU FVR 6HK1-TCL Heavy tipper dump truck for philippines
New ISUZU FVR 6HK1-TCL Heavy tipper dump truck for philippines
New ISUZU FVR 6HK1-TCL Heavy tipper dump truck for philippines
|
|
|
||
| Special U-shape body | Rear door safety hook | Rear door top lug hooks | ||
|
|
|
||
| Reinforced dumper body | T-type hydraulic cylinder | Mining body | ||
|
|
|
|
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual | Chassis parts | Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
