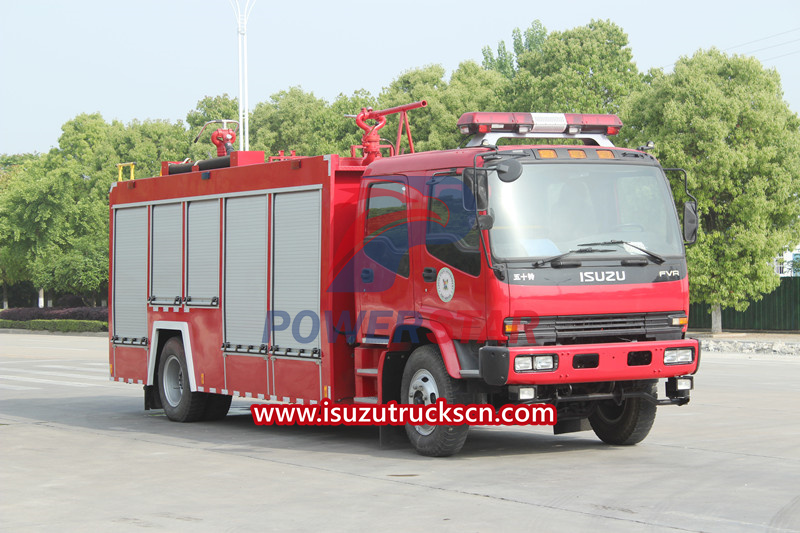

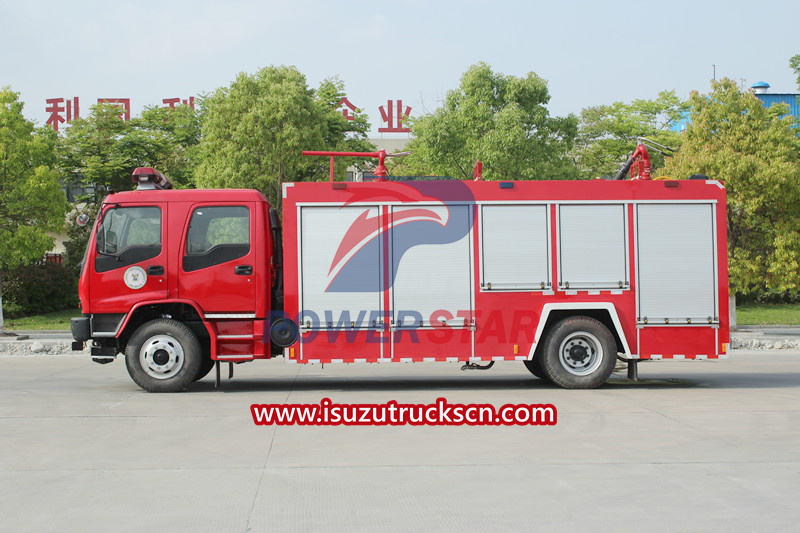

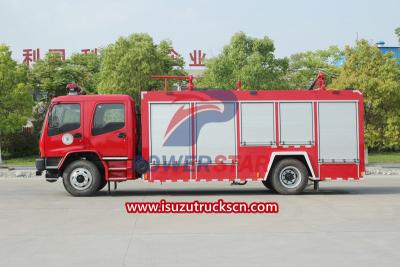

Isuzu FVR firefighting truck,is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
It has superior performance and is a preferred fire vehicle for specialized fire brigades such as oil fields, petrochemical enterprises, oil depots, oil terminals, and public security fire brigades in large and medium-sized cities.
Work capacity:
10000LTruck model:
PT5110GXFPM52Engine power:
240HPEngine type:
6HK1-TCLAxle drive:
4X2Gear box:
MLD 6-speed，manualRemarks:
ISUZU FVR 10000L dry powder fire truck
Isuzu fire trucks are also called water fire trucks, Isuzu water foam fire trucks, Isuzu fire equipment fire trucks, Isuzu foam fire trucks, Isuzu water foam pump trucks, Isuzu light rescue device fire trucks, and Isuzu foam tank truck fire trucks. It is a special vehicle mainly used for fire-fighting operations. It can effectively extinguish fires, prevent the spread of fires, and minimize the losses caused by fires.

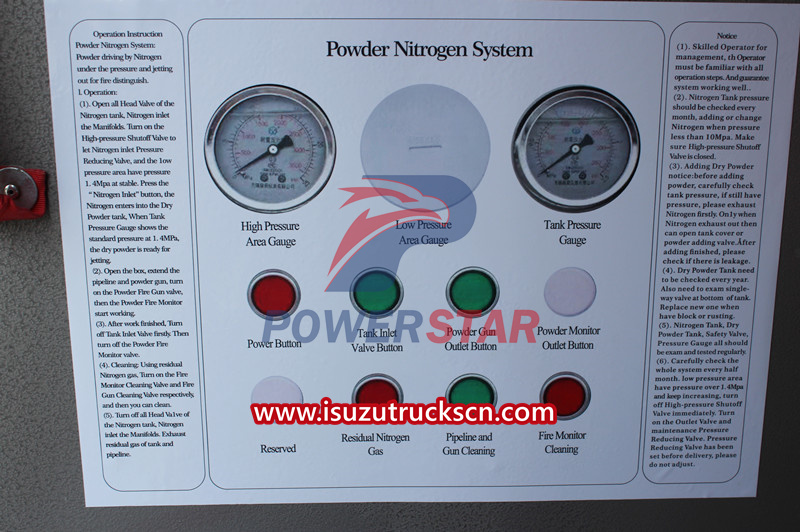

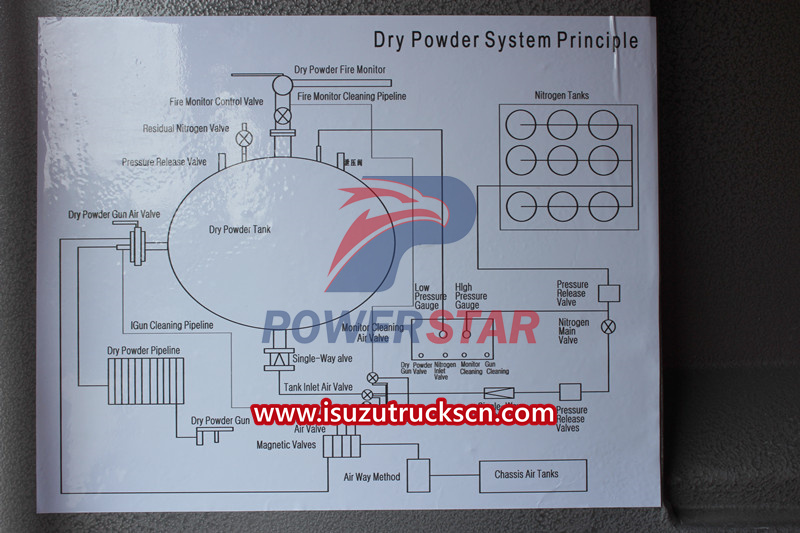

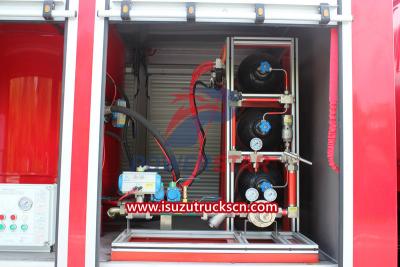

The following ISUZU FVR firefighting vehicle that I will introduce today is a water foam and dry powder firefighting vehicle. It is modified from the chassis of a Class II truck. It is mainly equipped with a foam water tank, a dry powder fire extinguishing agent tank, a dry powder spray device, a water pump and a fire extinguishing device. Equipment, etc., mainly use dry powder to extinguish flammable and flammable liquids. Combustible gas fires, live equipment fires, and general material fires can also be put out. For pipeline fires in large chemical plants, the firefighting effect is particularly significant. It is a fire truck commonly used by petrochemical companies. Dry powder fire trucks use high-pressure nitrogen as the driving force to launch dry powder fire extinguishing agents. The gas is filled into the powder storage tank and expands to work, driving the dry powder to eject from the cannon (gun) mouth, forming a mist-like airflow towards the fire source to extinguish the fire. The vehicle is mainly used to extinguish large areas of flammable liquids (such as oil, liquid hydrocarbons, esters, alcohols, ethers, etc.); flammable gases (such as liquefied petroleum gas, natural gas, coal gas, etc.). At the same time, it can extinguish small area scattered fires and general electrical initial fires. Due to the equipment of full-time fire brigades such as oil fields, petrochemical enterprises, oil depots, and oil transportation terminals, as well as public security fire brigades in large and medium-sized cities.
The total tank volume of the dry powder water foam combined fire truck: 10 cubic meters, the water tank volume: 6 cubic meters, the foam liquid tank volume: 2 cubic meters, the dry powder tank volume: 2.0 cubic meters; the firefighter is calculated as 75 kg/person ; The ABS system model is 4460046300, and the manufacturer is WABCO Automotive Control Systems (China) Co., Ltd.; Side protection and rear lower protection device material: Q235, integral structure; Rear lower protection device height from the ground: 475mm; Mainly dedicated The equipment includes fire pumps, fire monitors, and dry powder systems.
|
Isuzu FVR fire truck special function description |
|
|
Cab |

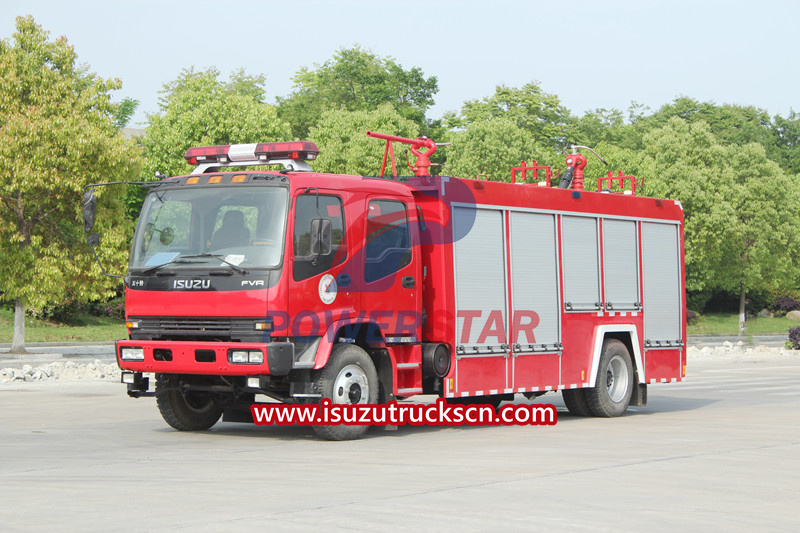

Flat-head all-metal enclosed cab, double-row cab, panoramic curved windshield. Optional new front mask, front bumper, front combination lamps, door windows, and lower cowl mask. |
|
Tank |

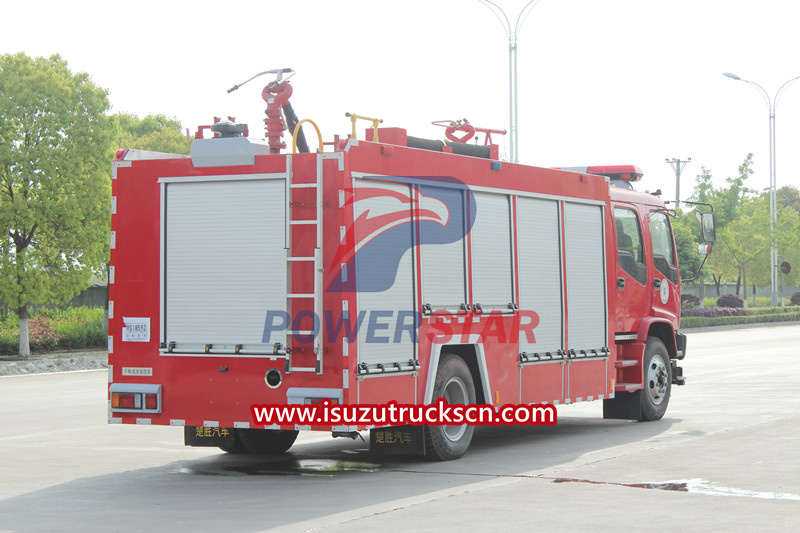

Made of high-quality carbon steel material (Q235A), welded structure, equipped with longitudinal and anti-sway plates, and treated with high-tech anti-rust and anti-corrosion. Stainless steel material is optional. |
|

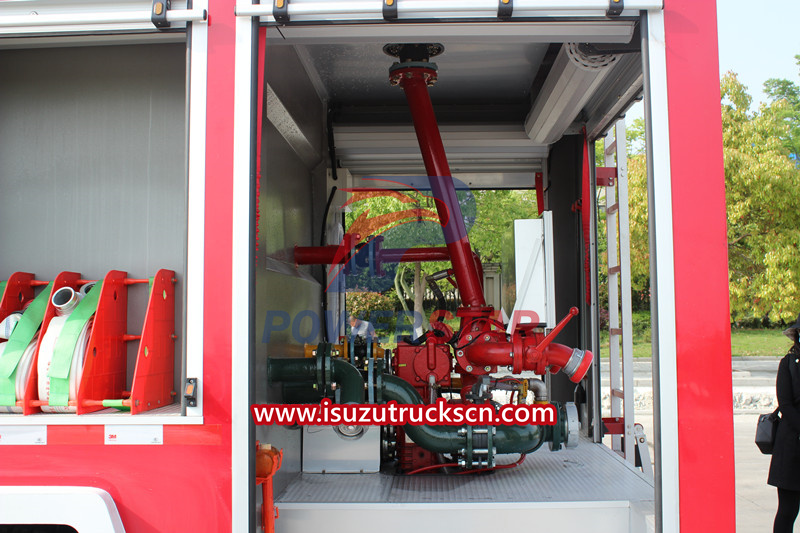

Pump room |

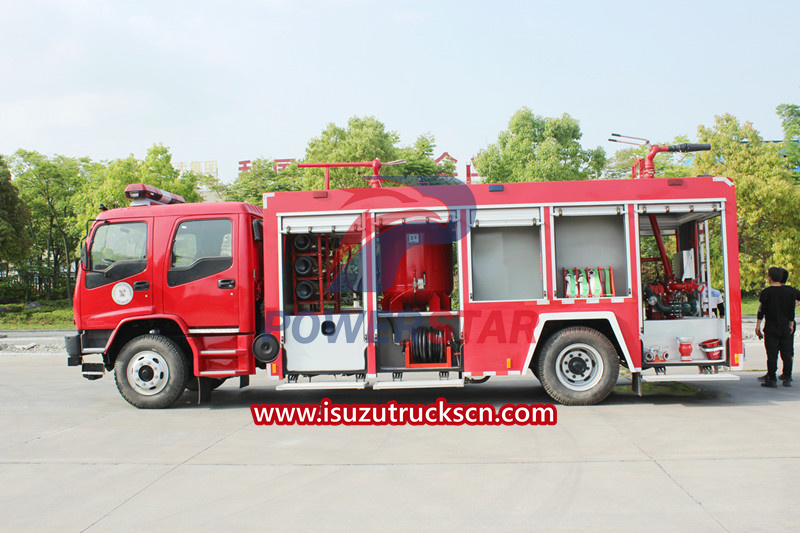

For mid-mounted or rear-mounted pumps, there are new easy-to-open high-strength aluminum alloy rolling shutter doors on the left and right sides of the pump room and the left and right sides of the equipment box. The pump room is equipped with water pump systems, liquid level gauges, vacuum gauges, pressure gauges, indicator lights and other instrument devices, making the operation clear at a glance. |
|
Equipment box |
It is manufactured using aluminum alloy profiles with built-in tower connection technology introduced from European technology, and has a fully jointed structure. Use aluminum alloy rolling shutter door. |
|
Electrical configuration |
There is a long row of warning lights at the front of the top of the cab. There is a 24V/60W fire scene lighting behind the vehicle body. There are red and blue strobe lights on both sides of the vehicle. Safety sign lights are installed below. The crew compartment, equipment box, The pump rooms are equipped with lights, 100W sirens, rotary warning light switches, and communication equipment ready interfaces. |
Specifications
|
Product Name |
ISUZU FVR firefighting truck |
|
Driving Type |
4x2,left hand drive |
|
WEIGHT |
|
|
Kerb Weight |
8600kg |
|
Dimension |
|
|
Wheelbase |
4500mm |
|
Overall Size |
8080x2500x3470mm |
|
ENGINE |
|
|
Engine Model |
6HK1-TCL(240HP) |
|
No of Cylinder |
4 |
|
Displacement |
7790ml |
|
Max Output |
240HP |
|
Emission Standard |
EURO 5 |
|
DRIVE TYPE |
|
|
Transmission |
MLD 6 speeds,6 forwards,1 reverse |
|
Steering |
With power steering |
|
Brake |
air break |
|
Front axle/rear axle |
6.3T/13T |
|
CAB |
|
|
Cabin |
ISUZU FVR |
|
Configuration |
with A/C |
|
Seat quantity |
double row |
|
TIRE |
|
|
Tire specification |
295/80R22.5 16PR 6+1 |
|
CONFIGURATION |
|
|
Tank Capacity |
water tank:6000liters dry powder tank: 2000liters both tank capacity can adjustable |
|
Tank Material |
Q235 carbon steel,optional |
|
Pipe Material |
Q235 carbon steel,optional |
|
Fire monitor |
Model: PL432 |
|
Range:≥60m |
|
|
Fire Pump |
Model: CB10/40 Flow: 40L/S/1.0MPa |
|
Rate(L/S): 60 |
|
|
we have low pressure, low-middle pressure ,high-middle pressure fire pump to choose according to the customer 's requirements |
Features of Isuzu 10000L FVR firefighting truck:
----Isuzu chassis, perfect performance.
----Isuzu engine, super powerful; reliable, no overhaul required within 100,000 kilometers.
----Beautiful appearance and reasonable structure.
----High quality fire pump.
Thick, durable and long lasting.

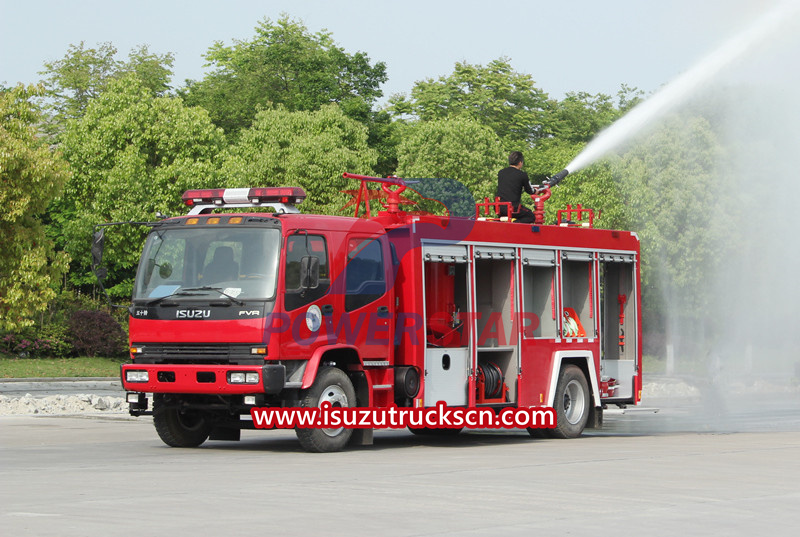

----High quality fire monitor
Wide pressure range, long range: 60m, good fire extinguishing effect
Isuzu FVR firefighting vehicle precautions:
1. The dry powder fire extinguishing agent carried by the dry powder fire truck should be suitable for the type of fire that occurs.
2. It is strictly prohibited to park the dry powder fire truck in the downwind or spray against the wind.
3. The pressure vessel and pressure pipeline of the dry powder system must not be knocked or modified at will to prevent accidents.
4. Do not touch high-temperature parts such as gas generators and collector pipes during use or immediately after use to avoid burns.
5. The storage and transportation of gunpowder used in gas generators must be carried out in accordance with the relevant regulations for chemically flammable and explosive goods.
6. When using a dry powder cannon to spray dry powder, the dry powder tank must be inflated to the rated pressure before spraying. Otherwise, insufficient pressure will affect the range and fire-extinguishing effect.
