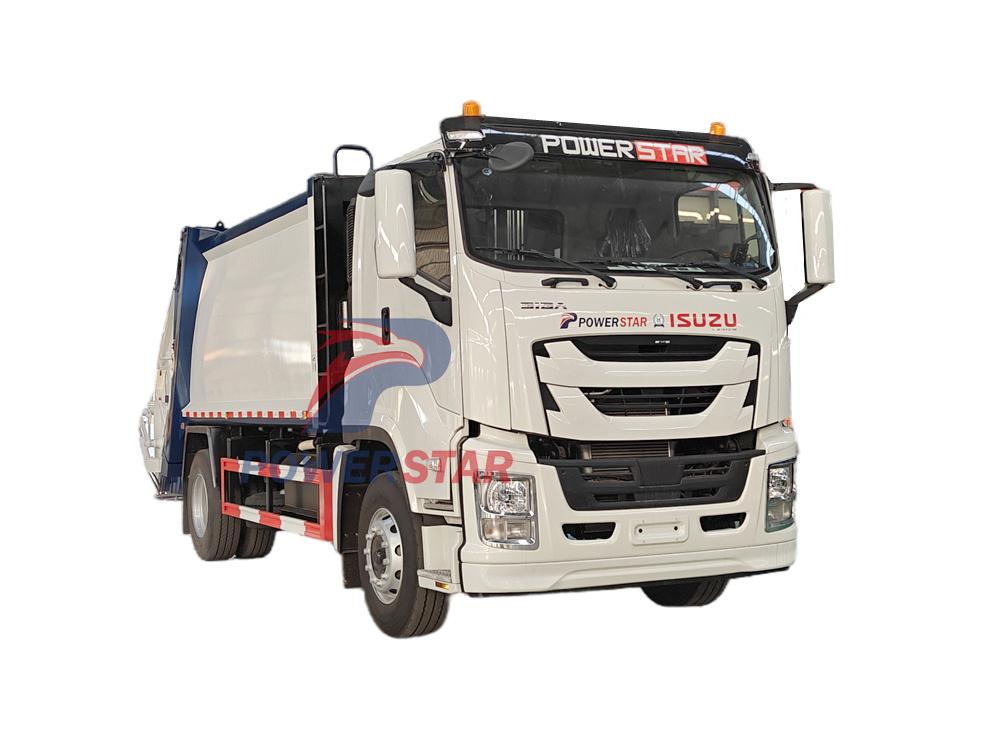

Isuzu FVR GIGA truck with compactors

In a busy city, a garbage disposal vehicle tailored for urban cleaning is particularly important. Isuzu FVR GIGA truck with compactors is a customized solution born out of this demand. It not only inherits the excellent performance of Isuzu's new FVR GIGA chassis, but also has been comprehensively optimized in terms of appearance, power, transmission, garbage bin volume, etc., to meet the modern city's requirements for efficient, environmentally friendly and durable garbage disposal.

Isuzu FVR GIGA truck with compactors is an efficient compression garbage truck designed for urban cleaning. It is built on Isuzu's new FVR GIGA chassis, with a body size of 9070*2500*3300mm and a wheelbase of 4500mm. It is equipped with a 6HK1-TCG61 240HP engine and a FAST 8-speed gearbox, providing strong power and smooth control. The 14-cubic-meter compression garbage bin volume greatly improves the garbage handling capacity. Advanced control systems such as the electric control box in the cab, the hydraulic control lever on the driver's side, the electric control box of the tailgate and the manual control box ensure convenient, safe and reliable operation. The overall design is compact and flexible, suitable for narrow streets in the city. It is an ideal choice for urban cleaning work and contributes to the city's environmental protection cause.

In busy urban life, garbage disposal is a vital link. With the continuous improvement of environmental awareness, traditional garbage disposal methods can no longer meet the needs of modern cities. At this time, Isuzu FVR GIGA 14 cubic compression garbage truck has become a new force in urban cleaning with its excellent performance and efficient garbage disposal capabilities.

Isuzu FVR GIGA 14 cubic compression garbage truck is a modern garbage disposal equipment that integrates technology, environmental protection and high efficiency. It adopts Isuzu's advanced chassis technology to ensure the stability and reliability of vehicle driving. The chassis is equipped with Isuzu engine, which has strong power, low fuel consumption and high cost performance, providing a solid guarantee for the overall performance of the vehicle. At the same time, Isuzu's strong maneuverability allows the driver to be more handy when operating and improves work efficiency.

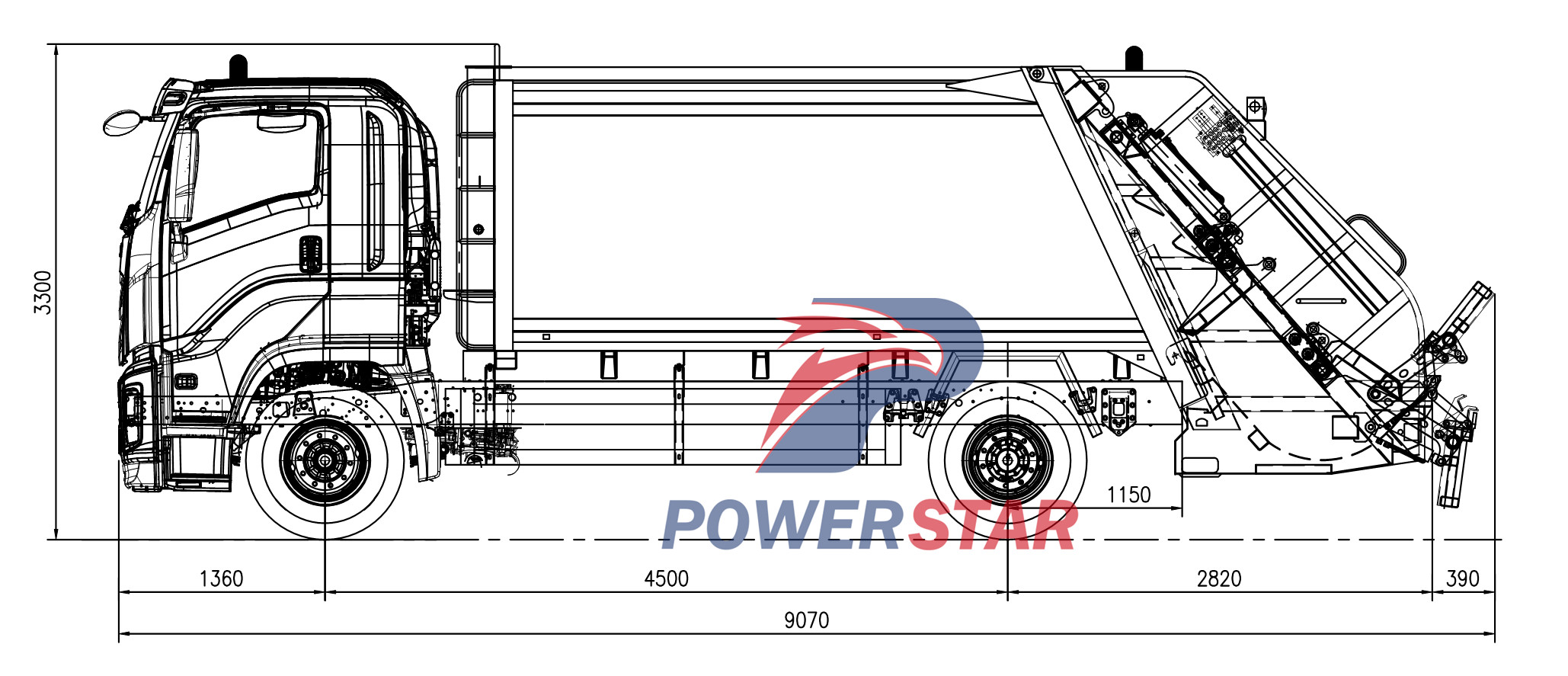

Technical drawing of Isuzu FVR GIGA truck with compactors

Technical drawing of Isuzu FVR GIGA truck with compactors

Specifications of Isuzu FVR GIGA truck with compactors

This garbage truck has a unique body design, smooth lines, and a beautiful overall shape. The white chassis and the dreamy purple top are matched, giving people a bright feeling. This color scheme not only enhances the visual effect of the vehicle, but also makes it more eye-catching when driving in the city, becoming a beautiful landscape of the city.

In terms of power, the Isuzu FVR GIGA compression garbage truck is equipped with a 6HK1-TCG61 240HP engine. This engine uses advanced turbocharging technology and common rail fuel injection system to ensure that the vehicle can maintain strong power output under various working conditions. At the same time, the engine also has good fuel economy and reduces operating costs.

The vehicle is equipped with a FAST 8-speed gearbox. This design not only improves the vehicle's gear shifting smoothness and response speed, but also allows the driver to control the vehicle more easily during driving. Whether in congested city streets or complex road conditions, the driver can cope with various challenges through flexible gear shifting.

As a compression garbage truck, the core advantage of the Isuzu FVR GIGA 14cbm waste collection truck lies in its efficient garbage compression capability. The vehicle is equipped with a sealed garbage compartment with a volume of 14 cubic meters. This garbage compartment is automatically welded and formed with high-quality Wu carbon steel plates. It has good sealing performance and can effectively prevent secondary pollution of garbage during transportation. The compartment is equipped with a built-in compression push plate, which realizes two-way compression through the back pressure function, greatly improving the compression ratio and loading capacity of the garbage. The maximum crushing pressure of the vehicle can reach 12 tons, and the loading capacity is equivalent to two and a half times of the same-ton non-compressed garbage, which undoubtedly brings great convenience to the city's garbage disposal.

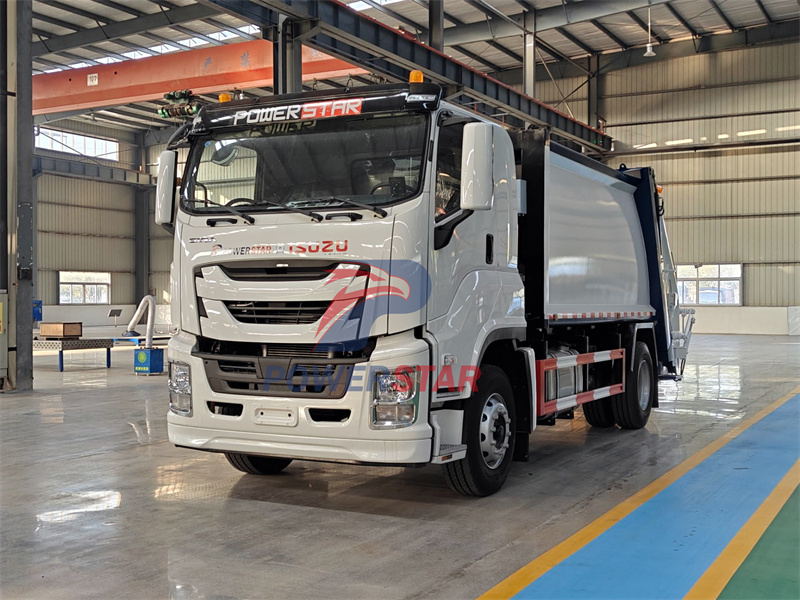

Truck photos

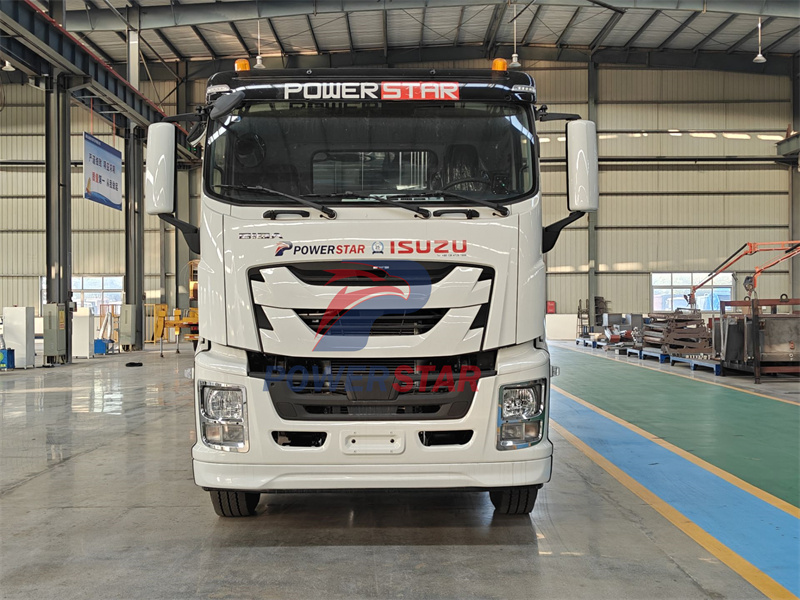

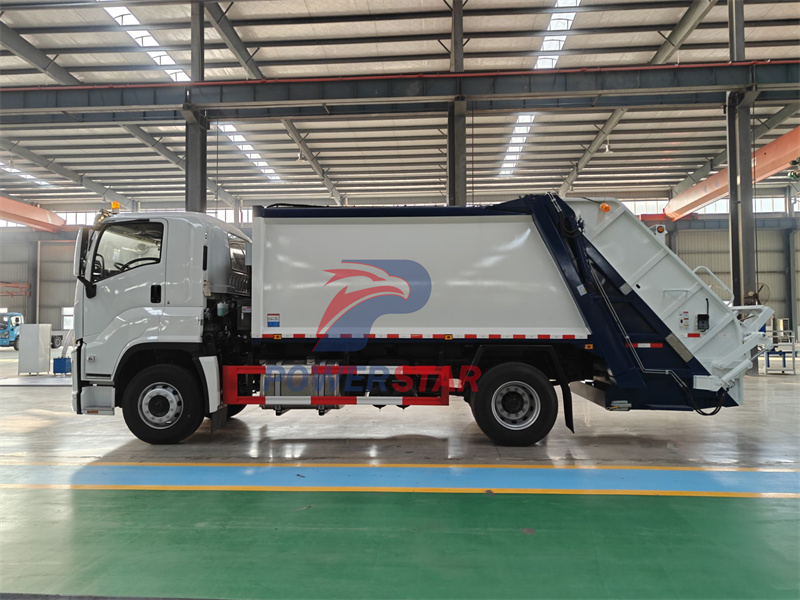

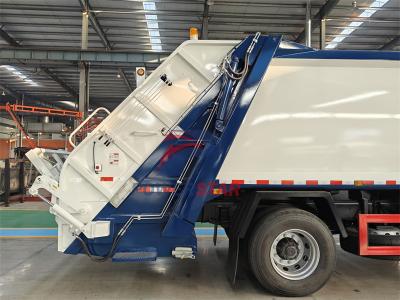

Isuzu FVR GIGA compression garbage truck

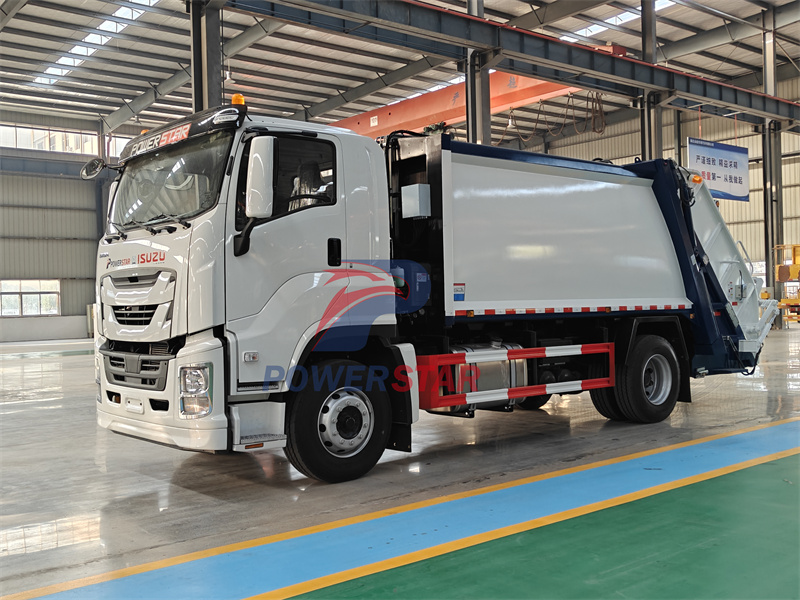

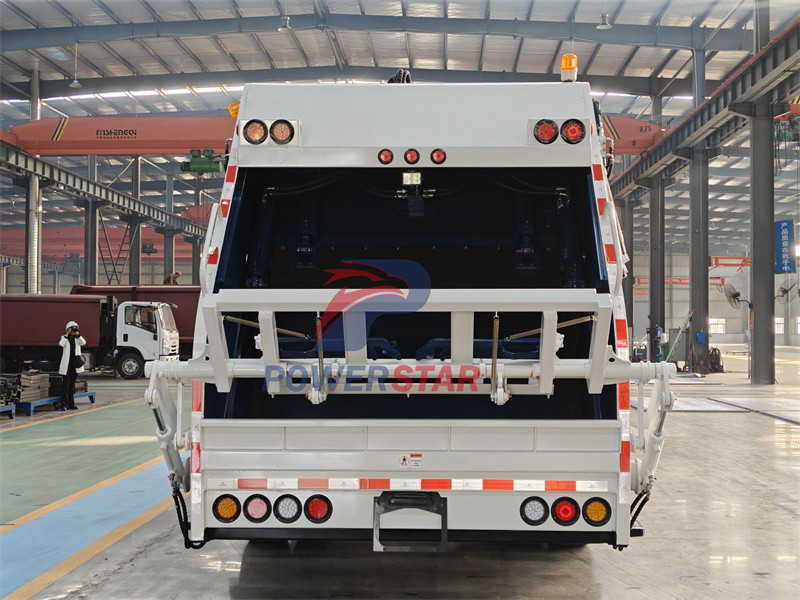

Isuzu GIGA 4x2 14cbm waste collection truck

In terms of operation, the Isuzu FVR GIGA 14 cubic trash compression truck also performs well. It adopts a computer control system, and only the driver is required to operate the entire filling and unloading operation, and can be set to two operating modes: fully automatic and semi-automatic. This intelligent operation method not only improves work efficiency, but also reduces the labor intensity of the driver. At the same time, the vehicle is also equipped with a double insurance system, that is, the operating system has both computer control and manual operation dual functions, which further guarantees the utilization rate and safety of the vehicle.

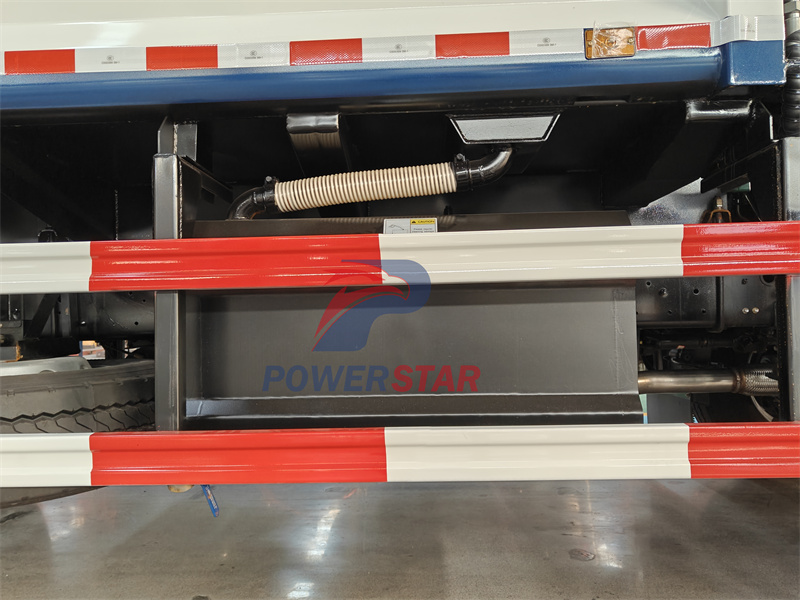

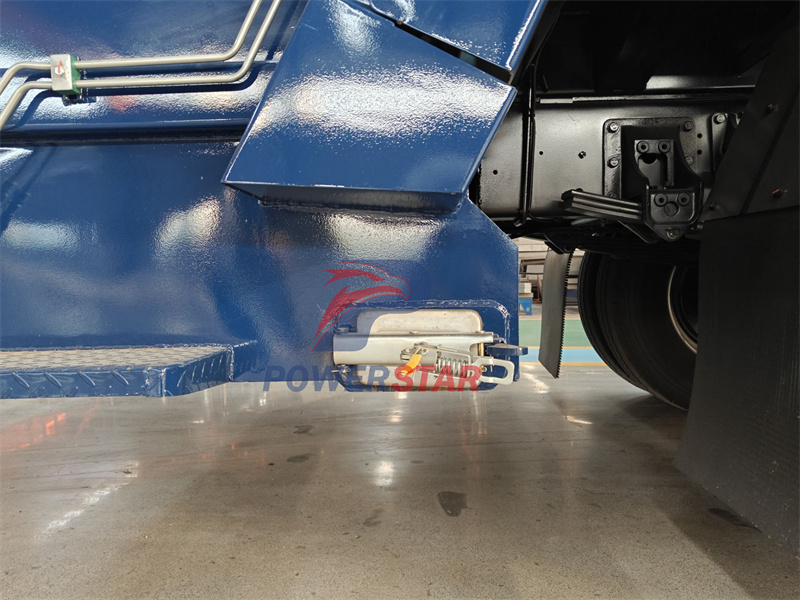

In addition to the efficient garbage compression capacity and intelligent operating system, the Isuzu FVR waste disposal truck also pays attention to humanized design. The loader at the rear of the car is both a sealing device and can be opened and closed by lifting the cylinder and locking the limit device. There is a sewage tank at the bottom of the filler. The accumulated water inside the car and the excess water in the hopper flow into the sewage tank. When unloading, the sewage in the sewage tank can be discharged automatically, avoiding environmental pollution caused by sewage overflow. This design not only reflects the concept of environmental protection, but also facilitates the driver's operation and maintenance.

Isuzu FVR GIGA rear loader compactor truck has a wide range of application prospects in the field of urban garbage disposal. Whether it is garbage cleaning on urban streets or garbage transportation in public places, this model can easily cope with it. Its compact body design and excellent handling performance enable the vehicle to flexibly shuttle in narrow streets and complex road conditions, providing strong support for urban cleaning work.

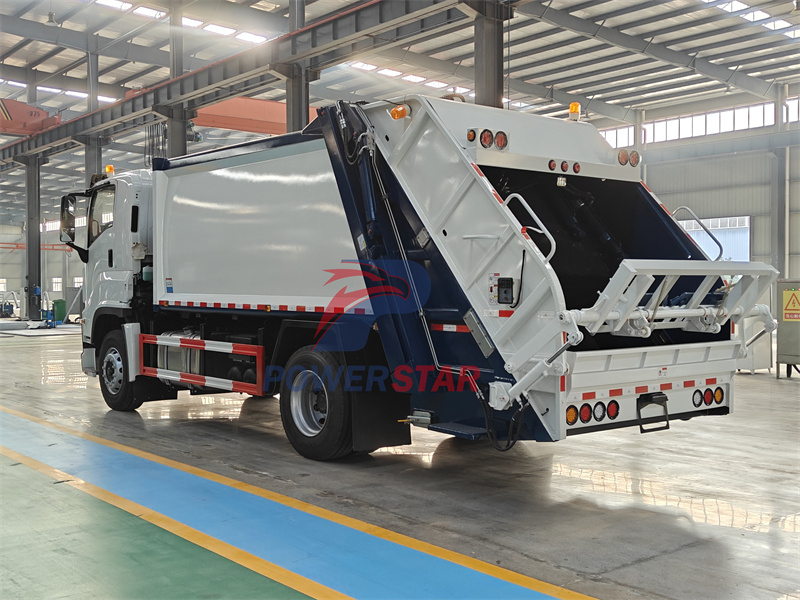

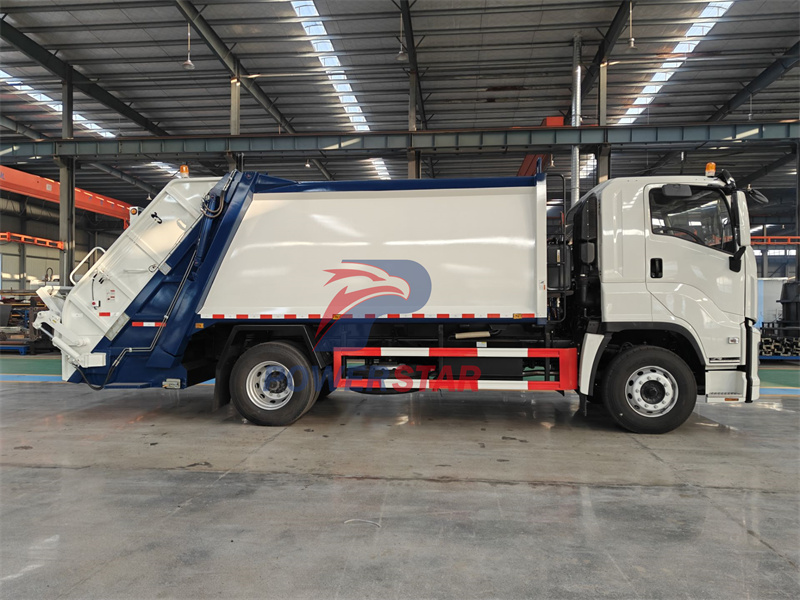

Isuzu 14cbm rear loader compactor

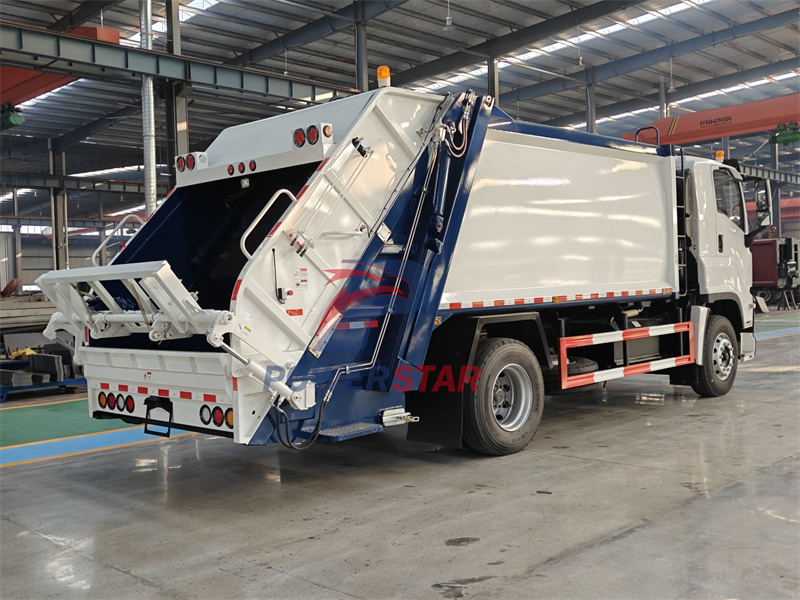

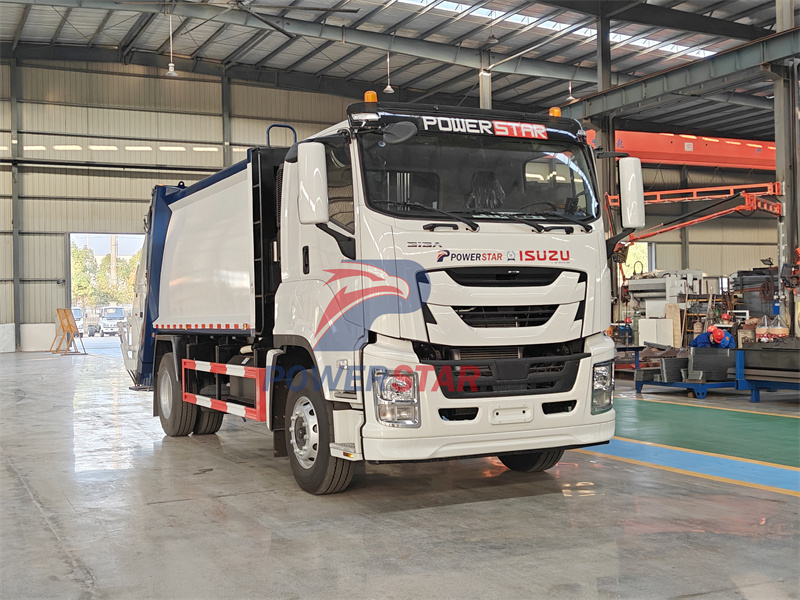

Isuzu new FVR refuse compaction truck

Isuzu FVR GIGA Compactor Truck not only performs well in power, transmission, garbage bin volume, compression efficiency, etc., but its advanced control system makes this model unique in the field of urban garbage disposal. The following will introduce in detail the key control components of this garbage truck, such as Electric Control Box (In cabin), Hydraulic Control Joysticks (At drive side), Electric Control Box (In tailgate), and Manual Control Box (In tailgate).

Electric Control Box (In cabin)

The electric control box in the cab is one of the core control components of Isuzu FVR GIGA compact garbage truck. It integrates multiple control functions of the vehicle, including engine start, shutdown, acceleration, deceleration, etc. The electric control box adopts advanced electronic control technology to achieve precise control of various systems of the vehicle. The driver can easily achieve comprehensive control of the vehicle through simple button operation. At the same time, the electric control box is also equipped with an LCD display, which can display the vehicle's operating status, fault information, etc. in real time, providing the driver with a more intuitive and convenient control experience.

Hydraulic Control Joysticks (At drive side)

The hydraulic joystick on the driver's side is another important control component of the Isuzu FVR GIGA compression garbage truck. It is mainly used to control the compression mechanism and lifting mechanism of the garbage bin. The hydraulic joystick adopts ergonomic design, and the operation feels comfortable and flexible. The driver can use different buttons and joysticks on the joystick to achieve precise control of the compression, lifting and tilting of the garbage bin. This design not only improves the operating efficiency, but also reduces the driver's labor intensity.

Electric Control Box (Tailgate left side)

The electric control box on the left side of the tailgate is a key component of the rear control of the Isuzu FVR GIGA compression garbage truck. It is mainly used to control the opening and closing of the tailgate. The tailgate electric control box also uses advanced electronic control technology, which can achieve fast and precise control of the tailgate. The driver can easily achieve remote control of the tailgate through the electric control box in the cab or the electric control box button at the tailgate. This design not only improves the convenience of operation, but also ensures the safety and stability of the tailgate during opening and closing.

Manual Control Box (Tailgate right side)

In addition to the electric control box, the tailgate right side of the Isuzu FVR GIGA compression garbage truck is also equipped with a manual control box. The manual control box is mainly used as a backup control method when the electric control system fails. It adopts a simple and reliable manual operation mechanism, and the driver can open and close the tailgate by manually rotating or pushing and pulling the control lever. This design not only improves the reliability and safety of the vehicle, but also provides the driver with more flexible control options.

The control system of the Isuzu FVR GIGA compression garbage truck is advanced, convenient and reliable. Whether it is the electric control box in the cab, the hydraulic control lever on the driver's side, or the electric control box and manual control box at the tail, they all provide the driver with a comprehensive and precise control experience. The design of these control components not only improves the operating efficiency of the vehicle, but also reduces the labor intensity of the driver, providing strong support for urban cleaning work.

Truck Details

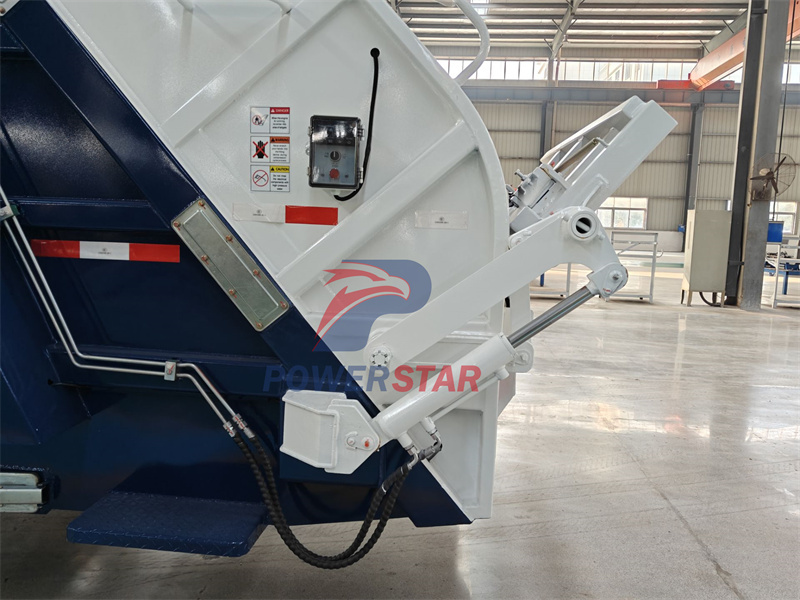

Slide plate, scraper assembly, flip mechanism

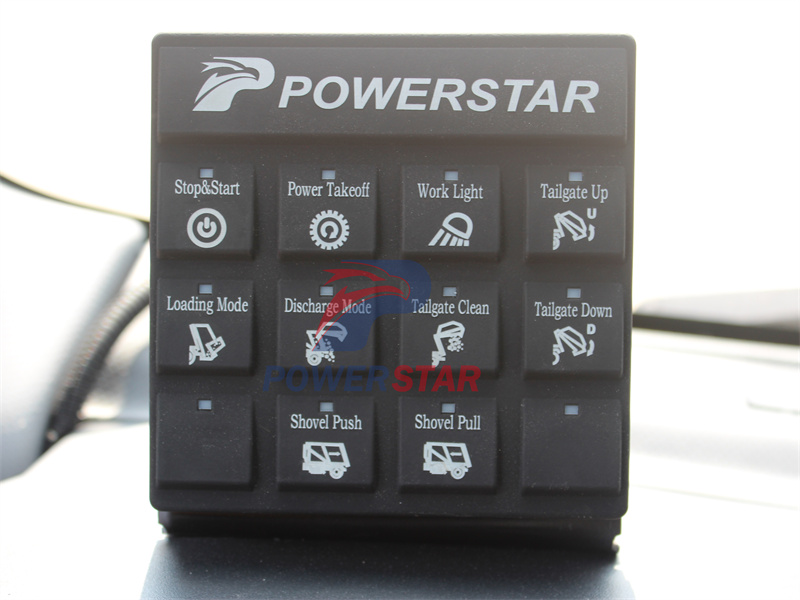

Electric Control Box (In cabin)

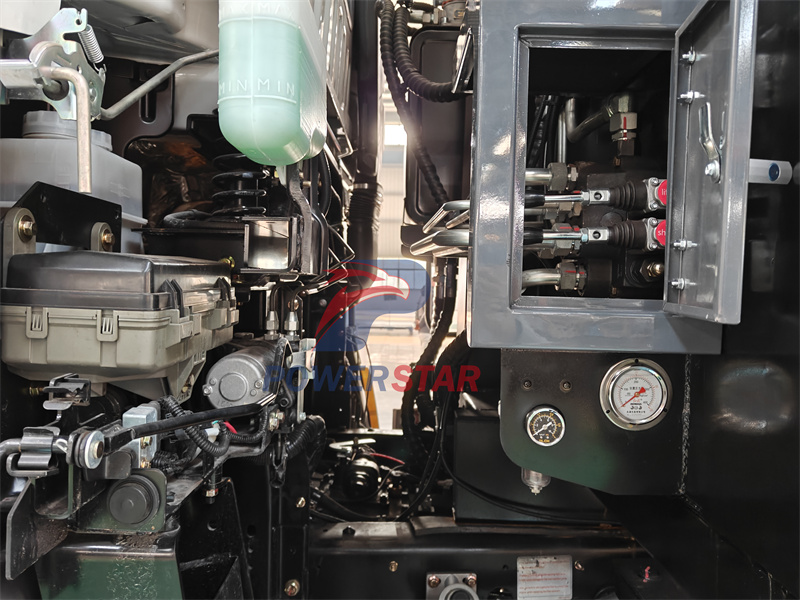

Hydraulic Control Joysticks (At drive side)

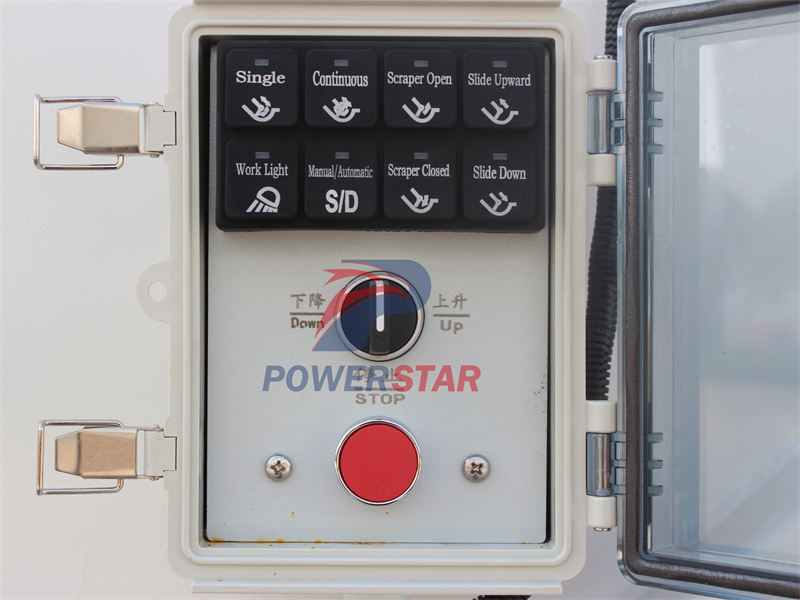

Electric Control Box (Tailgate left side)

Manual Control Box (Tailgate right side)
