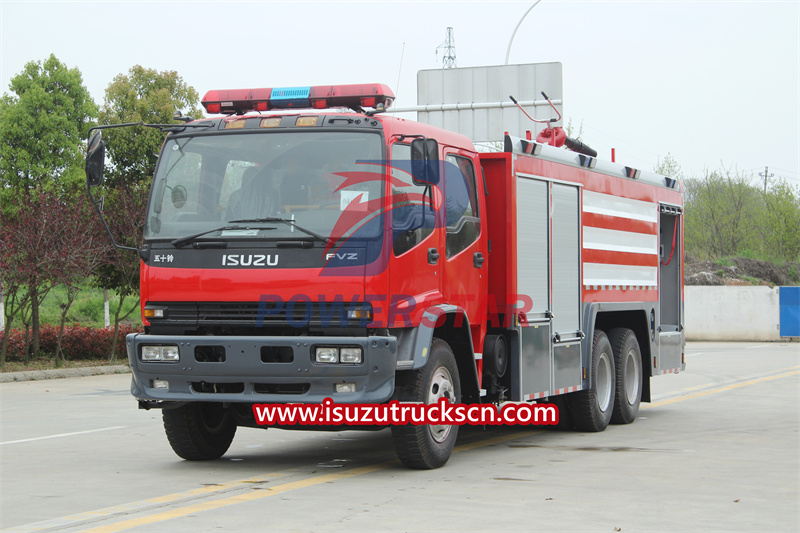

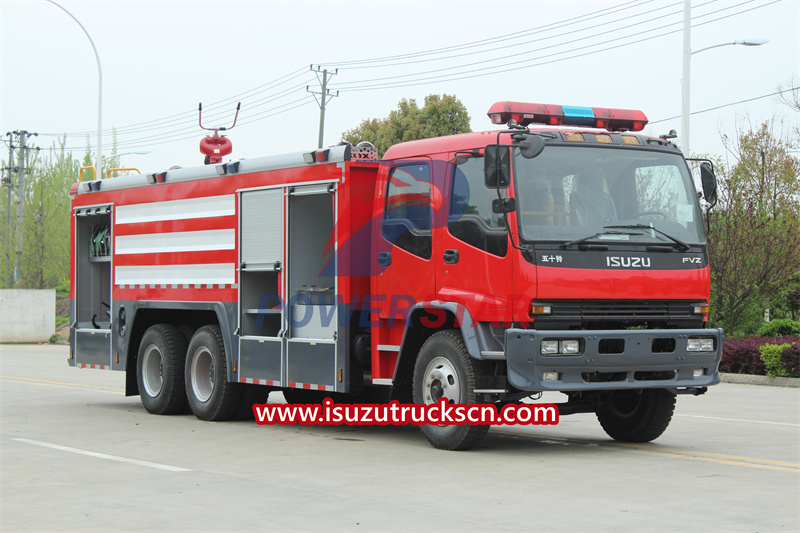

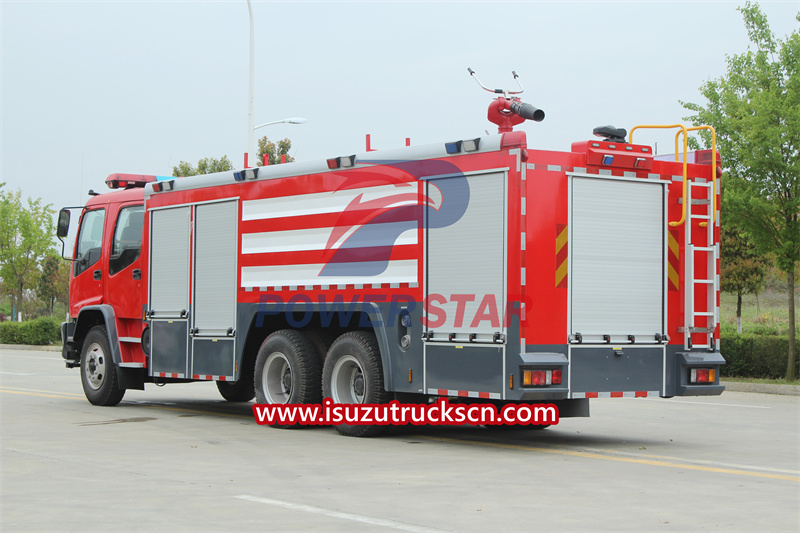

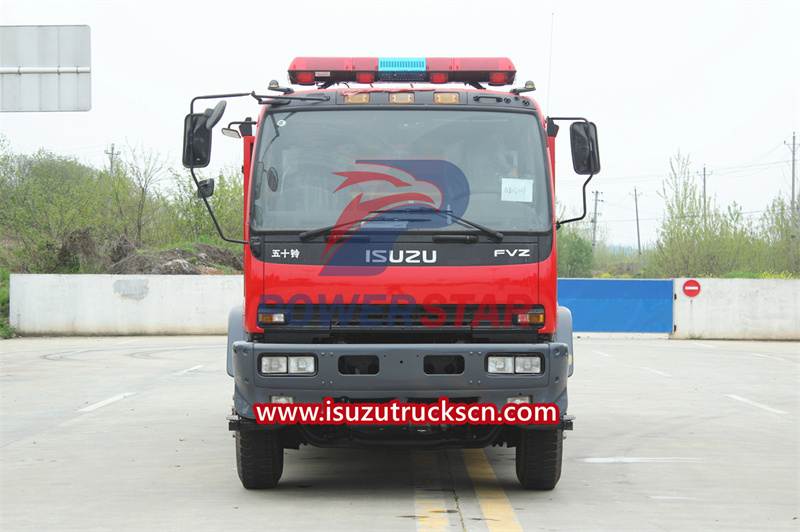

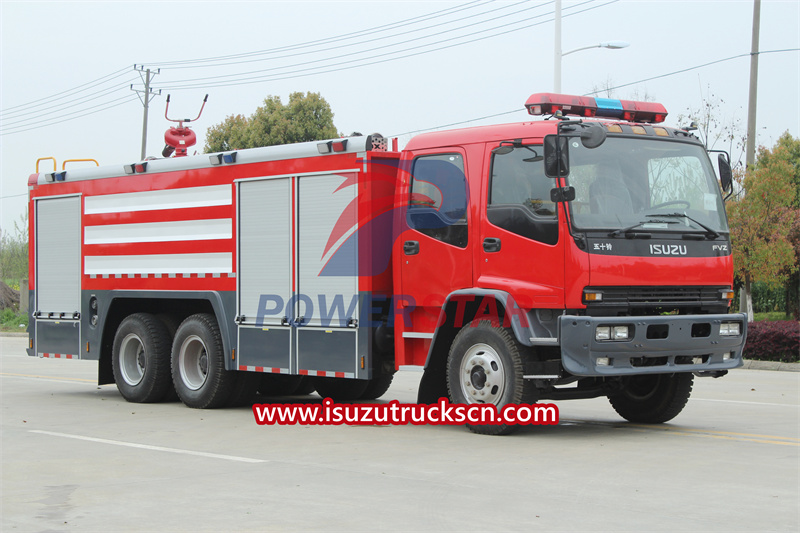

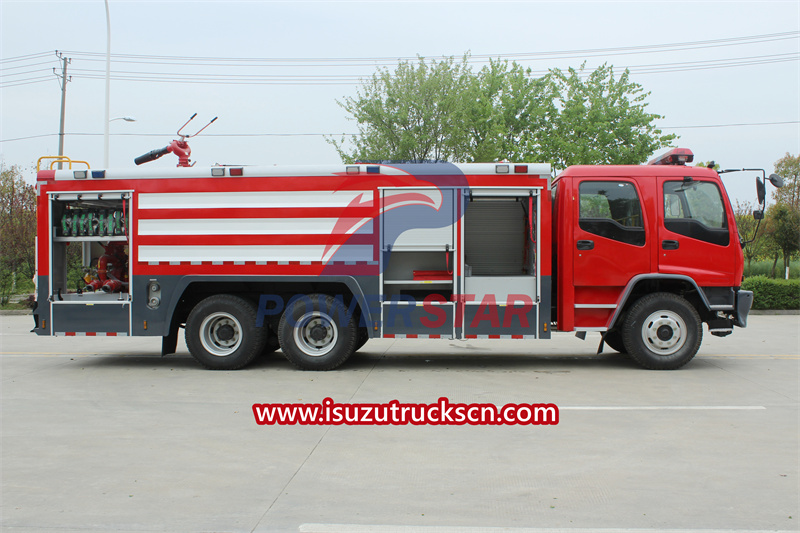

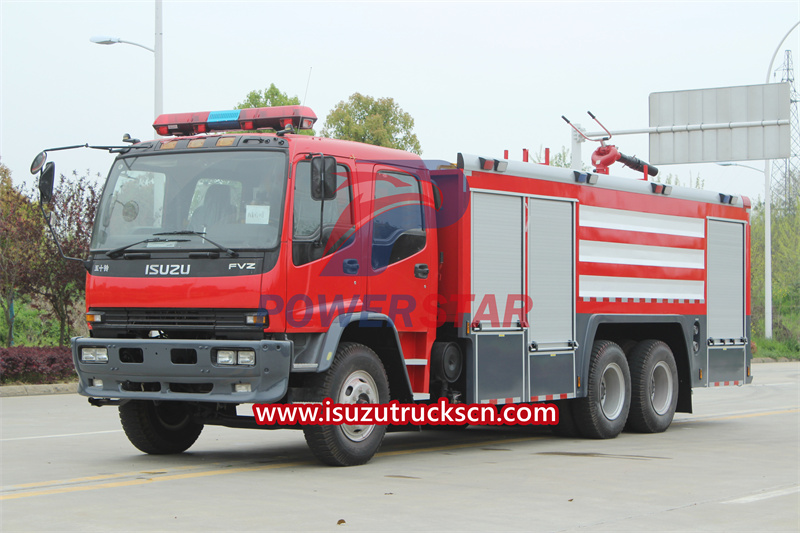

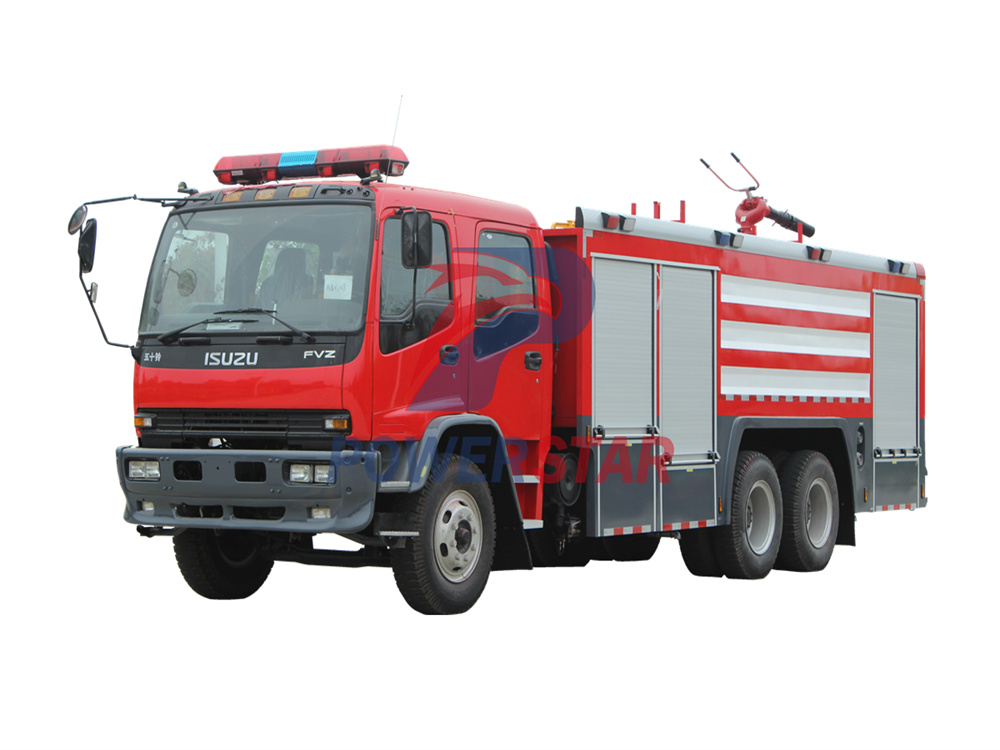

Isuzu FVZ fire rescue pumper truck is mainly used for fire fighting and rescue. It is a necessary equipment for fighting fires in petroleum, chemical industry, factories and mining enterprises, port cargo yards, etc. It has a powerful engine, high-quality fire pumps and fire cannons, and high water storage tanks and foam tanks, allowing it to complete firefighting tasks quickly, with high quality and efficiency.
Work capacity:
10000LTruck model:
PT5120GXFPM50Engine power:
300HPEngine type:
6HK1-TCHAxle drive:
6x4Gear box:
FAST 9-speed，manualRemarks:
powerful engine，large water and foam tank，High range fire monitorIsuzu fire truck, also called Isuzu fire tender, Isuzu fire engine, Isuzu rescue fire truck,It kcan quickly put out fires and is the most important equipment for the fire brigade.
Foam fire trucks are the main fire-extinguishing force for extinguishing liquid fires such as oil products. They are widely used in oil tank fires, chemical plant area fires, oil terminal fires, aircraft and automobile accident fires, etc. Structurally speaking, the foam fire truck is mainly derived from the water tank fire truck. Therefore, the car chassis it uses is the same as the water tank truck. Compared with the water tank fire truck, in addition to maintaining the performance of the original chassis, the foam fire truck mainly adds A foam fire extinguishing system is installed, such as foam liquid tank, air foam proportioning mixing device and foam spray equipment.

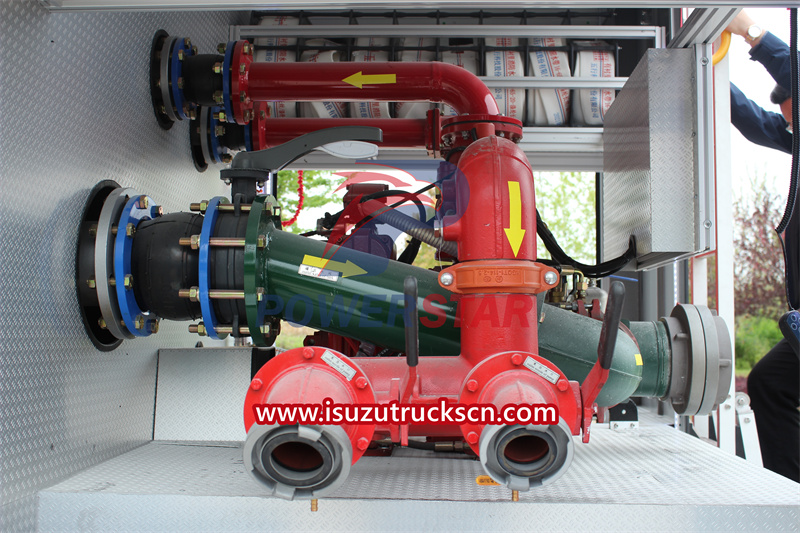

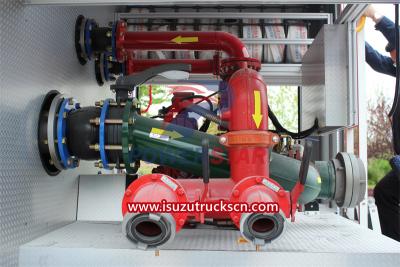

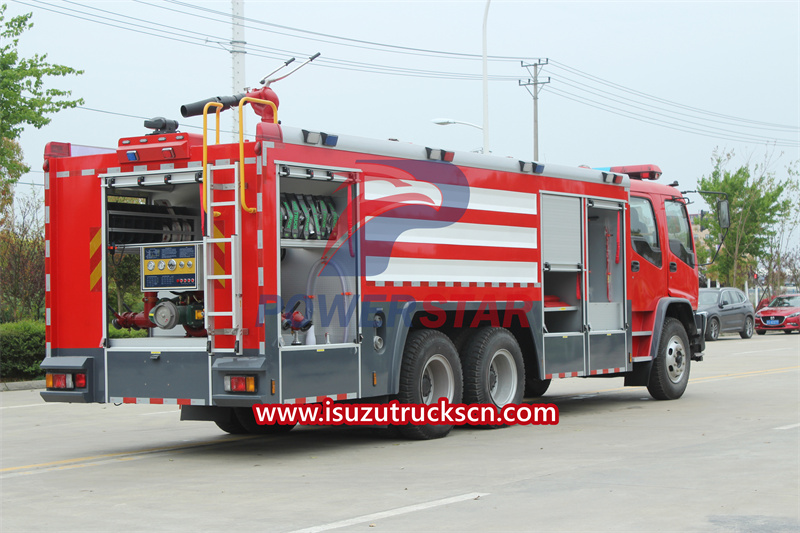

The Isuzu FVZ fire rescue pumper truck is a foam fire truck. Its dedicated parts are composed of liquid tanks, pump rooms, equipment boxes, power output and transmission systems, piping systems, electrical systems, etc. The Isuzu FVZ fire rescue pumper truck can independently put out fires. It is especially suitable for extinguishing petroleum and other oil fires. It can also supply water and foam mixture to the fire scene. It is a necessary equipment for professional firefighting in petrochemical enterprises, oil terminals, airports and cities.
Conventional configuration of the Isuzu FVZ fire rescue pumper truck fire equipment: air foam gun, water gun, fire suction pipe, water filter, water distributor, fire hose, hose hook, hose wrapper, different diameter interface, same type interface, DC water gun, fire hose Bolt transition joint, blooming water gun, DC switch water gun, sheep pick, floor wrench, suction pipe wrench, belt bridge, mixer suction pipe, waist axe, fire board axe, shovel, pry carry.
The Isuzu FVZ fire rescue pumper truck is an efficient fire-fighting equipment specially designed for fire extinguishing and emergency rescue. It combines the powerful power and reliable performance of Isuzu FVZ series vehicles with advanced technology in the field of fire protection, allowing it to respond to fires or other emergencies in the shortest time, effectively control fires and reduce disaster losses.
It adopts the sturdy and durable Isuzu FVZ series chassis, equipped with a high-performance engine, and has good load-bearing capacity and stability. This chassis design can remain stable in complex and changeable road environments, ensuring that firefighters can reach their destination quickly. It is also equipped with an advanced fire pump system, which can quickly provide a large amount of water in a short time. The design of the pump system ensures stable and sufficient water flow to effectively extinguish the fire source. It is also equipped with large water tanks and foam tanks that can store sufficient water and foam fire extinguishing agents. This design allows the fire truck to operate independently without external water sources, greatly improving fire extinguishing efficiency. In addition to traditional water fire extinguishing methods, the fire truck is also equipped with a foam fire extinguishing system. Foam fire extinguishing agent can effectively cover the fire source and isolate the air, thereby quickly extinguishing the fire. This method of extinguishing fires is particularly suitable for liquid fires or flammable material fires.
main parameters
|
Manufacturer |
POWERSTAR TRUCKS INDUSTRY CO.,LIMITED |
||
|
Product Name |
ISUZU FVZ FIRE RESCUE PUMPER TRUCK（7000Lwater+3000LFoam） |
||
|
Vehile Brand Series |
ISUZU |
||
|
Vehicle Model |
PT5120GXFPM50 |
||
|
Classis parameters |
Overall Dimension |
mm |
10800*2550*3770 |
|
Gross weight |
kg |
31000 |
|
|
Curb weight |
12650 |
||
|
Wheel base |
mm |
5100+1300 |
|
|
Drive Type |
6 x 4 |
||
|
Number of axles |
3 |
||
|
Tire specification |
12.00-20 |
||
|
Number of tires |
10+1 |
||
|
Passengers in cab |
2+3 |
||
|
Engine |
Engine model |
6HK1-TCH |
|
|
Type of fuel |
Diesel |
||
|
Power |
300HP/220.5kw |
||
|
Max speed |
Km/h |
90 |
|
|
Emisssion standard（TAS） |
EURO5/ |
||
|
Fire performance |
Tank capacity |
Water tank capacity：7000L |
|
|
Foam tank capacity：3000L |
|||
|

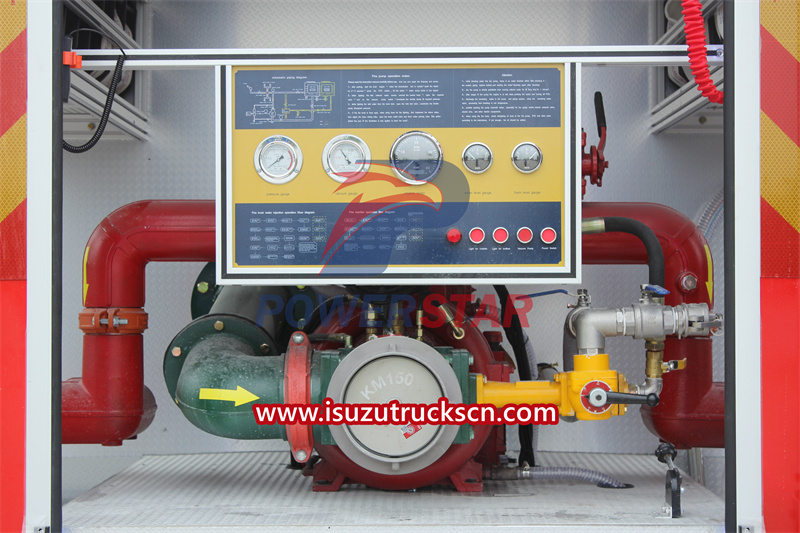

Fire pump |
Model: CB10/60 |
||
|
Pressure(Mpa):1.0 |
|||
|
Rate(L/S): 60 |
|||
|

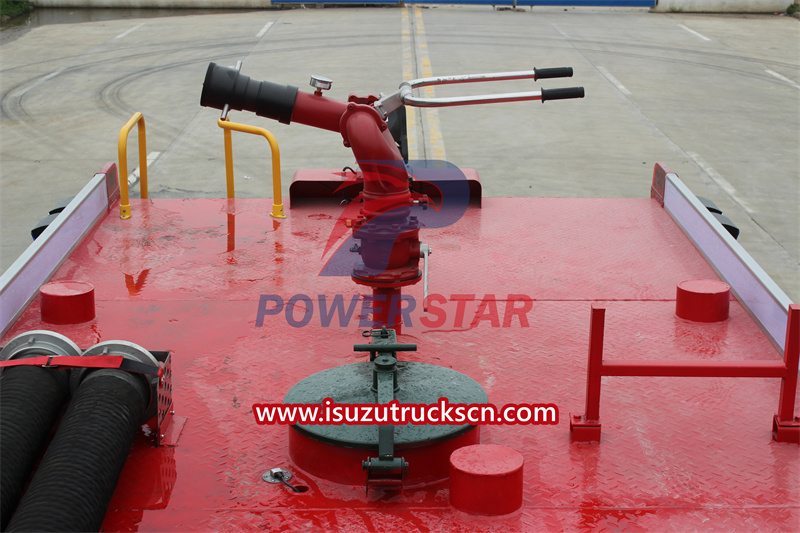

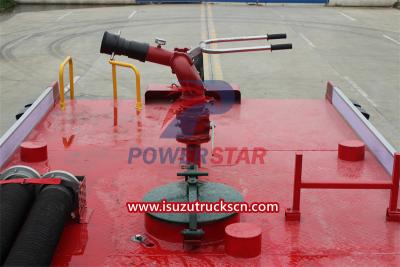

Fire monitor |
Model: PL48 |
||
|
Flow: 48L/S |
|||
|
Range:≥70m |
|||
|
Water jet distance :≥65m |
|||
|
Foam jet distance :≥55m |
|||
|
Electronic alam |
LY CJB-100-C24 |
||
|
Alam lamp |
LY TBD-XF-168LED |
||
The Isuzu FVZ fire rescue pumper truck is a professional firefighting equipment that can help firefighters put out fires efficiently. Its main working principle is to spray foam to suppress the heat of the fire source and supply oxygen, thereby achieving the purpose of extinguishing the fire.
Its working principle mainly includes the following 4 steps:
1. First, the fire pump and water pump need to be turned on to allow the foam agent and water to merge through the pipes and be sent to the nozzles and spray guns. During this process, a pump creates high pressure, allowing foam and water to flow to the nozzle and gun.
2. After turning on the foam spray gun, firefighters need to adjust the mixing ratio of spray water and foam according to the fire extinguishing needs to ensure the fire extinguishing effect. In this step, firefighters need to choose the appropriate foam concentration according to different situations.
3. After the foam spray gun is turned on, the foam fire truck will spray foam agent toward the fire point. Firefighters need to ensure that the spray foam covers the entire fire site to maximize heat suppression and oxygen supply to the fire source. This will prevent the fire from continuing to burn.
4. After the fire point is controlled, firefighters need to turn off the foam spray gun and stop spraying foam agent. In addition, fire pumps and water pumps need to be shut down to ensure the life and durability of the pumps.
