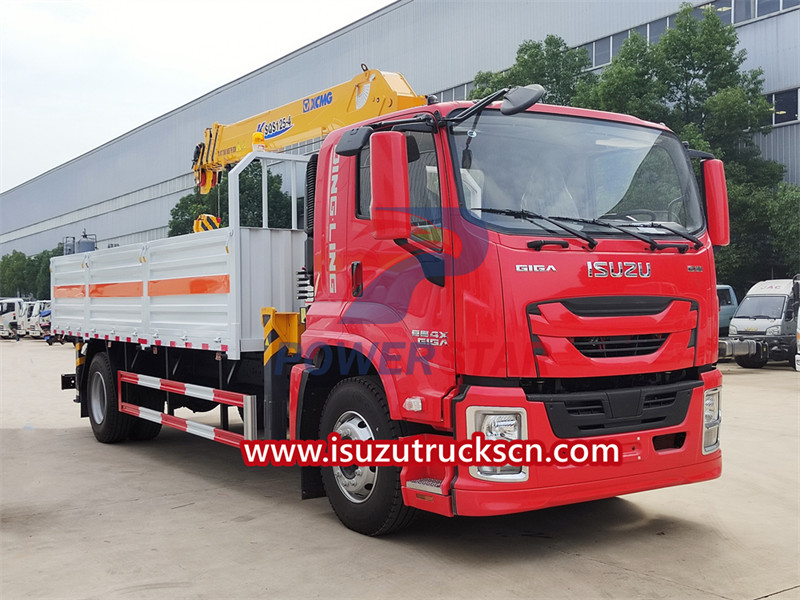

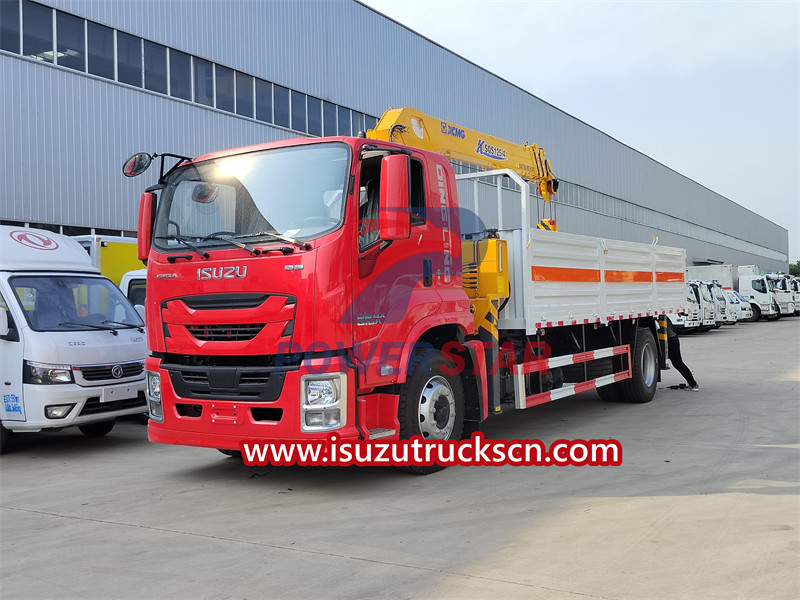

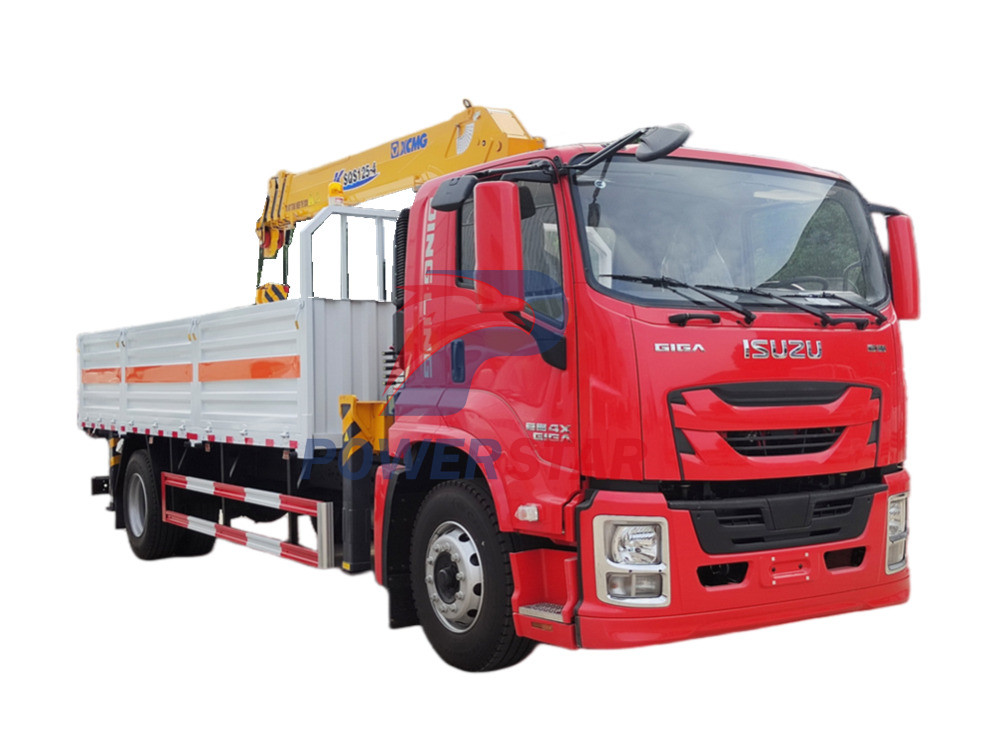

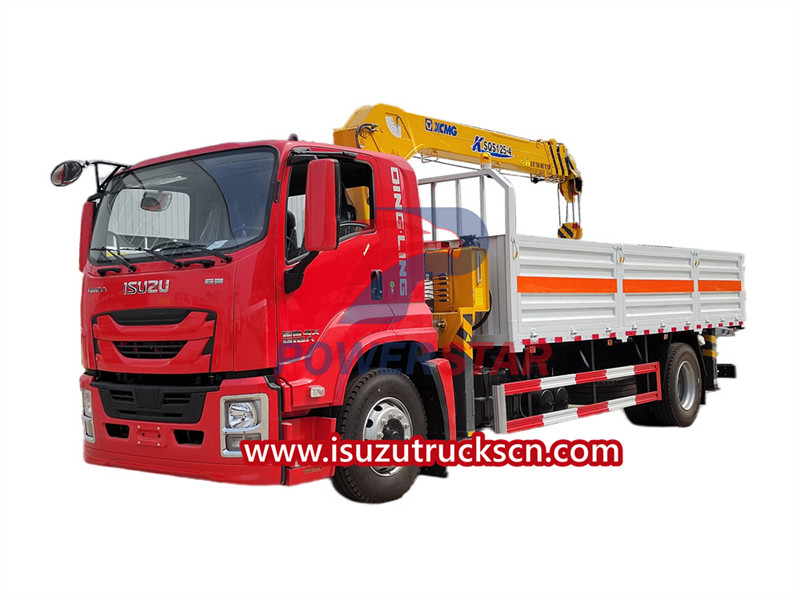

The ISUZU truck-mounted crane is based on ISUZU GIGA chassis, which is equipped with an ISUZU diesel engine with strong power. The front axle of the chassis has a load-bearing capacity of 6,300kg and the rear axle has a load-bearing capacity of 13,000kg, which provides load-bearing capacity for the vehicle. The crane is XCMG KSQS125-4, with a maximum lifting weight of 5000kg, reliable performance and wide application.
Work capacity:
5 tonTruck model:
PT5050JSQEngine power:
240 HPEngine type:
6UZ1-TCG61Axle drive:
4×2Gear box:
FAST 9-speed, manualRemarks:

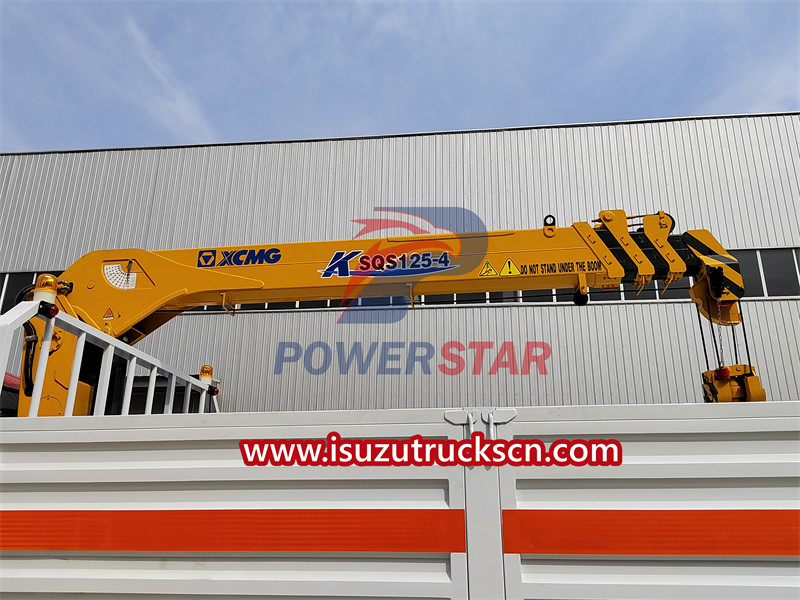

XCMG KSQS125-4 telescopic boom crane
ISUZU truck-mounted crane, also known as ISUZU crane truck, ISUZU loader crane, is a kind of equipment that realizes the lifting and telescopic lifting of goods through a hydraulic system. The truck-mounted crane is mainly composed of a special chassis, a crane and a cargo box. It is widely used in municipal construction and engineering. , sanitation, warehouses, docks and other fields.
The Isuzu GIGA truck-mounted crane is a heavy-duty transport vehicle that combines the advantages of the Isuzu GIGA chassis and XCMG cranes. ISUZU GIGA is a high-performance heavy-duty chassis with strong load-carrying capacity and good reliability. It provides a stable chassis and power system for the truck-mounted crane, ensuring the stability and efficiency of the hoisting operation. XCMG is a well-known construction machinery brand in China. Its cranes have advanced technology, reliable performance and wide applications.
ISUZU GIGA loader crane has the characteristics of large load capacity, high efficiency and easy operation, and is widely used in engineering construction, equipment installation, cargo loading and unloading and other fields. It combines the excellent quality of ISUZU GIGA vehicles and the functions of XCMG cranes to provide users with an efficient and practical transportation solution.
Product Specifications
|
Product model |
PT5050JSQ |
|
|
Driving type |
4×2， left hand drive |
|
|
Weight |
Gross vehicle weight |
22000 kg |
|
Curb weight |
12500 kg |
|
|
Rated Loading Capacity |
10000 kg |
|
|
Engine |
Brand |
ISUZU |
|
Model |
6HK1-TCG61 |
|
|
Type |
6-cylinder, in-line, turbocharged and intercooled |
|
|
Maximum output |
240HP (177KW) |
|
|
Maximum torque |
760 Nm |
|
|
Rated speed |
2700 rpm |
|
|
Displacement |
7780 ml |
|
|
Transmission |
Brand |
FAST |
|
Type |
9 speed, 9 forwards and 1 reverse, manual |
|
|
Axle |
Front |
6300 kg loading capacity |
|
Rear |
13000 kg loading capacity |
|
|
Chassis |
Frame |
U-profile parallel ladder frame and reinforced subframe, all cold riveted cross members, manganese steel |
|
Front suspension |
leaf spring |
|
|
Rear suspension |
leaf spring |
|
|
Fuel tank |
200 L capacity with locking cap |
|
|
Wheels & Tyres |
Tire size |
295/80R22.5 |
|
Number |
6+1 pcs |
|
|
Cabin |
Type |
Single cab, with sleeper, A/C, ABS |
|
Seats |
2 |
|
|
Dimensions mm |
Wheel base |
5550 mm |
|
Overall length |
9100 mm |
|
|
Overall width |
2500 mm |
|
|
Overall height |
3750 mm |
|
|
Cargo box dimension |
5000×2500×550 mm |
|
|
Parameter of Crane |
Brand |
XCMG |
|
Model |
KSQS125-4 |
|
|
Max lifting capacity |
5000 KG |
|
|
Max lifting moment |
12.5 KN.M |
|
|
Recommended power |
18 KW |
|
|
Max oil flow of hydraulic system |
40 L/M |
|
|
Max pressure of hydraulic system |
22 Mpa |
|
|
Oil tank capacity |
90 L |
|
|
Crane weight |
2230 KG |
|
|
Rotation angle |
360 degree |
|
|
Installation space |
900 mm |
|
Features of ISUZU GIGA loader crane
♦ Based on ISUZU GIGA chassis, which strong load-carrying capacity and good reliability
♦ The design follows ergonomic principles to ensure comfortable and safe operation.
♦ Equipped with advanced hydraulic system
♦ Equipped with XCMG crane with advanced technology and reliable performance

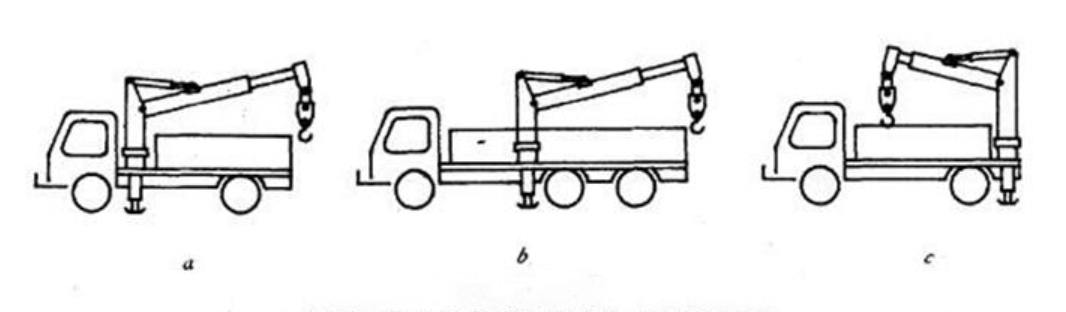

Three layout forms of ISUZU truck-mounted cranes:
1. Front-mounted type: The crane is installed between the cab and the cargo box (see Figure a). This arrangement has high utilization of the cargo box and is suitable for packing boxed items. The crane is close to the truck engine. Its hydraulic system has short pipelines, high work efficiency, easy layout.
2. Mid-mounted type: The crane is installed in the middle of the cargo box (see Figure b). The boom in this arrangement is short and does not change the center of gravity of the vehicle. It is suitable for loading pipes and strip goods. But the utilization rate of the cargo box is low.
3. Rear-mounted type: The crane is installed at the rear of the cargo box (see Figure C). The utilization of the cargo box is high, and the cargo in the trailer towed by the vehicle can be easily loaded and unloaded. However, the rear axle is easily overloaded, the frame is not well stressed, and the hydraulic pipeline is too long and inconveniently arranged.
