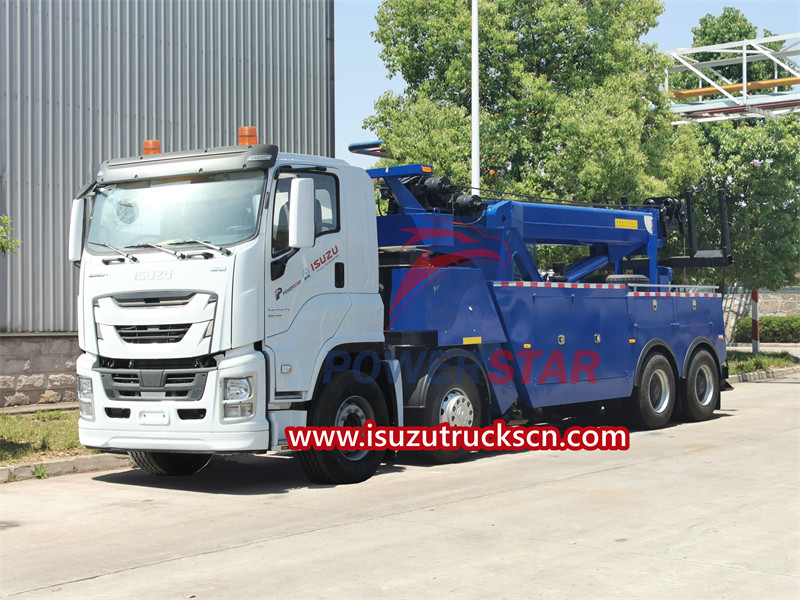

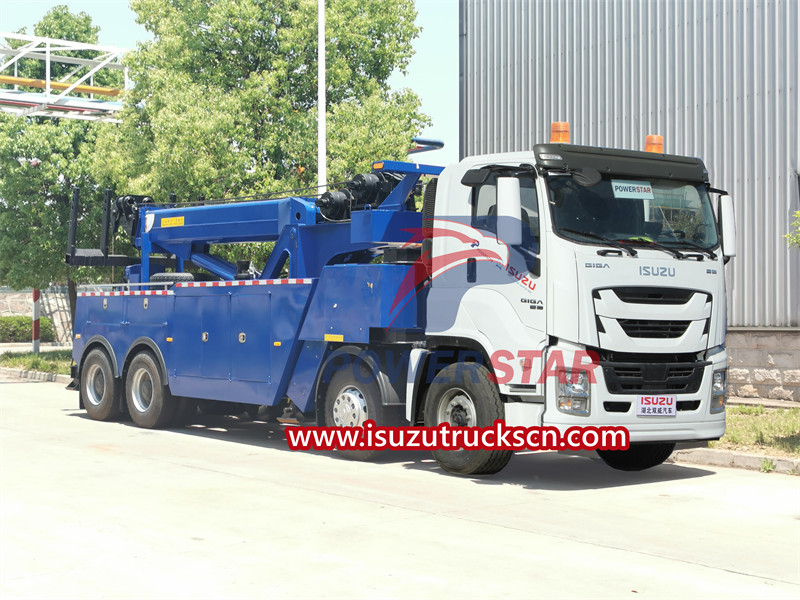

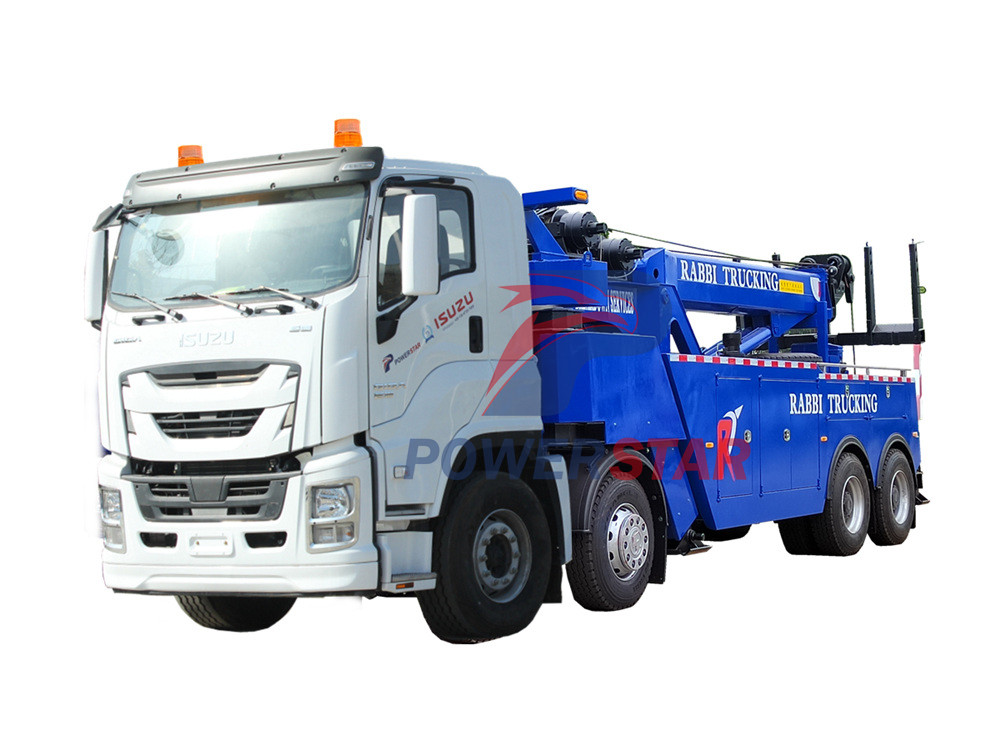

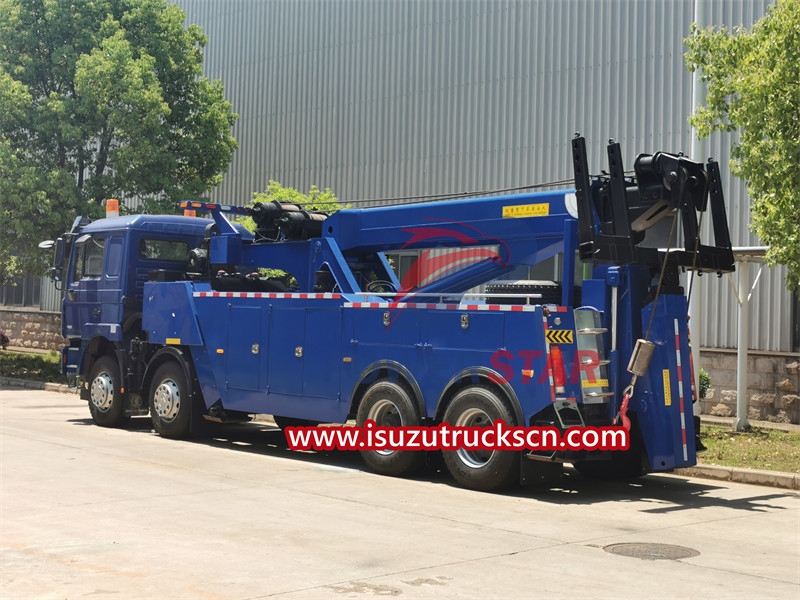

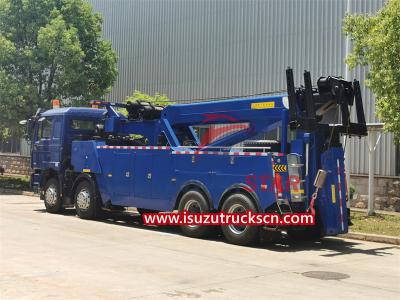

The ISUZU GIGA 8×4 rotary tow truck is a powerful, versatile and reliable large wrecker vehicle. It has high load-bearing capacity, multiple adaptability, safety, reliability and efficient operating performance. Whether it is in road rescue or emergency towing tasks, the ISUZU GIGA 8×4 tow truck is capable of the task and exhibits excellent performance to ensure the smooth flow of road traffic and the safety of vehicles.
Work capacity:
50 tonsTruck model:
PT5310GQZEngine power:
420 HPEngine type:
6WG1-TCG60Axle drive:
8×4Gear box:
FAST 12-speed, manualRemarks:
ISUZU GIGA 12 wheeler chassis, large towing capacity
A wrecker truck, also known as a road recover truck or a tow truck, is composed of a chassis, a lifting device, a traction device, a hydraulic system, an electronic control system, a car body and a tool box, etc. It has multiple functions such as lifting, pulling and towing. , suitable for obstacle clearing operations on highways and urban roads.
The ISUZU rotator wrecker truck is a heavy-duty tow truck, also called ISUZU rotary wrecker truck or ISUZU rotator tow truck. It is mainly used for rescue, cleaning, transportation, hoisting and towing of heavy and large vehicles on highways and other road accidents or failures. The rescue work is to ensure smooth roads and tow the faulty vehicle away from the scene. POWERSTAR can supply 30-ton, 40-ton, 50-ton and 55-ton medium and heavy-duty ISUZU rotator tow trucks.
Product Specifications
|
Chassis specifications |
||
|
Cabin |
ISUZU GIGA single row cabin |
|
|
Left hand drive model, with ABS, A/C, sleeper |
||
|
Vehicle Main Dimensions |
Overall dimensions (mm) |
11500*2500*3280 |
|
Wheel base (mm) |
1850+4575+1370 |
|
|
Wheel track (front/rear) (mm) |
2012/1738 |
|
|
Approach/Departure angle(°) |
16/18 |
|
|
Weight in KGS |
Gross Vehicle Weight |
31000 |
|
Curb weight |
22000 |
|
|
Axle |
Front axle |
MAN 9000kgs*2 |
|
Rear axle |
MAN 13000kgs*2 |
|
|
Max. driving speed(km/h) |
90 |
|
|
Engine |
Brand |
ISUZU |
|
Model |
6WG1-TCG60 |
|
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Horse Power(HP) |
420HP |
|
|
Displacement |
15681 ml |
|
|
Rated speed |
1400 rpm |
|
|
Max torque |
2250 N.m |
|
|
Emission standard |
Euro 6 |
|
|
Gearbox |
FAST, Manual Transmission, 12 forwards & 2 reverse |
|
|
Clutch |
Reinforced diaphragm clutch, diameter 430m |
|
|
Fuel tank (L) |
400L |
|
|
Tire |
315/80R22.5 tubeless tire, 13 pieces including one spare tire |
|
|
Superstructure specifications |
||
|
Max. Towing Weight(kg) |
50000 |
|
|
Lifting System |
Max. Lifting Weight(kg) |
30000 |
|
Max. Lifting Height (mm) |
12000 |
|
|
Extend-retract of Lifting Arm(mm) |
6000 |
|
|
Slope Angle of Lifting Arm(°) |
5~60 |
|
|
Winch Rated Pulling Capacity (kg) |
15000*2 |
|
|
Length of rope (m) |
50 |
|
|
Rope diameter (mm) |
22 |
|
Fuctions of ISUZU GIGA rotator tow truck

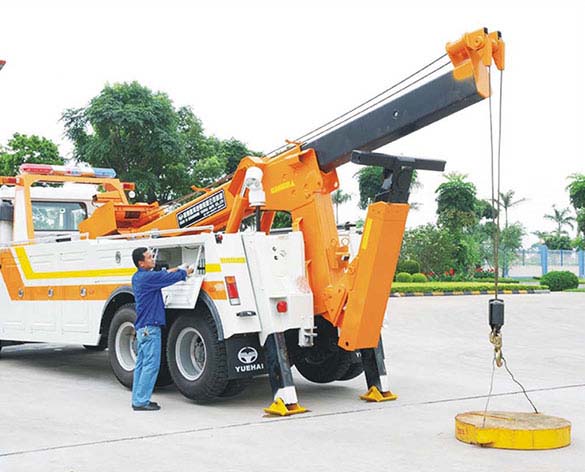

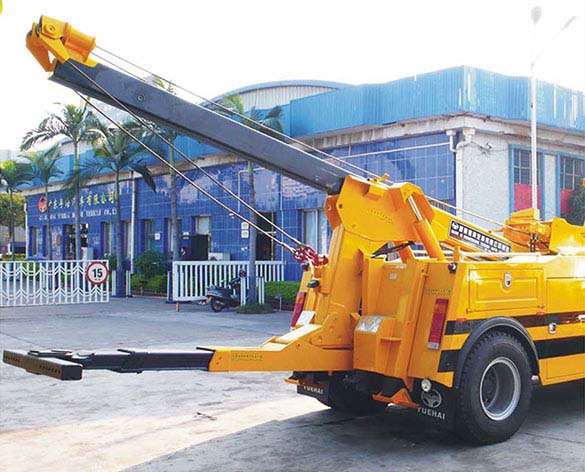

1. Lifting function: The lifting function is a basic function that ISUZU rotator tow truck should have. It uses the telescopic, lifting, folding and other movements of the supporting arm to lift the damaged vehicle from the front or rear, and then lift it. The vehicle was towed away from the scene. The brackets of ISUZU tow trucks have various structural forms. They can generally lift the axles, wheels, leaf springs, frames, etc. of the accident vehicle and are easy to assemble and disassemble.

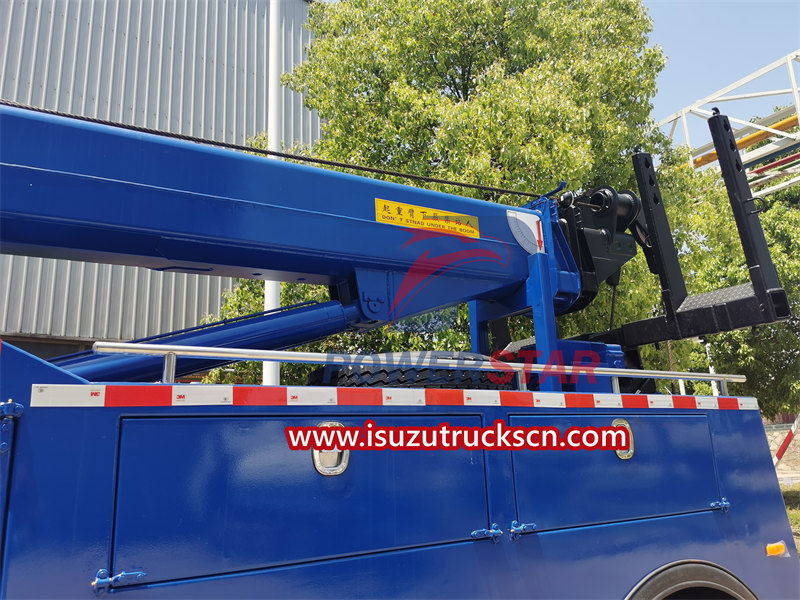

2. Hoisting function: Hoisting equipment is a must-have equipment for heavy-duty tow trucks. It is generally equipped with a variable boom to lift the damaged vehicle from one end (or side) or the entire vehicle and straighten it for easy lift. The heavy-duty ISUZU tow truck can also use the telescopic and luffing boom to tow or hoist the accident vehicle from the roadbed and the area near the roadbed to the road surface and straighten it.

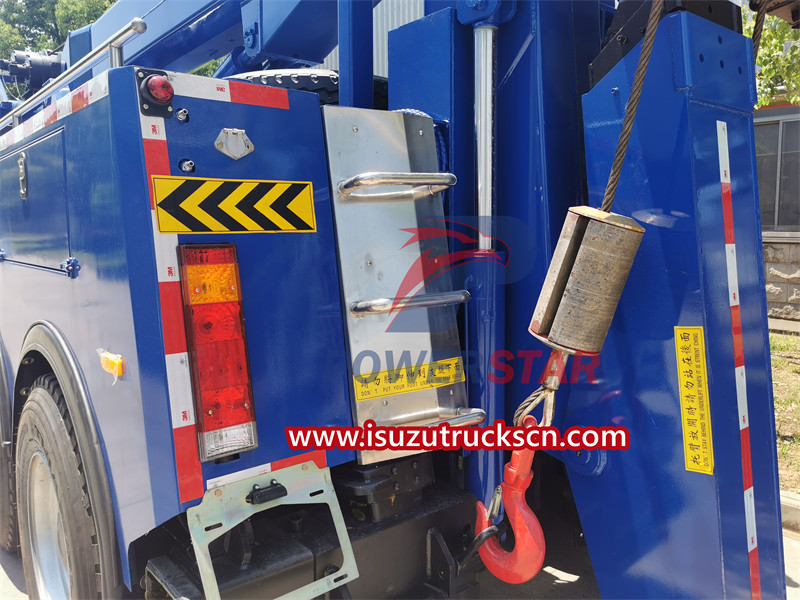

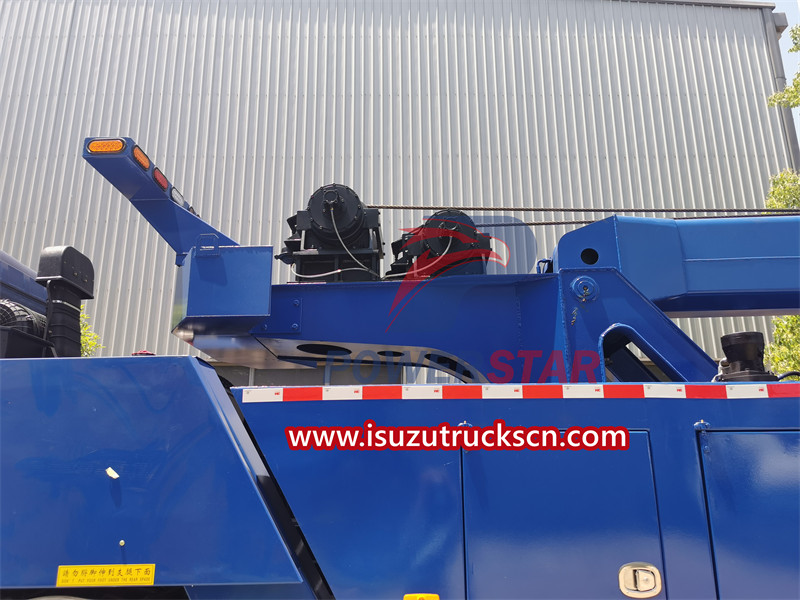

3. Pulling function: The heavy-duty tow truck is equipped with 2 winches, which cooperate with the main boom and anchor feet (fixed pulleys) fixed on site to complete the righting of various types of overturned vehicles and the pulling of vehicles that have overturned in deep ditches.
4. Towing function: The ISUZU rotary wrecker truck can tow away the damaged vehicle held up by one end. In addition, the accident vehicle can also be towed away with a tow bar for vehicles whose axles are not damaged.
5. Warning and lighting functions: The ISUZU rotator wrecker truck is equipped with a large warning light alarm to provide clear signs during the tow truck operation; the ISUZU tow truck also has a rescue auxiliary lighting function for use during night operations.
Advantages of ISUZU GIGA wrecker truck
1. Fast clearing speed: The towing arm and lifting mechanism of the ISUZU GIGA towing truck can quickly lift the faulty vehicle or obstacle on the road and move it to the designated location, reducing the time spent blocking road traffic.
2. Easy operation: The cab of the ISUZU GIGA rotator tow truck adopts a humanized design and is equipped with intelligent equipment such as an electronic control system and a continuously variable automatic transmission system, making the operation easier and more accurate.
3. Safe and reliable: The towing split ISUZU GIGA tow truck is made of high-quality steel and wear-resistant materials, which has strong anti-twisting and wear-resistant properties. At the same time, the body shape design is reasonable and has good stability, which can ensure driving safety.
4. Versatility and adaptability: ISUZU GIGA rotator towing truck is not only suitable for towing tasks, but can also be used for various emergency rescue tasks such as broken down vehicle rescue and road clearance.
