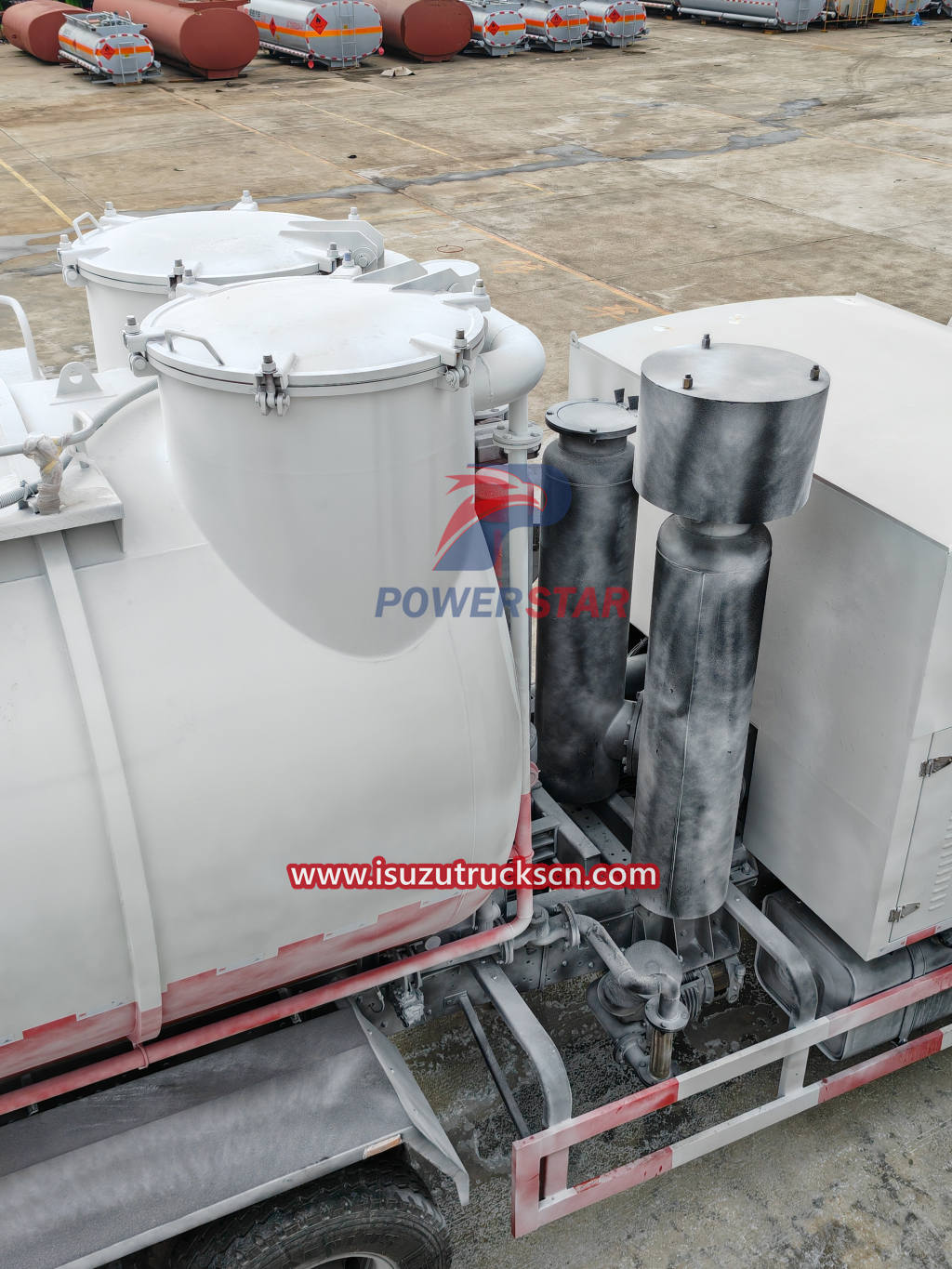

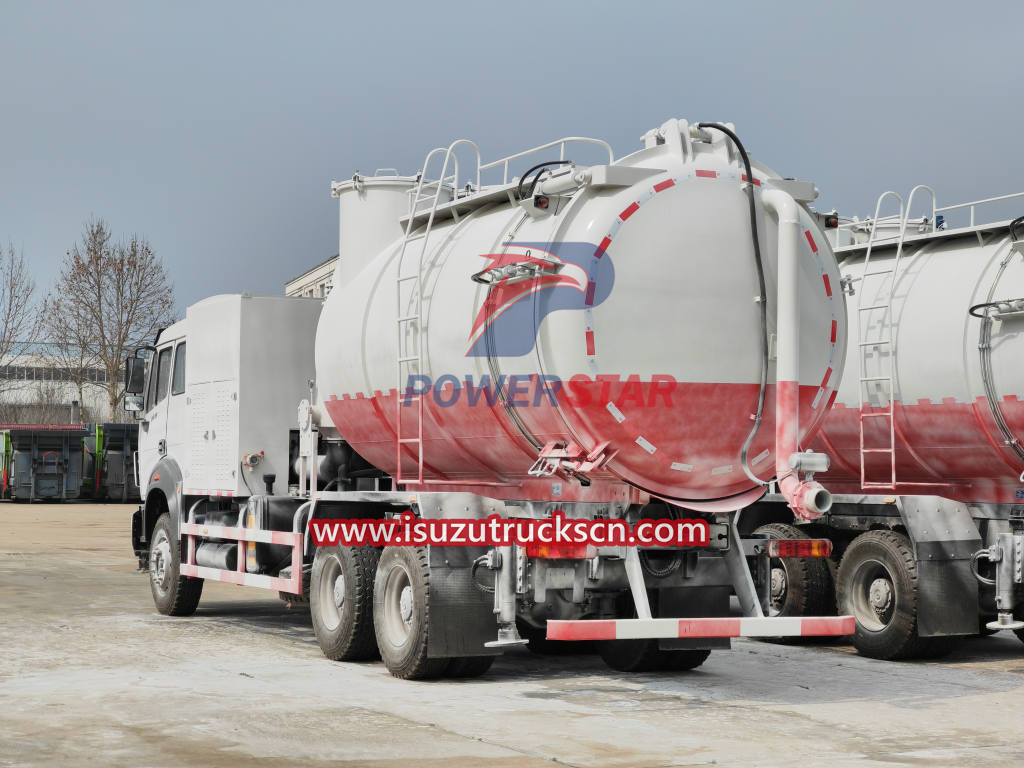

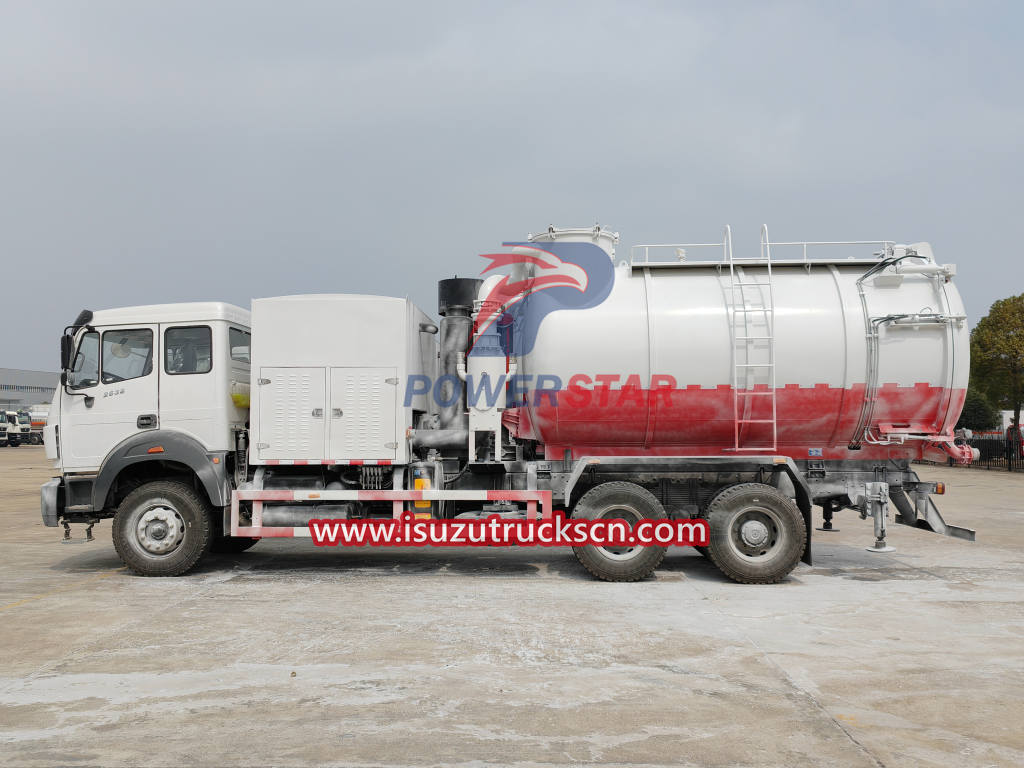

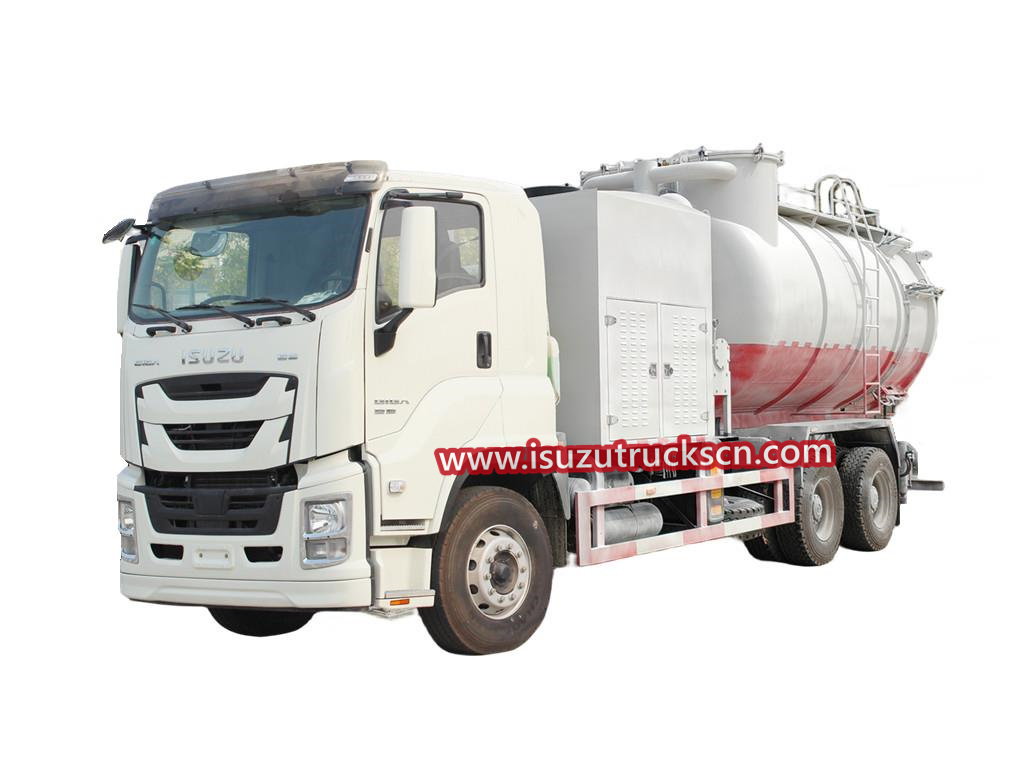

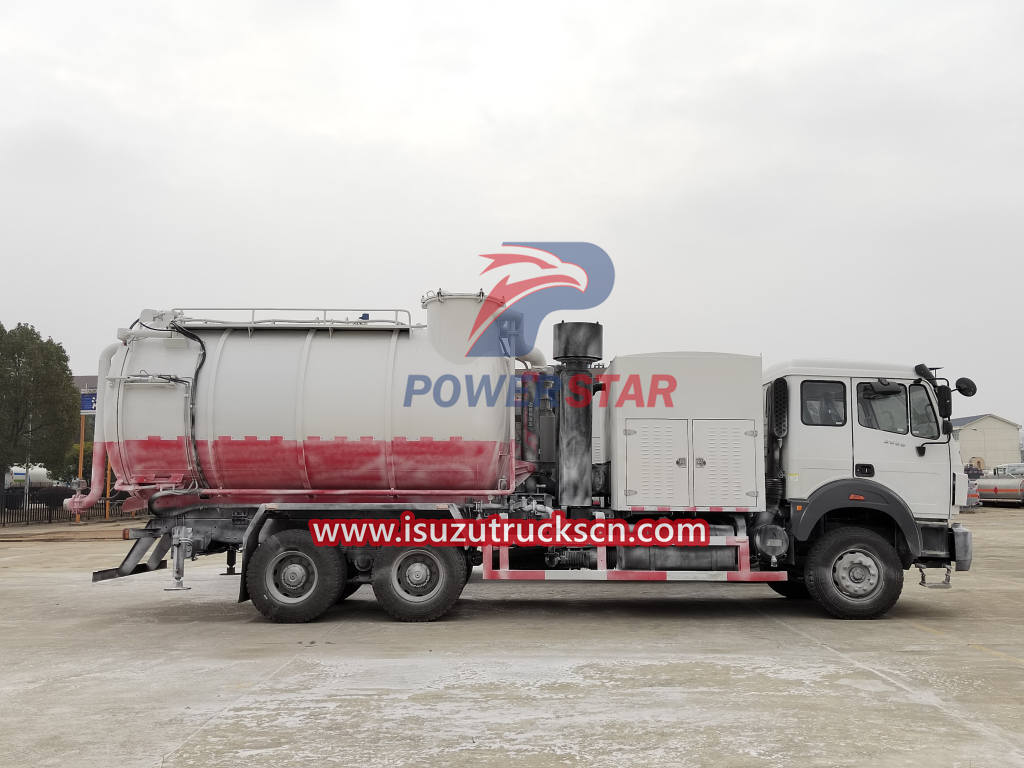

Isuzu GIGA Sand sucker industrial vacuum truck
Latest Isuzu Giga Industrial Sand Vacuum trucks, also called Isuzu sand suction trucks, Isuzu high pressure/vacuum trucks or super suckers, are suitable for suctioning, pressing and transporting large quantities of wet substances, chemicals, hazardous and contaminated substances and sludge dust, gravel, soil, clay, sand, water, sludge, grit, oil, stones and many other substances.
Due to long hoses, vacuum trucks also have the reach and capacity for suction, displacement and transport wet and/or dry substances at refineries, chemical plants and sites.
Work capacity:
12 CBMTruck model:
PT5250GXSEngine power:
380 HPEngine type:
Isuzu 6UZ1Axle drive:
6x4Gear box:
FAST 12-shiftRemarks:
Super vacuum pumpIsuzu Giga Industrial sand dry vacuum Trucks, also called as Isuzu super vacuum loaders or Isuzu Giga dry wet vacuum tankers, like the High Dump are powerful and efficient and offer a safe and reliable solution to cleaning up and containing industrial waste and debris, as well as recovering and reusing raw materials from tough, hard-to-reach areas. These Isuzu sand super vacuum trucks utilize high power airflow to suck up solids, liquids, sludges and slurries and feature single-mode filtration for wet or dry material loading with no changeover required.
The Specification of 6x4 sand Septic Tanker Truck ISUZU GIGA :
1. Septic Tanker Truck include power take off, transmission, vacuum suction fecal pump, water separator, oil and gas separator, multi-way valve, suspender, fecal tank, discharge valve, water tank, fecal level indicator, vacuum pressure meter, pipe system and so on.
2. Vacuum Sewage Suction Truck , Self-discharge and self suction.
3. The Truck Mounted Vacuum Cleaner Sewage Body can Self Dumper;
4. Fill tank all time ≤10min, long service life, and high working speed, convenient transportation.
5. Suitable for collecting and transport manure, biogas slurry, mud, oil and other liquid goods.
IsuzuGiga Vacuum Trucks are industrial vacuum loaders that offer a safe and reliable solution to cleaning up industrial waste and debris, as well as recovering and reusing raw materials.
|
Name |
ISUZU GIGA Multifunction Combined Suction and Discharge Truck |
|
Chassis |
ISUZU GIGA 12.00R20 tyres,ABS ,air condition |
| Wheelbase | 5200+1370 mm |
|
GVW |
25000kg |
Sewage suction truck
| Tank Volume | 12000 L |
| Tank Material |
Q345B |
| Tank Thickness | 6 mm |
|
Design pressure |
-0.9/3 bar |
|
Filling valve |
8 inch |
|
Max tipping angle |
≥50º |
|
Hydraulic cylinder |
Front mounted, double action |
|
Vibrator |
imported |
|
Rear cover |
Hydraulic operated |
|
Suction system |
Vacuum |
-0.5 bar |
|
Max air flow |
6426m3/h(imported HIBON TS56) | |
|
Distance |
≥46 m |
|
|
Device |
DN150 valve |
|
|
Loading rate |
570kg/ min sand |
|
| Dust |
Inertial dust removal |
accuracy>50μm Dust removal efficiency 96%
|
|
Cyclone filter
|
The dust removal precision is more than 5 μ M Dust removal efficiency ≥ 94% |
|
| Bag filter | Bag filter (dust removal accuracy: 1 μ m,) Dust removal efficiency ≥ 99% The maximum treatment temperature is 260 ºC Automatic cleaning: pulse air back blowing |
|
Item |
Description |
||
|
1 |
Make |
ISUZU |
|
|
2 |
PTO |
|
Famous brand |
|
3 |
Powder tank |
Volume |
12,000L |
|
Material |
16Mn mild steel |
||
|
Tank shell thickness |
6mm |
||
|
Manhole |
450mm |
||
|
Designed pressure |
-0.9bar |
||
|
Inlet valve |
6inch |
||
|
Tipping angle |
≥50degree |
||
|
Rear door |
Hydraulically open and lock |
||
|
4 |
3 grades shut off |
Float ball |
SS304 |
|
solid material amount measurer |
|
||
|
ultrasonic liquid level indicator |
Works as double float ball, cut off vacuum pump once tank is full
|
||
|
5 |
Suction filtration system |
Bag filter unit |
32units of filters, with heat-resistant and anti-corrosion |
|
Manhole |
450mm
|
||
|
Filter mesh |
|
||
|
6 |
Vacuum system |
Brand |
Hibbon |
|
Type |
Roots Blower |
||
|
Power source |
Driven by PTO |
||
|
Vacuum level |
-0.5bar |
||
|
Air flow |
5700cu.m3/h |
||
|
Material dimension |
15mm |
||
|
Suction horizontal distance |
≥50m |
||
|
Silencer |
|
||
|
7 |
Discharge system |
Compressor brand |
Outstanding brand |
|
Working pressure |
2bar |
||
|
Discharge flow |
500m3/h |
||
|
Discharge ability |
30-70t/h |
||
|
Discharge height |
15-30m |
||
|
Outlet valve |
4inch, SS304 |
||
|
Material left |
≤2‰ |
||
|
Butterfly valves |
SS304
|
||
|
8 |
Suction boom |
Operation |
Remote controlled retractable boom, 300degree horizontal rotation, max 6m working radius
|
|
Material |
SS304 |
||
|
Knife valve |
SS304, pneumatic control |
||
|
Diameter |
6inch |
||
|
Suction hose |
10m, can be lengthened to be above 50m |
||
|
9 |
Hydraulic control |
Pressurized oil pipe |
SS304 pipe |
|
10 |

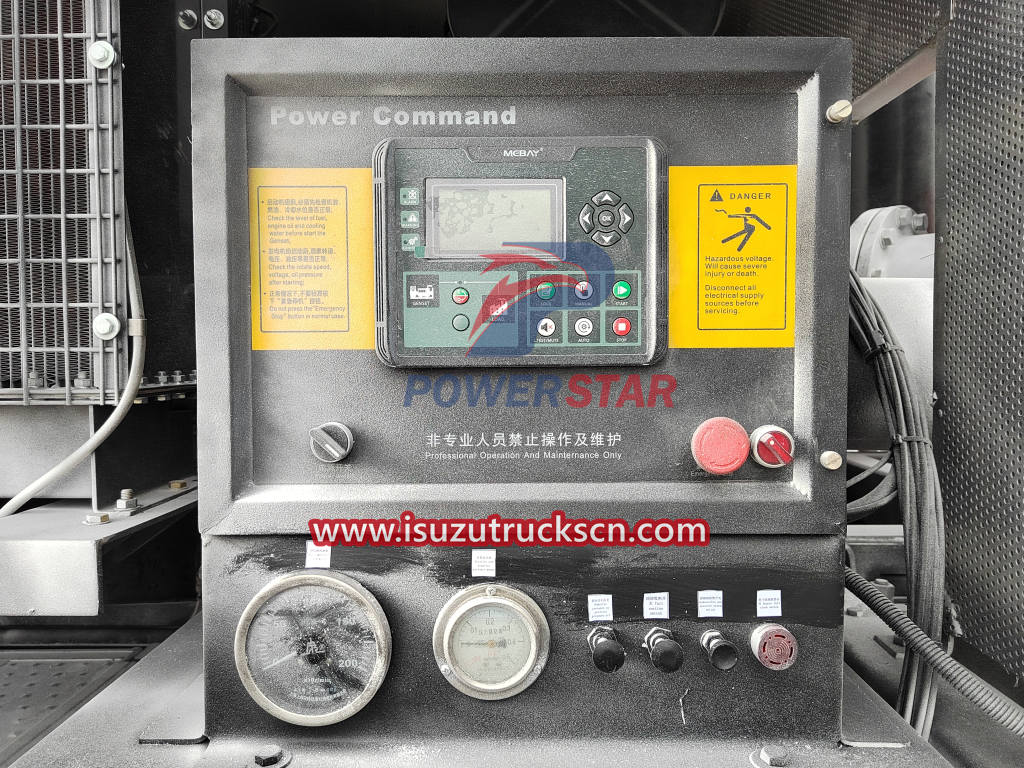

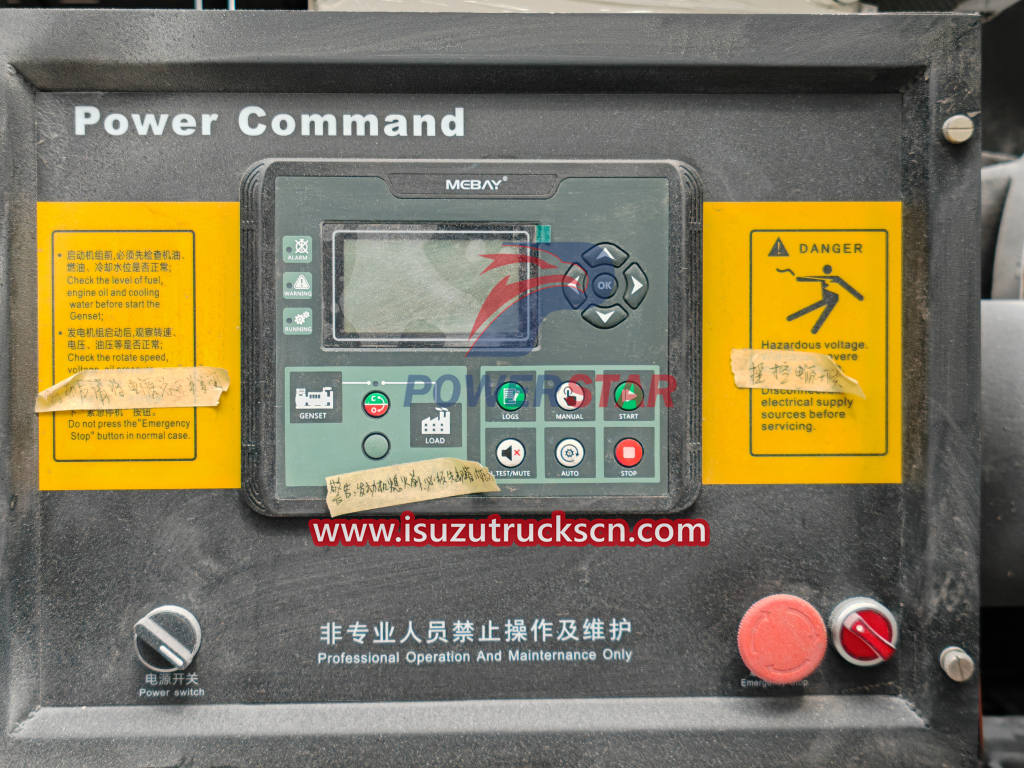

Control box |
Manual control and radio remote control Pump and engine speed meters, pressure meters, switches, emergency stop, boom control, English labels... |
|
|
11 |
Painting |
All steel parts are sand blasted before painting. Passiviation One coat of anti rust primer inside and outside of the tank Two coat of finish painting. Heat dry process Color and logo on truck body advised by customer. |
|

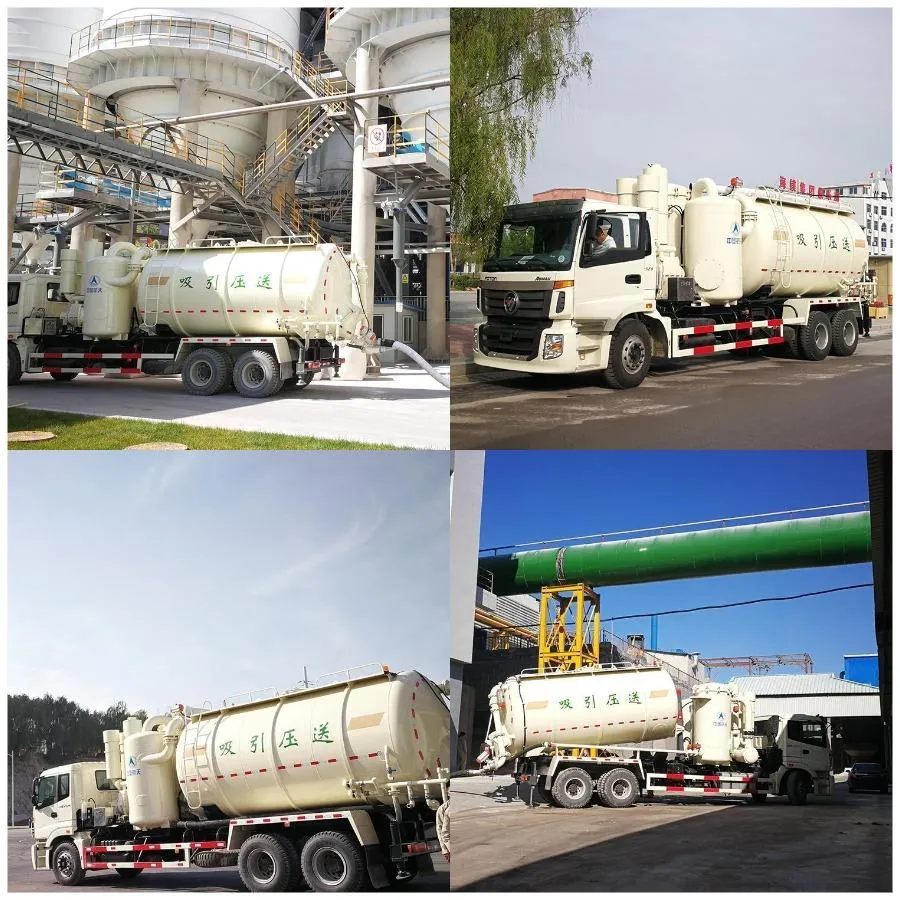

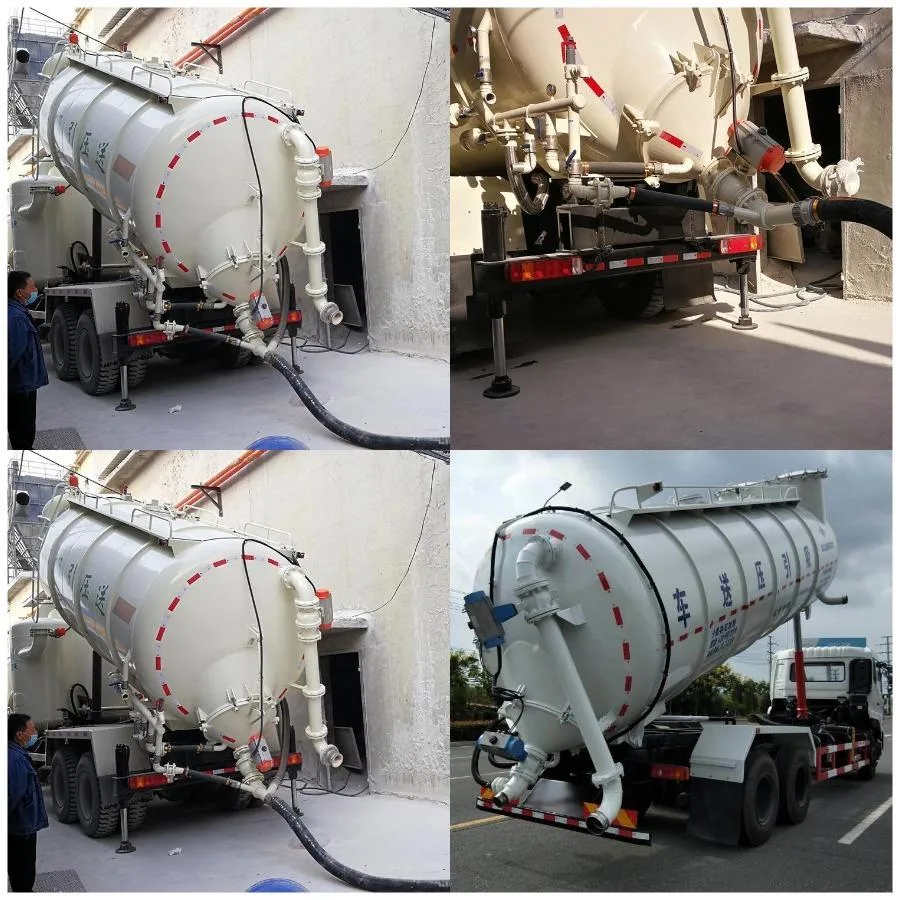

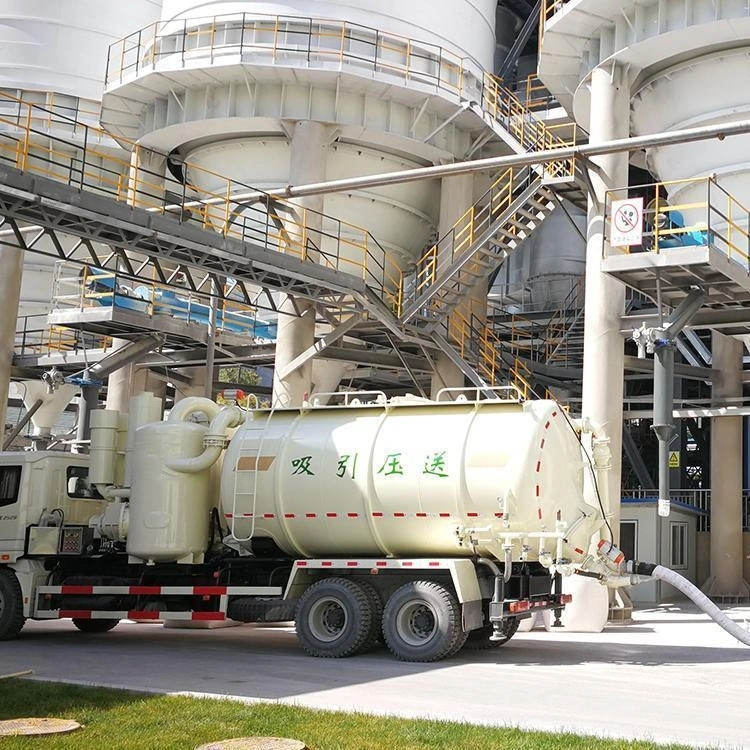

Isuzu GIGA High Pressure Slurry Sand Vacuum Tanker Trucks working pictures
Isuzu GIGA High Pressure Slurry Sand Vacuum Tanker Trucks working pictures
Isuzu GIGA High Pressure Slurry Sand Vacuum Tanker Trucks working pictures
Isuzu GIGA High Pressure Slurry Sand Vacuum Tanker Trucks working pictures
There are different types of Isuzu Dry vacuum trucks, which are available in various versions:
Roughly, vacuum trucks can be divided into three groups:
1. Isuzu Wet substances vacuum trucks.
2. Isuzu Dry and wet substances vacuum trucks.
3. Isuzu Dry substances vacuum trucks.
The individual vacuum trucks are available in various versions, including:
• an version for transporting hazardous substances.
• an ATEX (Ex) version for working with chemical and flammable substances.
• a soil suction version.
• a version for use in extremely cold regions.
All types and versions of vacuum trucks can be used depending on the work to be done.
