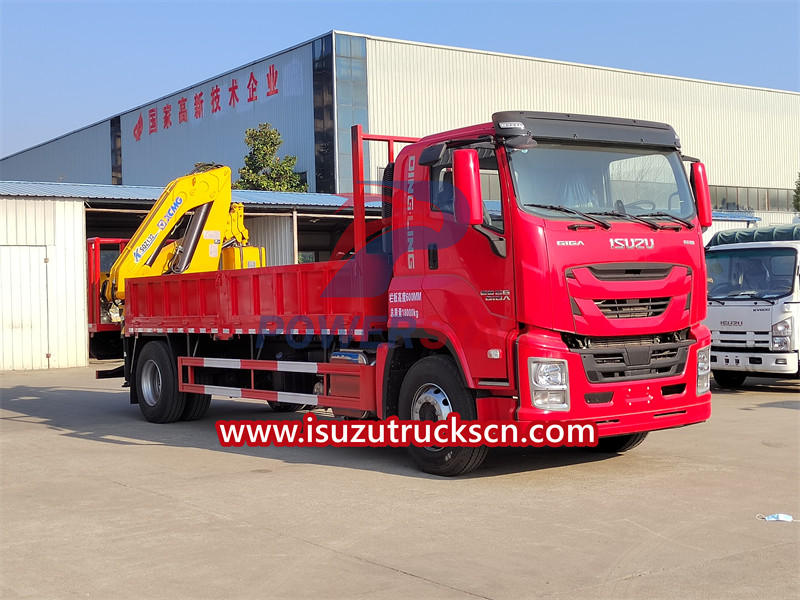

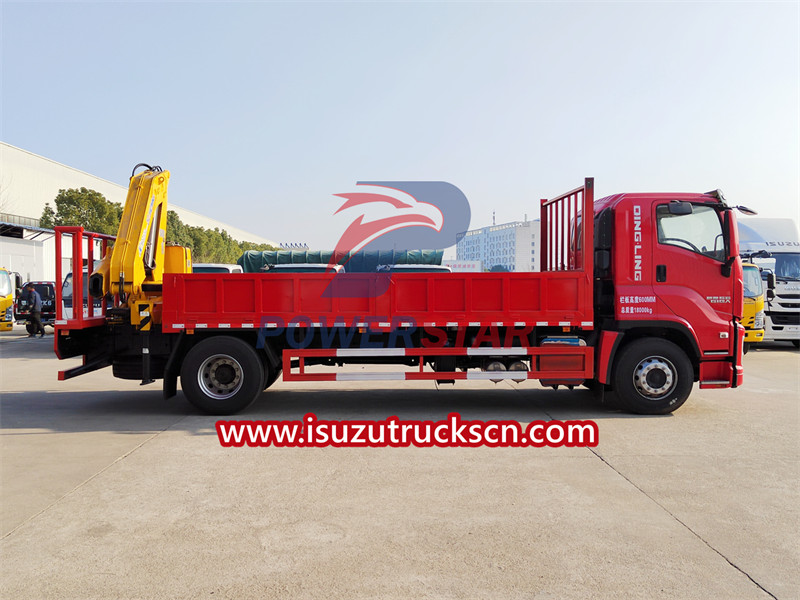

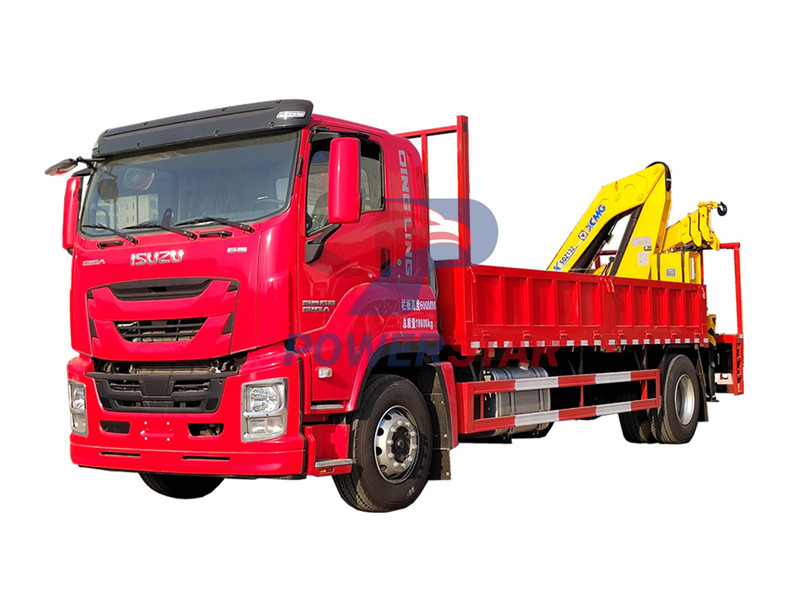

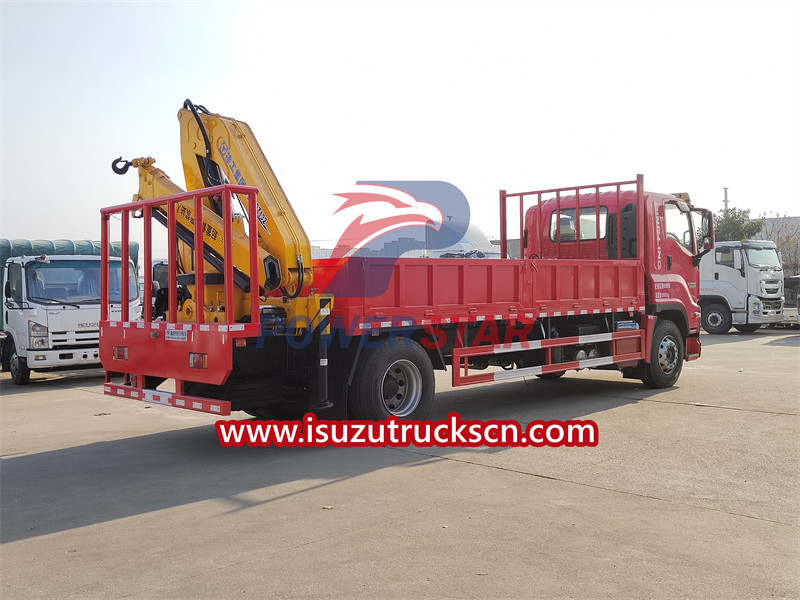

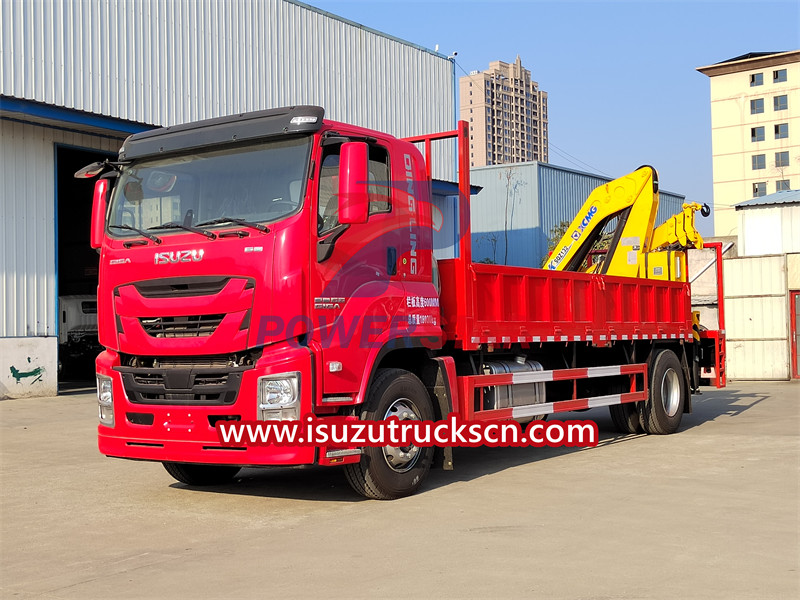

ISUZU GIGA Truck Mounted Knuckle Boom Crane

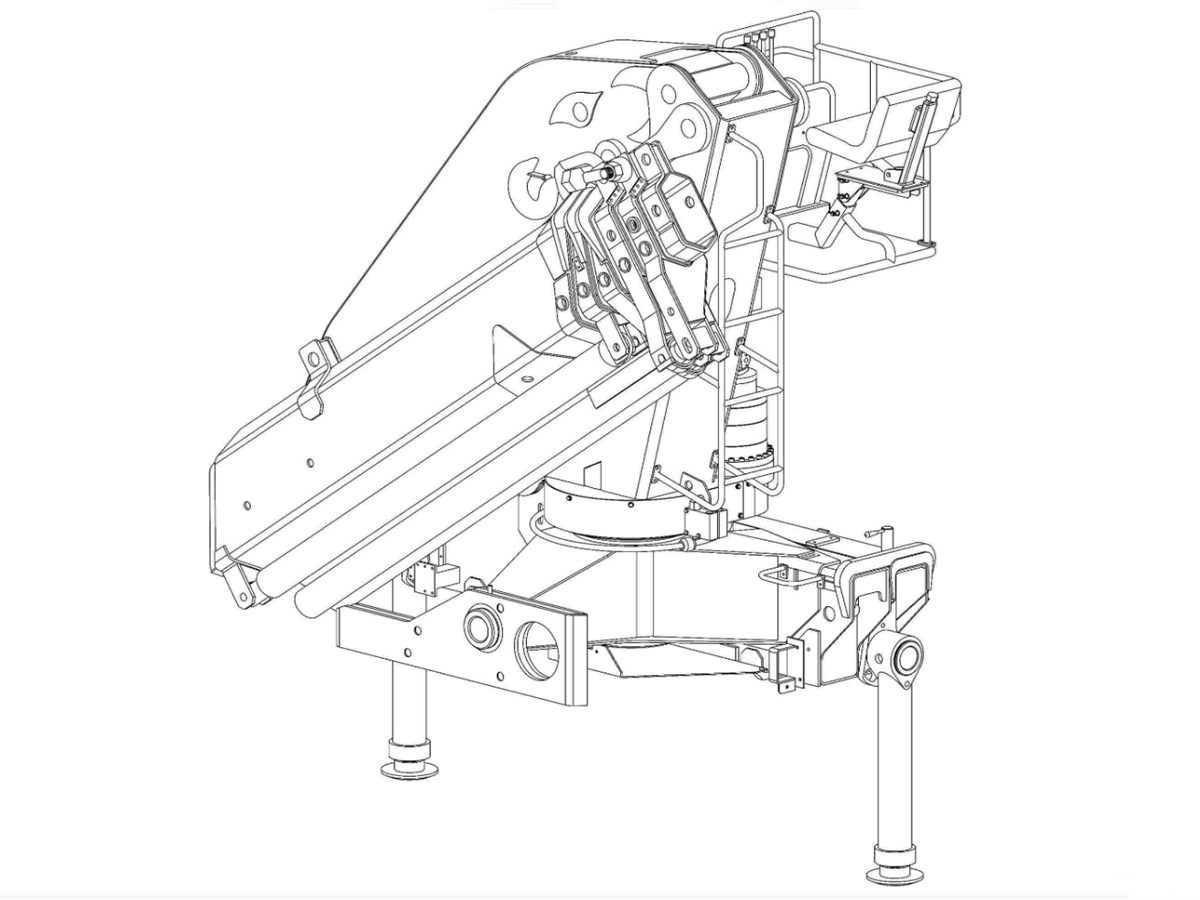

The ISUZU GIGA truck-mounted knuckle crane is an engineering vehicle manufactured by POWERSTAR. It integrates hoisting and transportation and is divided into two parts: chassis and crane. It’s base on ISUZU GIGA chassis, which has always won the favor of the market for its quality stability, strong power, high load-bearing capacity and low fuel consumption. The knuckle crane has a three-section boom, in which the main is a two-section luffing straight boom, and the auxiliary is a one-section composite boom, which can realize four luffing forms: full extension, half extension, near extension, and far extension.
Work capacity:
6300 kgTruck model:
PT5060JSQEngine power:
380 HPEngine type:
6UZ1-TCG61Axle drive:
4×2Gear box:
FAST 12-speed, manualRemarks:

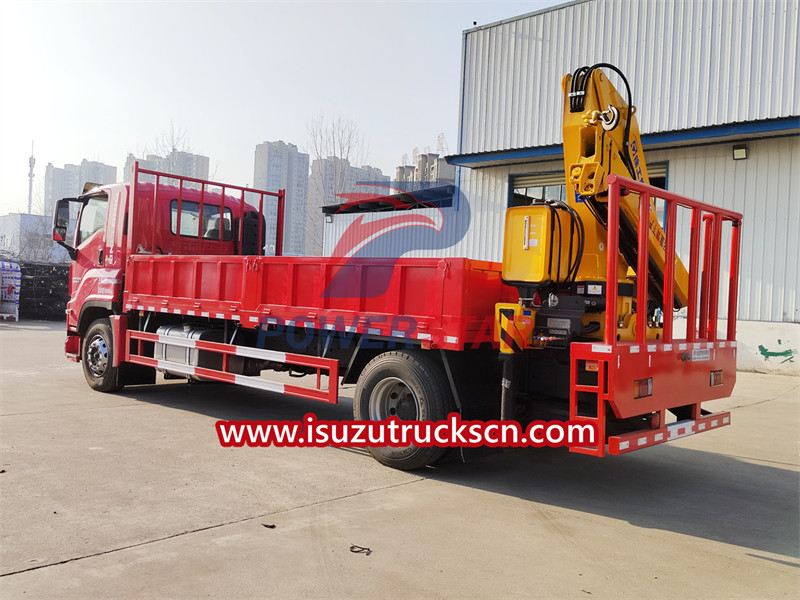

ISUZU GIGA chassis, rear mounted XCMG knuckle boom crane
ISUZU truck-mounted crane (also called ISUZU boom crane truck, ISUZU truck with crane) is a new type of efficient lifting and transportation equipment that integrates lifting and transportation. Because of its unique characteristics of being able to lift and carry cargo, and being flexible and maneuverable, it is widely used in fields and places such as transportation, telecommunications and electricity, civil construction, cargo yards and docks, warehouses, and relocation within buildings. The ISUZU truck-mounted crane has the comprehensive functions of self-loading, self-unloading, and self-transportation. It can also be equipped with additional devices to have special functions such as grabbing bars, bulk materials, drilling, and manned working buckets, which greatly expands its use functions, truly realizing the use characteristics of one vehicle with multiple functions and efficient maneuverability.
ISUZU Truck-mounted cranes are mainly divided into two categories: telescopic boom cranes and knuckle boom cranes. The telescopic boom cannot be folded. Due to the limitations of its telescopic mechanism, it cannot telescope with load at its full length, and it has only one luffing mechanism. This limits the ability of the ISUZU telescopic boom crane to operate in a small space, and also limits its development space to medium to large tonnage.
All movements of the ISUZU knuckle boom crane trucks are fully hydraulically driven and have two luffing mechanisms. Its telescopic section has a load-retracting function, which greatly increases the operating flexibility. It is especially suitable for operating in small spaces, such as tunnels and relatively small areas, small factory buildings, etc. It can also be said that as long as the height of the working space meets the entrance and exit of the knuckle boom crane during transportation, it can complete operations in this space. Therefore, in many operating environments, when telescopic truck-mounted cranes cannot operate, the knuckle truck-mounted crane becomes the only choice. Under most conditions, the ISUZU knuckle crane can adapt well to the operations that a telescopic crane can perform, and its operating efficiency is more advantageous.
Product Specifications
|
Product model |
PT5060JSQ |
|
|
Driving type |
4×2， left hand drive |
|
|
Engine |
Brand |
ISUZU |
|
Model |
6UZ1-TCG61 |
|
|
Type |
6-cylinder, in-line, turbocharged and intercooled |
|
|
Maximum output |
380HP (279KW) |
|
|
Maximum torque |
1800 Nm |
|
|
Rated speed |
2000 rpm |
|
|
Displacement |
9839 ml |
|
|
Transmission |
Brand |
FAST |
|
Type |
12 speed, 12 forwards and 2 reverse, manual |
|
|
Axle |
Front |
7500 kg loading capacity |
|
Rear |
13000 kg loading capacity |
|
|

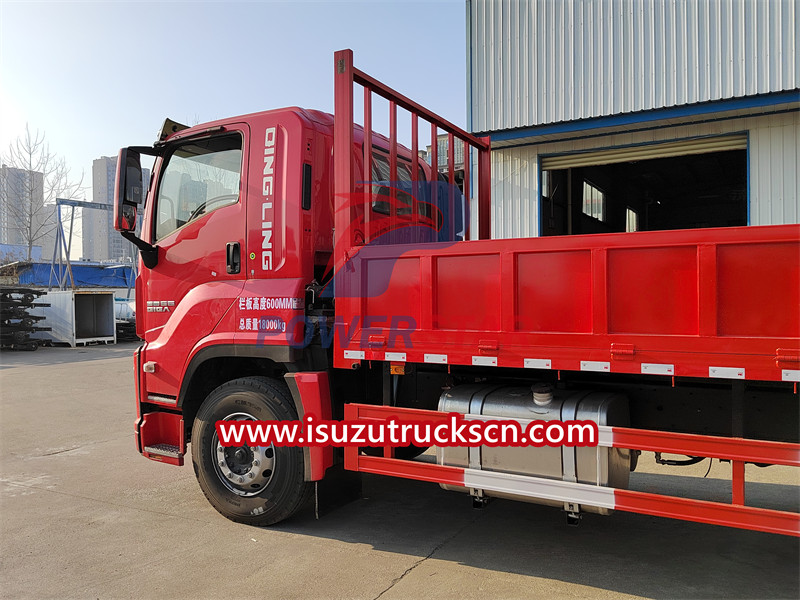

Chassis |
Frame |
U-profile parallel ladder frame and reinforced subframe, all cold riveted cross members, manganese steel |
|
Front suspension |
leaf spring |
|
|
Rear suspension |
leaf spring |
|
|
Fuel tank |
400 L capacity with locking cap |
|
|
Wheels & Tyres |
Tire size |
295/80R22.5 |
|
Number |
6+1 pcs |
|
|
Cabin |
Type |
Single cab, with sleeper, A/C, ABS |
|
Seats |
2 |
|
|
Dimensions mm |
Wheel base |
4600 mm |
|
Overall length |
9000 mm |
|
|
Overall width |
2500 mm |
|
|
Overall height |
3750 mm |
|
|

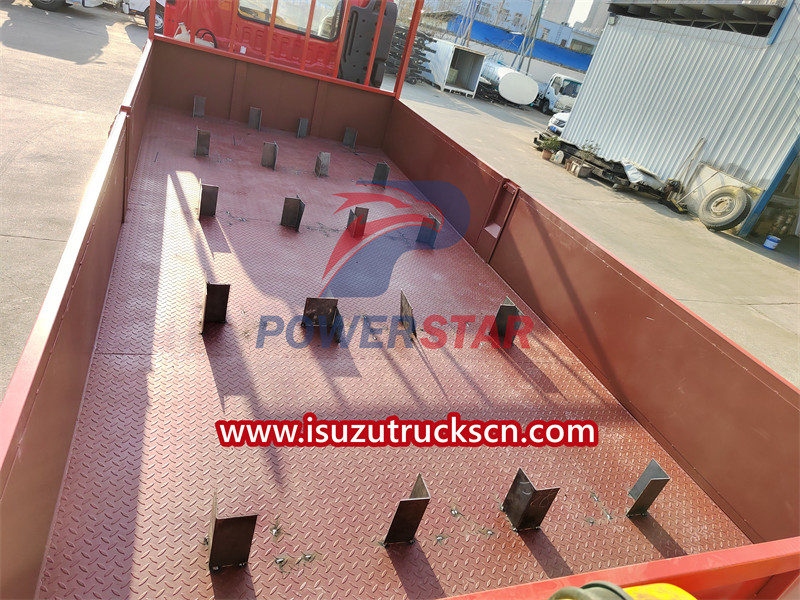

Cargo box dimension |
5000×2500X550 mm |
|
|

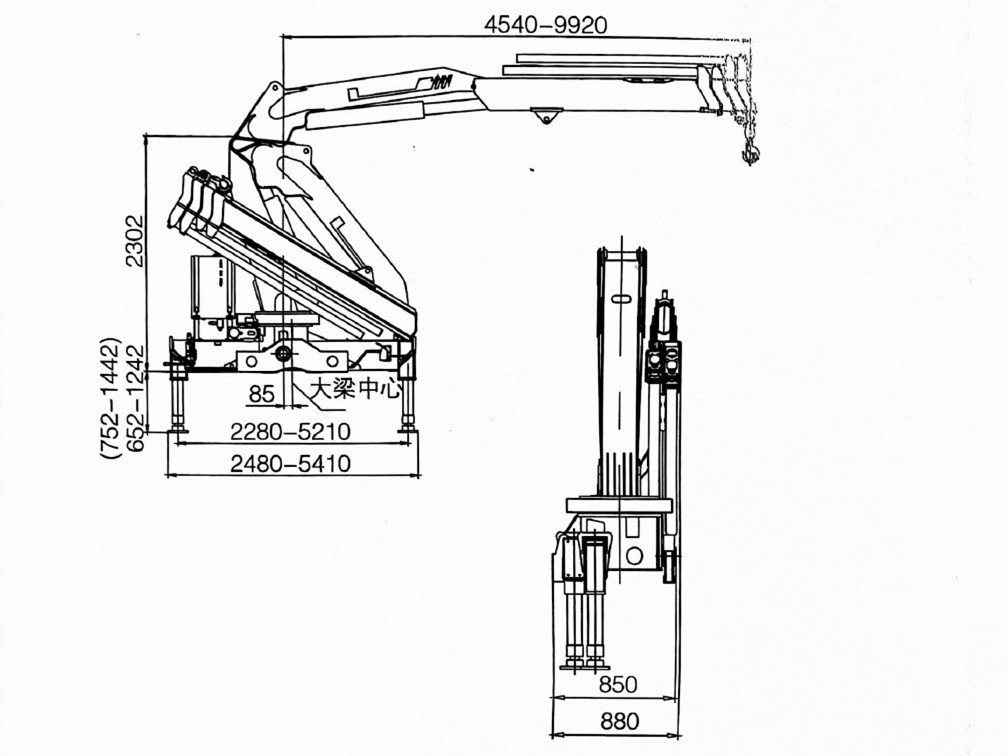

Parameter of Crane |
Brand |
XCMG |
|
Model |
KSQZ132 |
|
|

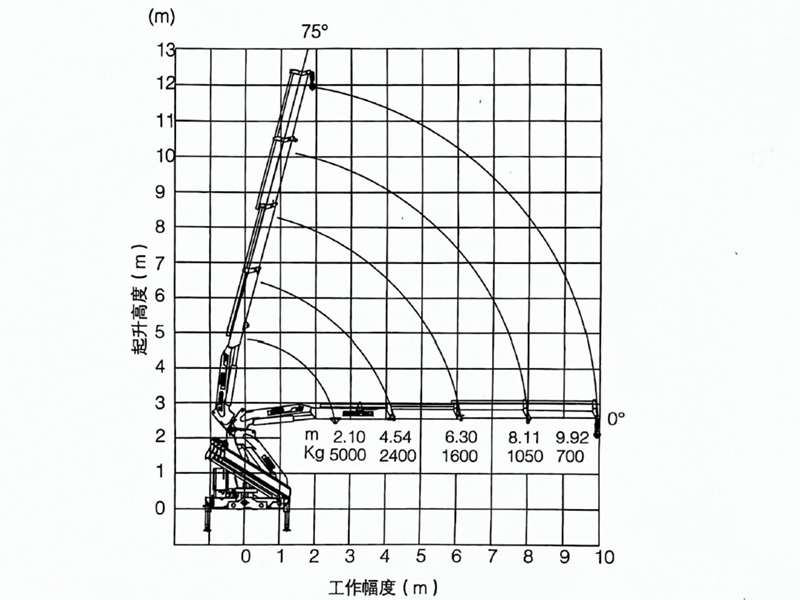

Max lifting capacity |
6300 KG |
|
|
Max lifting moment |
13.2 KN.M |
|
|
Max hydraulic outreach |
9.9 m |
|
|
Slewing angle |
360 degree |
|
|
Slewing torque |
0.96 T.M |
|
|
Outrigger span |
5210 mm |
|
|
Max. working pressure |
28 Mpa |
|
|
Crane weight |
2226 KG |
|
|

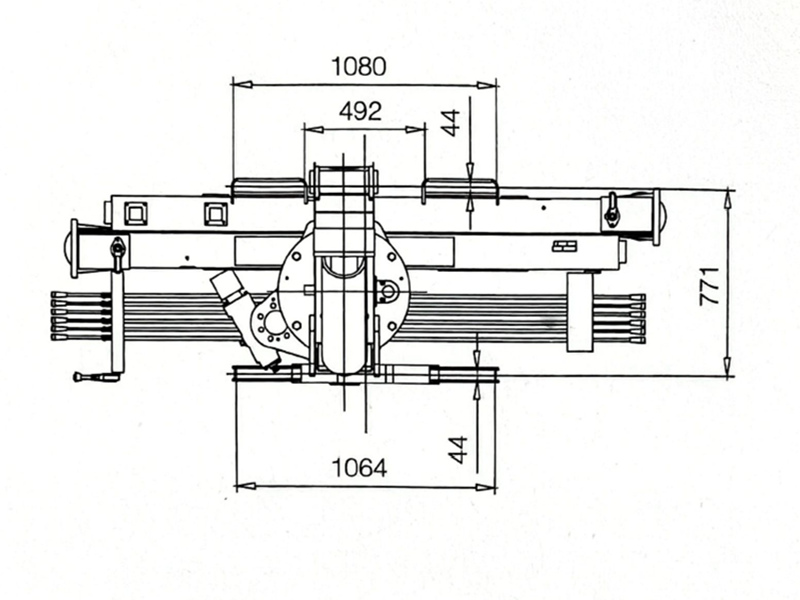

Installation space |
1050 mm |
|
|
Weight |
Gross vehicle weight |
22000 kg |
|
Curb weight |
12500 kg |
|
|
Rated Loading Capacity |
10000 kg |
|
Advantages of ISUZU GIGA knuckle boom crane truck:
1. Strong lifting capacity: ISUZU GIGA knuckle crane truck is equipped with a reliable and powerful XCMG crane, capable of handling heavy cargo and lifting tasks. Its excellent lifting capacity enables it to cope with the handling and installation needs of various heavy objects and improve operating efficiency.
2. Flexible working range: The truck is equipped with a rear-mounted crane, allowing it to flexibly adjust its working range. XCMG crane has the functions of rotation, telescopic and lifting, and can adapt to different working environments and needs. This variable work envelope enables operators to complete a variety of complex lifting tasks with ease.
3. High loading capacity: ISUZU GIGA knuckle crane truck has high loading capacity. Co-design between truck cabins and cranes makes loading and unloading cargo more efficient and reduces labor and time costs during loading and unloading.

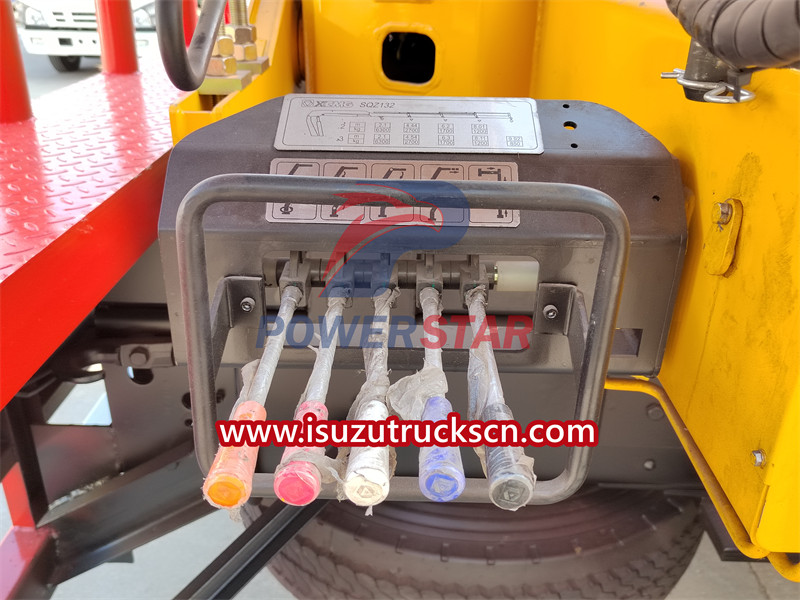

4. Highly safe operation and control system: ISUZU GIGA crane truck is equipped with advanced operation and control systems to ensure that operators can use the crane under highly safe conditions. These systems include electronic control systems with stability control and warning functions, as well as operator safety protection devices. These safety features effectively protect the safety of the operator and surrounding people.
5. Reliable chassis and drive system: The chassis and drive system of the ISUZU GIGA truck with crane are reliable and stable. High-quality chassis materials and design as well as high-performance drive systems ensure the truck's stability and reliability on all types of road and working conditions.
6. Easy maintenance: ISUZU GIGA Crane Truck is designed to make maintenance and upkeep easier. Removable and wearing parts can be easily replaced, improving the reliability and durability of the entire vehicle. This convenient maintenance feature helps reduce downtime and increase productivity.
 |
 |
 |
 |
