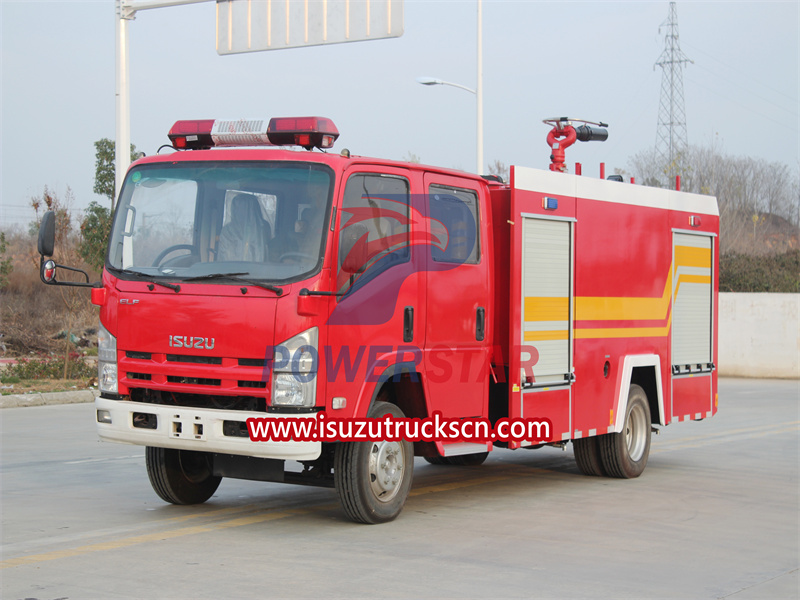

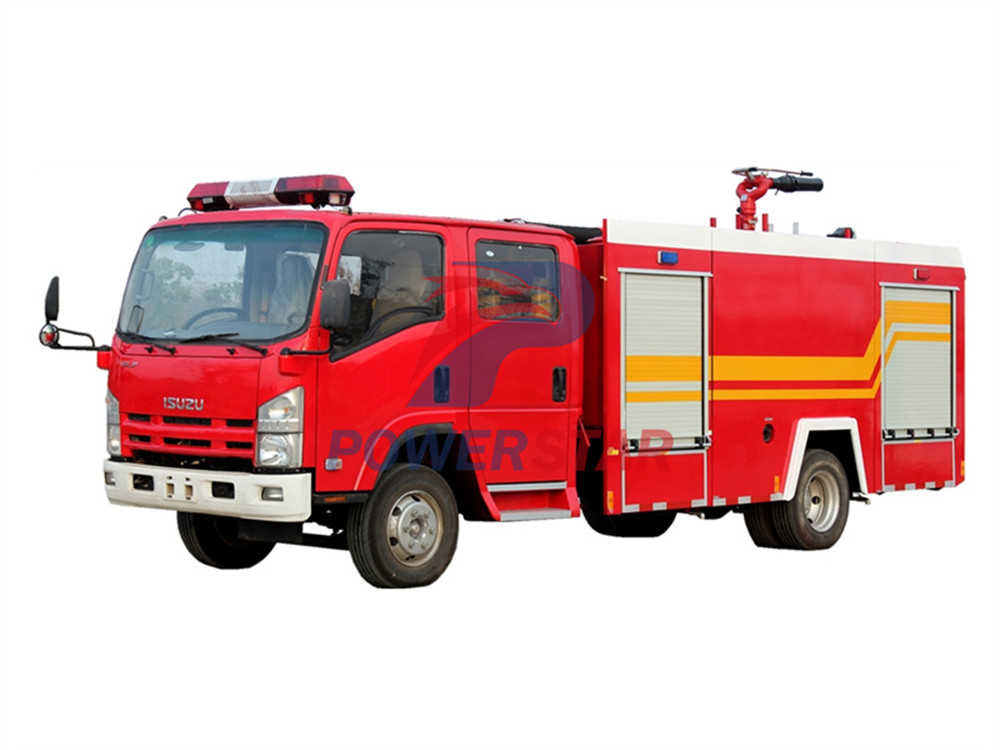

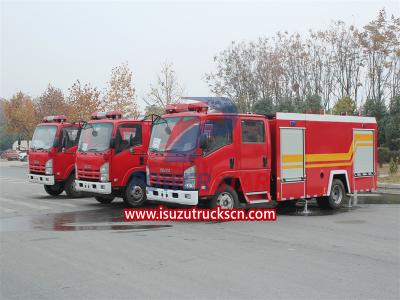

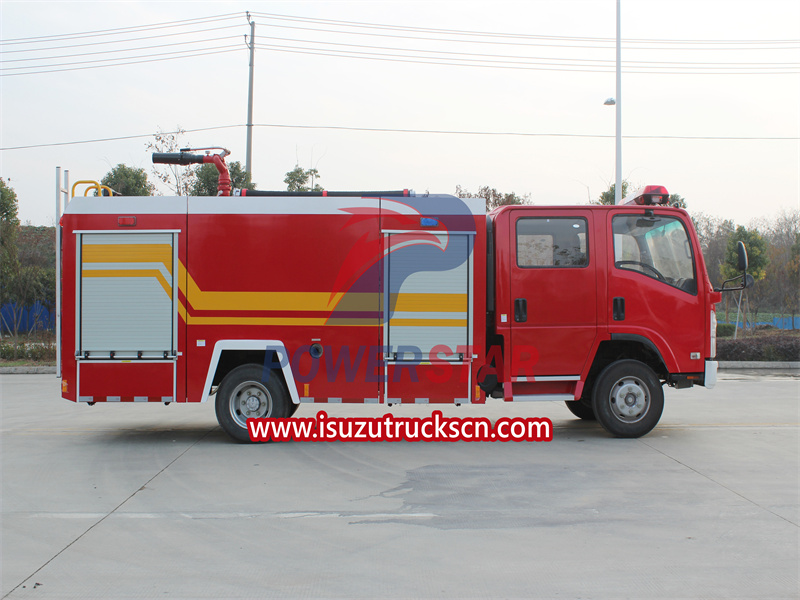

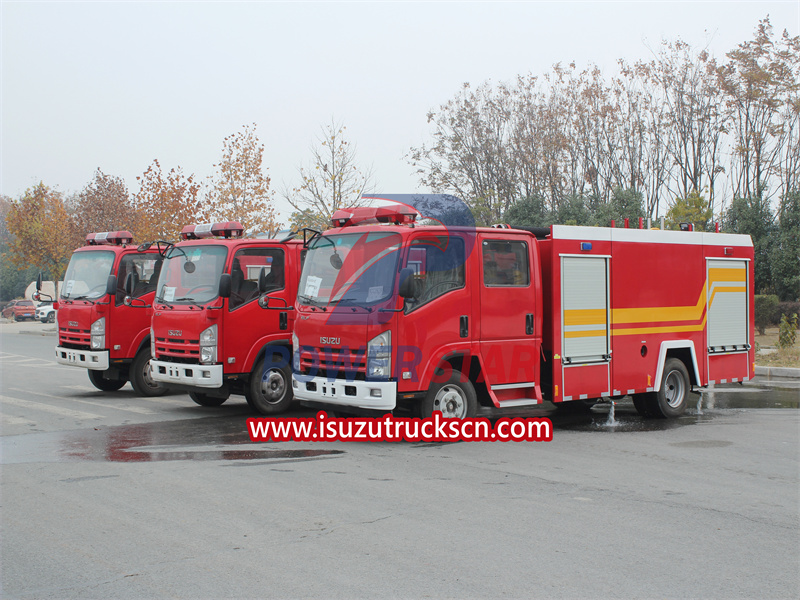

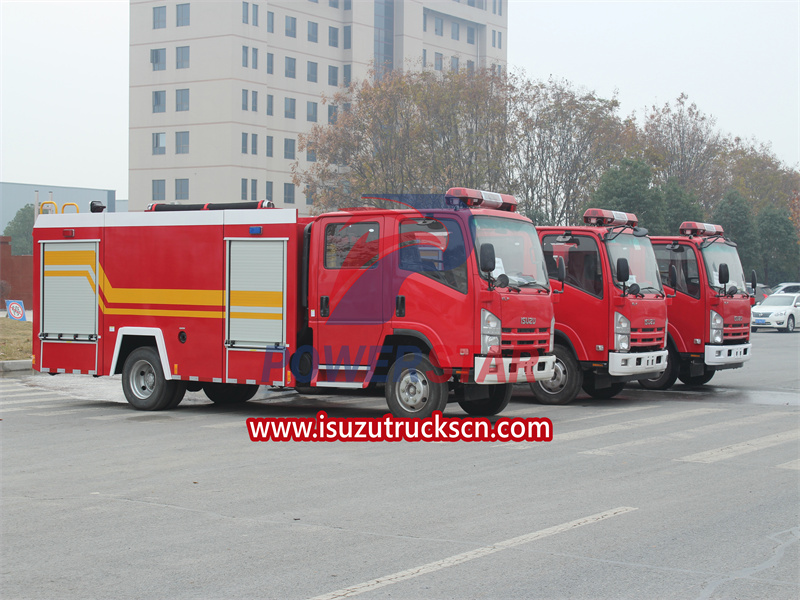

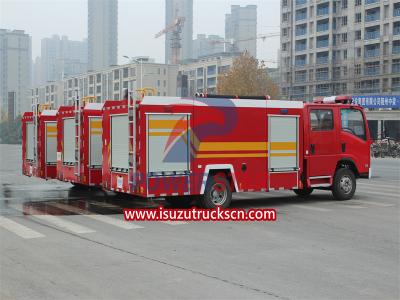

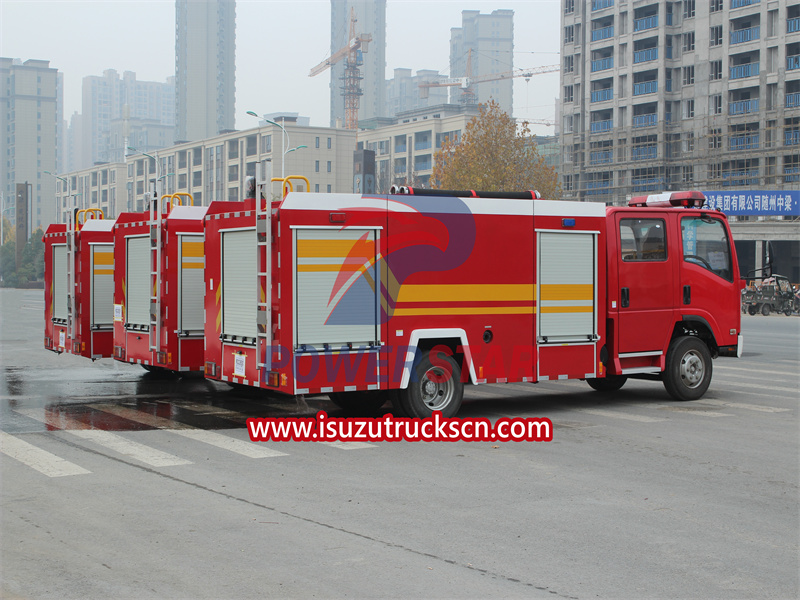

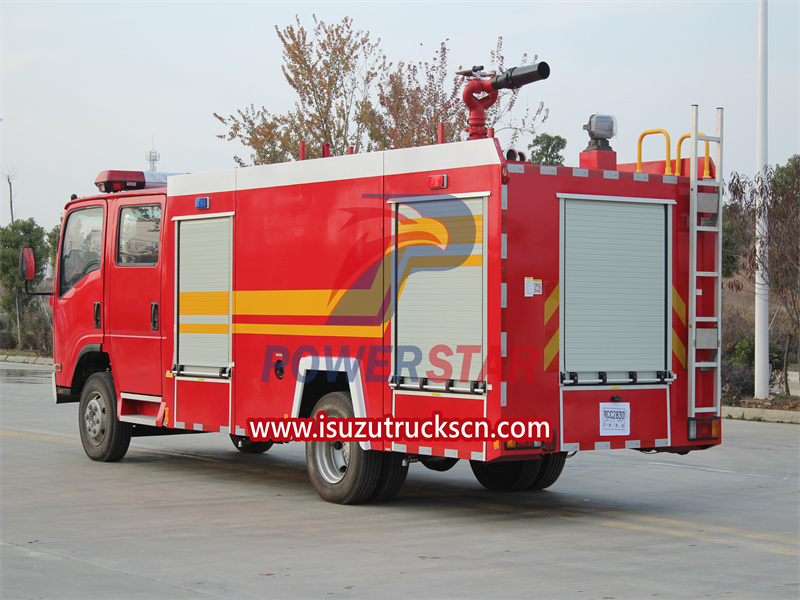

The Isuzu NPR emergency fire tender truck is a high-performance, multi-functional firefighting vehicle designed to respond to various emergency fire and other disaster situations.
The Isuzu emergency fire trucks have powerful power, high-quality fire pumps and fire cannons, which can complete rescue missions efficiently and with high quality.
Work capacity:
5000LTruck model:
PT5110GXFPM50Engine power:
190HPEngine type:
4HK1-TCG40Axle drive:
4X2Gear box:
FAST 6-speedRemarks:
ISUZU GIGA double row cabin, China famous brand fire pump and fire monitor4X2 Isuzu Double Cab 5000 Liters Fire Tender Truck
Isuzu emergency fire truck, also known as Isuzu fire truck, Isuzu rescue fire truck with winch or Isuzu emergency rescue fire truck with crane, Isuzu rescue fire truck is a fire truck that specializes in fire rescue operations. Equipped with fire-fighting equipment, hydraulic rescue tools and various special tools and equipment for handling emergencies.
Powerstar's Isuzu NPR emergency fire truck is short and compact, with good power and maneuverability. It is suitable for extinguishing general solid or liquid oil fires and is easy to enter and exit narrow urban roads and village-level highways. The vehicle's structural design is scientific and reasonable, and its appearance is clean and tidy. Generous, the vehicle is equipped with a variety of fire extinguishing and rescue equipment, and is easy to operate and maintain. It is the first choice tool for urban public security firefighting forces and new urban fire extinguishing.

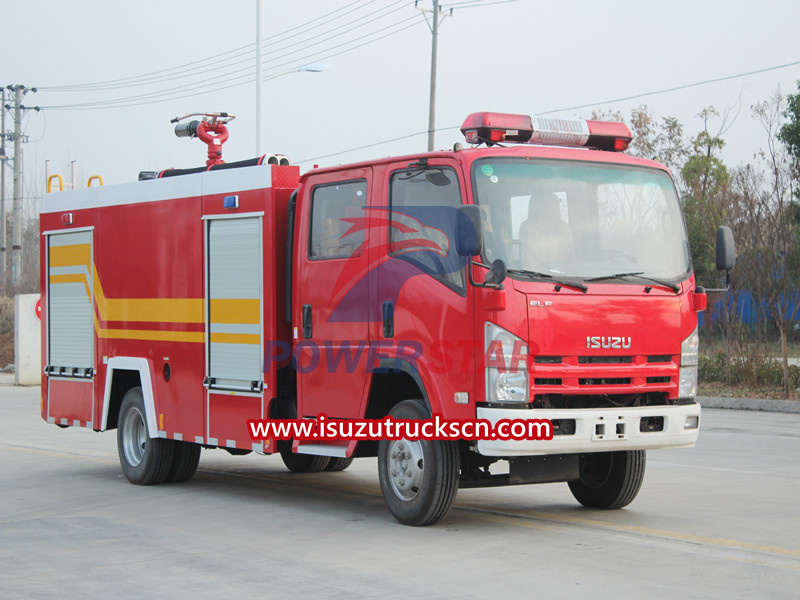

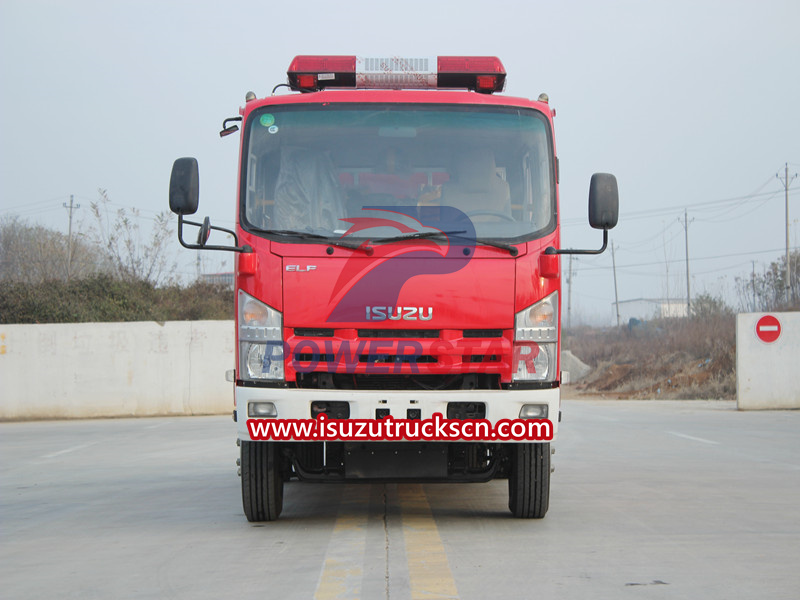

The cab of the Isuzu NPR emergency fire truck: flat-head all-metal enclosed cab, double-row cab, panoramic curved windshield. Optional new front mask, front bumper, front combination lamps, door windows, and lower cowl mask.
Car body: Made of high-quality carbon steel material (Q235A), welded structure, equipped with longitudinal and anti-sway plates, and treated with high-tech anti-rust and anti-corrosion. Stainless steel material is optional.

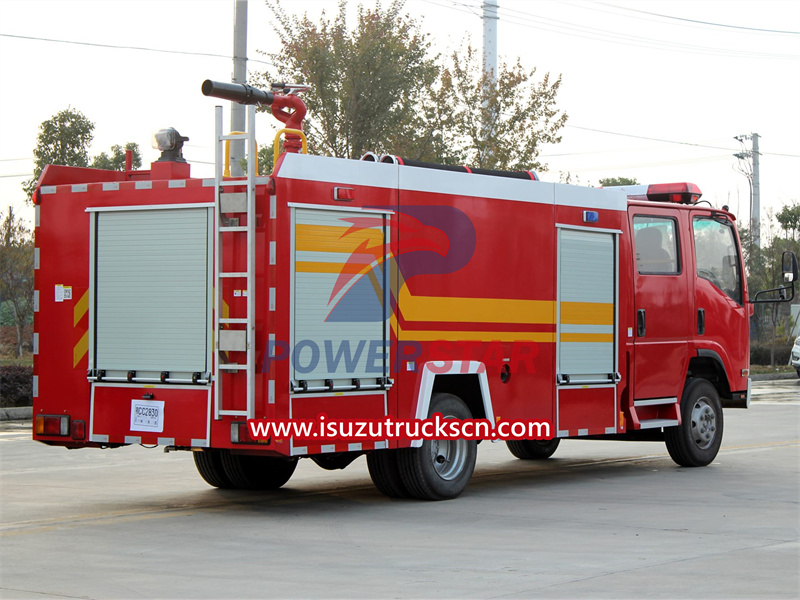

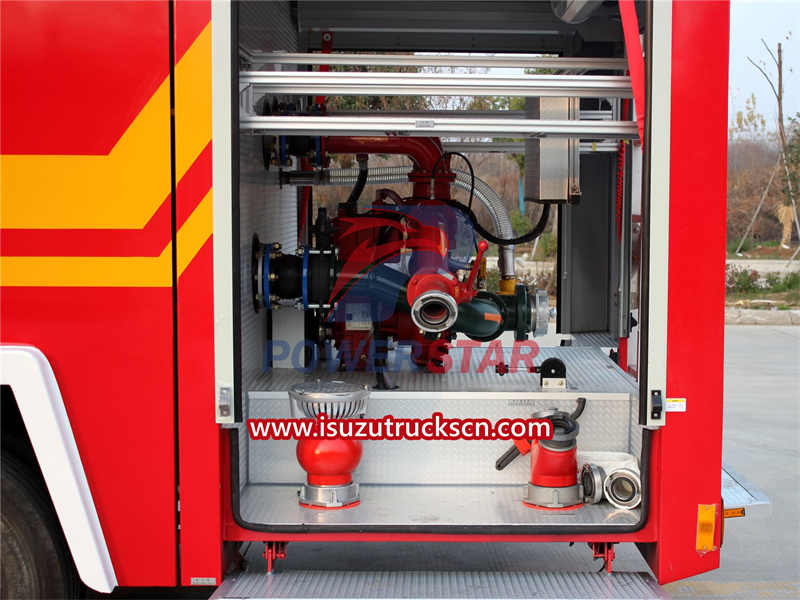

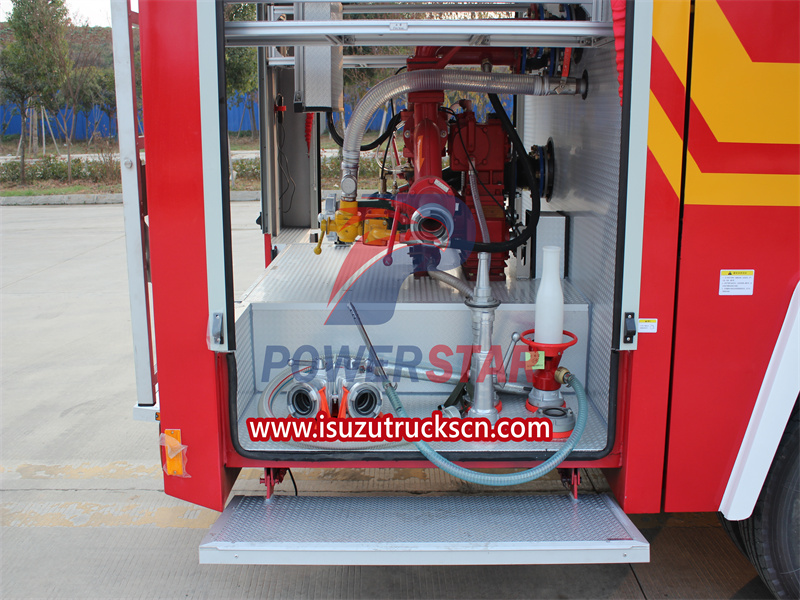

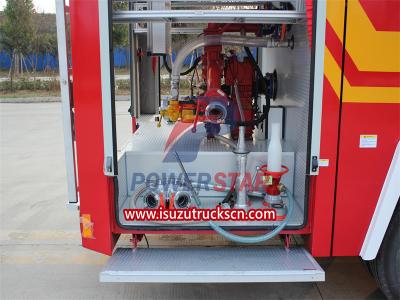

Pump room: central or rear pump. There are new easy-open high-strength aluminum alloy rolling shutter doors on the left and right sides of the pump room and the left and right sides of the equipment box.

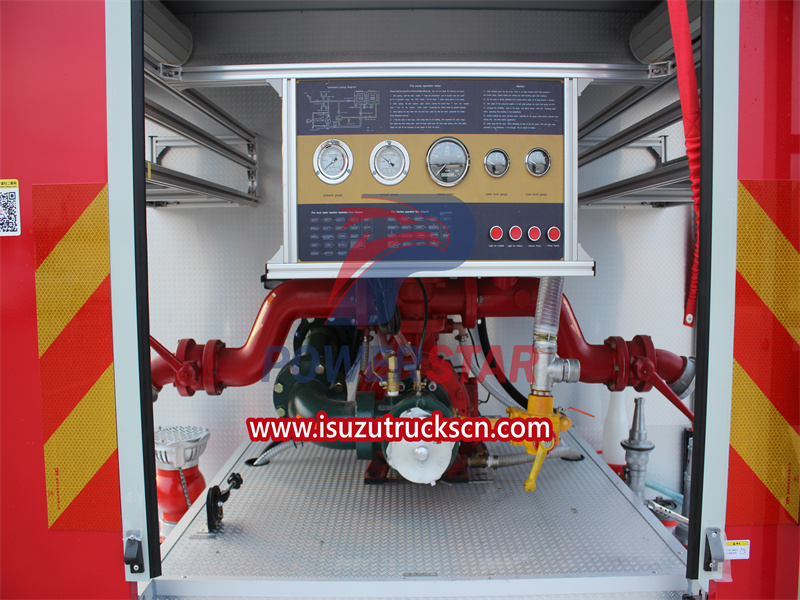

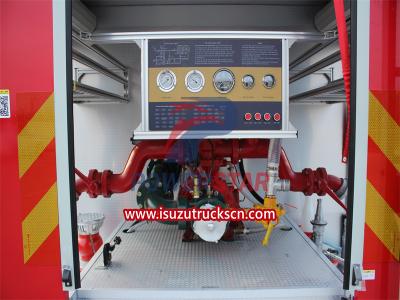

The pump room is equipped with water pump systems, liquid level gauges, vacuum gauges, pressure gauges, indicator lights and other instrument devices, making the operation clear at a glance.

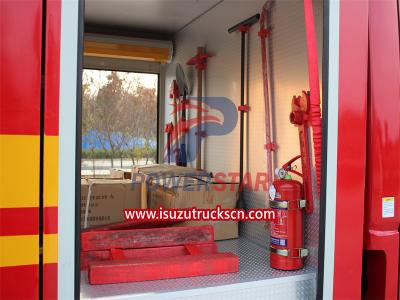

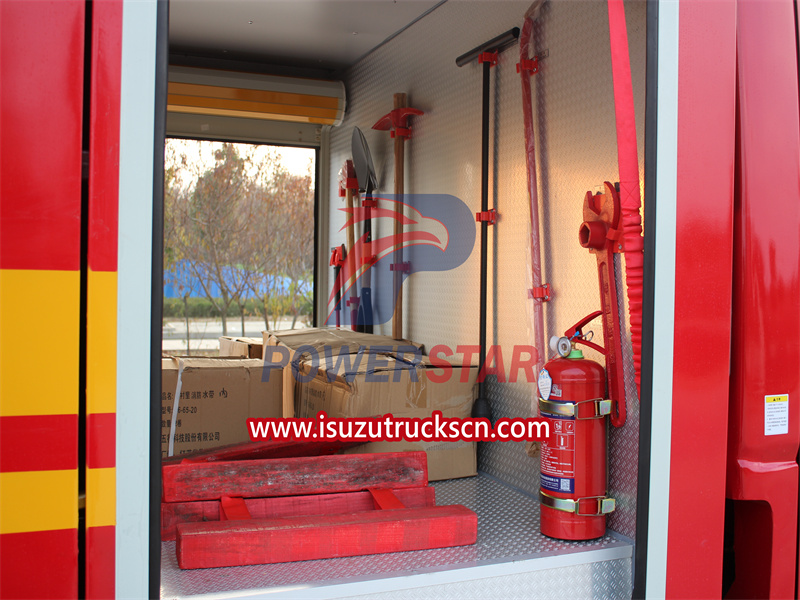

Equipment box: It is manufactured using the aluminum alloy profile built-in tower connection technology introduced from European technology, with a fully jointed structure. Use aluminum alloy rolling shutter door.
Electrical configuration: There is a long row of warning lights at the front of the top of the cab, a 24V/60W fire scene lighting lamp behind the vehicle body, red and blue matching strobe lights on both sides of the vehicle, safety sign lights installed below, the passenger compartment, The equipment box and pump room are equipped with lights, Y00W alarms, rotary alarm light switches, and communication equipment preparation interfaces.
Specifications
|
Manufacturer |
POWERSTAR TRUCKS INDUSTRY CO.,LIMITED |
||
|
Product Name |
NPR Emergency Fire Tender ISUZU |
||
|
Vehile Brand Series |
ISUZU |
||
|
Vehicle Model |
PT5110GXFPM50 |
||
|
Classis parameters |
Overall Dimension |
mm |
7410*2290*3190 |
|
Gross weight |
kg |
10355 |
|
|
Curb weight |
9755 |
||
|
Wheel base |
mm |
4175 |
|
|
Drive Type |
4 x 2, left hand drive |
||
|
Number of axles |
2 |
||
|
Tire specification |
12.00-20 |
||
|
Number of tires |
6+1 |
||
|
Passengers in cab |
2+3 |
||
|
Engine |
Engine model |
4HK1-TCG40 |
|
|
Type of fuel |
Diesel |
||
|
Power/Displacement |
ml |
190HP/139KW |
|
|
Max speed |
Km/h |
100 |
|
|
Emisssion standard（TAS） |
EURO5/ |
||
|
Fire performance |
Tank capacity |
Water tank capacity：4000L |
|
|
Foam tank capacity:1000L |
|||
|
Fire pump |
Model: CB10/30 |
||
|
Pressure(Mpa):1.0 |
|||
|
Rate(L/S): 20 |
|||
|
Fire monitor |
Model: Ps30 |
||
|
Flow: 30L/S |
|||
|
Water jet distance :≥60m |
|||
|
Foam jet distance :≥55m |
|||
|
Electronic alam |
LY CJB-100-C24 |
||
|
Alam lamp |
LY TBD-XF-168LED |
||
Features
1. Powerful power performance: Isuzu NPR emergency rescue vehicles are usually equipped with high-power diesel engines, which provide the vehicle with strong power output to ensure that it can quickly reach the rescue scene in an emergency.
2. Excellent off-road capability: Isuzu emergency rescue vehicles usually have a four-wheel drive system and high ground clearance, allowing them to drive smoothly on complex terrain and harsh weather conditions to reach the rescue location.
3. Abundant rescue equipment: Isuzu emergency rescue vehicles are equipped with a variety of rescue equipment, such as hydraulic demolition tools, cutting equipment, fire-fighting equipment, etc., which can handle various emergency rescue tasks.
4. Comfortable driving environment: Isuzu emergency rescue vehicles focus on driver comfort, providing a spacious and comfortable cab and equipped with advanced driving assistance systems, such as reversing radar, automatic air conditioning, etc., to ensure that drivers can maintain optimal performance during stressful work. Best condition.
5. Advanced communication system: Isuzu emergency rescue vehicles are equipped with advanced communication equipment, such as radios, GPS positioning systems, etc., to ensure real-time communication with the command center and other rescue vehicles and improve rescue efficiency.
6. Flexible adaptability: Isuzu emergency rescue vehicles can adapt to various complex rescue scenarios, such as earthquakes, floods, mudslides and other natural disasters, as well as traffic accidents and other emergencies, and provide timely rescue support.
1The cab of the Isuzu NPR emergency fire truck: flat-head all-metal enclosed cab, double-row cab, panoramic curved windshield. Optional new front mask, front bumper, front combination lamps, door windows, and lower cowl mask.
