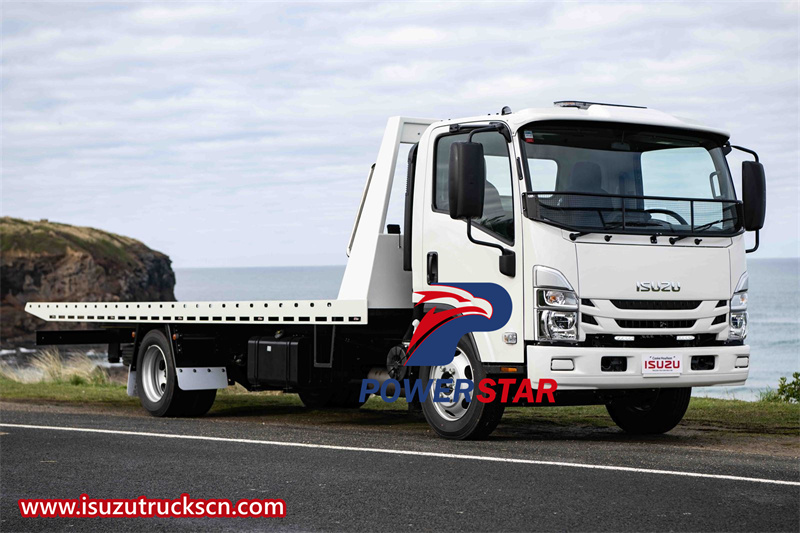

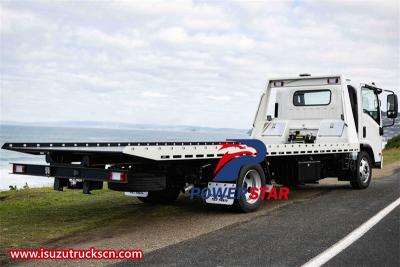

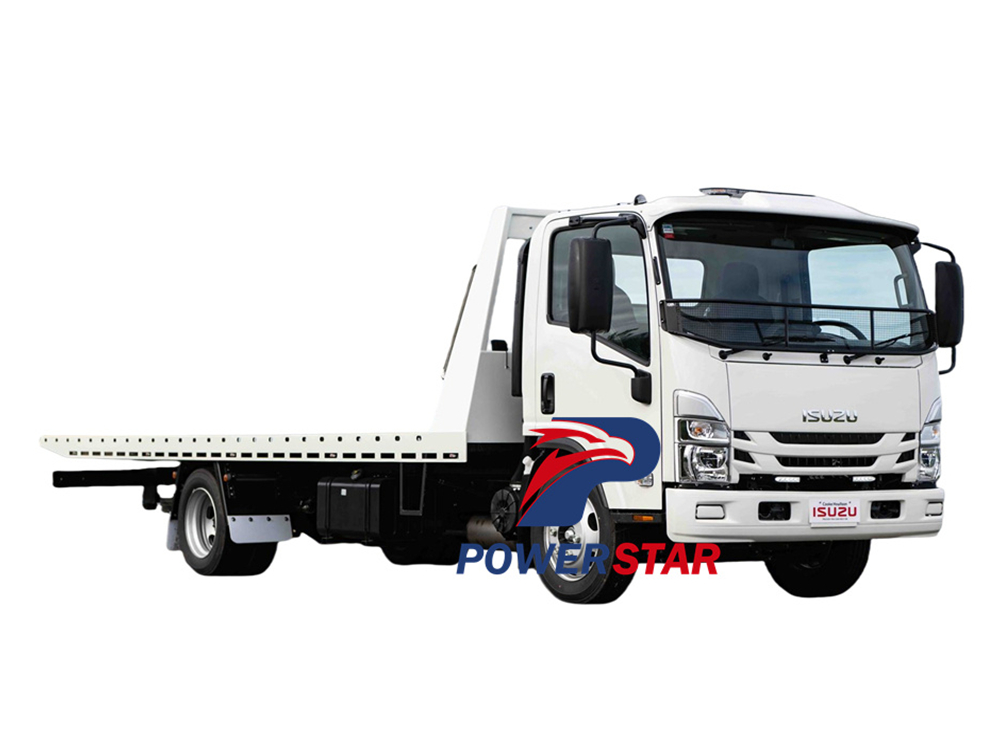

The Isuzu NPR road rescue flatbed tow truck is a vehicle specifically designed for road rescue and towing. This type of vehicle is usually equipped with a flat cargo platform and is used to transport vehicles that are damaged or unable to move on their own. The vehicle has a wide range of uses and can be used to handle various road rescue tasks such as towing, troubleshooting, emergency repairs, etc. When a traffic accident or vehicle breakdown occurs, this kind of vehicle can quickly arrive at the scene and provide timely help and support to the trapped vehicle.
Work capacity:
5 tonsTruck model:
PT5100GAWEngine power:
190HPEngine type:
4HK1-TC51Axle drive:
4x2，RHDGear box:

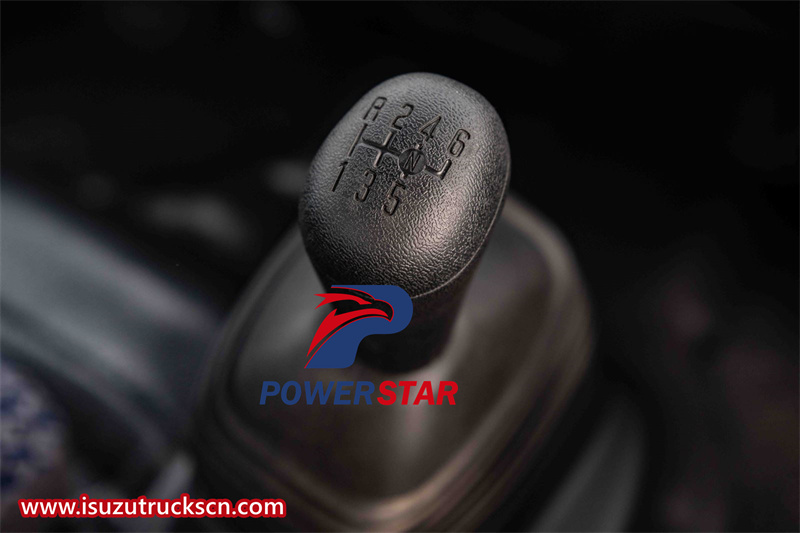

Isuzu MLD 6-speed,manualRemarks:
Q345 steel plate wrecker platform, 4tons towing with with 25m steel rope
Isuzu NPR road rescue flatbed tow truck also called Isuzu NPR roadside assistance flatbed wrecker,Isuzu NPR road rescue flatbed trailer,Isuzu NPR road rescue flatbed wrecker,Isuzu NPR recovery truck,Isuzu NPR light road rescue wrecker,Isuzu NPR towing truck,is a versatile and efficient vehicle designed to provide towing and roadside assistance services.
This Isuzu NPR road rescue flatbed tow truck adopts fully hydraulic drive operation and combines lifting, carrying, towing and other functions into one. It is suitable for road rescue, airports, vehicle events, logistics and transportation and other fields.

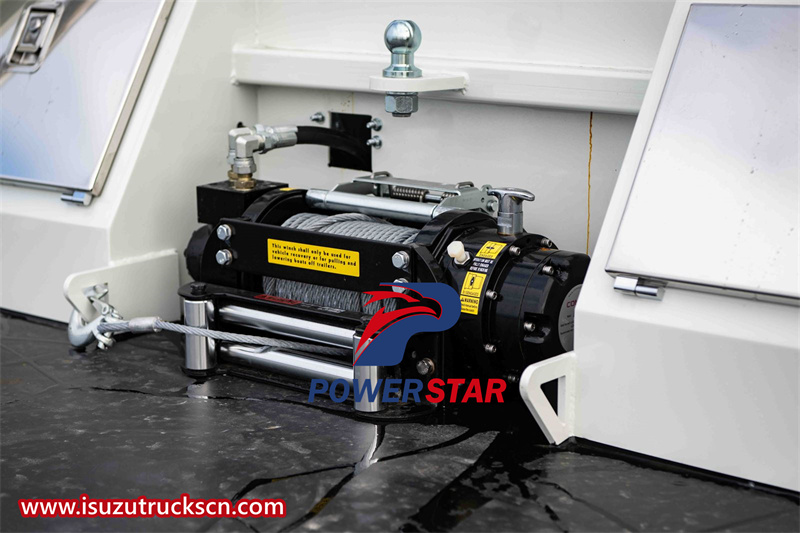

The Isuzu NPR road rescue flatbed tow truck consists of a chassis, lifting device, lifting and traction device, hydraulic system, electronic control system, body and tool box. Upper part: The tow truck is a one-to-two type, dual-purpose towing and back, equipped with a long warning light, 3P2A folding abrasive stamping plate, using a 4-ton hydraulic winch, a 25-meter-long steel wire rope, equipped with 6 binding straps, two A trolley (auxiliary wheels), a pair of forks, a pair of forks, and a chain belt.
|
Product name |
Isuzu NPR road rescue flatbed tow truck |
|
|
General |
Chassis brand |
ISUZU NPR |
|
Overall dimension (L*W*H) |
8490*2350*2410mm |
|
|
Wheelbase |
4475mm |
|
|
Curb weight |
5,600 Kg |
|
|
Gross weight |
10,550 Kg |
|
|
Axle loads |
4000/7000Kg |
|
|
Chassis |
Drive mode |
4x2 |
|
Cabin type |
Standard single row cab |
|
|
Seats |
2 seats |
|
|
Steering |
RHD |
|
|
Tires |
6+1 spare tire |
|
|
A/C |
Air conditioning |
|
|
Gearbox |
Isuzu MLD 6-speed,manual |
|
|
Engine |
Engine model |
4HK1-TC51 |
|
Fuel and engine Type |
Diesel, 4 cylinders in-line |
|
|
Horse power |
190HP |
|
|
Displacement |
5.193 L |
|
|
Other Standard Configurations |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS for option, Automatically Air-cut Brake/Oil cut for option |
|
|
4 |
Tubeless tires for option |
|
|
5 |
Retro-Reflective Marking |
|
|
6 |
Free Maintenance Battery |
|
|
7 |
Central Lock |
|
|
8 |
Power Window |
|
|
9 |

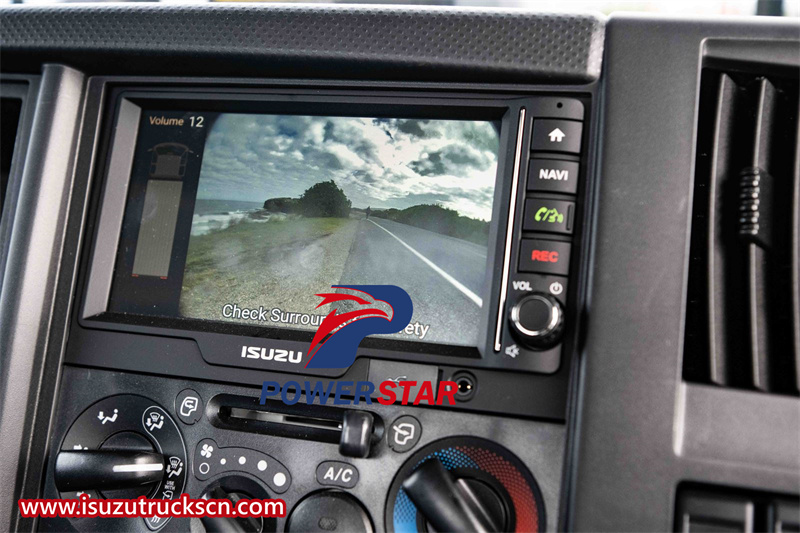

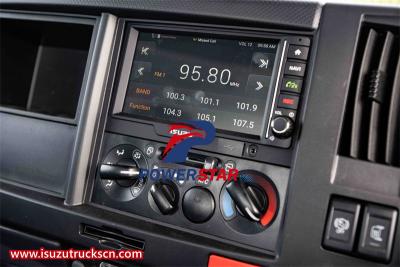

USB, Radio |
|
|
10 |
Widened Bumper |
|
|
11 |
New Face Front Chrome Kit for option |
|
|
Tops Parameters |
Platform Flatbed size (L*W) |
6500x2300mm |
|
Flatbed Loading Capacity |
5,000 Kg ( 5 tons ) |
|
|
Colour |
According to wish |
|
|
Length Of Steel Rope / Cable |
25m, base on customer's need |
|
|
Winch Quantity |
1 |
|
|
Other Parts |
Standard |
|
The Isuzu NPR Road Rescue Flatbed Tow Truck is a specialized vehicle designed for emergency roadside assistance and vehicle recovery operations. Here are the key features and functions of this versatile truck:
Isuzu NPR Chassis: Built on the dependable Isuzu NPR chassis, this tow truck offers a sturdy and reliable platform for towing and rescue operations.

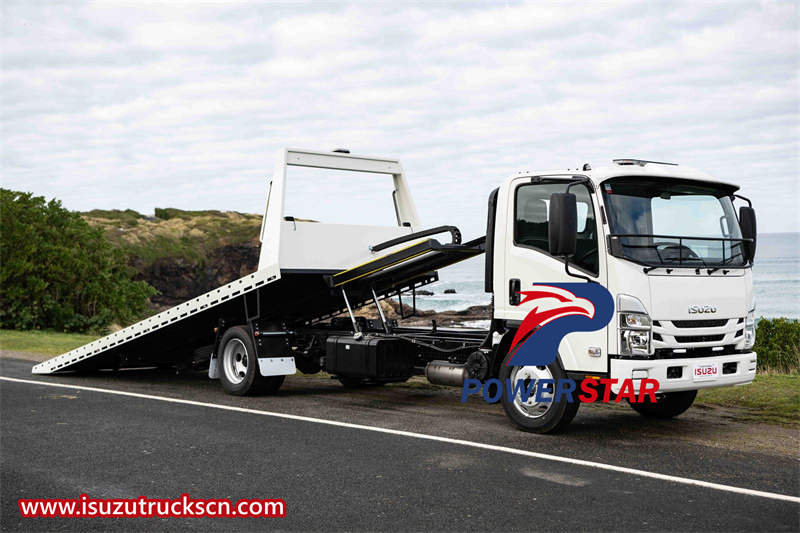

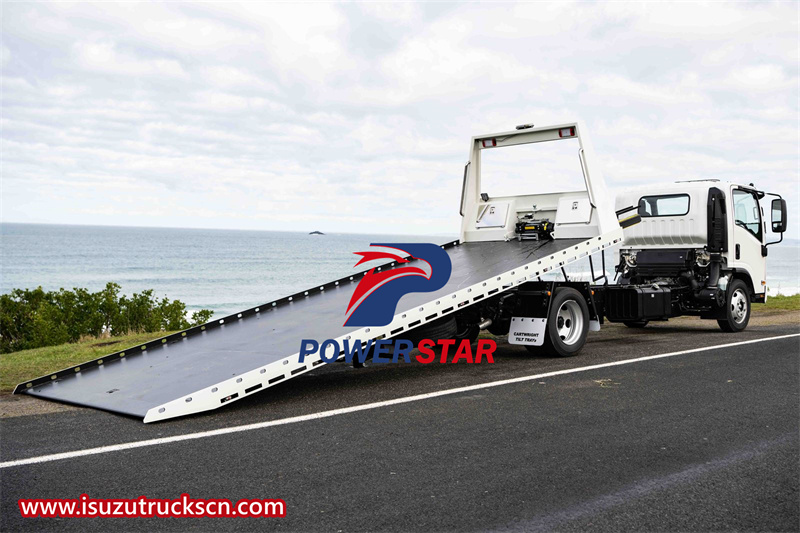

Flatbed Design: The truck's flatbed configuration provides a level surface for loading and unloading vehicles. The surface of the platform is often coated with a non-slip coating, which increases safety during towing, making it ideal for safely transporting a variety of vehicles during rescue missions.
Towing Capabilities: Equipped with a powerful winch and towing mechanism, the towing arms are often telescopic and adjustable to efficiently recover and tow vehicles of all sizes, including cars, SUVs, and light trucks.
Emergency Equipment: The truck is typically equipped with essential emergency equipment such as traffic cones, first aid kit, warning lights, and other tools necessary for providing roadside assistance and ensuring safety during rescue operations.

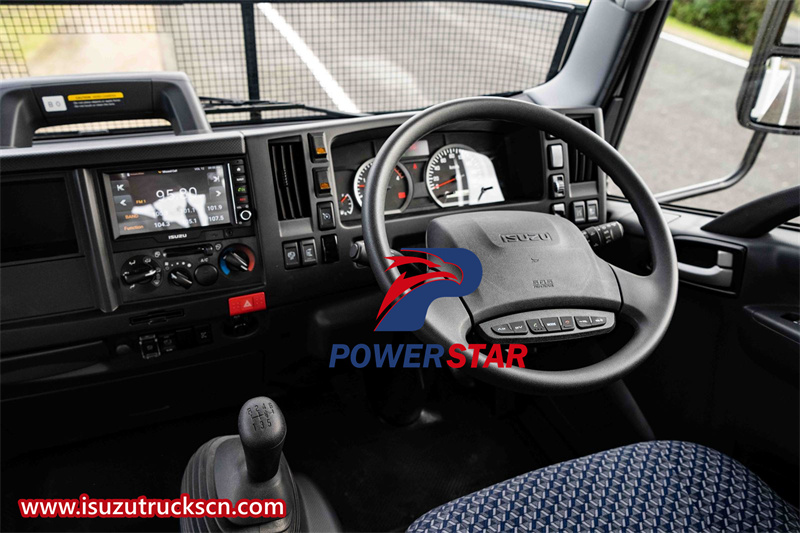

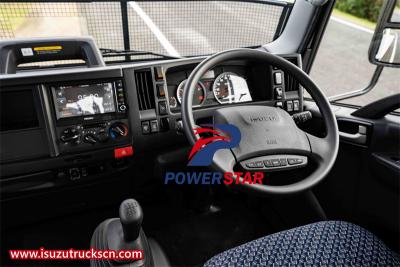

Driver Comfort and Safety: The Isuzu NPR cab is designed for driver comfort and safety, offering ergonomic features, easy-to-access controls, and safety measures to protect the operator during towing and rescue tasks.
Versatility: The flatbed tow truck is versatile and can handle a wide range of emergency situations, including vehicle breakdowns, accidents, recoveries, and roadside assistance needs.
Reliability and Performance: Isuzu vehicles are known for their reliability and performance, ensuring that the NPR Road Rescue Flatbed Tow Truck delivers consistent results in demanding rescue scenarios.
Efficiency and Response Time: Designed for quick response and efficient assistance, the tow truck minimizes downtime on the road by swiftly attending to emergency calls and providing timely rescue services.
The Isuzu NPR Road Rescue Flatbed Tow Truck is a dependable and versatile vehicle that combines towing capabilities with emergency response functionality, making it a valuable asset for any rescue and towing operation.

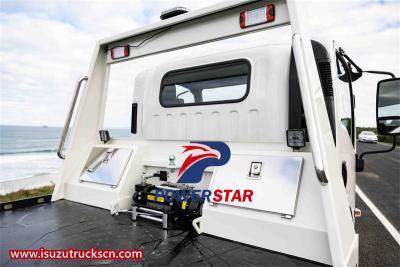

Isuzu NPR road rescue flatbed tow truck

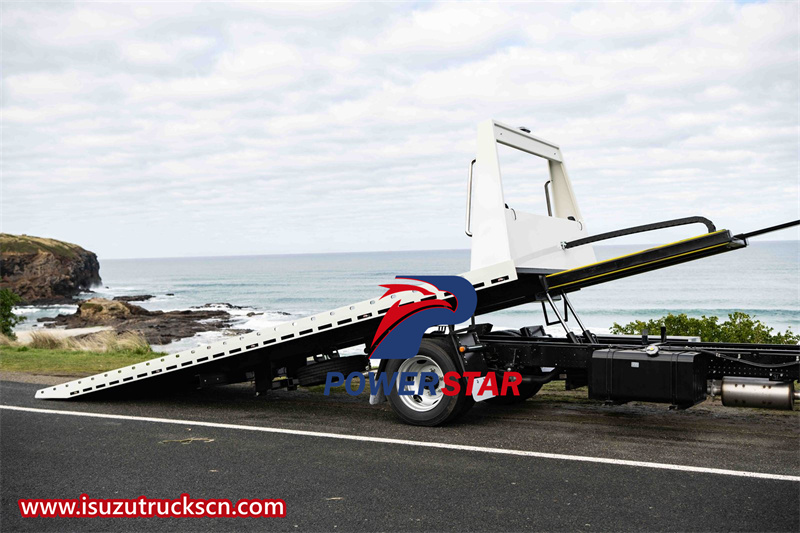

Isuzu NPR road rescue flatbed wrecker
