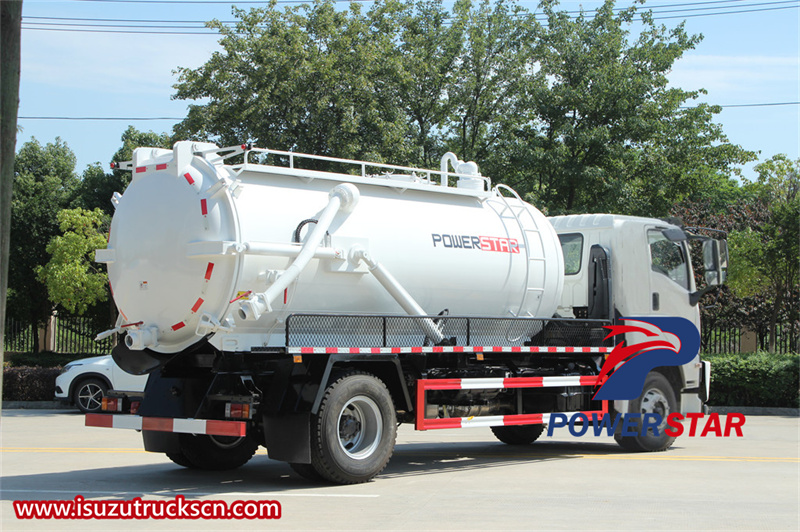

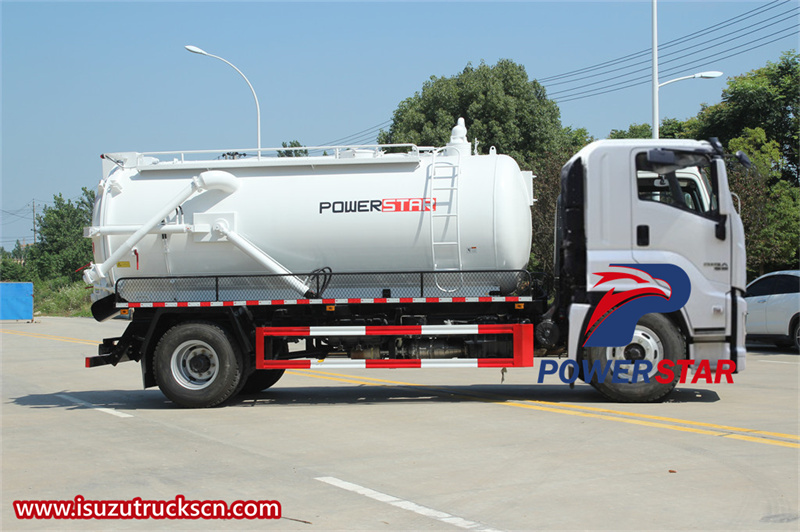

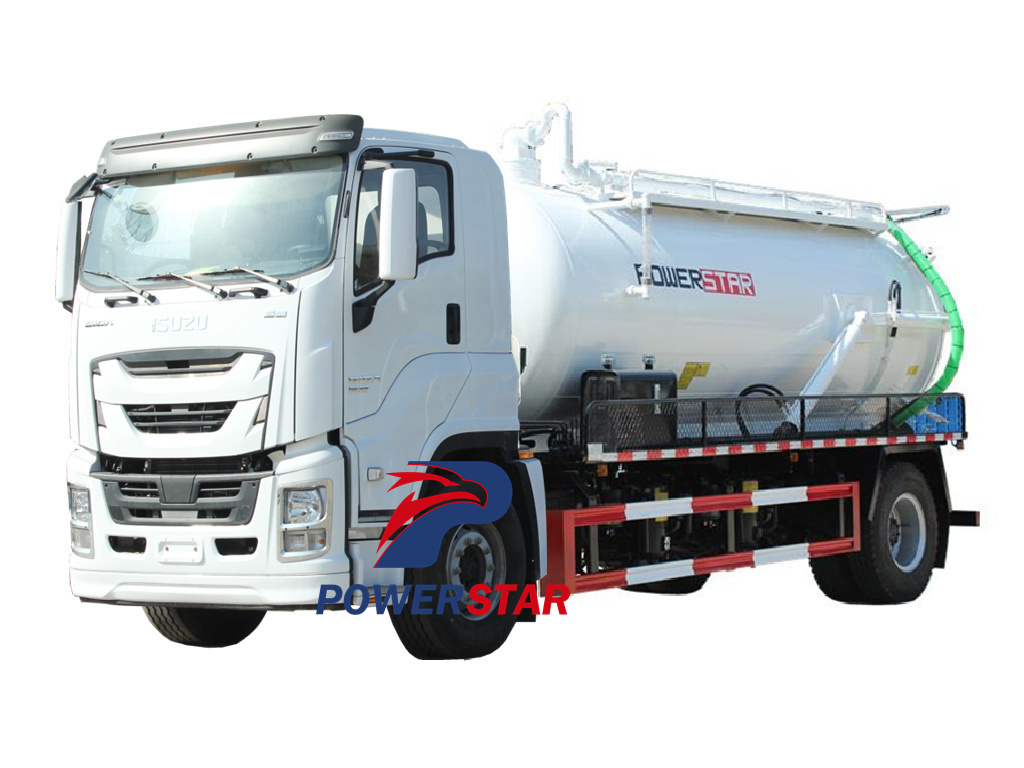

Mongolia Isuzu VC61 septic pump tanker truck
Mongolia Isuzu VC61 septic pump tanker truck is widely used in pumping feces, sewage, sludge and liquids mixed with smaller suspended impurities. It has the characteristics of high suction efficiency, self-priming, self-draining and direct irrigation. It is widely used in large, medium and small town sanitation, municipal administration, agriculture, chemical industry, factories and mines, property communities. The vacuum fecal suction pump can be self-priming and self-draining, providing strong support for urban environmental sanitation.
Work capacity:
15000LTruck model:
PT5180GWREngine power:
380HPEngine type:
6UZ1-TCG61Axle drive:
4x2, LHDGear box:
FAST 12-speed,manualRemarks:
Isuzu VC61 chassis
Mongolia Isuzu VC61 septic pump tanker truck also called Isuzu VC61 cesspit emptier,Isuzu GIGA septic suction truck,Isuzu VC61 sewage disposal truck,Isuzu GIGA 380HP septic vacuum truck,Isuzu VC61 vacuum suction truck, is a special vehicle designed for cleaning septic tanks and sewage. This type of vehicle combines Isuzu's quality and technology to provide efficient and reliable sewage cleaning solutions. The Mongolia Isuzu VC61 septic pump tanker truck can be used to suck feces, sewage, sludge and liquids mixed with smaller suspended debris. It is suitable for municipal sanitation, large, medium and small industrial and mining enterprises, communities, schools, septic tank cleaning and transportation, urban pipeline cleaning and dredging, factory biogas slurry and biogas residue cleaning, etc.
|
Truck name |
ISUZU VC61 septic pump tanker truck |
||
|
Manufacturer name |
PowerStar Trucks Industry Co.,Limited |
||
|
Truck model |
PT5180GWR |
Total mass |
18000kg |
|
Curb weight |
8550 |
Vehicle dimension |
8600×2500×3570 |
|
Approach/Departure angle(°) |
16/23 |
F/R hang |
1500/1890 |
|
Cabin seat |
3 |
Wheelbase |
4700 |
|
Max speed |
95 |
Tanker body |
15000L |
|
Chassis information list |
|||
|
Chassis brand |
Isuzu VC61 |
Tyre quantity |
6+1 |
|
Tyre size |
315/80R22.5 |
Axle drive |
4x2,LHD |
|
Engine model |
6UZ1-TCG61 |
Displacement/power |
9839ml/2790kw |
|
Fuel type |
Diesel |
Emission standard |
Euro 5/6 |
|
disposal septic suction truck Tanker information |

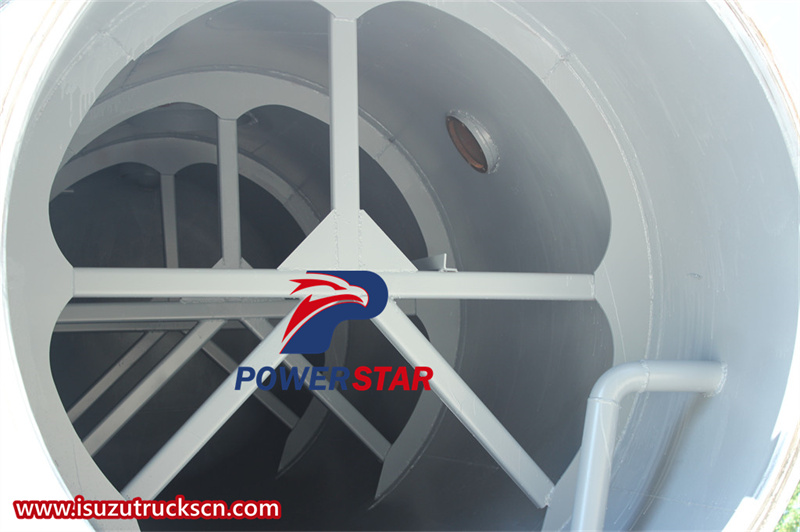

Tanker material: High strength carbon steel 5mm |
||
|
vacuum suction sewer truck Advantage |
1，sewage suction update is composed of power take off（PTO）drive shaft vacuum suction pump pressure tank hydraulic part pipe network system vacuum pressure gauge excrement window and a hand washing device. 2 ，Suction tank components: oil-water separator, moisture separator, special vacuum dung pump, volume, pressure gauge, systems, and suction matter catheter, gravity valve, vacuum tank, connected (as fecal windows), automatic anti-The overflow valve. 3， Suction truck vacuum pump work is completed must be according to each different intensity of the work to develop appropriate inspections to ensure that the suction truck’s working life and work efficiency. Please be sure to clean the inside when you finish the work. |
||
Isuzu 380HP VC61 septic suction truck is suitable for various scenarios, including urban, rural, industrial or construction sites. Common uses include: cleaning septic tanks, sewage tanks, rainwater wells, drainage pipes, and treating wastewater in industrial production processes. In addition, this model is also commonly used in urban sanitation services to ensure urban environmental hygiene. Its high-power engine and professional design enable it to cope with complex cleaning tasks in different scenarios, providing important support for sewage treatment and environmental protection.
Structure drawing of Isuzu VC61 septic pump tanker truck
The following is the operation process of Isuzu GIGA septic suction truck:
Preparation before operation
(1) Park the septic tank suction truck as close to the operation point as possible.

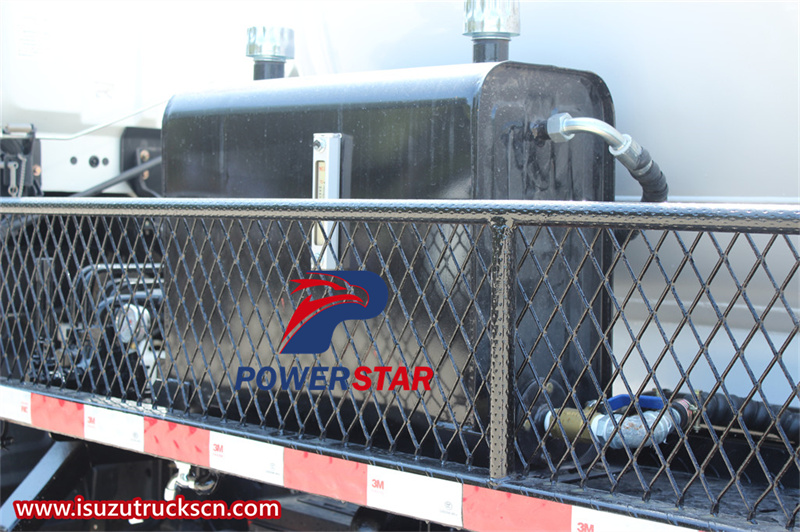

(2) Turn the handle of the return oil tank through-cock to an angle of about 45° with the axis of the oil inlet pipe, and observe the oil inlet pipe. There should be lubricating oil flowing.
(3) Open the side door of the platform box, take out the septic tank suction hose, and swing it backward without bending.

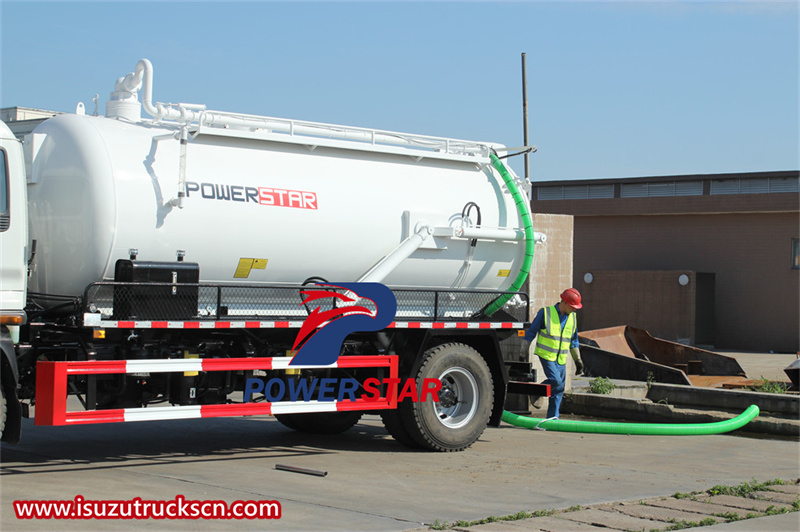

Suction operation
(1). Draw the septic tank suction hose into the septic tank as deep as possible, ensuring that the end of the hose is always 300mm below the liquid surface during the operation.
(2). Push the four-way valve handle to be vertical to the ground.
(3). Put the transmission into neutral, then start the engine, disengage the clutch, pull the power take-off switch backward to engage the gear, and the vacuum pump starts to operate.
(4) Open the tool box in the cab, pull out the alarm switch, and turn on its power supply.
(5) The operator should pay attention to the situation near the inlet of the septic tank suction hose and use appropriate tools to block debris to avoid blockage.
(6) The operator can use the observation mirror on the upper part of the rear head. When the liquid level reaches the middle of the observation mirror, the operator should notify the driver, and the colleague should quickly pull the manure suction hose off the ground or close the four-way valve. Under normal circumstances, the buzzer will emit an audible and visual signal at this time. When the driver receives the signal, he should reduce the throttle, push the power take-off switch forward to disengage the gear, stop the vacuum pump, press the buzzer switch, and cut off its power supply.
(7) Close the handle plate of the fuel tank through the plug parallel to the axis of the inlet box.
(8) After flushing the hose, put it back into the platform box, close the side door, and point the boom toward the top of the cab.
(8) Close the overflow valve so that its handle is perpendicular to the road axis.
(9) Drive the manure suction truck away from the operation point.
Isuzu VC61 cesspit emptier

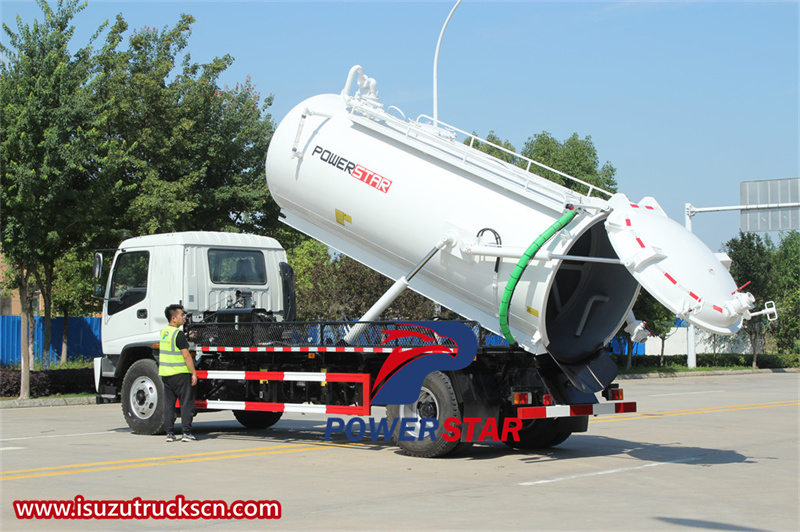

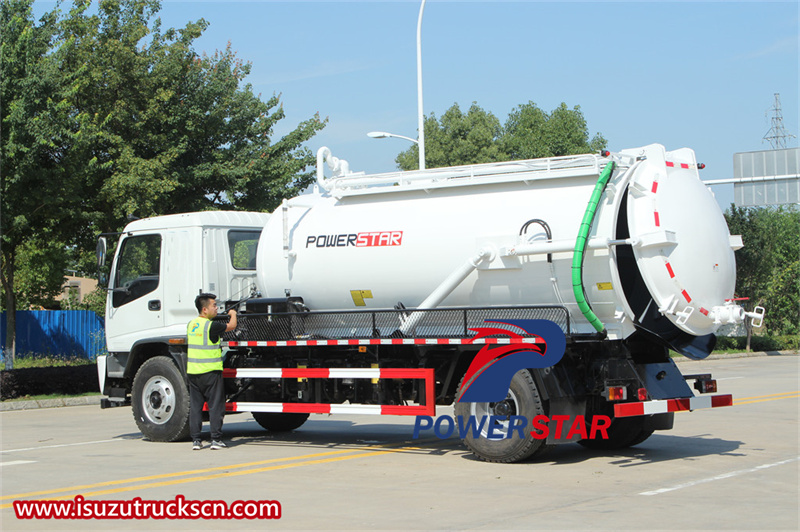

Unloading operation
(1) Direct the manure suction hose toward the manure storage tank.
(2) Pull the rear handle of the four-way valve parallel to the ground, open the overflow valve, and make its handle parallel to the pipeline axis.
(3) Put the transmission into neutral, then start the engine, disengage the clutch, pull the power take-off switch backward to engage the gear, and the vacuum pump starts to operate.
(4) After the manure liquid in the tank is discharged, the driver should promptly push the power take-off handle forward to disengage the gear, and the vacuum pump stops operating.
(5) Make the refueling tank direct-through cock handle plate parallel to the axis of the inlet tank, that is, close it, flush the hose, put it back into the platform box, close the side door, and point the boom toward the top of the cab.
(6) Drive the manure suction truck away from the operation point.

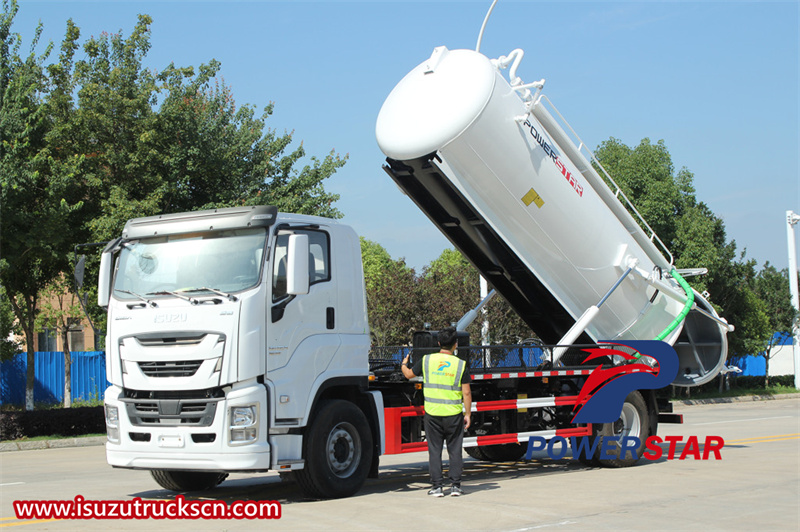

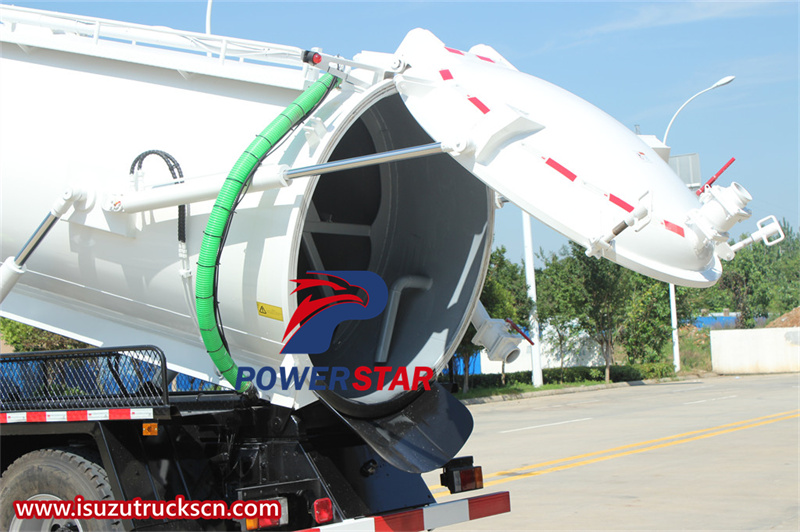

Isuzu GIGA septic suction truck
