Philippine Isuzu NKR vacuum tanker truck based on type II ISUZU 4*2 Left Hand Drive chassis, capacity for vacuum tank can be up to 5000Liters, which also installed with best performed Chinese brand vacuum pump. The truck main consist of below system: PTO, Driving system, Vacuum pump system, Durable vacuum tank system, High pressure working system, Pipeline system, Vacuum gauge, View window, Washing system, etc.It is a truck specifically designed to handle liquid waste and sewage.
Work capacity:
5000LTruck model:
PT5070GXWEngine power:
130HPEngine type:
4HK1CN5HSAxle drive:
4x2Gear box:
ISUZU MSB,5 forward,1 reverse, manual operatedRemarks:
RHD available,can do the designs according to your requirement .| Products Desciption |
Philippine Isuzu NKR vacuum tanker truck also called Isuzu vacuum sewage suction truck, Isuzu truck mounted sewage cleaner,Isuzu vacuum cleaner truck ,Isuzu vacuum suction truck ,Isuzu vacuum suction tanker ,Isuzu vacuum waste collection truck ,Isuzu sewage suction truck,Isuzu sewage vacuum truck ,Isuzu waste vacuum truck ,Isuzu sewer truck ,Isuzu cesspit emptier,etc.The Philippine Isuzu NKR vacuum tanker truck is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.
I.Description of Philippine Isuzu NKR Vacuum Tanker Truck
Key Features:
----Multi-functional,simple operation and easy maintenance.
----Sewage tank volume from 3000L to 25000L.
----Tank material can be Carbon steel,Stainless steel or Aluminum alloy.
----Super powerful vacuum pump,efficient pump in and pump out.
Philippine Isuzu NKR vacuum tanker truck is built on durable ISUZU NKR chassis,including a durable engine and dependable axle. The vehicle is equipped with lagre volume sewage tanker, powerful vacuum pumps and safety device, which make it an ideal solution for industrial and municipal waste management operations.
| Technical Parameter |
II. Specification of Philippine Isuzu NKR Vacuum Tanker Truck
|
Complete Vehicle Parameter |
|
|
Vehicle |
ISUZU NKR vacuum tanker truck |
|
Vehicle model |
PT5070GXW |
|
Overall dimension (mm) |
6720X2300X2870 |
|
Sewage tank (L) |
5000 |
|
Gross vehicle weight (kg) |
7300 |
|
Curb weight (kg) |
3800 |
|
Wheel base (mm) |
3815 |
|
Max speed (km/h) |
90 |
|
Chassis Parameter |
|
|
Cabin |
single row,power steering, air conditioner, 2 passengers,left hand drive |
|
Drive form |
4×2 |
|
Engine |
Brand: ISUZU |
|
Model: 4HK1CN5HS,130HP |
|
|
Type: diesel, turbocharged, 6 cylinder. |
|
|
Displacement: 2999ml |
|
|
Emission standard: Euro 5/6 |
|
|
Transmission |
ISUZU MSB,5 forward,1 reverse, manual operated |
|
Tire model |
7.00R16 |
|
No.of tires |
6pcs, with 1pc spare tire |
|
Superstructure Parameter |
|
|
Characteristic |
1. Sewage tank volume 5000 liter. |
|
2. Sewage tank material is carbon steel,thickness 6mm. |
|
|
3. Sewage suction pipe 1pcs, length 7m. |
|
|

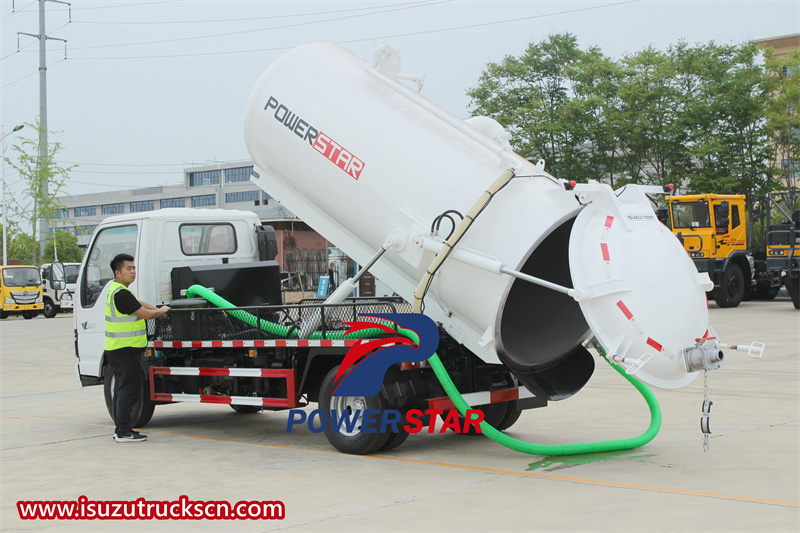

4. Hydraulic lifting sewage tank,rear cover can open. |
|
|
5. Equipped with PTO. |
|
|
6. Equipped with vacuum pump. |
|
|
7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device. |
|
|
Performance |
(1) Vertical suction ≥ 7m. |
|
(2) Pumping speed : 45L/s. |
|
|
(3) Intake and exhaust diameter: 50mm. |
|
|
(4) Full tank pumping time ≤ 5min. |
|
|
(5) Sewage tank emptying time ≤ 4min. |
|
III. Details of Philippine Isuzu NKR Vacuum Tanker Truck

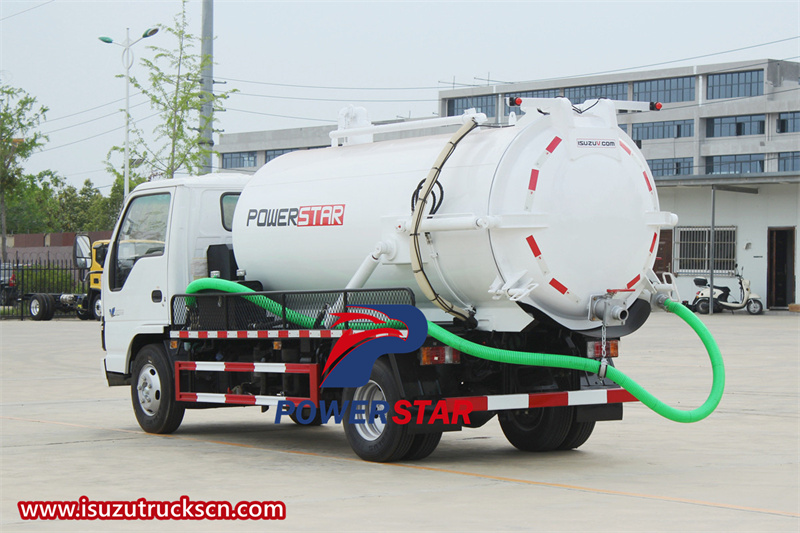

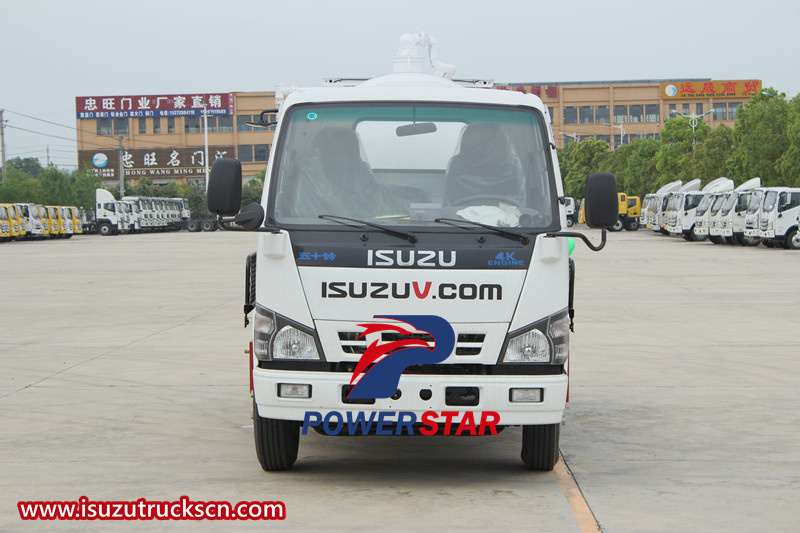

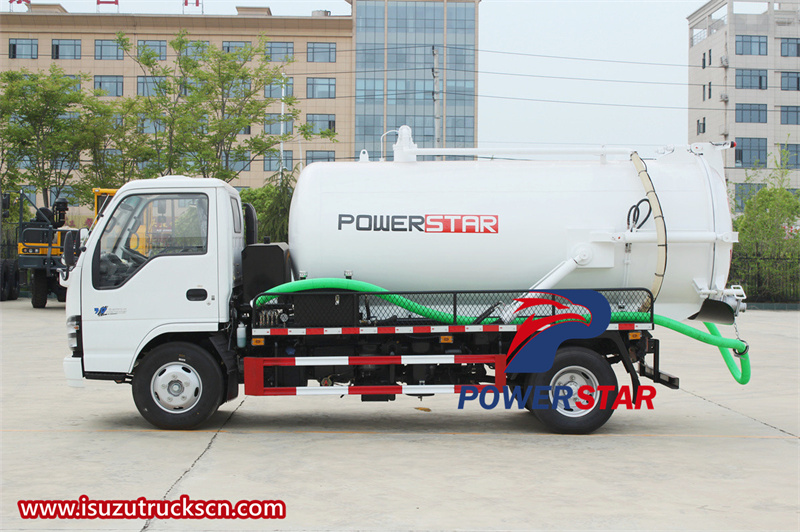

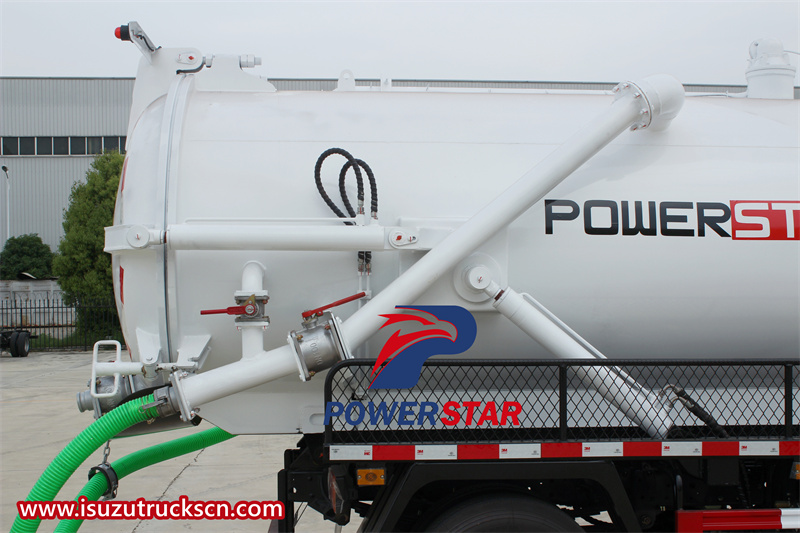

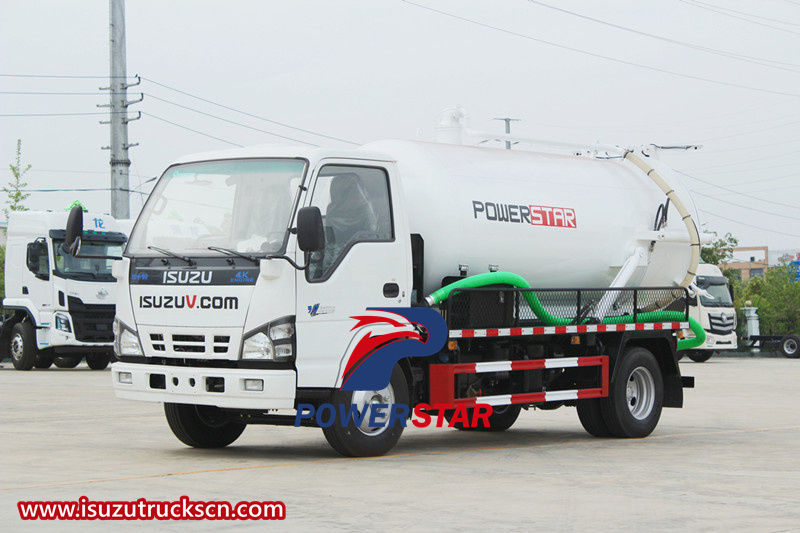

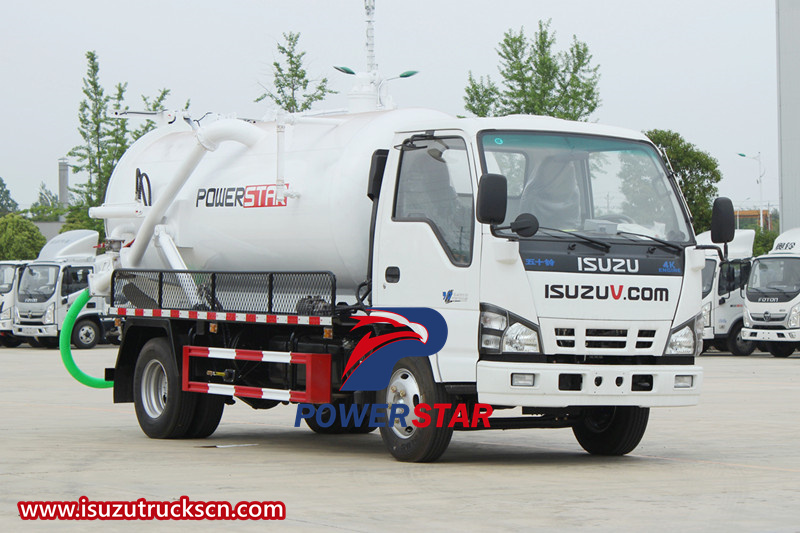

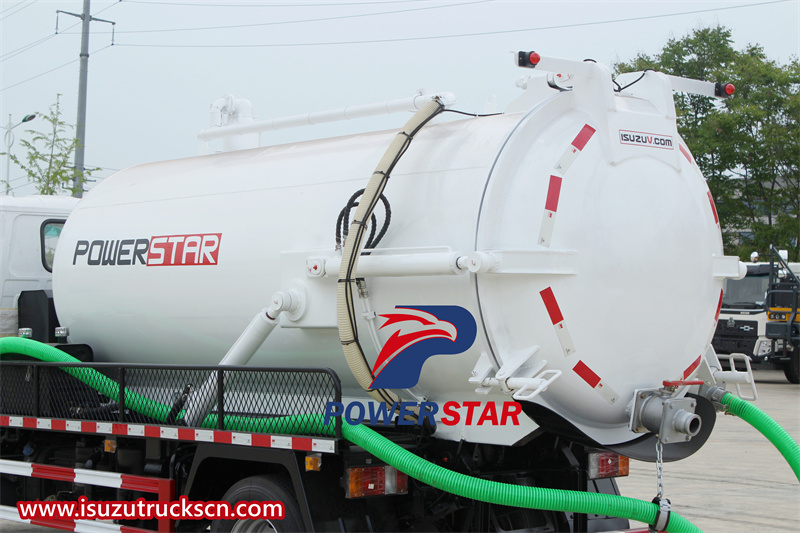

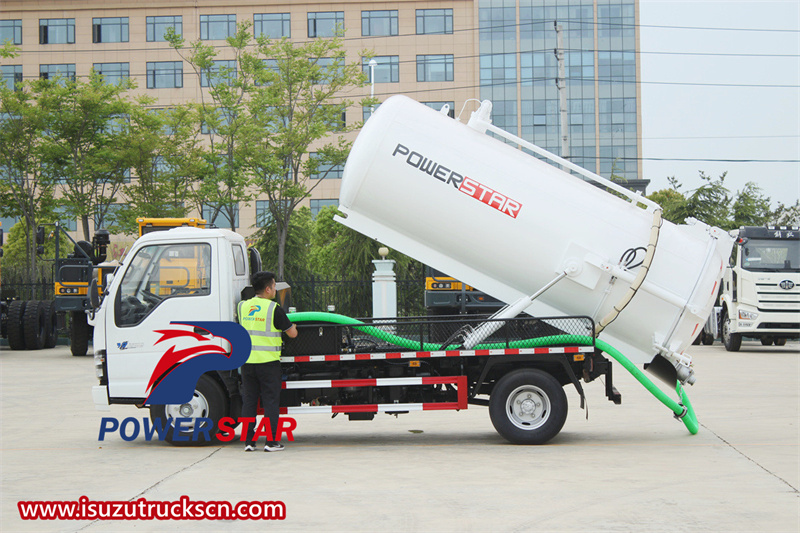

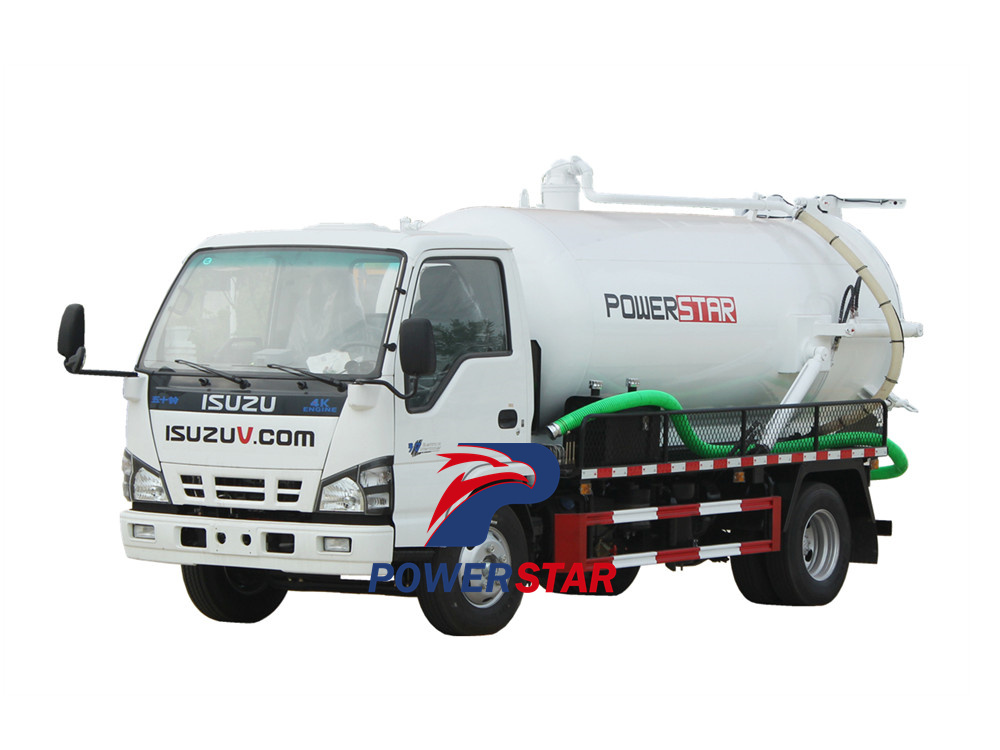

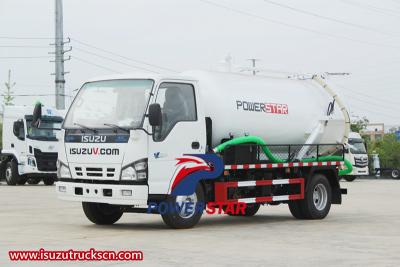

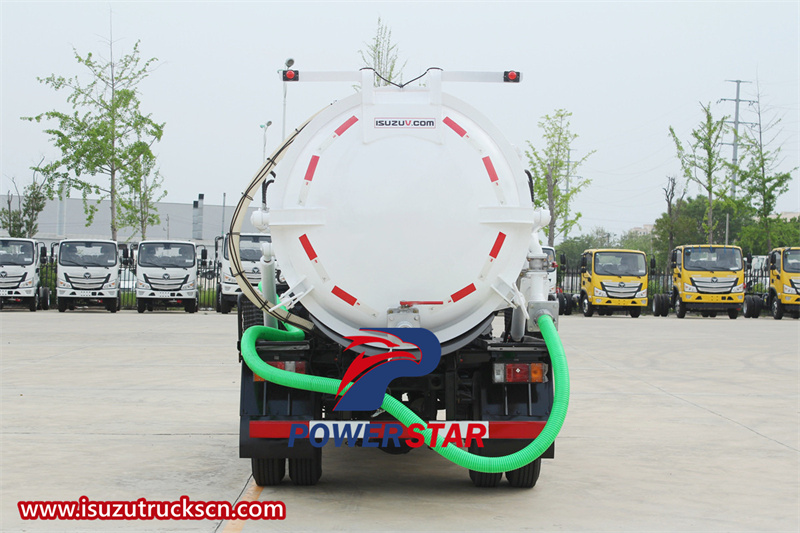

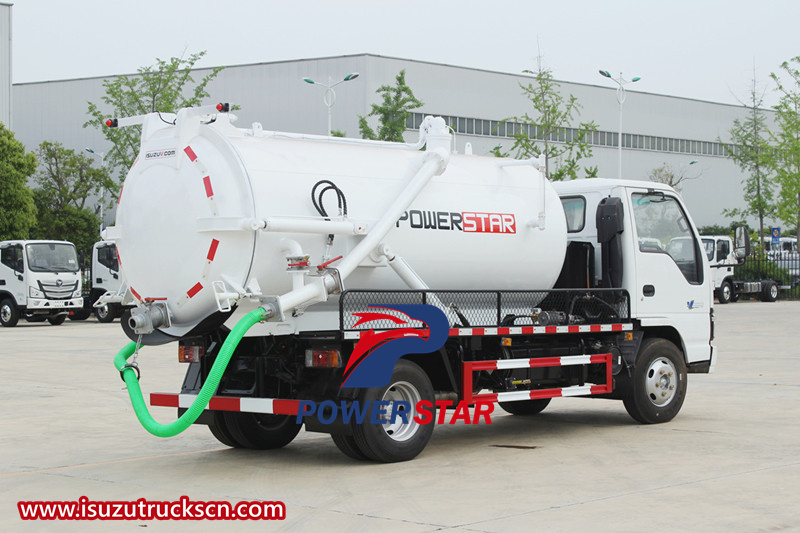

● Philippine Isuzu NKR vacuum tanker truck photos for reference
The Philippine Isuzu NKR vacuum tanker truck designed to fully rely on the advantages of the original of ISUZU brand chassis, fully consider the product's convenience and reliability, also the chassis ISUZU technology features. The Isuzu vacuum tanker truck has advantage of big capacity and suction efficiently, and maintenance for whole truck can be easily. The tank material is international standard strength carbon steel, which treated with antirust painting both inside and outside..
The ISUZU 4x2 Vacuum Tanker Truck is ideal and special-purpose machinery used for dredging city sewer, specially applied to pumping, cleaning and transporting the sewage sludge, also can be used for suction droppings and some other works. The truck is widely used for all kinds of suction work in city, high-way service station, airport, community, factory, etc. Therefore, the vehicle is an ideal Vacuum Truck mainly for liquid sewage suction.
Technical drawing of Isuzu NKR vacuum tanker truck
Isuzu ELF vacuum truck is a multi-functional vehicle specifically designed for cleaning and sucking liquid waste. Its main uses and functions as follows:
1.Cleaning city roads and public areas:Philippine Isuzu NKR vacuum tanker truck is equipped with a powerful vacuum pump and dust collecting device, which can efficiently clean up the rubbish, standing water, and sludge on roads, sidewalks, squares, and other public areas. It can quickly suck these wastes into the storage tank, ensuring a clean and hygienic environment.
2.Regular cleaning of sewer pipes and drains: Philippine Isuzu NKR vacuum tanker truck can easily clean up accumulated waste and foreign objects in sewer pipes and drains through the vacuum pump, preventing clogging and backflow of sewage, and maintaining the smooth operation of the city's sewer system.
3.Wastewater treatment and sludge recovery: The vehicle's vacuum pump can suck garbage, wastewater, sludge, and other substances into the vehicle's storage tank, achieving wastewater treatment and sludge recovery, protecting the environment, and effectively utilizing resources.
4.Emergency cleaning work: Philippine Isuzu NKR vacuum tanker truck is flexible and efficient, able to quickly respond to natural disasters, accidents, or other emergency situations, cleaning up the scene to reduce the impact of disasters on the environment, ensuring public safety and hygiene.
Overall, Philippine Isuzu NKR vacuum tanker truck is a powerful cleaning vehicle that can be widely used in urban environmental sanitation, wastewater treatment, waste recycling, and disaster relief, among other areas, effectively improving the quality of urban environments and residents' quality of life.
Structure of Isuzu vacuum tanker truck
Isuzu 4x2 NKR vacuum tanker truck export to Philippine
Isuzu NKR 600P sewage suction truck testing
| Our Advantage |

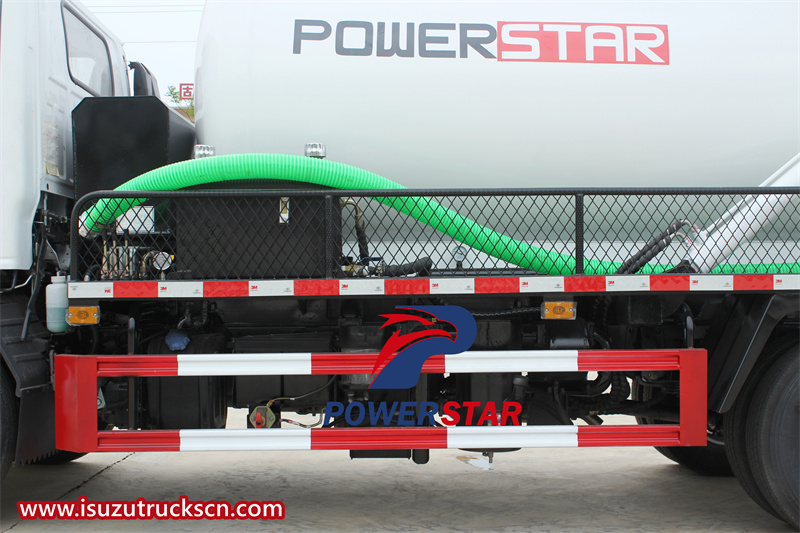

● Philippine Isuzu NKR vacuum tanker truck details

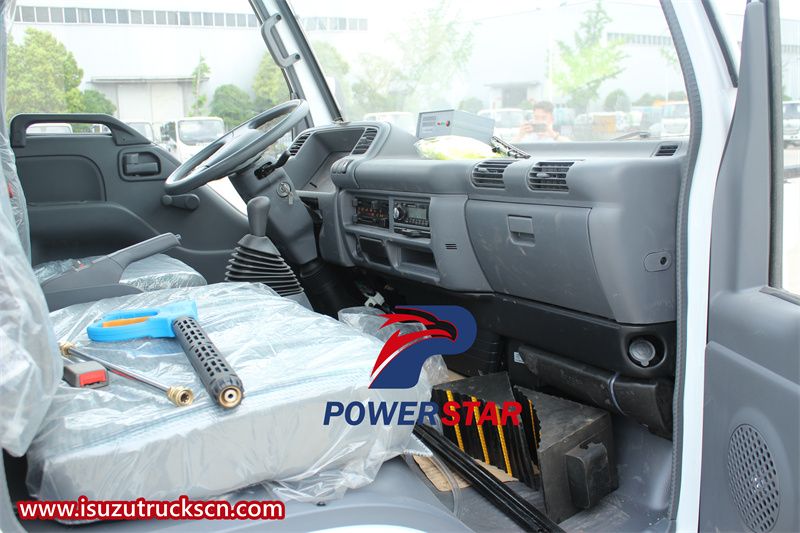

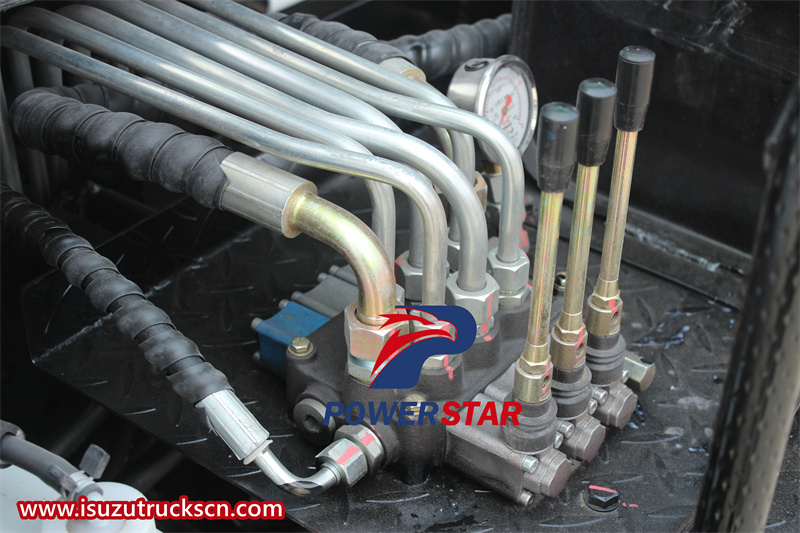

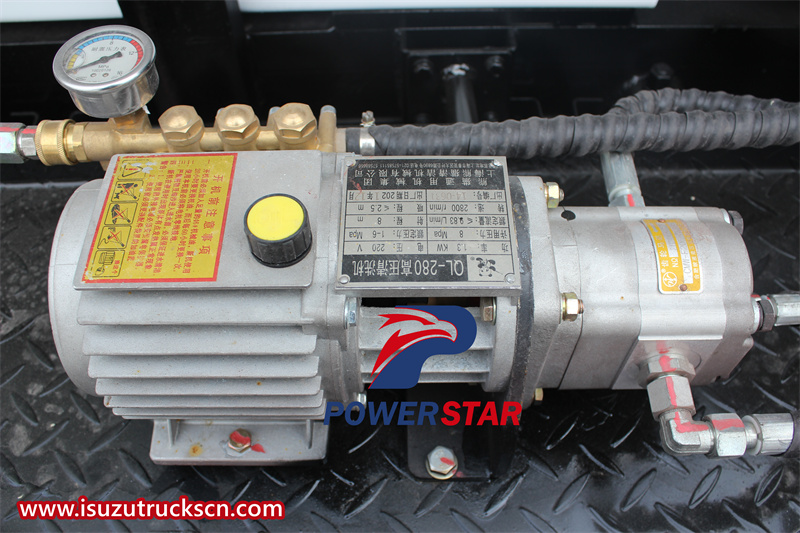

Vehicle cab QL-280 high pressure cleaning machine Manual operated joysticks

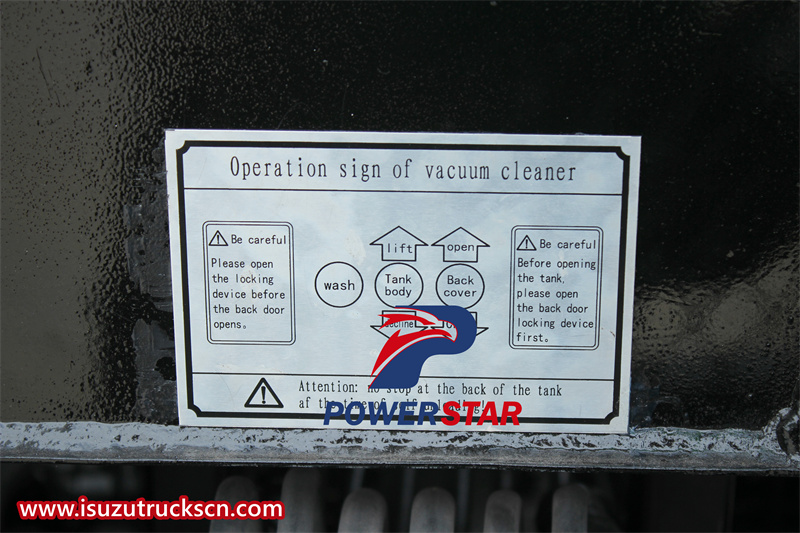

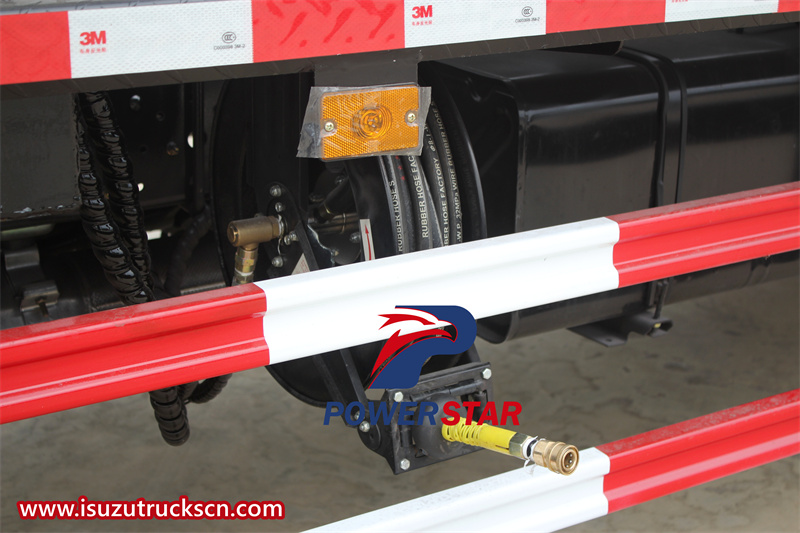

Oil gas separator,water gas separator,etc. High pressure reel Operation sign of vacuum cleaner

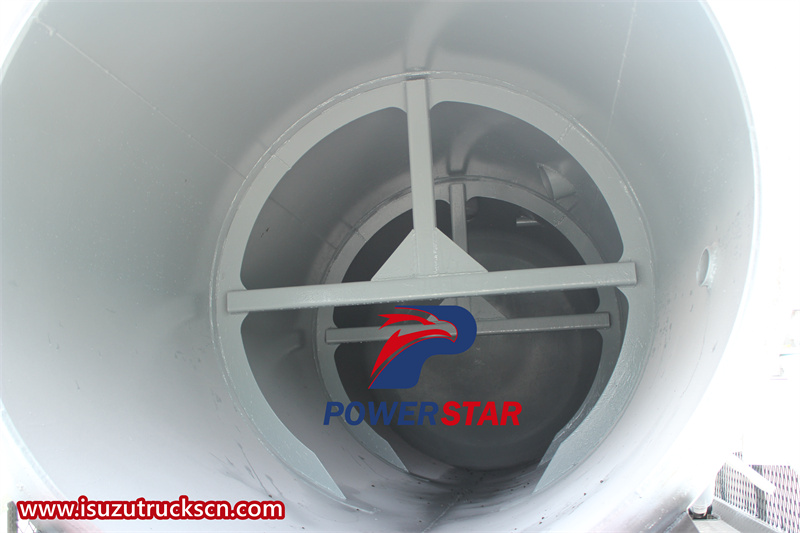

Rollover cylinder，open-door cylinder Rear door clamping device,discharging Valve Anti-corrosion treatment inside the tank

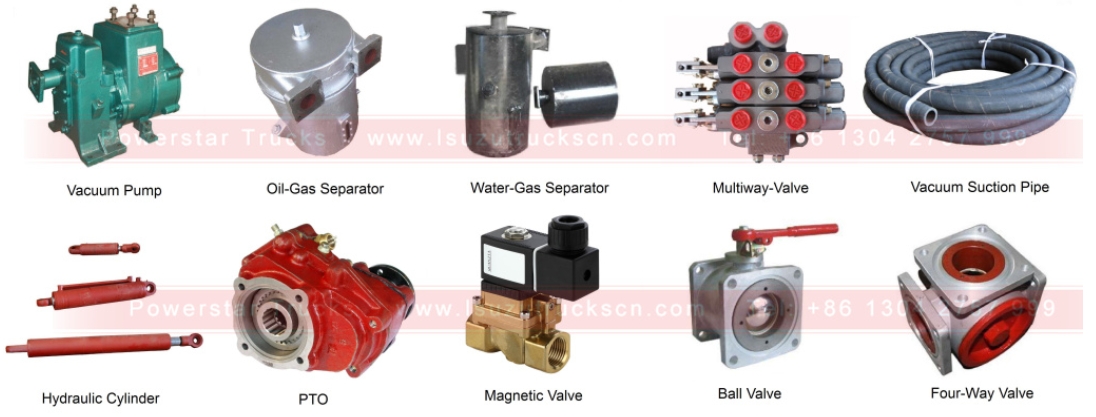

Isuzu vacuum sewage truck parts
