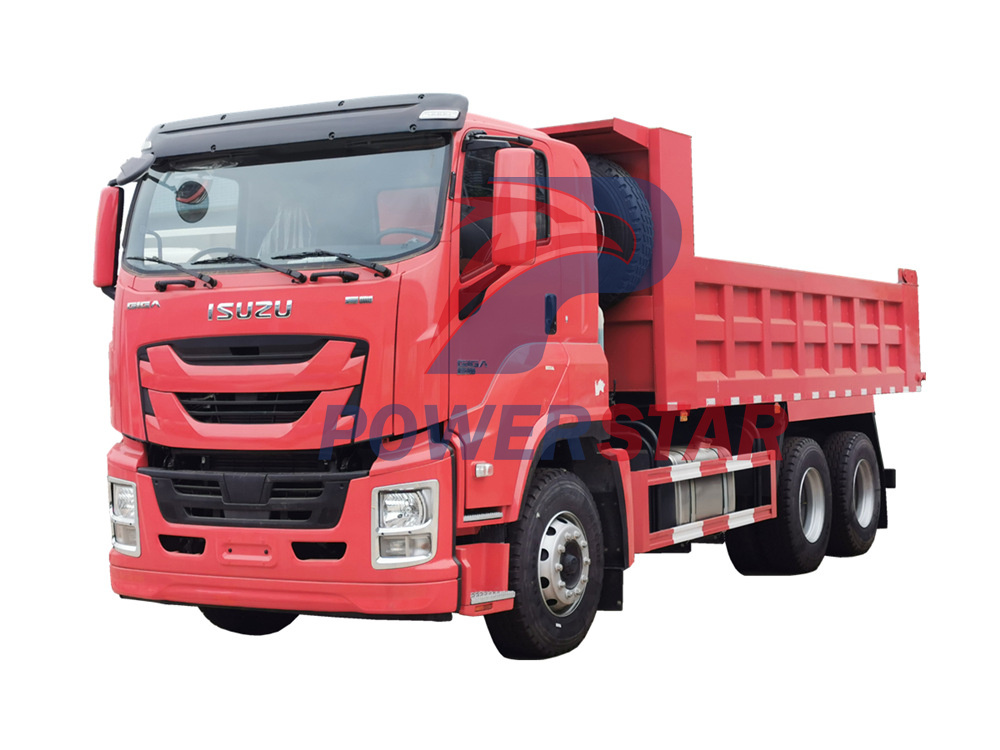

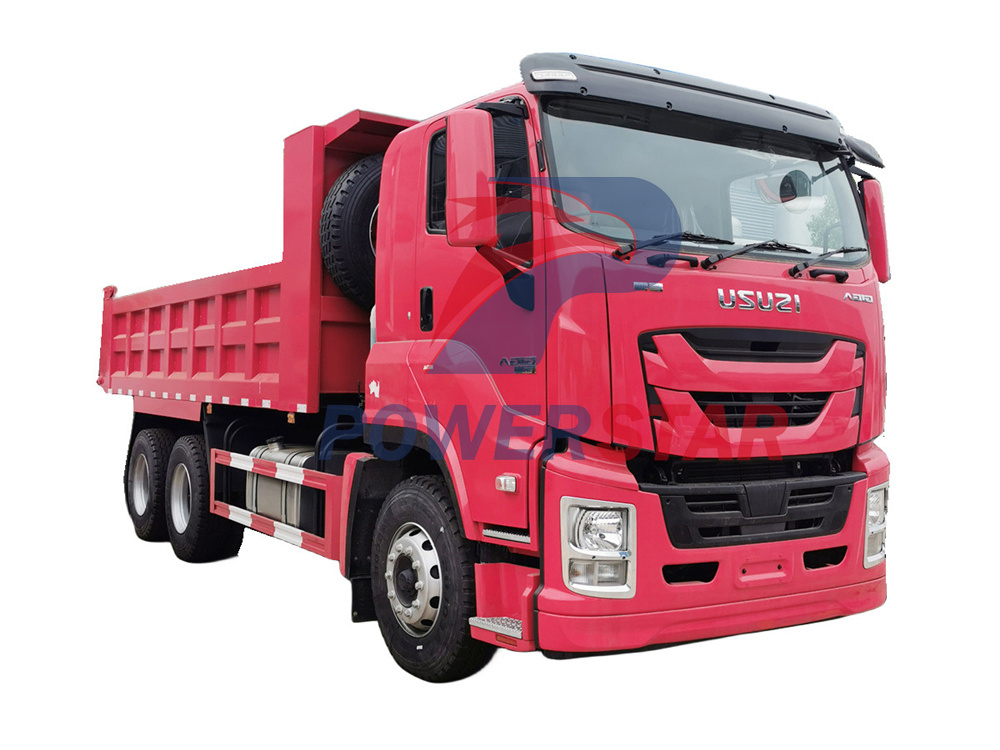

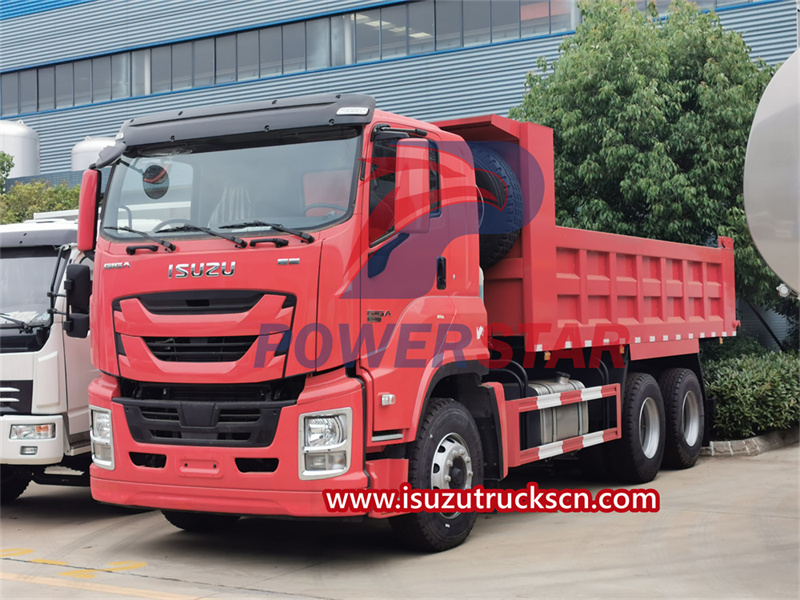

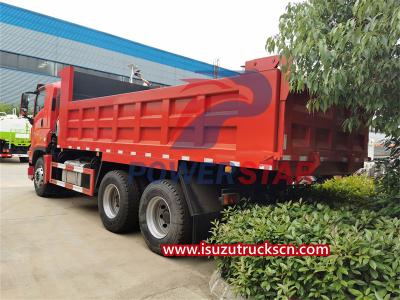

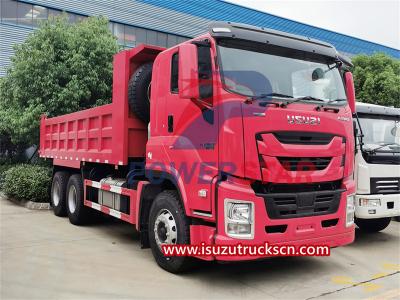

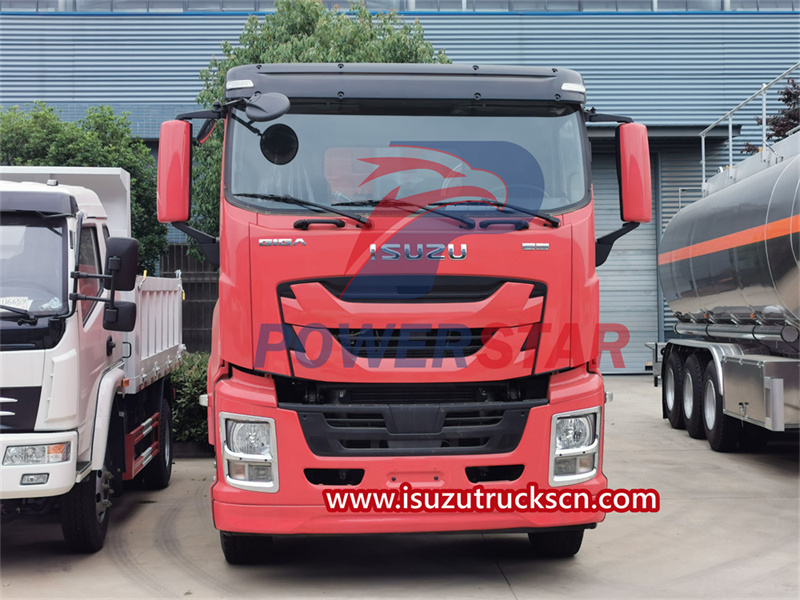

The Isuzu 25 yards Heavy Dumper is a powerful and reliable heavy-duty truck suitable for a variety of construction and transportation projects, offering a spacious cab equipped with two seats and a bed for long driving and resting. The power comes from the 6WG1-TCG52 engine, which adopts vertical, water-cooled, six-stroke, turbocharging and intercooling technology. Equipped with power steering, the braking system adopts air brake and boost mode, the parking brake is a central drum brake, and the auxiliary brake is an air brake.In terms of dump performance, the vehicle has a load capacity of 25 tons. The unloading box is made of high-performance carbon steel, with a front/side thickness of 6 mm and a rear/side thickness of 8 mm.
Work capacity:
25yardsTruck model:
Isuzu GIGA 25yards construction dump truckEngine power:
420HPEngine type:
Isuzu 6WG1-TCG52Axle drive:
6x4Gear box:
FAast 12 speed levers with 1 reverseRemarks:
Instruction waste dumpThe Isuzu 25 yards Heavy Dumper is an excellent heavy-duty truck with powerful performance and reliable quality, suitable for various construction and transportation projects. It adopts left-hand drive, 6x4 drive, spacious cab and suspension seat for comfort. driving experience. In terms of dumping, the Isuzu 25 yards heavy dumper has a strong loading capacity of 25 tons. The unloading box is made of high-performance carbon steel material, with a front/side thickness of 6 mm and a rear/side thickness of 8 mm. The hydraulic control system makes the unloading operation more convenient. The central lifting device can realize rapid unloading. The lifting time is 45 seconds. The tailgate lifting time is 25 seconds. The side panels are automatically released.
Applications:
ISUZU GIGA Dump tipper trucks(also called Isuzu GIGA 6 Wheel tipper, Isuzu GIGA cargo dump truck, Japan ISUZU Rear dumper trucks, Brand new Isuzu dump trucks ) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.
Powerstar ISUZU dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.
Key Features:
---- ISUZU GIGA heavy duty chassis, perfect performance
---- 6HK1 engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.
---- Virious types of tipper body are available.
Specifications:
|
Description |
Isuzu GIGA 25 yards Dumper |
|
|
Item |
Powerstar dump truck |
|
|
Model |
Isuzu GIGA |
|
|
Cabin |
Two seats and one bed |
|
|
whole vehicle main
|

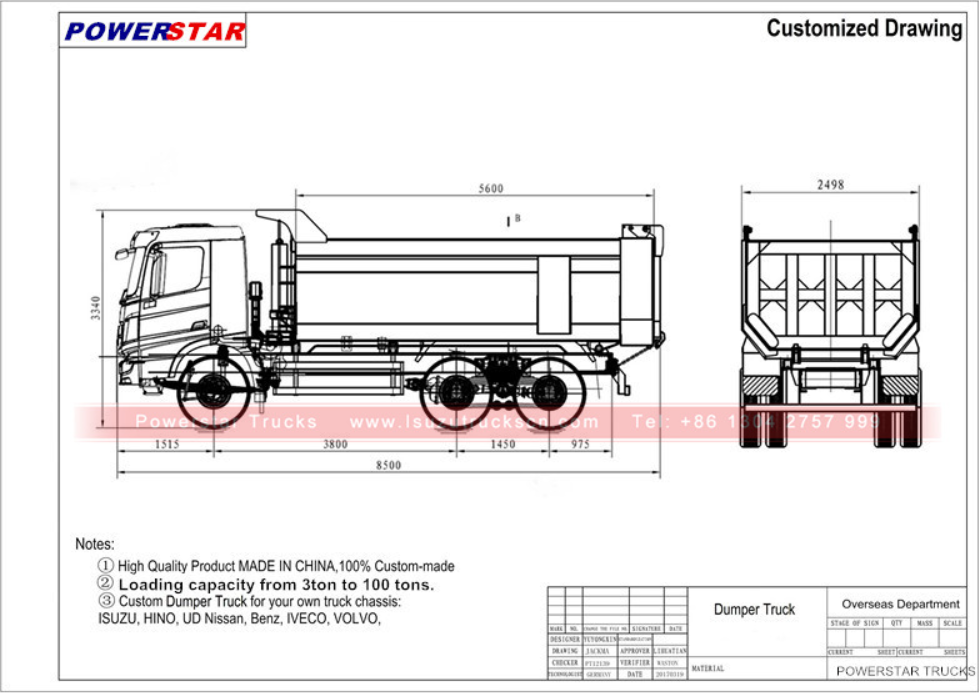

Overall dimensions (L*W*H)mm |
9400*2680*3650 mm |
|
Dimensions of dump body (L*W*H)mm |
6000*2400*1500 mm |
|
|
Driving type |
Left hand drive 6×4 |
|
|
Wheel base |
4565+1370 |
|
|
Weight data |
Gross weight (kg) |
34,000 |
|
Kerb weight(kg) |
15,440 |
|
|
Person in cab (persons) |
3 |
|
|
whole vehicle main |
Max.speed(km/h) |
105 |
|
Max.slope of climb(%) |
25 |
|
|
Min.turning radius (m) |
7.5 |
|
|
Engine |
Engine model |
6WG1-TCG52 |
|
Engine type |
Vertical, water-cooled, six-stroke, |
|
|
Emission standard |
Euro 5,6 |
|
|
Displacement (L) |
15.681L |
|
|
Rated power (KW) |
420 hp |
|
|
Max torque (N.m/rpm) |
2060N.M |
|
|
Steering gear type |
Power steering |
|
|
Brake system |
Service brake and boosting type |
Air brake |
|
Parking brake |
Central drum brake |
|
|
Auxiliary brake |
Air brake |
|
|
Tyre size |
295/80R22.5 |
|
|
Electric system |
Rated voltage |
24V |
|
Battery |
100Ah |
|
|
Dump Performance |
Loading Capacity |
25 tons |
|
Body Material |
High performance carbon |
|
|
Plate Thickness |
Front/Side are 6mm |
|
|
Rear/Side are 8mm |
||
|

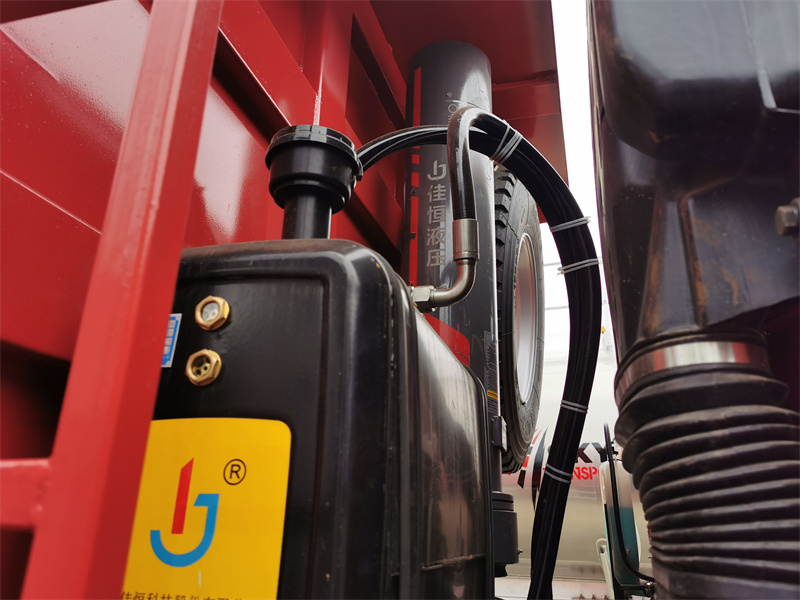

Control System |
Hydraulic |
|
|
Discharging System |
Front lifting device |
|
|
Lifting Time |
Tipping 45 degree |
|
|
Lowering Time |
35 s |
|
|
Tailgate |
25 s |
|
|
Drop side |
Auto release |
|
|
Painting |
Detachable |
|
|
Color & Logo |
Two primers,and one final paint coating |
|
|
Loading Capacity |
According to wish |
|
|
Factory Standard |
Heightened dump body Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
|

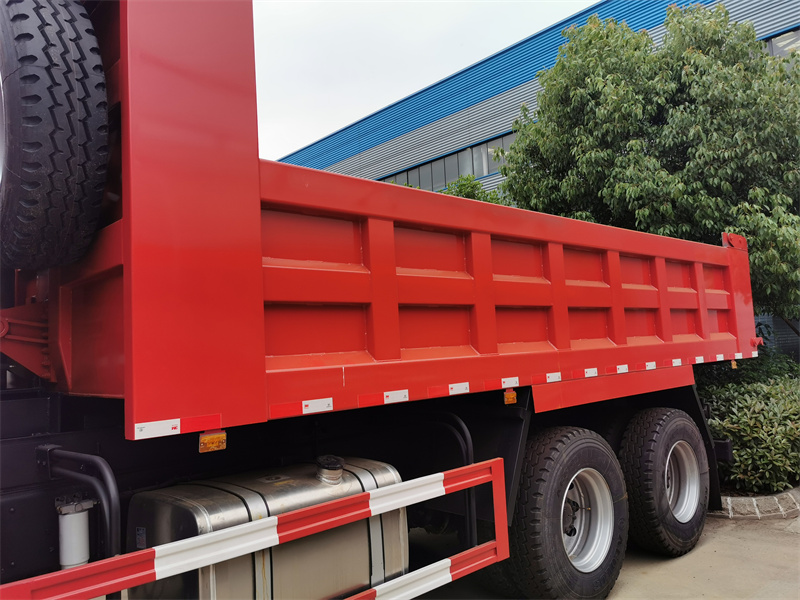

What are the characteristics of the heavy-duty Isuzu dump truck box?
1. Spacious cargo capacity: The box design of the heavy-duty Isuzu GIGA dump truck is very spacious and can accommodate a large amount of cargo. This makes it ideal for transporting large cargo or carrying large quantities of goods.
2. Durable box material: In order to withstand the pressure of heavy goods and long-term use requirements, the box of the heavy-duty Isuzu GIGA dump truck is constructed of high-strength steel or other solid materials to ensure the durability and durability of the box. long life.
3. Reasonable cargo storage layout: The heavy-duty Isuzu GIGA dump truck has a reasonable internal layout and is equipped with fixed cargo storage facilities, such as hooks, fixed brackets, etc., which can fix the cargo in the appropriate position and ensure safety during driving. Stability and security.
4. Convenient unloading system: The box of the heavy-duty Isuzu GIGA dump truck is equipped with a convenient unloading system, which generally uses a hydraulic unloading system. This system can quickly and safely unload the goods from the box, improve the unloading efficiency and reduce the labor intensity of the staff.
5. Multi-functional box design: The box design of heavy-duty Isuzu GIGA dump trucks is usually very multi-functional and can be customized according to customer requirements. For example, protective facilities, heating or cooling equipment, etc. can be added as needed to meet customers with different transportation needs.
