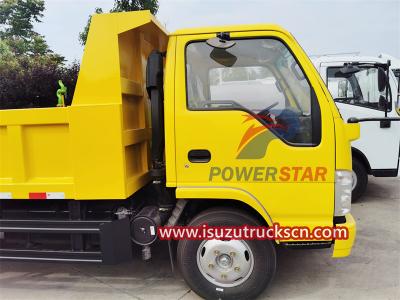

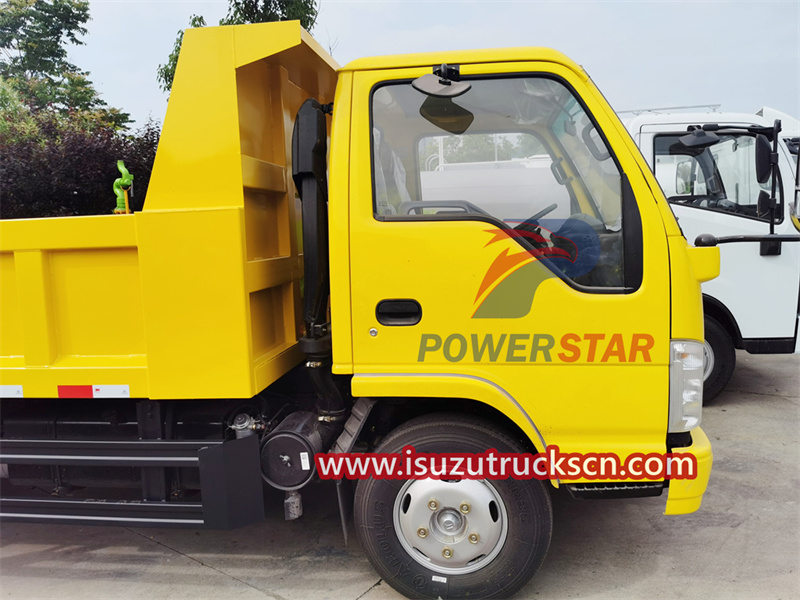

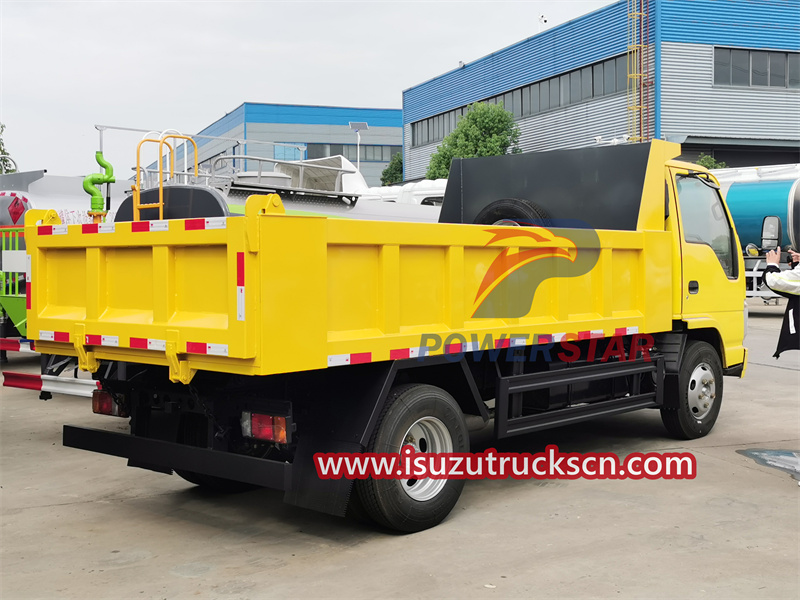

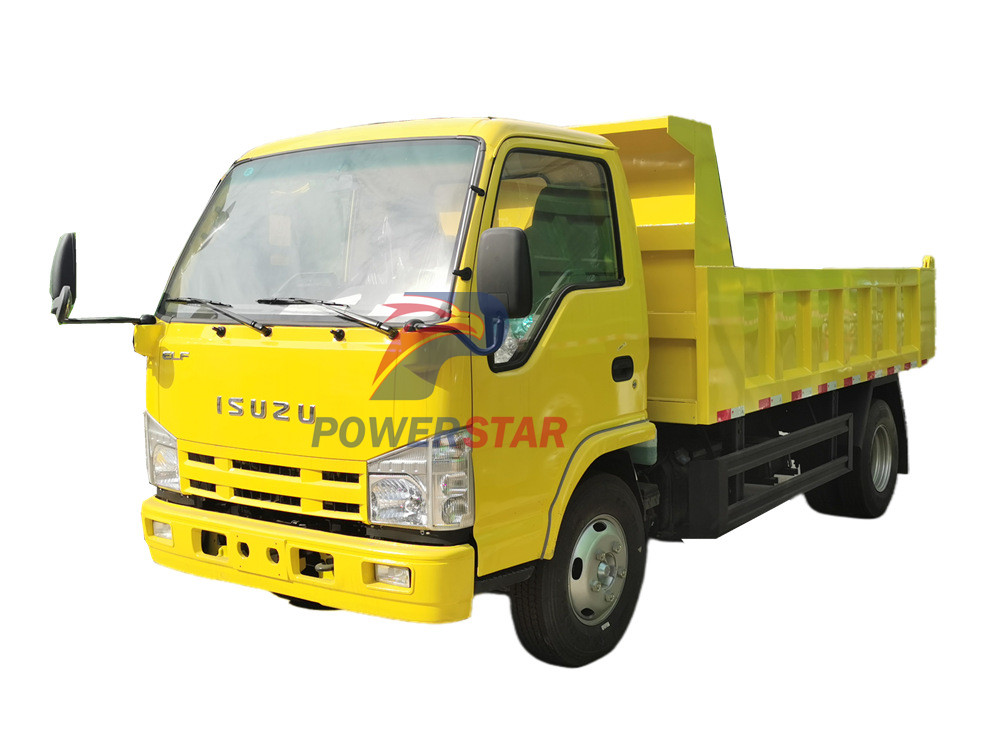

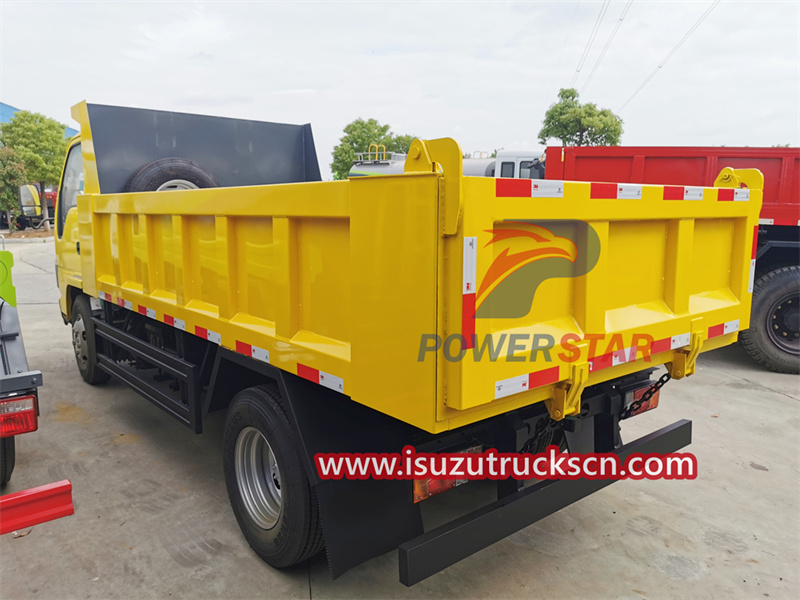

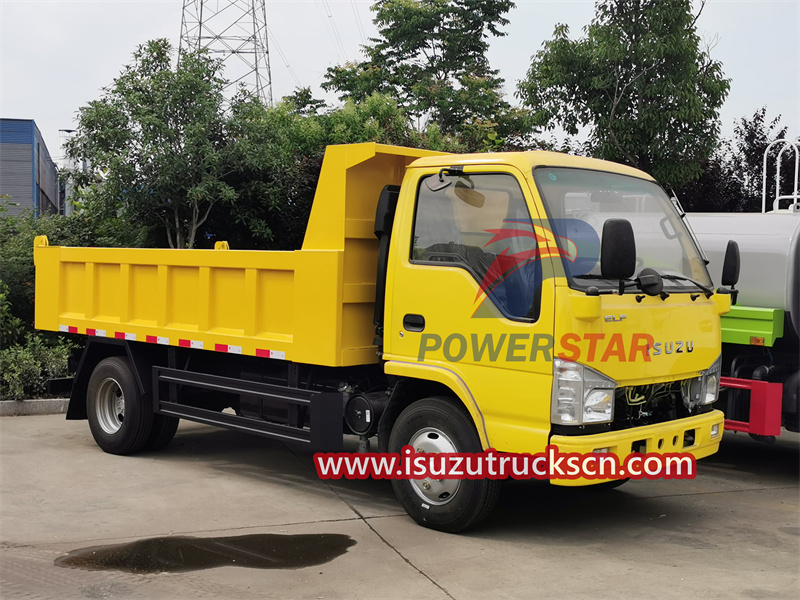

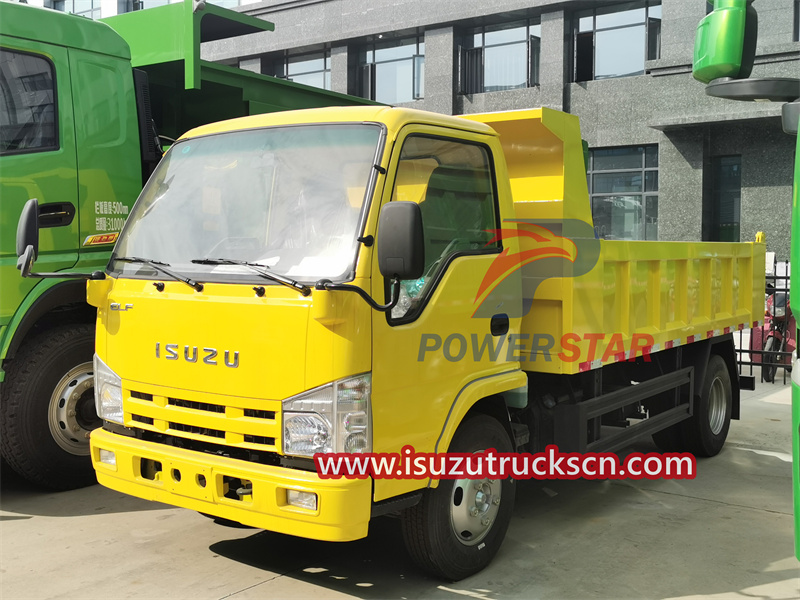

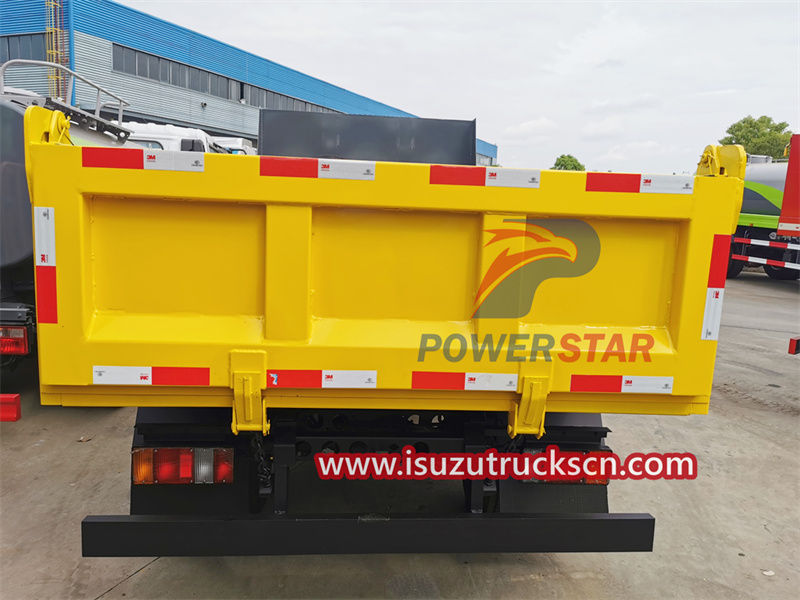

ISUZU mini 3tons dump truck has a maximum speed of 95 km/h and is equipped with an ISUZU 4KH1CN5LS engine with 98 horsepower. The available drive mode is 4x2 left/right hand drive. It is also equipped with excellent auxiliary brakes, parking brakes and hydraulic lifting systems. In order to provide users with a convenient experience, Powerstar comes with an English operating manual, spare parts list and all necessary export documents.
Work capacity:
2-3tonsTruck model:
Isuzu mini 3tons dump truckEngine power:
98hpEngine type:
ISUZU 4KH1CN5LSAxle drive:
4x2Gear box:
Isuzu MSB 5 shiftRemarks:
mini dump truckIsuzu mini dump truck is a common freight vehicle. The body structure usually consists of an Isuzu light-duty chassis and a body. The chassis usually adopts a fixed or load-carrying structure to enable the vehicle to withstand heavy loads and provide stable driving performance. The truck body is a unique component of a dump truck. It is usually made of high-strength steel and is strong and durable. Isuzu mini dump trucks are versatile. It is mainly used for short-distance logistics and construction site transportation, and is suitable for transporting materials or debris in urban construction, mines, ports and other places. Small dump trucks can transport a variety of goods such as building materials, stone, coal, soil, etc. to meet the needs of different industries. Because its body is flexible and can be dumped in a small space, it is often used in engineering projects such as road construction, construction waste removal and urban greening.
|
BRAND & MODE |
ISUZU mini 3tons dump truck |
|
|
Load Parameters |
||
|
G. V. W. (kg) |
11835 |
|
|
Curb weight, total (kg) |
7300 |
|
|
Loading capacity (kg) |
6000 |
|
|
Drive Type |
4x2 left/right hand drive |
|
|
Max. speed KM/h |
95KM/h |
|
|
Front axle capacity(KG) |
2500 |
|
|
Rear axle capacity (KG) |
4500 |
|
|
Dimension Parameters |
||
|
Dimension(mm) (L*W*H) |
6300X2350X2480 |
|
|

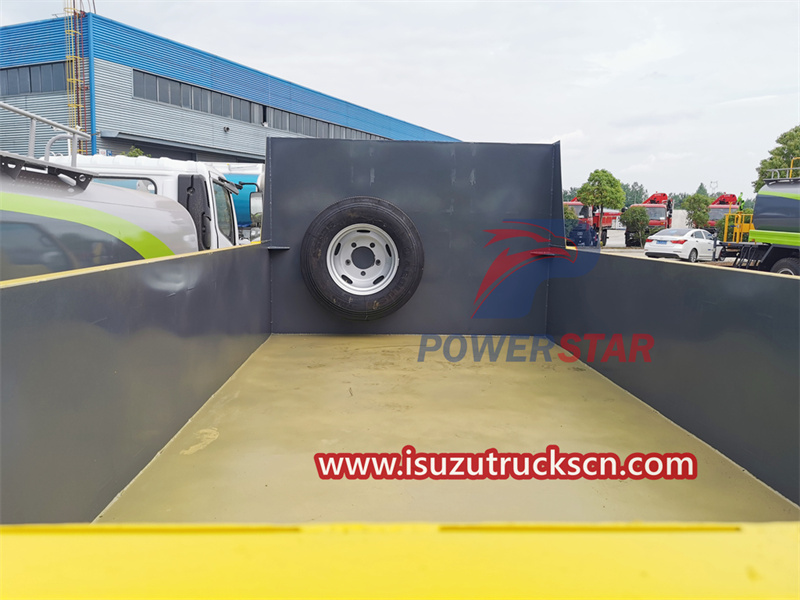

Cargo box |
Dimension(L*W*H) |
3500X2300X550 |
|
Wheel base(mm) |
3360 |
|
|
Configuration Parameters |
||
|
Cabin |
Cabin type |
Single |
|
Seating capacity |
2,3 |
|
|
Engine |
Brand&Model |
ISUZU 4KH1CN5LS |
|
Max. horsepower |
98HP |
|
|
Max. power |
72KW |
|
|
Displacement(ml) |
2.77L |
|
|
Combustion types |
Diesel |
|
|
Gearbox |
Brand&Model |
ISUZU MSB 5 shift |
|
Brake system |
Service brake and boosting type |
Air brake |
|
Parking brake |
Central drum brake |
|
|
Auxiliary brake |
Air brake |
|
|
Tyre size |
700R16 |
|
|
Electric system |
Rated voltage |
24V |
|
Battery |
100Ah |
|
|
Dump Performance |
Loading Capacity |
3-4 tons |
|
Body Material |
High performance carbon |
|
|
Plate Thickness |
Front/Side are 3mm |
|
|
Control System |
Rear/Side are 4mm |
|
|
Hydraulic Lifting |
Hydraulic |
|
|
Discharging System |
Middle lifting device |
|
|
Lifting Time |
Tipping 45 degree |
|
|
Lowering Time |
20 s |
|
|

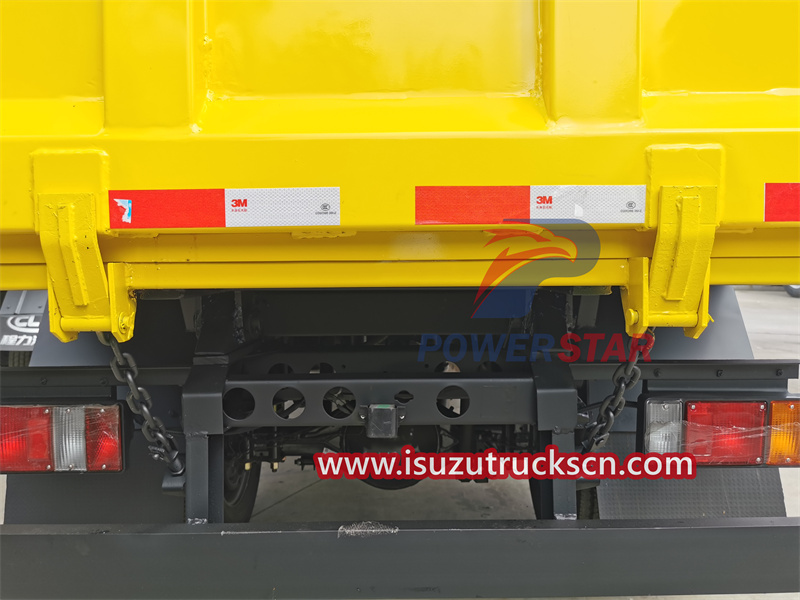

Tailgate |
15 s |
|
|
Drop side |
Auto release |
|
|
Painting |
Detachable |
|
|
Color & Logo |
Two primers,and one final paint coating |
|
|
Loading Capacity |
According to wish |
|
|
Factory Standard |
Heightened dump body Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
|
The advantages of Isuzu mini dump trucks are as follows:
1. High flexibility: Small dump trucks are relatively small in size and can adapt to narrow roads and narrow construction sites. They can easily enter and exit various complex terrains and have good maneuverability.
2. Has strong handling capacity: Although small in size, the mini dump truck still has strong handling capacity. Its carrying capacity is usually between 3 and 10 tons, which can meet the material transportation needs of general construction sites or factories.
3. High transportation efficiency: The mini dump truck is equipped with a lifting automatic unloading system, which can quickly unload goods and improve transportation efficiency.
4. Economical and energy-saving: Small dump trucks generally use diesel engines. Compared with large dump trucks, not only the purchase cost is lower, but the operating cost is also more economical.
5. Strong adaptability: Small dump trucks can be modified as needed and can load and unload various goods, such as sand, soil, coal, engineering waste, etc., and have strong adaptability.
6. Easy to operate: The operation of small dump trucks is relatively simple and does not require special driving skills. It is easy for the driver to operate.
7. Low maintenance costs: The maintenance costs of small dump trucks are relatively low, repairs are easy to operate, and the prices of parts are relatively low.
