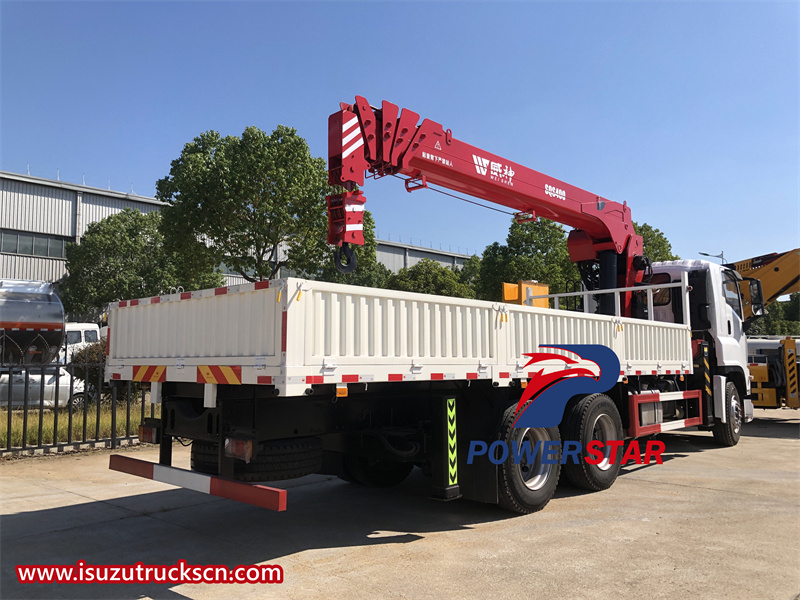

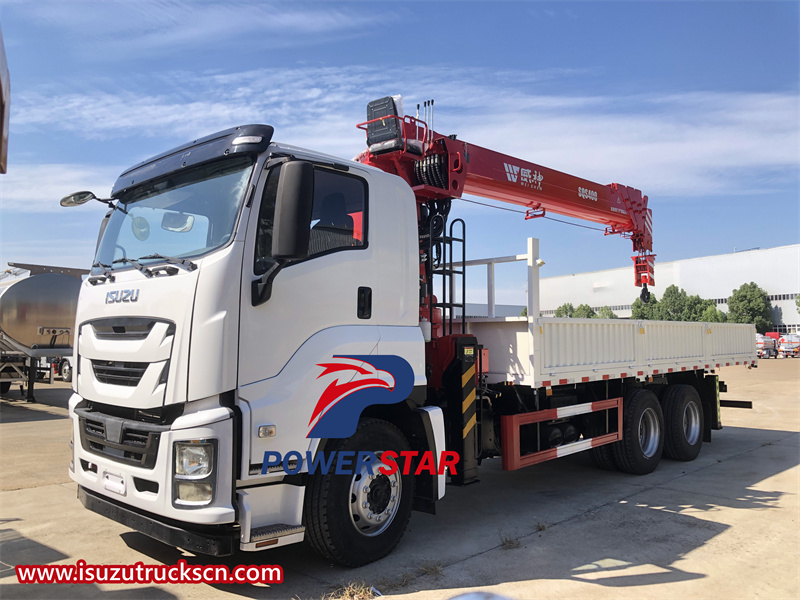

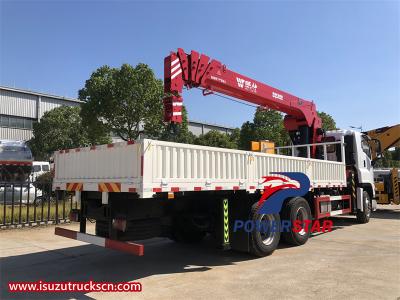

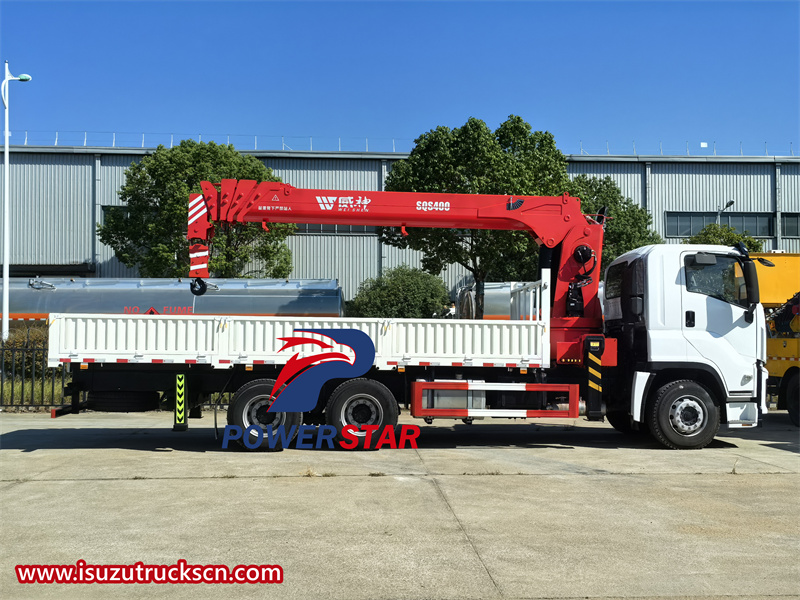

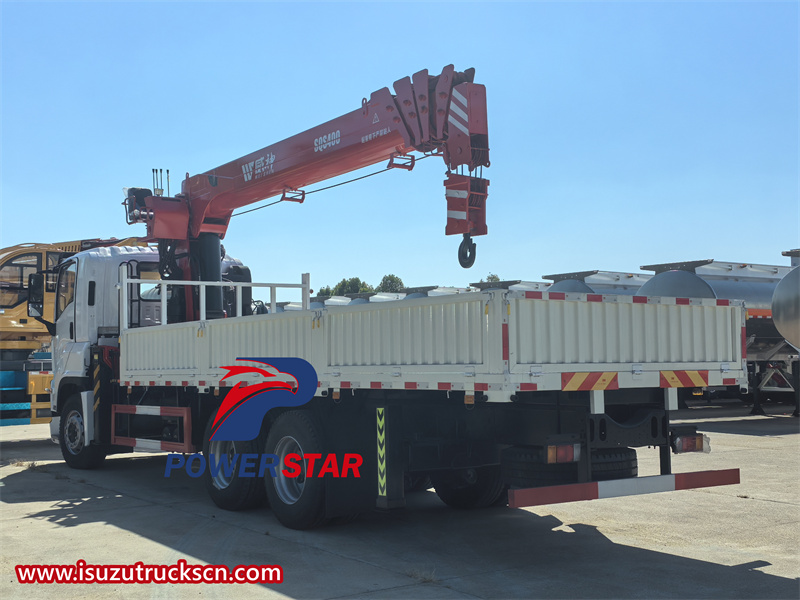

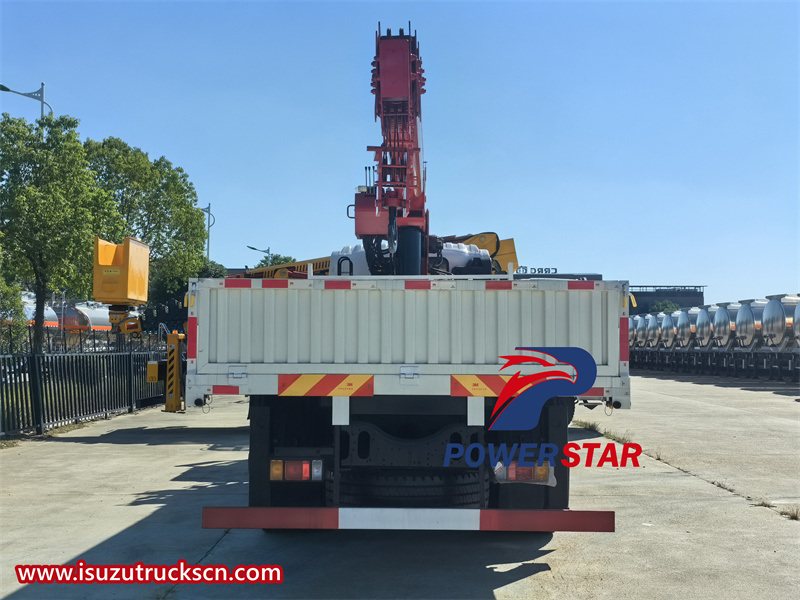

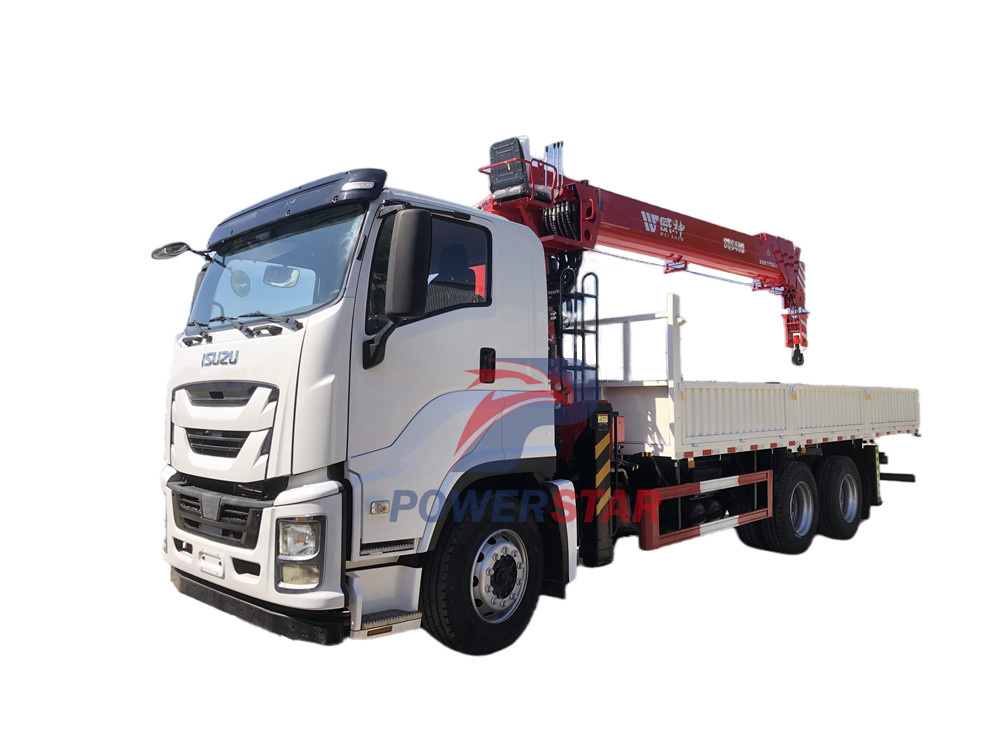

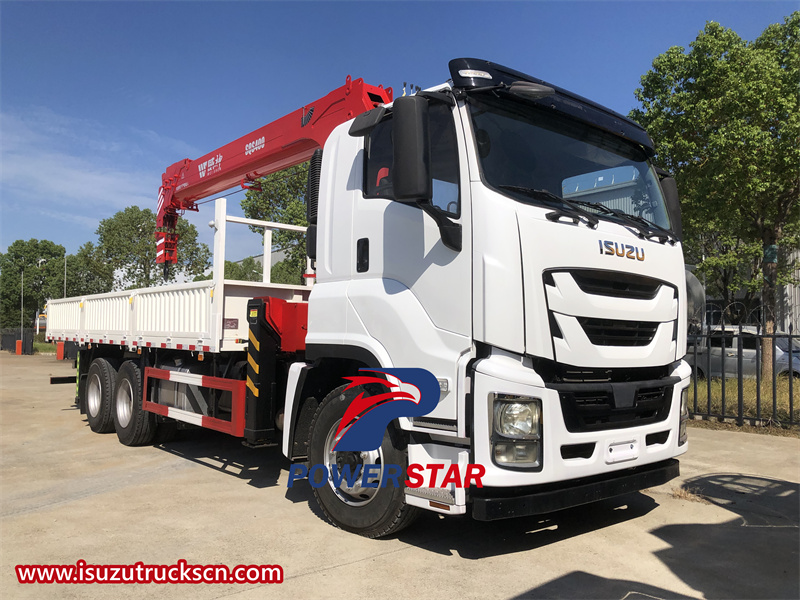

Isuzu 10 wheeler truck with 8 T telescopic crane

 Isuzu VC61 8ton boom crane truck
 Isuzu VC61 8ton boom crane truck
 Isuzu VC61 8ton boom crane truck
 Isuzu VC61 8ton boom crane truck
 Isuzu VC61 8ton boom crane truck
 Isuzu VC61 8ton boom crane truck
 Isuzu VC61 8ton boom crane truck
 Isuzu VC61 8ton boom crane truck
 Isuzu VC61 8ton boom crane truck
 Isuzu VC61 8ton boom crane truck
 Isuzu VC61 8ton boom crane truck
 Isuzu VC61 8ton boom crane truck
 Isuzu VC61 8ton boom crane truck
 Isuzu VC61 8ton boom crane truck
 Isuzu VC61 8ton boom crane truck
 Isuzu VC61 8ton boom crane truck
 Isuzu VC61 8ton boom crane truck

Isuzu 10 wheeler truck with 8 T telescopic crane

Isuzu 6x4 8-ton telescopic boom truck crane is a kind of equipment that can lift, rotate and transport goods through hydraulic lifting and telescopic system. It is usually installed on trucks. It is widely used in the lifting and transportation of infrastructure materials and other equipment in municipal construction, coal mining engineering, landscaping, etc.

  • Work capacity:

    8 ton
  • Truck model:

    PT5250GSQ
  • Engine power:

    300HP
  • Engine type:

    6HK1-TCG60
  • Axle drive:

    6x4,LHD
  • Gear box:

    FAST 9-speed, manual
  • Remarks:

    Isuzu VC61 GIGA chassis,SQS400 boom crane

Isuzu 10 wheeler truck with 8 T telescopic crane also called Isuzu VC61 8ton boom crane truck,Isuzu GIGA 6X4 straight arm crane,Isuzu GIGA mobile 8ton stiff boom crane cargo truck,GIGA Isuzu hydraulic truck crane,Isuzu GIGA 8ton hydraulic crane lorry truck.



The Isuzu 10 wheeler truck equipped with an 8-ton telescopic crane is a remarkable vehicle that combines power, versatility, and reliability. This truck, powered by the robust 6HK1-TCG60 300HP engine, is designed to handle a wide range of tasks and operate efficiently in various environments.‌The truck crane can lift, rotate and transport goods through the hydraulic lifting and telescopic system. It has the characteristics of good mobility and rapid transfer. It can integrate lifting and transportation functions to improve resource utilization.

Isuzu 10 wheeler truck with 8 T telescopic craneFeatures:

Adopt world-class lSUZU GIGA 6X4 Chassis, High power and Fuel efficiency, Reliability, Uptime

All Structural made of High Strength Steel

Easy to mount and Minimum space required for Mounting

Can be Mounted Behind the Cabin or Rear Part of Load Body, thus Truck Load

Optional Chassis 4x2, 6x4,8x4 and engine power

Optional Crane brand: XCMG, UNIC, PALFINGER...

Optional Crane type: Telescopic boom crane or knuckled boom crane

Radio Remote Control Available as an Optional Fitment

Top Seat Control are optional (where the Operator Seat is attached to the Main Boom)





Specifications



Isuzu GIGA 6x4 8 T boom crane

Truck model

PT5250GSQ

Cab

Isuzu VC61 GIGA cab, 3 seats, air conditioner,USB...

Driving Type

6x4,LHD

Overall Dimensions

10400*2550*3950mm

Cargo Dimensions(mm)

6200*2350*600mm

GVW

25000kg

Curb weight

16250kg

Rated loading capacity

8000kg

Wheelbase

5100+1370mm

Front/Rear Suspension

1370/2560

Steering

Power steering

Approach/departure angle

17/10(°)

Front/rear track

2060/1855/1855

Wheels & tire

295/80R22.5

Tire number

10+1

Max speed

105(km/h)

Engine

Model

6HK1-TCG60

Horsepower

300HP

Maximum output

221Kw

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Speed

2600r/min

Displacement

7790ml

Emission

Euro 6

Transmission

FAST 9-speed, manual

Front Axle

7T

Rear Axle

18T

Brake System

Air brake

Color and LOGO

Customized

Electric system

24V

crane

Model

SQS400

Max loading weight

8 tons

Max lifting height

21m

Max working radius

18.9m

Rated lifting capacity

16t.m

Crane self-weightkg

3300

Type

Straight arm

Arms number

5

Front/rear outrigger space

6000/2300mm

Turning angle

360

Rated hydraulic pressure

26MPa

Color and logo

Optional

Standard configuration

 truck crane equipped between the cabin and van body, mechanical leg

Optional configuration

Any other famous brand crane,  it can also be equipped in the rear of the truck, hydraulic legs, aerial working seat is optional.



Applications

The Isuzu crane truck’s 10-wheel configuration provides excellent stability and load-carrying capacity, allowing it to handle the heaviest loads with ease. The wheels are carefully designed to optimize weight distribution and ensure smooth movement, even on uneven or difficult terrain. This makes the Isuzu 10-wheel truck particularly suitable for construction sites, mining operations and other environments where rough, uneven roads are common.



Engine Performance

At the heart of the Isuzu GIGA boom crane truck is the powerful 6HK1-TCG60 300HP engine. The engine is known for its high torque output and smooth power delivery, making it ideal for applications that require continuous heavy lifting and maneuvering. The 6HK1-TCG60 is a diesel engine that meets modern emission standards, ensuring that it is environmentally friendly while providing optimal performance.



The engine’s 300 horsepower provides the truck with plenty of power, allowing it to easily handle heavy loads and climb steep grades. Thanks to the engine’s strong performance, the telescopic crane with an 8-ton lifting capacity can operate smoothly and efficiently. The engine’s fuel efficiency is also noteworthy, allowing the truck to operate for long periods of time without frequent refueling.



Isuzu 10 wheeler truck with 8 T telescopic crane

Isuzu 10 wheeler truck with 8 T telescopic crane



Telescopic Crane Features

The 8-ton SQS400 telescopic crane mounted on an Isuzu 10-wheel truck is a versatile piece of equipment that can be used for a variety of tasks. The crane’s telescopic boom enables it to reach a height of 21 in and a telescopic reach of 18.9 in, making it suitable for lifting and placing loads in hard-to-reach areas. The crane’s lifting capacity ensures that it can handle heavy loads without putting stress on the truck’s engine or chassis.



The crane operates smoothly and precisely, thanks to the advanced hydraulics and controls integrated into the system. The operator can easily adjust the crane’s boom length and angle to accurately position the load. The crane also has a variety of attachments, such as hooks, winches, and booms, to further enhance its versatility and functionality.



The crane’s controls are designed to be easy to use and precise. The operator can easily manipulate the boom’s movement using a series of levers and joysticks, allowing for smooth and controlled load lifting and lowering. The crane also has a variety of safety features, such as a load indicator, overload protection, and an emergency stop button, to ensure the operator’s safety and prevent accidents.

 Isuzu VC61 8ton boom crane truck

Isuzu VC61 8ton boom crane truck

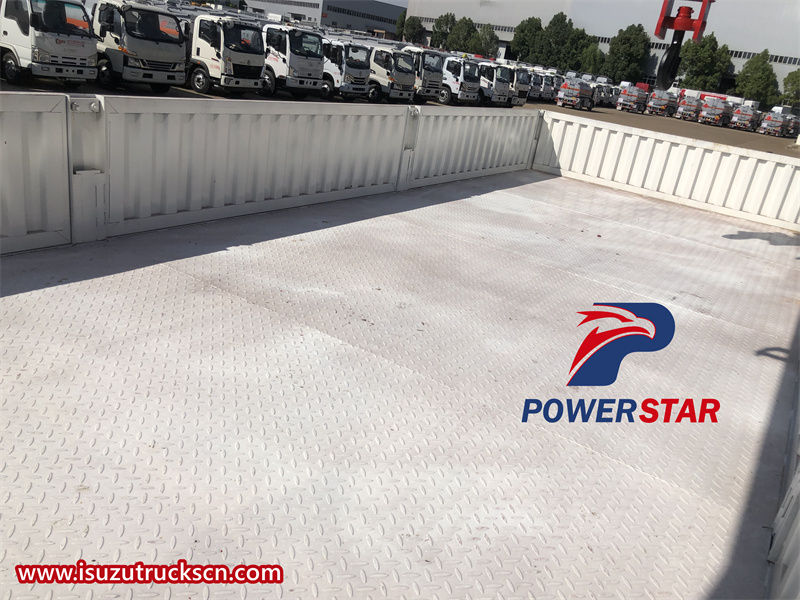

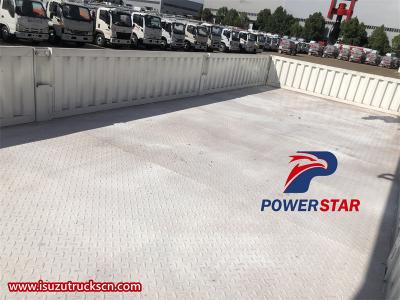

Cargo Capacity and Cargo Box Design

The Isuzu 6x4 straight arm crane is equipped with a spacious cargo box with a size of 6200*2350*600mm, which provides ample space for various goods and meets diverse transportation needs. The cargo box design takes into account the safety, convenience and stability of the goods, further enhancing the practicality and efficiency of this vehicle.



Cargo Capacity: The cargo box size of 6200*2350*600mm means that this vehicle has excellent cargo capacity and can carry goods of various sizes and weights, providing customers with flexible transportation solutions.



Cargo Fixing System: A strong cargo fixing system is designed inside the cargo box to ensure that the goods remain stable and secure during transportation. This prevents the goods from sliding or getting damaged, improving transportation efficiency and customer satisfaction.

 Isuzu GIGA 6X4 straight arm crane

Isuzu GIGA 6X4 straight arm crane



Versatility: Due to the spacious cargo box size, this vehicle can transport a variety of goods, including heavy equipment, construction materials, commodities, etc. Its versatility makes it a preferred transportation tool widely used in many industries.



Convenient loading and unloading: The cargo box design meets the requirements of convenient and fast loading and unloading, and can easily load and unload goods automatically. This improves loading and unloading efficiency, reduces operation time, and improves overall transportation efficiency.



Durability: The cargo box is made of high-quality materials with excellent durability and load-bearing capacity. Whether in adverse weather conditions or challenging road conditions, the cargo box remains stable and reliably protects the cargo.

 Isuzu GIGA mobile 8ton stiff boom crane cargo truck



Isuzu GIGA mobile 8ton stiff boom crane cargo truck

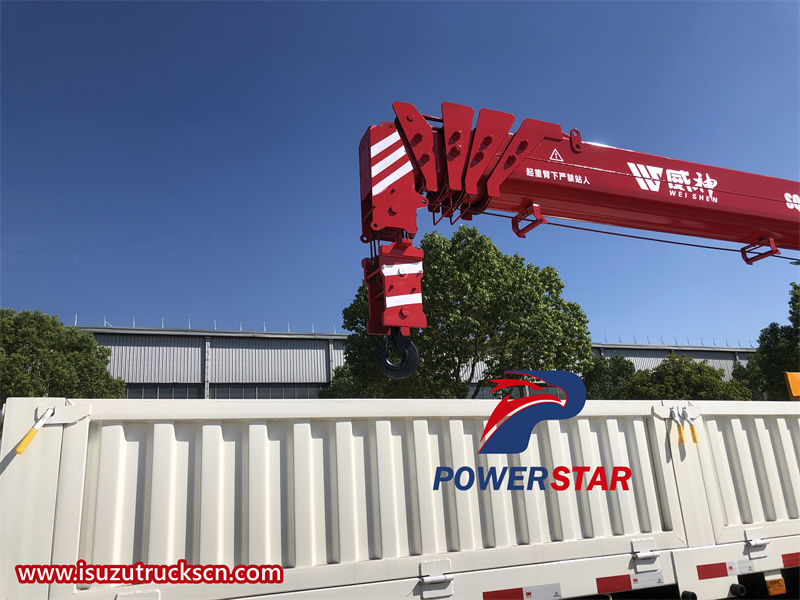

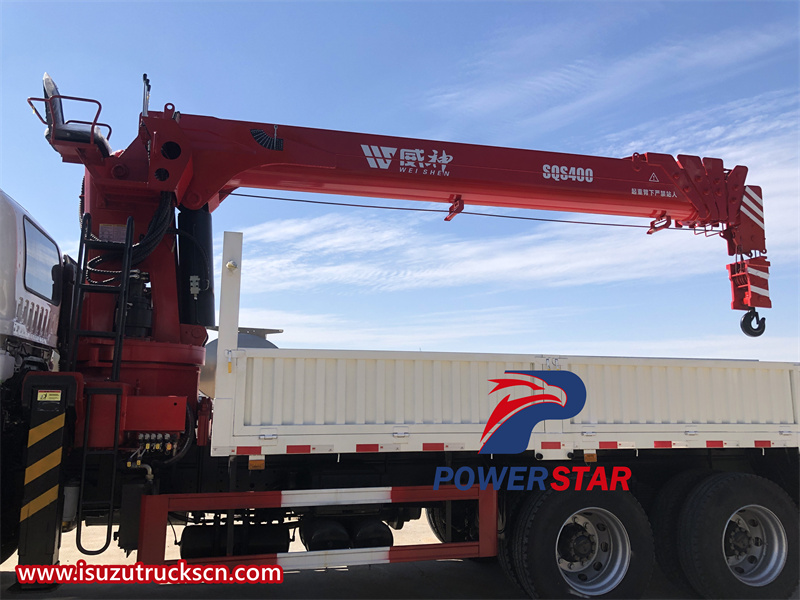

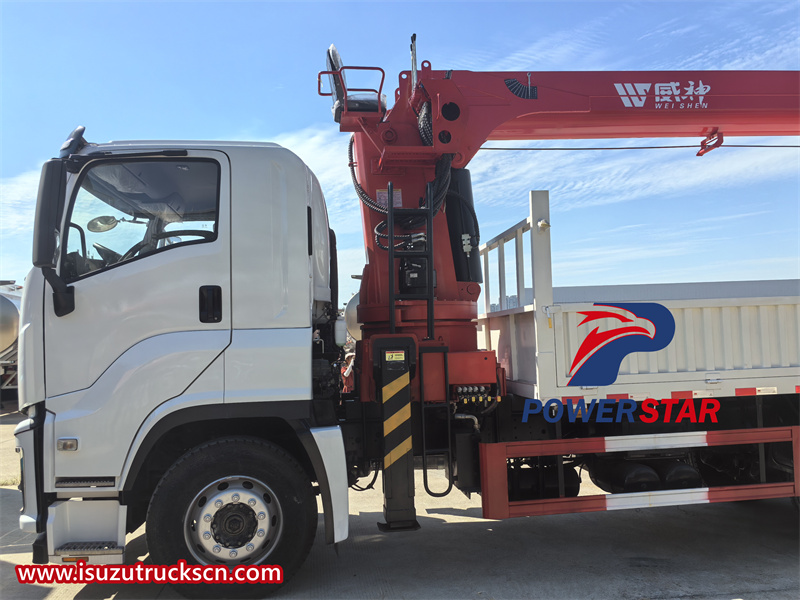

 SQS400 straight arm crane

1. The key structural parts are welded with high-strength steel plates, which are high in strength and light in weight.



2. The boom telescopic mechanism adopts high-quality three-stage oil cylinders and rigging for telescopic extension, which is extended sequentially. The first two telescopic arms are driven by independent oil cylinders, and the medium and short arms have strong load-bearing and telescopic capabilities.



3. The maximum operating range is 18.9 meters, and the obstacle crossing ability is strong.

 GIGA Isuzu hydraulic truck crane

GIGA Isuzu hydraulic truck crane



4. The torque limiter (override control) is standardly configured, which is safer.



5. The main moving parts and electrical and hydraulic components can work at low temperatures (-40℃), which is more adaptable.



6. The high-pressure filter is standardly configured to improve the cleanliness of the hydraulic oil and extend the service life.

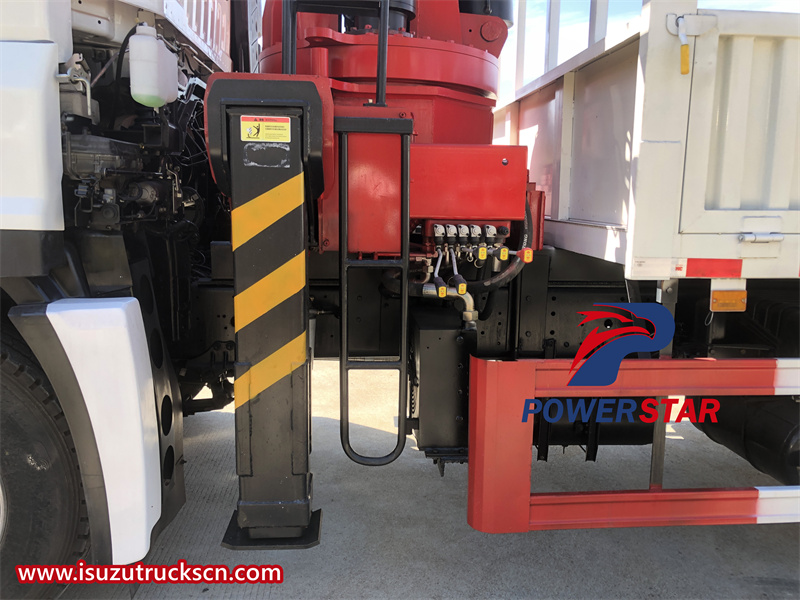

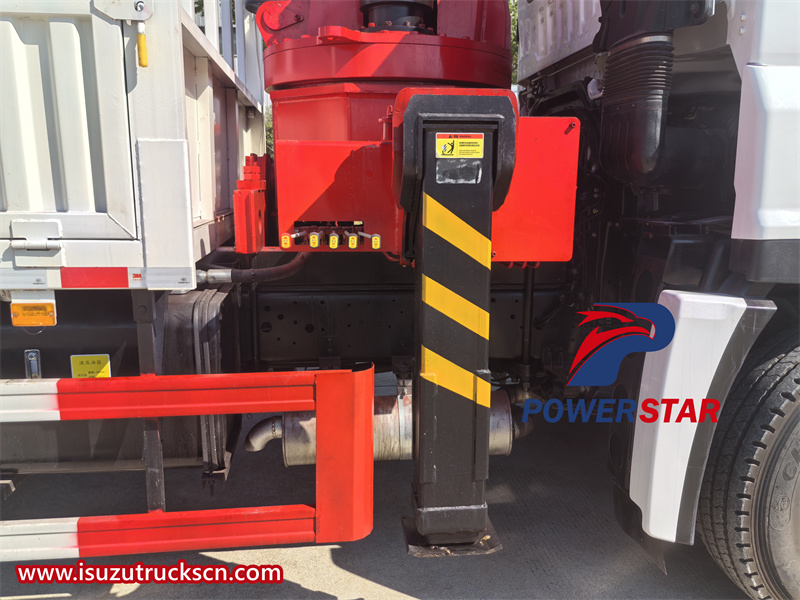

 Crane support

Crane support



This Isuzu truck crane with a large cargo box has demonstrated excellent performance in multiple application scenarios with its unique design and powerful functions. Here are some possible application scenarios:

1. Engineering construction and construction sites

This truck crane plays an indispensable role in busy engineering construction and construction sites. Its spacious cargo box can carry a large amount of building materials and tools, while the powerful boom can easily lift and move heavy objects such as steel, prefabricated components, etc., greatly improving construction efficiency.



2. Municipal maintenance and emergency rescue

This truck crane also performs well in the field of municipal maintenance and emergency rescue. It can respond quickly to deliver urgently needed equipment and materials to the site, while using the boom for fast and accurate lifting operations, providing strong support for the maintenance of municipal facilities and emergency handling of disasters.

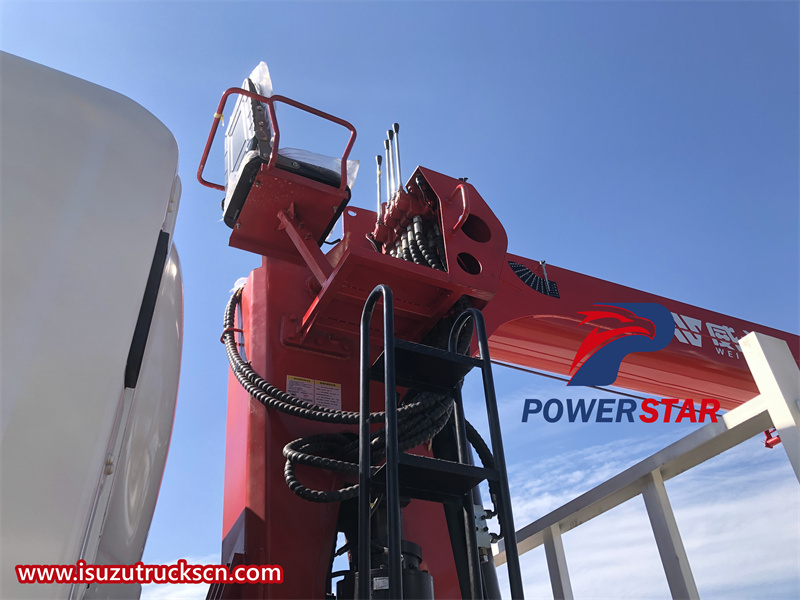

High altitude operationHigh altitude operation lever

3. Landscaping and landscape construction

In terms of landscaping and landscape construction, this truck crane also shows its unique advantages. It can load large trees, flowers and landscape materials, while using the boom for precise lifting and placement, providing great convenience for landscape designers and construction workers.



4. Port terminals and logistics warehousing

This truck-mounted crane also plays an important role in the field of port terminals and logistics warehousing. It can quickly and accurately load and unload goods such as containers and cargo boxes, greatly improving the efficiency and safety of logistics transportation.

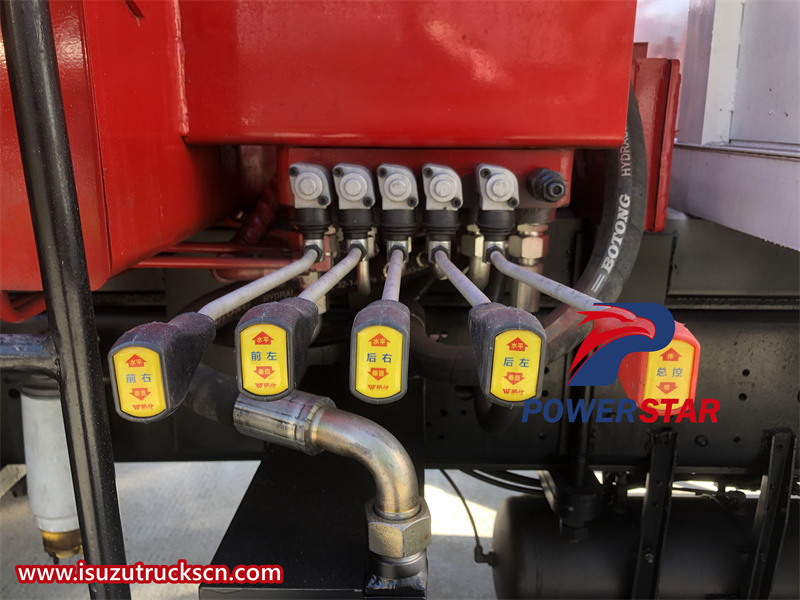

Ground operating leverGround operating lever

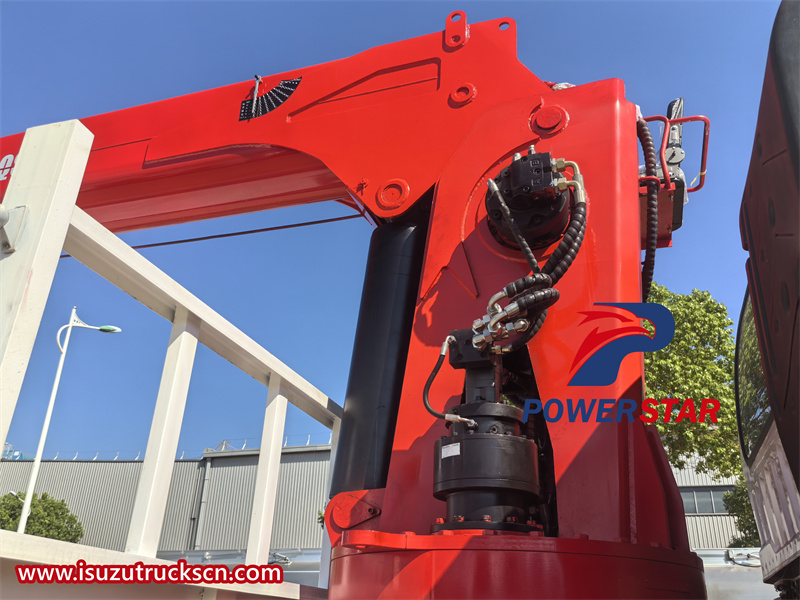

SQS400 boom crane

SQS400 boom crane

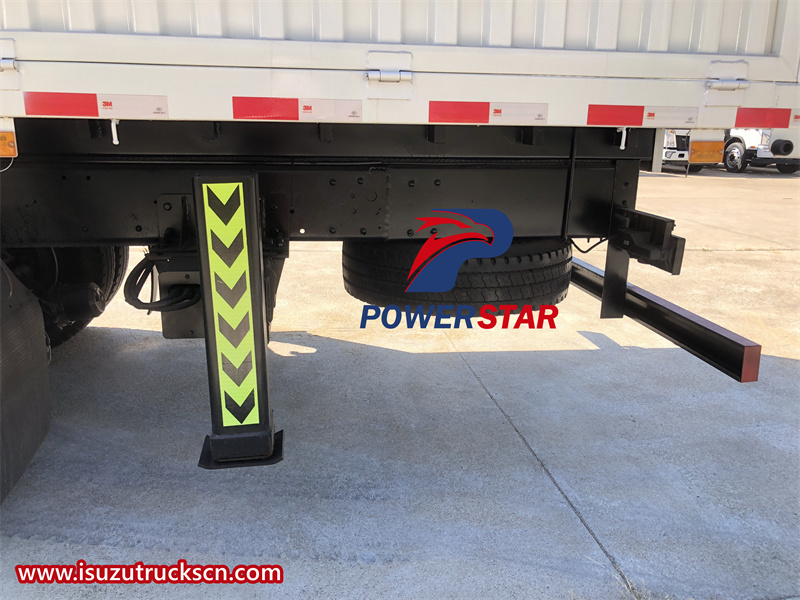

Heavy duty support leg

Heavy duty support leg
