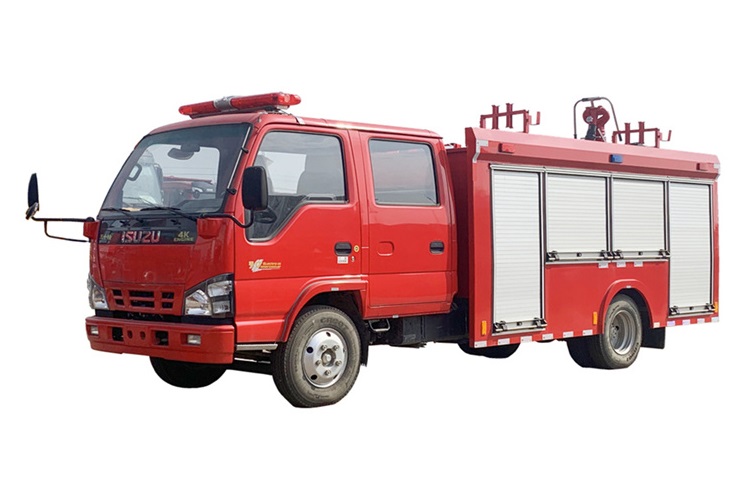

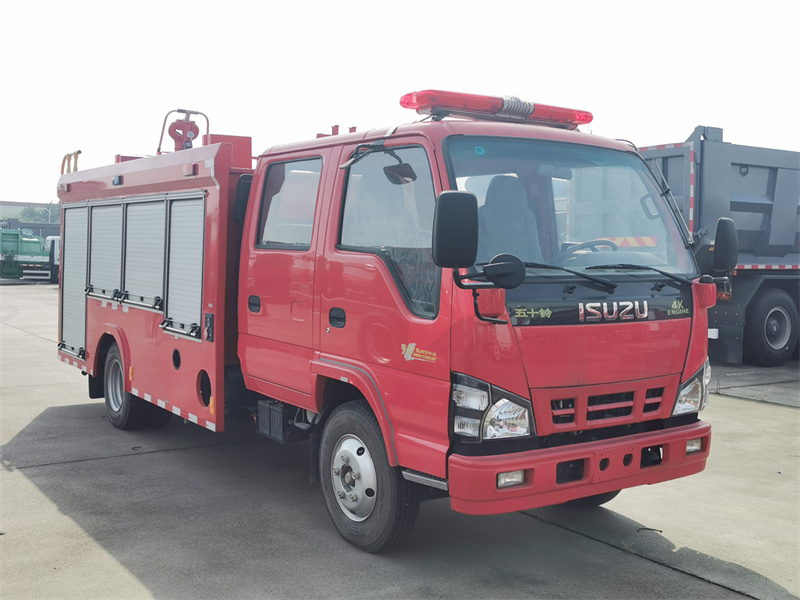

The ISUZU 600P water fire truck is powered by a powerful diesel engine, providing exceptional horsepower and torque. This enables the vehicle to reach fire sites quickly, ensuring a prompt response to emergencies. The engine is fuel-efficient, reducing operational costs and making it environmentally friendly.
The vehicle's compact size and maneuverability make it ideal for urban areas with narrow streets. It can easily navigate through congested traffic and narrow alleyways, ensuring efficient deployment during emergencies. The robust chassis and high ground clearance enable it to operate in various terrains, including rugged and uneven surfaces.
Equipped with a large water tank, the ISUZU 600P fire truck can carry a significant amount of water to combat fires effectively. The tank is made of high-grade materials, ensuring durability and longevity.
Work capacity:
4 CBMTruck model:
PT5060XFEngine power:
130 HPEngine type:
Isuzu 4HK1-CN6LAxle drive:
4×2Gear box:
Isuzu mld 6-speed, manualRemarks:
Stainless Steel, USA fire pump optional.
The ISUZU 600P water fire truck is a robust and reliable fire-fighting vehicle designed to combat wildfires and extinguish fires efficiently. Built with top-notch technology and expertise, this water fire truck is essential for emergency response teams.
With a powerful 4HK1-TCG40 engine, the ISUZU 600P water fire truck delivers outstanding performance and reliability. It boasts a maximum power of 154hp, enabling it to respond swiftly and effectively to fire emergencies. This engine ensures seamless operation even in challenging terrains, making it suitable for both urban and rural areas.
Equipped with a large-capacity water tank, this fire truck has a high water storage capacity enabling it to combat fires for an extended period. The tank can hold up to 4,000 liters of water, providing the firefighters with adequate resources to suppress fires effectively. Additionally, the water cannon attached to the truck allows for long-range water spraying, enabling the firefighters to control fires from a safe distance.
To further enhance its firefighting capabilities, the ISUZU 600P water fire truck is equipped with a high-pressure water pump. This pump generates a powerful water jet that can penetrate even through dense fires, allowing for effective fire suppression. Moreover, the truck is equipped with a foam system, which enables the firefighters to mix foam concentrate with water to handle fuel-based fires.
The ISUZU 600P water fire truck is designed to be user-friendly for firefighters. It features ergonomic controls and a spacious cab, providing comfort and convenience during long fire-fighting operations. The well-designed compartments offer ample storage for fire-fighting equipment and tools, allowing for quick access during emergencies.
Product parameters
Product Name
isuzu 600p water and foam fire fighting truck
Isuzu 100P water and foam fire fighting truck
Driving Type
4x2,left hand drive
4x2,left hand drive
WEIGHT
Kerb Weight
Approx.3400kg
Approx.3500kg
Dimension
Wheelbase
3360mm
3300mm
Overall Size
Approx.6360x2000x2740mm
Approx.6140x1885x2660mm
ENGINE
Engine Model
4KH1CN5HS(130HP)
4KH1CN5HS0 (98 HP)
No of Cylinder
4
4
Displacement
2999ml
2980ml
Max Output
96KW
85kw
Emission Standard
EURO 5
EURO 5
DRIVE TYPE
Transmission
MSB 5 speeds,5 forwards and 1 reverse
MSB speeds,5 forwards,1 reverse
Steering
With power steering
With power steering
Brake
oil brake
air brake
Front axle/rear axle
2.5T/4.8T
CAB
Cabin
ISUZU 600P
Isuzu 100P cabin
Configuration
with A/C
with A/C
Seat quantity
double row
double row
TIRE
Tire specification
7.00R16,6+1
7.00R16,6+1
CONFIGURATION
Tank Capacity
water tank:2000liters
foam tank:1000liters
water tank and foam tank capacity can adjustable
water tank:2000liters
foam tank:1000liters
water tank and foam tank capacity can adjustable
Tank Material
Q235 carbon steel
Q235 carbon steel
Pipe Material
Q235 carbon steel
Q235 carbon steel
Fire Pump
CB10/20
pump pressure (Mpa):1.0
flow(L/S):20L/S/1.0MP
time of drawing water:<35s
CB10/20
pump pressure (Mpa):1.0
flow(L/S):20L/S/1.0MP
time of drawing water:<35s

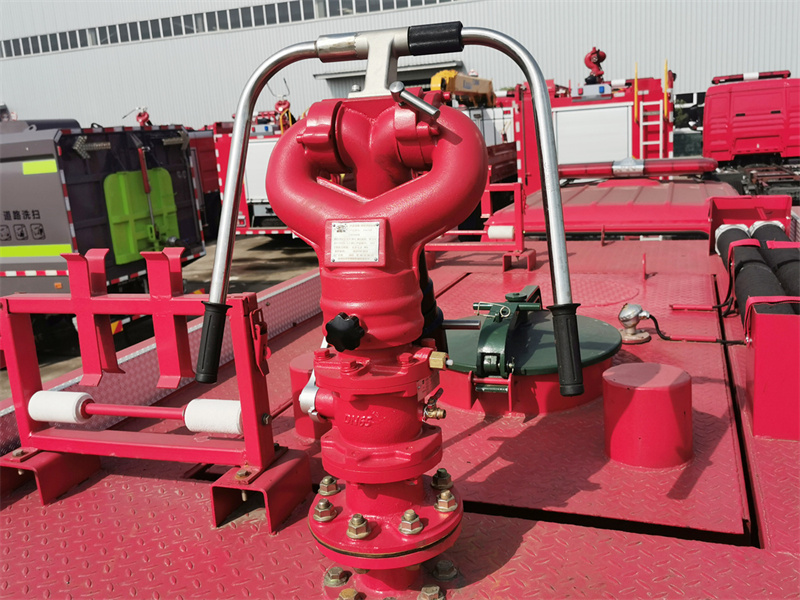

fire monitor
Model:PL24
Water monitor rated flow:24L/S
Water monitor rated reach≥45m
Pitching angle °:-30~70
Level back to the corner°:360
Model:PL24
Water monitor rated flow:24L/S
Water monitor rated reach≥45m
Pitching angle °:-30~70
Level back to the corner°:360
ISUZU 600P water tank fire truck is a fire fighting vehicle specially used for fire extinguishing and water supply. It has the following four main uses and advantages:
1. Fire extinguishing at fire scene: ISUZU 600P water tank fire truck is equipped with a large-capacity water tank, which can carry a large amount of water source to the fire scene. In this way, firefighters can provide sufficient water sources in time to quickly extinguish the fire and prevent the fire from spreading and expanding. In addition, the vehicle is also equipped with a high-pressure water gun and sprinkler system, which can adjust the water flow and spray mode to facilitate firefighters to accurately target the source of the fire and extinguish it.
2. Water supply support: ISUZU 600P water tank fire truck can also be used as a water supply support vehicle. The vehicle's water tank capacity is large and can provide a stable water source to other fire-fighting vehicles and fire-fighting facilities at the fire scene. This is important for firefighting and rescue operations, especially in areas far from water sources or with insufficient water pressure.
3. Fire-fighting equipment storage: The ISUZU 600P water tank fire truck is designed with multiple storage cabinets inside, which can store various fire-fighting equipment and tools, such as fire extinguishers, fire-fighting chemicals, life-saving ropes, etc. This allows firefighters to quickly obtain the equipment they need in an emergency and conduct firefighting and rescue operations more conveniently.
4. Advantages of body structure and handling performance: ISUZU 600P water tank fire truck adopts a solid body structure with good pressure resistance and anti-collision capabilities, which can protect the safety of firefighters and equipment in harsh environments. In addition, the vehicle adopts an advanced suspension system and a stable chassis design, which has good handling performance and stability. It can drive flexibly in various road conditions and reach the fire scene quickly.
