Work capacity:
4000 litersTruck model:
PT5040GXFSEngine power:
190HP/140KWEngine type:
4HK1-TC51Axle drive:
4×2Gear box:
ISUZU MLD, 6-speed, manualRemarks:

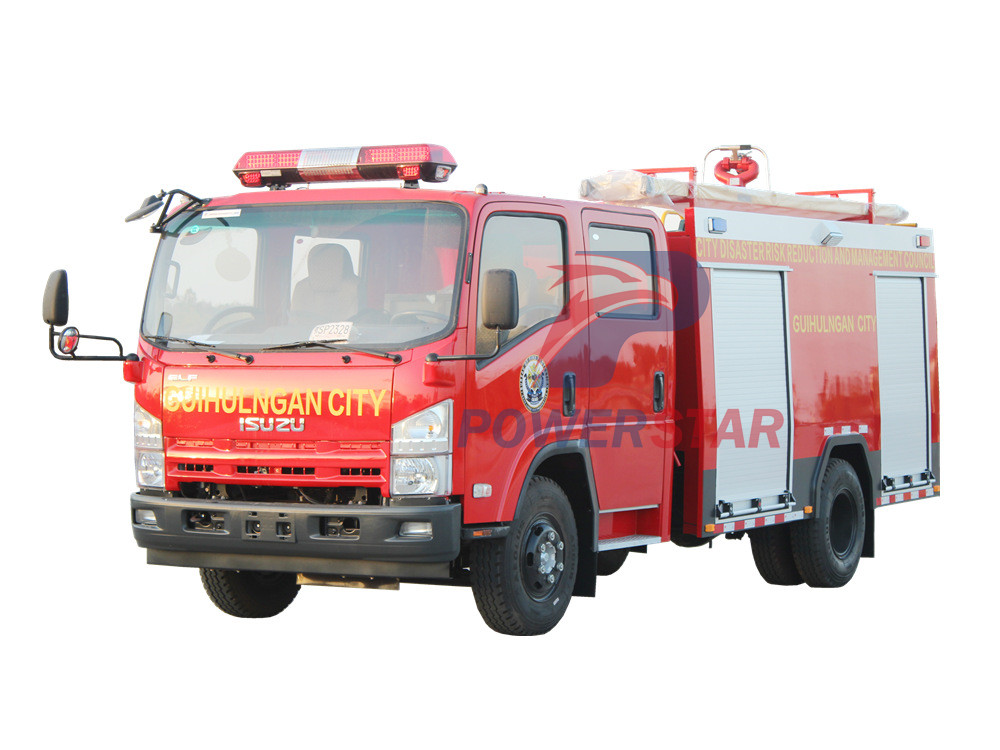

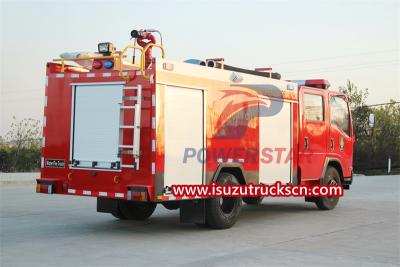

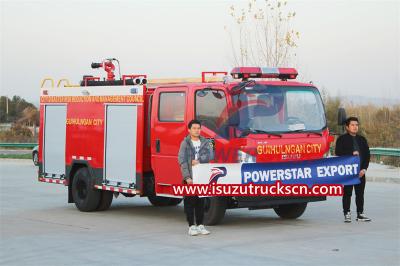

Custimized logo, stainless steel water tank for option.ISUZU small fire truck is one of the most popular models of fire trucks. The Isuzu NPR water tank fire truck is suitable for fire departments in small and medium-sized cities and towns and full-time fire brigades of mine enterprises to extinguish general material fires. In addition to the fire pump and fire cannon, the small water tank fire truck is also equipped with a large-capacity PP or stainless steel water tank and some necessary fire rescue equipment.

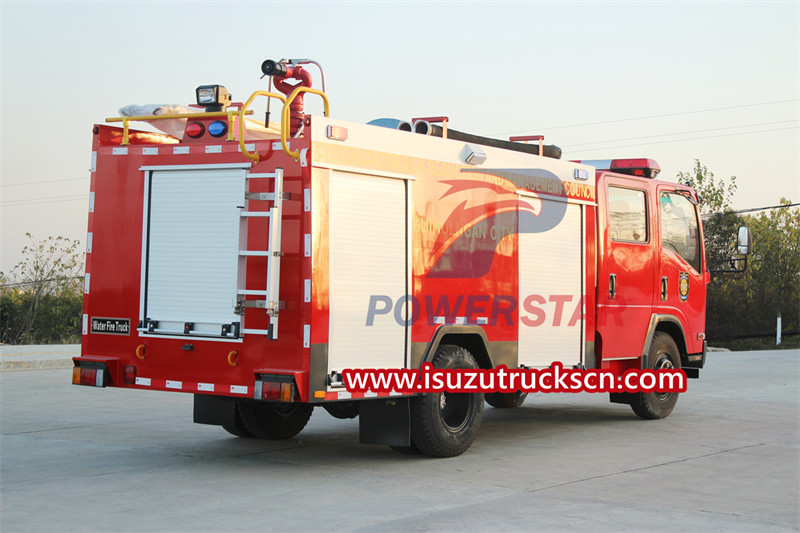

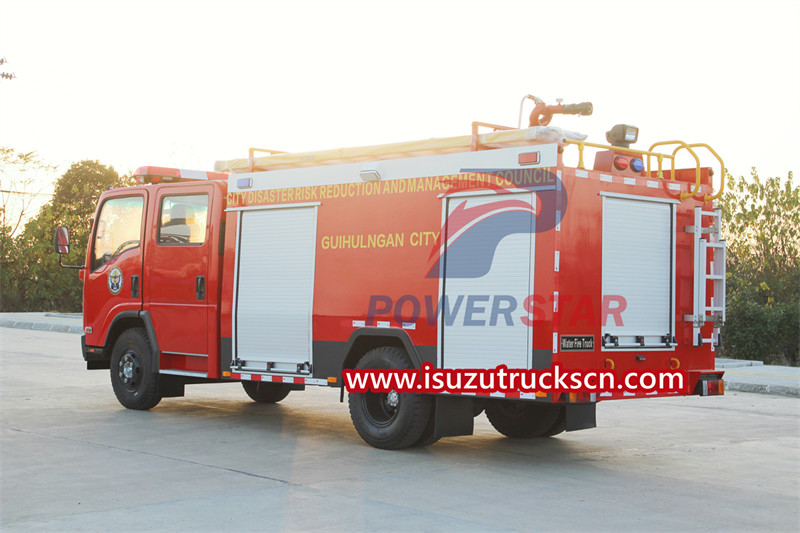

The ISUZU NPR pumper tanker has a sophisticated design, beautiful appearance, smooth lines, and a frame-type design structure. Various fire equipment are placed reasonably and fixed with special clamps. The rolling shutter door is made of high-strength aluminum alloy, opening and closing smoothly and reliably, and has good sealing performance. The fire truck has a compact structure and is suitable for fighting general fires and initial fires in complex terrain, urban streets, and narrow places. The most important thing is that it can directly absorb water from wild reservoirs, ponds, streams and other water sources for fire extinguishing work, or provide water supply to other fire extinguishing equipment.

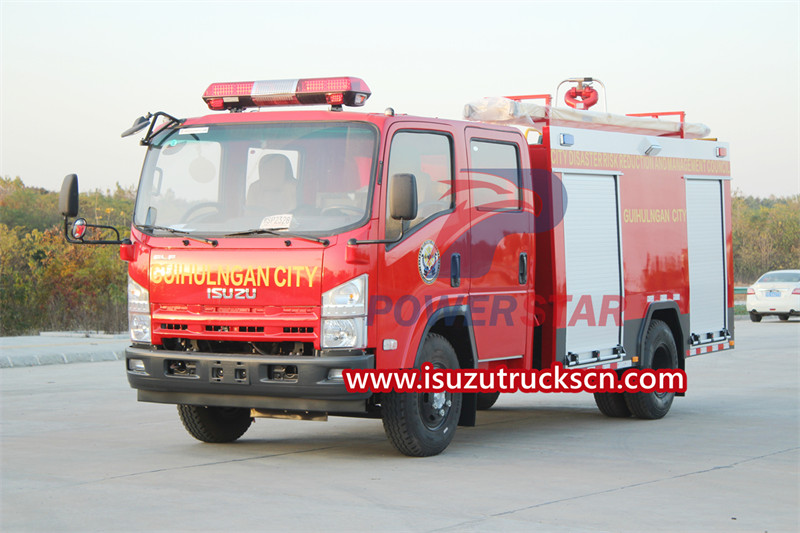

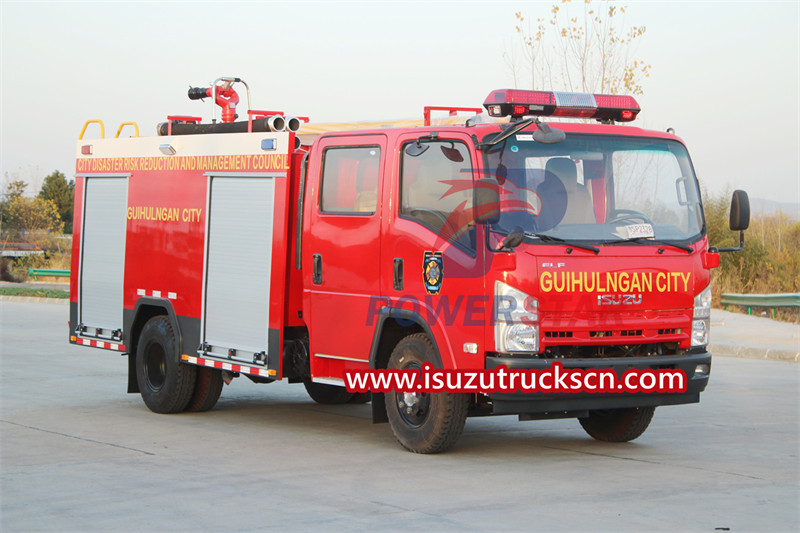

The vehicle is based on an original ISUZU double-row cab and is equipped with an Isuzu 4HK1-TC51 engine with a power of 190HP and a displacement of 5193ml. The chassis has a front axle load of 4 tons and a rear axle load of 7 tons, and is equipped with an Isuzu MLD six-speed gearbox. The cab is equipped with heating and cooling air conditioning, CD and radio, and the interior is comfortable. The entire vehicle is equipped with directional power assist, vacuum power assist, and shock-absorbing seats to improve driving comfort.
Products Parameters
Vehicle Parameters
General
Vehicle Model
PT5040GXFS
Vehicle Brand
POWERSTAR
Chassis Brand
ISUZU
Overall Dimension(mm)
7400×2300×2950
GVW/Curb Weight(kg)
11000/5600
Chassis Parameters
Cab
Seat
3+3
Air Conditioner
Yes
Engine
Fuel Type
diesel
Engine Model
4HK1-TC51
Engine Brand
ISUZU
Power(kw/hp)
140/190
Displacement(cc)
5193
Emission Standard
Euro 5
Chassis
Drive Type
4*2
Transmission
6 speed, Manual
Wheelbase(mm)
4175
Tyre Specification
235/70R17.5
Tyre No.(pcs)
6+1
Max Speed(km/h)
90
Paint
Red
Superstructure Parameters
Tank Volume
4000L
Tank material
Carbon steel, stainless steel is optional
Tank Thickness
4/3/3mm
Fire pump
CB10/30
Fire monitor
PS30
Range
≥55 m
Color and logo
Optional
Products Advantages

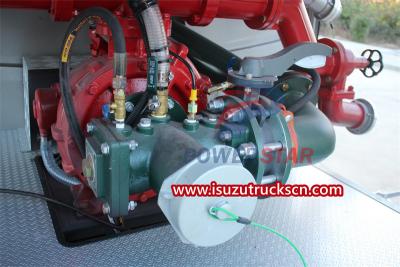

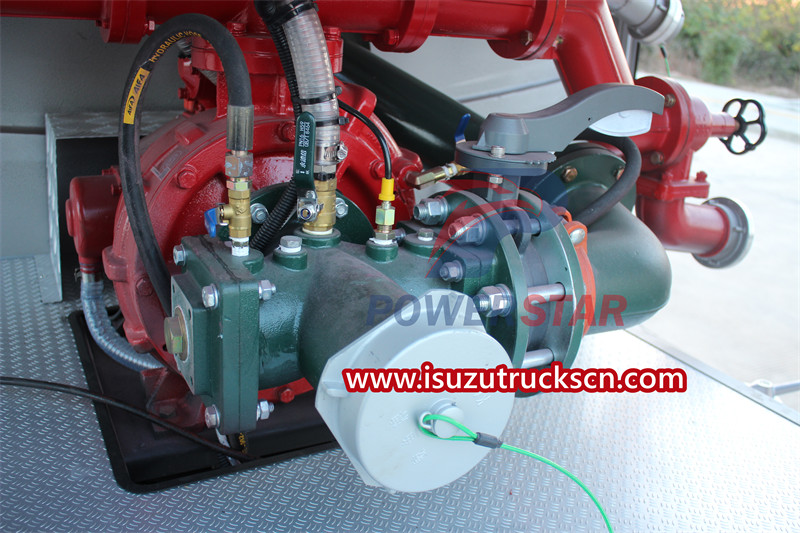

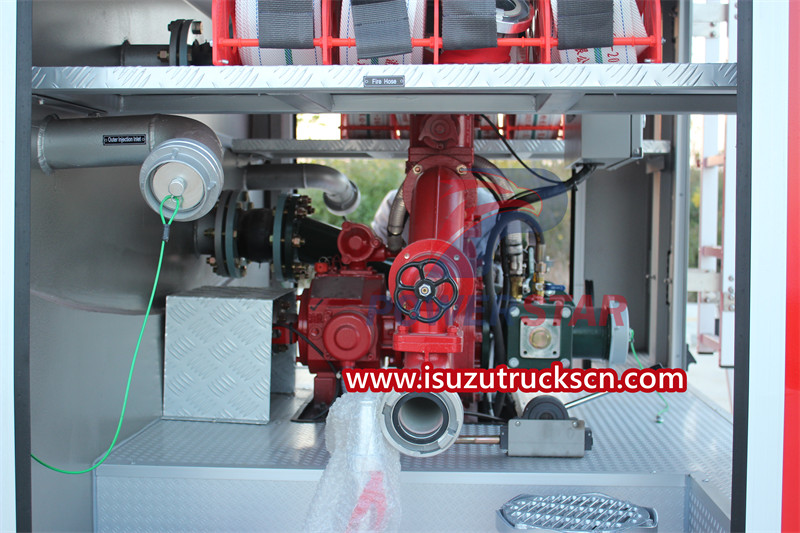

1. Low pressure\normal pressure\high pressure well-known brand fire pump, rapid water diversion, stable operation, simple operation and easy maintenance

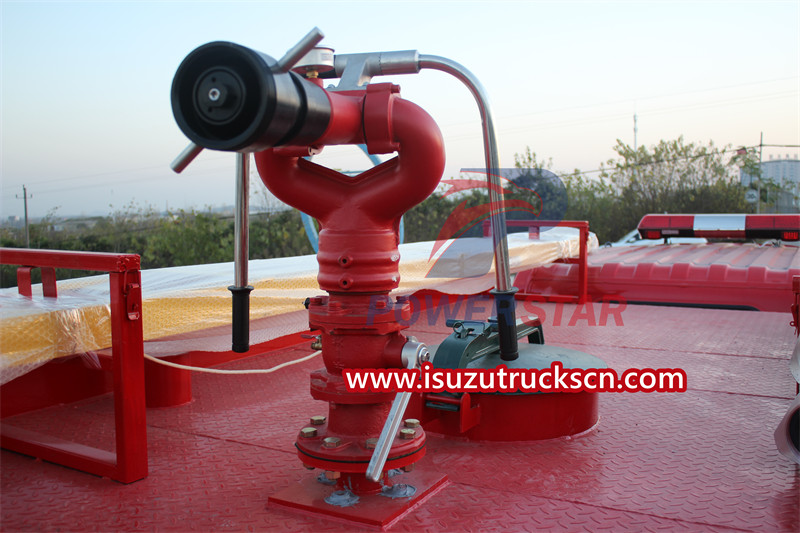

2. Large flow fire monitor, with long range, concentrated water flow, 360° rotation, and direct flow and mist spray.

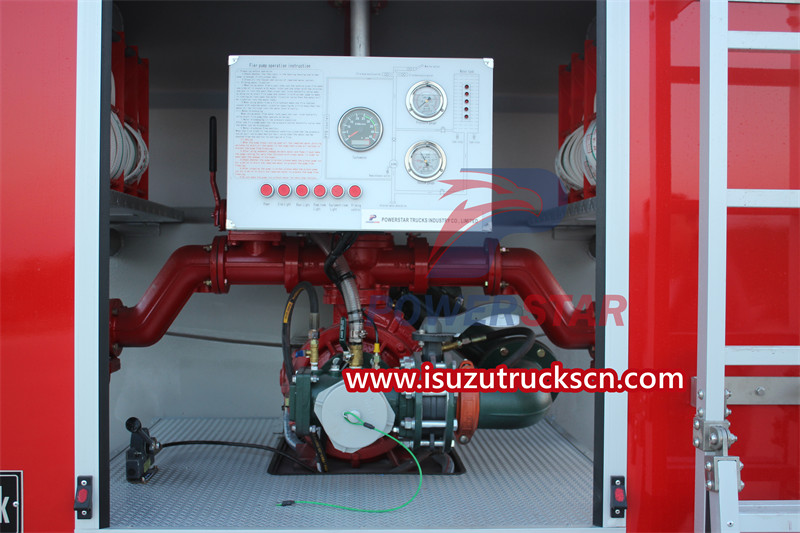

3. The operation panel is clear and easy to use, allowing you to monitor the vehicle’s working status at any time.

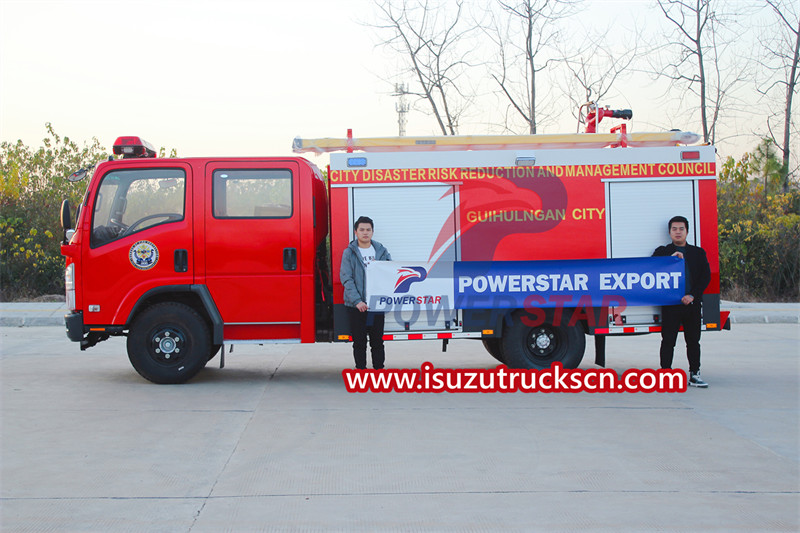

4. Double-cab crew cab with four doors, accommodating up to 6 firefighters

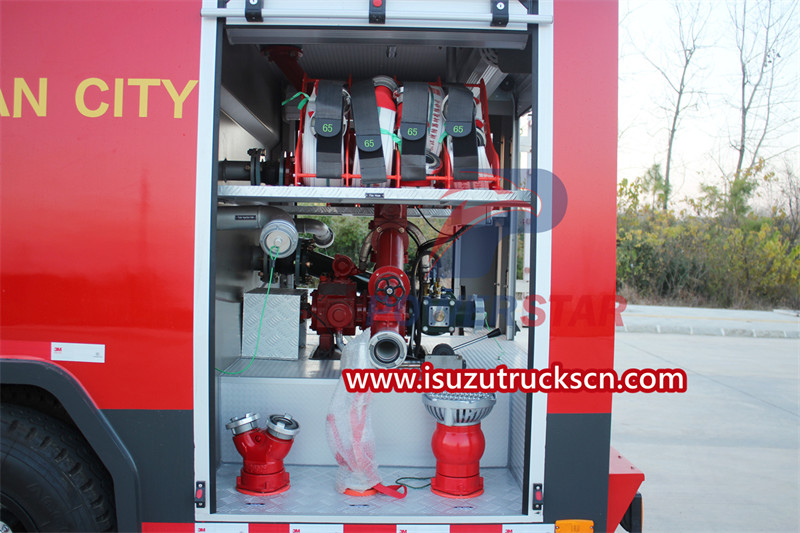

5. Equipped fire-fighting equipment includes air foam guns, water guns, fire suction pipes, water filters, water distributors, fire hoses, hose hooks, hose wrappers, reducing interfaces, same-type interfaces, DC water guns, and fire hydrants. Transition joints, blooming water guns, DC switch water guns, sheep picks, floor wrenches, suction pipe wrenches, etc.
6. Rescue equipment and demolition tools include ladders, motorized chain saws, hydraulic expansion pliers, portable universal cutters, ascenders, lifting air cushions, pneumatic demolition tools, gas cutters, axes, picks, pliers, shovels, etc.
