Work capacity:
12000 litersTruck model:
PT5120GXFPEngine power:
300 HPEngine type:
6HK1-TCHAxle drive:
6×4Gear box:
FAST 9-speed, manualRemarks:
Large capacity water tank and foam tank, with fire apparatusFoam fire trucks are specially designed to extinguish fires. They use powerful spraying capabilities to cover the fire source with foam, forming a thick foam layer. This layer of foam can not only isolate the contact between burning materials and air, reduce the temperature of the fire scene, but also inhibit the flame burning, thereby achieving the purpose of quickly extinguishing the fire. In high-risk industries, such as petrochemicals, aviation, transportation, etc., foam fire trucks play a vital role. It is not only related to the safety of enterprises, but also one of the important fire-fighting equipment to protect the safety of people's lives and property.
The structure of ISUZU utility fire truck mainly consists of a chassis, fire pump, waterway system, foam mixing system, foam fire extinguishing agent storage tank, foam proportioning mixer, fire water gun, fire pump, etc. The chassis serves as the support and carrier of the entire vehicle, providing the fire truck with the ability to travel. The fire pump is the core component of the foam fire truck and is used to provide high-pressure water source. The water system is responsible for transporting water to various fire-fighting equipment, while the foam mixing system mixes foam fire-extinguishing agent and water in proportion to form foam fire-extinguishing agent. The foam fire extinguishing agent storage tank is used to store the foam fire extinguishing agent, and the foam proportioning mixer automatically adjusts the concentration of the foam fire extinguishing agent according to the fire extinguishing needs. Fire water guns and fire pumps are the main tools for extinguishing fires. They are used to spray foam fire extinguishing agents or high-pressure water to extinguish fires.
Product Specifications

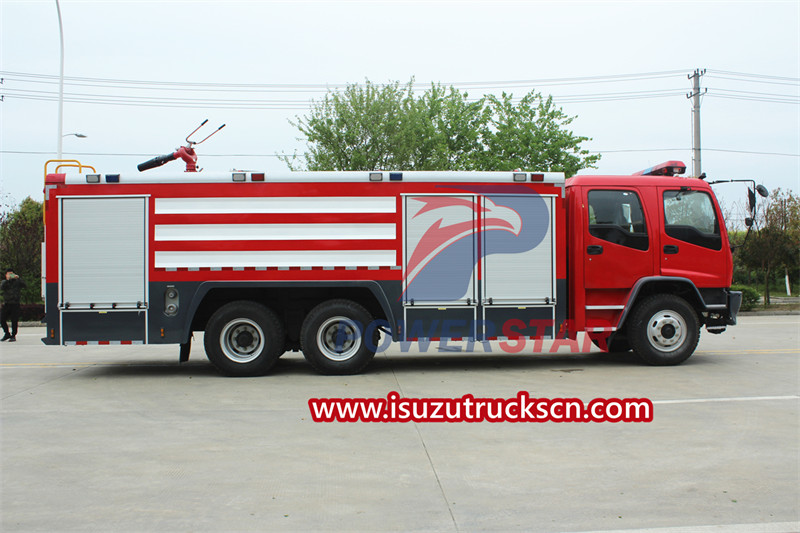

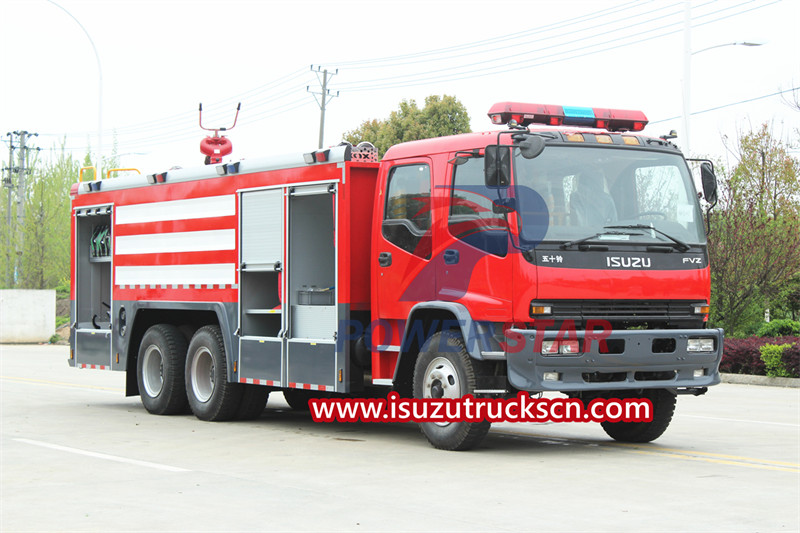

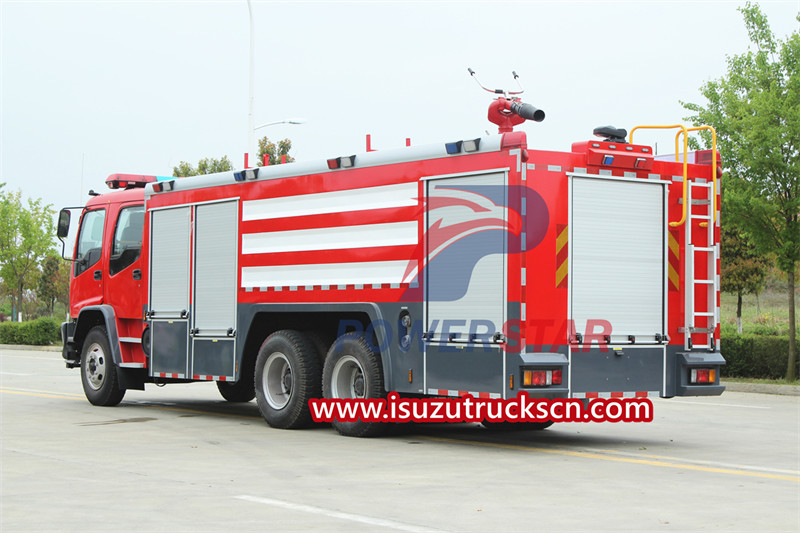

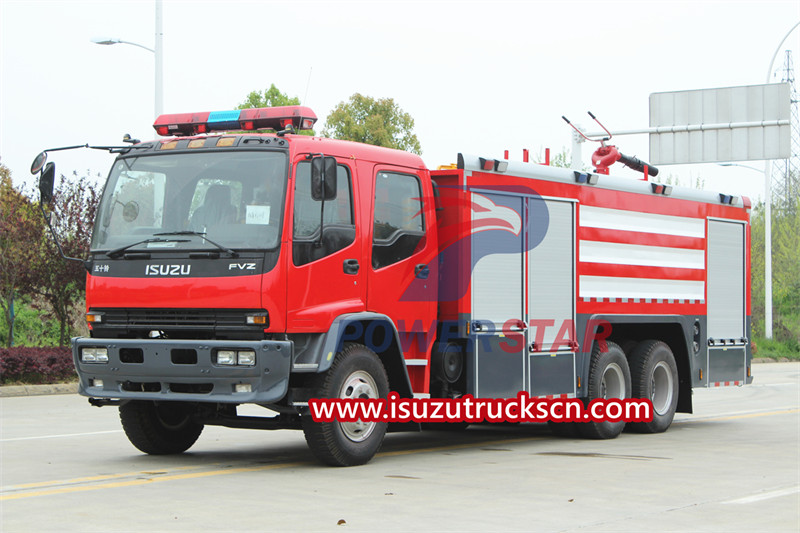

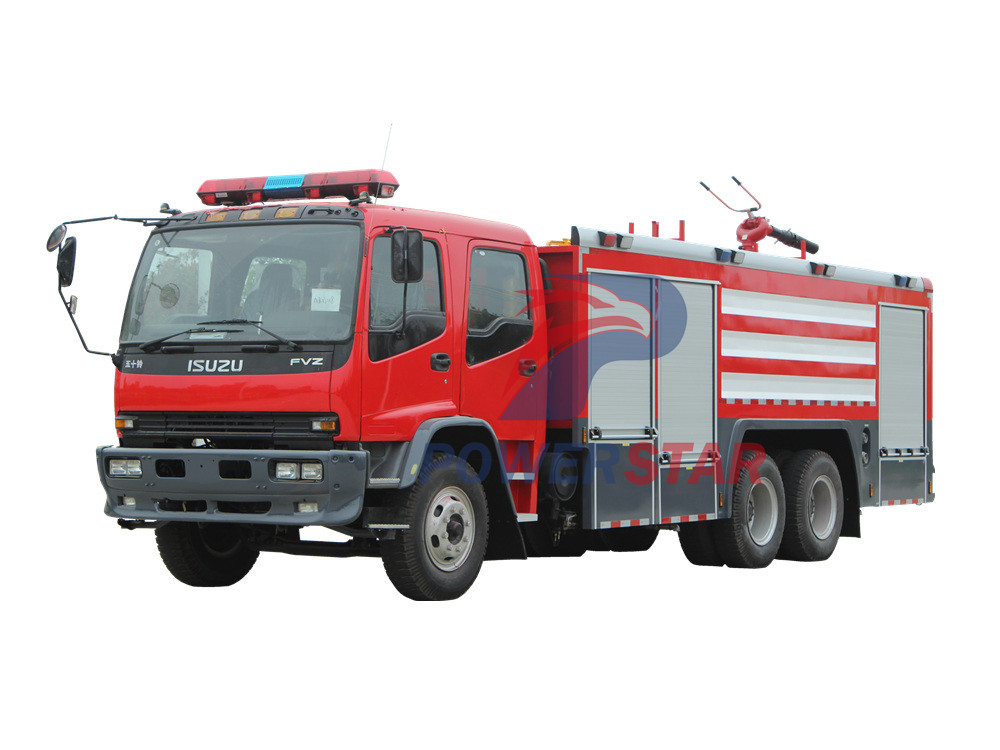

ISUZU FVZ Firefighting Truck
Specification
Truck Model
PT5120GXFP
Chassis Model
ISUZU FVZ

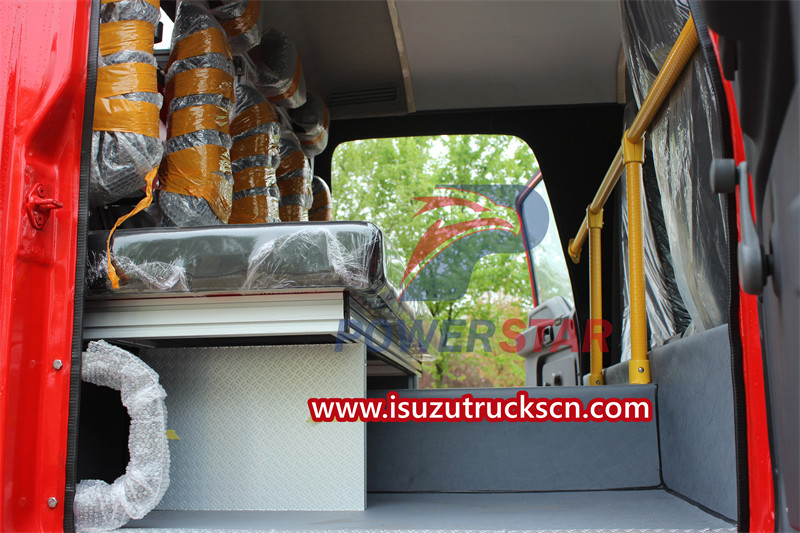

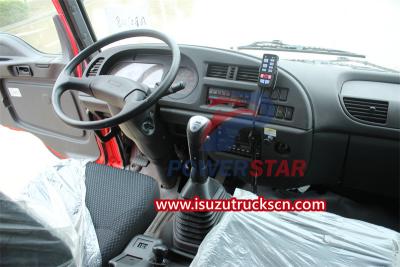

Cab
Double cabin, full steel materials, flat
cab, central locking function, electrical controlled window, adjustable
driver's seat and co-driver's seat, stereo radio cassette recorder, safety
belts, air horn, air conditioner, rear view mirrors, ABS
Driving Type
6x4 Left hand driving
Max Speed (km/h)
90
Overall Dimension (mm)
9500×2550×3500
GVW (kg)
25000
Curb Weight( kg)
11500
Wheelbase (mm)
4650+1300
Front wheel track (mm)
1960
Rear wheel tack (mm)
1855/1855
Clutch
Monolithic, dry, diaphragm spring clutches
Steering
Hydraulic steering with power assistance
Leaf Springs
9/10
Tire
Type
11.00R20
Nos
Total 11 pieces, including 1 spare tire
Gear box
Brand
FAST
Type
Manual
Forward Speeds
9
Rear Speeds
1
Bridge
Axle Nos
3
Front axles loading capacity (kg)
7000kg
Rear axles loading capacity (kg)
18000kg
Engine
Brand
ISUZU
Model
6HK1-TCH
Emission Standard
EURO V
Fuel Type
Diesel fuel
Air Intake Form
In-line 6 cylinders, water
cooling, turbocharging and intercooling
Cylinder Nos
6
Displacement (ml)
7790
Max. Output Power (kw)
221
Max output power (hp)
300
Max torque (N.m)
780
Braking System
Service Brake
Compressed air brake
Park Brake
Spring energy
Auxiliary brake
Engine exhaust brake
Electric system
24V
Upper body specifications
Tank
Water Tank
Capacity
10000L
Material
Q235 Carbon steel, with anti-rust
treatment inside
Foam Tank
Capacity
2000L
Material
Stainless steel
Dry Powder System
Capacity
2000L
Material
Q235 Carbon steel, with anti-rust
treatment inside
Pump
Model
CB 10/60
Rated Flow
60 L/S
Outlet Pressure
10 bars
Power
72KW
Rotate Speed
3100 r/min

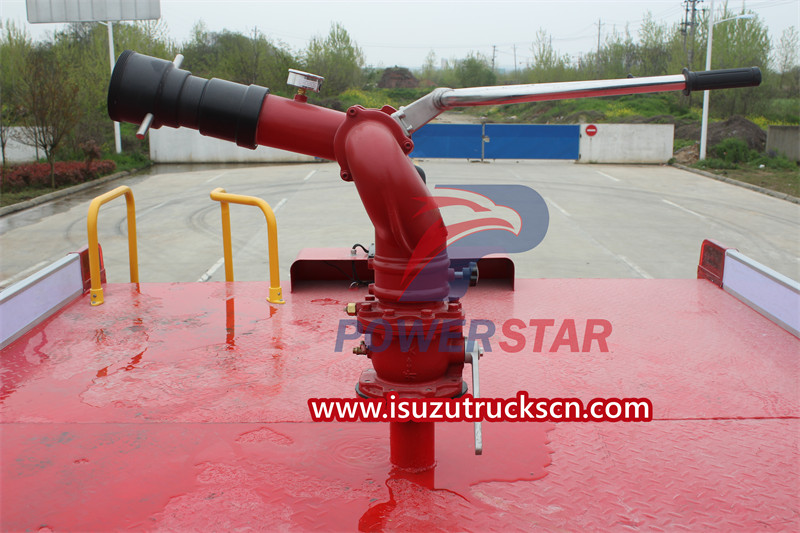

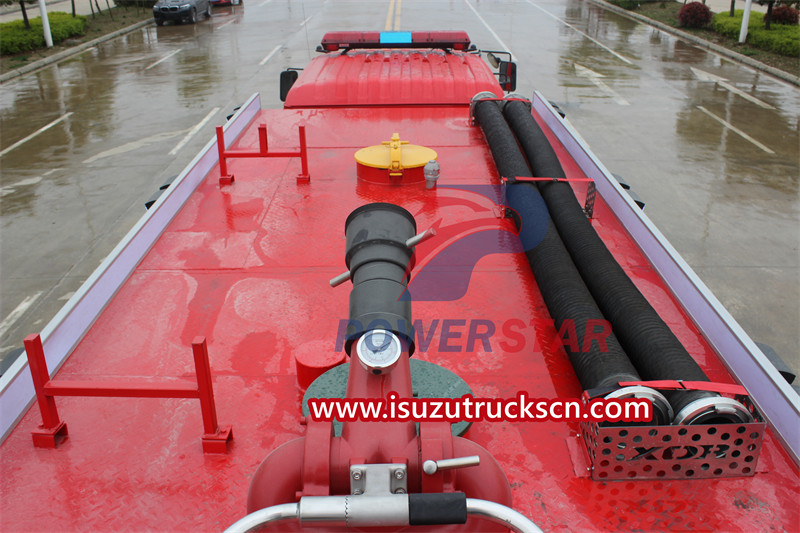

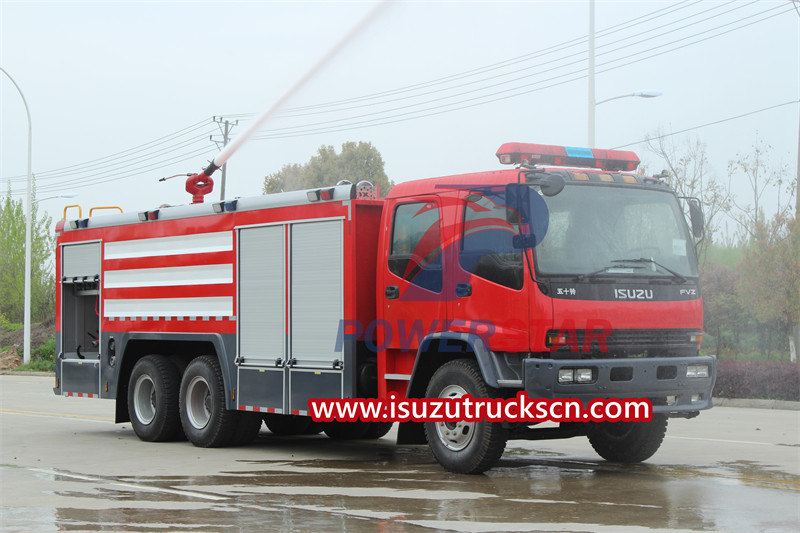

Water and Foam Monitor
Model
PL48
Flow
48 L/S
Range
Water
≥65 M
Foam
≥55 M
Working Pressure Range
1 MPA
Pitching Rotation Angle
-30°~ 70°
Horizontal Swing Angle
0 ~360°
PTO
Use sandwich PTO, splashing-type
lubricate, can put out fire when driving.
Carriage
Carriage is made of high quality steel
and Aluminum embossed sheet

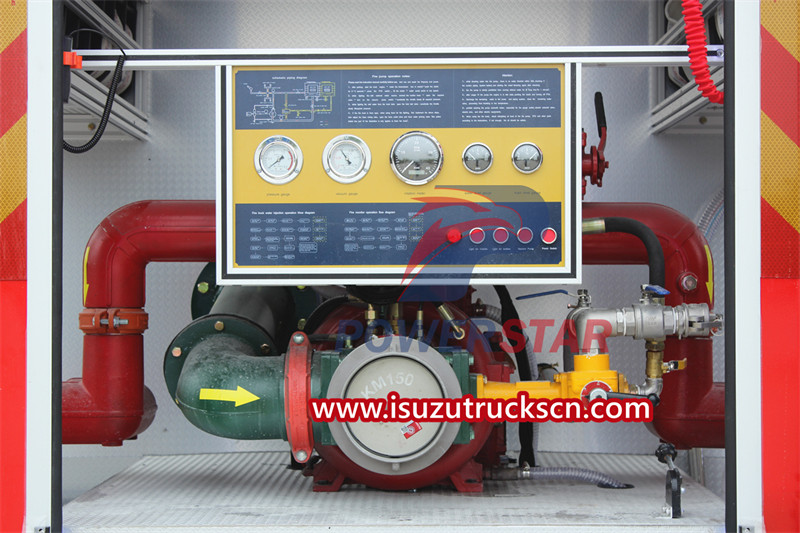

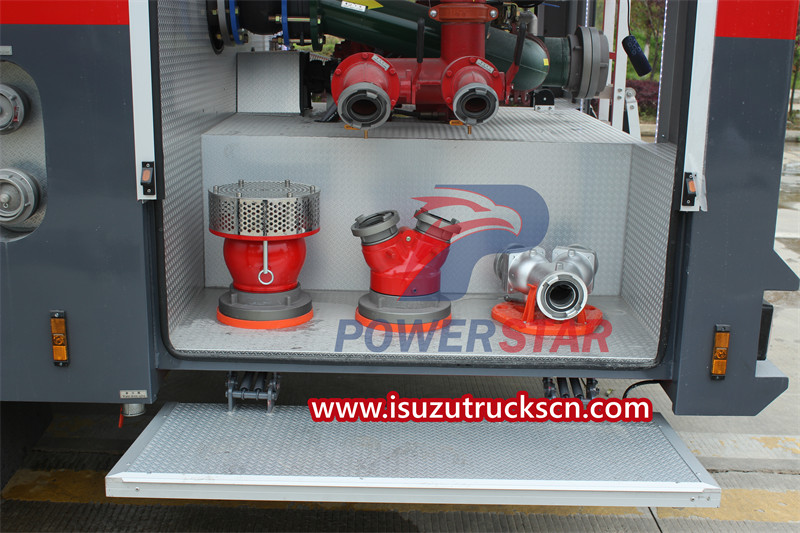

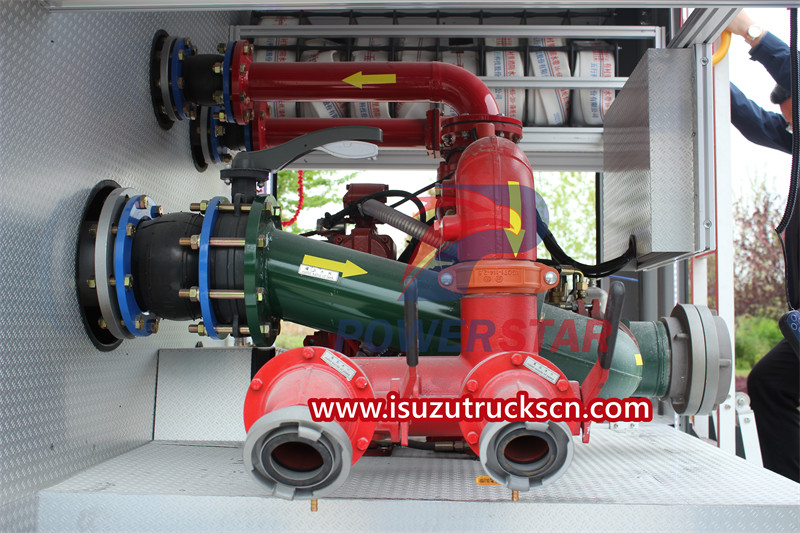

Pump room
On the rear or central of truck, there
are pump system and pipeline, reasonable structure. Easily operate all meters
and operate-switch.
Rolling Shutter Door
Light and high quality aluminum alloy
rolling shutter door, neatly open and close, good seal, low noise, beauty
outside, and with one set lock.
Color
Red color
Product characteristics:
Isuzu FVZ foam fire tender is an efficient and reliable firefighting equipment with the following performance characteristics:
1. Efficient fire extinguishing: ISUZU fire rescue trucks use advanced technology and design to quickly extinguish all types of fires, especially liquid fuel fires. Its powerful foam spraying capacity and high-flow water pump can quickly cover the fire source and reduce the intensity of the fire, thereby achieving the purpose of quickly extinguishing the fire.
2. Prevent re-ignition: The foam sprayed by the firefighting truck has good coverage and heat insulation, which can effectively isolate the contact between burning materials and air and reduce the possibility of re-ignition. At the same time, by using foam treated with flame retardants, a protective film can be formed on the foam surface to prevent liquid fuel from evaporating, further reducing the risk of fire re-ignition.
3. Easy to operate: ISUZU FVZ firefighter truck has a compact structure and easy operation, and can adapt to various complex environments. The driver can quickly adjust parameters such as water pump and foam ratio through the control panel to achieve fast and accurate fire extinguishing operations.
4. High reliability: This fire truck is made of high-quality parts and materials and has good durability and reliability. Even under extremely harsh conditions, it can ensure stable performance and ensure the smooth progress of fire extinguishing work.
5. Strong adaptability: Isuzu FVZ fire pumper can adapt to various water sources and environmental conditions. Its large-capacity water tank and high-efficiency water pump can ensure continuous water supply for a long time and meet fire extinguishing needs of different scales. At the same time, the vehicle is also equipped with a variety of accessories, which can quickly replace different spray devices according to actual needs to adapt to the fighting of different types of fires.
6. Environmentally friendly: The foam and flame retardants used in this fire truck comply with environmental standards and are harmless to the environment. At the same time, through the rational use of foam treated with flame retardants, harmful gases and smoke generated during fire extinguishing can be effectively reduced, and the negative impact on the surrounding environment can be reduced.
Recommendations for using foam fire trucks:
In the process of using foam fire trucks to extinguish fires, it is necessary to make judgments and operations based on the actual situation. Here are some suggestions:
1. Assess the size of the fire: Before fighting a fire, firefighters need to assess the size and spread of the fire to determine the best firefighting strategy. When assessing the intensity of a fire, factors such as the type of fire source, amount of combustibles, wind direction, topography, etc. need to be considered.
2. Choose the right foam: Different types of fires require different types of foam to extinguish. For example, oil fires require the use of non-reactive foam, while electrical fires require the use of non-conductive foam. Therefore, firefighters need to choose appropriate foam according to the actual situation to ensure safe and effective fire extinguishing.
3. Determine the spray method: Depending on the size and spread of the fire, firefighters need to determine the best spray method. For example, for smaller fire sources, you can use a handheld foam gun for spraying; for larger fire sources, you need to use a vehicle-mounted foam cannon or foam gun for spraying.
4. Control pressure and flow: The spray pressure and flow of foam fire trucks need to be moderately controlled. Too high pressure and flow may cause the fire to expand, while too low pressure and flow may not effectively extinguish the fire. Therefore, firefighters need to appropriately adjust the spray pressure and flow rate of the foam fire truck according to the actual situation.
5. Protect people and property: During fire fighting, firefighters need to always pay attention to the safety of surrounding people and property to avoid unnecessary losses to people and property. Therefore, firefighters need to take appropriate measures, such as setting up cordons, evacuating people, etc., to ensure the safety of people and property.
