Isuzu GIGA 6x4 14000L bitumen distributor truck
POWERSTAR specializes in manufacturing asphalt repair and maintenance equipment and is a reliable asphalt paving truck manufacturer and supplier. This asphalt paving truck has a large 14,000 liters asphalt tank and a high-powered 380HP engine, suitable for heating and spraying modified asphalt and emulsified asphalt. We recommend this asphalt paving truck because it is equipped with a fully automatic asphalt dispensing system, high efficiency, and good asphalt tank insulation performance, suitable for road construction and maintenance applications on large construction sites.
Work capacity:
14000LTruck model:
PT5250GZREngine power:
380.HPEngine type:
6UZ1-TCG61Axle drive:
6×4,LHDGear box:
FAST 12-speed, manualRemarks:
14000L spraying capacityIsuzu GIGA 14000L fully automatic asphalt distributor is an easy-to-operate, economical and practical asphalt distributor produced by our company. It is a construction equipment for distributing emulsified asphalt, diluted asphalt, hot asphalt, hot modified asphalt and various adhesives.
On a busy road construction site, an efficient and reliable asphalt distributor is an important tool to ensure the quality and progress of the project. Isuzu GIGA 6x4 14000L Bitumen Distributor Truck is such a high-quality product that combines performance and practicality. It not only carries the excellent quality of the Isuzu brand, but also becomes a powerful assistant in the field of road construction with its powerful functions and humanized design.
|
Isuzu GIGA 6X4 14000L bitumen distributor truck |
||
|
General |
Truck Model |
PT5250GZR |
|
Cab |
Isuzu GIGA 6x4 cabin,one and half row,3 passengers,with A/C,USB... |
|
|
Dimension (L×W×H) |
10150×2550×3860 mm |
|
|
GVW/Curb weight |
25000/10850kg |
|
|
Drive Type |
6×4,LHD |
|
|
Max speed |
89km/h |
|
|
Engine |
Engine Type |
6 cylinders in line, 4-stroke,water cooling, turbo-charged diesel engine, inter-cooling |
|
Engine model |
Isuzu 6UZ1-TCG61 |
|
|
Horse power |
380HP/279kw |
|
|
Fuel Type |
Diesel |
|
|
Emission Standard |
Euro 6 |
|
|
Displacement |
9839ml |
|
|
Maximum Torque |
1800N.m |
|
|
Auxiliary Engine Model |
4TE35A-39A |
|
|
Auxiliary Engine Power |
26 Kw/35HP |
|
|
Chassis |
Chassis Brand |
Isuzu |
|
Wheelbase |
4600+1370mm |
|
|
Tire No. |
10+1 |
|
|
Tire size |
315/80R22.5 |
|
|
Axle No. |
3 |
|
|
Steering Wheel |
With power-assisted |
|
|
Gear Box |
FAST 12-speed, manual |
|
|
Brake |
Air brake |
|
|
Tank |
material |
Stainless steel/carbon steel |
|
capacity |
14000L |
|
|
Asphalt Pump |
Famous brand |
|
|
Spray |
Width |
6000 mm |
|
Volume |
0.2-3 kg/㎡ |
|
|
Precision |
1% |
|
|
Medium |
Modified asphalt, hot asphalt, emulsified asphalt and other asphalt media |
|
|
Apply |
road paving,etc |
|
|
Asphalt Heating Method |
Thermal oil heating (with automatic temperature control) |
|
|
Asphalt Heating Rate |
12 ℃/h |
|
|
Burner Power |
20×104 kcal/h |
|
|
Recommended Construction Speed |
3-10 km/h |
|
|
Equipment |
The intelligent asphalt spreader truck consists of a car chassis, an asphalt tank, an asphalt pumping and spraying system, a thermal oil heating system, a hydraulic system, a combustion system, a control system, a pneumatic system, and an operating platform. |
|
Isuzu GIGA 6x4 14000L Asphalt Spreader: A Powerful Tool for Road Maintenance
As a leader in the field of road maintenance and construction, the Isuzu GIGA 6x4 14000L Asphalt Spreader has won wide acclaim for its excellent performance, powerful power and efficient spraying and paving capabilities.
Powerful Heart: 6UZ1-TCG61 380HP Engine
The core power of the GIGA 6x4 14000L Asphalt Spreader comes from the 6UZ1-TCG61 380HP engine. This engine is well-known for its excellent power performance and reliability, providing the vehicle with a steady stream of power output. The powerful power of 380 horsepower enables the vehicle to handle various complex road conditions and heavy-load tasks with ease. At the same time, the engine also uses advanced fuel injection technology and emission control technology, which not only reduces fuel consumption, but also reduces the emission of harmful substances, meeting modern environmental protection requirements.
Efficient auxiliary power: 26kw 4TE35A-39A auxiliary engine
In addition to the main engine, the GIGA 6x4 14000L asphalt spreader is also equipped with a 26kw 4TE35A-39A auxiliary engine. This auxiliary engine is mainly used to drive the spraying system and paving system of the vehicle, ensuring the precise spreading and uniform paving of asphalt. The addition of the auxiliary engine not only improves the working efficiency of the vehicle, but also reduces the load of the main engine and extends the service life of the vehicle.

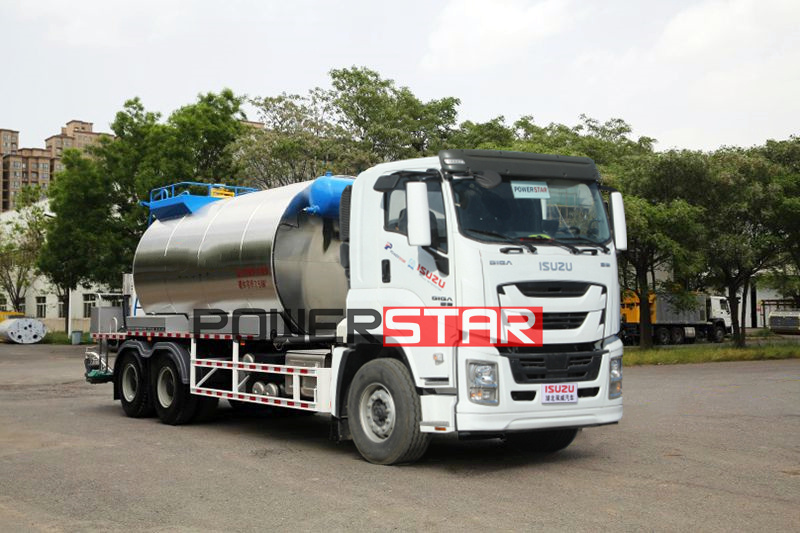

Isuzu GIGA 6x4 14000L bitumen distributor truck
Excellent spraying and paving capabilities
The spraying and paving capabilities of the GIGA 6x4 14000L asphalt spreader are one of its biggest highlights. The vehicle is equipped with a 14,000-liter ultra-large capacity tank, which can load enough asphalt materials to meet the needs of long-term and large-scale spraying and paving. At the same time, advanced heating and insulation technology is used inside the tank to ensure the temperature stability of the asphalt material and avoid affecting the spraying effect due to temperature fluctuations.
In terms of the spraying system, GIGA 6x4 14000L uses advanced spraying technology and control systems. The spraying system can accurately adjust the spraying amount and spraying width of asphalt according to the needs of road maintenance, ensuring that each spraying can achieve the best effect. At the same time, the control system also has an intelligent control function, which can automatically adjust the spraying parameters according to parameters such as vehicle speed and road conditions, greatly improving work efficiency and spraying quality.
The spraying ability of Isuzu GIGA 6x4 14000L asphalt spreader is very outstanding, thanks to its advanced spraying system and exquisite process design. The following is a detailed analysis of its spraying ability:
1. Spraying uniformity
● High-precision nozzle: This model is equipped with a high-precision nozzle, which can ensure that the asphalt is evenly distributed during the spraying process to avoid leakage or overspraying.
● Intelligent control system: Through the intelligent control system, the driver can accurately adjust the spraying parameters, such as spraying amount, spraying width, etc., according to the specific needs of road construction, to further ensure the uniformity of spraying.
2. Spraying range and flexibility
● Adjustable spraying width: The spraying system of GIGA 6x4 14000L has an adjustable spraying width, which can be flexibly adjusted according to the road width and construction requirements to ensure that the asphalt can cover the entire road surface.
● Multi-section folding spraying rod: The spraying rod adopts a multi-section folding design, which can be moved up and down and unfolded left and right, which not only expands the spraying range, but also effectively avoids obstacles to ensure the continuity and integrity of the spraying.
3. Spraying efficiency
● Large tank capacity: The ultra-large tank capacity of 14000L enables the vehicle to load more asphalt at one time, reducing the number of frequent refueling and improving the spraying efficiency.
● Efficient power system: The powerful engine and auxiliary engine combination provide sufficient power support for the spraying system, ensuring the efficient spraying operation.
4. Spraying accuracy and controllability
● Precise control: The spraying system uses high-precision sensors and control valves, which can monitor and adjust the spraying parameters in real time to ensure the accuracy and controllability of the spraying.
● Multiple control methods: Spraying control can be completed not only in the cab, but also on the operating platform at the rear of the vehicle, which is convenient for the driver to make flexible adjustments according to actual conditions.
5. Adaptability
● Multiple asphalt types: This model can spray various types of asphalt, including emulsified asphalt, diluted asphalt, hot asphalt, high-viscosity modified asphalt, etc., meeting the needs of different road construction.
● Wide applicability: GIGA 6x4 14000L is suitable for various road construction scenarios, including highways, urban roads, rural roads, etc., and has a wide range of applicability.

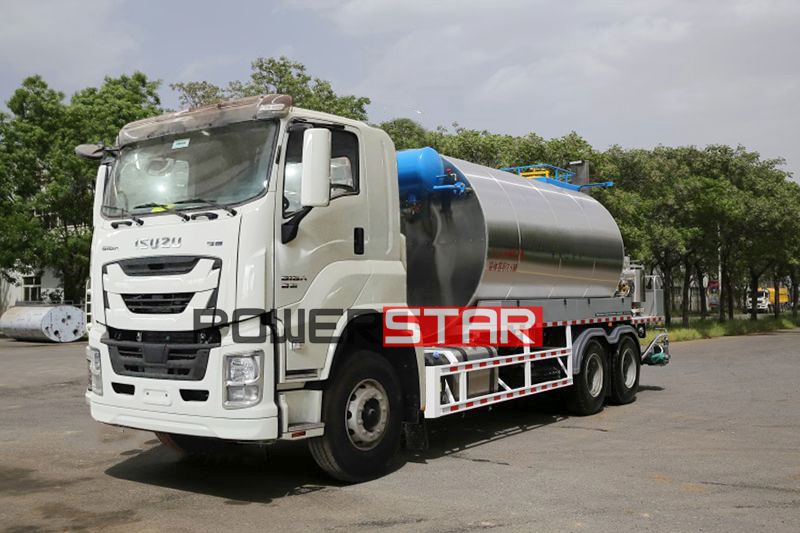

Isuzu 6x4 14000L asphalt spreader truck
ISUZU GIGA fully automatic asphalt distributor
The paving effect of Isuzu GIGA 6x4 14000L asphalt spreader is very good, which is mainly due to its advanced technology and exquisite craftsmanship. The following is a detailed analysis of its paving effect:
1. Paving uniformity
● High-precision spraying system: This model is equipped with an advanced spraying system that can accurately control the spraying amount and spraying width of asphalt to ensure that the asphalt is evenly distributed on the road surface.
● Intelligent control system: Through the intelligent control system, the driver can adjust the spraying parameters according to the specific needs of road construction to further ensure the uniformity of paving.
2. Paving flatness
● Advanced paving technology: GIGA 6x4 14000L adopts advanced paving technology to ensure that the paved road surface is flat and beautiful.
● High-precision paving system: The paving system of this model adopts high-precision sensors and control valves, which can monitor and adjust the paving height and width in real time to ensure that the paved road surface meets the design requirements.
3. Paving efficiency
● Large-capacity tank: The ultra-large tank capacity of 14000L enables the vehicle to load more asphalt at one time, reducing the number of frequent refueling and improving work efficiency.
● Efficient power system: The combination of 6UZ1-TCG61 380HP engine and 26kw 4TE35A-39A auxiliary engine provides strong power support for the vehicle and ensures efficient paving operations.
4. Environmental protection and sustainability
● Low emission technology: This model adopts advanced emission control technology to reduce the emission of harmful substances and meet modern environmental protection requirements.
● Efficient energy utilization: Through optimized design and advanced control system, GIGA 6x4 14000L can efficiently utilize energy, reducing energy consumption and waste.

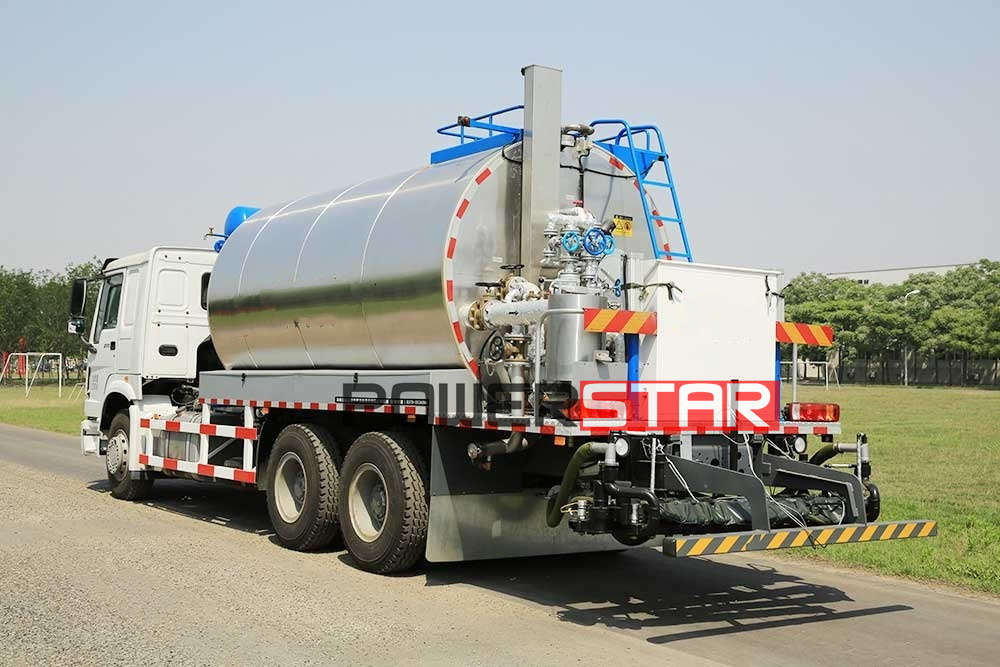

Isuzu GIGA 6x4 bitumen sprayer truck
Brand New Isuzu GIGA Cement Slurry Distributor Truck
Excellent road maintenance effect
With a powerful power system and efficient spraying and paving capabilities, the GIGA 6x4 14000L asphalt spreader has shown excellent results in the field of road maintenance. Whether it is a highway, urban road or rural road, the vehicle can easily cope with various complex road conditions and spraying needs. The road surface after spraying is flat and smooth, and the asphalt material is evenly distributed, which greatly improves the durability and service life of the road.
In addition, GIGA 6x4 14000L also has excellent environmental performance. The vehicle adopts advanced emission control technology and noise control technology to ensure that the impact on the environment is minimized during the work process. At the same time, the vehicle is also equipped with various safety protection measures and driving assistance systems to provide drivers with all-round safety protection and comfortable driving experience.
Isuzu VC61 automatic asphalt distributor truck
Asphalt paving scene
