Isuzu VC61 6UZ1 engine foam pumper fire truck which produced by POWERSTAR,is a truck use for fire fighting.The truck is modified on the Isuzu VC61 GIGA 6x4 chassis,with 4600+1370mm wheelbase,6UZ1-TCG60 350HP diesel engine,FAST 12 speed gearbox,the cabin is double row,with A/C,USB,electronic windows,direction assistance.The truck equipped with 10cbm water tank and 2cbm foam tank,has a pump room(CB10/60 fire pump,fire equipment),a tool room,witch can assist firefighting operations.
Work capacity:
12CBMTruck model:
PT5250GZXEngine power:
350HPEngine type:
6UZ1-TCG60Axle drive:
6X4,left hand driveGear box:
FAST gearbox, manual, 12 gears forwards with 2 reverseRemarks:
10cbm water tank，2cbm foam tankProduct Description
Isuzu GIGA Fire Fighting Vehicles Stock is equipped with a 6UZ1-TCG60 350 horsepower engine, which is powerful and equipped with a FAST 12-speed gearbox, which shifts smoothly. The vehicle is equipped with a 10cbm water tank and a 2cbm foam tank, and is equipped with a fire pump, a fire water cannon and firefighting equipment to work together to complete firefighting operations quickly and efficiently.
With its powerful power and excellent performance, the Isuzu VC61 6x4 foam water tank fire truck has become an ideal choice for fire departments to cope with various fire challenges. The vehicle adopts a 6x4 drive form, providing excellent road adaptability and off-road capabilities, ensuring that it can quickly arrive at the scene in complex and changing rescue environments.
Specifications of Isuzu GIGA 6X4 foam water truck
|
Isuzu VC61 6x4 foam water fire truck |
|||
|
Main specification |
Truck brand |
POWERSTAR |
|
|
Overall dimension(L*W*H) |
10000*2540*3640mm |
||
|
Cabin |
Isuzu VC61 cab, 2+4 seats, with air conditioner , electronic windows, USB |
||
|
GVW/Curb weight |
25000/9200kg |
||
|
Chassis |
Chassis model |
Isuzu VC61/GIGA |
|
|
Drive model |
6X4,left hand drive |
||
|
Front/rear axle loading |
7,000/18000kg |
||
|
Wheel Base |
4600+1370mm |
||
|
Front and rear overhang |
1370/2660mm |
||
|
Tyre size & number |
315/80R22.5,10+1wheel |
||
|
Transmission |
FAST gearbox, manual, 12 gears forwards with 2 reverse |
||
|
Color |
Red and white including tanker, standard. |
||
|
Max speed |
95km/h |
||
|
Engine |
Engine model |
6UZ1-TCG60 |
|
|
Horse power |
350HP/256Kw |
||
|
Displacement |
9839ml |
||
|
Rotating speed |
1800rpm |
||
|
Emission |
EURO 6 |
||
|
WATER TANK AND FOAM TANK SPECIFICATION |
|||
|
Tank |
Capacity |
10,000L water tank and 2000L foam tank |
|
|
Material |
Water tank carbon steel,foam tank stainless steel |
||
|
Fire pump |
Model |
CB10/60 |
|
|
Pressure |
1MPa |
||
|
Max working pressure |
1.232MPa |
||
|
Flux |
60L/s |
||
|
Max suction height |
7m |
||
|
Rated speed |
3286±50r/min |
||
|
Speed Ratio |
1:1.44 |
||
|
Fire monitor |
Model |
PL8/48 |
|
|
Flow |
48L/s |
||
|
Rated working pressure |
0.8MPa |
||
|
Max working pressure |
1.0MPa |
||
|
Range |
Water |
≥70m |
|
|
Foam |
≥60 |
||
|
Standard configuration |
Have alarm rotating light and which is mounted on top of the cabin , have ladder , have manhole |
||
Isuzu GIGA 6x4 12 cbm foam fire truck is an important tool for fire departments to cope with various fire challenges. It not only improves the efficiency of firefighting, but also reduces the labor intensity of firefighters, providing strong protection for the safety of people's lives and property. In the future firefighting career, Isuzu VC61 6x4 foam pump fire truck will continue to play its important role and contribute its own strength to the harmony and stability of society.
Isuzu VC61 6x4 6UZ1 engine foam pump fire truck stands at the forefront of firefighting technology, integrating power, efficiency and versatility to effectively respond to emergencies. At its core is the powerful 6UZ1-TCG60 engine, a 350-horsepower engine that drives this firefighting miracle precisely and powerfully. This engine, known for its reliability and performance, ensures that Isuzu VC61 is always able to respond to crises quickly and flexibly.
Body and chassis design
The body size of the Isuzu VC61 6x4 foam pump fire truck is 9850*2540*3550mm, and the wheelbase is 4600+1370mm, which ensures that the vehicle has good passability and stability. The body is made of high-strength steel, with excellent impact resistance and deformation resistance, providing a safe working environment for firefighters.
The chassis part adopts a 6x4 configuration, with excellent stability and traction, which is essential for crossing various terrains and reaching emergency areas. Its sturdy chassis combined with a powerful transmission system can run smoothly even in harsh conditions, ensuring that firefighters can quickly reach the fire scene and start control work immediately. At the same time, it is matched with a FAST12-speed gearbox with 12 forward gears and 2 reverse gears, providing a smooth shifting feel and excellent transmission efficiency. At the same time, the vehicle is also equipped with an ABS anti-lock braking system, which further improves driving safety.
Engine performance
The core power of the vehicle comes from a 6UZ1-TCG60 engine, a diesel engine carefully built by Qingling Engine Company. The engine adopts an inline six-cylinder design with a displacement of 9.839 liters, which meets the National VI emission standards. It not only provides a maximum output power of 350 horsepower (256 kilowatts), but also has super torque, ensuring the stable performance of the vehicle under heavy load and high speed.
The 6UZ1-TCG60 engine adopts an inline 6-cylinder 4-stroke, supercharged intercooling and EGR cooling technology, which effectively improves fuel economy and emission performance. At the same time, its advanced technologies such as water cooling, common rail injection and variable section supercharger enable the engine to achieve low noise and low emissions while maintaining efficient operation.

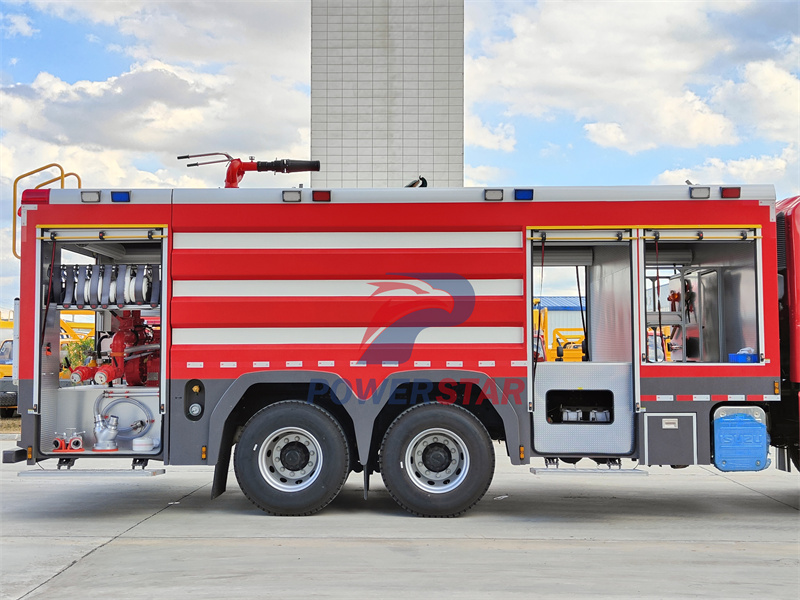

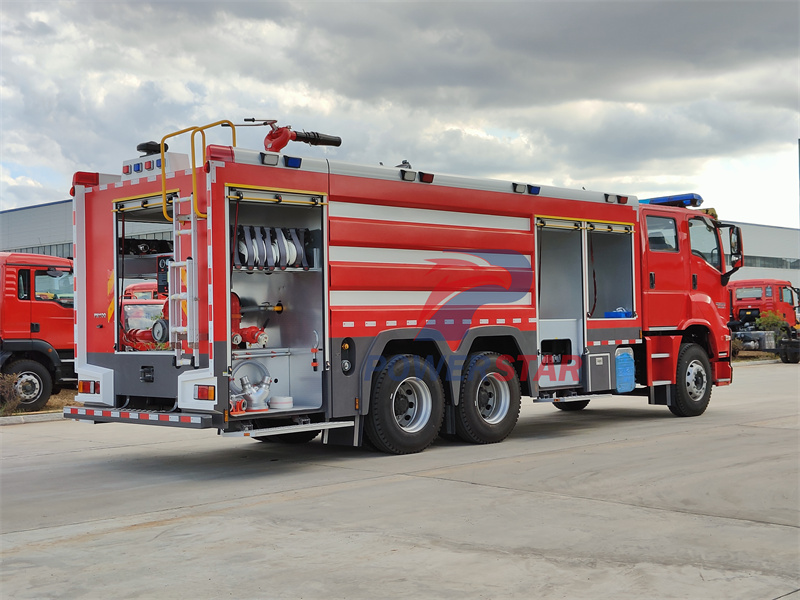

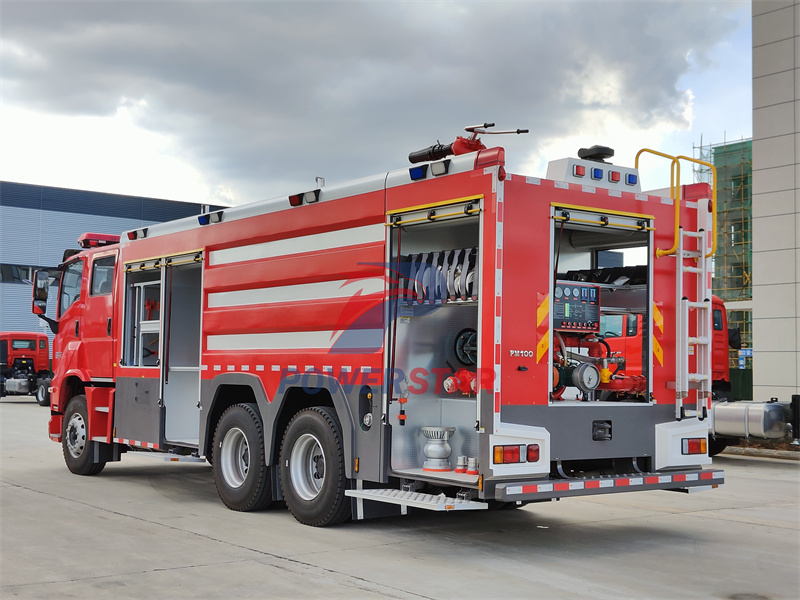

Truck photos

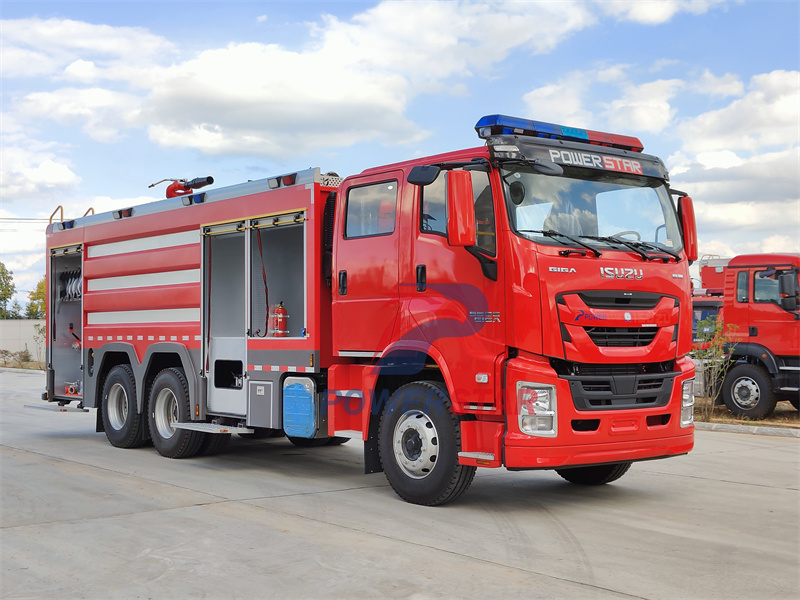

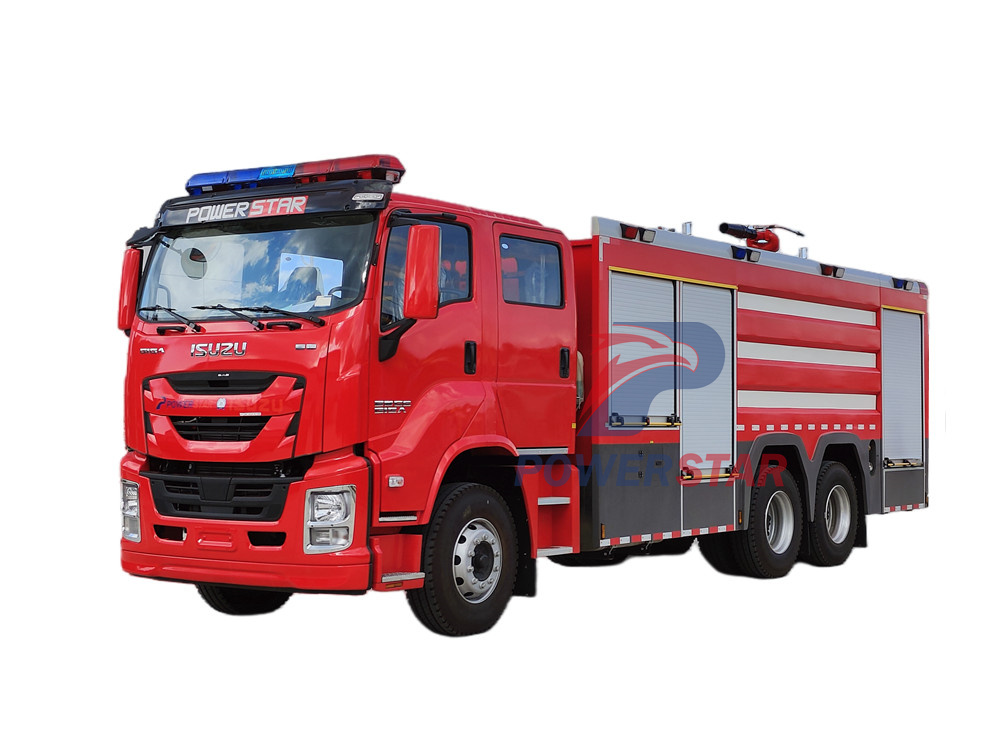

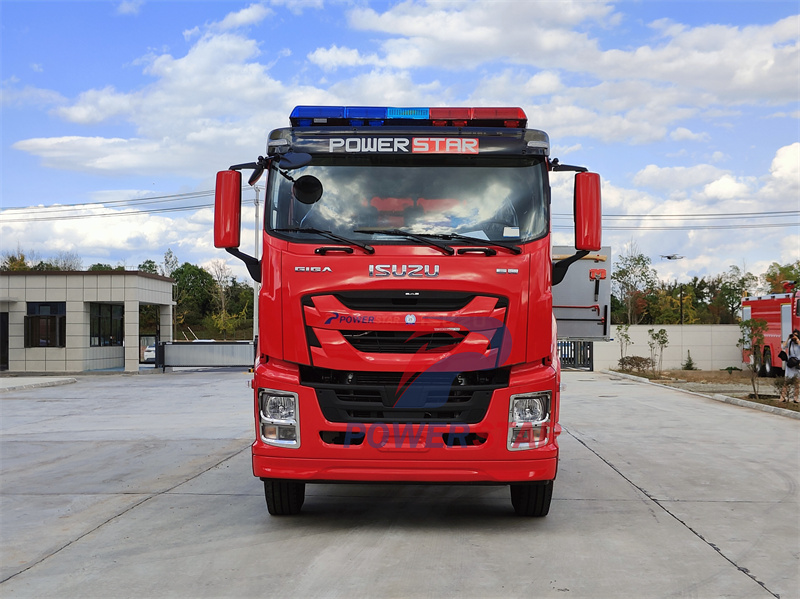

Isuzu GIGA Fire Fighting Vehicles Stock

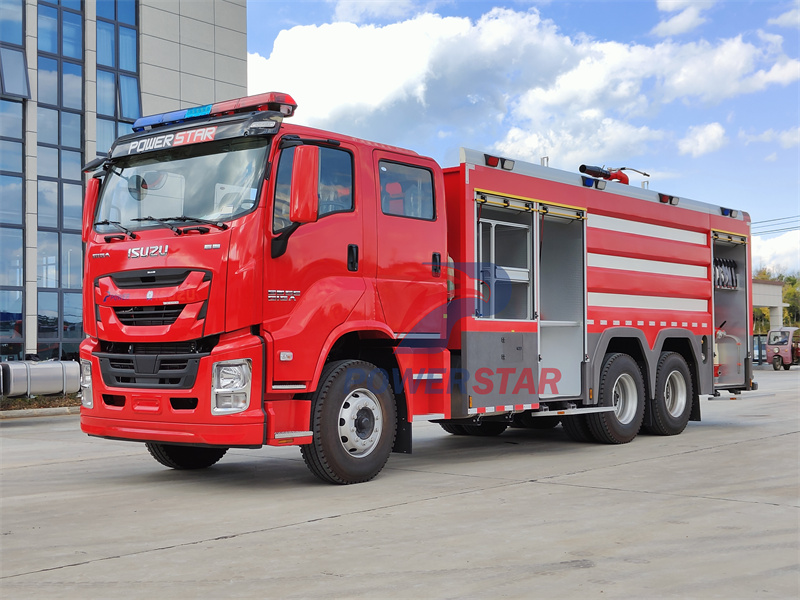

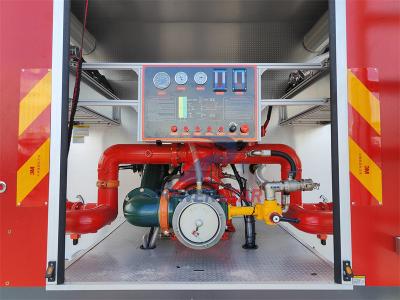

Isuzu giga chassis Industrial Foam Tender Fire Truck

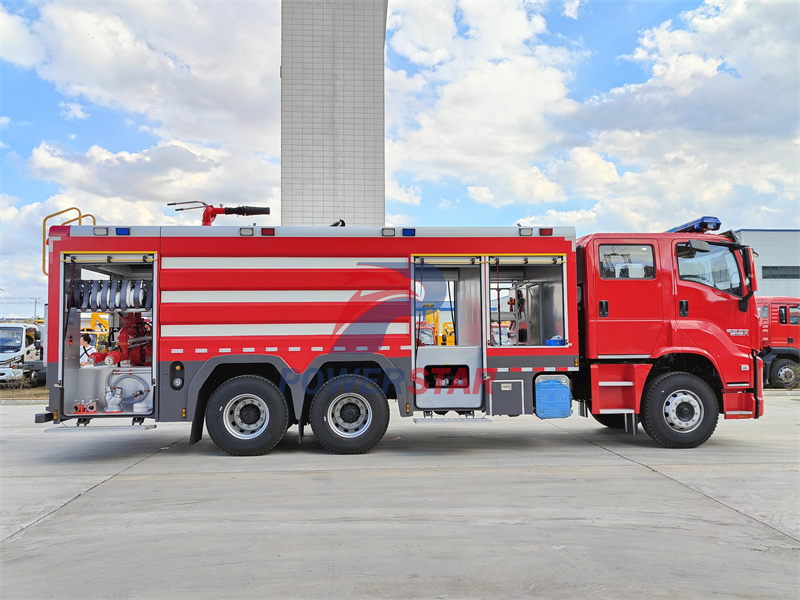

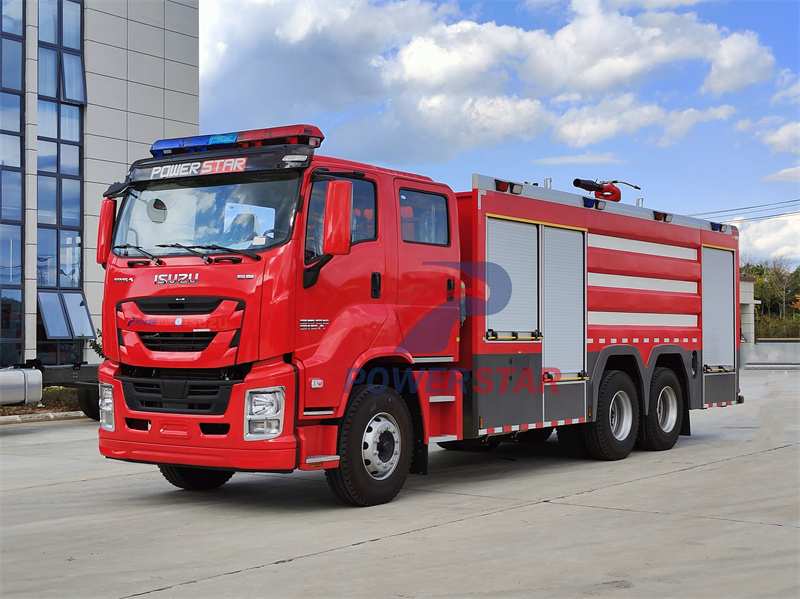

Isuzu VC61 6UZ1 engine foam pumper fire truck
Water tank and foam tank configuration
As a professional foam pump fire truck, the Isuzu VC61 6x4 is equipped with a 10-cubic-meter water tank and a 2-cubic-meter foam tank, which provides sufficient fire extinguishing media for firefighting operations. Both the water tank and the foam tank are made of high-quality materials with good corrosion resistance and durability, ensuring stable performance during long-term use.
The vehicle is also equipped with an efficient foam pump system that can spray water and foam in proportion to form a powerful fire-extinguishing foam to effectively extinguish various types of fires. This system not only improves firefighting efficiency, but also reduces the labor intensity of firefighters.
The large-capacity water tank provides an ample water source for effective firefighting, while the foam tank enhances firefighting capabilities, especially when dealing with flammable liquid fires or when water alone may not be enough. This dual-tank system provides firefighters with the resources they need to successfully respond to various fire emergencies.
Fire Extinguishing System and Foam System
The fire extinguishing system and foam system of the Isuzu VC61 6x4 foam pump fire truck are its core components, which work together to extinguish fires in an efficient and rapid manner.
★ Fire Extinguishing System
The fire extinguishing system mainly consists of fire pumps, water tanks, pipelines, fire monitors and foam fire extinguishing guns. When a fire occurs, the fire extinguishing system is quickly activated to extinguish the fire through the following steps:
1. Power transmission: The fire pump is driven by the vehicle chassis engine through the power take-off device. The power take-off outputs the power of the engine and transmits it to the fire pump through the transmission device to start working.
2. Water supply from the water tank: The 10-cubic-meter water tank equipped on the vehicle provides sufficient water for the fire extinguishing system. The fire pump draws water from the water tank through the pipeline and pressurizes it to the fire monitor or foam fire extinguishing gun.
3. Spray fire extinguishing: The pressurized water is sprayed out at high speed and high pressure through the fire monitor or foam fire extinguishing gun, directly acting on the fire source, playing a role in cooling, isolating oxygen and extinguishing flames.
★ Foam system
The foam system is mainly composed of foam tanks, foam proportioning devices, foam generators, pipelines, etc. The working principle of the foam system is as follows:
1. Foam liquid preparation: The 2-cubic-meter foam tank equipped on the vehicle stores special foam fire extinguishing agents. These foam fire extinguishing agents have good coverage and heat insulation, and can quickly extinguish fires.
2. Mixing ratio control: The foam proportioning device is a key component of the foam system. It mixes water and foam fire extinguishing agents according to the preset ratio. This ratio is usually adjusted according to the type of fire and the need for fire extinguishing to ensure the best fire extinguishing effect.
3. Foam generation and injection: The mixed foam liquid is transported to the foam generator through a pipeline. The foam generator uses air compression or mechanical stirring to convert the foam liquid into fine foam. These foams are then sprayed out through fire monitors or foam extinguishing guns, covering the fire source, forming a protective layer that isolates oxygen, thereby extinguishing the fire.
During the fire extinguishing process, the fire extinguishing system and the foam system usually work together. Firefighters can choose to use pure water injection, foam injection, or a combination of the two according to the type of fire and the situation on the scene. For example, when extinguishing oil fires, the foam system can more effectively isolate oxygen and extinguish the flames; while when extinguishing fires of solid materials such as wood and paper, pure water injection may be more effective.

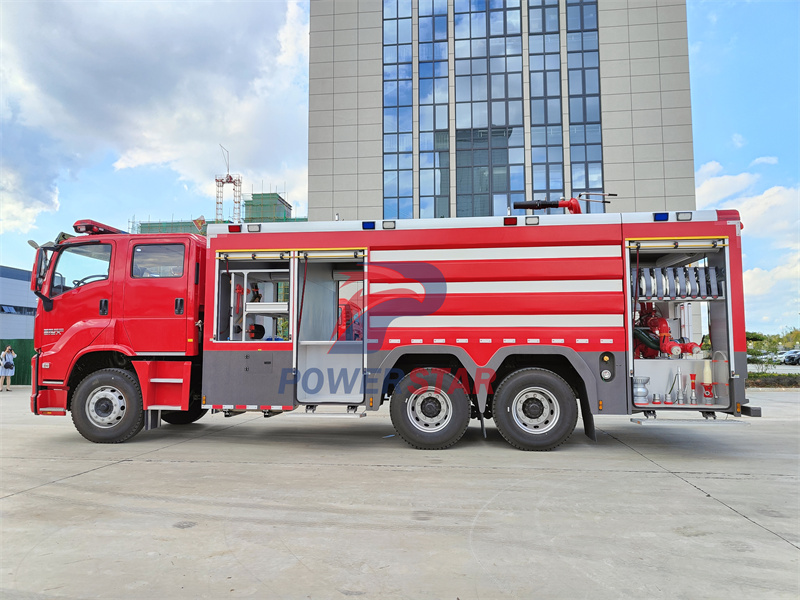

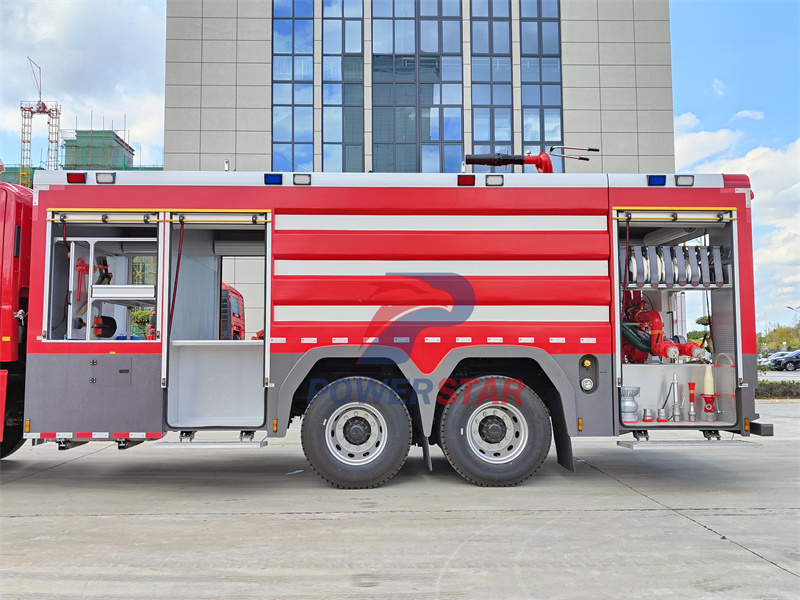

Isuzu GIGA 6x4 foam water fire truck
Isuzu GIGA 12cbm rescue fire engine
CB10/60 fire pump and PL8/48 fire monitor
★ CB10/60 fire pump
CB10/60 fire pump is a high-performance pump equipment designed for fire trucks, with the following features and working principles:
● Features:
The fully sealed, leak-free design ensures that the pump body will not leak when running at high pressure and high speed, improving the reliability and safety of the equipment.
It has strong corrosion resistance and can cope with various corrosive liquids, extending the service life of the equipment.
With large flow and high head, it can quickly deliver a large amount of water to the fire scene to meet the needs of fire extinguishing.
● Working principle:
When the fire pump is started, the power source (such as the vehicle chassis engine) drives the pump shaft to rotate through the transmission device.
When the pump shaft rotates, it drives the impeller to rotate, thereby sucking water or other fire extinguishing media into the pump body.
Under the impeller's push, the fire extinguishing medium is pressurized and delivered to the spraying equipment such as the fire monitor or foam gun.

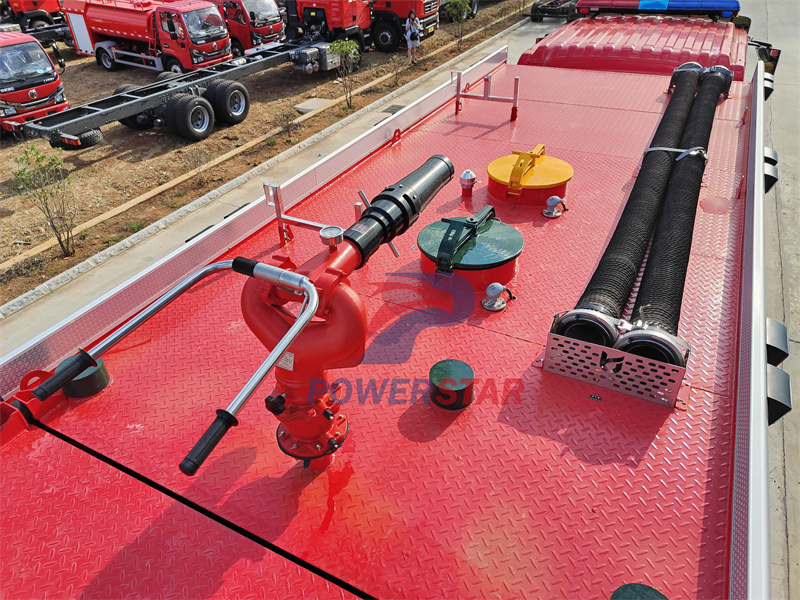

★ PL8/48 Fire Cannon
PL8/48 fire cannon is an important spraying equipment on Isuzu VC61 6x4 foam pump fire truck. It has the characteristics of long-range, high efficiency and flexibility. Its detailed introduction is as follows:
● Features:
Long range, can cover a larger fire area, and improve fire extinguishing efficiency.
Large flow, can quickly spray a large amount of fire extinguishing medium, and quickly reduce the temperature of the fire source.
Flexible control, firefighters can adjust the spray angle and range of the fire cannon according to the situation at the fire scene.
● Working principle:
When the fire pump pressurizes and delivers the fire extinguishing medium to the fire cannon, the nozzle inside the fire cannon sprays the fire extinguishing medium at high speed and high pressure.
Firefighters can adjust the spray angle and range by controlling the handle or remote control on the fire cannon to ensure that the fire extinguishing medium can accurately cover the fire source.
During the spraying process, the fire cannon can also spray continuously or intermittently as needed to meet different fire extinguishing needs.
During the fire extinguishing process, the CB10/60 fire pump and the PL8/48 fire cannon usually work together. The fire pump is responsible for pressurizing the fire extinguishing medium and delivering it to the fire cannon, while the fire cannon is responsible for spraying the fire extinguishing medium onto the fire source in an efficient and accurate manner. This collaborative working method enables the Isuzu VC61 6x4 foam pump fire truck to quickly and effectively extinguish various types of fires, providing strong protection for people's lives and property safety.
CB10/60 fire pump and PL8/48 fire monitor detials

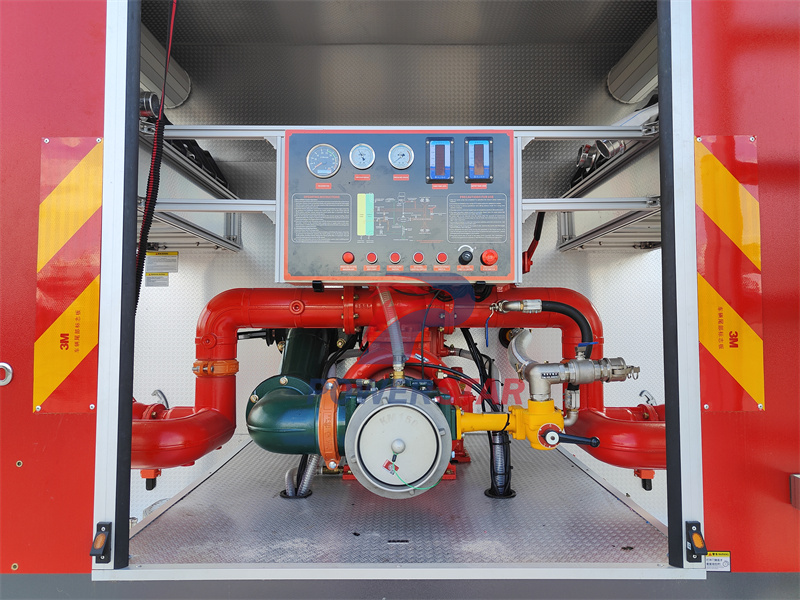

CB10/60 fire pump
PL8/48 fire monitor
|
Specifications |
Working Condition |
Flow |
Exit Pressure |
Rated Speed |
Shaft Power |
Suction Depth |
|
CB10/60 |
1 |
60 |
1.0 |
3280±50 |
102 |
3 |
|
2 |
42 |
1.3 |
3519±50 |
106 |
3 |
|
|
3 |
30 |
1.0 |
3120±50 |
73 |
7 |
|
Model |
Flow （L/s） |
Range（m） |
Rated working pressure（Mpa） |
Pitch rotation （°） |
Horizontal rotation （°） |
Length × Width × Height （mm） |
Weight （Kg） |
|
|
Water |
Foam |
|||||||
|
PL8/48 |
48 |
≥70 |
≥60 |
0.8 |
-45～+70 |
0～360 |
1440*425*600 |
27 |
Specifications of CB10/60 fire pump and PL8/48 fire monitor
Firefighting equipment
As a fully equipped professional firefighting vehicle, the Isuzu VC61 6x4 foam pump fire truck has complete and powerful firefighting equipment, ensuring efficient operation in various complex and changeable fire scenes. The vehicle is equipped with a series of professional equipment such as water collector, water filter, and water distributor, as well as key firefighting tools such as water guns, foam gun, and fire hoses. It is also equipped with a variety of auxiliary tools such as fire bridge guard, fire wrenche, fire shovel, axe, hammer, and butt, forming a complete firefighting operation system.
The water collector can quickly collect water sources and provide sufficient water for the fire pump; the water filter is responsible for filtering impurities to ensure clean water quality and prevent clogging of firefighting equipment. The water distributor can reasonably distribute the water flow to each fire cannon or water gun according to the fire extinguishing needs, thereby improving the fire extinguishing efficiency.
Water guns and foam guns are the main fire extinguishing tools on fire trucks. They are used to spray high-pressure water flow and foam fire extinguishing agents respectively, which can quickly reduce the temperature of the fire source, isolate oxygen, and extinguish the fire. As a link between the fire pump and the spraying tool, the fire hose is resistant to high pressure and wear, ensuring the unimpeded flow of water.
In addition, the fire protection bridge can build a temporary passage on complex terrain, which is convenient for fire trucks and personnel to quickly approach the fire source. Auxiliary tools such as fire wrenches, fire shovels, axes, hammers, and butts are used to break obstacles, clean up the fire scene, and provide necessary support for fire fighting.
Truck details

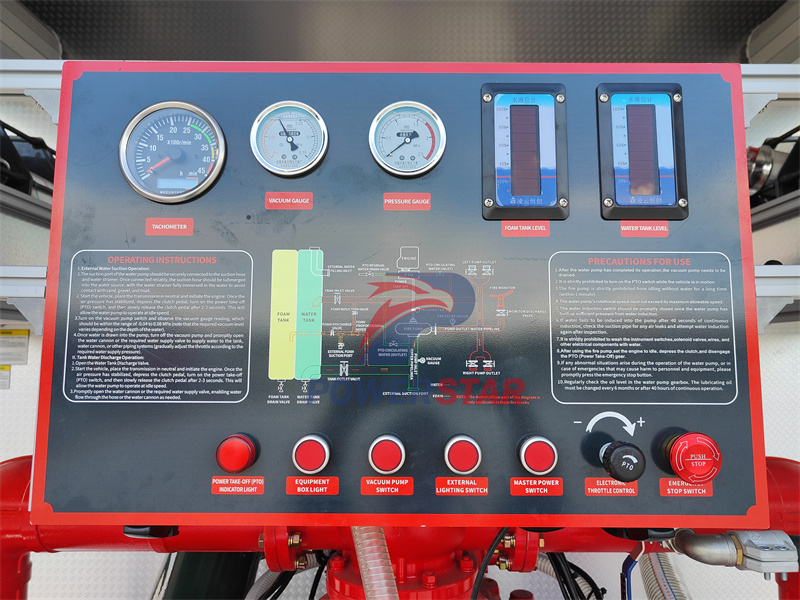

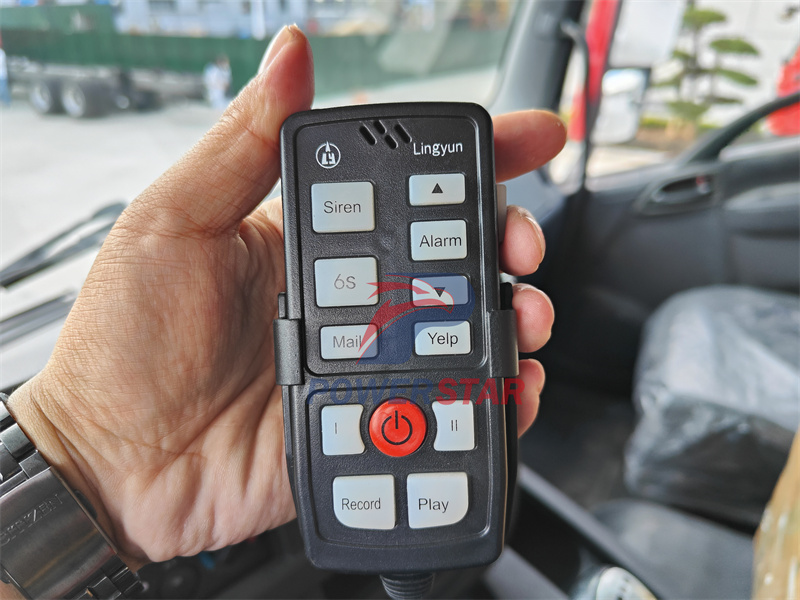

Remote control

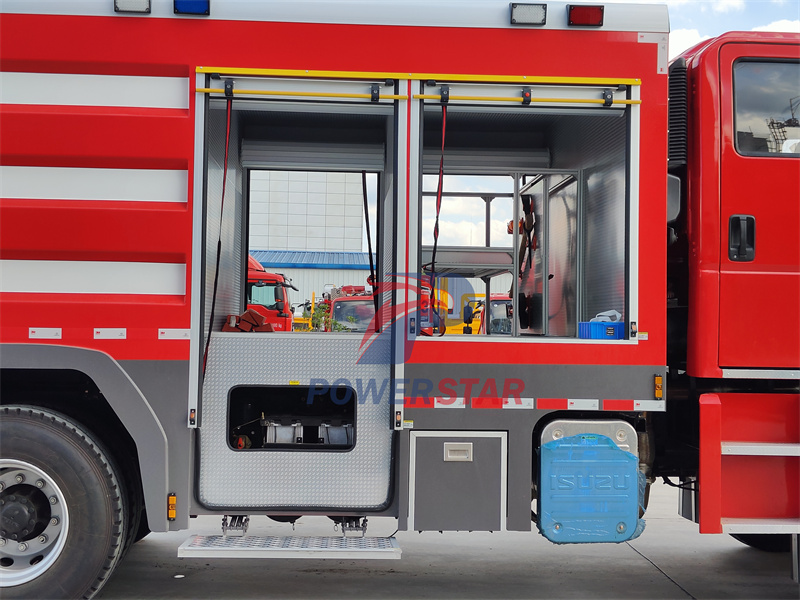

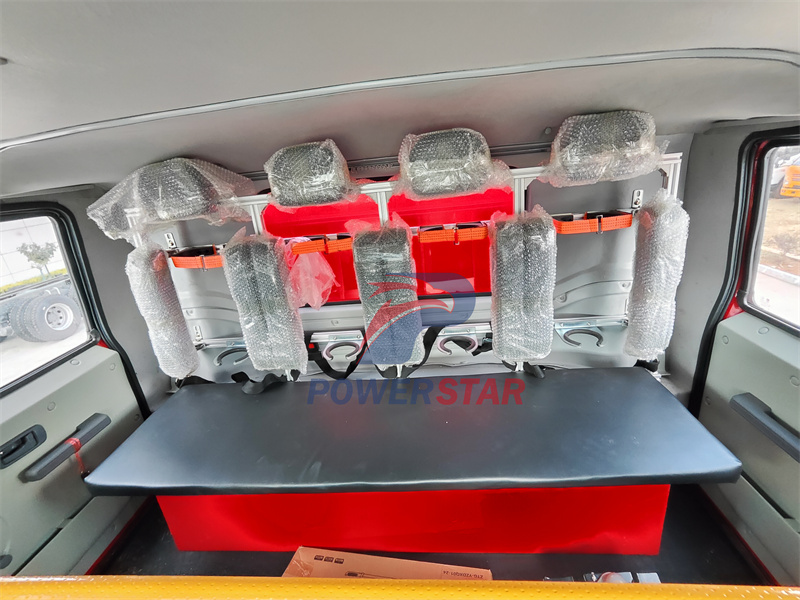

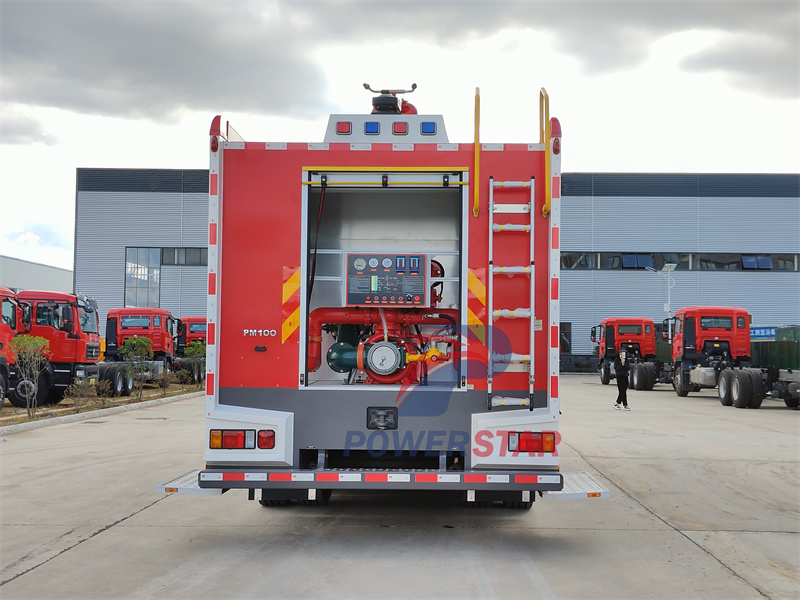

Rear row

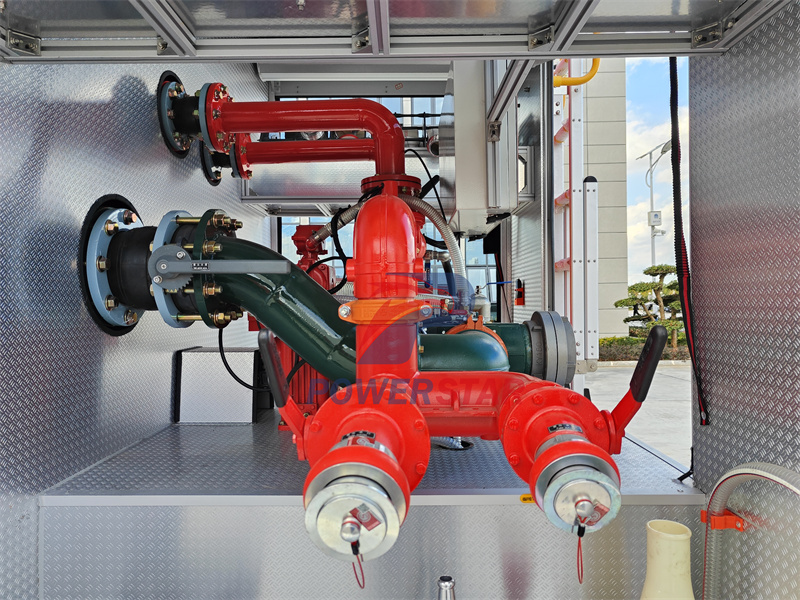

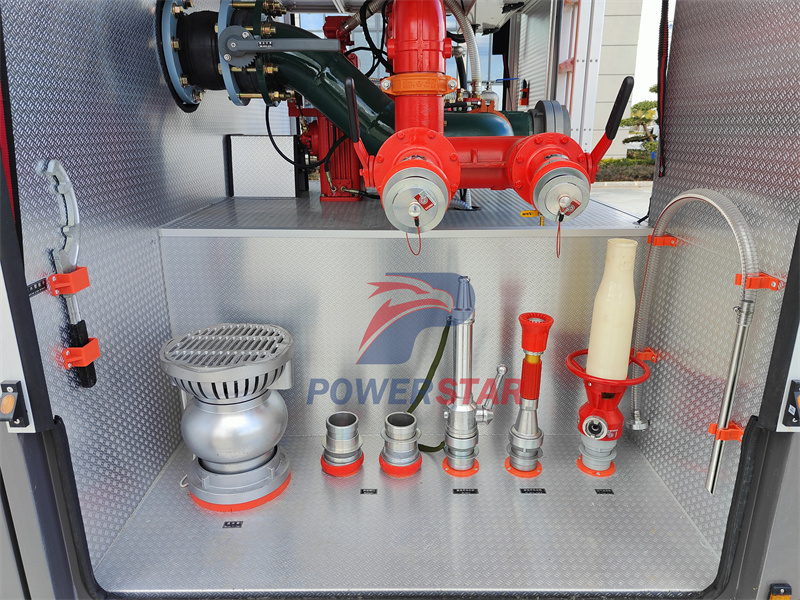

water collector,water gun,foam gun

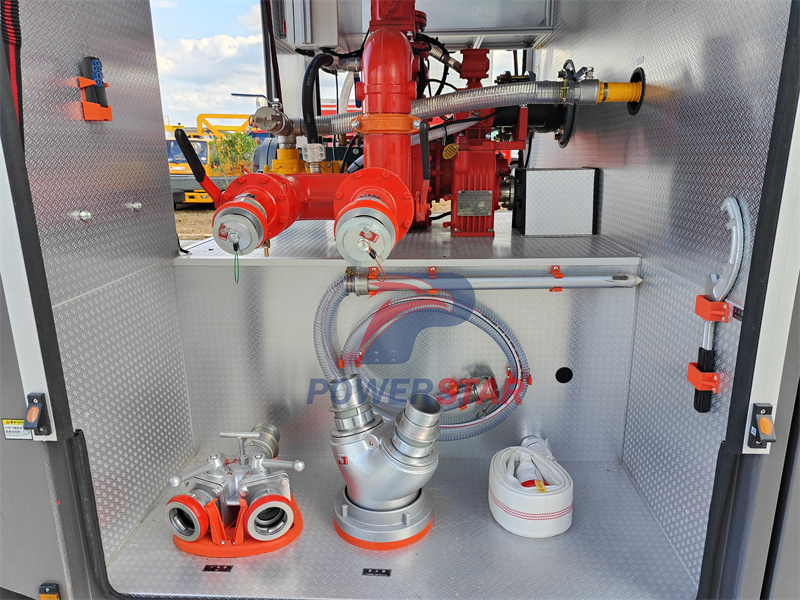

water filter, and water distributor

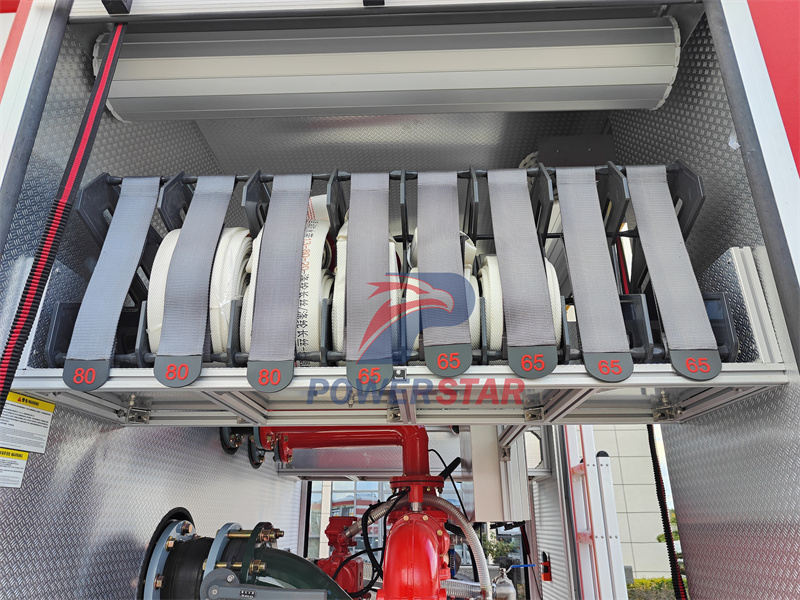

Fire hose

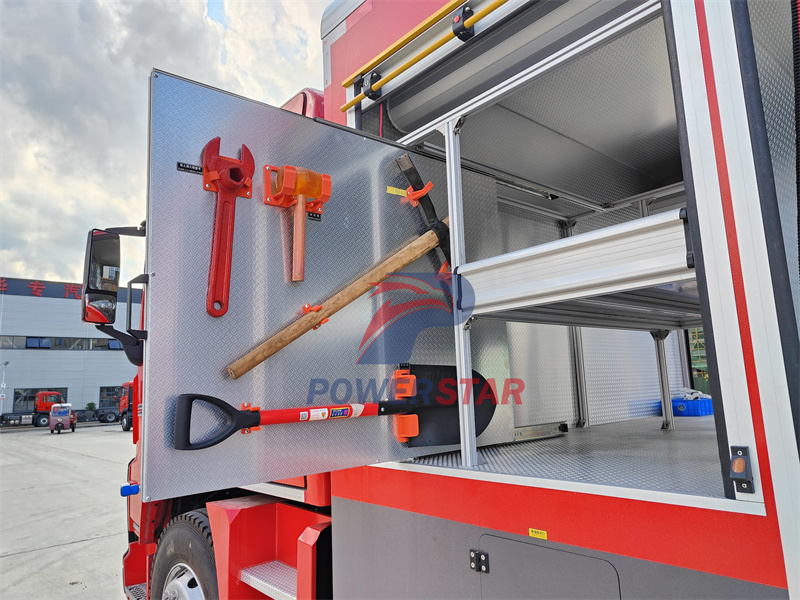

Fire shovel, pickaxe, wrench, hammer

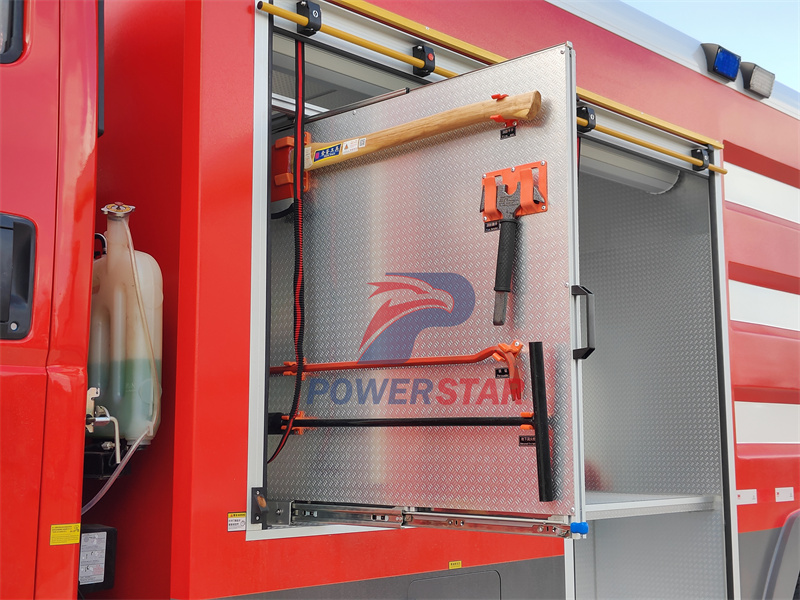

Fire axe, wrench, collar
