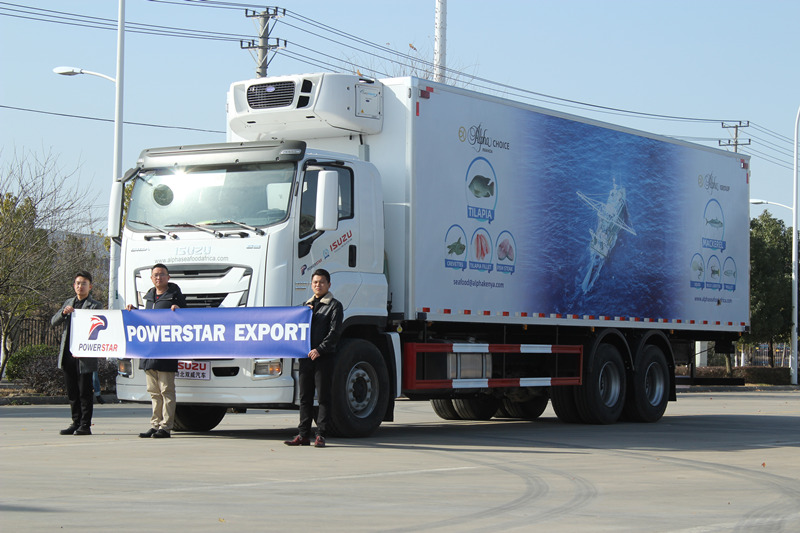

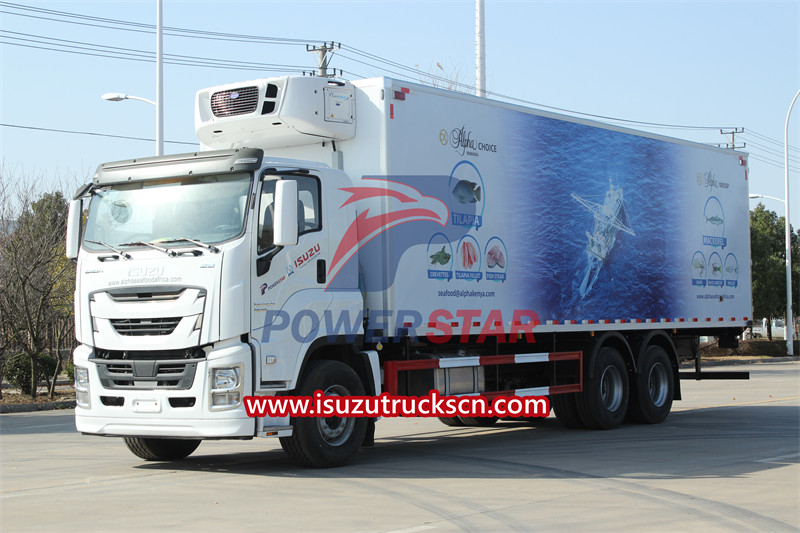

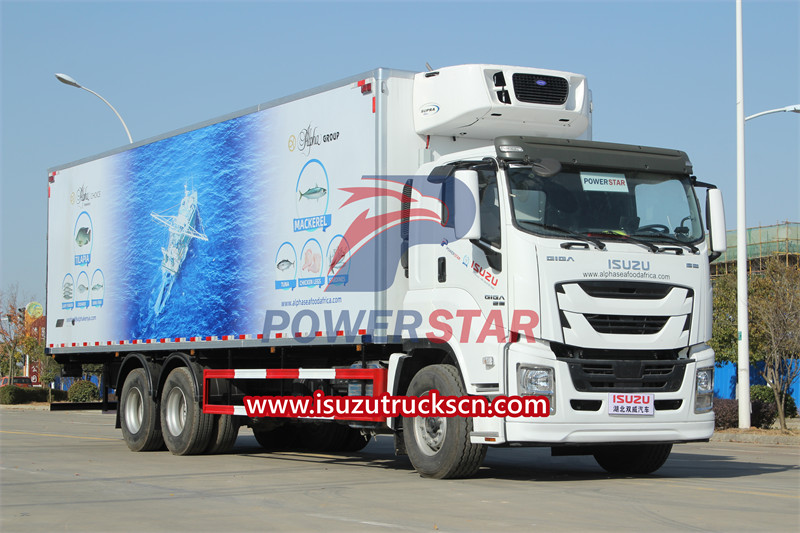

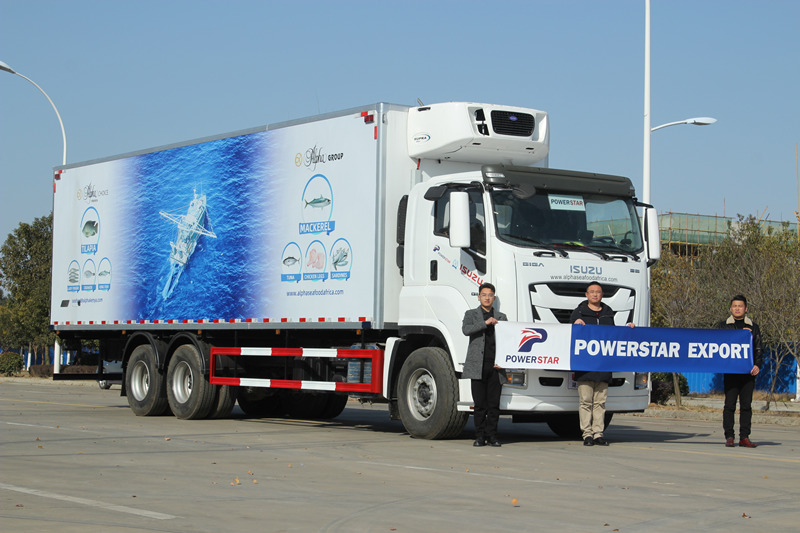

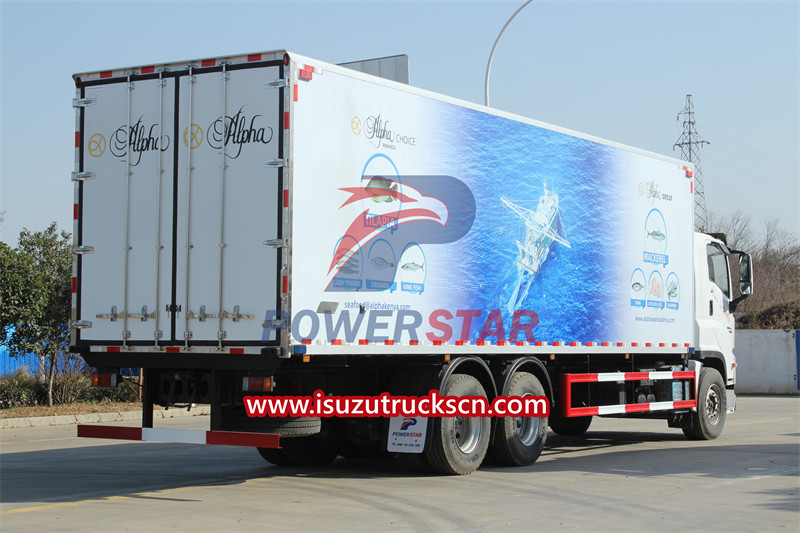

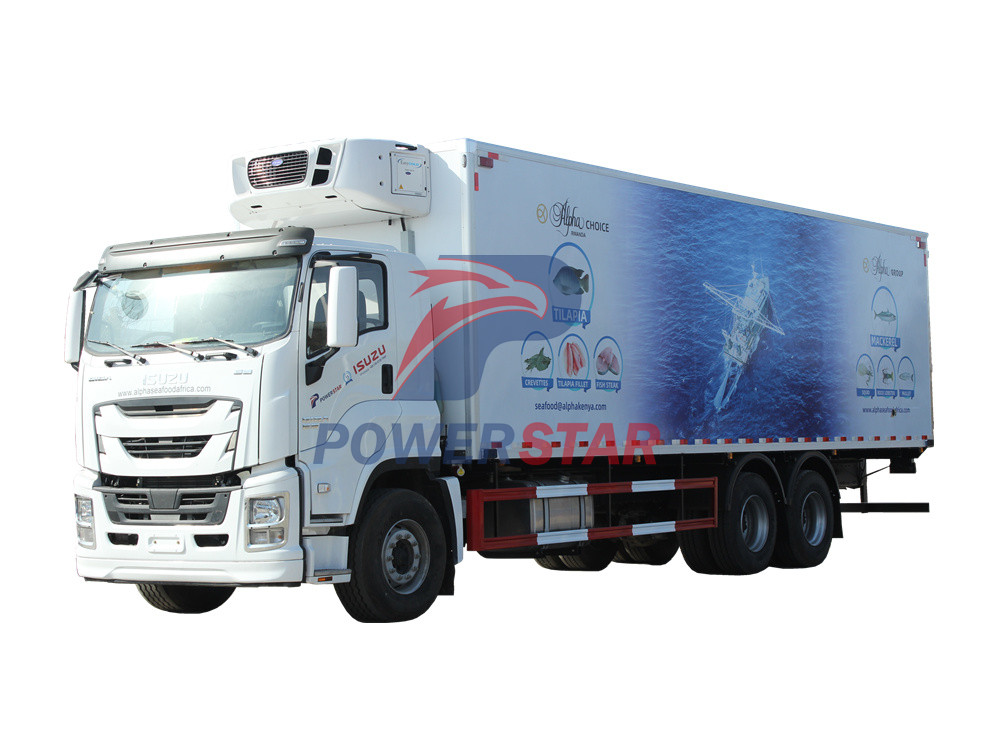

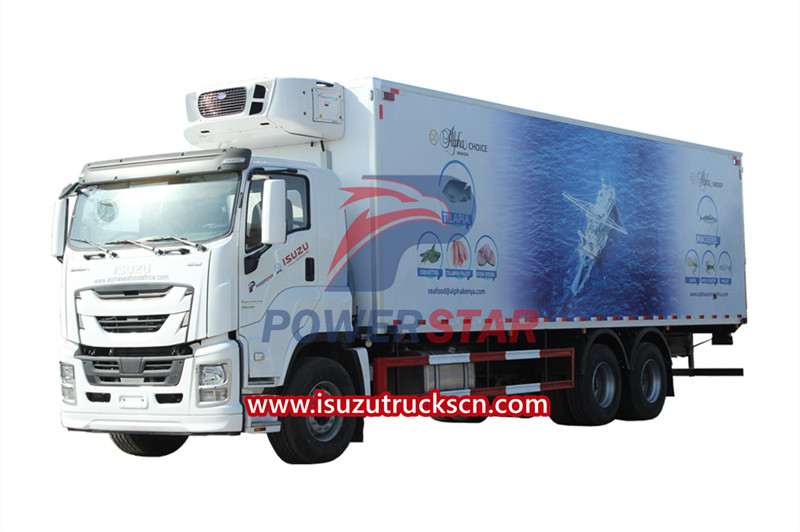

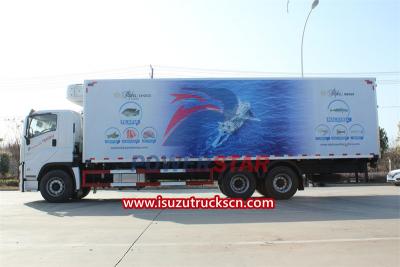

The ISUZU GIGA refrigerated truck is a high-end cold chain transport vehicle produced by POWERSTAR based on the Isuzu chassis. The truck has an advanced refrigeration system and high-quality insulation materials to achieve the goal of efficient freshness preservation. This ensures that goods are kept in the best condition during transportation and provides reliable support for cold chain logistics.
Work capacity:
25 tonTruck model:
PT5330GLC25Engine power:
420 HPEngine type:
6WG1-TCG52Axle drive:
6×4Gear box:
FAST 12-speed, manualRemarks:
ISUZU GIGA chassis, with CARRIER refrigeration unit
ISUZU refrigerated truck is a closed van transport vehicle used to transport frozen or fresh-keeping goods. It is a special cold chain transport vehicle equipped with a refrigeration unit and a polyurethane insulated compartment. It is often used to transport frozen food, dairy products, vegetables and fruits, vaccines and drugs, etc.
The ISUZU refrigerated truck is composed of ISUZU GIGA chassis, a heat-insulating compartment, a CARRIER refrigeration unit, a temperature recorder in the compartment, and other components. For ISUZU freezer trucks with special application, such as transport meat, hooks, waist rails, aluminum alloy guide rails, ventilation slots can be installed.
Isuzu GIGA refrigerated trucks are an important tool in cold chain logistics. With their high efficiency, safety and reliability, they have become a leader in the market. The vehicle uses advanced refrigeration technology to reach the required temperature in a short time, ensuring that goods are kept fresh for a long time. Its super load-bearing capacity and stable driving performance keep goods stable during transportation and avoid damage. In terms of safety, the vehicle is equipped with multiple safety protection measures to ensure the safe driving of the vehicle under various road conditions. In addition, Isuzu refrigerated trucks are also energy-saving and environmentally friendly, effectively reducing fuel consumption and carbon emissions. Whether in food, medicine or other fields that require refrigerated transportation, Isuzu refrigerated trucks can meet the diverse needs of customers and provide them with efficient and reliable cold chain transportation services.
Product Specifications
|
Vehicle Description |
|||
|
Overall dimensions |
11995*2600*3995mm |
||
|
GVW |
33000kg |
||
|
Curb weight |
12800kg |
||
|
Chassis brand |
ISUZU |
||
|
Driving type |
LHD, 6*4 |
||
|
Chassis Description |
|||
|
Chassis model |
QL5330TZ |
||
|
Cab |

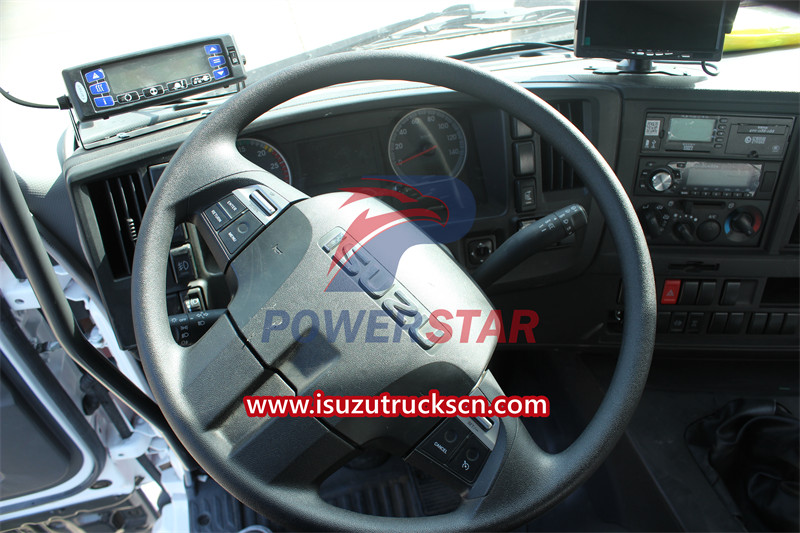

One and half row, with A/C, ABS, central lock, |
||
|
Wheelbase |
5820+1370mm |
||
|
Tire specification |
315/80R22.5 |
||
|
Tire quantity |
10+1 units |
||
|
Engine |
Engine model |
6WG1-TCG52 |
|
|
Emission level |
Euro 5 |
||
|
Power |
420HP/308KW |
||
|
Displacement |
15681ml |
||
|
Horse power |
420hp |
||
|
Number of cylinders |
6 |
||
|
Gear box |
Model |
Fast |
|
|
Number of gears |
12-speed |
||
|
Brake system |
Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles; exhaust brake |
||
|
Axle |
Front |
7T |
|
|
Rear |
16T*2 |
||
|
Suspension |
Front |
Leaf spring |
|
|
Rear |
Leaf spring |
||
|
Fuel |
Type |
Diesel |
|
|
Upper Body Description |
|||
|
Van dimension |
9000*2500*2500mm |
||
|
Van material |
Inner |
Fiberglass |
|
|
Outer |
Fiberglass |
||
|
Insulation layer |
Polyurethane foam |
||
|
Thickness |
80mm |
||
|
Cooling system |
Equipped |
||
|

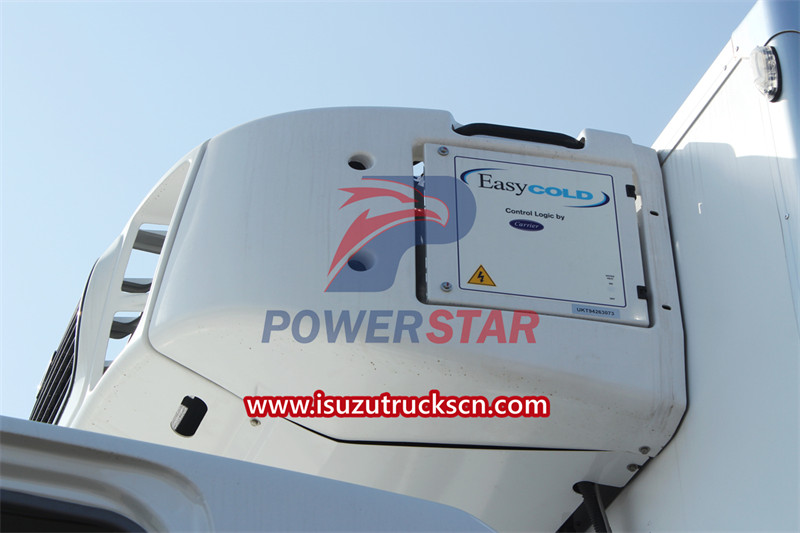

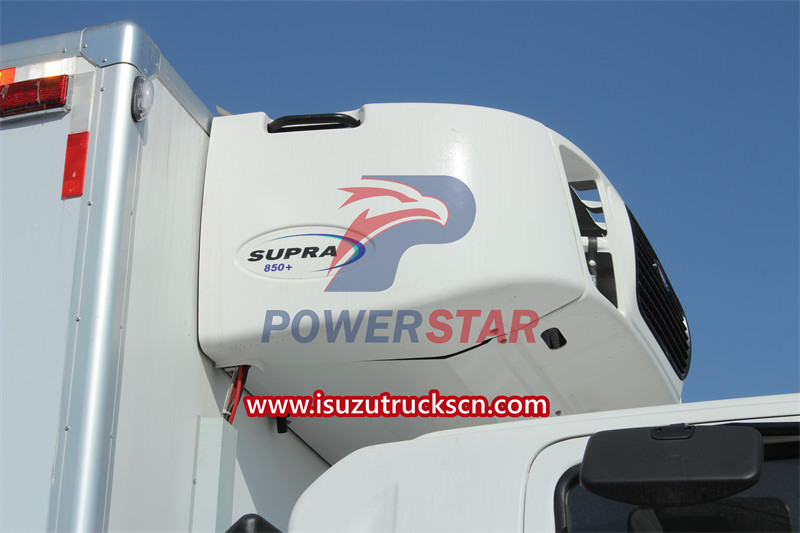

Refrigeration unit |

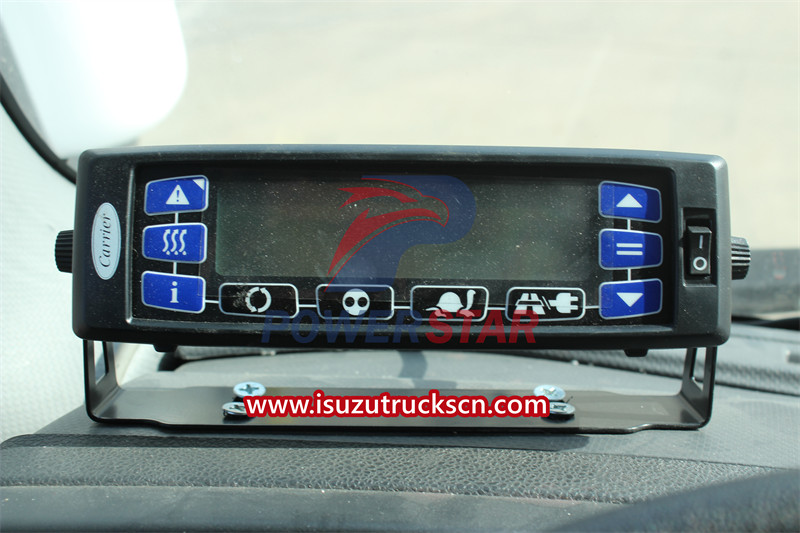

Carrier Supra850+ |
||
|
Lowest temperature |
-18°C |
||
|
Standard configuration |

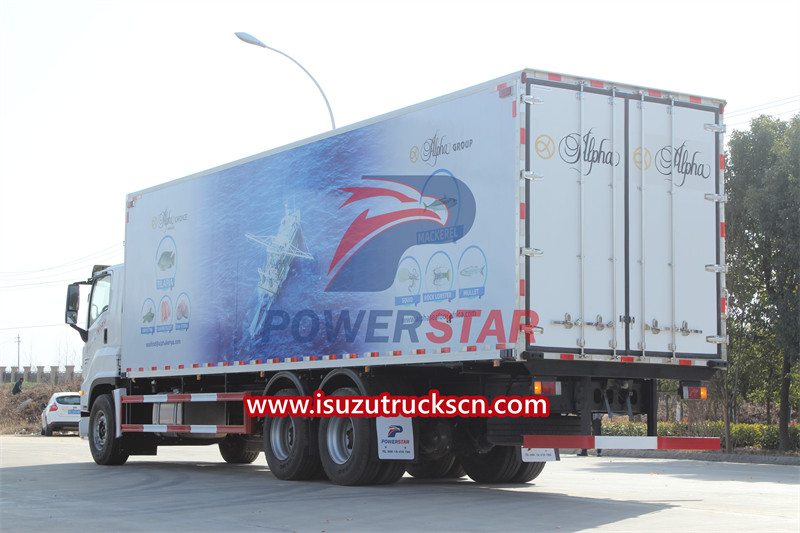

Cooling system and rear door |
||
|
Optional configuration |
1.Box material: Aluminum alloy or Stainless steel. |
||
Features of Isuzu Refrigerated Van Body

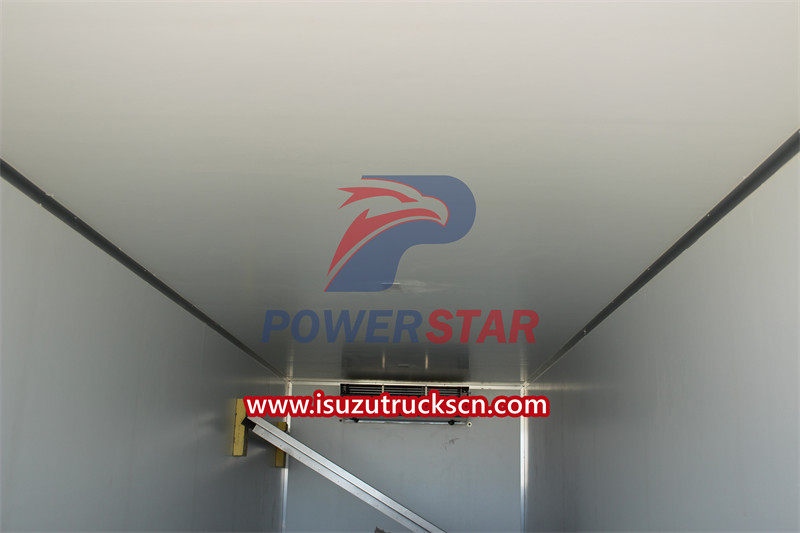

Van body material: The van body is made of polymer composite material, the outside of the box is fiberglass, and the inside is made of polyurethane insulation material.
Van body technology: The ISUZU refrigerated van body adopts advanced German manufacturing technology. The insulation material is made of fluorine-free polyurethane foam outdoor slice type, and the box board is formed at one time by the high temperature, high pressure and vacuum of the press. The thickness of the upper and lower panels of the car body is 85 or 105mm respectively, and the thickness of the front and rear panels and side panels is 85mm.
Features: The van body adopts an adhesive structure, with large contact area, uniform force distribution, good sealing, and high overall structural strength. The box has the characteristics of good thermal insulation performance, environmental protection and energy saving, corrosion resistance, light weight, long life and anti-aging. Moreover, the appearance of the box is very smooth, making it suitable for van body advertising.
How to accurately control the humidity in the box of Isuzu refrigerated truck?
Isuzu refrigerated trucks use an advanced humidity control system to precisely control the humidity in the box.
1. Isuzu refrigerated trucks are equipped with humidity sensors that can monitor the humidity level in the cabin in real time. The sensor feeds humidity data back to the control system for precise adjustments.
2. Isuzu refrigerated trucks adopt efficient dehumidification technology, which can effectively reduce the humidity in the cabin. This technology usually involves two steps: air cooling and dehumidification. By lowering the air temperature, water vapor condenses into water droplets, and then these water droplets are collected through specialized dehumidification devices, thereby achieving the effect of reducing humidity.
3. Isuzu refrigeration truck also has automatic humidity adjustment function. When the humidity in the cabin is too high, the control system will automatically activate the dehumidification device to reduce the humidity to a set range. At the same time, when the humidity is too low, the system will automatically adjust to keep the humidity constant and appropriate.
4. In order to further improve the humidity control accuracy, Isuzu refrigeration truck also adopts an intelligent humidity control system. This system can automatically adjust based on factors such as the type of cargo, storage requirements, and environmental conditions to ensure that the humidity in the cabin is always maintained at an optimal level.
