The Isuzu NKR dump truck uses the Isuzu 100P chassis, a single-row cab design, can be configured with left/right drive, a wheelbase of 3360mm, and can accommodate 2 people in the cab. The maximum speed is 110 kilometers per hour, the maximum climbing grade is 25%, and the minimum turning radius is 7.5 meters. The engine model used in the vehicle is 4HK1CN6LB, which is a four-cylinder, four-stroke, water-cooled, turbocharged and intercooled engine. It meets the Euro 6 emission standards, with a displacement of 2.999 liters, a power of 120 horsepower, and a maximum torque of 290N·m.
Work capacity:
3tonTruck model:
PT5070GYZEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4X2,LHDGear box:
MSB 5 shift, 5 Forward gear + 1 Reverse,manualRemarks:
3Ton dump box capacityThe Isuzu NKR small dumper with 3Ton capacity, with its robust design and versatile functionality, has established itself as a reliable and efficient workhorse in the transportation and logistics industry. This particular model, featuring a 3-ton capacity, is tailored to meet the needs of businesses and individuals requiring a durable and dependable vehicle for light tasks.
The Isuzu NKR small small dumper with 3Ton capacity is an outstanding representative of the Isuzu commercial vehicle series and is known for its compact body, strong power and excellent unloading capacity. Equipped with an efficient and energy-saving diesel engine, it can easily cope with various complex road conditions and can handle a full load of 3 tons of cargo. The cab is spacious and bright, with convenient controls and complete safety configurations, making driving more secure. At the same time, it pays attention to environmental protection and energy conservation, meets emission standards, and intelligent fuel consumption management reduces operating costs. Whether on the construction site or on city streets, the NKR 100P demonstrates its extraordinary capabilities, making it the ideal choice that drivers can rely on.
Specifications of Isuzu NKR 3ton small dumper truck
|
ISUZU NKR 4x2 3ton dumper truck |
||
|
Condition |
4X2, New condition, Left Hand Drive |
|
|
Truck model |
PT5070GYZ |
|
|
|
Brand |
ISUZU |
|
GVW |
7300kg |
|
|
Curb weight |
3950kg |
|
|
Loading weight |
3ton |
|
|
Wheelbase(mm) / No.of |
3360 / 2 axles |
|
|
Dimension(mm) |
5500×2100×2400 |
|
|
Axle load(front/rear) |
2580/4720kg |
|
|
Max driving speed(km/h) |
110 |
|
|
Tire |
700R16,6+1 |
|
|
Paint |
Automotive metallic paint |
|
|
Cab |
Standard Isuzu 100P single row cab, 2 passengers allowed, with Air Conditioner, with FM |
|
|
|
Model |
Isuzu 4KH1CN6LB |
|
Fuel type |
Diesel |
|
|
Displacement (ml) |
2999 |
|
|
Max Horsepower (hp) |
120HP/88kw |
|
|
Maximum torque (N.m) |
290 |
|
|
Cylinder number |
Inline 4 cylinder |
|
|
Emission standard |
Euro VI |
|
|
Break |
Oil break system |
|
|
Transmission |
MSB 5 shift, 5 Forward gear + 1 Reverse,manual |
|
|
Upper |
||
|
Cargo body |
Size (L×W×H) |
3300×2000×550mm |
|
Loading capacity |
2~3 tons |
|
|
Material |
Q345/B High Tension Steel. |
|
|
Thickness |
Rear&bottom 4mm, side & front 3mm |
|
|
Tipping hydraulics |
Type |
Middle Tipping |
|
Brand |
Chinese brand |
|
|
Tipping Angle |
45° |
|
|
Tipping Control |
By the lever in the cab |
|
|
Color and Logo |
Optional |
|
In busy construction sites and narrow city streets, a dump truck that is both flexible and powerful is undoubtedly a good helper for every driver. Today, we are going to introduce to you such a masterpiece that combines agility and power - Isuzu NKR small dumper with 3 Ton capacity.
Isuzu dump trucks from POWERSTAR have always been the leaders in the field of commercial vehicles. And Isuzu NKR 100P has won the favor of countless drivers with its excellent performance and reliable quality.
When you see the Isuzu NKR 100P dump truck for the first time, you will definitely be attracted by its compact and powerful body. The streamlined design not only makes the whole vehicle look more stylish and dynamic, but also reduces wind resistance and improves fuel economy. Every line of the body reveals Isuzu's ultimate pursuit of details and exquisite control of craftsmanship.
Open the door and sit in the cab, you will be impressed by the spaciousness and brightness of Isuzu ELF mini tipper truck. The layout of the cab is reasonable, and various control buttons are within reach, allowing the driver to easily deal with various situations during driving. The comfort of the seat is impeccable, and you will not feel tired even after driving for a long time.

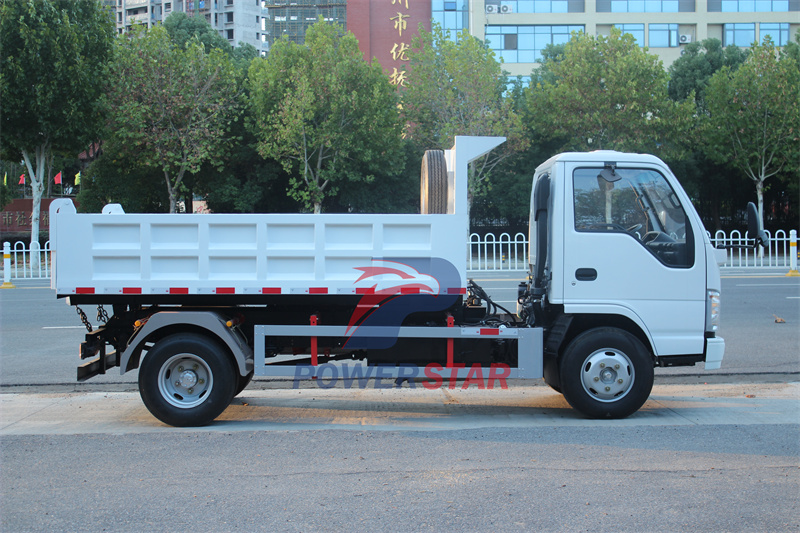

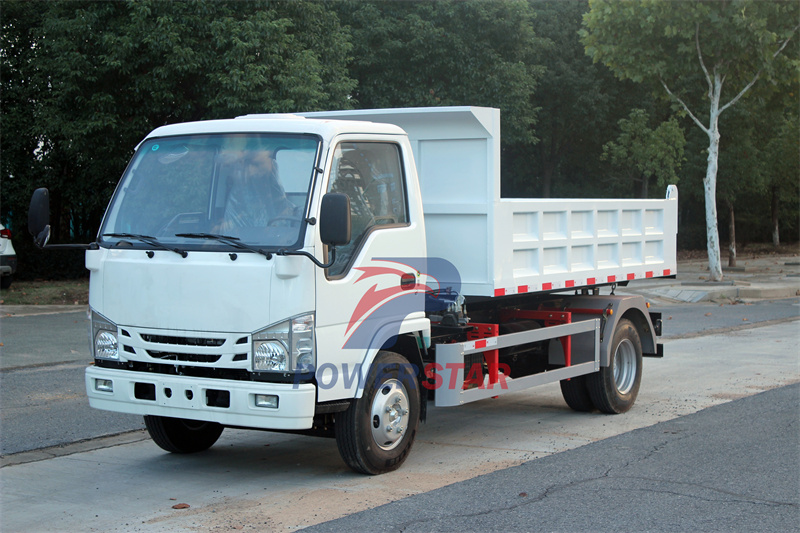

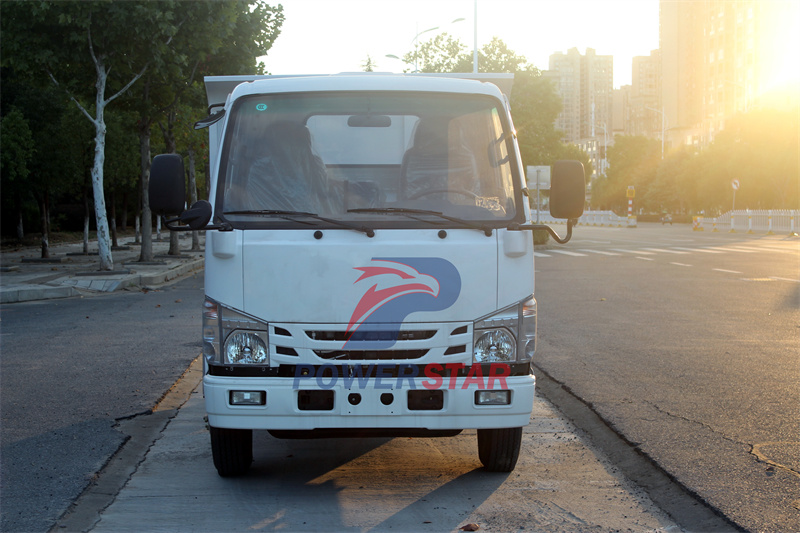

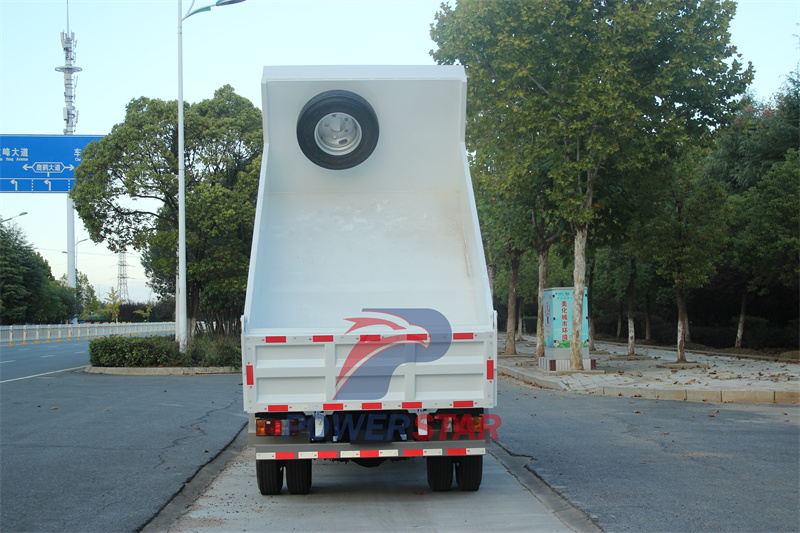

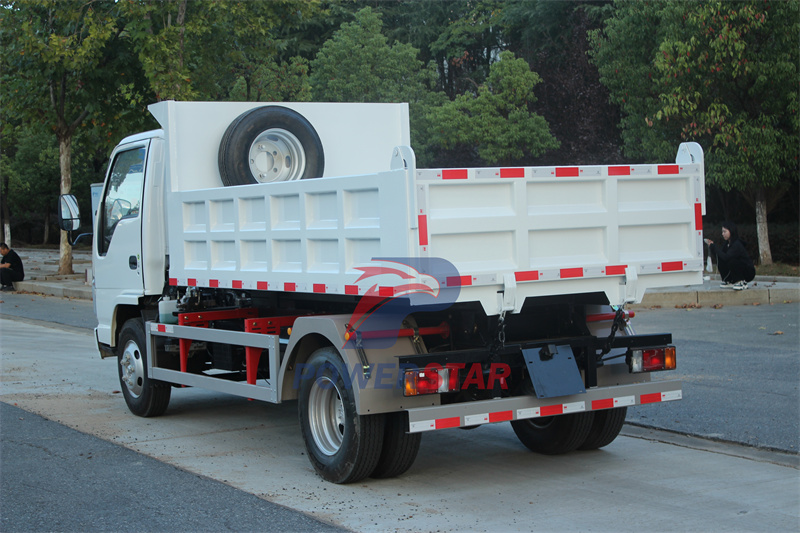

Truck photos

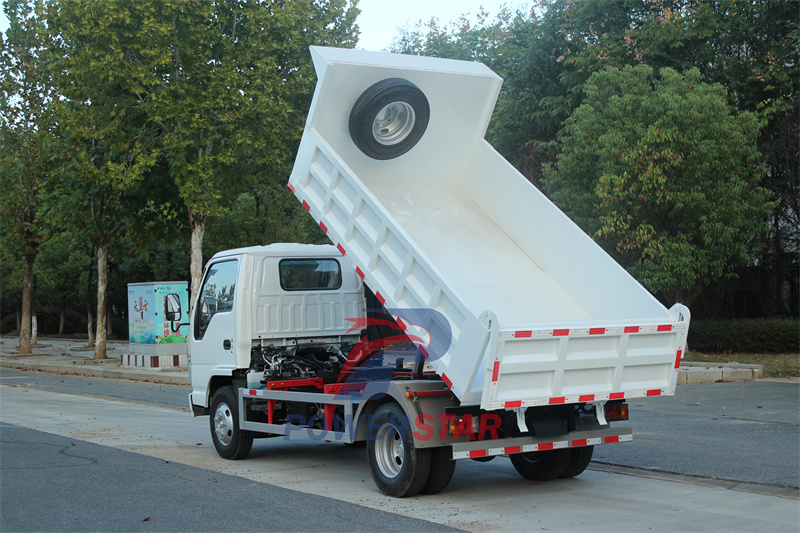

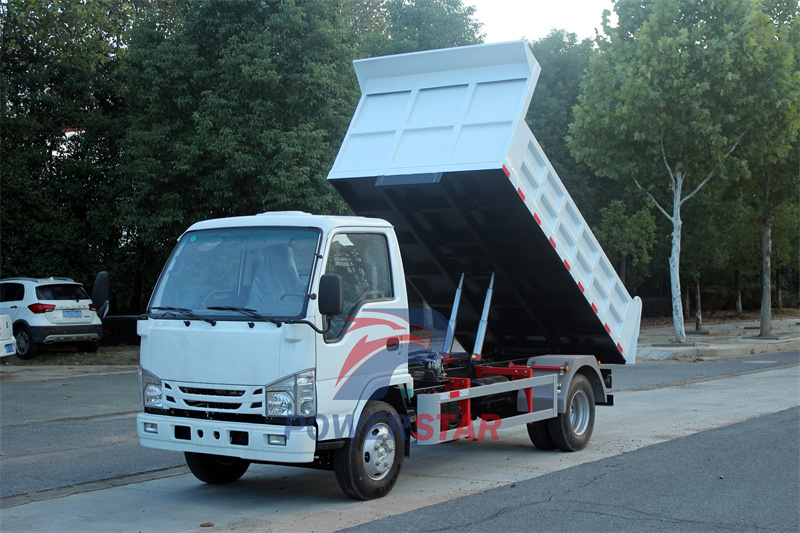

Isuzu NKR small dumper with 3 Ton capacity

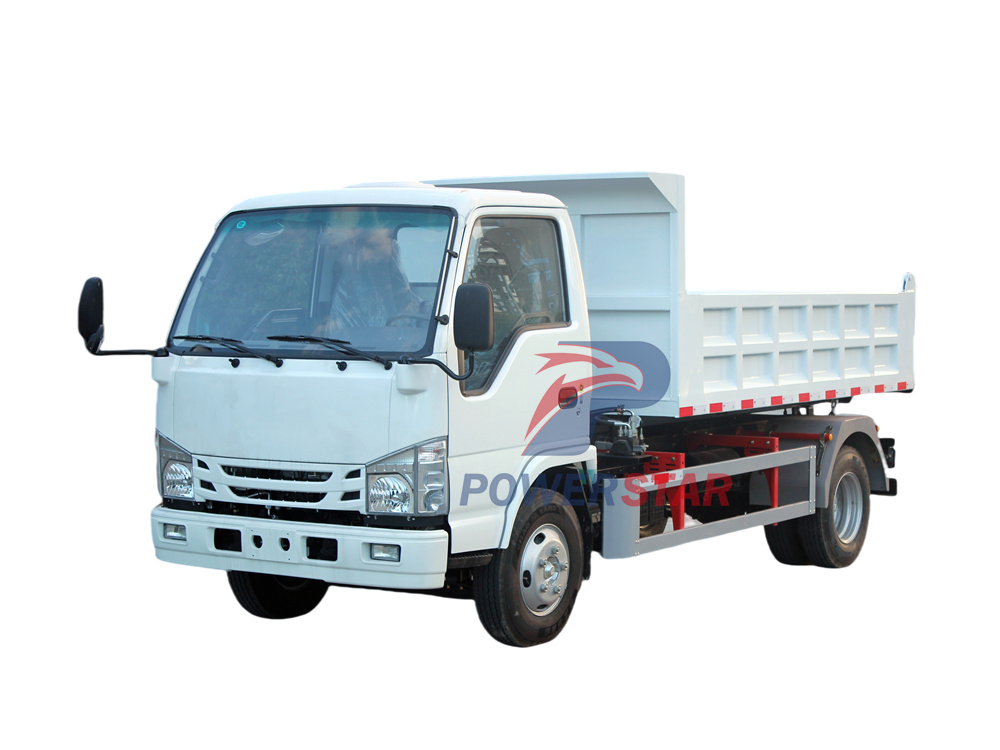

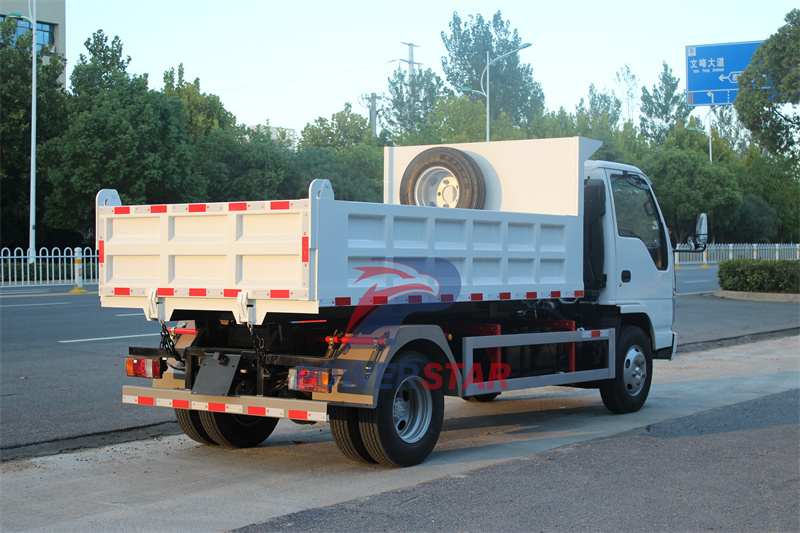

Isuzu NKR 3 ton light dump truck

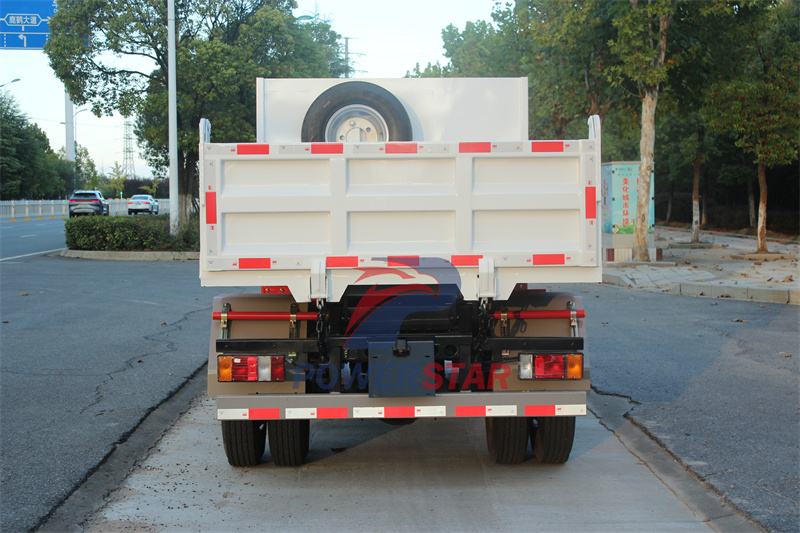

Isuzu 100P 3ton tipper truck
When it comes to the power of this Isuzu 3ton dumper truck, it is even more praised. It is equipped with an efficient and energy-saving 120-horsepower diesel engine with a maximum power of 88 kilowatts and a maximum torque of 290N·m. Such a power configuration allows the NKR 100P to easily cope with various complex road conditions when fully loaded with 3 tons of cargo, whether it is a steep mountain road or a muddy construction site.

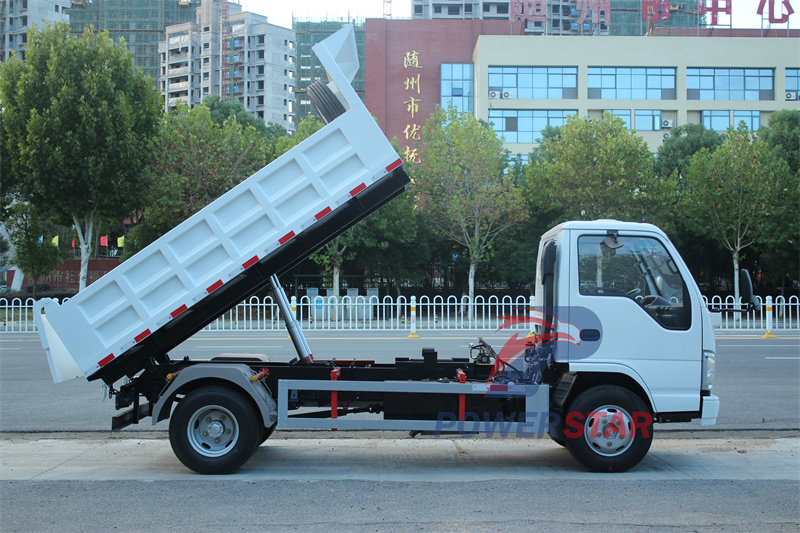

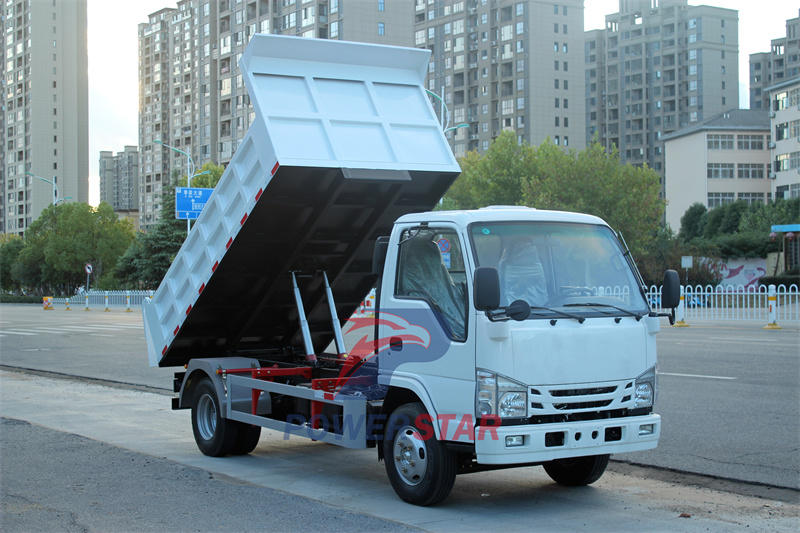

As a dump truck, the unloading capacity of the NKR 100P should not be underestimated. Its cargo compartment is made of Q345/B high-strength steel, with outstanding carrying capacity. The unloading mechanism has been carefully designed and rigorously tested to ensure that it can remain stable and efficient during the unloading process. Its Tipping hydraulics type is intermediate lifting. With just a light press, the cargo compartment can be quickly lifted and tilted, pouring out the goods, greatly improving work efficiency.
In addition to powerful power and excellent unloading capacity,the Isuzu ELF 100P dump tipper truck also does a good job in safety. It is equipped with advanced safety configurations such as ABS anti-lock braking system and EBD electronic brake force distribution system, so that the driver can be more at ease during driving. At the same time, the body also adopts a multiple anti-collision design, which can protect the driver's safety to the greatest extent even in the event of an accident.
It is worth mentioning that the dump truck also pays great attention to environmental protection and energy saving. It adopts advanced emission control technology, and its exhaust gas meets the Euro 6 standard, reducing pollution to the environment. At the same time, it is also equipped with an intelligent fuel consumption management system, which can automatically adjust fuel consumption according to driving habits and road conditions, so that every drop of oil can play the greatest value.
Truck details

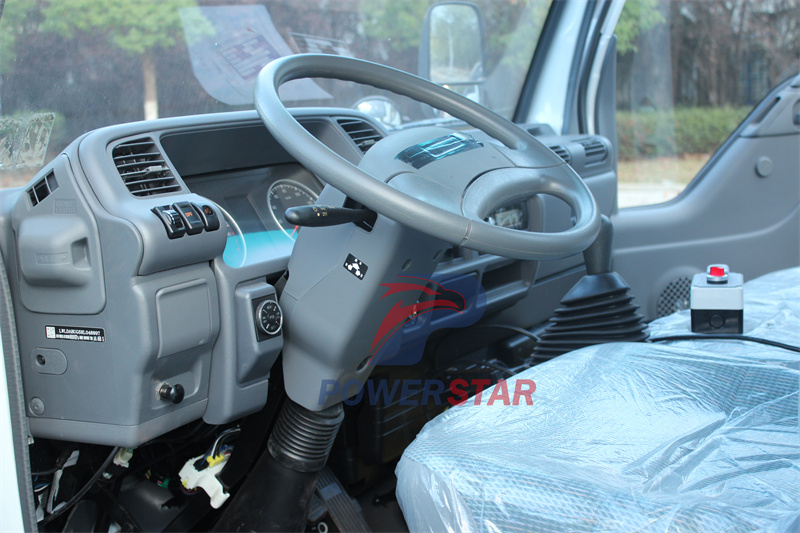

Steering wheel

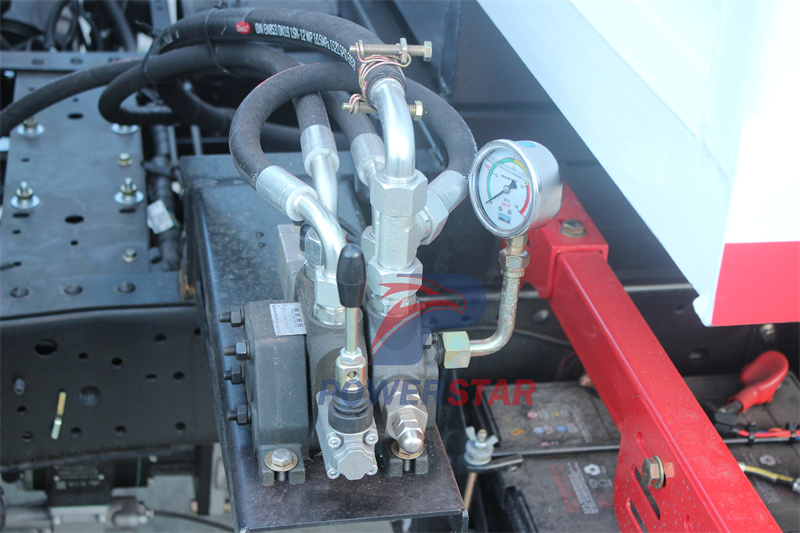

Control valve
PTO,Power switch

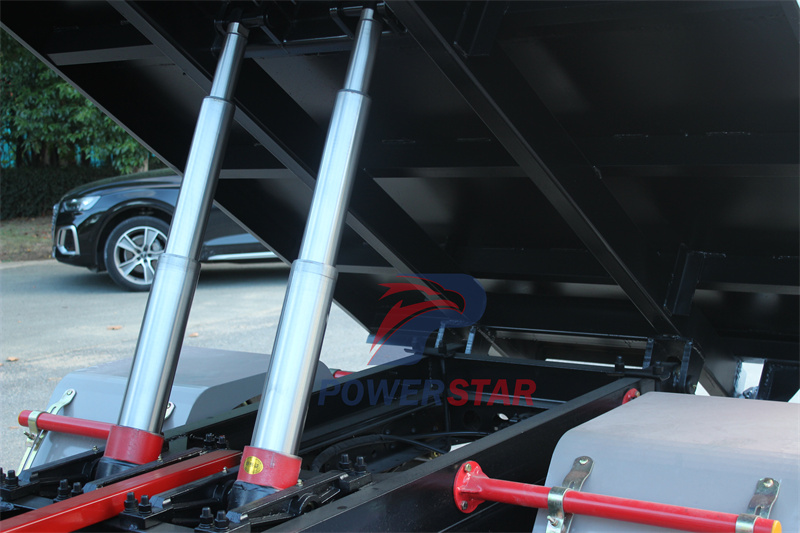

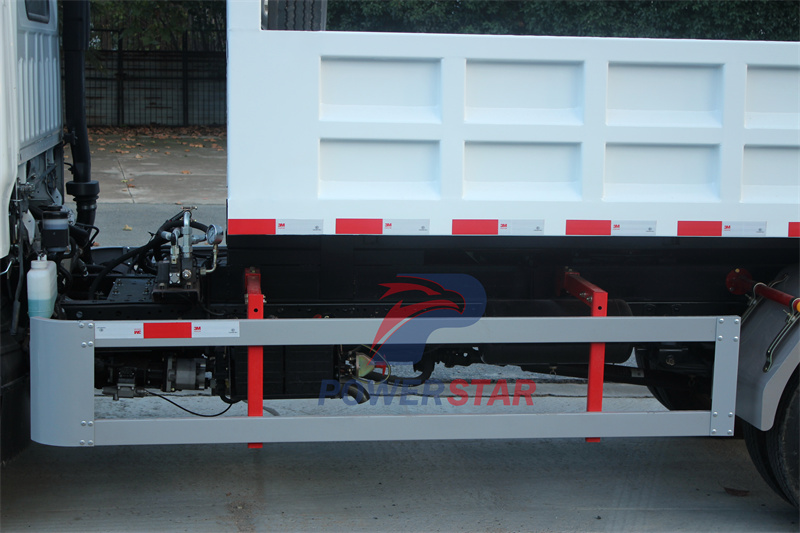

Middle lift hydraulic cylinder

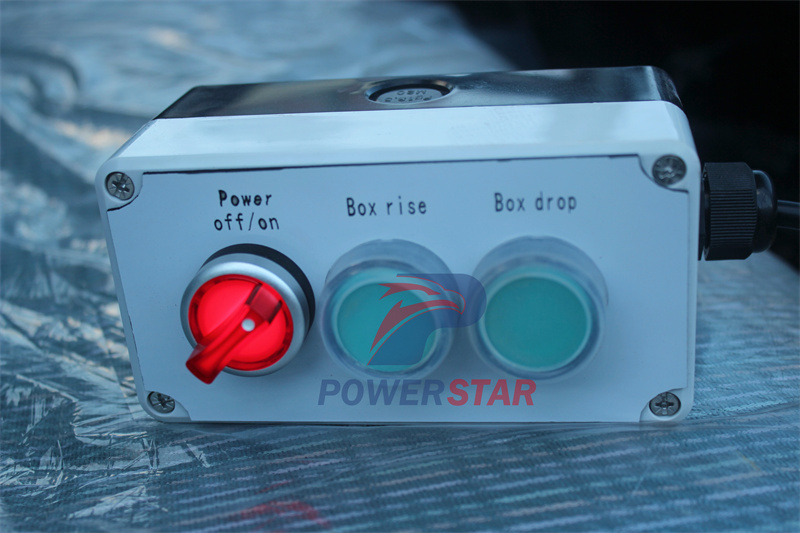

Cab operation button
On the construction site, the Isuzu 4KH1 engine tipper lorry truck is like a tireless warrior, who can deal with it calmly no matter how harsh the environment and complex the task. Its appearance not only greatly improves construction efficiency, but also makes drivers' work easier and more enjoyable.
In the city streets, the Isuzu 3ton rear dumper truck also shows its unique charm. The small body allows it to easily shuttle through narrow streets, whether it is narrow alleys or busy urban roads. And its loud engine sound and steady driving posture have become a beautiful landscape in the city.
The Isuzu NKR 100P small 3-ton dump truck has become the ideal choice for many drivers with its excellent performance, reliable quality, flexible body and powerful unloading capacity. Whether on the construction site or on the city streets, it can show extraordinary strength and charm, allowing every driver to enjoy the fun of driving and the sense of achievement at work. If you are looking for a practical and interesting dump truck, then the Isuzu NKR 100P is definitely worth a try.
