The Isuzu NKR 4x2 dump truck with a capacity of 4 cubic meters is a versatile and reliable vehicle designed for a variety of applications, especially in the construction, mining and transportation industries. This truck combines durability, efficiency and functionality in a compact and easy-to-operate package.
Work capacity:
4cbmTruck model:
PT5070GYZEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4x2, LHDGear box:
MSB 5-speed,manualRemarks:
Isuzu 600P NKR dumper with 4cbm capacity
NKR 4x2 Dump Truck 4cbm by Isuzu also called Isuzu 600P NKR 4x2 4cbm dump truck,Isuzu 600P dumper truck,Isuzu NKR 4m3 light duty dumper,Isuzu 600P 4x2 tipper truck, is a medium-sized dump truck designed for efficient material transportation. It adopts 4x2 drive form to ensure that the vehicle can travel stably under various road conditions. The cargo box volume reaches 4 cubic meters, which is suitable for loading and transporting bulk materials such as sand, gravel, and soil. This model is equipped with Qingling Isuzu brand engine, which is powerful and fuel-efficient. The NKR 4x2 Dump Truck 4 cbm by Isuzu is also equipped with a manual transmission and is easy to operate. The Isuzu 600P series is known for its durability and reliability and is widely used in construction sites, mining, agricultural transportation and other fields. Its sturdy body structure and reasonable layout provide users with efficient and safe transportation solutions.
Isuzu NKR 4x2 Dump Truck 4 cbm plays an important role in many industries with its strong load capacity, stable performance and flexible application scenarios. Whether it is construction sites, mining, agricultural production or urban management, it can be seen.
|
NKR 4x2 Dump Truck 4 cbm by Isuzu |
||
|
Truck Specification |
||
|
Truck model |
PT5070GYZ |
|
|
Cab |
Isuzu 600P single row cab, with power steering. Electronic flameout |
|
|
Driving Type |
4*2 Left hand driving |
|
|
Max Speed (km/h) |
105 |
|
|
Overall dimension(mm) |
5980×2000×2440(mm) |
|
|
GVW(kg) |
7300 |
|
|
Curb weight |
3300 |
|
|
Mass in working order (kg) |
4000 |
|
|
Wheelbase(mm) |
3360 |
|
|
F/R track base (mm) |
1690/1655 |
|
|
F/R overhang (mm) |
1110/1510 |
|
|
Axle load(kg) |
2500/4800 |
|
|
Tire |
7.00R16 |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
MSB 5-speed,manual |
|
|
Enging |
Model |
4KH1CN6LB |
|
Fuel Type |
Diesel fuel |
|
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|
|
Exhaust(ml) |
2999 |
|
|
Max output power/Torque (hp /N.m ) |
88/290 |
|
|
Horse power |
120HP |
|
|
|
Emission standard |
EURO 6 |
|
Braking system |
Service Brake |
Compressed air brake |
|
Park Brake |
Spring energy |
|
|
Auxiliary brake |
engine exhaust brake |
|
|
Eletric system |
24v |
|
|
Upper-Body specification |
||
|
Dump box dimension (L*W*H)(mm) |
3400*2100*550 |
|
|
Dump box material |
Carbon steel |
|
|
Dump box thickness (mm) |
Side 3 bottom 4 |
|
|
Hydraulic cylinder |
Middle lift with double hydraulic cylinder |
|
|
Dump box color |
According to customer's requirement |
|
|
Lifting Angel |
45 degree |
|
|
Lowering Time |
20s |
|
|
Tailgate |
15s |
|
|
Drop Side |
Auto release |
|
|
Painting |
Detachable |
|
The Isuzu NKR 4x2 4 cbm dump truck stands tall as a stalwart in the domain of light-duty vehicles, embodying a blend of robust design, cutting-edge engineering, and dependable performance. Crafted to cater to the demanding needs of construction sites, infrastructure projects, and mining operations, this vehicle represents the epitome of reliability and efficiency in the realm of dump trucks.

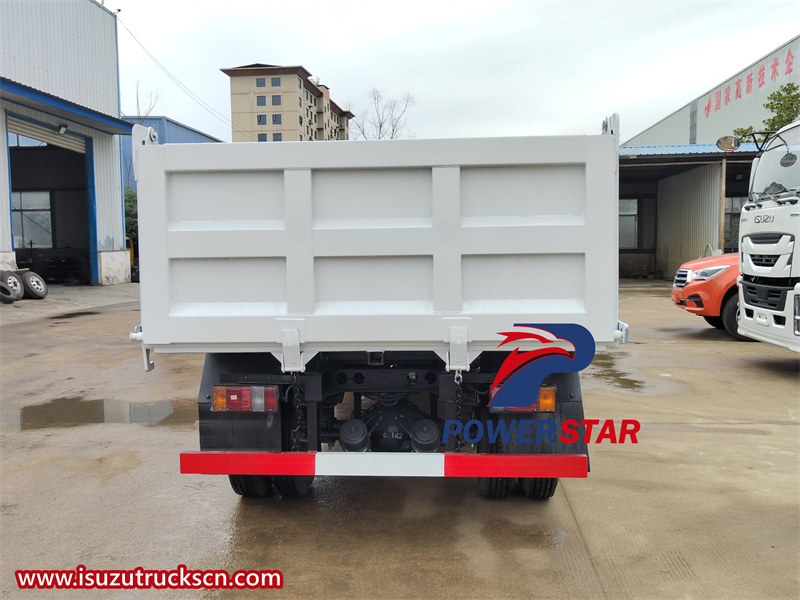

Isuzu NKR 4m3 light duty dumper
At first glance, the Isuzu 600P Dump Truck impresses with its sheer presence and purposeful design. Its bold and muscular exterior exudes a sense of power and durability, setting it apart as a formidable workhorse in the construction industry. The sleek lines and aerodynamic profile not only add to its aesthetics but also play a crucial role in enhancing fuel efficiency.
Equipped with a robust Isuzu engine, this dump truck delivers a potent combination of power, torque, and efficiency. The advanced powertrain ensures seamless performance even in the most challenging terrains and operating conditions. The engine's reliability and longevity make it a preferred choice for operators seeking durable and high-performing vehicles.

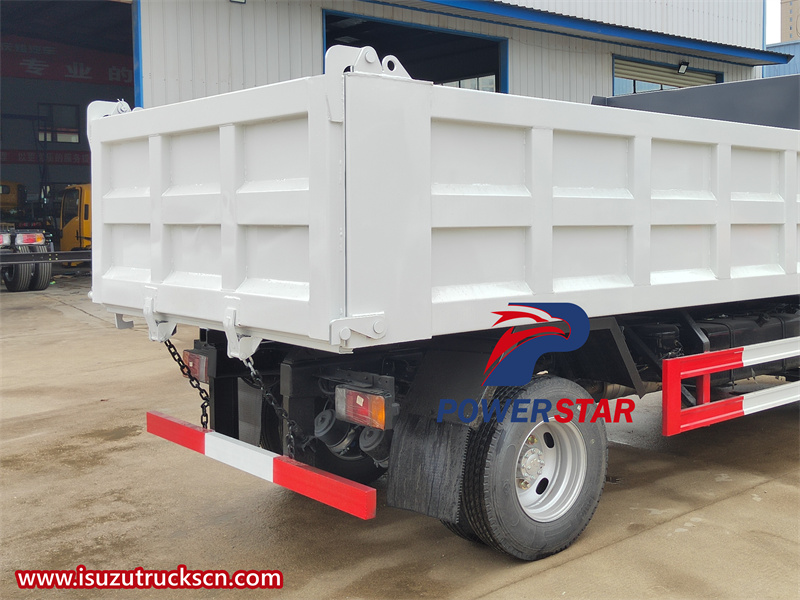

NKR 4x2 Dump Truck 4 cbm by Isuzu
With an ample load capacity of 4m3, the NKR dump truck has plenty of space to easily transport and unload large amounts of material. Its hydraulically driven tipping mechanism allows for fast, efficient and precise unloading, increasing productivity on the job site. The durable cabin and hydraulic system ensure smooth and reliable dumping operations, making it a reliable partner for heavy-duty tasks.
The 4x2 drive configuration of the Isuzu 600P tipper truck provides excellent traction and stability, making it suitable for a variety of terrains. The truck's suspension system is designed to absorb shocks and vibrations, ensuring a smooth ride and minimizing wear and tear on the vehicle's components. This feature is especially important for trucks that travel on uneven or rocky surfaces.

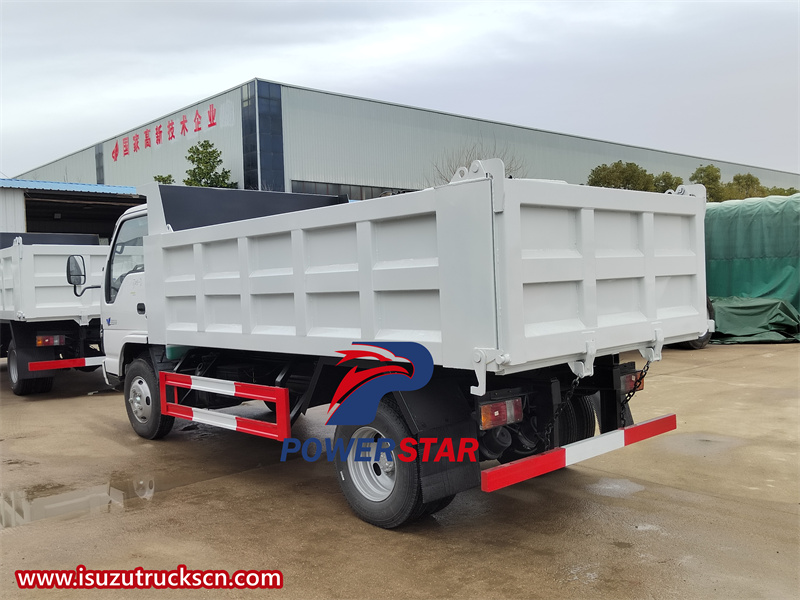

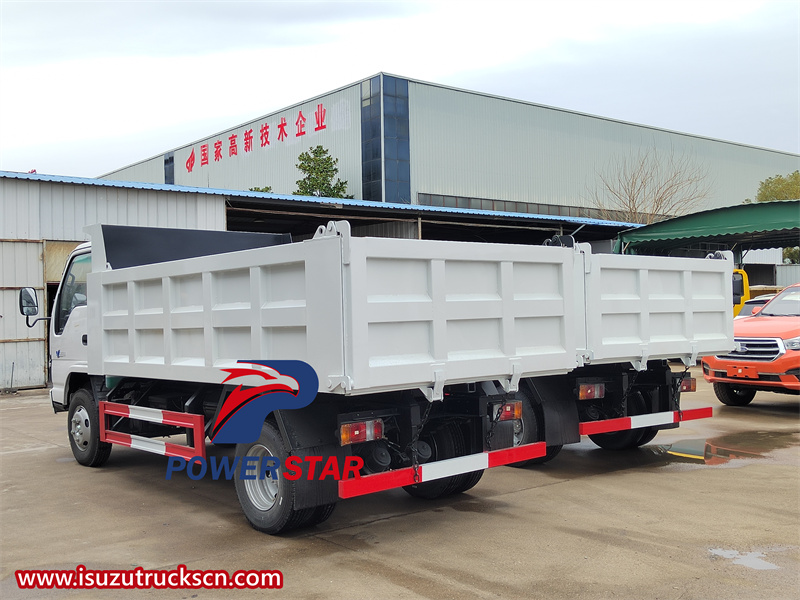

Isuzu 600P dumper truck
The Isuzu 600P NKR 4x2 dump truck has a wide range of applications, mainly in industries that require fast and efficient transportation and unloading of bulk materials. Here are a few of the main applications:
Construction Industry:
Construction Waste Removal: On construction sites, a large amount of construction waste, such as rubble, concrete blocks, abandoned bricks, etc., is often generated. The Isuzu NKR 4x2 dumper truck can easily load these wastes and quickly transport them to designated disposal sites.
Material Transportation: During the construction process, various construction materials such as sand, gravel, cement, etc. also need to be transported. The load capacity and stability of this model make it competent for these tasks.

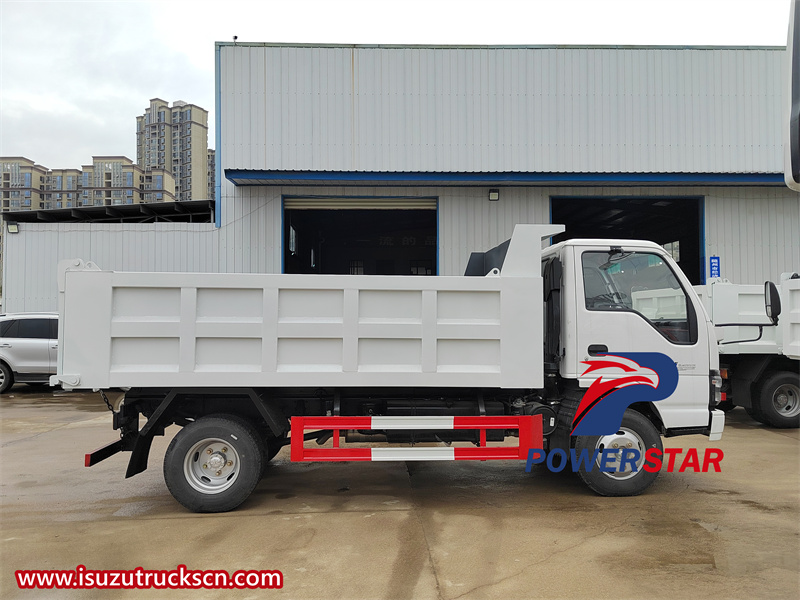

Isuzu NKR 4m3 light duty dumper
Mining:
Ore Transportation: During the mining process, large amounts of ore need to be transported to processing plants or storage facilities. The sturdy design and load capacity of the Isuzu 600P dump truck make it an ideal choice for ore transportation.
Waste Disposal: Waste generated during mining, such as tailings, waste rock, etc., can also be transported and processed by this model.
Agriculture:
Crop residue treatment: After the crops are harvested, a large amount of residues such as straw and husks are often produced. These residues can be used as feed, fertilizer or biomass energy. Isuzu NKR 4x2 tipper lorry truck can help farmers quickly collect and transport these residues to the corresponding treatment sites.
Soil improvement material transportation: In the process of agricultural land improvement, soil improvement materials such as organic fertilizer and mineral fertilizer need to be transported. This model can meet these transportation needs.

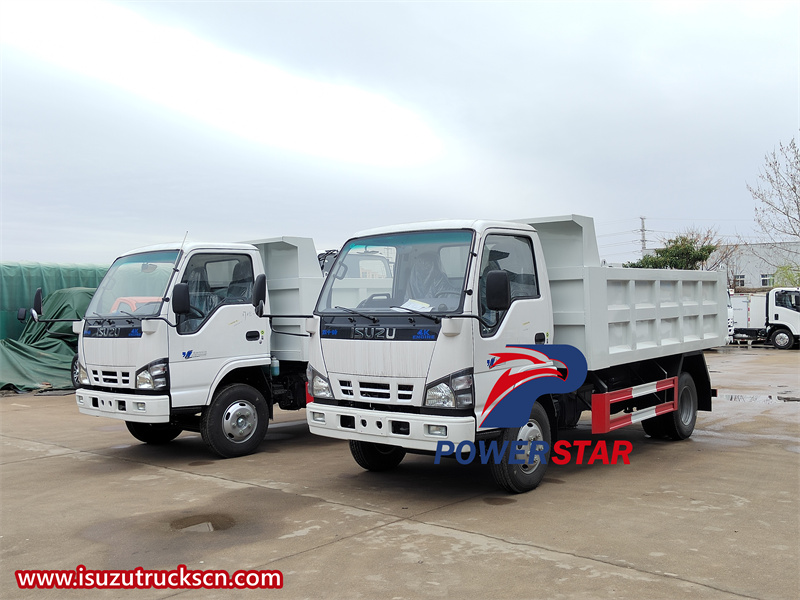

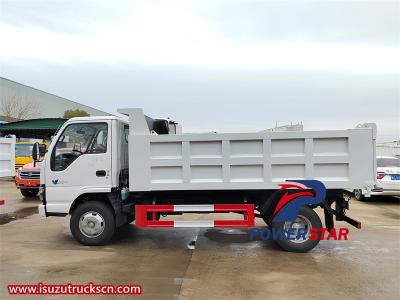

Isuzu 600P 4x2 tipper truck
Public infrastructure:
Road construction: In the process of road construction and maintenance, a large amount of sand, gravel, asphalt and other materials are required. Isuzu NKR 4m3 light duty dumper can efficiently transport these materials to the construction site.
Urban garbage cleaning: In urban management, garbage cleaning is an important link. This model can be used to transport urban garbage to the treatment center, contributing to the cleanliness and environmental protection of the city.
Landscaping:
Landscaping garbage treatment: In landscaping projects, garden garbage such as branches and leaves are often generated. Isuzu 4x2 4cbm tipper truck can help gardeners quickly collect and transport these garbage to the disposal site.
Soil and landscape material transportation: In the process of garden landscape construction, it is necessary to transport landscape materials such as soil, flowers, and trees. This model can meet the transportation needs of these materials.
Isuzu 600P 4x2 dump truck tipper

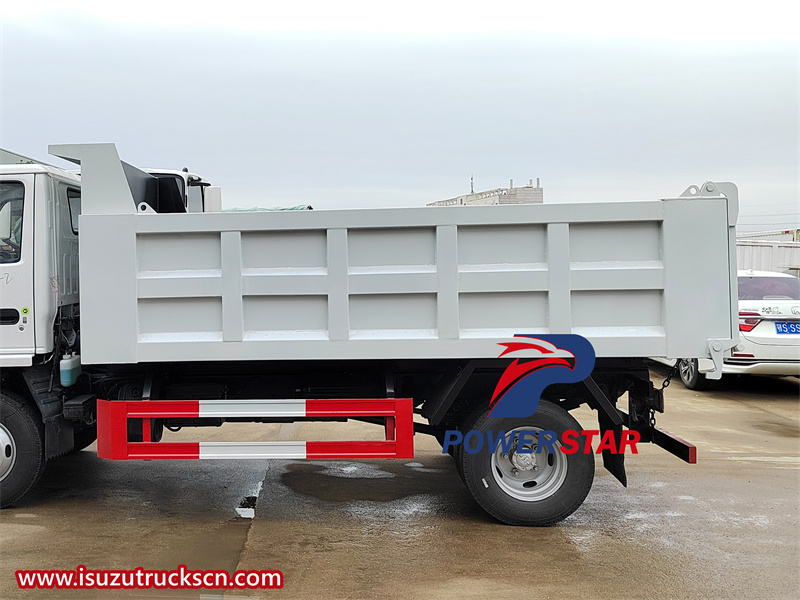

Dump box
