Isuzu NPR 4X4 Self loader Truck with boom crane

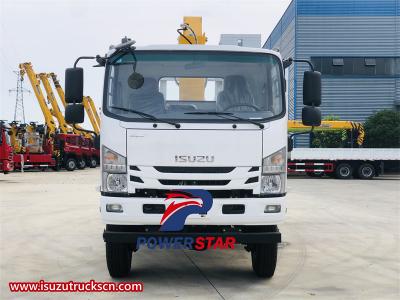

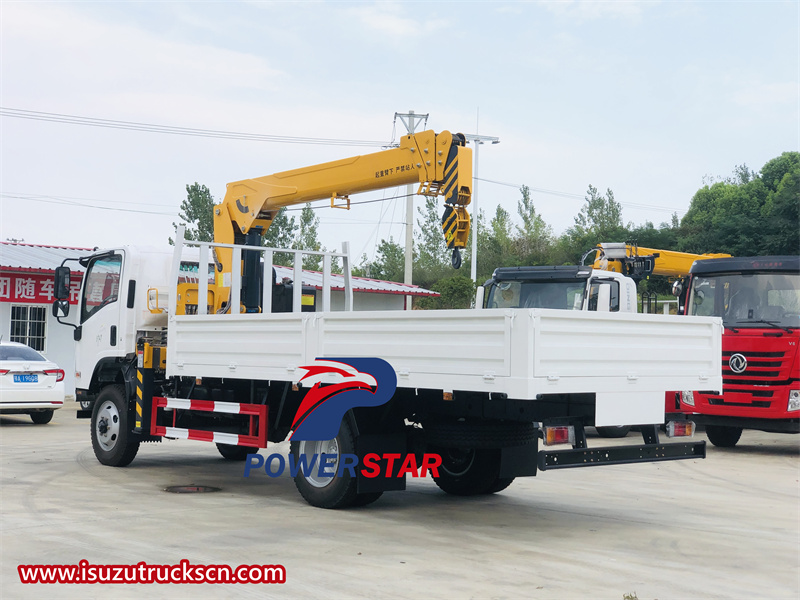

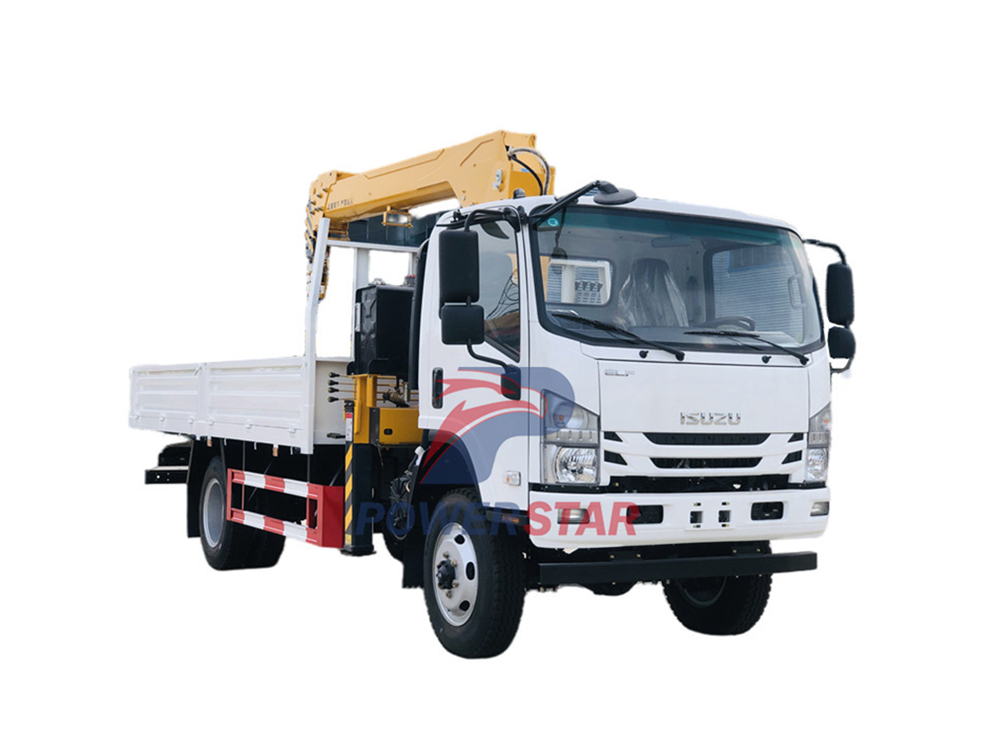

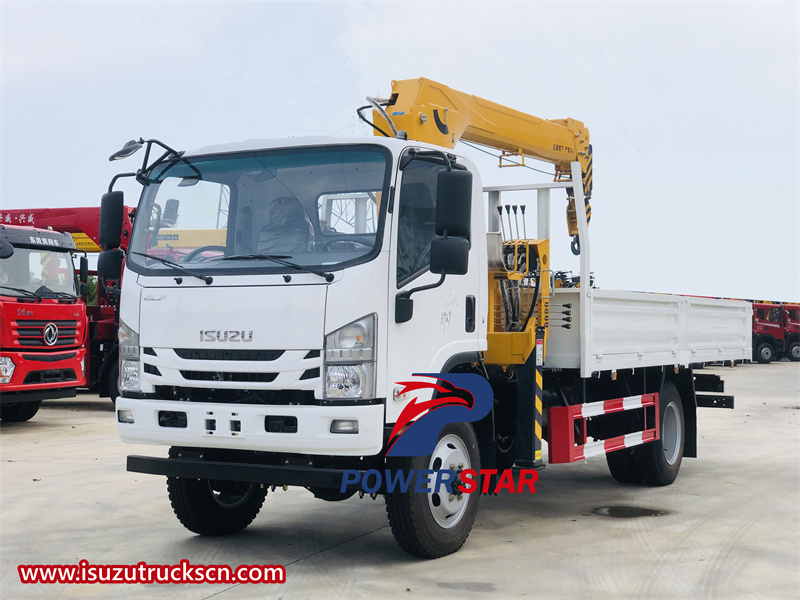

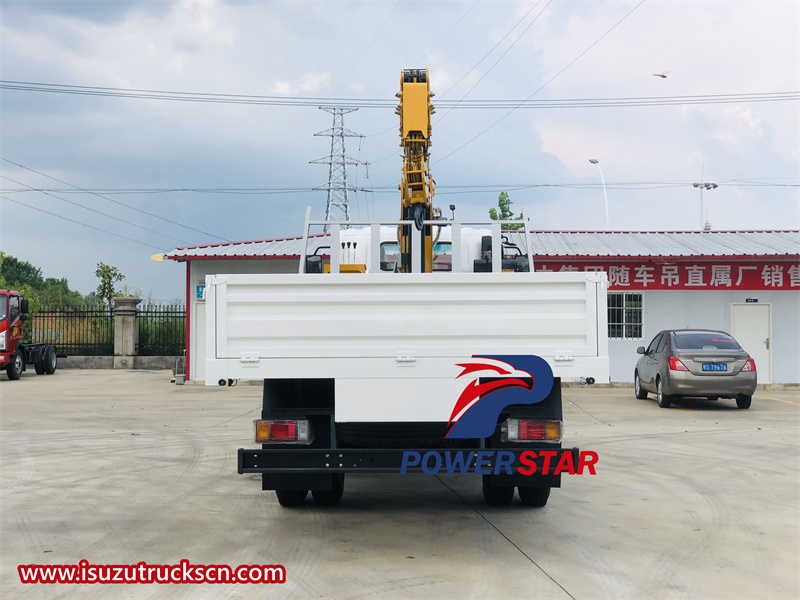

Isuzu 700P 4x4 off road boom crane truck
Isuzu 700P 4x4 off road boom crane truck
Isuzu 700P 4x4 off road boom crane truck
Isuzu 700P 4x4 off road boom crane truck
Isuzu 700P 4x4 off road boom crane truck
Isuzu 700P 4x4 off road boom crane truck
Isuzu 700P 4x4 off road boom crane truck
Isuzu 700P 4x4 off road boom crane truck
Isuzu 700P 4x4 off road boom crane truck
Isuzu 700P 4x4 off road boom crane truck
Isuzu 700P 4x4 off road boom crane truck
Isuzu 700P 4x4 off road boom crane truck

Isuzu NPR 4X4 Self loader Truck with boom crane

The Isuzu 700P all-wheel drive truck crane produced by POWERSTAR is suitable for construction, logistics, infrastructure, mining and other fields. The vehicle is modified on the Isuzu 700P all-wheel drive chassis, equipped with an Isuzu 4HK1-TCG61 190HP engine, powerful, matched with an MLD 6-speed transmission, smooth shifting, and a POWERSTAR SQ125-4 crane at the rear of the vehicle body, with large lifting capacity and reach, and a 4500*2250*550mm cargo box below, which can easily carry heavy objects lifted by the crane hook.

  • Work capacity:

    5 tons
  • Truck model:

    PT5100GXY
  • Engine power:

    190HP
  • Engine type:

    4HK1-TCG61
  • Axle drive:

    4x4,LHD
  • Gear box:

    MLD 6-speed,manual
  • Remarks:

    POWERSTAR SQ125-4 boom crane

Isuzu NPR 4x4 self loader truck with boom crane also called Isuzu 700P 4x4 off road boom crane truck,Isuzu 700P 4x4 5ton cargo truck with crane,Isuzu NPR telescopic boom truck,Isuzu 700P 4WD 5ton lorry crane truck,Isuzu 700p 4X2 5tons truck mounted straight arm crane.



The Isuzu NPR 4X4 self loader truck with boom crane is a formidable vehicle that combines rugged capability with versatile functionality, making it a workhorse in various industries. Designed with precision engineering and innovative features, this truck exemplifies Isuzu's commitment to quality and performance, catering to the demanding needs of professionals in construction, logistics, and utilities.

Isuzu NPR 4X4 Selfloader Truck with boom crane

Features:

• Adopt world-class lSUZU 700P Chassis, High power and Fuel efficiency, Reliability, Uptime;

• All Structural made of High Strength Steel;

Easy to mount and Minimum space required for Mounting;

• Can be Mounted Behind the Cabin or Rear Part of Load Body, thus Truck Load;

• Optional Chassis 4x2, 6x4,8x4 and engine power;

• Optional Crane brand: XCMG, UNIC, PALFINGER...

Optional Crane type: Telescopic boom crane or knuckled boom crane;

• Radio Remote Control Available as an Optional Fitment;







Specifications



Isuzu 700P 4x4 boom crane truck

Vehicle Model:

PT5100GXY





Chassis Dimensions and Parameters

Overall Dimension(L x W x H)

7400×2350x3340mm

Cargo box DimensionL x W x H

4500*2250*550mm

Wheelbase:

4175mm

Front/ Rear Wheel Distance:

1680/1650mm

Front/Rear Suspension

1110/2115mm

Rear Axle Ratio:

4.1

Approach/Departure angle:

17/15°

Leaf Spring:

8/10+6



Weights and Capacities

Curb Weight:

5500kg

Payload:

5tons

GVW:

10550kg

Axle Loads:

3500/7050kg





Engine

Engine Model:

4HK1-TCG61

Max output:

139Kw

Displacement:

5193ml

Horsepower:

190HP

Max.Torque

507N.m

Maximum torque speed

1600-2600rpm

Exhaust Gas Treatment Technology

DPF



Transmission

Transmission:

MLD-6Q

Forward Gear:

6 Speed Gear

Backward Gear:

1 Speed Gear

Brake

Air Brake

Generator

24V-80A

Max speed

105Km/h

Cab




Number of Seats:

3

Type

Isuzu 700P single row,with A/C



Chassis

Drive Type:

4x4,LHD

Tires:

 6+1(Including Spare Tire)

Tire Model:

235/75R17.5

Fuel Tank

Number:

1

Type:

Diesel

Capacity:

100L





Configurations:

1

Power Steering System

2

Air Conditioning

3

Retro-reflective Marking

4

ABS

5

Free Maintenance Battery







Crane Parameter

Brand

POWERSTAR

Model

SQ125-4

Boom type

4 sections telescoping boom

Max. Lifting height

13 m

Max lifting moment

30 t·m

Max. Working radius

11 m

Max. lifting capacity

5000 kg

Crane weight

2500Kg

Rated hydraulic pressure

22MPa

Rotation of turntable

360° continuous

Rotation of turntable

±90°

Outrigger

Front H type,5000mm

Installation space

780 mm

Cargo Box Dimension

4500x2250x550mm

Basket material

Stainless steel



Applications



The Isuzu NPR 700P 4X4 self-loading truck with boom crane is a versatile and rugged vehicle designed to meet the diverse needs of a variety of industries. This truck combines the reliability and durability of Isuzu's truck manufacturing tradition with advanced technology and features to stand out in its class. Whether on a construction site, logistics yard or industrial facility, the Isuzu truck crane allows operators to complete challenging tasks with confidence and precision, making it a valuable asset for professionals looking for a reliable and high-performance solution to their lifting and loading needs.



Isuzu NPR 4X4 Self loader Truck with boom craneIsuzu NPR 4X4 Self loader Truck with boom crane



ISUZU 700P 4X4 All-Wheel Drive Chassis

The ISUZU NPR 700P 4X4 self-loading truck features the rugged and reliable 700P chassis, renowned for its ruggedness and off-road capabilities. The 4X4 configuration enhances the truck's off-road capabilities, enabling it to traverse rugged terrain and conquer challenging landscapes. Whether traversing construction sites, remote areas or uneven roads, the truck's four-wheel drive system ensures reliable performance and stability in harsh conditions. The chassis has been specially designed to provide a solid foundation for the boom crane and cargo box, ensuring the vehicle can easily handle heavy loads and demanding tasks.



The truck's exterior design exudes a sense of strength and ruggedness. Bold lines and muscularity give it a unique look that makes it stand out from other vehicles in its class. The rugged front end, with a unique grille and headlights, is both beautiful and functional, providing excellent visibility and protection.

 Isuzu 700P 4x4 off road boom crane truck

Isuzu 700P 4x4 off road boom crane truck



Cargo Box

The cargo box of the Isuzu NPR 700P 4X4 self-loader truck features a spacious and durable design, with dimensions of 4500*2250*550mm, which gives it excellent loading capacity and space utilization. The cargo box is made of high-strength steel, ensuring it can withstand the rigors of daily use and remain in good condition for years to come.



The cargo box is also equipped with an advanced self-loading mechanism, simplifying the process of loading and unloading goods or equipment. The boom crane mounted on the truck frame has excellent reach and lifting capabilities, allowing operators to handle heavy objects efficiently. The crane's articulated arm and hydraulic controls provide precise movement, allowing for delicate maneuvers during loading and unloading operations.

 Isuzu 700P 4x4 5ton cargo truck with crane

Isuzu 700P 4x4 5ton cargo truck with crane



POWERSTAR SQ125-4 Boom Crane

The POWERSTAR SQ125-4 Boom Crane is the heart of the Isuzu NPR 700P 4X4 self-loader truck. Designed to handle heavy objects with ease, this powerful crane is an essential tool for a variety of applications. The crane features a telescopic boom that can be extended to reach high or hard-to-reach areas, providing maximum versatility and flexibility.



The crane features a 4-section straight boom structure with a longer reach and higher working height. This design allows the crane to easily reach further work areas while maintaining stable operating performance. Whether lifting heavy objects or working at height, precise and safe operations can be achieved.

 Technical drawing of POWERSTAR SQ125-4 strsight boom crane

Technical drawing of POWERSTAR SQ125-4 strsight boom crane



The Powerstar SQ125-4 straight boom crane has an impressive lifting capacity and reach for a variety of lifting applications. With its rugged construction and high-quality components, the crane attachments can safely lift and maneuver large loads, giving operators the confidence to complete difficult tasks efficiently. Whether lifting construction materials, machinery, vehicles or other heavy objects, the crane attachments have features that simplify operation and increase productivity on the job site.



The SQ125-4 boom crane is equipped with an advanced control system for easy operation. The operator can use the controls to precisely maneuver the crane to ensure that the load is positioned exactly where it needs to be. The crane also features a rugged and reliable hydraulic system that provides smooth and controlled movement, ensuring safe and efficient load handling.

 Cargo box and SQ125-4 boom crane

Cargo box and SQ125-4 boom crane



Utility and Versatility

The Isuzu NPR 700P 4X4 self-loading truck equipped with a boom crane offers unparalleled utility and versatility for a wide range of applications. Whether it is used on construction sites to lift structural components, in logistics operations to load and unload cargo, or in utility maintenance tasks that require precise maneuvering of equipment, the adaptability of the crane attachment ensures that it can efficiently and reliably meet a variety of lifting requirements



Its self-loading mechanism simplifies the process of transporting and handling heavy equipment, machinery, vehicles or materials, reducing physical labor and improving operational efficiency. The flexibility and accessibility of the boom crane enables operators to access hard-to-reach areas and perform precise lifting and positioning tasks with ease.



On construction sites, the truck's boom crane is useful for tasks such as lifting and placing building materials, scaffolding and machinery, streamlining the construction process and increasing productivity. In logistics and transportation operations, the truck's capabilities make it an indispensable asset for loading and unloading cargo quickly and efficiently, reducing turnaround time and improving overall logistics efficiency.

 Isuzu NPR telescopic boom truck

Isuzu NPR telescopic boom truck

Isuzu 700P 4WD 5ton lorry crane truck

Isuzu 700P 4WD 5ton lorry crane truck



Application scenarios:

The Isuzu NPR 700P 4X4 Self loader Truck with the Powerstar SQ125-4 straight boom crane has a wide range of applications and uses, providing professionals with reliable and efficient solutions in various working environments, becoming an indispensable tool in the industry. Suitable for the following fields and tasks:



Construction industry:

This vehicle combined with the crane provides a powerful solution for the construction industry. On the construction site, it can be used to move heavy building materials, hoist structural components, and perform precise lifting operations inside the site. The long arm design and high load-bearing capacity of the crane make it an ideal choice for handling construction tasks, improving work efficiency and construction quality.



Logistics and freight:

The upgraded equipment of the Isuzu NPR 700P 4X4 Self loader Truck makes it a powerful tool for the logistics and freight industries. Vehicles equipped with cranes can easily load and unload goods, equipment and heavy goods, effectively reducing loading and unloading time and improving logistics operation efficiency. The precise control and extended operating range of the crane provide flexible and efficient loading and unloading solutions for the logistics industry.

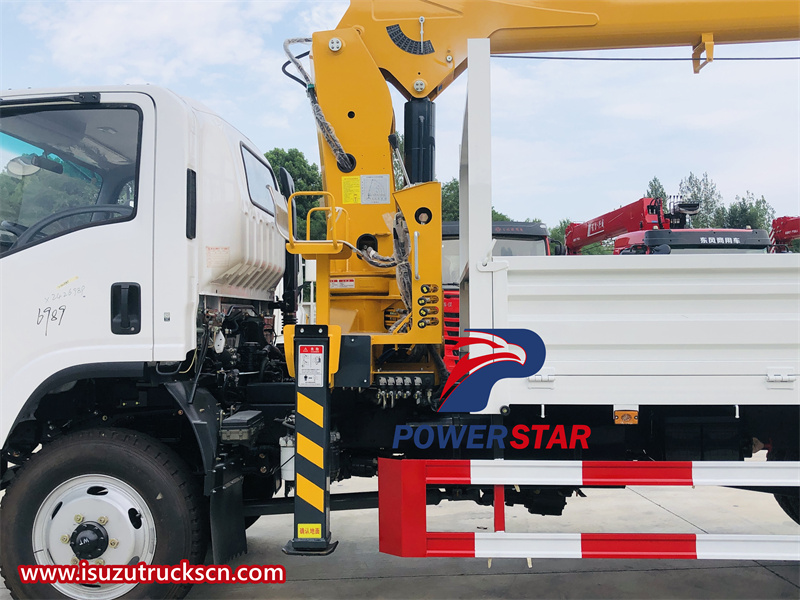

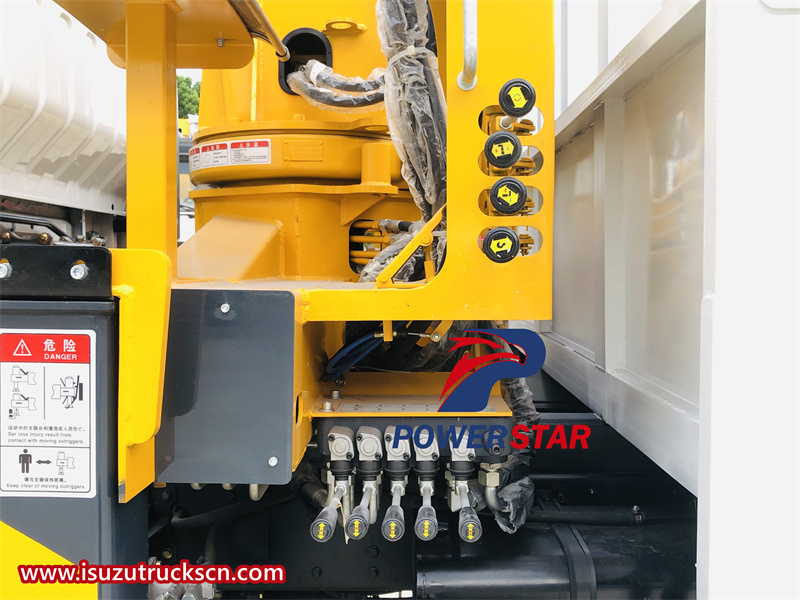

 Rotating mechanism and Outriggers

Rotating mechanism and Outriggers



Infrastructure and Maintenance:

In the field of infrastructure construction and maintenance, the combination of the Isuzu NPR 700P 4X4 Self loader Truck and a telescopic mobile crane has a variety of uses. It can be used for the maintenance of power lines, municipal facilities, and lifting tasks in public works projects. This vehicle shows excellent maneuverability and precision when working in narrow spaces, providing efficient and reliable solutions for professionals in the infrastructure industry.



Mining and Resource Development:

The improved functionality of the Isuzu 700P telescopic mobile crane makes it important in the field of mining and resource development. The truck equipped with a crane can be used to handle the handling and lifting tasks of heavy ores, machinery and equipment. Its adaptability to harsh environments and strong carrying capacity make it an important tool in mining and resource development operations, improving work efficiency and ensuring safe operation.



Other Industries and Specific Tasks:



The Isuzu NPR 700P all-wheel drive mobile crane can also play an important role in many other industries and specific tasks. For example, it can be used for ship maintenance, urban environmental cleanup, agricultural operations, and emergency rescue missions. Its versatility and adaptability make it the ideal equipment for professionals in different fields, providing them with efficient and reliable solutions.



JoystickJoystick
