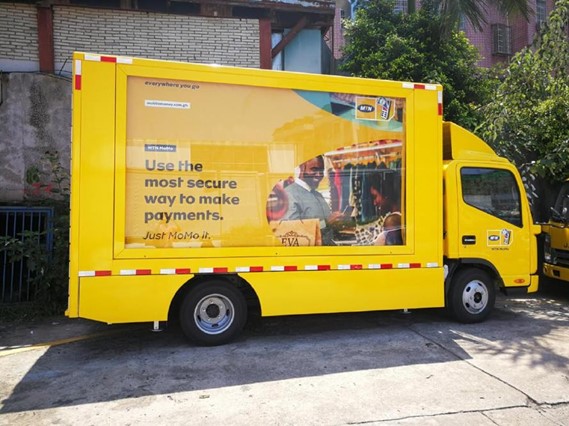

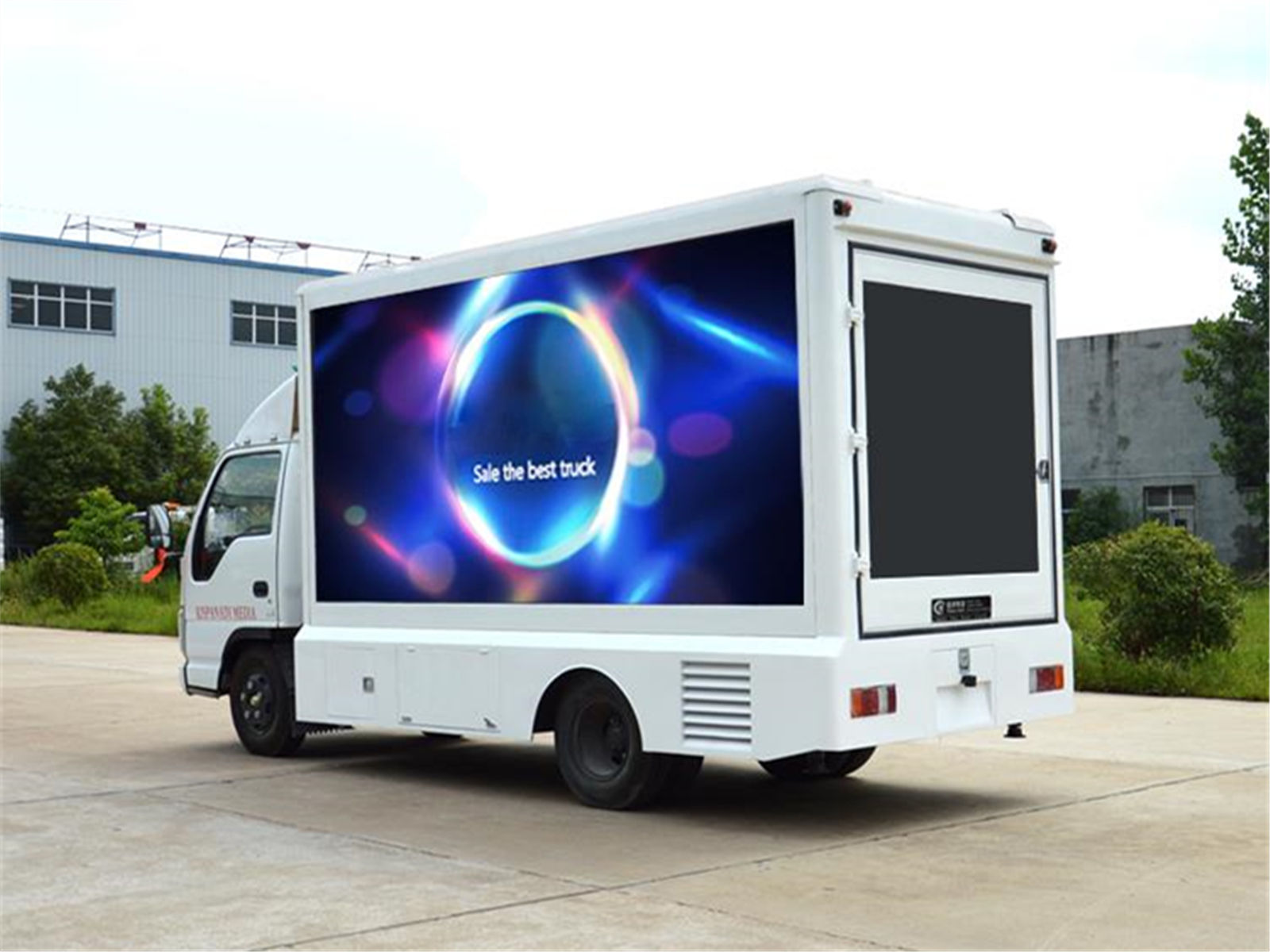

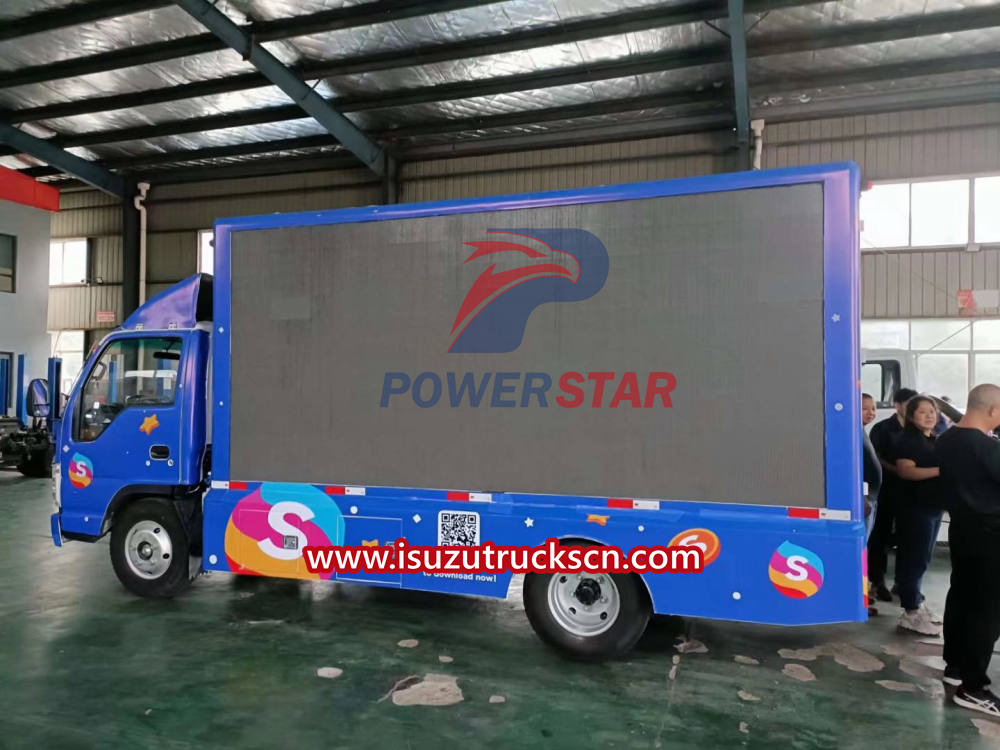

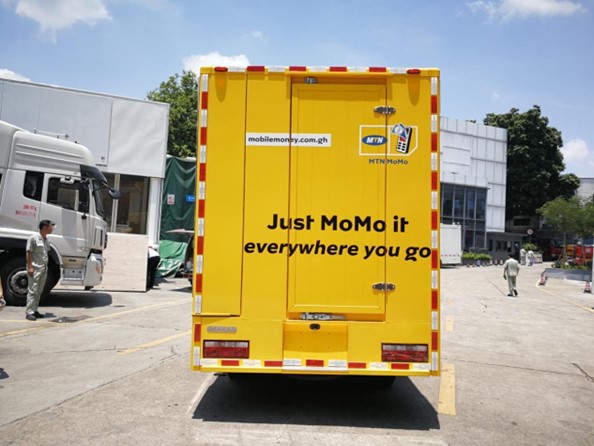

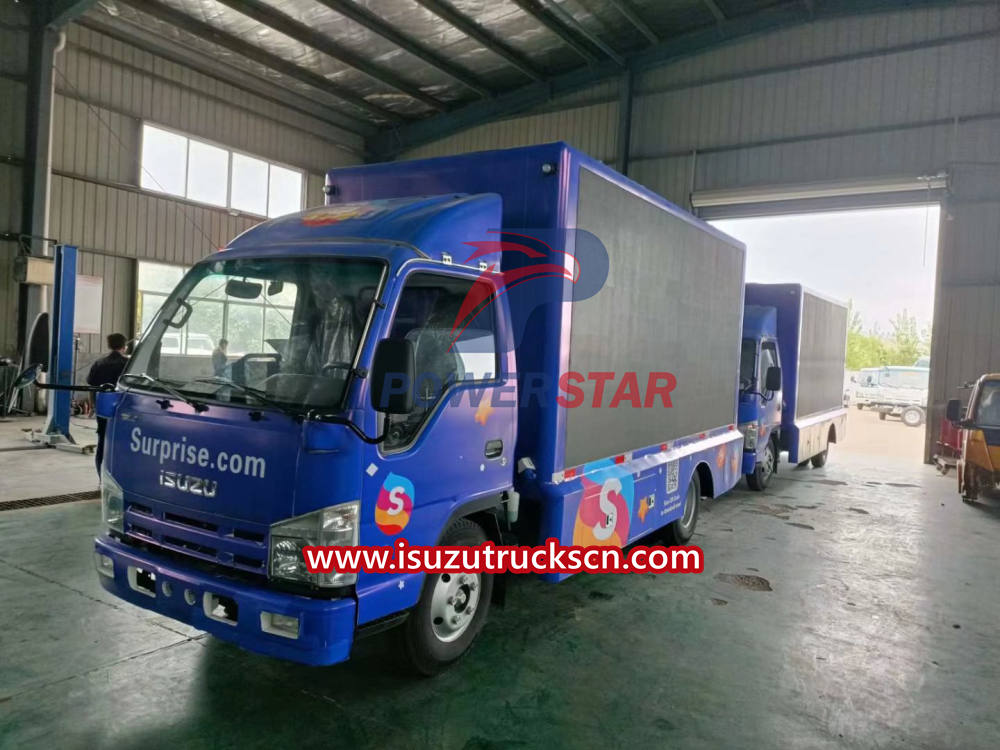

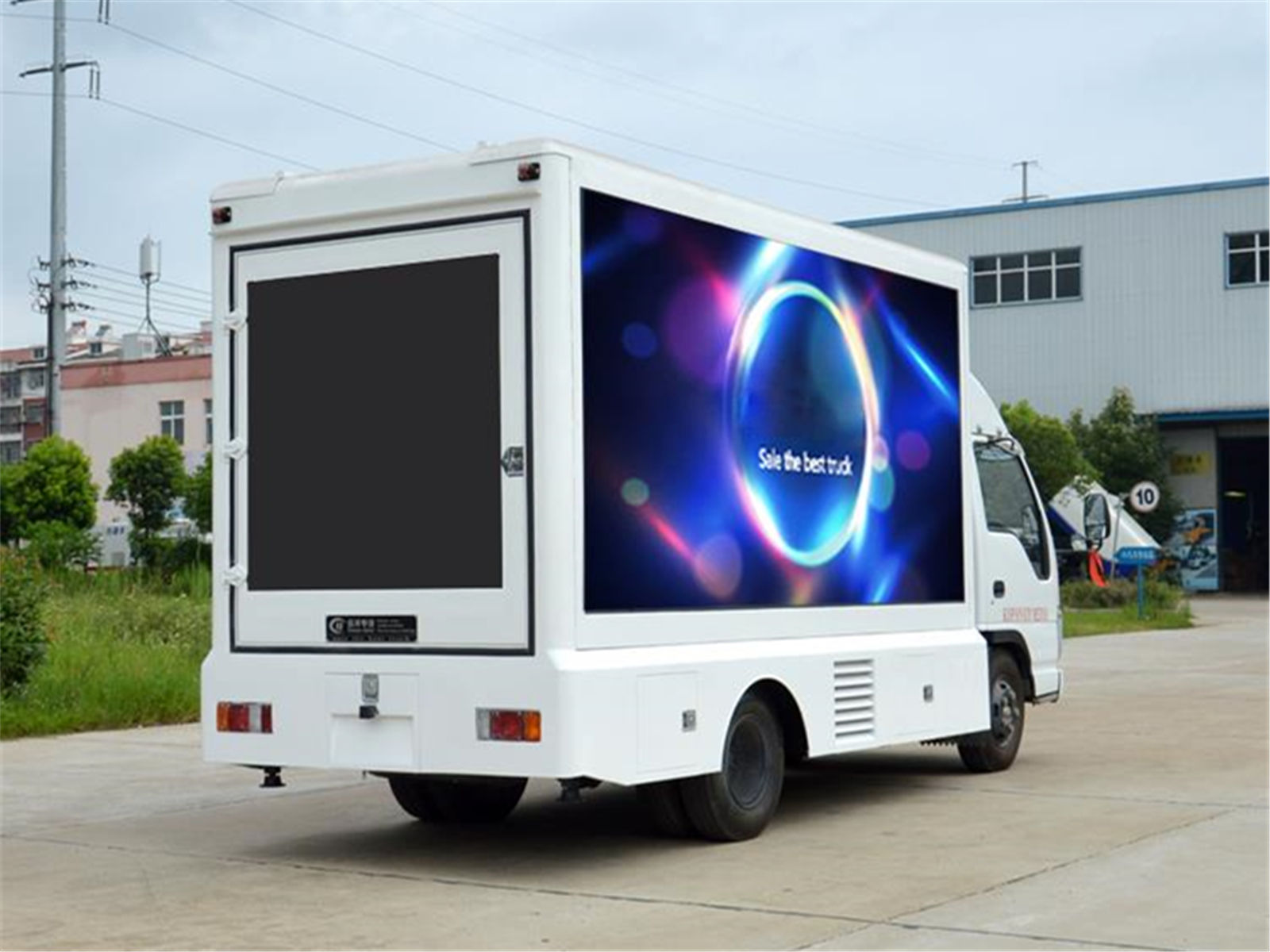

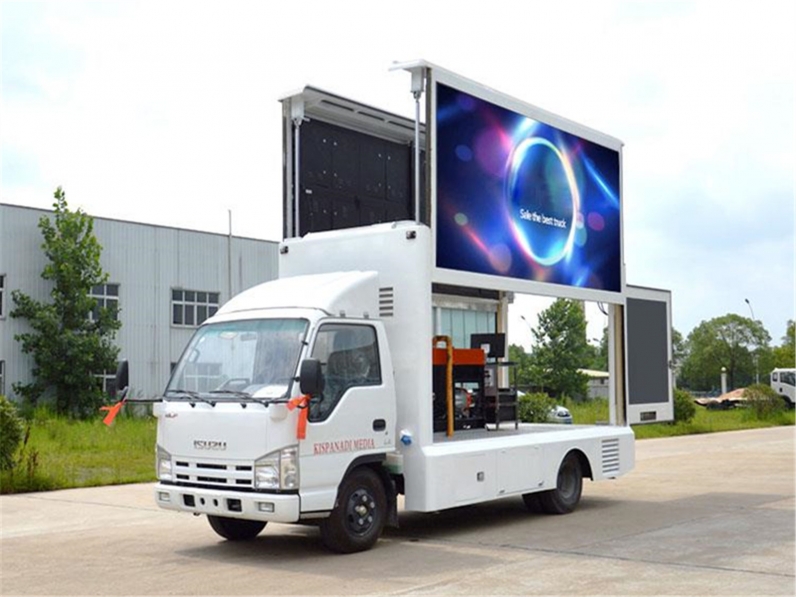

ISUZU outdoor display led advertising truck

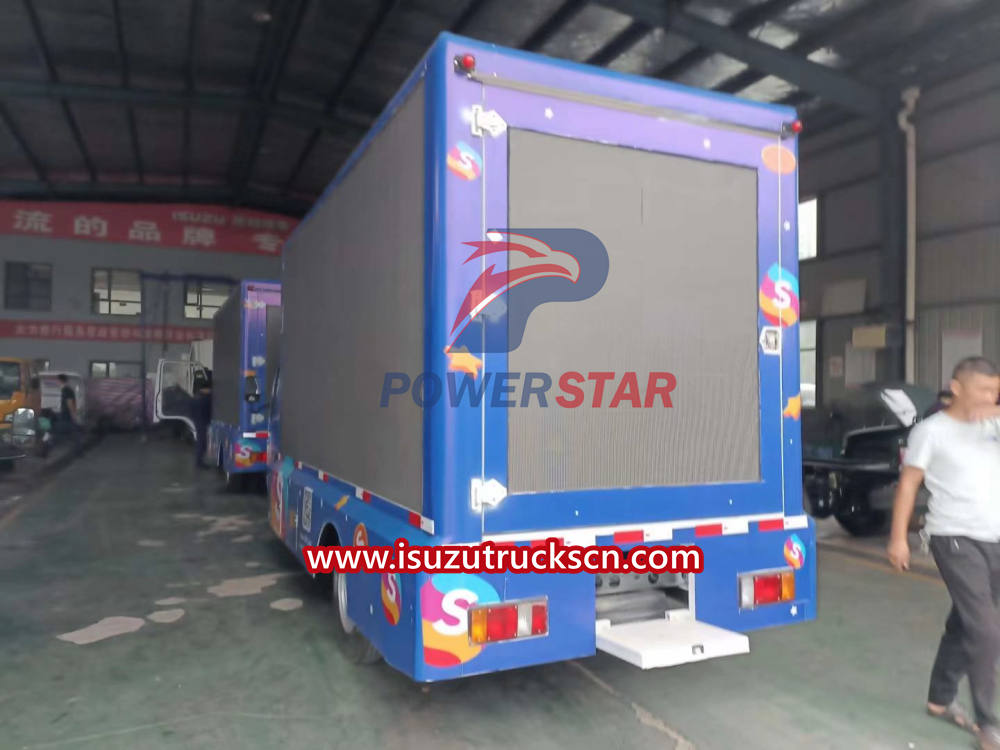

Japan Isuzu brand LED Advertising Billboard Trucks are mobile advertising platforms trucks equipped with high-resolution LED screens that display dynamic and eye-catching advertisements to reach a wide audience.Isuzu outdoor display LED Billboard Trucks enable advertisers to update their messages based on location, day of the week, time of day, and weather, ensuring that their advertisements remain relevant and engaging for their target audience
Order(MOQ):
1Work capacity:
3456x1728mmTruck model:
PT5075TGGEngine power:
98HPEngine type:
Isuzu 4JB1CNAxle drive:
4x2Gear box:
Isuzu MSBRemarks:

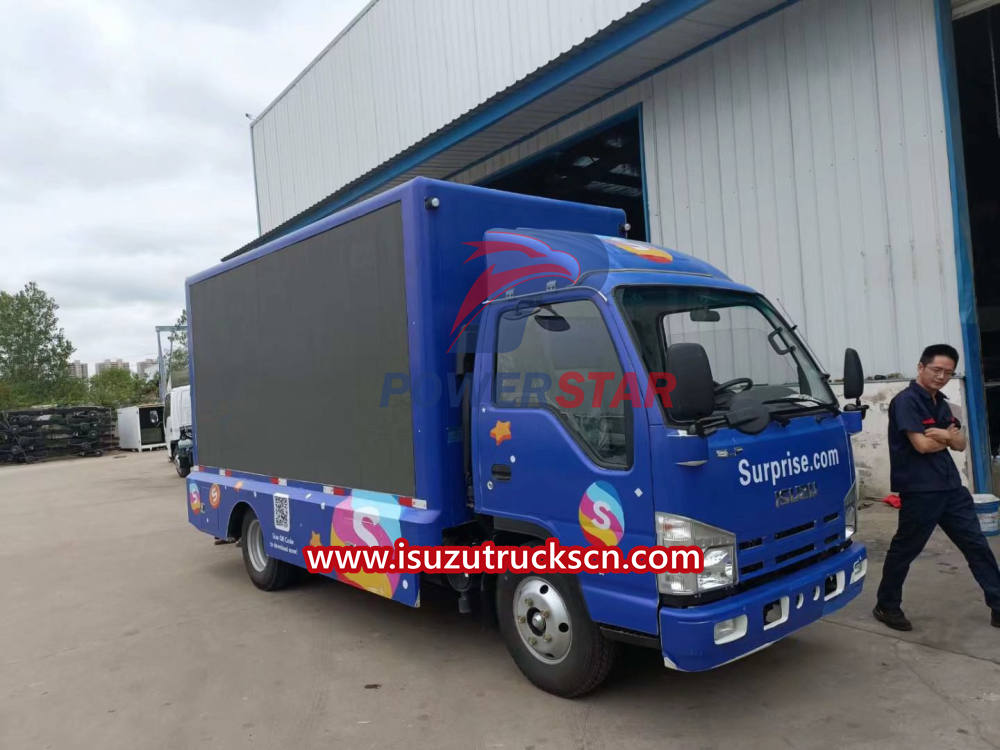

Hydraulic screen lifting systemISUZU 4x2 outdoor LED panel Advertising Display Truck, Isuzu brand LED Billboard Trucks are mobile advertising platforms equipped with high-resolution LED screens that display dynamic and eye-catching advertisements to reach a wide audience. These trucks offer several advantages for advertisers, including:
1. High Visibility: Isuzu LED Billboard Trucks provide high visibility for advertisements, both during the day and at night, due to the intense luminosity of the LED screens.
2. Flexibility: Advertisers can strategically place LED Billboard Trucks Isuzu in high-traffic areas, on the streets, at conferences, or at other events, allowing them to reach customers where they are.
3. Customizable Messages: Japan Isuzu outdoor LED Billboard Trucks enable advertisers to update their messages based on location, day of the week, time of day, and weather, ensuring that their advertisements remain relevant and engaging for their target audience.
4. Versatility: These Isuzu LED display trucks offer a large visual space for advertisements, allowing advertisers to combine video, still images, music, and interactive technologies to create eye-catching and memorable advertisements.
5. Impact: Isuzu LED Billboard Trucks can help generate buzz about a product or service by displaying captivating visuals on high-resolution LED screens.
6. Adaptability: LED Billboard Trucks Isuzu can be used in various environments, such as tradeshows, concerts, and other events, making them stand out and get noticed.
ISUZU Advertising LED Display Trucks (also called ISUZU LED billboard truck, ISUZU Full color LED screen truck, ISUZU Outdoor LED screen truck, LED Video wall screen truck etc.) is a special vehicle for advertising, generally used for the product promotion, brand promotion, draft activities , live shows sales, sporting events, vocal concerts, concerts and so on!
Powerstar ISUZU Brand Mobile LED panel truck can be showing at any time, communication, interaction, publicity coverage extensively. And meanwhile effectively get the best of advertising effect.
---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- LED Screen size can be optional.
---- Huge auxiliary equipment can be optional;
---- High-performance hydraulic multi-valve and cylinder employeed;
Main specifications:
Part II. Technical Parameters
|
Product Name |
Mobile LED Display Truck Isuzu |
|
|
Model No. |
D-6S |
|
|
External dimension |
5995mm×2100mm×3100mm |
|
|
Gross weight |
6500KGs |
|
|
Vehicle color |
White |
|
|
Part I Truck Chassis |
||
|
Chassis Brand |
ISUZU |
|
|
Wheel Base |
3360mm |
|
|
Engine Displacement |
2.9L/88KW |
|
|
Cabin Model |
Single-row |
|
|
Seating Capacity |
2 |
|
|
Engine Type |
Diesel, 4 stroke, in-line, water cooling, four cycle |
|
|
Tyre Size |
7.50R16 |
|
|
Part II Outdoor LED Screen |
||
|
Screen size |
3456mm×1728mm |
|
|
Pixel pitch |
6mm |
|
|
Chip |
EPISTAR |
|
|
Brightness |
≥6500cd/m² |
|
|
Max power consumption |
1200 W/m² |
|
|
Avg. Power consumption |
600W/m² |
|
|
Life span |
100,000hours |
|
|

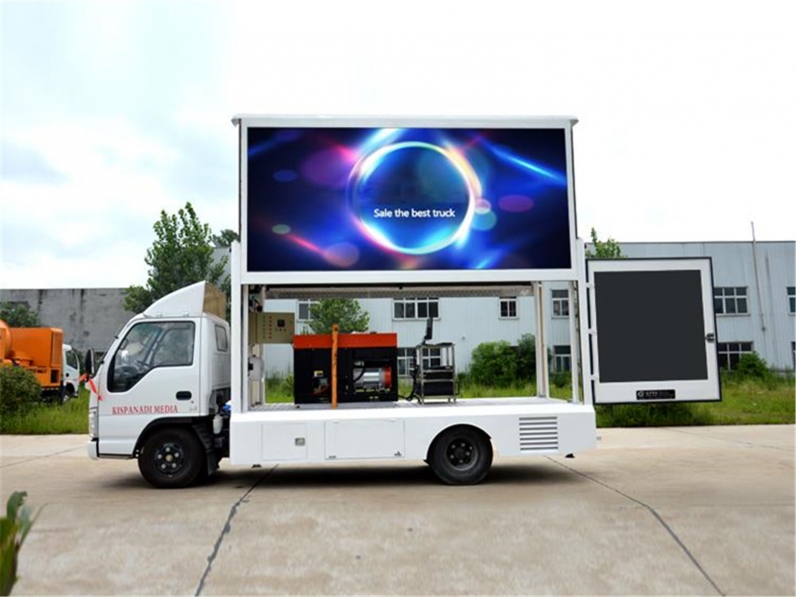

Part III Screen Lifting System |
||
|
Lifting type |
Hydraulic lifting system |
|
|
Lifting Height |
1800mm |
|
|
Control Panel |
Electric Buttons |
|
|
Stabilizers |
4 units |
|
|
Part IV Scrolling Lighting Banner |
||
|
Banner Size |
3300mm×1700mm |
|
|
|
Lighting Mode |
LED lighting |
|
|
|
Control Mode |
Electric control |
|
||
|

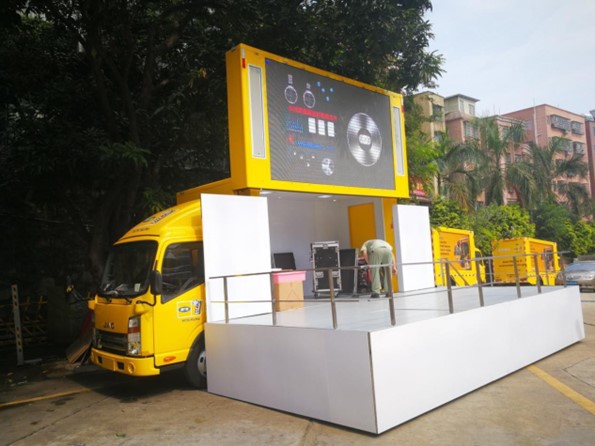

Part V Hydraulic Stage |
||||
|
Stage Size |
3870mm×2400mm |
|
||
|
Stage Material |
12mm wood board+PVC floor |
|
||
|
Load Capacity |
200kg/㎡ |
|
||
|
Stabilizer of Stages |
1200mm, adjustable height |
|
||
|
Handrail |
Stainless |
|
||
|
Part VI Media Control System |
||||
|
Power amplifier |
200W |
|
||
|
Speakers |
350W |
|
||
|
Video Processor |
Siwun |
|
||
|
Media Format |
USB/laptop, MP4, 3GP, AVI, JPG,PNG etc |
|
||
|
Part VII Generator |
||||
|
Fuel Type |
Gasoline, vehicle mounted-on |
|
||
|
Max Power |
6.6 KWA |
|
||
|
Brand |
Honda |
|
||
|
Part VIII Power Supply |
||||
|
Input voltage |
single-phase 220V |
|
||
|
Output voltage |
220V |
|
||
|
Electrical current |
30A |
|
||
|
Power Cable |
50 Meters |
|
||
|
Part IX Outer Frame and Inner Decoration |
||||
|
Frame |
Waterproof steel frame |
|
||
|
Surface covering |
Fiber-reinforced plastic(FRP) |
|
||
|
Inner decoration |
Fire Retardant Board |
|
||
|
Lighting system |
led lighting system |
|
||
|
Part X Spare Parts List |
||||
|
LED module |
4PCS |
Free |
||
|
|
Cabinet keys |
2PCS |
Free |
|
|
Pinboard |
1PCS |
Free |
||
|
Receiving card |
1PCS |
Free |
||
|
Long flat cable |
10PCS |
Free |
||
|
Short flat cable |
10PCS |
Free |
||
|
Generator Spares |
3PCS |
Free |
||
|
Automobile Tools |
1PCS |
Free |
 |
 |
 |
 |
|
Vehicles Parameters |
||
|
Dimensions |
Product Model: |
PST5060XXC |
|
Overall dimensions(mm) |
6500 X 2020 X 3615 |
|
|
GVW(kg) |
7000 |
|
|
Wheelbase/mm |
3360/3815 |
|
|
Approach/Departure Angle/° |
21/13 |
|
|
Front/Rear Overhang/mm |
1110/2395 |
|
|
Cab |
Cab Capacity |
Single row, left steering wheel |
|
Air Conditioner |
Yes |
|
|
Chassis |
Chassis model |
QL1070HARY |
|
Brand |
ISUZU brand with 100P series |
|
|
Driven Mode |
4x2, LHD |
|
|
Emission standard |
Euro IV |
|
|
Front/ Rear track base(mm) |
1680/1650 |
|
|
Tyre |
7.00-15 |
|
|
Fuel Type |
Diesel |
|
|
Gear Box |
MSB 5 gear transmission, air conditioning drive, oil brake vacuum pump, the bridge can open the frame section |
|
|
Taxi driver |
MSB 5 gear transmission, air conditioning drive, oil brake vacuum pump, the bridge can open the frame section |
|
|
Max Speed/ km/h |
110 |
|
|
Engine |
Engine model |
4JB1CN |
|
Horsepower/HP |
98 |
|
|
Displacement/ml |
2777 |
|
|
Max Torque |
510N.m |
|
|
Speed at Max Torque |
2600 rpm |
|
|
Detail Mobile LED truck |
LED screen size (x length high) (mm) |
5120 * 2240 (Left and right side) |
|
Height Screen Lift (m) |
1.5 (left and right side) |
|
|
Pixel of LED screen pitch (mm) |
P8/P6/P5/P4 |
|
|
Rear P6 Full-color LED Screen size (Width × Width) (mm) |
1280 × 16000 (P6 Screen) |
|
|
Generator - Kubota brand |
16 Kw |
|
|
Control System of LED Screen |
LINSN |
|
|
Comment |
Equipped with Silent generator, wooden floor, light, fan fan, skylights, computer, stereo, amplifiers and other bodybuilding facilities, and 220V external power connector outside the body. |
|
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual | Chassis parts | Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
ISUZU Mobile LED screen van truck (also called Isuzu outdoor Full color LED truck, HD LED water proof screen stage van truck, Mobile advertising LED truck, Mobile selling truck, LED Advertising display trucks )This truck is a special vehicle for advertising, generally used for the product promotion, brand promotion, draft activities , live shows sales, sporting events, vocal concerts, concerts and so on!
