Isuzu RHD truck-mounted crane is a transport vehicle that combines a crane and a chassis. It is widely used for hoisting and transporting a variety of infrastructure materials and other equipment, and has multiple functions such as lifting, rotating, and lifting. The maximum load capacity of this Isuzu RHD crane truck is 4 tons. This load capacity enables it to meet the needs of most hoisting operations, including material hoisting on construction sites, cargo loading and unloading in logistics centers, etc.
Work capacity:
4 tonTruck model:
PT5110GSC4Engine power:
190 HPEngine type:
4HK1-TCG61Axle drive:
4×2Gear box:
MLD 6-speed, manualRemarks:
ISUZU RHD chassis, customized boom crane

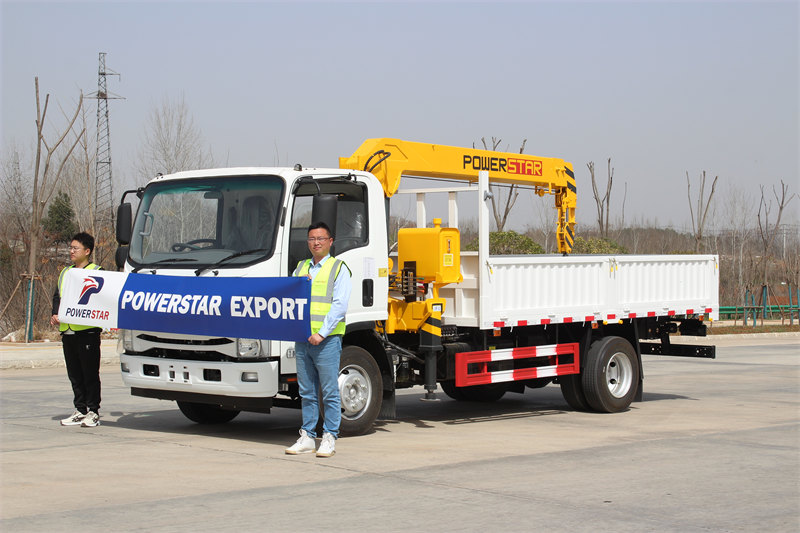

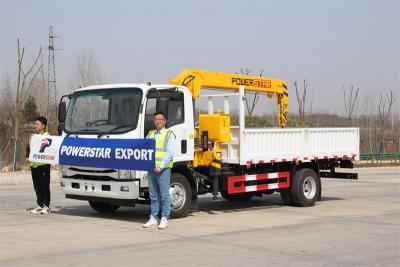

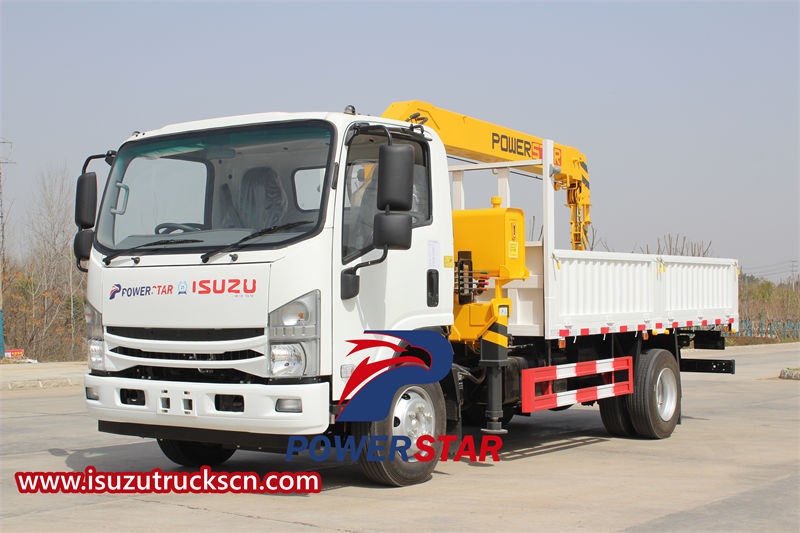

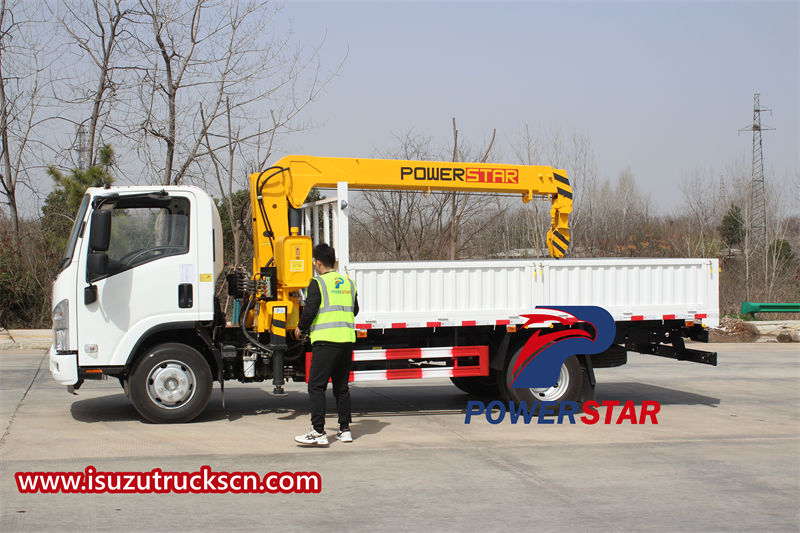

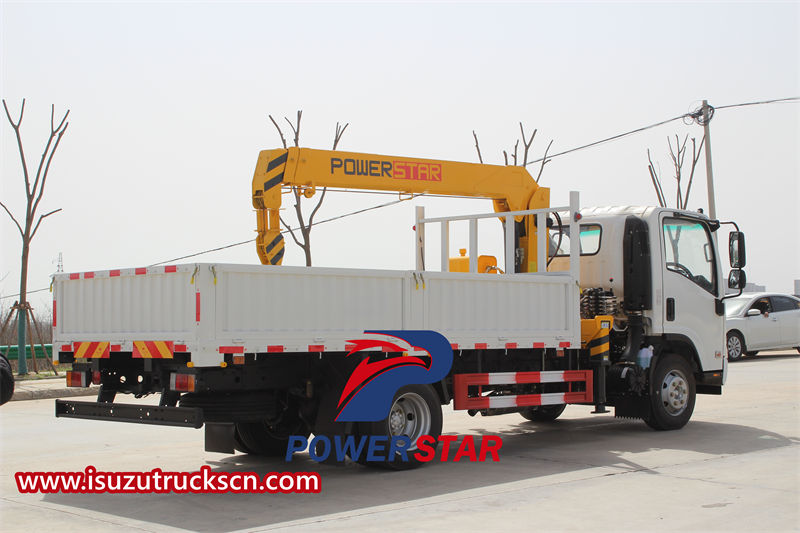

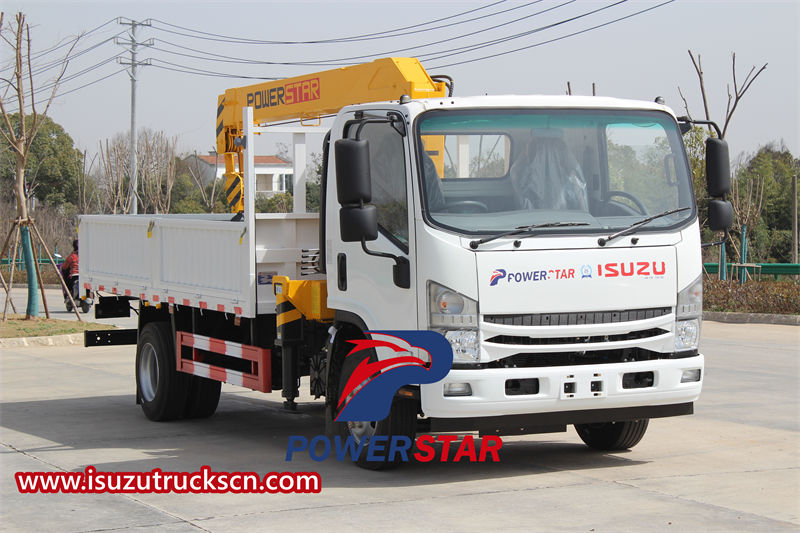

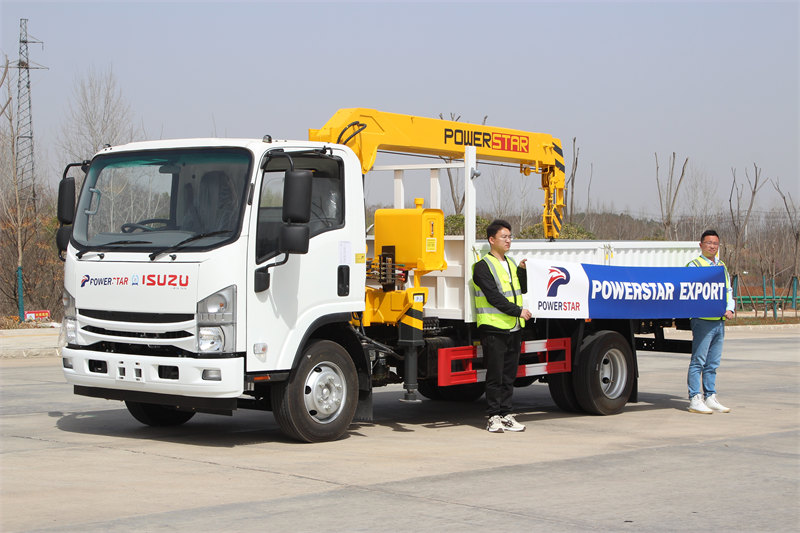

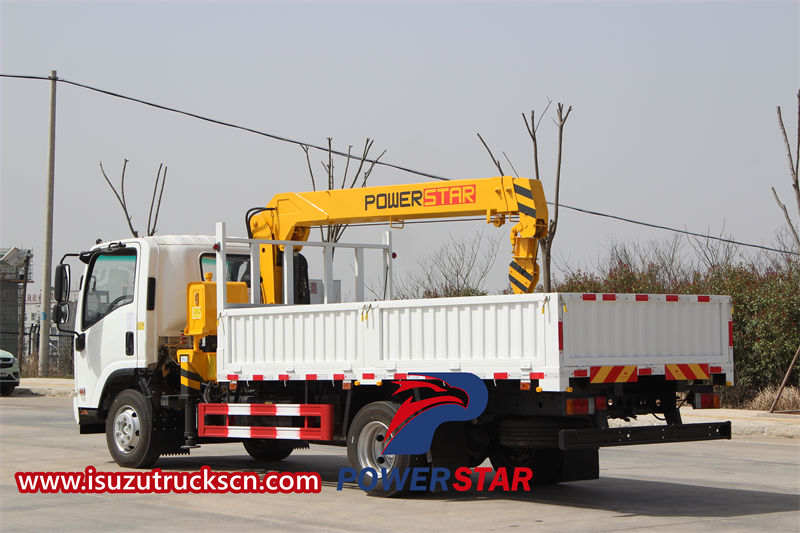

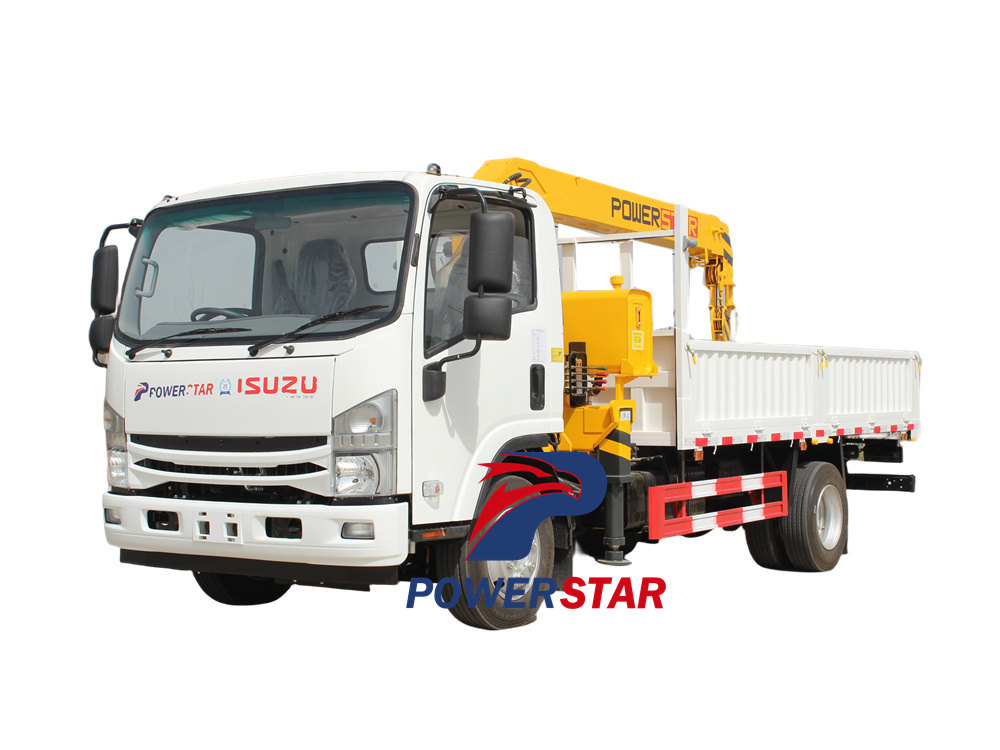

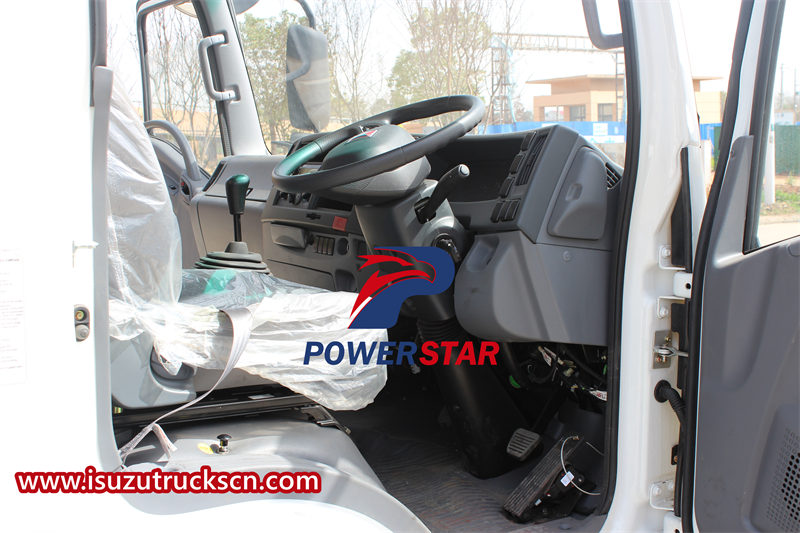

Isuzu RHD truck mounted crane, also called Isuzu RHD boom crane truck, Isuzu RHD truck with crane, is a special vehicle that integrates transportation and lifting operations. It adopts a right-hand drive design, with the cab located on the right side of the vehicle, in line with the driving habits of specific regions. The body is mainly white, with a yellow boom crane, which not only has an eye-catching appearance, but also demonstrates its professional lifting function.

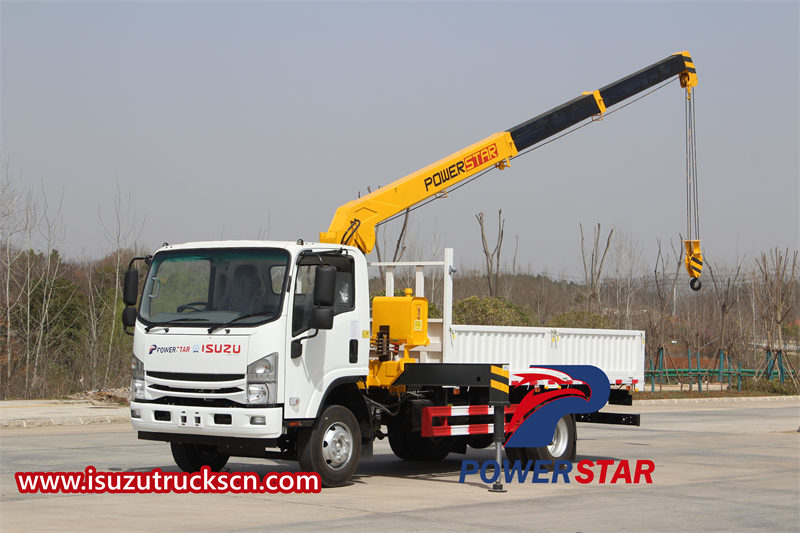

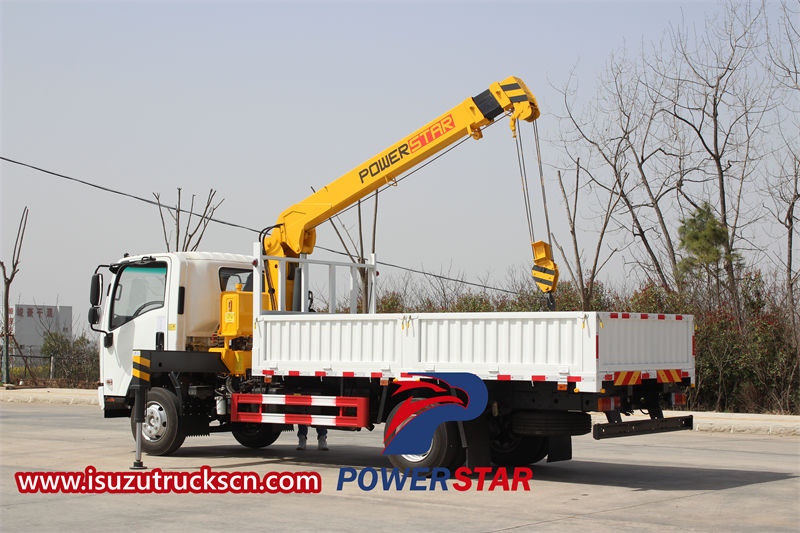

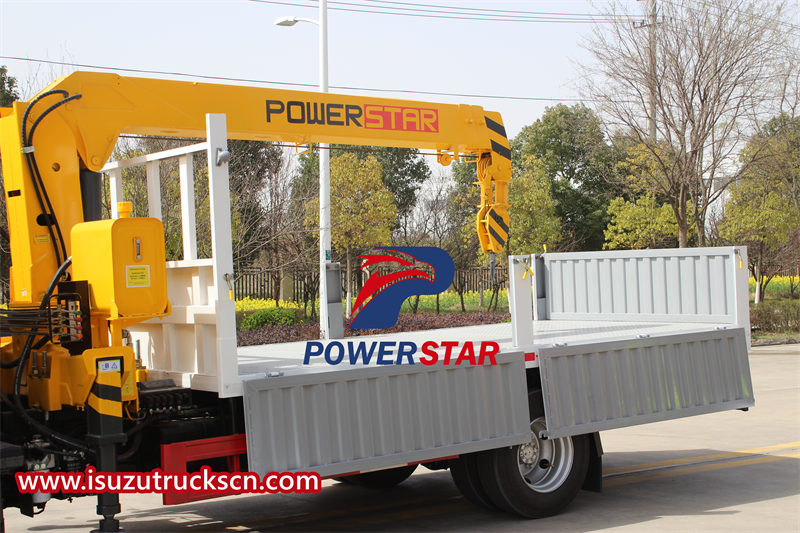

This Isuzu RHD truck-mounted crane has a maximum load capacity of 4 tons. It has strong lifting capacity and flexible operability, and can handle various complex lifting tasks. Its lifting arm can telescope and rotate to facilitate operations at different angles and distances. At the same time, the Isuzu RHD truck-mounted crane is also equipped with advanced hydraulic systems and safety protection devices to ensure the safety and stability of the hoisting process.
Isuzu RHD boom crane truck is widely used in construction sites, logistics centers, ports and terminals, etc. It is an indispensable and efficient equipment in the modern construction and logistics fields.
Product Specifications
|
ISUZU RHD boom crane truck specifications |
|||
|
Overall dimensions |
7000×2250×2850(mm) |
Cargo box dimensions |
3800x2000x450(mm) |
|
Gross vehicle weight |
10,000 kg |
Rated Load capacity |
4000 kg |
|
Chassis specifications |
|||
|
Chassis Brand |
ISUZU |
Color |
White or optional |
|
Engine |
Fuel Type |
Diesel |
|
|
Horse power |
141kw/190HP |
||
|
Displacement |
5193ml |
||
|
Engine Type |
4 cylinders in line, water cooling, intercooled, turbocharged |
||
|
Emission Standard |
Euro 6 |
||
|
Wheel Base(mm) |
3815 |
Driving type |
4x2 |
|
Type & Size of Tyre |
235/75R17.5 (6+1pcs) |
Air Conditional |
Heating and cooling air conditioning |
|
Cab |
Single-row tilted cab |
Gear Box |
ISUZU MLD 6 speed forward with 1 reverse, manual |
|
Brake |
Air brake |
Steering Wheel |
Left Hand Drive with power-assisted |
|
Crane specifications |
|||
|
Crane model |
SQS100 |
Crane weight |
2230 kg |
|
Max. lifting weight |
4000 kg |
Max. working height |
9.5 m |
|
Max oil flow of hydraulic system |
25 L/min |
Rated pressure of hydraulic system |
20 Mpa |
|
Oil tank capacity |
90 L |
Installation space |
850 mm |
|
Max. working radius |
7.5 m |
Max lifting Moment |
10 T.M |
|
Lifting capacity/working radius |
Lifting capacity(kg) |
working radius(m) |
|
|
4000 |
2.5 |
||
|
2600 |
3.42 |
||
|
1600 |
5.42 |
||
|
900 |
7.42 |
||
|
400 |
9.42 |
||
|
Rotation angle |
360°, all rotation |
Boom |
3 sections |
 |
 |
 |
 |
Product Performance
Isuzu RHD truck-mounted crane performs well in terms of safety performance. It incorporates a variety of advanced safety technologies and designs to ensure safety during hoisting operations.
1. The Isuzu RHD crane truck is equipped with multiple safety protection devices. These devices include overload protection, limiters, and safety locking systems to prevent accidental start-up. They work together to provide timely protection at critical moments and prevent equipment damage or accidents due to overloading or improper operation.
2. Key components such as the boom and hook of the Isuzu RHD truck-mounted crane are carefully designed and manufactured to ensure its strength and stability. The lifting arm is made of high-strength materials and can withstand large pressure and tension, while the hook is specially treated to have excellent wear resistance and fatigue resistance. These design considerations make the Isuzu RHD boom crane truck safer and more reliable during hoisting operations.

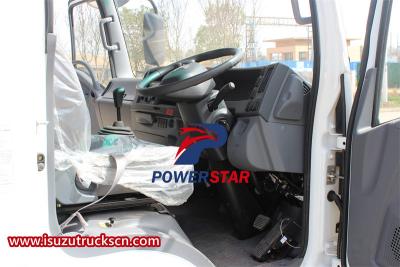

3. We also pay attention to the safety protection of the operator. Our ISUZU RHD boom crane truck comes with an ergonomic cab that provides a comfortable working environment for the operator. At the same time, the cab is also equipped with safety equipment such as emergency braking systems and fire extinguishers so that measures can be taken quickly to protect the safety of operators and equipment in an emergency.
4. Isuzu RHD truck with crane strictly comply with relevant safety standards and regulations during the manufacturing process. It has passed strict quality inspection and safety assessment, ensuring that the equipment reaches high standards in the industry in terms of performance, stability and safety.
Product Applications
Isuzu RHD truck-mounted cranes have a wide range of uses and can play an important role in a variety of situations. The following is a detailed introduction to its main uses and applicable scenarios:
1. Construction sites: Isuzu RHD truck-mounted cranes are widely used on construction sites. It can be used to hoist construction materials such as steel beams, steel bars, concrete components, etc. to high-rise building construction points, as well as carry heavy items such as large machinery and equipment, compressors, etc. In addition, the truck-mounted crane can also install tower crane equipment on the construction site to improve construction efficiency and ensure construction safety.
2. Highway construction and maintenance: In highway construction and maintenance projects, Isuzu crane trucks are often used to hoist concrete box culverts, drainage pipelines, street lights and other items, and perform hoisting operations on the road. At the same time, the trucks can also assist road construction workers in completing pothole repairs, road cleaning and other tasks.
3. Bridge construction: Isuzu RHD boom crane trucks play a key role in the bridge construction process. They can be used to hoist bridge components, bridge decks, bridge piers and other items, significantly improving construction efficiency.
4. Airports and terminals: At airports and terminals, Isuzu RHD truck-mounted cranes are often used to load and unload cargo, effectively improving work efficiency and safety.
5. Municipal construction and coal mine engineering: Isuzu RHD trucks with cranes are also suitable for infrastructure fields such as municipal construction and coal mine engineering to meet various lifting and transportation needs.
6. Urban logistics: The Isuzu crane truck is also a practical equipment in urban logistics and can be used for hoisting and transporting various goods.
