Isuzu 4x4 all-wheel drive pickup truck is a multi-purpose vehicle designed for towing and towing services. It has strong off-road performance and high load-bearing capacity, equipped with winch, sturdy bumper and tow bar and other facilities, which can be used for towing and towing operations in various harsh road conditions. The interior design is comfortable and practical, and can be customized according to needs. It is a reliable tool for towing work.
Work capacity:
2 tonsTruck model:
PT5030GXYEngine power:
143HPEngine type:
4KH1CT6H1Axle drive:
4X4,LHDGear box:
5 forwards & 1 reverseRemarks:
Isuzu 4x4 pickup wrecker
The Customized Isuzu 4x4 pickup wrecker truck also called Isuzu 4x4 all-wheel drive pickup rescue truck,Isuzu 4x4 off road pickup tow truck,Isuzu 4x4 rescue wrecker truck,is a powerful vehicle designed for towing and towing services. With features such as a 4x4 all-wheel drive system and a high-strength winch, it can easily cope with various harsh road conditions. The body is sturdy and durable, equipped with facilities such as reinforced bumpers and tow bars, with excellent load-bearing capacity and durability. The interior design of this tow truck is comfortable and practical, easy to operate, and equipped with advanced control systems to provide drivers with an efficient working environment. The Customized Isuzu 4x4 pickup wrecker truck's customizable functions make it adaptable to different requirements, making it a fully functional and reliable towing work tool.
The Isuzu 4x4 pickup wrecker truck is a highly customized and versatile vehicle that is designed to meet the unique needs of those who require a reliable and capable truck for a wide range of applications. This truck is built on the foundation of the Isuzu pickup truck, which is already known for its durability, reliability, and ruggedness. However, the wrecker truck takes these qualities to the next level with a range of specialized features and customizations that make it an ideal choice for those who need a truck that can handle even the most challenging tasks.
|
Isuzu 4x4 Pickup wrecker truck |
||
|
Drive Model |
4x4,LHD |
|
|
Vehicle Main Dimensions |
Dimensions(L x W x H)mm |
5350×1940×1825 |
|
Wheel base (mm) |
3096 |
|
|
Wheel track (front/rear) (mm) |
1570/1570 |
|
|
Approach/Departure angle(°) |
28/21 |
|
|
Cab |
Tow row,2+3 seats,A/C,USB... |
|
|
Weight in KGS |
Curb Weight |
2270 |
|
GVW. |
3140 |
|
|
Max. driving speed(km/h) |
140 |
|
|
Engine |
Model |
4KH1CT6H1 |
|
Type |
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling，diesel |
|
|
Horse Power(HP) |
143HP/105Kw |
|
|
Displacement(ml) |
2999 |
|
|
Max torque(N·m） |
320 |
|
|
Max torque speed(rpm) |
1450 |
|
|
Emission standard |
Euro VI |
|
|
Fuel tank volume (L) |
76.0 |
|
|
Fuel form |
gasoline |
|
|
Fuel label |
92# |
|
|
Gearbox |
5 forwards & 1 reverse |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|
|
Tire |
245/70R17LT, 4pcs + 1 spare tire |
|
|
Brakes |
Exhaust brake |
|
|
UPPER |
||
|
Platform Organ |
Min angle(°) |
7.6 |
|
Max loading capacity(kg) |
4000 |
|
|
Winch rating pulling capacity(kg) |
4000 |
|
|
Length of steel(m) |
21 |
|
|
Hoisting Organ |
Max under-hoisting capacity(kg) |
2000 |
|
Fully extended max under-hoisting capacity(kg) |
1413 |
|
POWERSTAR is an automaker specializing in the production of special vehicles and has a long history of producing durable and reliable vehicles, especially in the field of commercial trucks. The Isuzu 4x4 all-wheel drive pickup truck is a custom-built model designed to provide towing and recovery services with enhanced off-road capabilities. This truck is designed to handle the most demanding situations, from towing vehicles stranded in remote areas to rescuing vehicles from difficult terrain.
The ISUZU 4x4 pickup wrecker truck has a rugged exterior design that is both practical and beautiful. The truck is equipped with a heavy-duty winch capable of lifting and towing vehicles weighing several tons. The winch is strategically placed at the front of the truck for easy entry and exit and efficient operation. In addition, the truck is equipped with reinforced bumpers and tow bars to provide additional strength and durability when towing heavy objects.

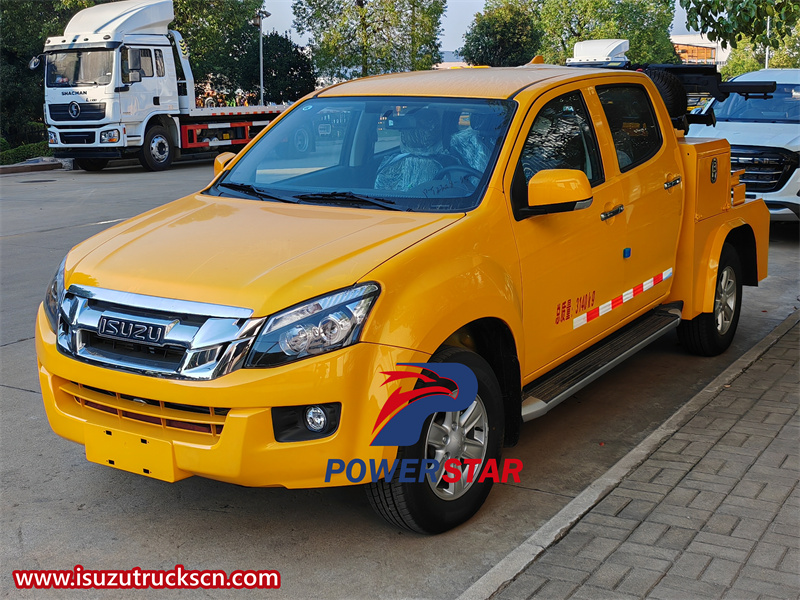

Customized Isuzu 4x4 pickup wrecker truck

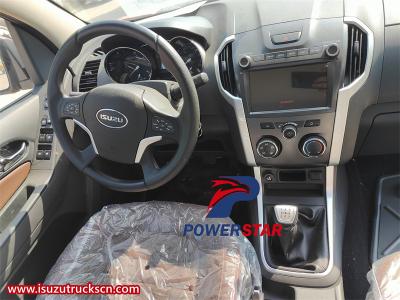

Inside the cab, the ISUZU 4WD pickup wrecker provides a comfortable and ergonomic workspace for the driver and passengers, with double-row 2+3 seats. The interior is equipped with modern amenities and features, including air conditioning, power windows, and a multimedia system. The seats are designed to provide maximum comfort and support, allowing long hours of operation without fatigue. The dashboard features an array of gauges and controls that provide the driver with real-time information about the truck's performance and operation.
One of the key features of the Isuzu 4x4 Pickup towing truck is its powerful engine. This truck is equipped with a high-performance engine that is capable of delivering impressive power and torque, allowing it to travel even the most difficult terrain with ease. The engine is paired with a smooth-shifting transmission, ensuring seamless power delivery and precise control. The truck is able to tow heavy loads over long distances with ease, making it a reliable and versatile asset for towing and recovery operations. The engine is also designed to be fuel-efficient, meaning you can rely on this truck to get you where you need to go without breaking the bank.

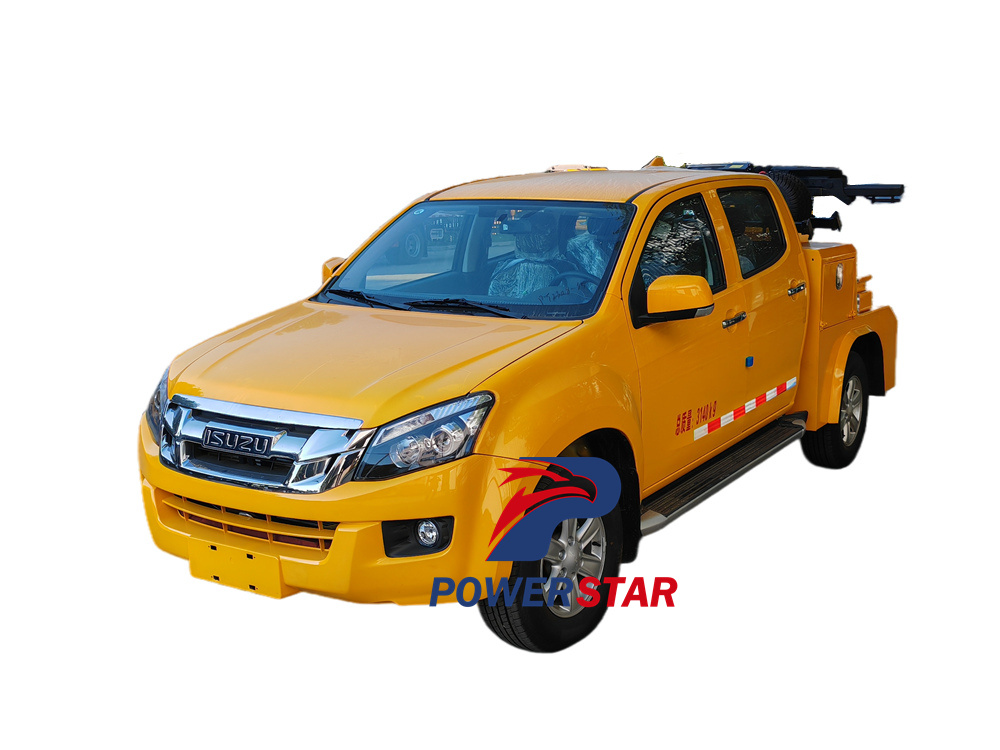

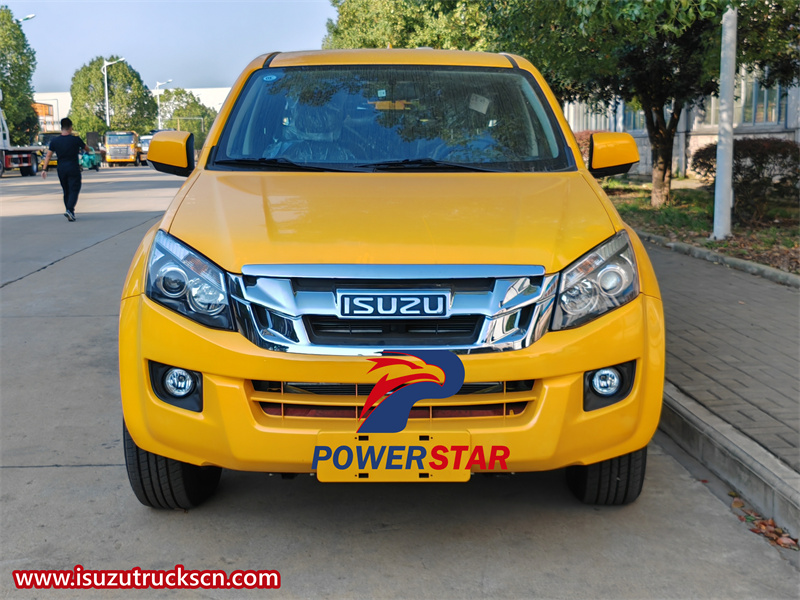

Isuzu 4x4 pickup wrecker truck
Another great feature of the Isuzu 4x4 pickup rescue wrecker truck is its 4x4 capability. This truck features an advanced suspension system and rugged tires that are built to handle the most challenging off-road conditions. Whether you're driving through mud, sand, or rocky terrain, this 4x4 drivetrain gives the truck excellent traction and maneuverability, making it an ideal choice for off-road rescue missions.
In addition to its powerful engine and 4x4 capabilities, the custom Isuzu 4x4 pickup wrecker comes with a range of specialist features, making it an ideal choice for those who need a truck that can handle a variety of tasks. For example, this truck is equipped with a heavy-duty wrecker body that can handle the most challenging recovery and towing tasks. The wrecker body is made from high-quality materials that are both durable and lightweight, meaning you can rely on it to get the job done without putting too much strain on the truck's engine or suspension.

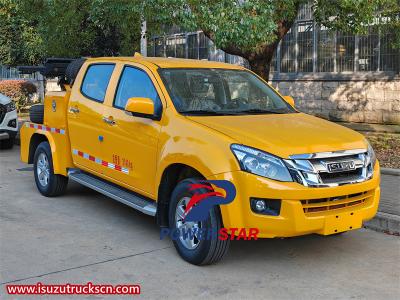

Isuzu 4x4 all-wheel drive pickup rescue truck
The Isuzu 4x4 off road pickup wrecker also comes with a range of other specialist features, making it an ideal choice for those who need a truck that can handle a variety of tasks. For example, this truck is equipped with a range of lighting options, including high-intensity LED lights designed to provide excellent visibility in the most challenging conditions. This makes it easy to navigate dark or poorly lit areas, which is especially important in emergency situations or when working in areas with limited visibility.
Safety was a top priority in the design of the Isuzu 4x4 pickup wrecker. The truck is equipped with a range of safety features and systems to ensure the safety of the driver, passengers and other road users. These features include anti-lock brakes, stability control, traction control and airbags. The truck’s rugged structure and collision avoidance systems further enhance its safety features, providing peace of mind for both operators and customers.

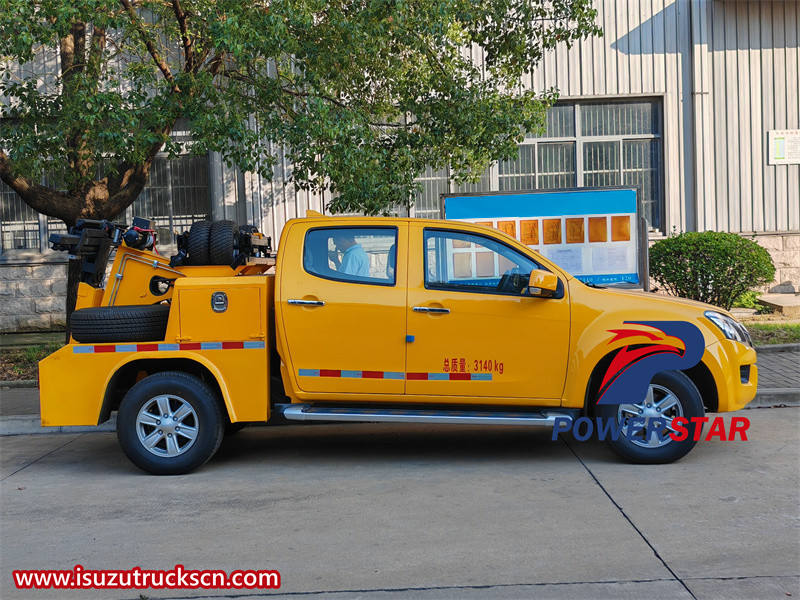

Isuzu 4x4 off road pickup tow truck
This customized Isuzu 4x4 pickup truck tow truck has a wide range of applications in many fields due to its versatility and powerful performance. It is mainly reflected in the following aspects:
Emergency rescue:
In the event of a road accident or emergency, this vehicle can quickly arrive at the scene and use its powerful traction and towing capabilities to move damaged or unmovable vehicles to a safe area.
Road maintenance:
Used for daily road maintenance tasks, such as clearing obstacles on the road, towing damaged traffic facilities, etc.
Isuzu 4x4 rescue wrecker truck
Construction:
On construction sites, this vehicle can be used to tow heavy equipment, move construction materials, or serve as a temporary emergency vehicle.
Agricultural applications:
In the agricultural field, it can be used to tow agricultural machinery, transport agricultural products, or perform other heavy tasks in the field.
Adventure and off-road activities:
Due to its excellent off-road performance and towing capacity, this vehicle is also suitable for adventure activities, off-road events, or as a support vehicle for outdoor activities.
Isuzu 4x4 pickup recovery wrecker truck

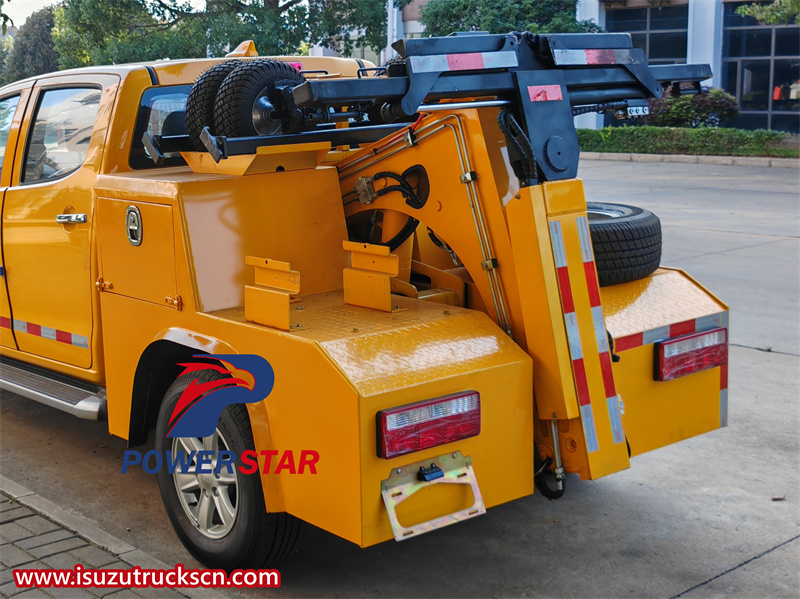

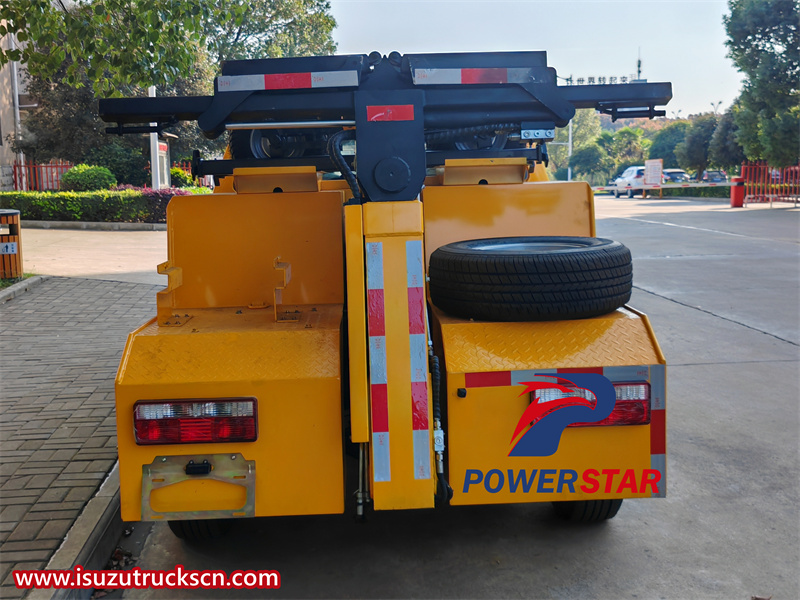

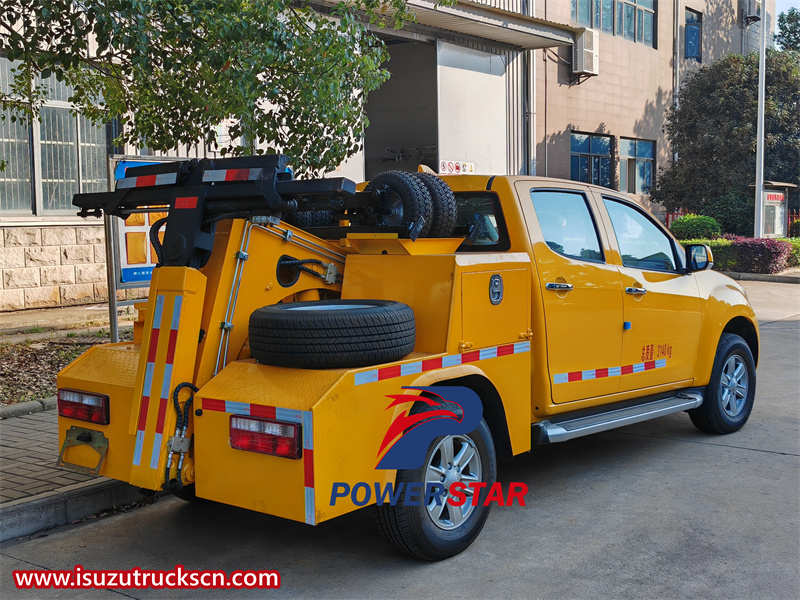

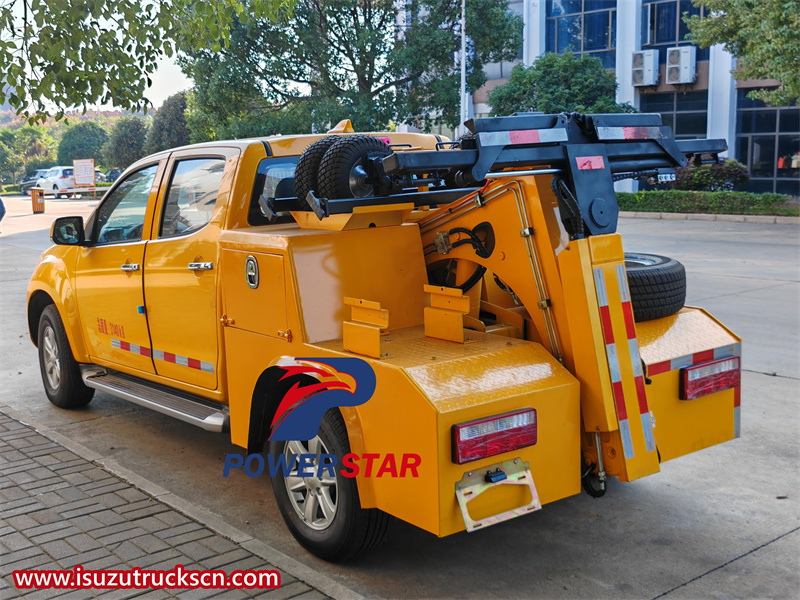

Wrecker device

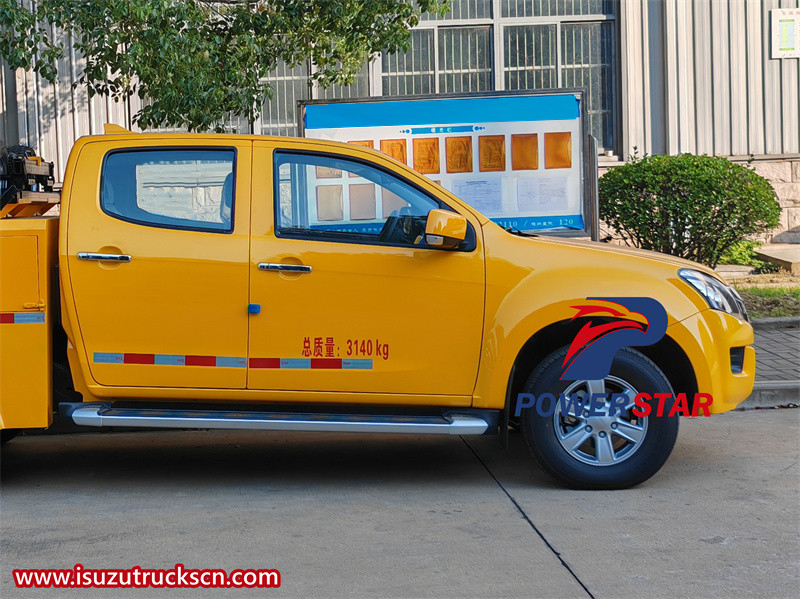

Double row cabin

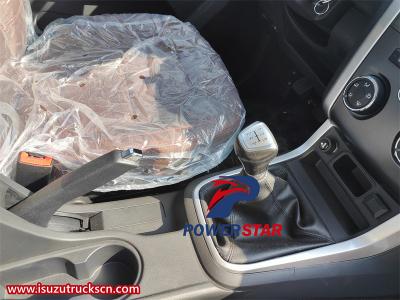

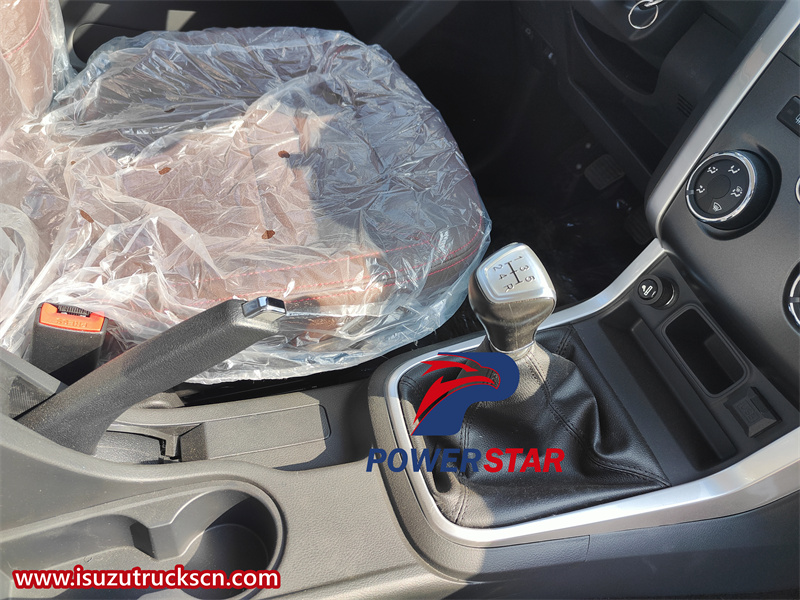

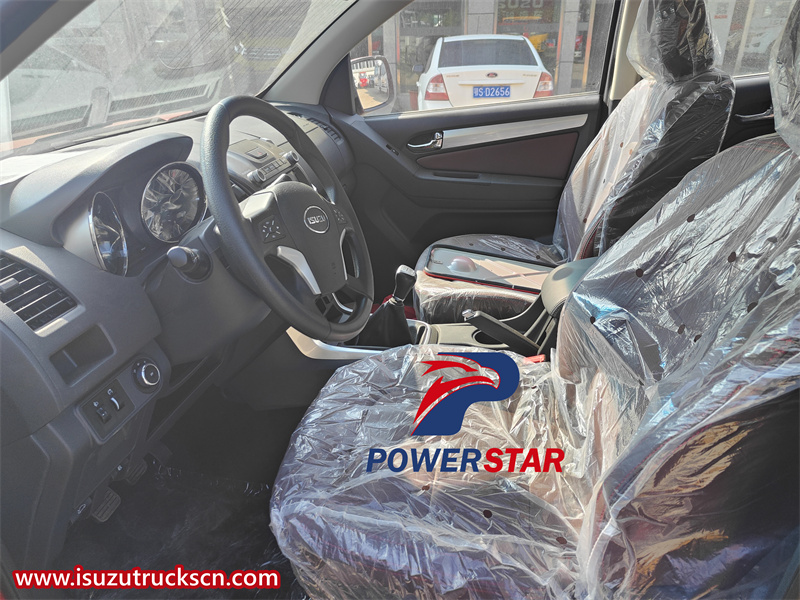

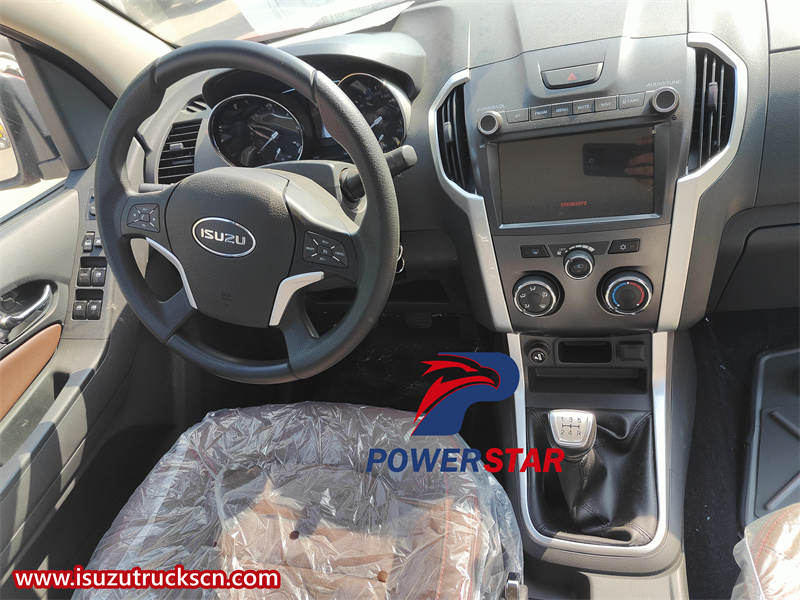

Cabin front row

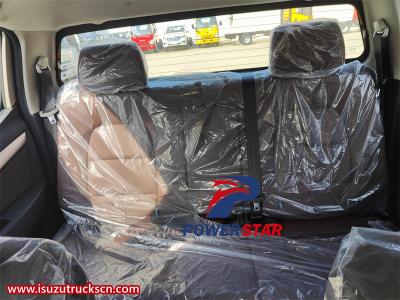

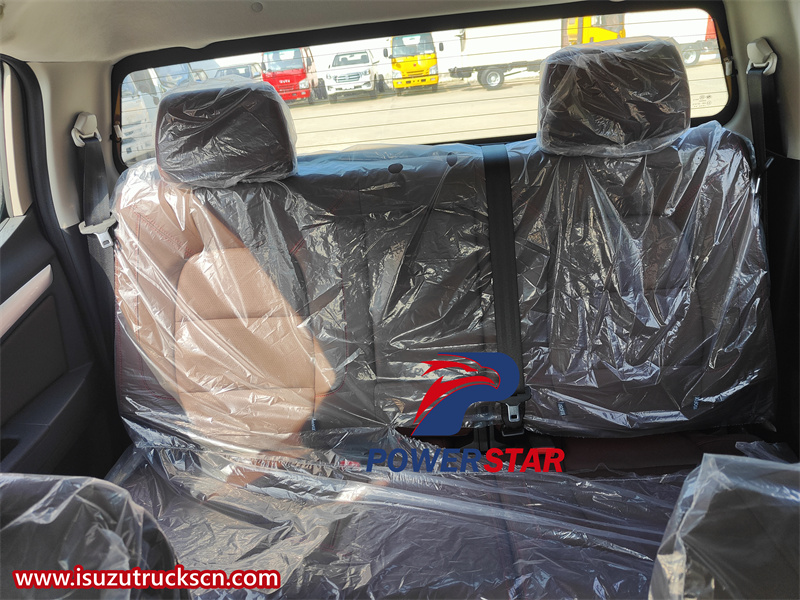

Cabin rear row
The Isuzu all-wheel drive pickup tow truck is a pickup truck specially designed for road clearance and rescue work. It uses an all-wheel drive system to maintain stability and reliability in various road conditions. The vehicle is equipped with powerful towing equipment and rescue tools, which can effectively perform car towing, accident scene processing and other rescue tasks. It also has sufficient load capacity and storage space to meet the needs of different scenarios. The Isuzu all-wheel drive pickup tow truck is an ideal choice for the road rescue and tow truck industry, providing users with safe and efficient rescue services.
