The new FTR model is based on Isuzu’s original world-leading quality 4HK1-TC50 with Japanese technology and has developed a Euro VI emission 4HK1-TCG60 engine. The in-line four-cylinder diesel engine has a maximum output of 205 horsepower and a maximum torque of 650 Nm. MLD-6Q six-speed manual gearbox adopts Isuzu technology, high-pressure common rail, precision electronic control, multi-stage injection, optimized combustion, exhaust gas recirculation, and two-stage fuel filtration to achieve high power, high torque, low fuel consumption, low emissions, and noise. The perfect combination Diesel Truck.
Work capacity:
10～15 tonsTruck model:
PT5180GWTEngine power:
205HPEngine type:
4HK1-TCG60Axle drive:
4X2Gear box:
MLD-6Q six-speedRemarks:
Original Japanese technology Isuzu FTR GIGA 4x cabin truck chassis
The Isuzu FTR GIGA 4X cabin truck with 4HK1 engine also called Isuzu FTR GIGA 4x-class cab chassis,Isuzu new FTR chassis,Isuzu 4HK1-TCG60 engine FTR 4x-chass cabin truck chassis,Isuzu GIGA 205HP 4x-chass cabin truck chassis, is equipped with a powerful and reliable 4HK1-TCG60 engine with a power output of 205 horsepower. This chassis drive system has stronger passing ability and stability, performs well in a variety of road conditions, and is suitable for various transportation tasks. The cab design is spacious and comfortable, equipped with advanced driver assistance systems, providing drivers with a safer and more convenient driving experience. The chassis structure is sturdy and durable, with good handling and stability, and stable and reliable driving. The Isuzu FTR GIGA 4X cabin truck with 4HK1 engine has excellent operating performance and is suitable for heavy-duty tasks such as long-distance cargo transportation. The Isuzu FTR GIGA 4x-class cab chassis is a reliable commercial vehicle with its powerful power, stable performance and comfortable driving experience.
|
Isuzu FTR GIGA 4X cabin truck with 4HK1 engine |
||
|
Vehicle Dimensions and Parameters |
Chassis Brand |
Isuzu |
|
Overall Dimension |
9000x2530x2810(mm) |
|
|
Wheelbase |
5550mm |
|
|
Front/ Rear Wheel Distance |
1960/1855mm |
|
|
Front/Rear Suspension |
1335/2115 mm |
|
|
Weights and Capacities |
Curb Weight |
5600(kg) |
|
GVW |
18000kg |
|
|
Axel Loads |
6500/11500 kg |
|
|
Engine |
Model |
4HK1-TCG60 |
|
Power |
150Kw |
|
|
Displacement |
5193ml |
|
|
Exhaust Gas Treatment Technology |
DPF+SCR |
|
|
Cab |
Number of Seats |
3 |
|
Double/Single |
One and half |
|
|
Chassis |
Drive Type |
4x2 |
|
Drive Speed |
105 km/h |
|
|
Tires |
7(Including Spare Tire) |
|
|
Tire model |
295/80R22.5 |
|
|
Fuel Tank |
Capacity |
200L |
|
Configurations |
Power Steering System |
|
|
Air Conditioner |
||
|
Retro-reflective Marking |
||
|
ABS |
||
|
Free Maintenance Battery |
||
Isuzu 4HK1-TCG60 engine FTR 4x-chass cabin truck chassis has become a leader in the commercial vehicle market with its excellent performance and reliability. The characteristics of Isuzu FTR GIGA 4X-class cab chassis can be summarized as follows:
1. Excellent power performance
· Equipped with a 4HK1-TCG60 engine, it provides a power output of up to 205 horsepower, ensuring that the vehicle has strong power performance under various road conditions.
· The engine adopts advanced combustion technology and electronic control system, making the power output more stable and efficient, while also improving fuel economy.
2. Strong and durable chassis
· The chassis structure is strong, using high-strength materials and advanced manufacturing processes to ensure stability and reliability under heavy loads and complex road conditions.
· The chassis design is reasonable, can withstand large loads, and has a long service life.
3. Excellent handling performance
· The chassis suspension system has been carefully adjusted to provide stable driving performance and good comfort, ensuring that the driver can maintain a comfortable driving experience under various road conditions.
· The steering system is highly sensitive and easy to control, allowing the driver to easily cope with various driving scenarios.
4. Outstanding safety performance
·The chassis design complies with international safety standards and has safety configurations such as a high-strength cab and airbags to ensure that the driver and passengers can be protected to the maximum extent in an emergency.
·Equipped with advanced braking technologies such as ABS anti-lock braking system and EBD electronic brake force distribution system to improve braking performance and driving safety.
5. Strong modification performance
·The chassis design is flexible and can be modified in various ways according to user needs, such as adding a cargo compartment and modifying it into a special vehicle.
·Equipped with a variety of interfaces and connectors to facilitate users to modify and upgrade.
6. Environmental protection and energy saving
·The engine complies with the National VI emission standards, has a lower emission level, and meets environmental protection requirements.
·Advanced fuel system and engine technology make fuel consumption more reasonable and reduce operating costs.
Here are technical drawings of Isuzu FTR GIGA 4X cabin truck with 4HK1 engine:
Technical drawings of Isuzu FTR GIGA 4x cabin wheelbase 5550mm chassis
Technical drawings of Isuzu FTR GIGA 4x cabin wheelbase 5000mm chassis
Technical drawings of Isuzu FTR GIGA 4x cabin wheelbase 4500mm chassis
Isuzu GIGA 205HP 4x-chass cabin truck chassis with its excellent performance and adaptability, can be widely used in a variety of commercial vehicles. The following are the specific classifications and characteristics of the models that can be applied:
Trucks:
Van trucks: The durability and excellent power performance of the Isuzu FTR GIGA 4x cabin truck chassis make it an ideal choice for van trucks. Its powerful 4HK1-TCG60 engine (205 horsepower) and optimized chassis design ensure the safety and stability of goods during transportation.
Stake trucks: Similarly, this chassis is also suitable for stake trucks. Its spacious cargo box size (such as the 9.8-meter single-axle model, the cargo box size is about 9780×2500×2800mm) and strong carrying capacity (maximum allowable gross mass is 18 tons) enable it to carry a large amount of cargo and meet various logistics and transportation needs.
Tractor:
Semi-trailer tractor: The Isuzu FTR GIGA 4x cabin truck chassis has a strong traction capacity and is suitable for use in combination with various semi-trailers. Its excellent power performance and stability ensure a tight connection and smooth driving between the tractor and the semi-trailer.
Full-trailer tractor: Similarly, this chassis is also suitable for full-trailer tractors. Its solid chassis structure and stable suspension system ensure the safe driving of full-trailers under various road conditions.
Special vehicles:
Sanitation vehicles: The flexibility and reliability of the Isuzu FTR GIGA 4X chassis make it an ideal choice for sanitation vehicles. Whether it is a garbage truck or a sprinkler truck, this chassis can meet its special transportation needs.
Engineering vehicles: In the field of engineering construction, this chassis also performs well. Its powerful power and stable chassis performance enable engineering vehicles to operate smoothly in various complex environments.
Other commercial vehicles:
In addition to the above models, the Isuzu FTR GIGA 4x cabin truck chassis can also be applied to other commercial models, such as refrigerated trucks, dangerous goods transport trucks, etc. Its diverse configurations and wide applicability enable this chassis to meet the diverse needs of different users.

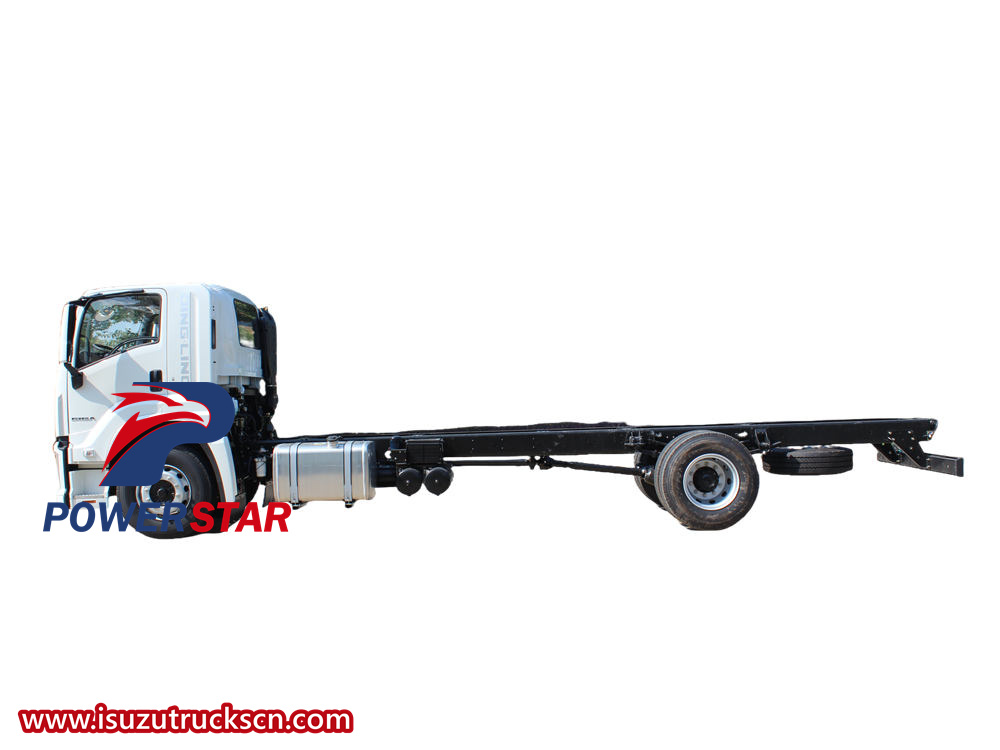

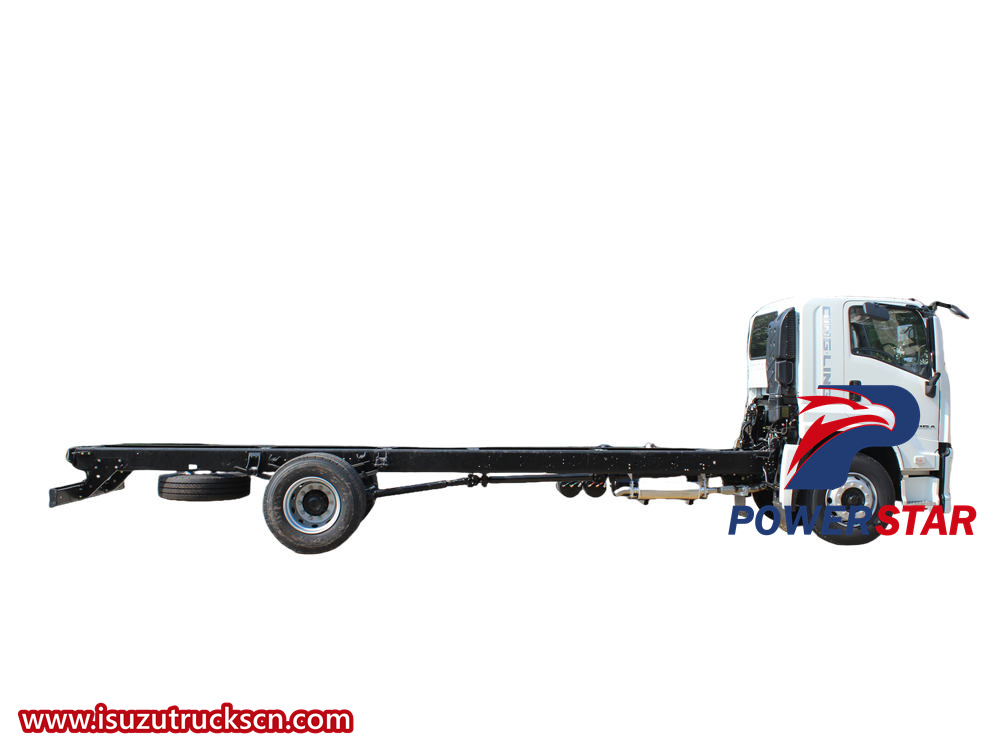

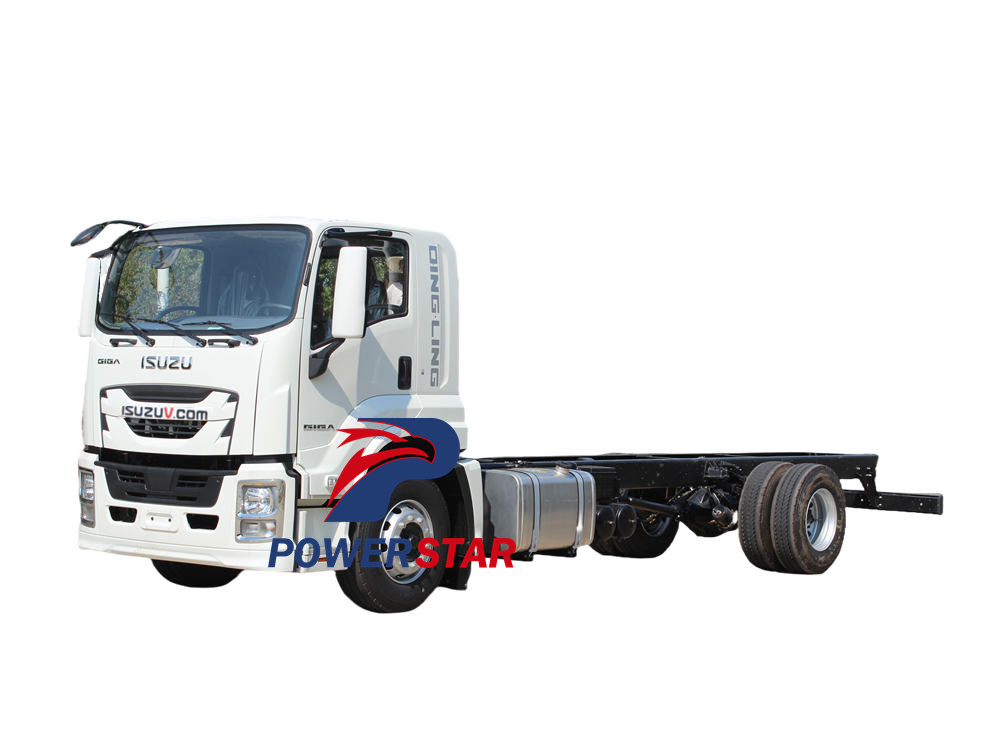

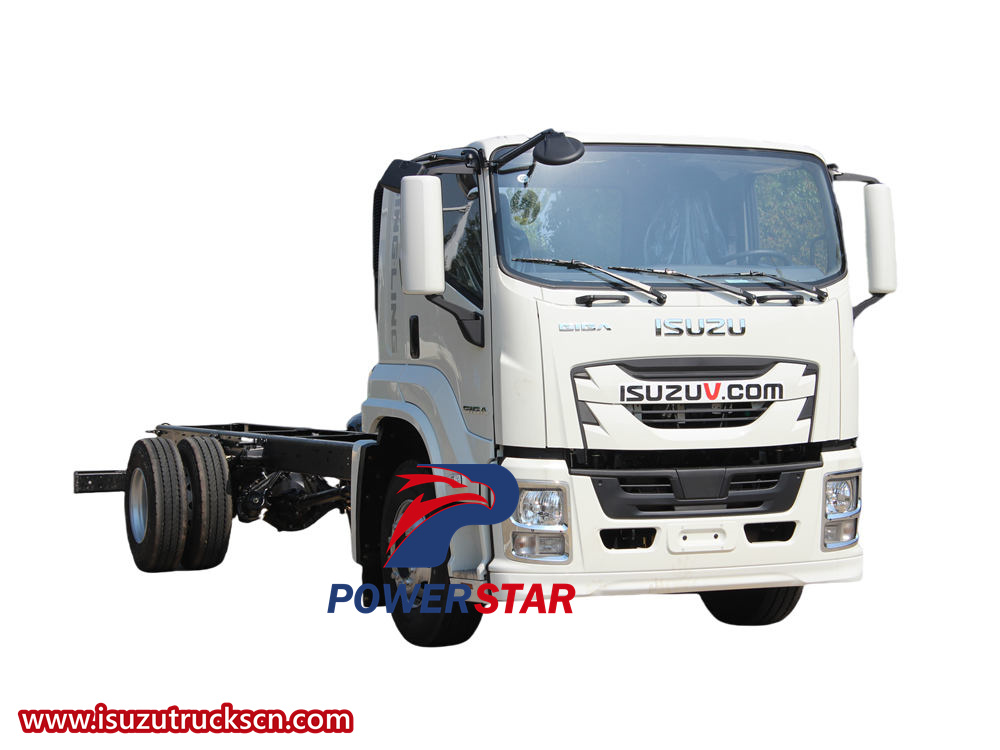

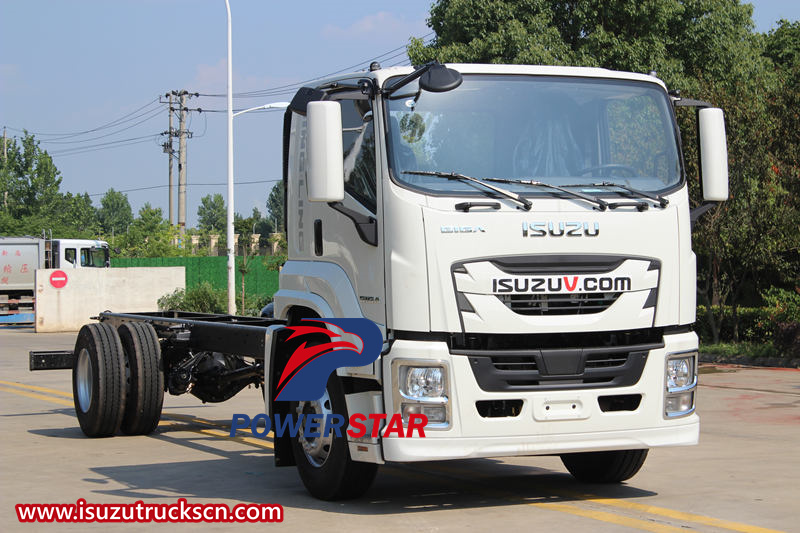

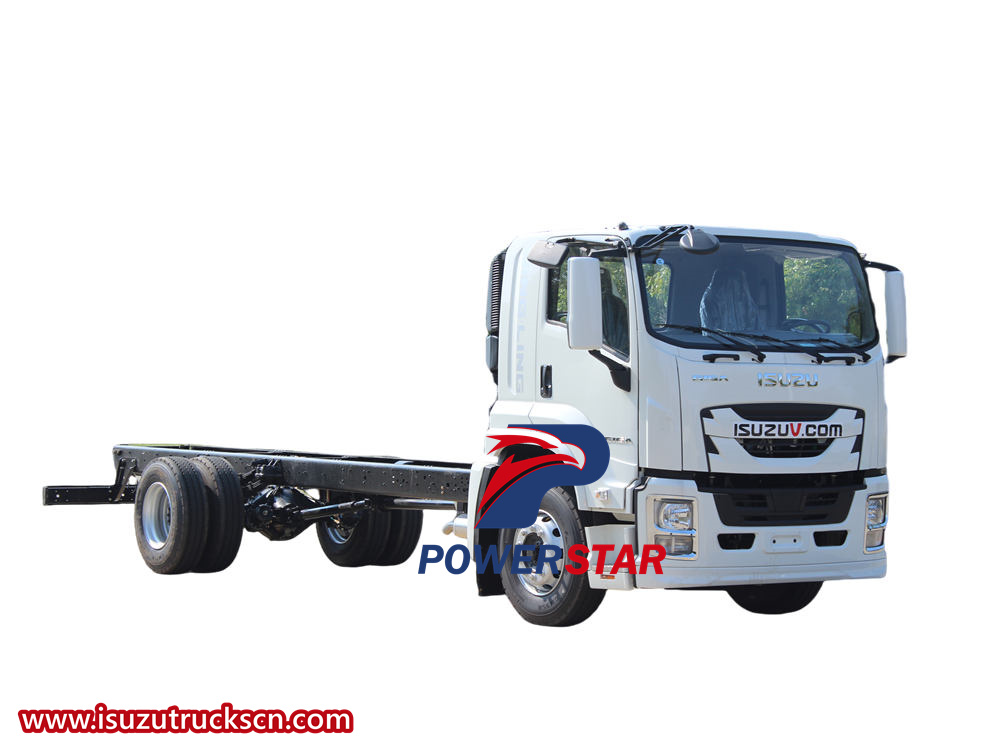

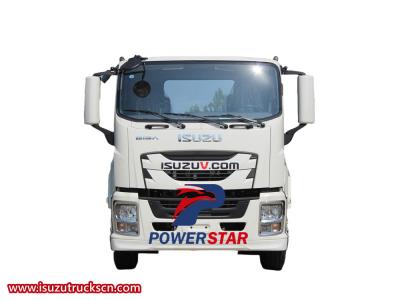

Isuzu FTR GIGA 4x cabin truck chassis front view

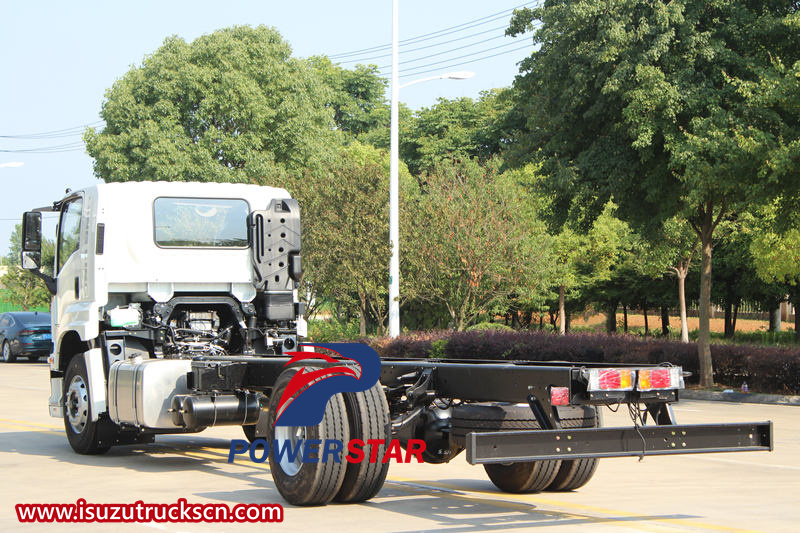

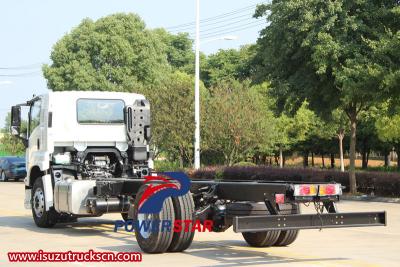

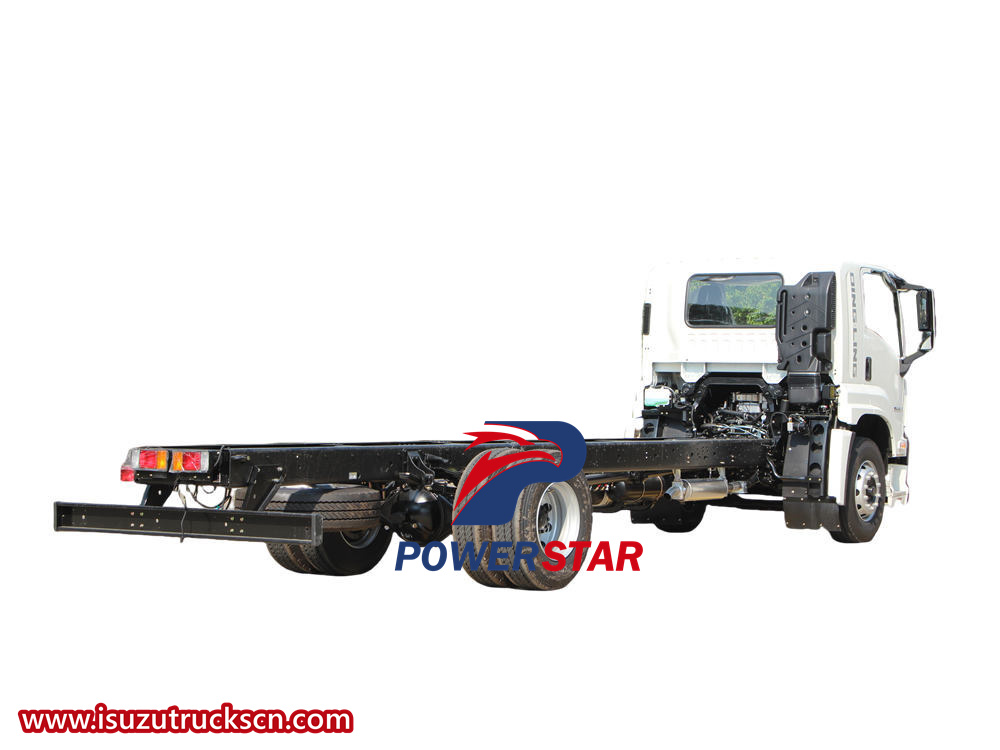

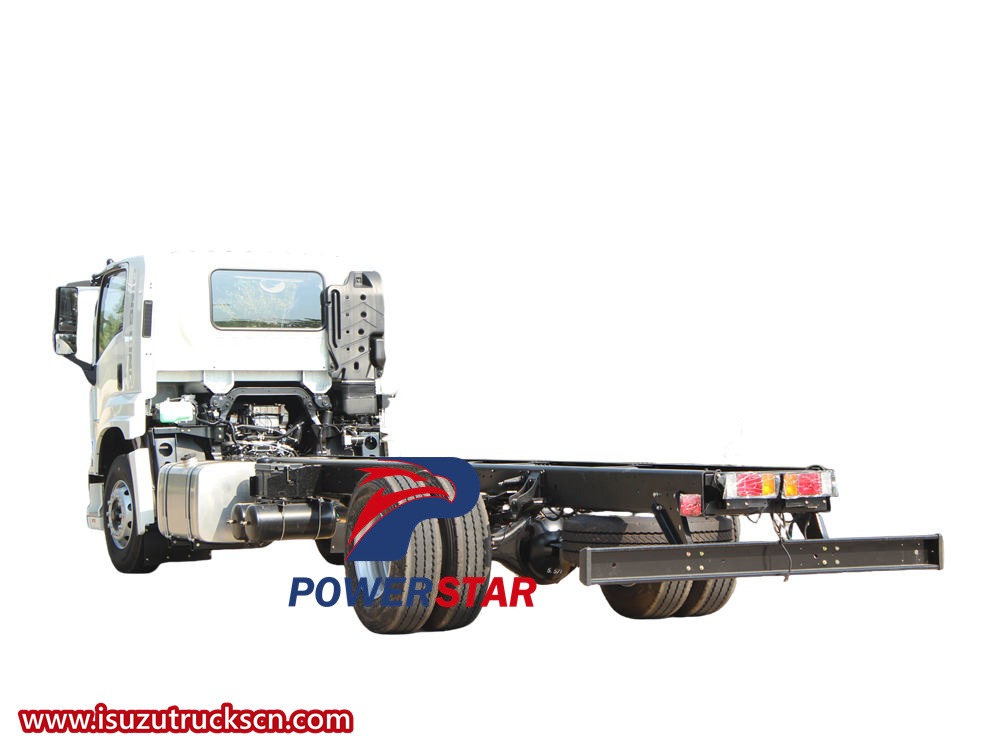

Isuzu FTR GIGA 4x cabin truck chassis rear view

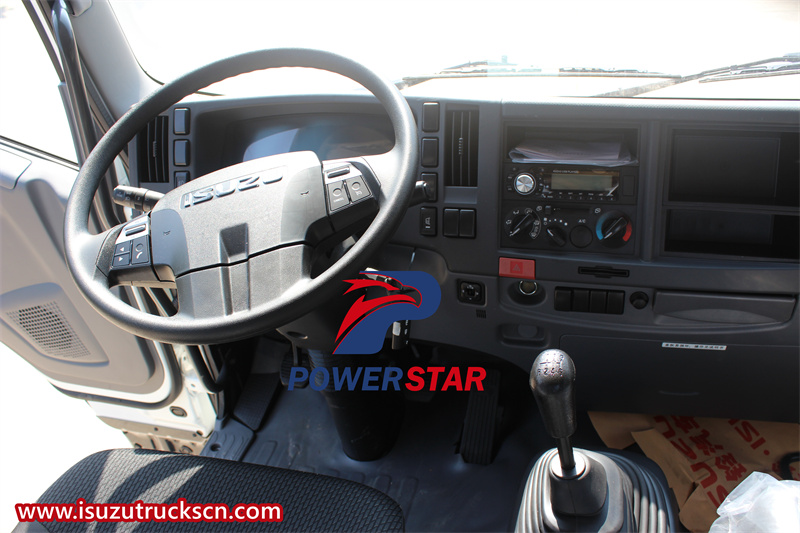

Isuzu FTR GIGA 4x cabin truck chassis steering wheel

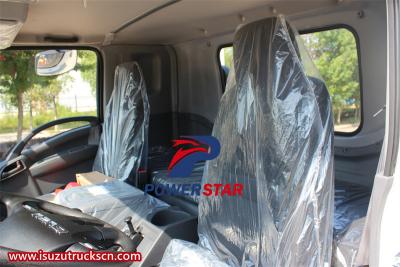

Isuzu FTR GIGA 4x cabin truck chassis half row seats

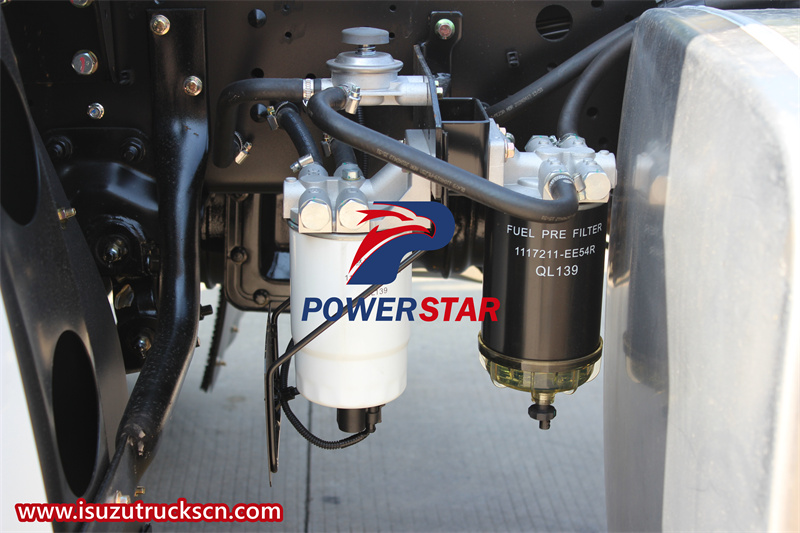

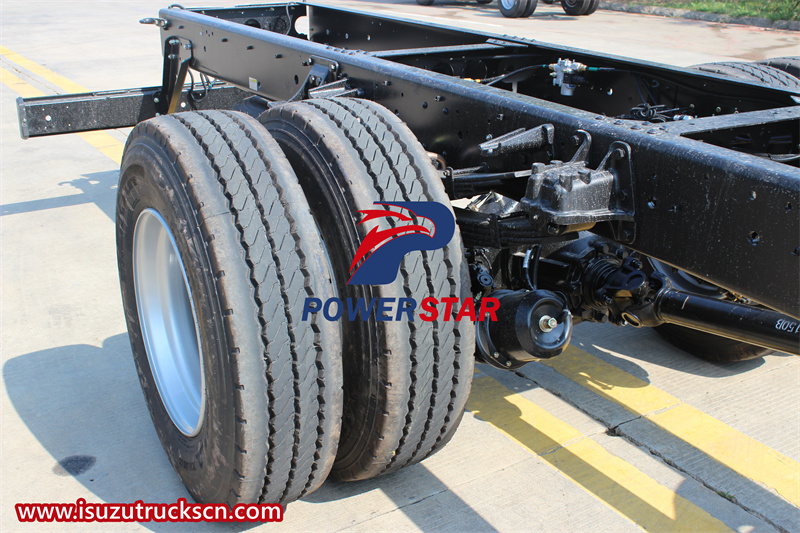

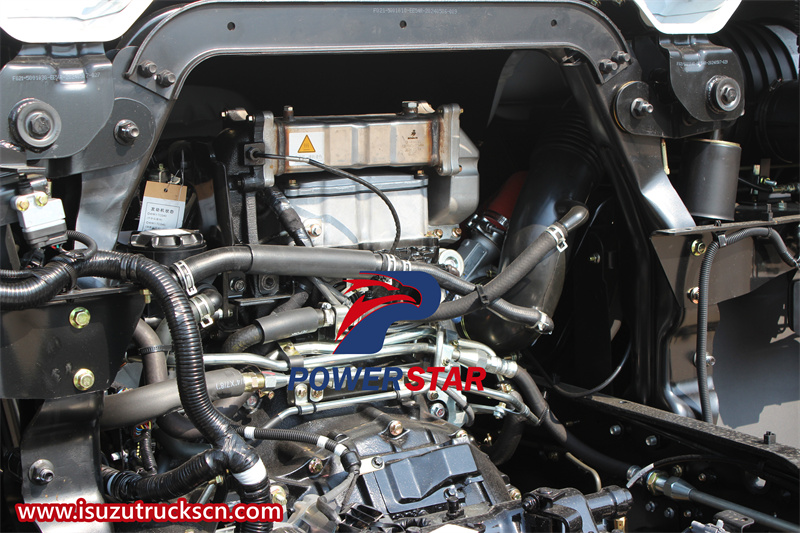

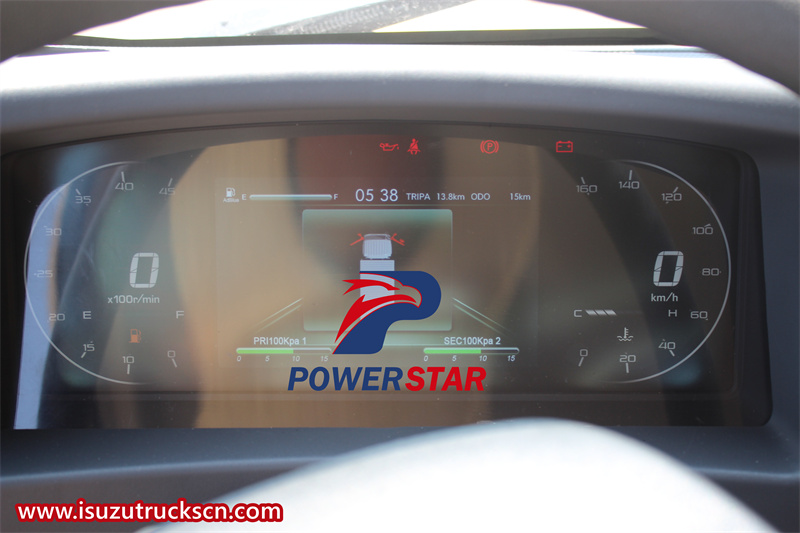

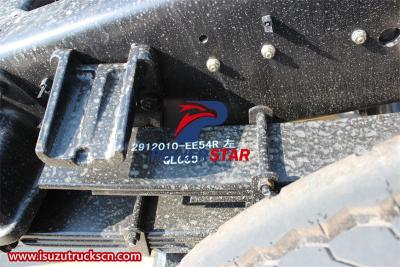

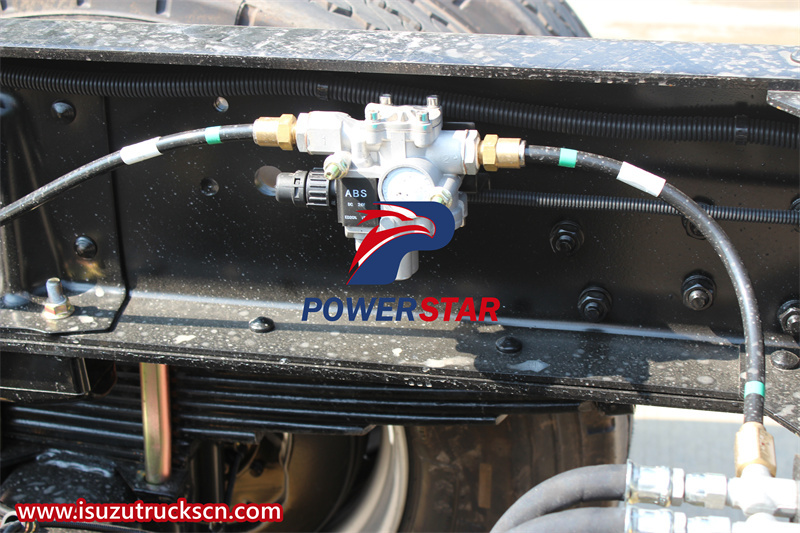

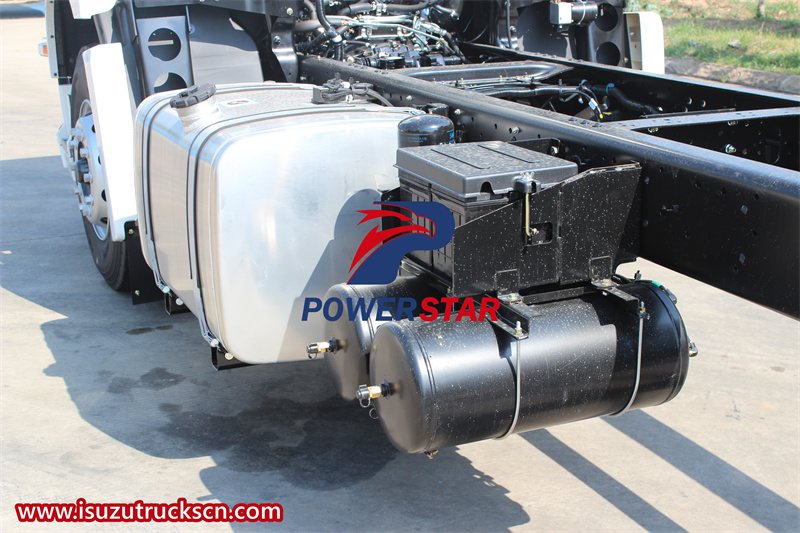

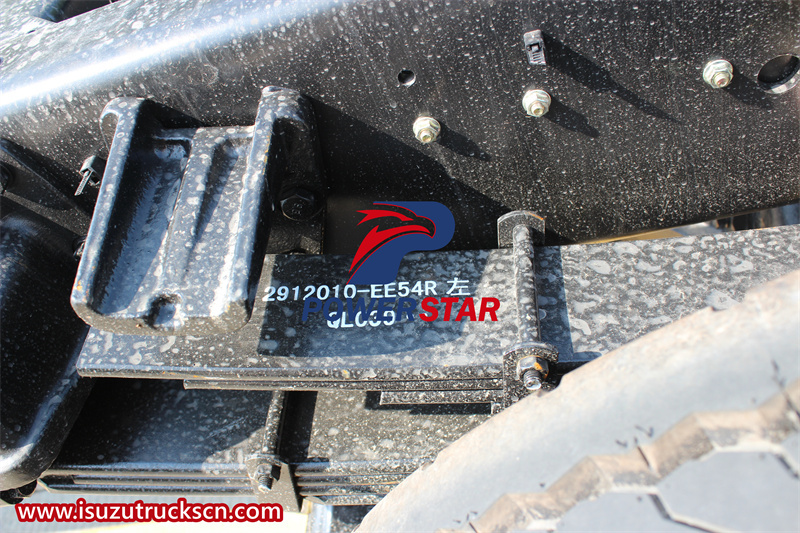

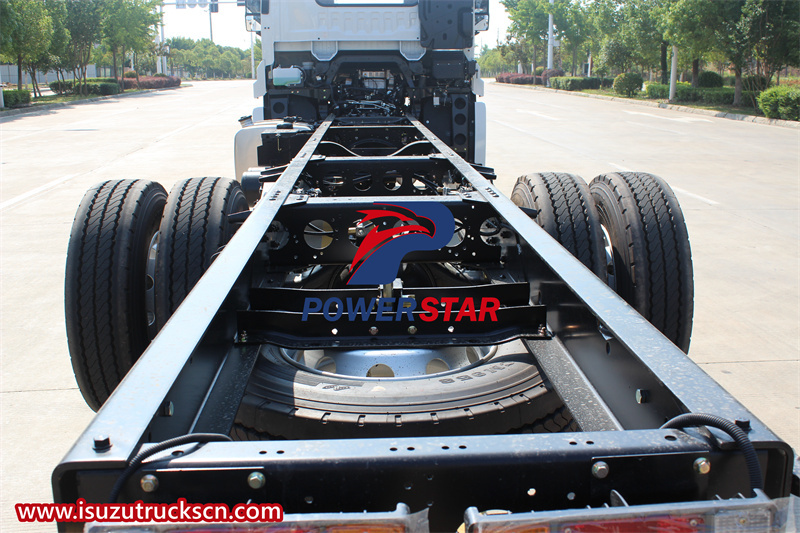

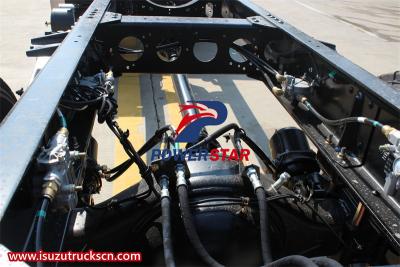

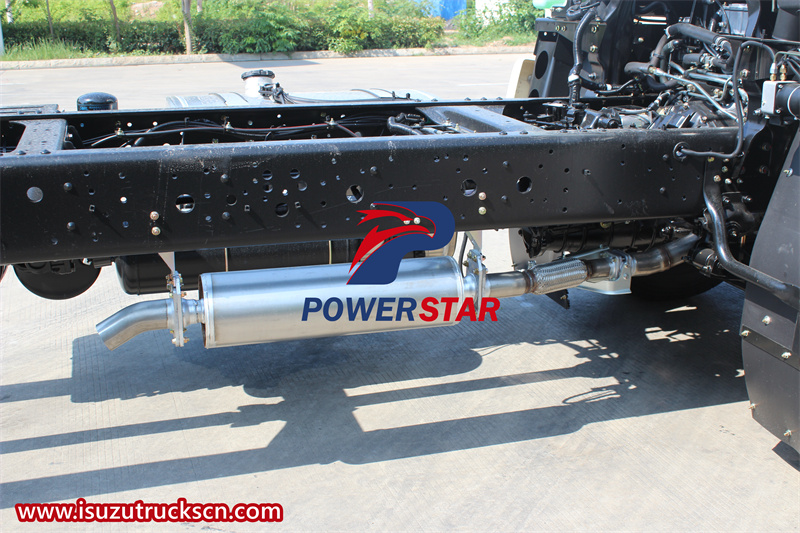

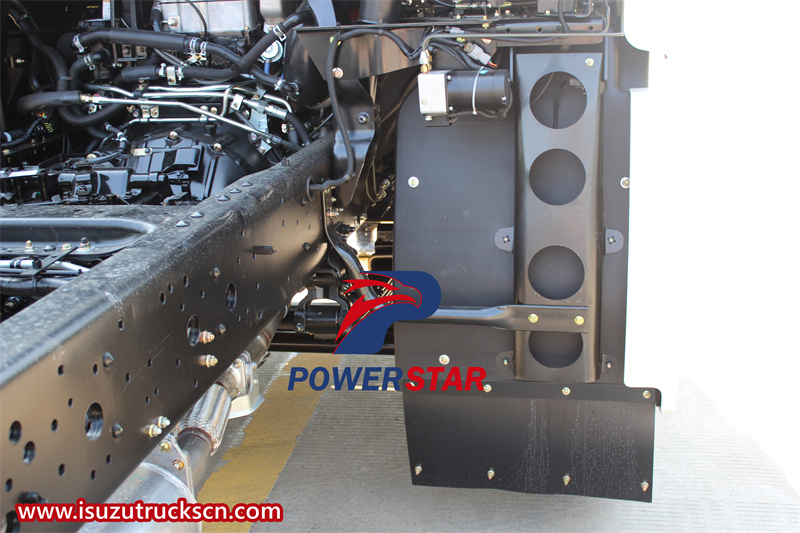

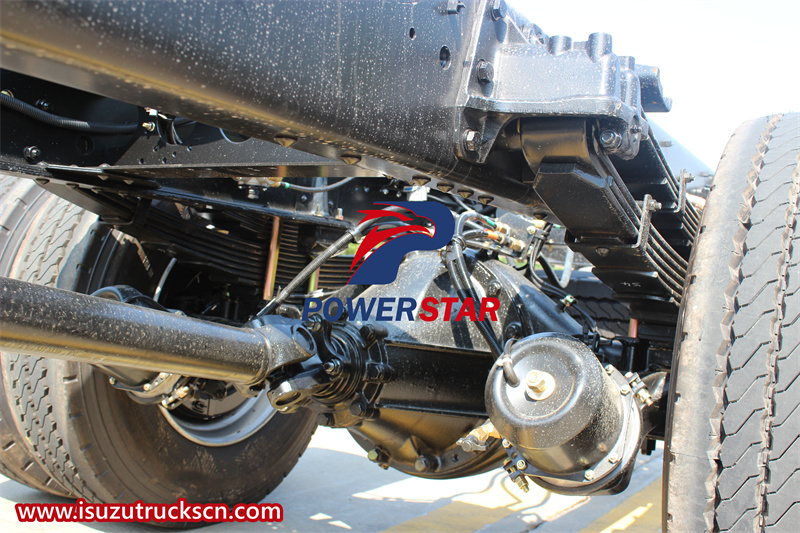

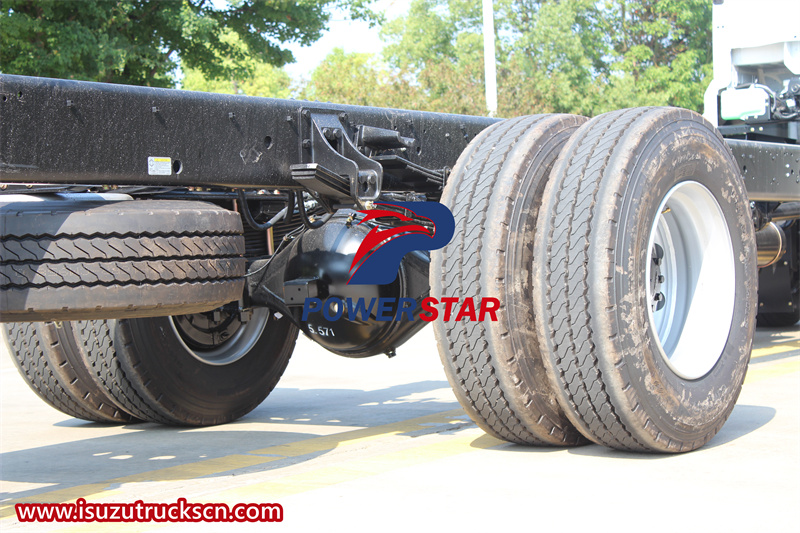

Isuzu FTR GIGA 4X chassis details

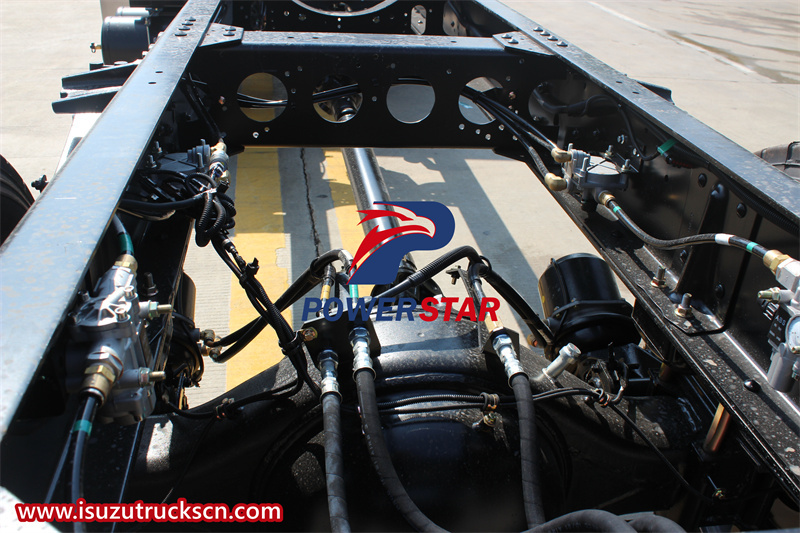

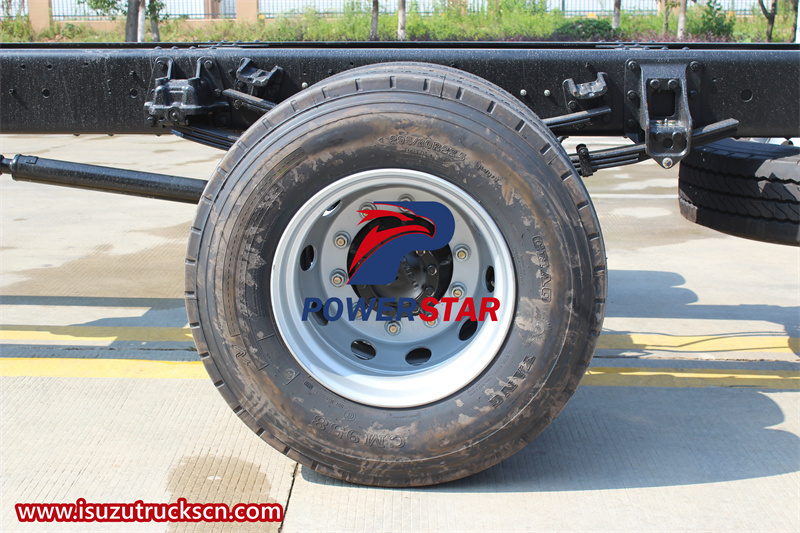

Isuzu FTR GIGA 4X chassis details
