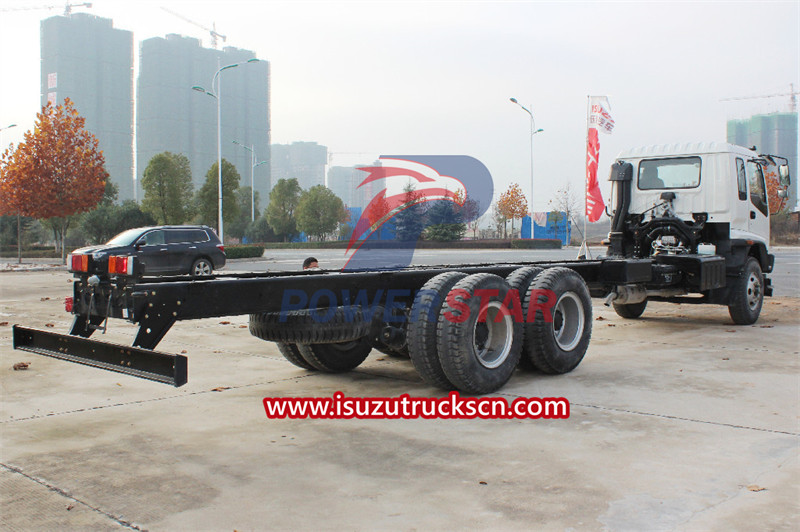

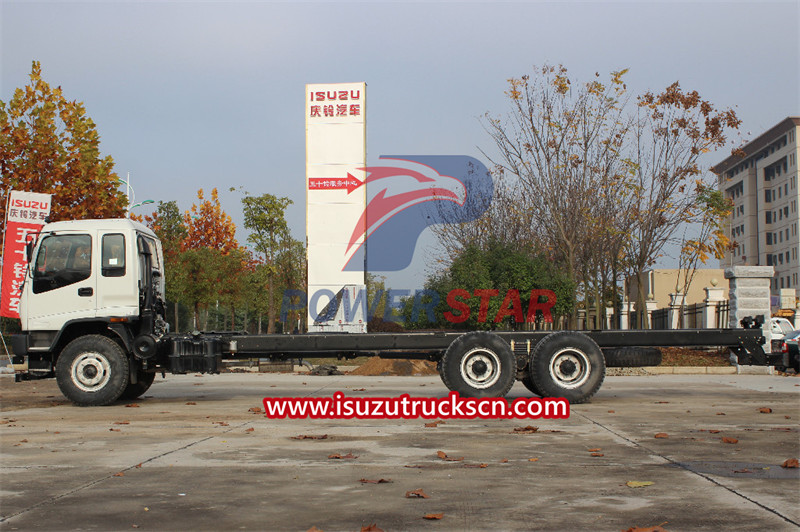

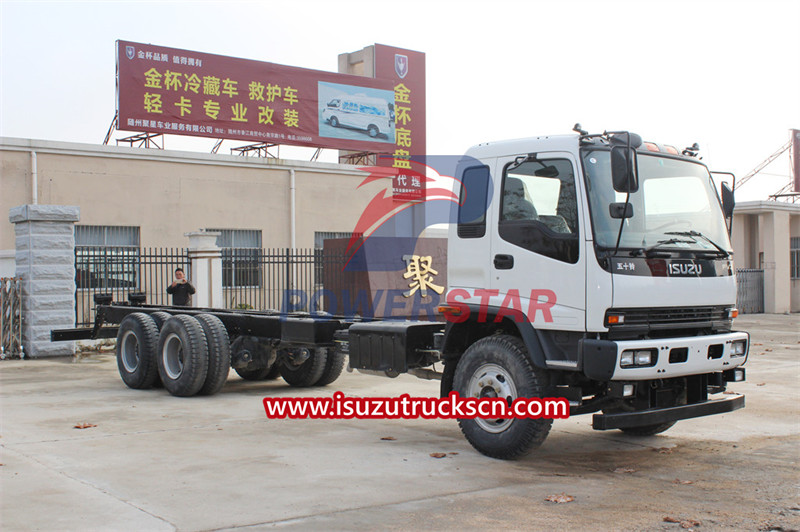

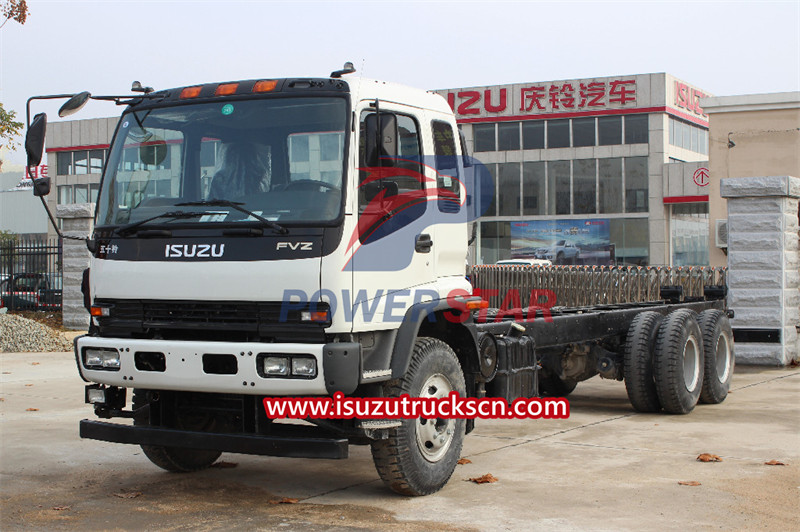

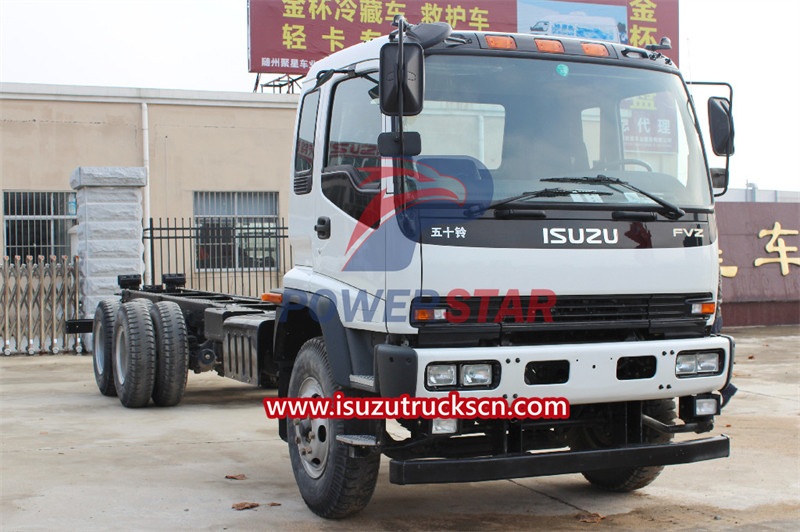

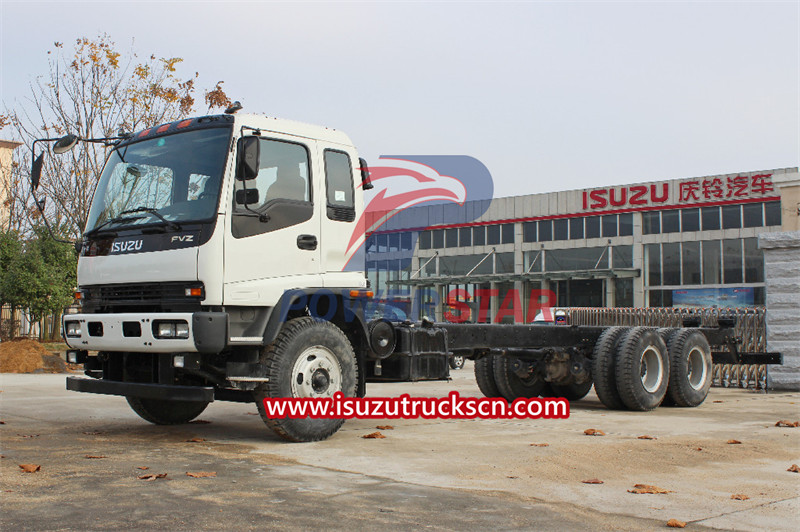

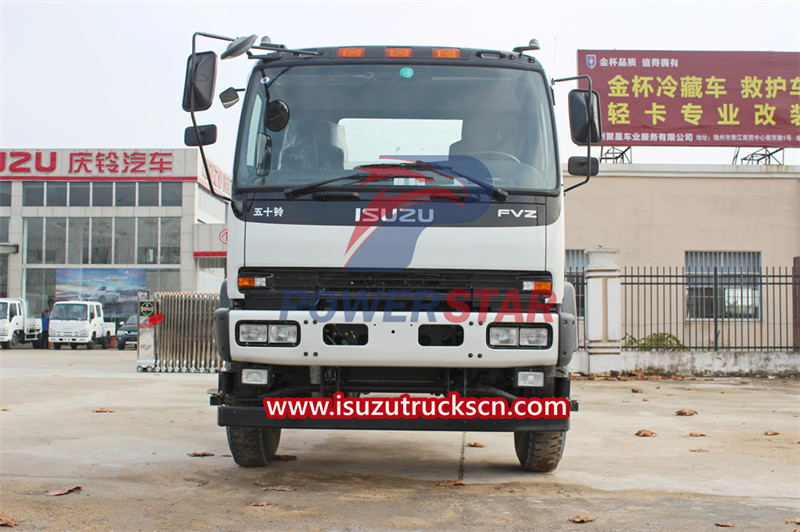

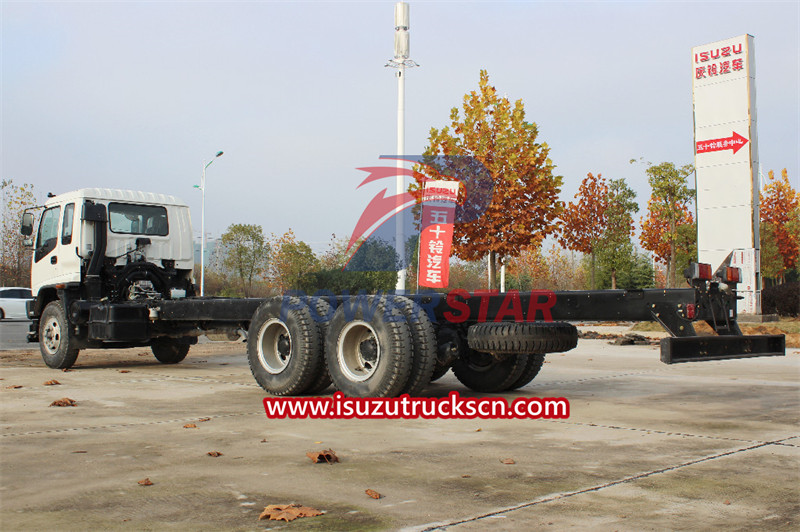

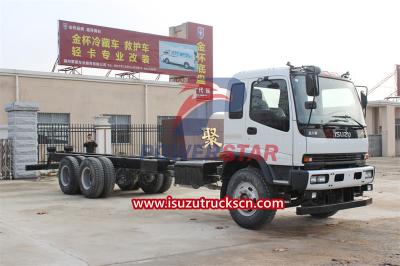

Isuzu FVZ chassis is a heavy-duty commercial vehicle chassis with excellent performance and reliable quality, which is widely used in the manufacturing of various trucks and special vehicles. Its durability, stability and reliability enable the vehicle to maintain excellent driving performance in various harsh environments, providing strong support for the transportation industry.
Work capacity:
20 tonsTruck model:
PT1250WTEngine power:
300 HPEngine type:
6HK1-TCHAxle drive:
6×4Gear box:
FAST 9-speedRemarks:
ISUZU 10 wheeler heavy duty chassisIsuzu FVZ chassis is a heavy-duty commercial vehicle chassis with strong durability and excellent performance. It is widely used in the manufacturing of various trucks and special vehicles. The chassis is carefully designed and manufactured to provide excellent load-carrying capacity and stability, providing a solid foundation for the vehicle.
The Isuzu FVZ chassis is made from high-strength steel, providing excellent resistance to torsion and bending. Its unique chassis structure design enables the vehicle to maintain stable driving performance in different road conditions and harsh environments. In addition, the chassis also adopts an advanced suspension system, which can effectively reduce the impact of road bumps on the vehicle and improve ride comfort and cargo safety.
The Isuzu FVZ chassis also offers excellent power performance and fuel economy. It is equipped with an efficient engine and advanced transmission system to provide sufficient power and flexible handling performance. At the same time, the chassis also adopts a lightweight design, which effectively reduces the weight of the entire vehicle, improves fuel economy, and reduces operating costs.
Product Specifications
|
Vehicle Model |
ISUZU1250WT |
|
|
Vehicle class |
Heavy duty |
|
|
Driving type |
6×4, LHD |
|
|
Vehicle Dimensions and Parameters |
Overall Dimension |
11575×2490×2810 mm |
|
Wheelbase |
5100+1300 mm |
|
|
Front/ Rear Wheel Distance |
1960/1855 mm |
|
|
Front/Rear Suspension |
1335/3325mm |
|
|
Weights and Capacities |
Curb Weight |
8100 kg |
|
GVW |
25000 kg |
|
|
Front Axle Loads |
7000 kg |
|
|
Rear Axle Loads |
1800 kg |
|
|
Engine |
Model |
6HK1-TCH |
|
Power |
300 kw |
|
|
No. of cylinders |
6 |
|
|
Displacement |
7790 ml |
|
|
Fuel type |
Diesel |
|
|
Exhaust Gas Treatment Technology |
DPF |
|
|
Emission Standard |
Euro 5 |
|
|
Cab |
Number of Seats |
3 |
|

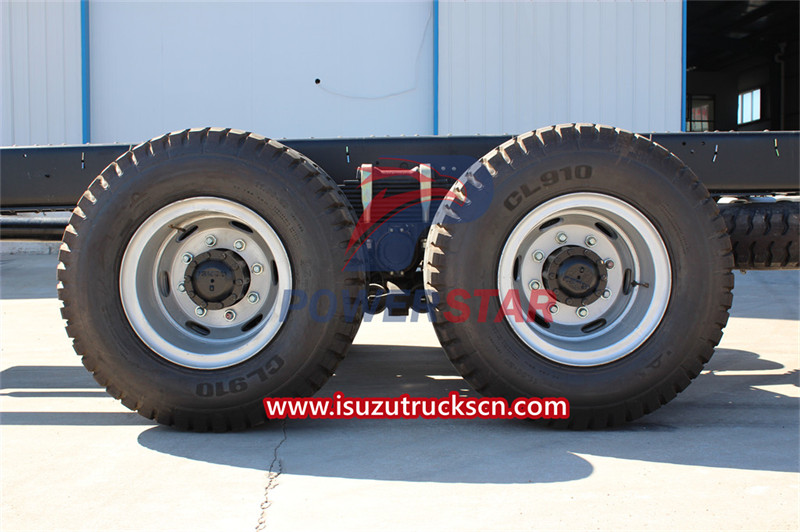

Tire |
Type |
11.00R20 |
|
Nos |
11 (Including Spare Tire) |
|
|

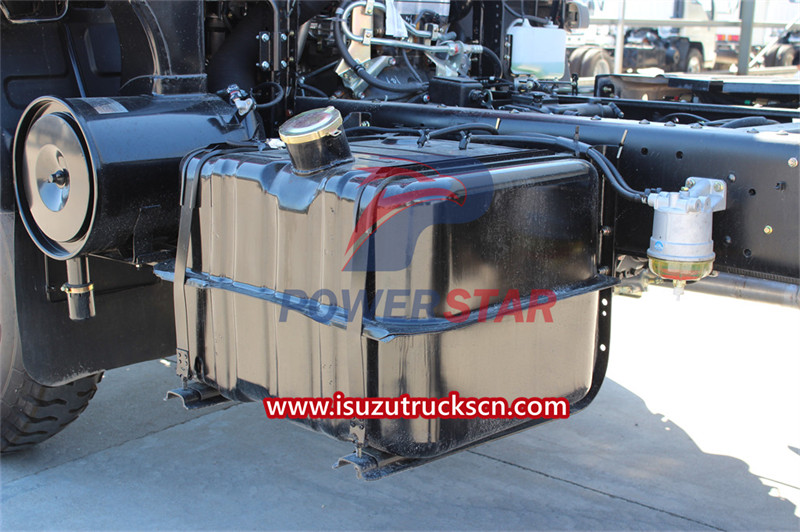

Fuel Tank |
Capacity |
200L |
|
Configurations |
Power Steering System |
|
|
Air Conditioner |
||
|
Retro-reflective Marking |
||
|
ABS |
||
|
Free Maintenance Battery |
||
Product Features

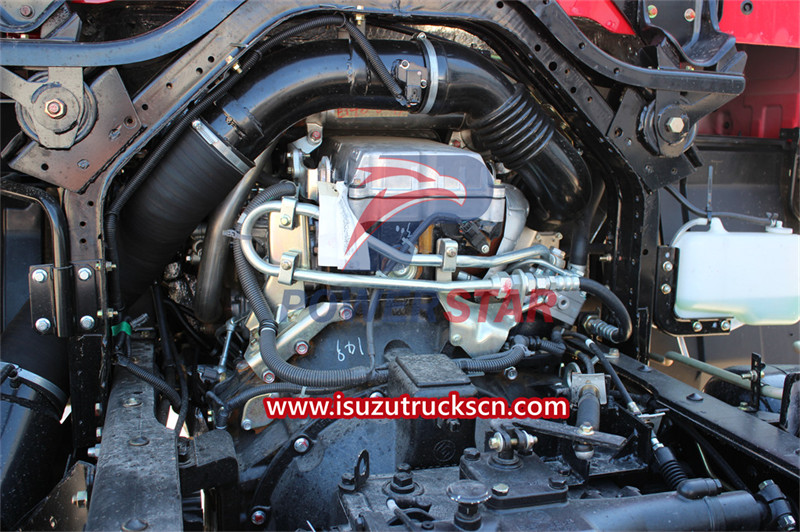

1. The Isuzu FVZ chassis is equipped with a 6HK1 engine with electronically controlled injection technology, which accurately controls fuel injection and power output, and reasonably matches the gearbox and rear axle speed ratio. The maximum speed of the vehicle can reach more than 100km/h, meeting the needs of high-speed logistics transportation.
2. On the premise of ensuring the load-bearing capacity, the design of the frame, axle and other assemblies uses high-strength materials and stamping and welding processes to achieve a lightweight design of the chassis and make the vehicle operation more economical.
3. The Isuzu FVZ chassis is equipped with large-size brakes (widened shoes), brake load sensing proportional valves, engine exhaust brakes and other functional devices to ensure driving safety and make driving safer.
4. The cab is equipped with heating and cooling air conditioning as standard, with multiple air outlets inside and internal and external circulation functions. It adopts a large-sized condenser with an electronic fan, which has strong heat exchange capacity, large air-conditioning cooling capacity, and the lowest temperature of the air outlet is lower than 10°C, which can quickly adjust the temperature in the cab.
5. The Isuzu FVZ chassis is equipped with an inter-axle differential lock, which is used to improve the vehicle's passing ability and climbing ability when driving on muddy roads and climbing steep slopes.
