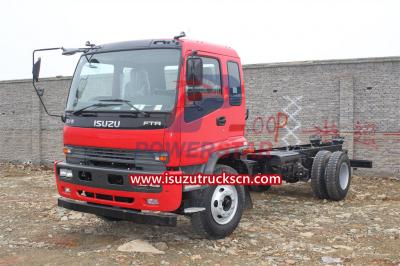

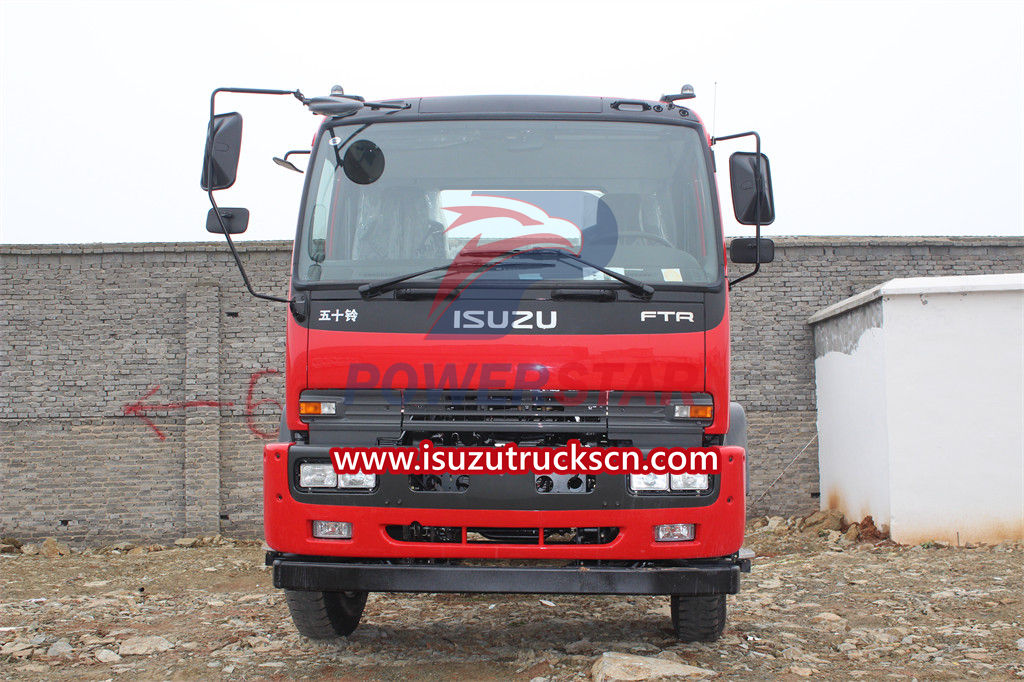

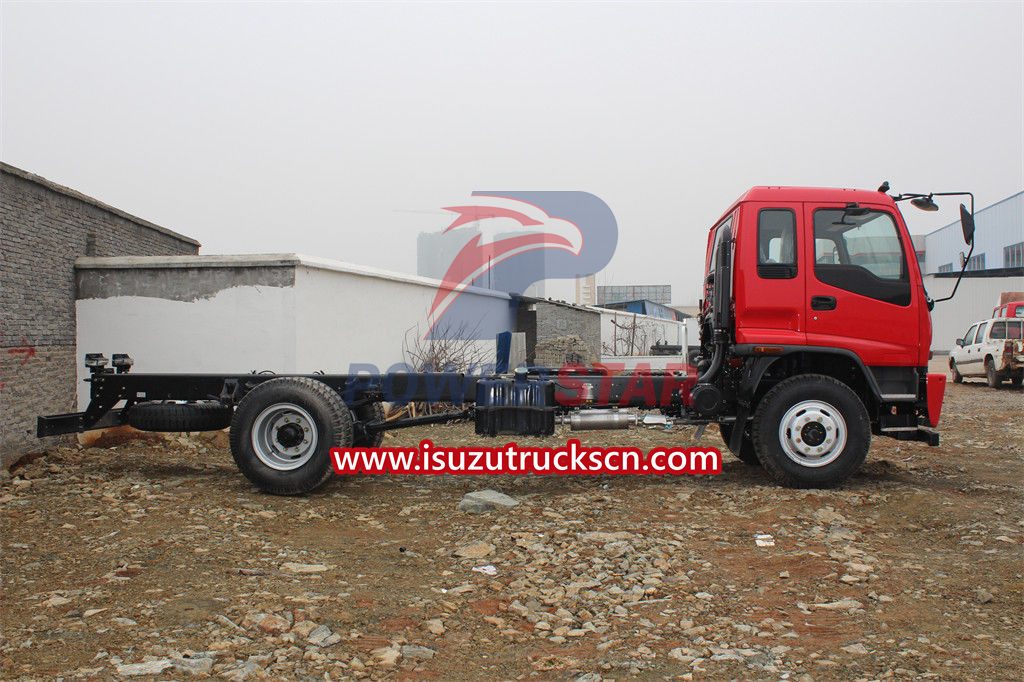

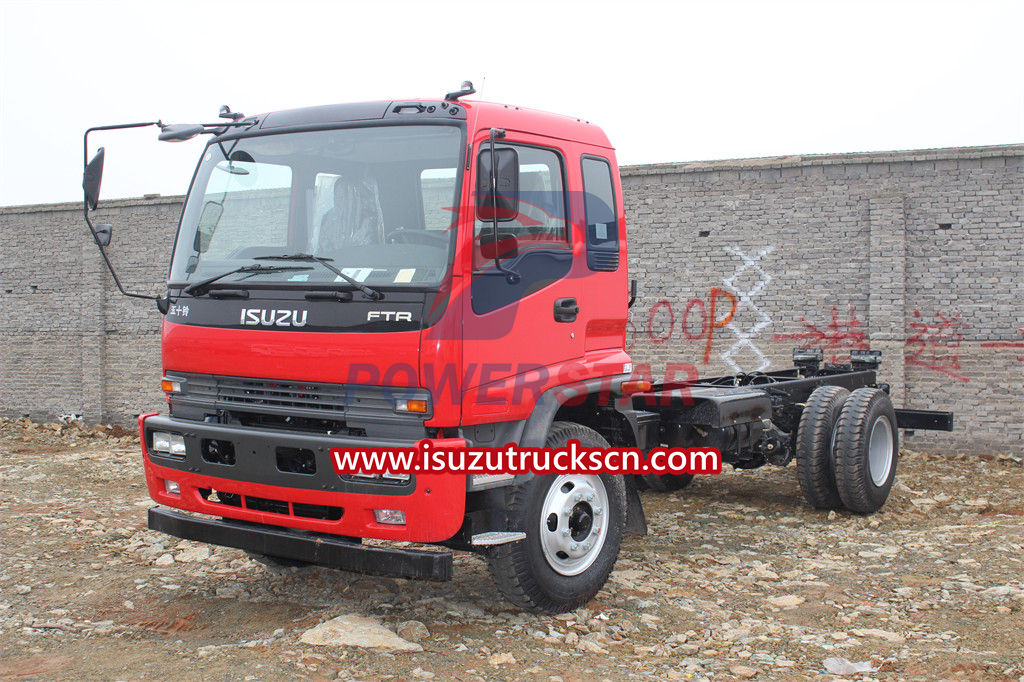

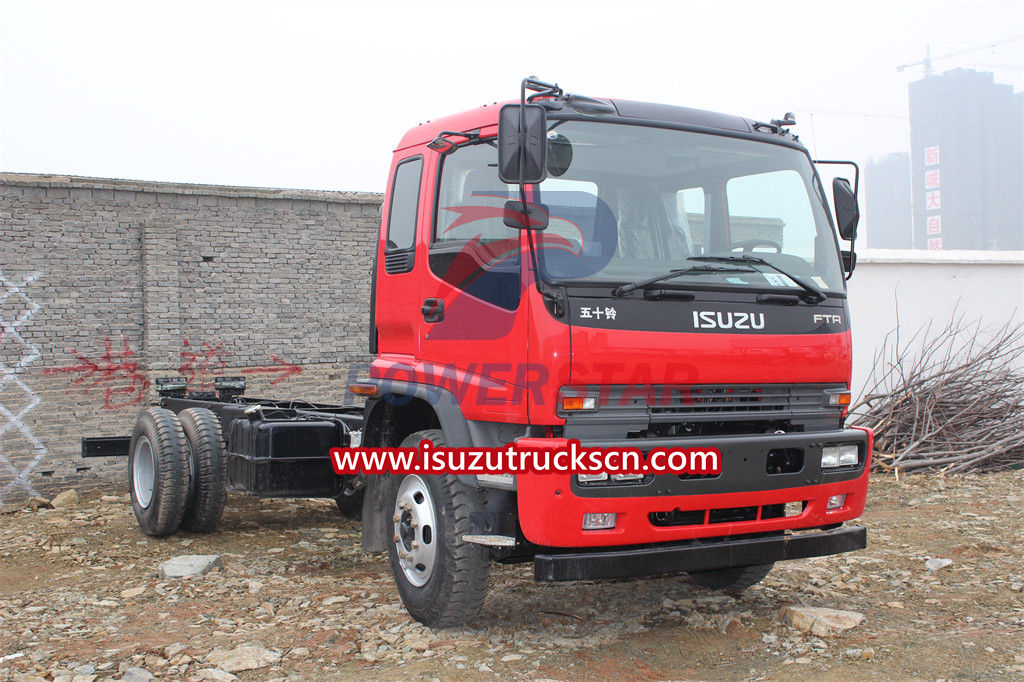

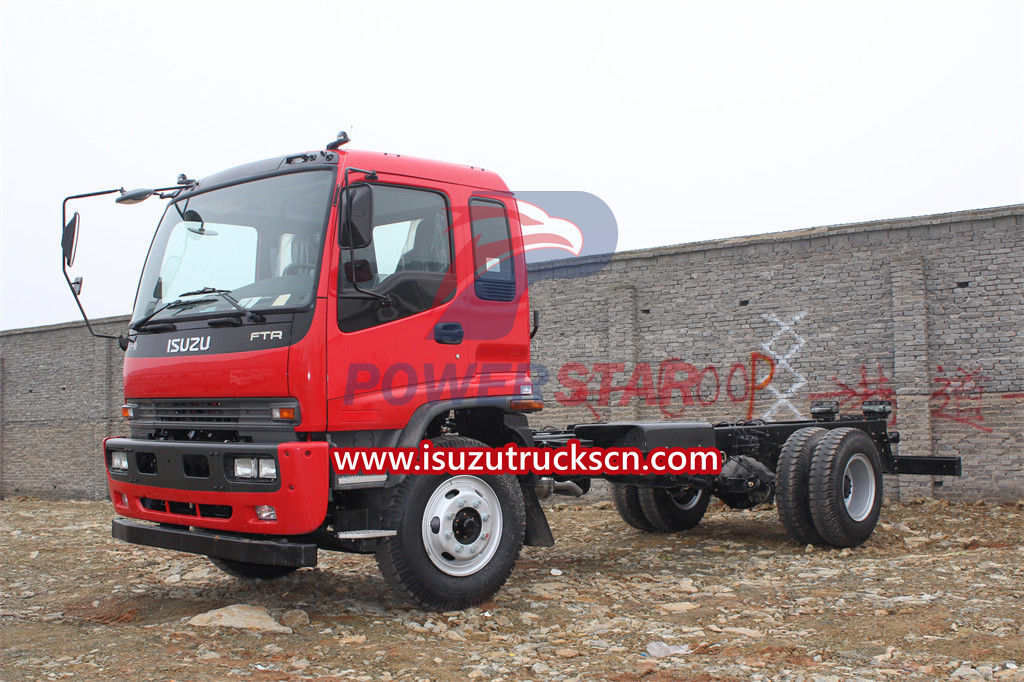

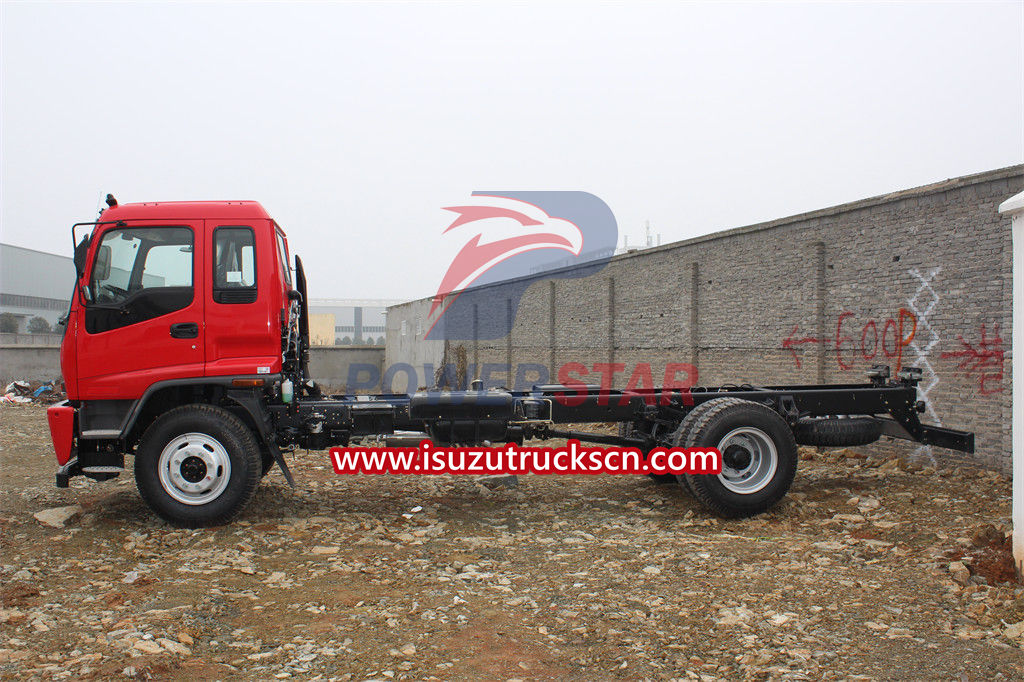

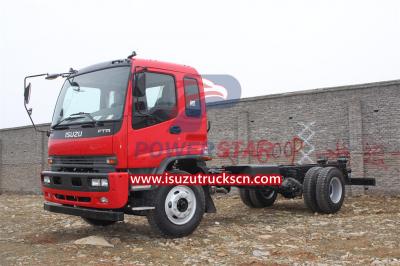

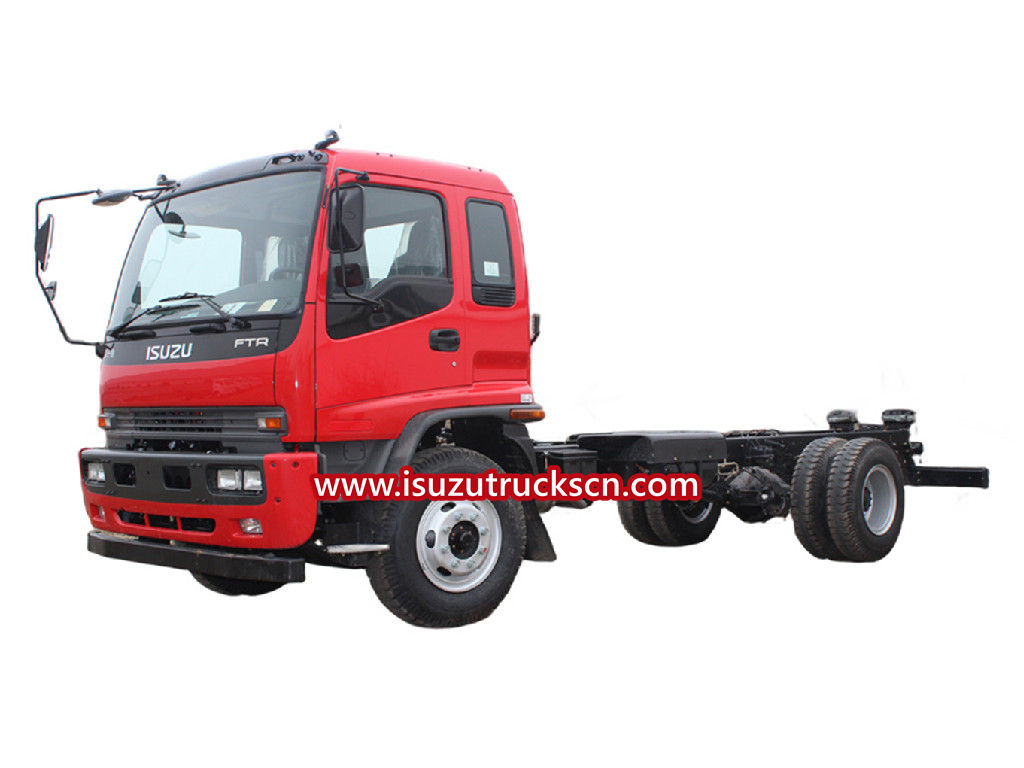

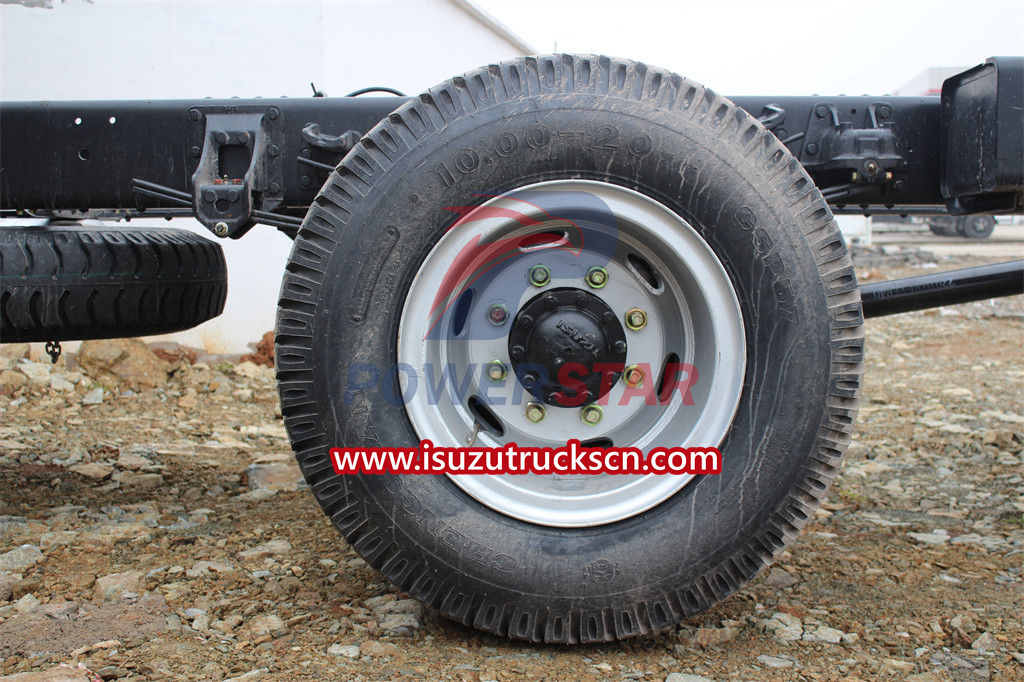

Brand new Japanese ISUZU 4x2 forward medium truck chassis for hot sale, new designed best quality Isuzu 4HK1-TC diesel engine with 205HP and 5193cc emission, Isuzu MLD 6-shift manual gearbox with 6 forward and 1 reverse, full steel welding Isuzu cabinet with forward tilting function, and customized right hand drive steering, comfortable and reliable driving. Optional wheelbase as 3900mm, 4500mm, 5550mm, Standard tires with model 10.00R20, single tire at front and durable tires at rear, also equipped with one set full size spare tire for emergency. Customized white or red cabin as required
Work capacity:
8-13 tonsTruck model:
PT5180DPEngine power:
205 hpEngine type:
4HK1-TCAxle drive:
4x2Gear box:
MLD 6-shift manualRemarks:
Customized to be 4x4 offroad Isuzu truck chassis

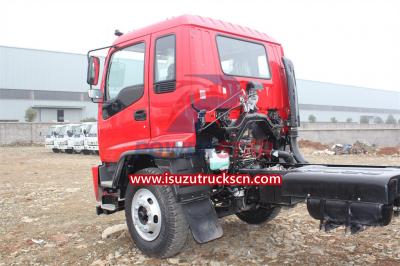

The Isuzu Forward (Japanese: いすゞ・フォワード, Isuzu Fowādo) (also known as the Isuzu F-Series) is a line of medium-duty commercial vehicles offered by POWERSTAR TRUCKS. ISUZU FTR single axle truck chassis following the earlier TY model which occupied the same slot in the market. All Isuzu F-series trucks are cab over designs and the cabin comes fully built from the factory. Most models come with a diesel engine 4HK1-TC 205HP and 5193cc as emission; but, some markets get ELECTRIC derivatives as well. The Isuzu F-series cargo truck is available a variety of cab styles, 4WD or 2WD depending on the market it is sold. Most mid-size and big-size models of the Isuzu trucks are distinguishable by a front 'Forward' badge; but the common Isuzu badge is usually used on the rear. Isuzu FTR truck chassis can be customzied and build as Isuzu FTR garbage compactor truck, Isuzu FTR fire truck, Isuzu FTR vacuum truck, Isuzu FTR sweeper truck, Isuzu FTR fuel truck, etc.
What really makes the Isuzu FTR truck chassis a game-changer is its Low Cab Forward configuration, which allows for:
Products Parameters for ISUZU 4x2 / 4x4 forward medium diesel engine truck chassis:
POWERSTAR produced and export ISUZU FTR single axle truck chassis Convention-defying power is second nature to the Isuzu F-Series. Each model is fitted with a 5.193L Isuzu turbocharged intercooled diesel engine capable of commanding up to 205 hp and 520 lb-ft of torque. Isuzu MLD 6-speed manual transmission with 6 forward and 1 reverse, also power take-off (PTO) capability makes the most of output. ISUZU F-series Forward truck chassis conservative fuel-use and a standard 50-gallon or available 100-gallon fuel tank extends your driving range, and the engine carries a B-10 durability rating of 375,000 miles. That means 90% of engines should reach that mileage before requiring an overhaul.
| Wheelbase | mm | 4500 |
| Drive Type | 4x2 | |
| Weight | GVW(kg) | 18000 |
| Curb Weight(kg) | 5250 | |
| Payload(kg) | 10000 | |
| Overall Size | Length(mm) | 7570 |
| Width(mm) | 2490 | |
| Height(mm) | 2810 | |
| Cab | Double/Single | One and half |
| Driver&Passenger | 1+2 | |
| Engine | Model | 4HK1-TC |
| ENGINE | 4HK1-TC | |
| RATED POWER ( KW) | 150 | |
| MAX. NET POWER KW | 151kw | |
| DRIVE TYPE | 4x2 / 4x4 | |
| POWER(HP) | 205 hp | |
| CABIN | One and half | |
| DIMENSIONS (LENGTH*WIDTH* HEIGHT) | 6435x2490x2750 | |
| MAX.SPEED | 105 | |
| ENGINE | Japanese technology | |
| RATED POWER ( KW) | 177 | |
| Transmission | MLD-6Q | |
| DRIVE TYPE | 4*2 | |
| CABIN | HIGH ROOF | |
| DIMENSIONS (LENGTH*WIDTH* HEIGHT) | 7570*2490*2810 | |
| MAX.SPEED | 95 | |
| GVW (kg) | 18000 | |
The ISUZU FTR forward cargo truck chassis is an ideal truck chassis suitable for all kinds of works:

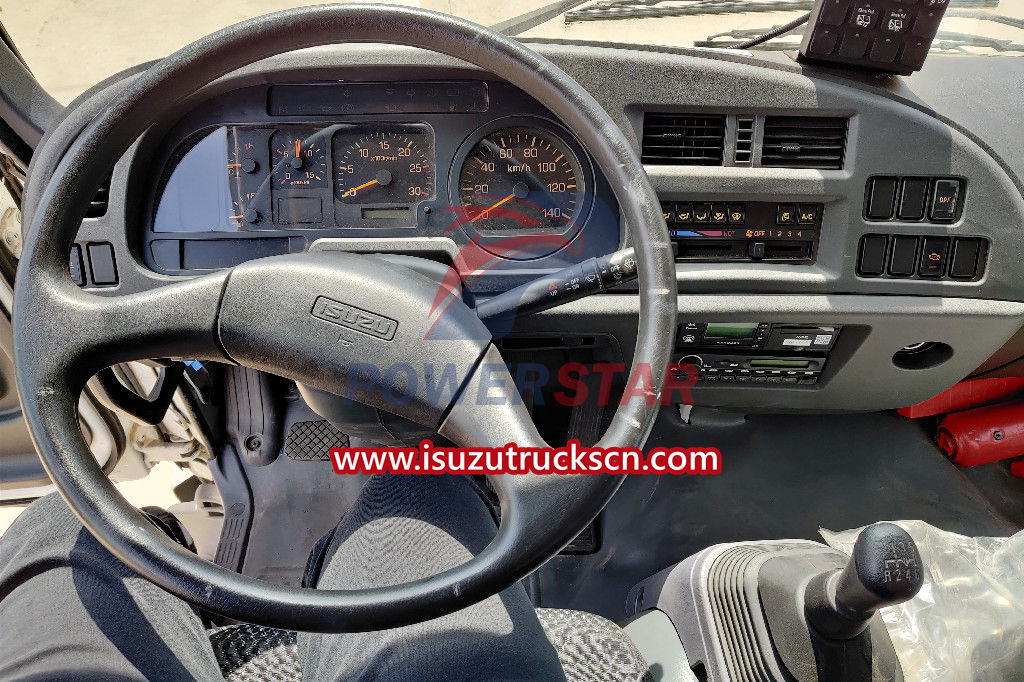

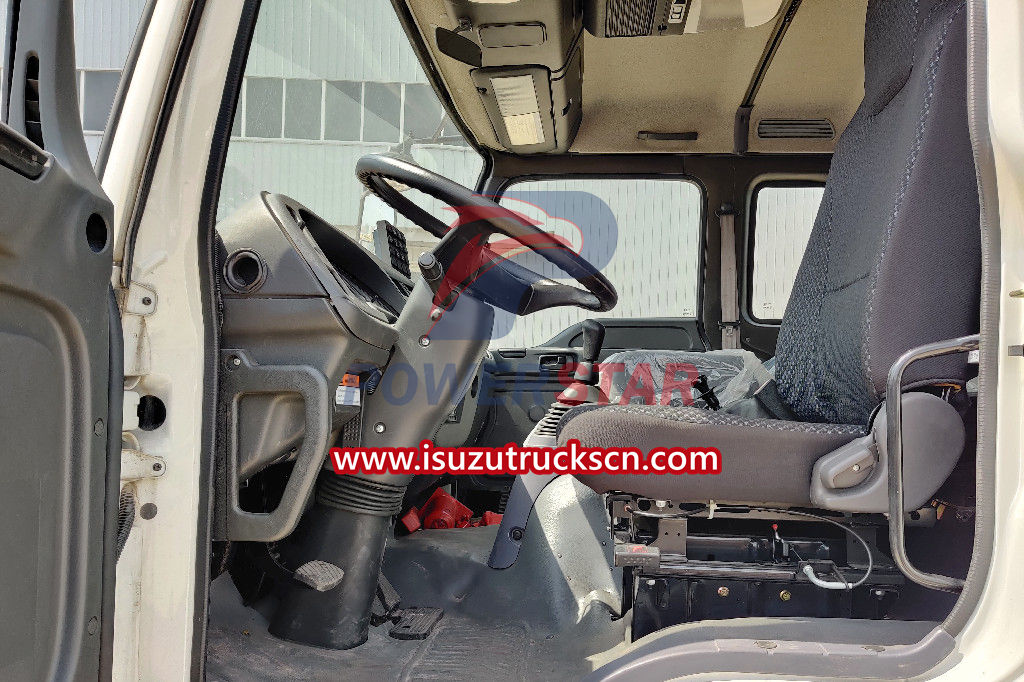

Brand new ISUZU F series truck chassis, which included FTR / FRR / FSR / FVR truck chassis, and to be mounted with 4HK1-TC diesel engine, with engine power can be 205HP, four stroke, 4 Cylinders in line, turbo charging, inter cooling, high pressure common-rail diesel injection system, liquid-cooled engine. 4x2 or 4x4 truck drive model with front axle 6.3tons and rear axle 13tons. In cabin comfortable driving feeling with Air conditional equipped, also AM/FM radio and USD MP3 for video play. The truck can be mounted with ISUZU FTR garbage compactor truck, Isuzu FTR road sweeper truck, Isuzu FTR sewage truck, Isuzu FTR fire truck, Isuzu FTR tanker trucks, Isuzu FTR dump truck, etc.
