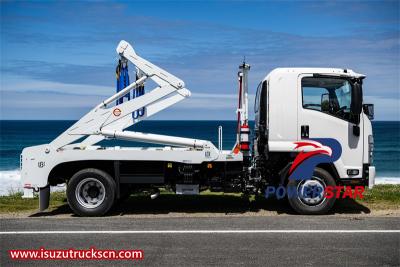

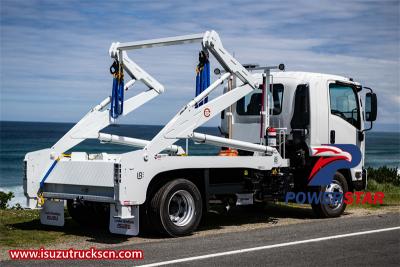

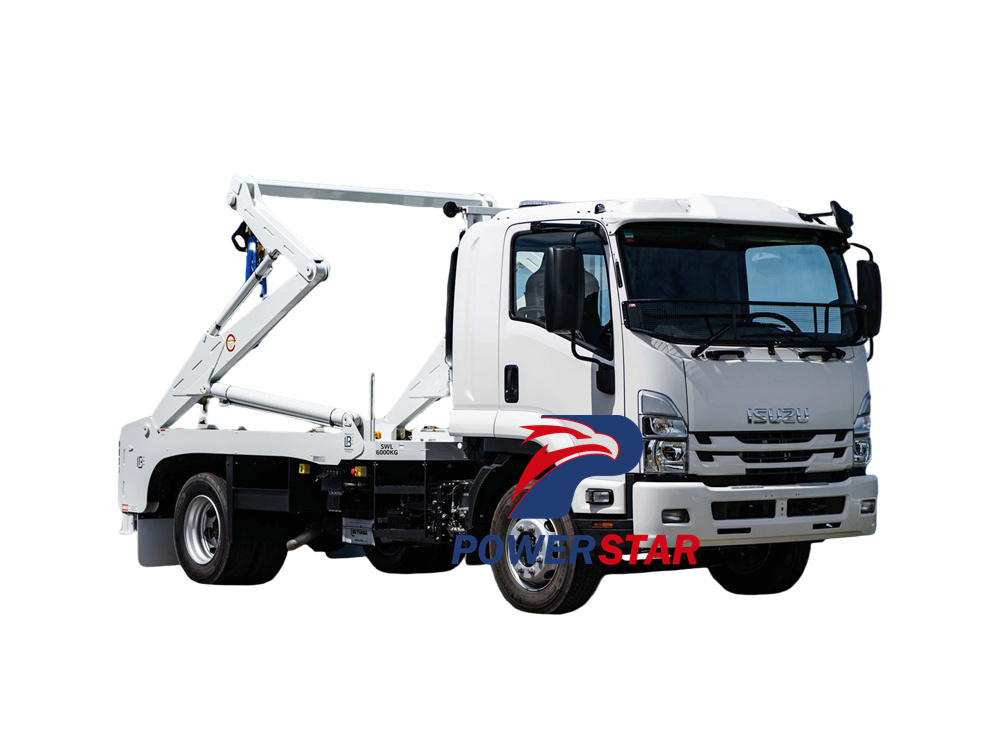

Isuzu GIGA Skip Loader Truck is designed to collect and transport municipal solid waste.The truck can be used in urban and suburban areas. The bin at the back of the truck can be placed on the ground to collect waste in a fixed location. When the bin is full, the truck lifts it to a flat area. Place the trash on the bed in the back of the truck and dump it into the trash center.
Work capacity:
10 tonsTruck model:
PT5180GSWEngine power:
380HPEngine type:
6UZ1-TCG61Axle drive:
4X2Gear box:
Fast 12-speed, manualRemarks:
Best price, customized color
Isuzu GIGA Skip Loader Truck also called Isuzu GIGA arm skip truck, Isuzu GIGA skip refuse truck,Isuzu GIGA swing arm refuse truck,Isuzu refuse collection truck,Isuzu rubbish truck, Isuzu skip bin loader,Isuzu bin lorry, Isuzu waste collection vehicle，the Isuzu GIGA skip loader truck is a professional loading tool, mainly used for earth moving,garbage removal, ore loading and unloading in construction sites, mining sites, logistics centers and other fields.
Advantage:
|
Manufacture |
PowerStar Trucks industry Co.,Limited |
|
|
Product Name |
Isuzu GIGA skip loader truck |
|
|
Vehicle Brand Series |
Isuzu GIGA |
|
|
Vehicle Model |
PT5180GSW |
|
|
Chassis parameter |
Chassis brand |
ISUZU GIGA heavy-duty |
|
Overall dimensions (L x W x H)mm |
8100x2200x2850 |
|
|
Wheel base (mm) |
4500 |
|
|
Driving type |
4x2, RHD |
|
|
Approach/Departure angle |
18/19 |
|
|
Weight in KGS |
Tare Weight |
9825 |
|
payload |
18000 |
|
|
Front axles loading capacity |
7500 |
|
|
Rear axles loading capacity |
13000 |
|
|
Max. driving speed(km/h) |
95 |
|
|
Engine |
Brand |
ISUZU |
|
Model |
6UZ1-TCG61 |
|
|
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Horse Power(HP) |
380HP |
|
|
Emission standard |
Euro5/6 |
|
|
Material of garbage container |
Q235 carbon steel |
|
|
Operation control system |
Electrically hydraulic control |
|
|

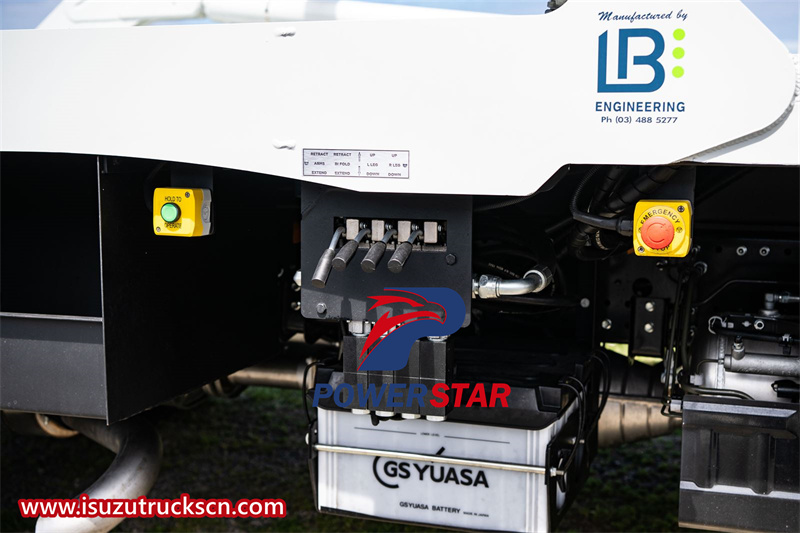

Swing arm operating system |
Power take-off, balance valve, oil pipe, fuel tank, oil pump, manual mutil-way reversing valve, balance valve, one-way hydraulic lock, etc. |
|
|
Especially suitable for |
Short distance transportation, sanitation department cleaning, transportation, etc. |
|
|
Swing arm maximum pivot angle |
145 |
|
|
Hoisting time |
30S |
|
|
Unloading time |
50S |
|
The Isuzu GIGA Skip Loader Truck is a special vehicle that combines the advanced technology of the Isuzu GIGA series vehicles with the unique functions of the dump-type garbage truck. It has complete functions, superior performance, comfort and safety, and can meet various needs of urban sanitation work.

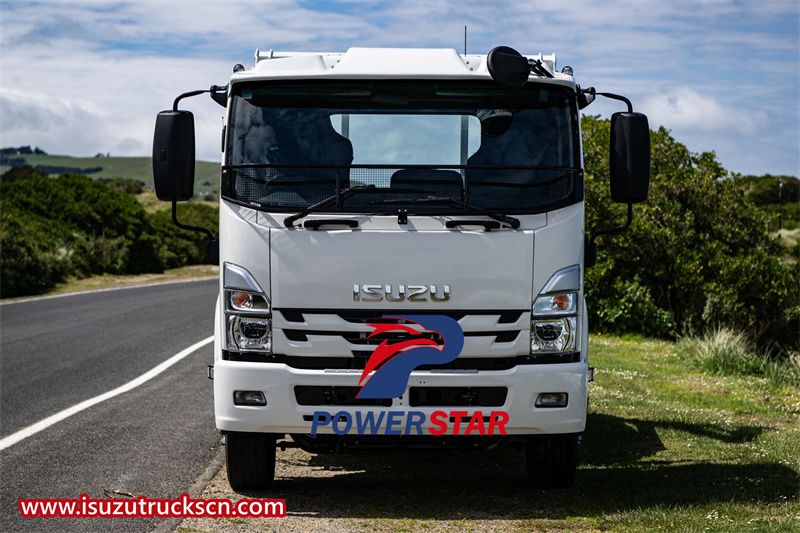

1. Appearance design: Isuzu GIGA skip loader truck inherits the characteristics of Isuzu GIGA series vehicles and has a cool appearance. Its front face may use a large-size chrome-plated air intake grille, showing a "V"-shaped design, highlighting its unique temperament. The body lines are smooth and the shape is generous and regular. At the same time, in order to meet the working needs of the dump truck, the body structure design may be specially optimized to ensure stability and durability.
2. Tipping bucket function: The main feature of the tipping bucket garbage truck is its tipping bucket design, which can easily load and unload garbage. The tipping mechanism of the Isuzu GIGA skip loader truck is carefully designed and easy to operate, enabling fast and efficient garbage disposal. At the same time, the vehicle's sealing performance is good, which can effectively prevent the scattering and secondary pollution of garbage during transportation.
3. Power performance:Isuzu GIGA skip loader truck is equipped with an efficient and reliable Isuzu engine, providing strong power output. Its power covers multiple horsepower ranges and can meet the needs of different working scenarios. At the same time, the vehicle is equipped with advanced transmission and suspension systems to ensure stable driving performance under complex road conditions.

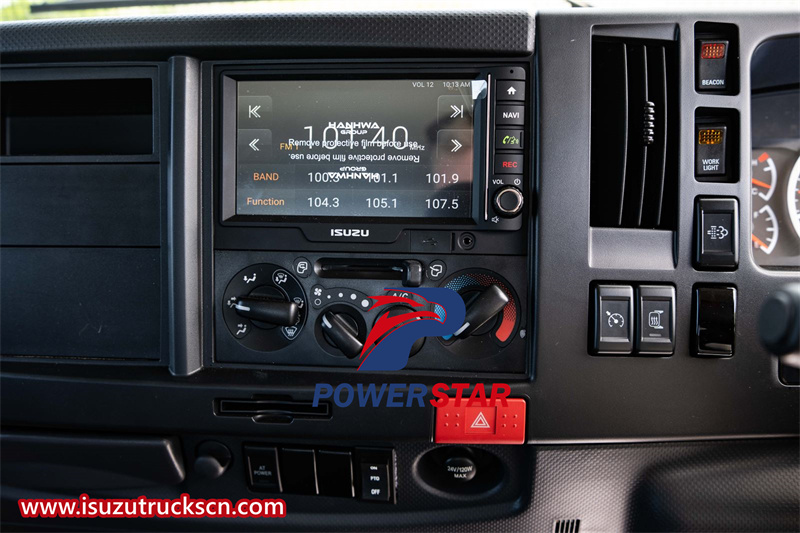

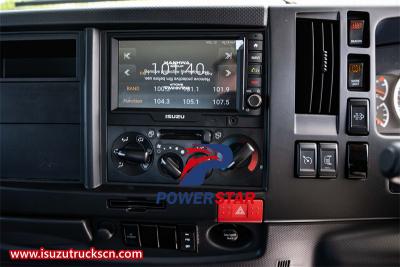

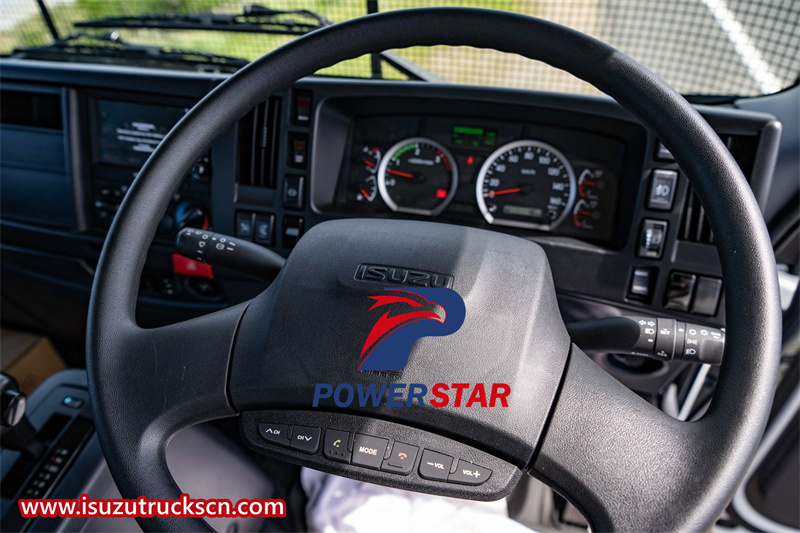

4. Comfort configuration:Isuzu GIGA skip loader truck pays attention to the comfort configuration of the cab. The driving space is spacious and the visibility is good, providing the driver with a comfortable working environment. At the same time, the vehicle may be equipped with luxurious features such as leather airbag seats and multi-function steering wheel to enhance the driving experience.
5. Safety performance: Isuzu GIGA dump truck also has excellent performance in terms of safety performance. Vehicles can be equipped with active safety configurations such as ABS anti-lock braking systems and EBD electronic brake force distribution systems, as well as passive safety configurations such as high-strength body structures and multiple safety protection devices to ensure the safety of drivers and vehicles. Maximum protection and safety can be obtained in emergency situations.

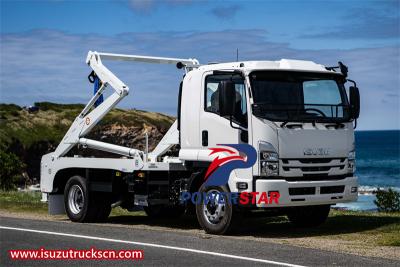

Isuzu GIGA skip loader truck
Isuzu GIGA swing arm refuse truck
Isuzu giga skip refuse truck
Skiep loader garbage truck Isuzu, also called as Isuzu skip lorry trucks, Mini skip trucks Isuzu, Arm roll vehicle Isuzu, multi loader vehicles, Isuzu skip lorry with Extending arms. Isuzu brand Skip loader trucks are used to transport and dispose of various materials, including soil, waste, construction debris, and heavy equipment. They are valued for their versatility and efficiency in handling heavy loads and are commonly used in tasks such as waste disposal, construction, and landscaping.
