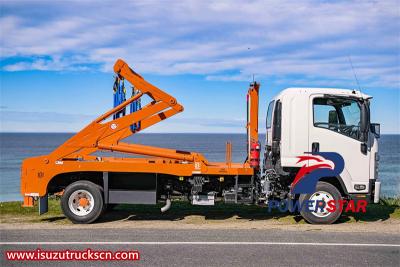

Philippine ISUZU NPR 8 CBM Skip Refuse Loader

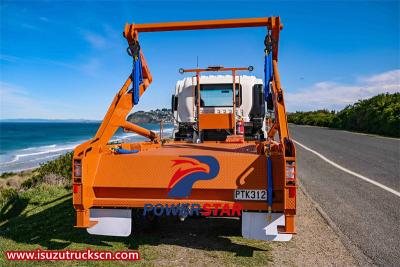

Philippine ISUZU NPR 8 CBM Skip Refuse Loader

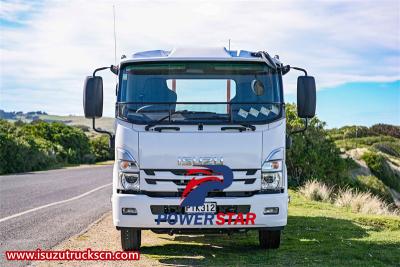

Philippine ISUZU NPR 8 CBM Skip Refuse Loader

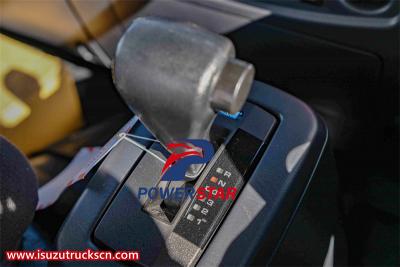

Philippine ISUZU NPR 8 CBM Skip Refuse Loader

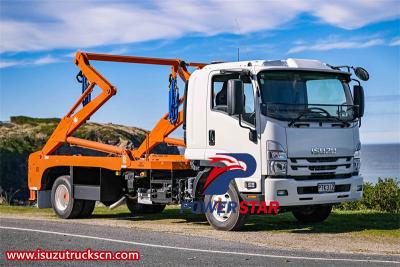

Philippine ISUZU NPR 8 CBM Skip Refuse Loader
Philippine ISUZU NPR 8 CBM Skip Refuse Loader
Philippine ISUZU NPR 8 CBM Skip Refuse Loader
Philippine ISUZU NPR 8 CBM Skip Refuse Loader
Philippine ISUZU NPR 8 CBM Skip Refuse Loader
Philippine ISUZU NPR 8 CBM Skip Refuse Loader
Philippine ISUZU NPR 8 CBM Skip Refuse Loader
Philippine ISUZU NPR 8 CBM Skip Refuse Loader
Philippine ISUZU NPR 8 CBM Skip Refuse Loader
Philippine ISUZU NPR 8 CBM Skip Refuse Loader

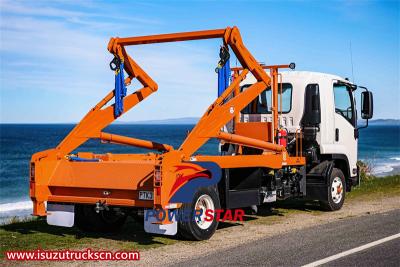

ISUZU NPR 8 CBM Skip Refuse Loader

Isuzu NPR 8 cbm skip refuse loader is a kind of sanitation vehicles garbage collection,with a hydraulic swing arm mechanism to lift and put down the skip bin lifter,bin lifter carrier skip loading garbage trucks can transfer lift garbage,and the Isuzu skip refuse loader can work with 8cbm bin which is high efficiency.

  • Work capacity:

    8cbm
  • Truck model:

    PT5080GSW
  • Engine power:

    190HP
  • Engine type:

    4HK1-TCG61
  • Axle drive:

    4x2, RHD
  • Gear box:

    Isuzu MLD 6-speed,manual
  • Remarks:

    Isuzu NPR chassis

Isuzu NPR 8 cbm skip refuse loader is also called Isuzu NPR swing arm garbage truck,Isuzu skip lift garbage truck,Isuzu skip collection truck, Isuzu skip loader garbage truck,Isuzu skip bin container truck.Isuzu NPR 8 cbm skip refuse loader is a garbage truck with a detachable body container. Which could enable one truck with several garbage containers for recycle use. It could be equipped with a cover to prevent dropping any rubbish.



The vehicle is suitable for city, street, school garbage collection and treatment, the vehicle is characterized by the garbage bin and the car body can be separated, can realize a vehicle and multiple garbage hopper joint operation, the whole vehicle with self-dumping function, hydraulic operation, circular transportation, fully improve the transportation capacity of the ehicle, especially suitable for short-distance transportation, such as sanitation part of the urban garbage cleaning, transportation, etc. It is suitable for the collection and transfer of towns, with simple structure and flexible operation Transhipment.

isuzu NKR skip refuse loader Advantage:



Isuzu NPR 8 cbm skip refuse loader adopts reinforced hook arm sub-beam frame, double thick hydraulic cylinder hook and pull, the rear is equipped with hydraulic outriggers to prevent the cab from tilting when the hook is lifted, manual electric control dual control system, designed exhaust gas heating device. Hydraulically complete the operations such as upper box + lower box + locking + self-unloading, and realize the cyclic transfer of multiple boxes in one truck.





Manufacture

PowerStar Trucks industry Co.,Limited

Product Name

Isuzu NPR 8 cbm skip refuse loader

Vehicle Brand Series

Isuzu NPR

Vehicle Model

PT5080GSW

Chassis parameter

Chassis brand

ISUZU NPR

Overall dimensions (L x W x H)mm

7200x2200x2800

Wheel base (mm)

4175

Driving type

4x2, RHD

Approach/Departure angle

18/19

Tire size

235/75R17.5

Weight in KGS

GVW

11000

Kerb weight

5400

payload

5320

Front axles loading capacity

4000

Rear axles loading capacity

7000

Engine

Max. driving speed(km/h)

110

Brand

ISUZU

Model

4HK1-TCG61

Type

4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

190HP

Emission standard

Euro5/6

Garbage container

Material

Q235 carbon steel

Container capacity

8cbm

Operation control system

Electrically hydraulic control

Swing arm operating system

Power take-off, balance valve, oil pipe, fuel tank, oil pump, manual mutil-way reversing valve, balance valve, one-way hydraulic lock, etc.

Usage environment

Short distance transportation, sanitation department cleaning, transportation, etc.

Swing arm maximum pivot angle

145

Hoisting time

30S

Unloading time

50S







The Isuzu NPR 8 cbm Skip Refuse Loader is an efficient waste loader designed to increase waste collection and disposal efficiency. The following are the main features of this vehicle:

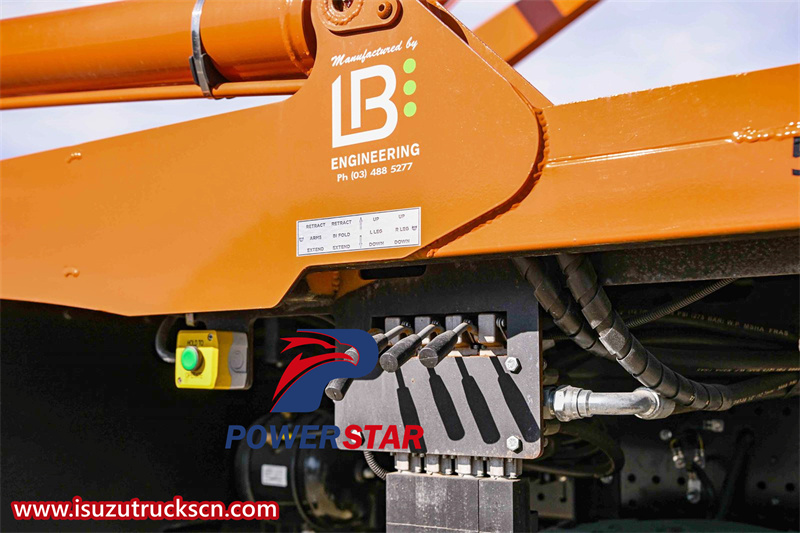

●  Hydraulic System: Consists of oil tank, oil pump, multi-way directional valve, hydraulic cylinder, balance valve, hydraulic lock, oil filter and pipeline, ect.

●  Power: Obtains power from engine and transmits it to the oil pump through the transmission shaft to drive the oil pump to rotate.

●  Loading and Unloading: Operation of the multi-way directional valve can control the expansion movement of the swing arm hydraulic cylinder and the supporting leg hydraulic cylinder respectively to complete the loading and unloading of the crane.

●  Safety: Equipped with balance valve and hydraulic lock. The balancing valve can ensure the smooth and safe movement of the swinging arm and prevent the hopper from stalling. Hydraulic lock can prevent the leg hydraulic cylinder in the work of soft leg phenomenon and prevent the leg accidentally out in the driving.

●   Swing Arm Mechanism: Box structure made of welded steel plates. The swing arm hydraulic cylinder can be driven to rotate back and forth around the swing axis by operating the multi-way directional valve with the Max. swing angle of 145°.

●  Hopper: It is a metal welding piece, available in open and sealed. When the bulk cargo is loaded into the hopper, the hopper can be hoisted onto truck by hanging chain and swing arm operation. When discharging, the swing arm is used to lift the hopper. After landing, the lifting chain at one end can be used to discharge the hopper. Max. tilting angle of the hopper is 86°.

 Isuzu npr 8cbm skip refuse loader

 Isuzu NPR 8cbm skip refuse loader

Isuzu npr 8cbm skip refuse loaderIsuzu NPR 8cbm swing arm garbage truck



  • Isuzu npr 8cbm skip refuse loader
  • Isuzu npr 8cbm skip refuse loader
  • Isuzu npr 8cbm skip refuse loader
